MODE D'EMPLOI VMA500 VELLEMAN

velleman®

VMA500

2WD MOTOR CHASSIS ROBOTICS KIT

Hand-drawn wooden vehicle with a yellow tire and red/blue wiring, mounted on a wheeled platform (no text or symbols visible)

USER MANUAL

CE

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman ^® ! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

- Indoor use only. Keep away from rain, moisture, splashing and dripping liquids.

3. General Guidelines

- Refer to the Velleman ® Service and Quality Warranty on the last pages of this manual.

- Familiarise yourself with the functions of the device before actually using it.

- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

- Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.

- Due to constant product improvements, the actual product appearance might differ from the shown images.

- Product images are for illustrative purposes only.

- Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.

- Keep this manual for future reference.

4. Features

This kit makes creating your own robot easier than ever.

• pre-drilled mounting plates
• one DC motor + gearbox per wheel

5. Parts Overview

6. Tools Needed

Two pliers and a screwdriver tool on a plain white background (no text or symbols visible)

Feel free to use the Velleman® VT046 miniature needle pliers and screwdriver.

7. Assembly

Step 1: Assemble the motor.

Yellow plastic motor with black and red wires connected to a small white electrical socket (no text or symbols visible)

Close-up of a yellow mechanical component with black and red wires, attached to a metallic bracket (no text or symbols visible)

Yellow and black plastic component with red wires, no visible text or symbols

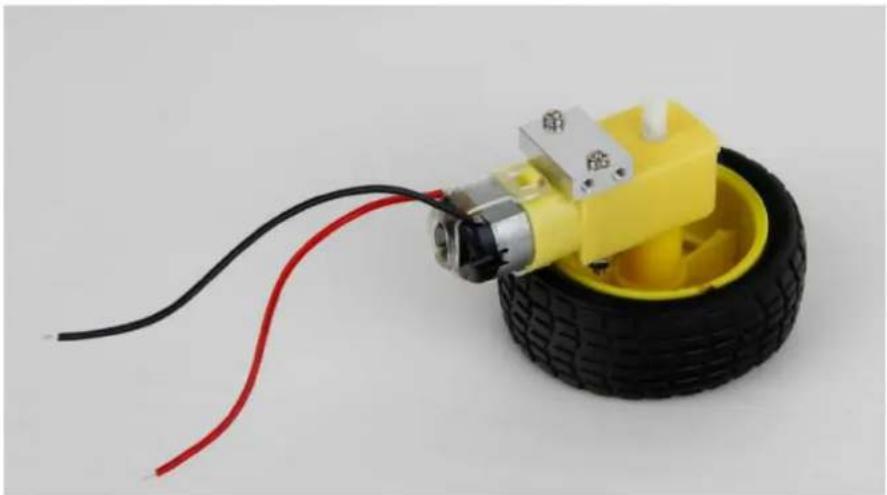

Step 2: Fix the wheel to the motor.

Two toy wheel components: a yellow robotic arm and a black tire with orange center (no text or symbols visible)

Yellow and black toy car with red and black wires attached to a tire (no text or symbols visible)

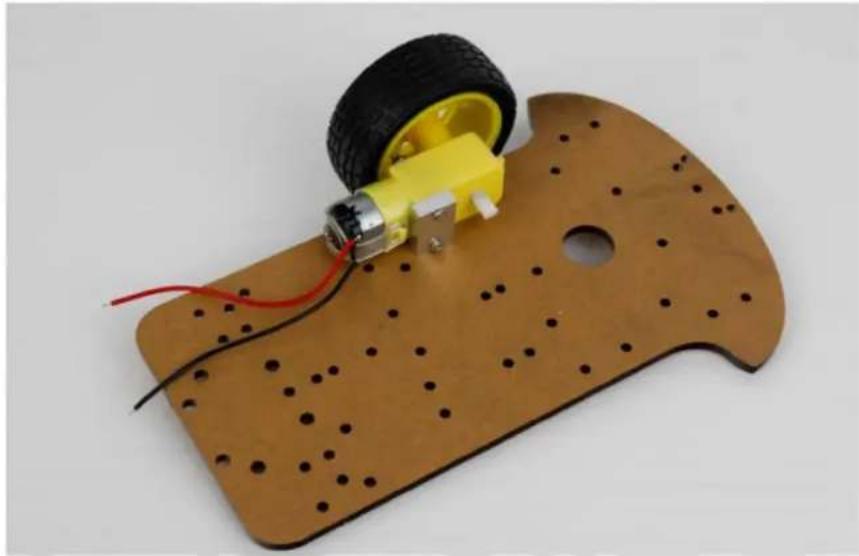

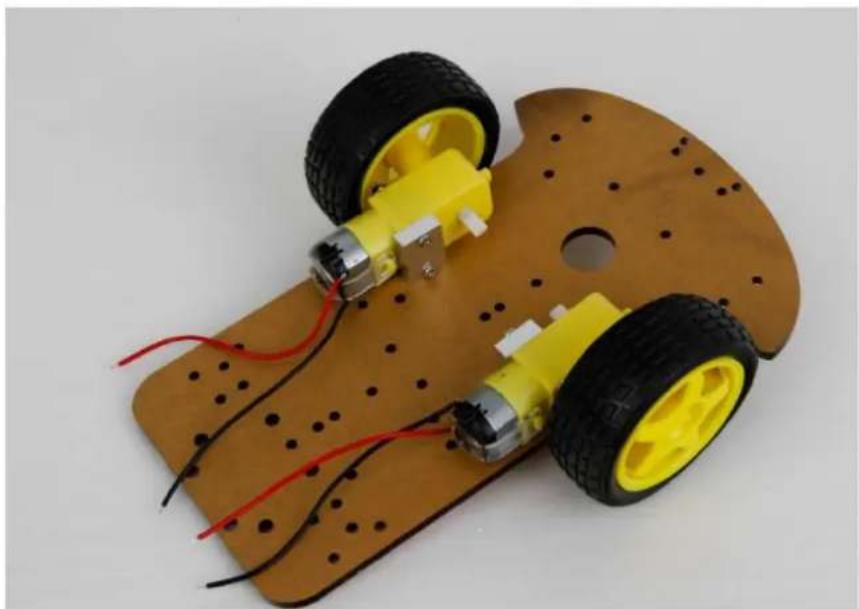

Step 3: Install the motor-wheel assembly to the bottom board using holes 1 and 2.

Two wooden components: a yellow tire with wires and a blue t-shirt with red markings, next to a grid-patterned sheet (no text or symbols visible)

Wooden mechanical device with a yellow and black tire mounted on a brown base, connected by wires (no text or symbols visible)

Two small mechanical components: a brown board with black wheels and a yellow motor wheel, connected by wires (no text or symbols visible)

Wooden toy car with yellow wheels and red wiring, no visible text or symbols

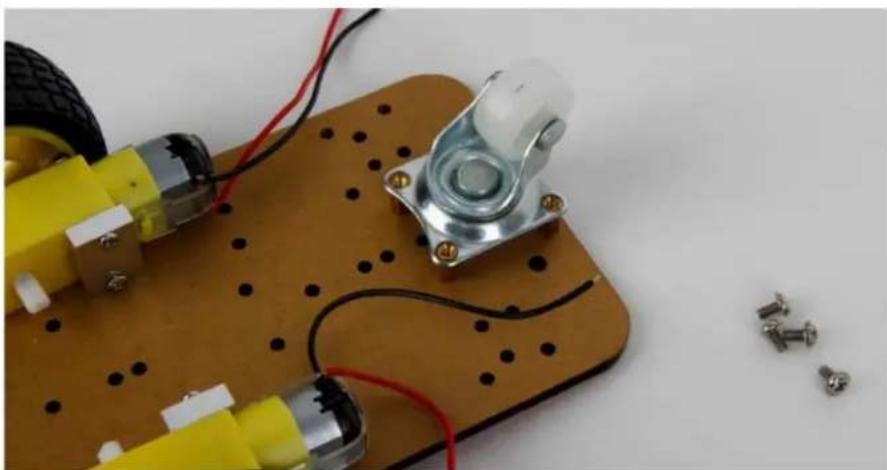

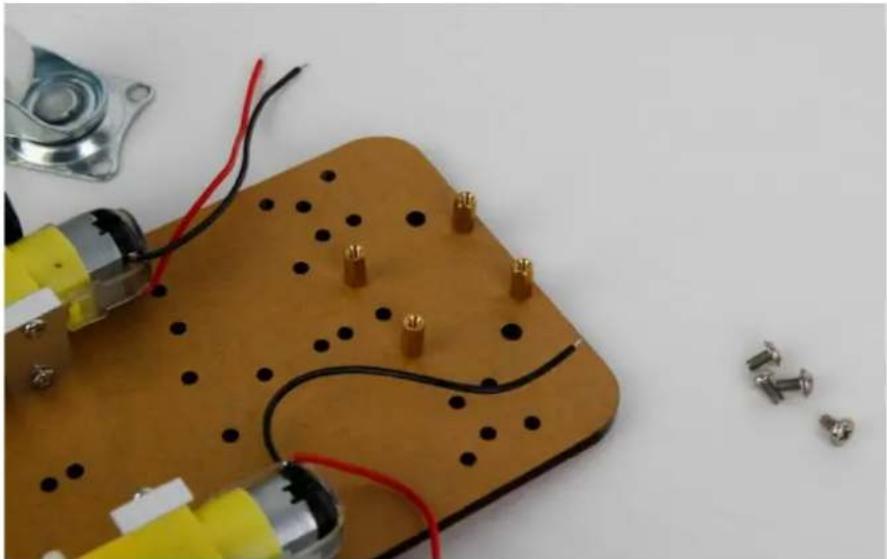

Step 4: Fix the front wheel.

Wooden robotic car with yellow wheels and red wiring, accompanied by small mechanical components (no text or symbols visible)

Electronic circuit board with soldered components and wiring, no visible text or symbols

Close-up of a small electronic device with yellow and black components, wires, and screws on a brown board (no text or symbols visible)

Wooden robotic vehicle with yellow wheels and black tires, connected by wires (no text or symbols visible)

Close-up of a small wheeled robot with yellow wheels and red wiring, mounted on a wooden board (no text or symbols visible)

Step 5: Fix the top board using holes 3, 4 and 5.

Wooden car with yellow wheels and a brown board, accompanied by small components (no text or symbols visible)

Two electronic devices: a wooden cart with 'CYLIC sheet' and a brown board with test probes (no visible text or symbols on the main components)

Top-down view of a small robotic vehicle with yellow wheels and red wiring on a brown wooden base (no text or symbols visible)

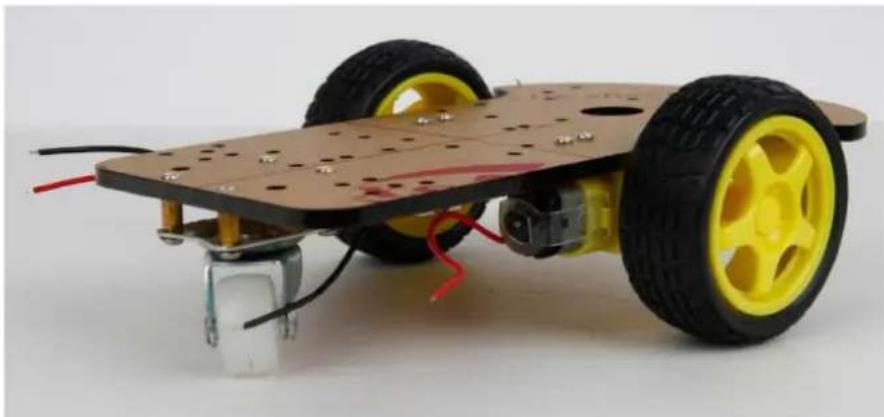

Step 6: Assembled product.

Hand-drawn wooden vehicle with a cardboard panel and yellow wheels, no visible text or symbols

8. Technical Specifications

motor voltage 5-10 VDC
