FC-16 S - Déclencheur à distance Neewer - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Déclencheur à distance sans fil
Marque	Neewer
Modèle	FC-16 S
Technologie	2.4 GHz
Portée maximale	100 mètres
Compatibilité	Appareils photo avec prise de déclencheur ou récepteur adapté
Fonctions principales	Déclenchement, mise au point automatique (demi-course), prise en charge du mode Bulb
Alimentation	Pile bouton CR2032 (émetteur et récepteur)
Dimensions émetteur	Environ 85 x 30 x 12 mm
Poids émetteur	Environ 30 g (avec pile)
Dimensions récepteur	Environ 45 x 30 x 15 mm
Poids récepteur	Environ 20 g
Matériau	Plastique ABS
Entretien et nettoyage	Nettoyer avec un chiffon sec. Éviter l'humidité et les produits chimiques.
Sécurité	Ne pas exposer à l'eau. Ne pas démonter. Utiliser en intérieur sec de préférence.
Pièces détachées et réparabilité	Piles de rechange disponibles. Non réparable par l'utilisateur. Contacter le SAV.

FOIRE AUX QUESTIONS - FC-16 S Neewer

Comment installer le déclencheur sans fil Neewer FC-16 S ?

Insérez une pile CR2032 dans l'émetteur et le récepteur. Branchez le récepteur sur la prise de déclencheur de votre appareil photo. Allumez l'appareil et l'émetteur. Appuyez sur le bouton de l'émetteur pour déclencher.

La portée du déclencheur est-elle suffisante pour une utilisation en extérieur ?

Oui, le Neewer FC-16 S offre une portée allant jusqu'à 100 mètres en espace dégagé, ce qui est idéal pour les prises de vue en extérieur.

Comment remplacer la pile du déclencheur ?

Ouvrez le compartiment à piles situé à l'arrière de l'émetteur ou du récepteur. Remplacez la pile CR2032 usagée par une neuve, en respectant la polarité. Refermez le compartiment.

Le déclencheur fonctionne-t-il avec mon appareil photo ?

Le Neewer FC-16 S est compatible avec la plupart des appareils photo reflex numériques et sans miroir disposant d'une prise de déclencheur standard (2,5 mm ou 3,5 mm). Vérifiez le connecteur de votre appareil.

Comment utiliser la fonction de mise au point automatique ?

Appuyez à mi-course sur le bouton de l'émetteur pour activer l'autofocus de l'appareil photo. Ensuite, appuyez à fond pour déclencher la prise de vue.

Que faire si le déclencheur ne fonctionne pas ?

Vérifiez les piles : insérez des piles neuves. Assurez-vous que le récepteur est correctement branché et que l'appareil photo est allumé. Éloignez les interférences (autres appareils sans fil). Réappairez l'émetteur et le récepteur si nécessaire.

Puis-je utiliser plusieurs récepteurs avec un seul émetteur ?

Oui, vous pouvez utiliser plusieurs récepteurs Neewer FC-16 S avec un seul émetteur, chacun branché sur un appareil photo différent, pour déclencher simultanément.

Le déclencheur a-t-il une fonction de retardateur ?

Le Neewer FC-16 S ne dispose pas de retardateur intégré. Cependant, vous pouvez utiliser le retardateur de votre appareil photo en complément.

Comment nettoyer et entretenir le déclencheur ?

Utilisez un chiffon doux et sec pour nettoyer l'émetteur et le récepteur. Évitez tout contact avec l'eau ou les solvants. Rangez-le dans un endroit sec à l'abri de la poussière.

Le déclencheur est-il compatible avec les reflex numériques ?

Oui, le Neewer FC-16 S est spécifiquement conçu pour les reflex numériques et les appareils sans miroir dotés d'une prise de déclencheur. Il est compatible avec les marques Canon, Nikon, Sony, etc. (vérifiez le type de connecteur).

MODE D'EMPLOI FC-16 S Neewer

NEEWER®

www.neewer.com

Two black NEEWER flashlights with visible ports and buttons, shown from different angles (no text or symbols on the devices themselves)

FC-16

2.4GHz Trigger

USER GUIDE

Description

Page

Introduction.... 1

Safety Note 2

Content of Carton.... 3

Name of Parts 4-5

Install Battery 6

Set Channel 7-8

Operate Radio Trigger 9-12

Wirelessly Trigger StudioFlash.... 9

Wirelessly Trigger Speedlite 10

Wirelessly Control Shutter Release.... 11-12

Technical Data.... 13

Models of Shutter release cable 14-16

Troubleshooting.... 17

Introduction

• A versatile, reliable kit that includes one 16 channel 2.4GHz radio transmitter and one 16 channel 2.4GHz radio receiver
• Remotely trigger speedlite, studio flash, and camera's shutter from up to 25m effective trigger distance
• The 2.4GHz frequency signal can pass through and around obstructions, and offer you flexibility trigger flash from any direction.
  • 16 channels give you ability to avoid interference from other users.
  • Flash Sync Speed up to 1/200 sec
• LED indicators confirm communication between radio transmitter and radio receiver.
• Release shutter to take long exposure photography, Macro photography or wildlife photography
• Has a dual-function shutter release with half-press and full-press capabilities.
• Compatible with most major manufacturers' shoe-mount flashes with manual power control.
• Receiver can be mounted on any 1/4"-20 threaded stud or standard cold shoe.
  • Each unit runs on two AAA batteries.

1.Safety Note

In order to protect camera from damage, avoid personal injury, please read these safety notes carefully before you use product. Please keep this user manual handy for your reference.

Do not use in high temperature, moisture or flammable environment.

Do not expose in direct sun for a long time.

Do not apply any fluids to the product.

Do not disassemble or modify.

Do not fall on hard object.

Do not attempt to service the unit on your own.

Do not mix different type of batteries; Do not mix new and old battery.

Do not install battery in reserve.

Before battery exhaust, take out battery to avoid damage to the product.

When the battery is in contact with the skin or clothing, rinse immediately with water.

Always keep out of reach of children.

2. Content of Carton

Sony version

1pc transmitter

1pc receiver

1pc Flash Sync Cable

1pc 3.5 to 6.35mm adapter

1pc S2 Sony shutter release cable

Nikon version

1pc transmitter

1pc receiver

1pc Flash Sync Cable

1pc 3.5 to 6.35mm adapter

1pc N1 Nikon shutter release cable

1pc N3 Nikon shutter release cable

Canon version

1pc transmitter

1pc receiver

1pc Flash Sync Cable

1pc 3.5 to 6.35mm adapter

1pc C1 Canon shutter release cable

1pc C3 Canon shutter release cable

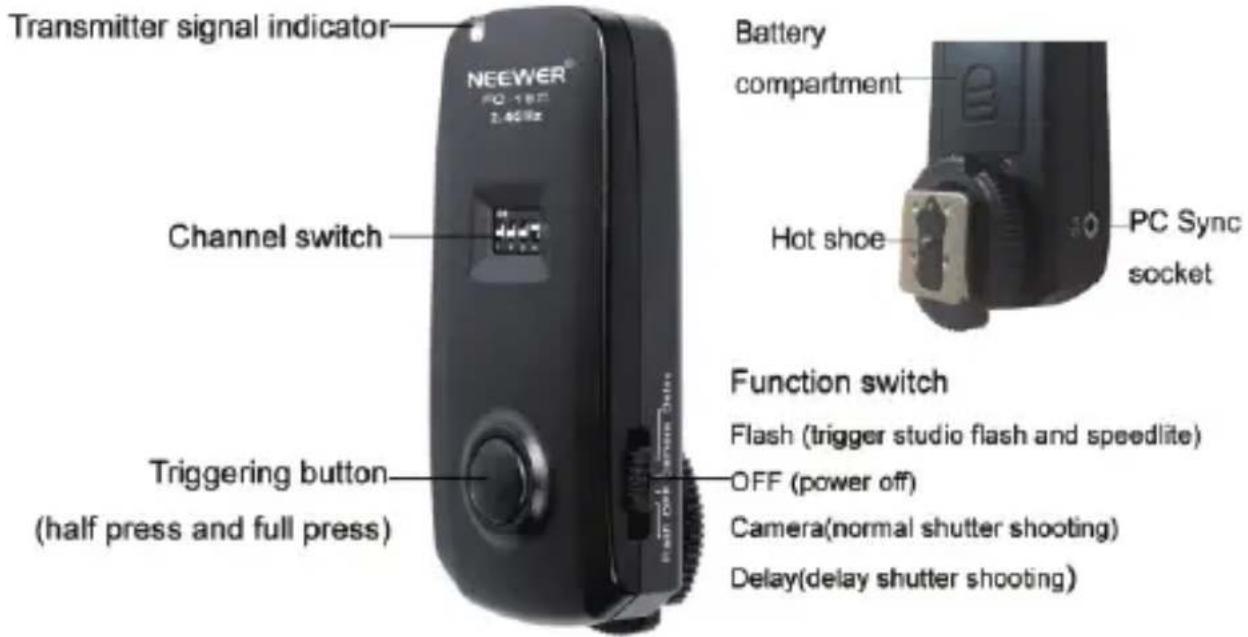

3.Name of Parts—Transmitter

Receiver

4. Install Battery

Open the battery compartment, then insert 2 new AAA alkaline batteries or 2 AAA 1.2V rechargeable battery. Make sure that the polarity is correct: the "+" and "-" markings on the batteries and in the compartment must match.

Note: Lower battery power will result in no flash or missing flash. When batteries are in lower power, please replace them with new ones as soon as possible. When not use transmitter and receiver, please turn Function Switch to "OFF" or take out the batteries to reduce power consumption.

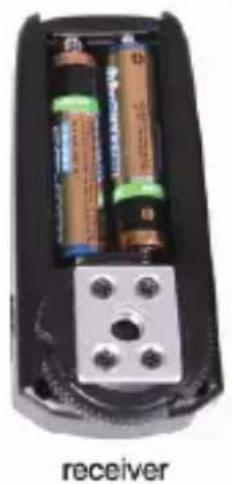

Interior view of a mobile phone receiver showing two batteries and a terminal block (no text or symbols visible)

Interior view of a black handheld device showing two batteries and a labeled transmitter (text is minimal and not part of the diagram)

The package itself doesn't include AAA batteries. Please purchase them separately.

5. Setting channel

Receiver and transmitter each has 4 encoding switch, and 16 channels in total. Note: The transmitter and receiver must be set at the same frequency channel!

Channel Number	Corresponding Codes	Channel Diagram
0	1 2 3 4
1	on 2 3 4
2	1 on 3 4
3	on on 3 4
4	1 2 on 4
5	on 2 on 4
6	1 on on 4
7	on on on 4

6. Operate Radio Trigger

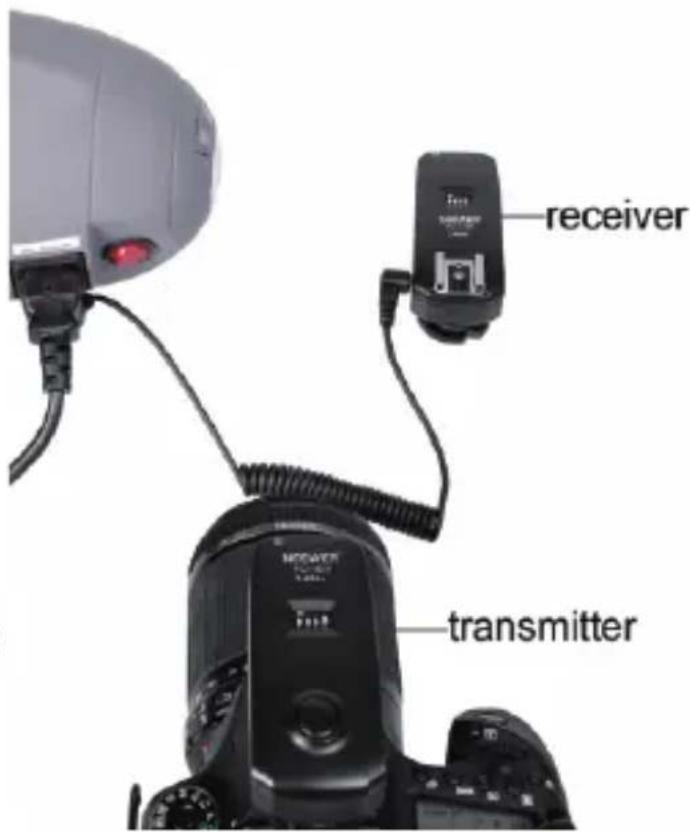

6-1 Wirelessly Trigger Studio Flash

• Set radio receiver and transmitter at the same channel.
• Tum Function Switch to "Flash" mode on transmitter and receiver.
• When camera is power off, slip transmitter's mounting foot fully into the camera's hot shoe adapter. Rotate locking ring clockwise. Switch on camera.
• When studio flash is switch off, directly insert one end of sync cord into sync jack of receiver, and insert the other end of sync cord into sync jack of studio flash. Switch on studio flash.
• Press camera shutter button, and the studio flash will be triggered simultaneously.

6. Operate Radio Trigger

6-2 Wirelessly Trigger Speedlite

• Set radio receiver and transmitter at the same channel.
• Turn Function Switch to "Flash" mode on transmitter and receiver.
• When camera is OFF, slip transmitter's mounting foot fully into the camera's hot shoe adapter. Rotate locking ring clockwise. Switch on camera.
• When speedlite is OFF, slip the speedlite mounting foot fully into receiver's hot shoe adapter. Switch on speedlite.
• Press camera shutter button, and the speedlite will be triggered simultaneously.

6. Operate Radio Trigger

6-3 Wirelessly Control Shutter Release

• Set radio receiver and transmitter at the same channel.
• Turn Function Switch to "Camera" mode on transmitter and receiver.
• When camera is OFF, slip receiver's mounting foot fully into the camera's hot shoe adapter.
• Insert one end of the shutter release cable into camera, and another end into "Shutter release cable connection port" of the receiver. Switch on camera.
• Press triggering button, to control camera's shutter speed.
  • Including the following 3 setting operations (6-3-1/6-3-2/6-3-3)

6. Operate Radio Trigger

6-3-1 Normal shutter shooting

Slide the Function Switch to "Camera" on both the transmitter and receiver. Set the transmitter and receiver to the same channel. Half press "triggering button", "Transmitter signal indicator" and "receiver signal indicator" turns on green, camera automatically focus. Fully press "triggering button", "Transmitter signal indicator" and "receiver signal indicator" turns on red, camera shoot.

6-3-2 Long-exposure setting (with camera set to "bulb" mode)

Slide the Function Switch to "Camera" on both the transmitter and receiver. Set the transmitter and receiver to the same channel. Long press "triggering button" about 3 seconds, then release "trigger button", "transmitter signal indicator" turns from red to off, "receiver signal indicator" remains in red and camera remains long-exposure. Press "triggering button" again, camera stops exposure and "signal indicator" of both receive and transmitter turn off.

6-3-3 Delay shooting

Turn Function Switch to "Delay" mode on transmitter. The function switch remains in "Camera" mode in receiver. Half press "triggering button", "transmitter signal indicator" and "receiver signal indicator" turns on green, camera automatically focus. Full press "triggering button", "transmitter signal indicator" and "receiver signal indicator" blinks in red. Camera will shoot after 5 seconds blinking.

7.Technical Data

Trigger frequency	2408-2480MHz
Trigger channel	16
Connection of receiver	(Cold shoe with 1/4"-20 screw hole) (Hot shoe mount) (2.5mm jack)
Connection of transmitter	(hot shoe) (2.5mm jack)
Sync speed	1/200s
Effective trigger distance	25m
Battery	(transmitter : two AAA battery) (Receiver : two AAA battery)
Weight	(transmitter : 50g) (Receiver : 50g)
Size	(transmitter : 88x39x35mm) (Receiver : 88x39x35mm)

8. Models of Shutter release cable

Models of Shutter release cable		Models of Cameras
C1		Canon EOS1100D(Rebel T3), 1000D(Rebel XS),700D,650D(T4i), 600D(Rebel T3i), 60 Da, 60D,550D(Rebel T2i), 500D(Rebel T1i),450D(Rebel XSi), 100DPentaxK200, K110D Super, K110D, K100D,K20D, K10D, K-7, K-5,Kr, Kx, *istDS2, *istDS, *istD, *ist, *MZ-6, MZ-L
C3		Canon EOS1D Mark IV, 1D(s) Mark III, 1D Mark III, 5D Mark III, 5DMark II, 1D(s) Mark II, 1D Mark II(N), 1D Mark II, 50D,40D, 30D, 20D, 10D,7D, 6D, 5D,1D X, 1D C, 1Ds, 1D, 1VEOS 3, D2000

8.Models of Shutter release cable

Models of Shutter release cable		Models of Cameras
N1		NikonD800E, D800, D700, D300s, D300, D200,D4, D3S, D3X, D3, D2Xs, D2X, D1X, D2Hs, D2H, D1H, D1,F100, N90s, F90X, F5, F6, F90Fuji S5 Pro, S3 Pro
N3		NikonD7100, D7000, D5100, D5000, D3200, D3100, D600, D90

8.Models of Shutter release cable

Models of Shutter release cable		Models of Cameras
S2		SonyA7, A7II, A7R, A7RII, A7S, A7SII, A7M2, A3000, A5000, A6000, A6300, A6500, HX300, RX1R, RX10, RX100II, A58, NEX-3NL

FC-16 for Canon includes two camera shutter release cable C1 & C3. FC-16 for Nikon includes two camera shutter release cable N1 & N3. FC-16 for Sony includes one camera shutter release cable S2.

9.Troubleshooting

FAQ	Solution
Unable to trigger the flash or camera shutter	Make sure battery is properly installed.Make sure position of Function switch is in the same and right modeMake sure transmitter and receiver are at the same frequency channel.Make sure connective cable is inserted in the right socket.
Camera shoots but not focus	Make sure the lens is in AF auto focus mode
Trigger distance is limited or misfires	Replace batteries

FCC Statement

this device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
