| Marque | Soler & Palau |
| Modèle | CK-60 F |
| Type de produit | Hotte de cuisine murale |
| Largeur | 60 cm |
| Hauteur | Environ 70-90 cm (selon installation) |
| Profondeur | Environ 50 cm |
| Poids net | Environ 12 kg |
| Alimentation électrique | 220-240 V ~ 50 Hz |
| Puissance maximale | 200 W |
| Débit d'air maximum | 650 m³/h |
| Niveau sonore maximum | 62 dB(A) |
| Type de filtre | Filtre à graisse en aluminium lavable |
| Éclairage | 2 ampoules LED (2 x 2 W) |
| Commandes | Poussoirs mécaniques avec 3 vitesses |
| Mode d'évacuation | Évacuation vers l'extérieur (conduit non fourni) ou recyclage avec filtre à charbon (optionnel) |
| Diamètre de sortie d'air | 150 mm |
| Entretien | Nettoyer le filtre à graisse tous les mois ; remplacer le filtre à charbon tous les 4-6 mois si recyclage |
| Sécurité | Ne pas flamber sous la hotte ; respecter une distance minimale de 65 cm entre la hotte et la cuisinière à gaz |
| Pièces détachées | Filtres, ampoules, commandes disponibles chez le fabricant ou revendeurs agréés |
| Réparabilité | Indice de réparabilité non fourni, mais pièces communes disponibles |
FOIRE AUX QUESTIONS - CK-60 F Soler & Palau
Questions des utilisateurs sur CK-60 F Soler & Palau
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Hotte au format PDF gratuitement ! Retrouvez votre notice CK-60 F - Soler & Palau et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil CK-60 F de la marque Soler & Palau.
MODE D'EMPLOI CK-60 F Soler & Palau

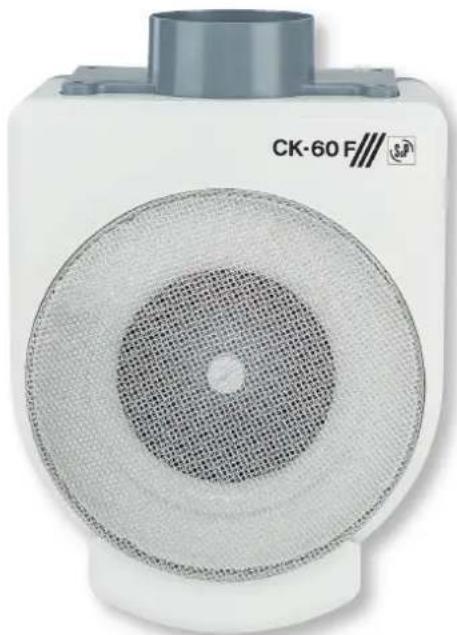

Centrifugal extractors manufactured from flame retardant plastic V0. All extractors are class II insulation fitted with centrifugal impeller and single phase 230V-50Hz speed controllable motor. This range consists of three models with airflow ranging up to 625 m³/h.

Stainless steel filter
Fitted to the inlet to prevent the build-up of grease within the fan and ducting enclosure (CK-40F and CK-60F).

Protection guard
To avoid any contact with the impeller (CK-25N).

Removable grease
collection tray
To collect the grease. Easily removable for cleaning.

CK-60F: 2-speed motor
REGUL-2 speed selector I/II switch to adapt the extract air volume to the needs.
Extractor parts easily removable for cleaning in the dishwasher. (At maximum temperature 60°C)
MODEL FEATURES
| CK-25 N | CK-40 F | CK-60 F | |
| GREASE COLLECTION TRAY | ● | ● ● | |
| PROTECTION GUARD | ● | ||
| STAINLESS STEEL FILTER | ● | ● | |
| REMOVABLE | ● | ● ● | |
| ADJUSTABLE | ● | ● ● | |
| 2 SPEED | ● |
TECHNICAL CHARACTERISTICS
| Model Speed | (rpm) | Abs. power at free discharge (W) | Voltage (V) 50 Hz | Airflow at free discharge (m3/h) | Sound pressure level* (dB(A)) | Weight (kg) | Wiring diagram** (n°) | |
| CK-25 N 2250 40 230 250 50 1,9 11 | ||||||||
| CK-40 F 2350 70 230 360 55 2,7 11 | ||||||||
| CK-60 F VR | HS 2475 160 | 230 | 625 59 | 4,7 9 | ||||
| LS 1740 96 415 54 | ||||||||
* Sound pressure level measured at 1.5 m at free air conditions.
** See section of Wiring Diagrams.


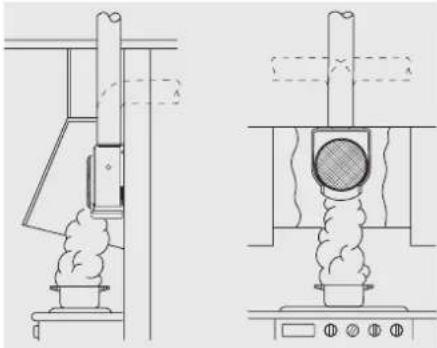

Technical line drawing of a heating or cooling system with two views: top shows a funnel and flame, bottom shows a fan with a circular vent (no text or symbols)To obtain the maximum efficiency of the polluted air extraction, the K series fans should be installed within a cooker canopy. The airflow required depends upon the canopy width and the distance between the canopy and the cooker. The K series fans should be installed in vertical position with the grease collection tray at the bottom.
DIMENSIONS (mm)

| Model | A | B | C | D | E | F | G |
| CK-25 N | 98 | 34 | 304 | 149 | 218 | - | 127 |
| CK-40 F | 98 | 42 | 370 | 179 | 266 | 140 | 162 |
| CK-60 F | 116,5 | 42 | 410 | 180 | 293,5 | 145 | 174 |

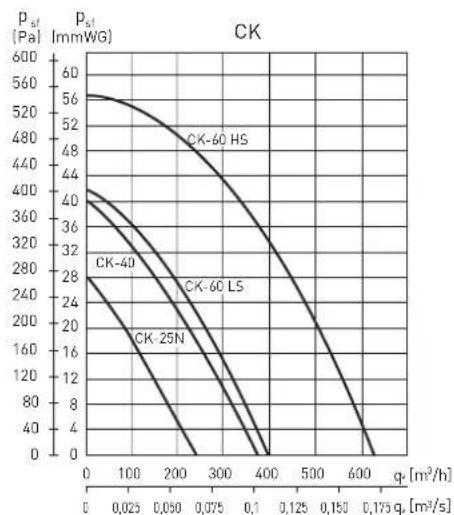

PERFORMANCE CURVE

line
| q* [m³/h] | CK-60 HS | CK-40 | CK-60 LS | CK-25N | | --------- | -------- | ----- | -------- | ------ | | 0 | 56 | 40 | 36 | 28 | | 100 | 52 | 36 | 32 | 24 | | 200 | 48 | 32 | 28 | 20 | | 300 | 44 | 28 | 24 | 16 | | 400 | 40 | 24 | 20 | 12 | | 500 | 36 | 20 | 16 | 8 | | 600 | 32 | 16 | 12 | 4 | | 0.175 | 30 | 12 | 8 | 2 | | | | | | |ORIENTATIVE CHART TO CHOOSE THE MOST SUITABLE EXTRACTOR FOR KITCHENS WITH CANOPIES WITHIN THE WALL
| CANOPY SIZE | RECOMMENDED AIRFLOW m/h | EXTRACTION DUCT LENGTH * | ||
| 0 to 5 m | 5 to 15 m | 15 to 30 m | ||
| UNTIL 60 cm | 200-300 | CK-25 N | CK-35 NCK-40 F | CK-40 FCK-50ECO-500 |
| UNTIL 90 cm | 300-600 | CK-35 NCK-40 FCK-50ECO-500 | CK-40 FCK-50ECO-500CK-60 F | CK-50ECO-500CK-60 F |
* Expected with an installation with two 90° elbows.
ACCESSORIES
| CK-25 N CK-40 F CK-60 F | CK-25 N CK-40 F CK-60 F | |||||||
![]() | GSAFlexible aluminium ducting | GSA-100 GSA-100 GSA-125 | ![]() | GRAAluminium guards | GRA-75 GRA-75 GRA-100 | |||
![]() | CXWorm drive clips | CX-80/125 CX-80/125 CX-125/215 | ![]() | CTCowl | CT-125 CT-125 CT-125 | |||
![]() | PER-WBackdraft shutters | PER-100 W PER-100 W PER-125 W | ![]() | PF-60Filter panel | PF-60 PF-60 PF-60 | |||
![]() | CARBackdraft shutters | CAR-100 CAR-100 CAR-125 | ![]() | REBSingle phase electronic fan speed control regulators | REB-1N REB-1NE | REB-1N REB-1NE | REB-1N REB-1NE | |
![]() | CM-130Backdraft shutters | CM-130 | ![]() | REGUL-2Two speed selector switch | REGUL-2 | |||
* For more information see Mounting and Electrical Accessories.
CK KITCHEN EXHAUST FAN KITS CK PLASTIC RANGE
Are fitted with all the elements (extractor and accessories) needed to carry out a successful installation.

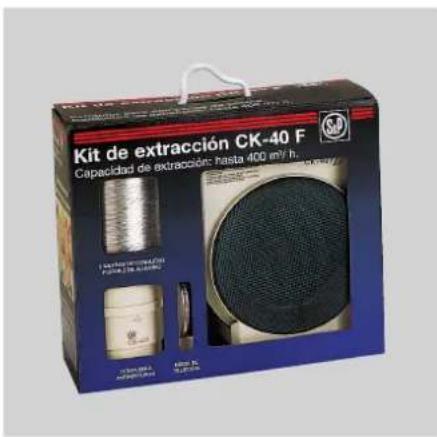

Kit CK-40 F
Includes:
1 CK-40F fan
3 m of GSA-100 flexible aluminium ducting
2 duct connectors CX-80/125
1 backdraft shutter CM-130

Kit CK-60 F
Includes:
1 CK-60F fan
3 m of GSA-125 flexible duct
2 duct connectors CX-125/215
1 backdraft shutter CM-130
1 two speed switch REGUL-2
Centrifugal extractors manufactured from sheet steel with an epoxy polyester paint finished. All extractors are fitted with centrifugal impeller and single phase 230V-50Hz speed controllable motor. This range consists of three models with airflow ranging up to 480 m³/h.

Stainless steel filter
To avoid any contact with
the impeller.

Protection guard
To avoid any contact with the impeller.

Removable grease collection tray
To collect the grease.
Easily removable for cleaning.
MODEL FEATURES
| CK-35 N CK-50 ECO-500 | |||
| GREASE COLLECTION TRAY | ● ● ● | ||
| PROTECTION GUARD | ● | ● | ● |
| STAINLESS STEEL FILTER | ● | accessory accessory | |
| REMOVABLE | ● ● ● | ||
| ADJUSTABLE | ● | ● | |
TECHNICAL CHARACTERISTICS
| Model Speed (rpm) | Abs. power at free discharge (W) | Voltage (V) 50 Hz | Airflow at free discharge (m3/h) | Sound pressure level* (dB(A)) | Weight (kg) | Wiring diagram** (n°) |
| CK-35 N 2200 74 230 350 56 3,2 15 | ||||||
| CK-50 1300 120 230 480 58 3,5 15 | ||||||
| ECO-500 1370 89 230 385 52 3,5 15 |
* Sound pressure level measured at 1.5 m at free air conditions.
** See section of Wiring Diagrams.
DIMENSIONS (mm)

| Model | A | B | C | D | E |
| CK-35 N | 110 | 292 | 337 | 230 | 130 |
| CK-50 | 115 | 315 | 375 | 315 | 132 |
| ECO-500 | 115 | 315 | 375 | 315 | 132 |
PERFORMANCE CURVE

line
| qv [m³/h] | pSF [Pa] CK-35N | pSF [Pa] CK-50 | pSF [Pa] ECO-500 | P[W] | | --------- | --------------- | -------------- | ---------------- | ---- | | 0 | 270 | 210 | 150 | 90 | | 100 | 240 | 190 | 160 | 95 | | 200 | 210 | 180 | 155 | 100 | | 300 | 180 | 160 | 140 | 105 | | 400 | 150 | 140 | 120 | 110 | | 500 | 120 | 120 | 100 | 115 |ORIENTATIVE CHART TO CHOOSE THE MOST SUITABLE EXTRACTOR FOR KITCHENS WITH CANOPIES WITHIN THE WALL
| CANOPY SIZE | RECOMMENDED AIRFLOW ( m^3/h) | EXTRACTION DUCT LENGTH * | ||
| 0 to 5 m | 5 to 15 m | 15 to 30 m | ||
| UNTIL 60 cm | 200-300 | CK-25 N | CK-35 NCK-40 F | CK-40 FCK-50ECO-500 |
| UNTIL 90 cm | 300-600 | CK-35 NCK-40 FCK-50ECO-500 | CK-40 FCK-50ECO-500CK-60 F | CK-50ECO-500CK-60 F |
* Expected with an installation with two 90° elbows.
ACCESSORIES
| CK-35 N CK-50 ECO-500 | CK-35 N CK-50 ECO-500 | ||||||
![]() | GSAFlexible aluminium ducting | GSA-125 GSA-125 GSA-125 | GRAAluminium guards | GRA-100 GRA-100 GRA-100 | |||
![]() | CXWorm drive clips | CX-125/215 CX-125/215 CX-125/215 | CTCowl | CT-125 CT-125 CT-125 | |||
![]() | PER-WBackdraft shutters | PER-125 W PER-125 W PER-125 W | PF-60Filter panel | PF-60 PF-60 PF-60 | |||
![]() | CARBackdraft shutters | CAR-125 CAR-125 CAR-125 | REBSingle phase electronic fan speed control regulators | REB-1N REB-1NE | REB-1N REB-1NE | ||
![]() | CM-130Backdraft shutters | CM-130 CM-130 CM-130 | |||||
* For more information see Mounting and Electrical Accessories.
