MODE D'EMPLOI ICBN 3314 COMFORT BIOFRESH NOFROST LIEBHERR

121212

7085458 - 00

ICBS/ICBN...LC

Contents

1 Appliance at a glance. 2
1.1 Description of appliance and equipment 2
1.2 Range of appliance use 2
1.3 Conformity 3
1.4 Saving energy 3
2 General safety information. 3
3 Controls and displays. 4
3.1 Operating and control elements 4
3.2 Temperature display 4
4 Putting into operation. 4
4.1 Switching on the appliance 4
5 Control 5
5.1 Childproofing 5
5.2 Door alarm.. 5
5.3 Temperature alarm.. 5
5.4 Refrigerator compartment 5
5.5 BioFresh compartment.. 7
5.6 Freezer compartment 8
6 Maintenance 9
6.1 Defrosting with NoFrost 9
6.2 Manual defrosting 10
6.3 Cleaning the appliance 10
6.4 Customer service 10
7 Malfunction 11
8 Decommissioning. 12
8.1 Switching off the appliance 12
8.2 Taking the appliance out of service 12
9 Disposing of the appliance. 12

The manufacturer works constantly on the further development of all the types and models. Therefore please understand that we have to reserve the right to make design, equipment and technical modifications.

To get to know all the benefits of your new appliance, please read the information contained in these instructions carefully.

The instructions apply to several models. Differences may occur. Text relating only to specific appliances is marked with an asterisk () .

Instructions for action are marked with a , the results of action are marked with a .

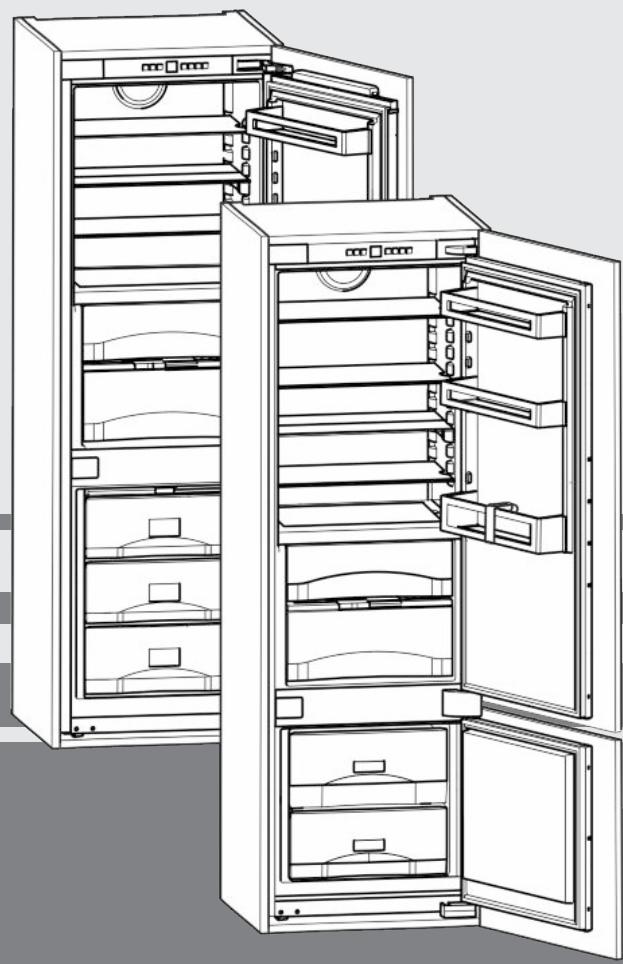

1 Appliance at a glance

1.1 Description of appliance and equipment

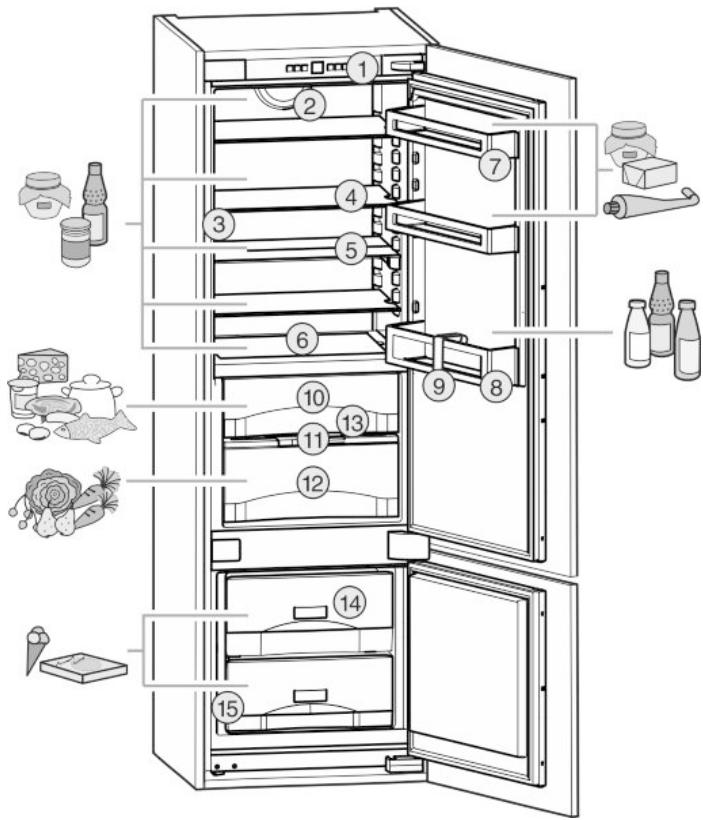

Fig. 1

(1) Operating and control elements
(2) Fan
(3) LED interior light
(4) Shelf
(5) Shelf, sectioned
(6) Coldest zone
(7) Can rack
(8) Bottle rack

(9) Bottle holder
(10) DrySafe
(11) Humidity control plate
(12) HydroSafe
(13) Drain hole
(14) Freezer compartment drawer

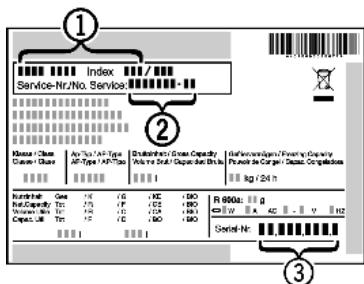

(15) Type plate

Note

Place food inside the appliance as shown in the diagram. This allows the appliance to save energy during operation.
Shelves, drawers and baskets are arranged for optimum energy efficiency on delivery.

1.2 Range of appliance use

The appliance is suitable solely for cooling food in a domestic environment or similar. This includes use in, for example

• in staff kitchenettes, bed and breakfast establishments,
• by guests in country homes, hotels, motels and other forms of accommodation,
• in catering and similar services in the wholesale trade

Use the appliance solely as is customary within a domestic environment. All other types of use are inadmissible. The appliance is not suitable

for storing and cooling medicines, blood plasma, laboratory preparations or similar substances and products covered by the 2007/47/EC Medical Devices Directive. Misuse of the appliance can result in the stored products suffering harm or perishing. Furthermore, the appliance is not suitable for operation in potentially explosive atmospheres.

The appliance is set to operate within specific ambient temperature limits according to its climate rating. The correct climate rating for your appliance is indicated on the type plate.

Note

• Compliance with the ambient temperatures indicated is required, otherwise the cooling performance is reduced.

Climate rating	for ambient temperatures of
SN	10 °C to 32 °C
N	16 °C to 32 °C
ST	16 °C to 38 °C
T	16 °C to 43 °C

1.3 Conformity

The refrigerant circuit is tested for leakage. When built-in the appliance complies with the relevant safety regulations and EC Directives 2006/95/EC, 2004/108/EC, 2009/125/EC and 2010/30/EU.

The BioFresh compartment satisfies the requirements of a chill compartment to EN ISO 15502.

Note for test institutions:

Tests are to be carried out according to the applicable standards and guidelines.

Preparation and testing of the appliances must be carried out taking the manufacturer's loading plans and the notes in the operating manual into account.

1.4 Saving energy

• Always ensure good ventilation. Do not cover ventilation openings or grille.
• Always keep fan louvres clear.
• Do not place appliance in areas of direct sunlight or next to a stove, heater or similar object.
• The energy consumption depends on the installation conditions, e.g. the ambient temperature (see 1.2).
• Keep the time the appliance is open to a minimum.
• The lower the temperature setting, the higher the power consumption.
• Store food logically. (see Appliance at a glance).
• Ensure that all food is well packed and covered for storage. This will prevent frost from forming.
• Remove food as needed in order that it does not warm too much.
• First cool warm food to room temperature before storing it.
• Defrost frozen food in the refrigerator.
• If there is a thick layer of frost in the appliance: defrost the appliance.*
• Empty and switch off refrigerating unit for longer vacation periods.

2 General safety information

Danger for the user:

• This appliance can be used by children of 8 years old and over, and also by persons with restricted physical, sensory or mental capacity or lack of experience and knowledge, if they are supervised or have been instructed on safe use of the appliance and understand the resulting risks. Children must not be allowed to play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.
• In the event of a fault pull out the mains plug or deactivate the fuse.
• Do not damage the mains power cable. Do not operate the appliance with a defective mains power cable.
• Have any repairs to or intervention in the appliance, and any change of the mains power cable, carried out by the customer service only or by other specialised personnel trained for the purpose.
• Only install, connect and dispose of the appliance according to the instructions.
• Only use the appliance when it is installed.
• Please keep these instructions in a safe place and pass them on to any subsequent owners.
• Special-purpose lamps (incandescent lamps, LEDs, fluorescent tubes) in the appliance serve to illuminate the appliance interior and are not suited for room illumination.

Fire hazard:

• The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.

• Do not damage the refrigerant circuit pipes.

• Do not allow naked flames or ignition sources to enter the appliance.
• Do not use any electrical appliances in the interior (e.g. steam cleaners, heaters, ice cream maker etc.).

• If refrigerant escapes: remove any naked flames or sources of ignition from the leakage area. Ventilate the room well. Notify the after-sales service.

• Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.

• Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components.

Danger of tipping and falling:

• Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.

Danger of food poisoning:

• Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

• Avoid lasting skin contact with cold surfaces or refrigerated/frozen food or take protective steps, e.g. wear gloves. Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Danger of injury and damage:

• Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment, open flames or defrosting sprays to defrost.
• Do not use sharp implements to remove the ice.

Please observe the specific information in the other sections:

!	DANGER	identifies a situation involving direct danger which, if not obviated, may result in death or severe bodily injury.
!	WARNING	identifies a dangerous situation which, if not obviated, may result in death or severe bodily injury.
!	CAUTION	identifies a dangerous situation which, if not obviated, may result in minor or medium bodily injury.
	NOTICE	identifies a dangerous situation which, if not obviated, may result in damage to property.
	Note	identifies useful information and tips.

3 Controls and displays

3.1 Operating and control elements

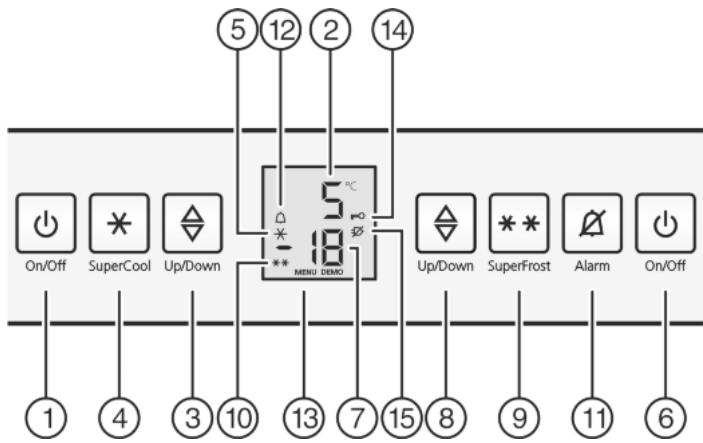

Fig. 2

(1) Refrigerator compartment On/Off button
(2) Refrigerator compartment temperature display
(3) Refrigerator compartment setting button
(4) SuperCool button
(5) SuperCool symbol
(6) Refrigerator compartment On/Off button
(7) Freezer compartment temperature display
(8) Freezer compartment setting button

(9) SuperFrost button
(10) SuperFrost symbol
(11) Alarm button
(12) Alarm symbol
(13) Menu symbol
(14) Child lock symbol
(15) Power failure symbol

3.2 Temperature display

The following are displayed in normal operation:

• the warmest freezing temperature
• the average cooling temperature

The freezer compartment temperature display flashes:

• the temperature setting is being changed
• after switch-on the temperature is not yet cold enough
• the temperature has risen several degrees

Dashes flash in the display:

• the freezer temperature is above 0^ .

The following displays indicate malfunction. Possible causes and corrective action (see Malfunction).

• F0 to F9

The power failure symbol shines.

4 Putting into operation

4.1 Switching on the appliance

Note

The refrigerator compartment is switched on automatically when the freezer compartment is switched on.

4.1.1 Switch on the freezer compartment

The appliance should have been operating for about 4 hours before you stock it with frozen food. Only place frozen goods in the freeze compartment once it is cold.

Press freezer compartment On/Off button Fig. 2 (6).
The temperature displays light up. The interior light goes on when the refrigerator compartment door is opened. Refrigerator and freezer compartments are switched on.
If "DEMO" is displayed, demo mode is activated. Please contact the after sales service.

4.1.2 Switch on refrigerator compartment

If the refrigerator compartment was switched off (e.g. during an extended absence like holidays), it can be switched back on separately.

Press the refrigerator compartment On/Off button Fig. 2 (1).
The temperature displays light up. The interior light goes on when the refrigerator compartment door is opened. The refrigerator compartment is switched on again.

5 Control

5.1 Child proofing

The child-proofing function enables you to make sure that the appliance is not inadvertently switched off by playing children.

5.1.1 Setting the child lock

To switch on the function:

Activate setting mode: press the SuperFrost button Fig. 2 (9) for approx. 5 seconds.
The Menu symbol Fig. 2 (13) is shown on the display.
c flashes on the display.
Briefly confirm with the SuperFrost button, Fig. 2 (9).
c1 is indicated on the display.
Briefly confirm with the SuperFrost button, Fig. 2 (9).
The child lock symbol Fig. 2 (14), lights up on the display.
c flashes on the display.

The child lock function is switched on. If setting mode is to be terminated:
Briefly press the freezer compartment On/Off button Fig. 2 (6).

-or-

Wait for 5 minutes.
The temperature display shows the temperature again.

To switch off the function:

Activate setting mode: press the SuperFrost button Fig. 2 (9) for approx. 5 seconds.
The Menu symbol Fig. 2 (13) is shown on the display.
c flashes on the display.
Briefly confirm with the SuperFrost button, Fig. 2 (9).
c0 is indicated on the display.
Briefly confirm with the SuperFrost button, Fig. 2 (9).
The child lock symbol Fig. 2 (14) goes out.
c flashes on the display.
The child lock function is switched off. If setting mode is to be terminated:
Briefly press the freezer compartment On/Off button Fig.2 (6).

-or-

Wait for 5 minutes.

The temperature display shows the temperature again.

5.2 Door alarm*

For refrigerator and freezer compartment If the door is open for longer than 60 seconds, the audible warning will sound.

The audible alarm is automatically silenced when the door is closed.

5.2.1 Muting the door alarm*

The audible alarm can be muted when the door is open. The sound switch-off function is active as long as the door is left open.

Press alarm button Fig. 2 (11).
The door alarm is silenced.

5.3 Temperature alarm

The audible alarm sounds if the freezer temperature is not cold enough.

The temperature display and the alarm symbol Fig. 2 (12) flash at the same time.

The cause of the temperature being too high may be:

warm fresh food was placed inside
- too much warm ambient air flowed in when rearranging and removing food
- power failure for some time
- the appliance is faulty

The audible alarm is automatically silenced, the alarm symbol Fig. 2 (12) goes out and the temperature display stops flashing when the temperature is sufficiently cold again.

If the alarm status persists: (see Malfunction).

Note

Food may be spoilt if the temperature is not cold enough.
Check the quality of the food. Do not consume spoiled food.

5.3.1 Muting the temperature alarm

The audible alarm can be muted. When the temperature is sufficiently cold again, the alarm function is active again.

Press alarm button Fig. 2 (11).
The audible alarm is silenced.

5.4 Refrigerator compartment

The natural circulation of air in the refrigerator compartment results in zones differing in temperature. It is coldest directly above the plate separating off the BioFresh zone and at the rear wall. It is warmest at the top front of the compartment and in the door.

5.4.1 Food refrigeration

Note

The energy consumption increases and the cooling performance decreases if the ventilation is inadequate.

Always keep the air slits of the fan free.

• Place butter and preserves in the upper area and in the door (see Appliance at a glance).
  Use recyclable plastic, metal, aluminium and glass containers and cling film for wrapping.
  Always store liquids and food which is subject to odour or taste transfer in closed containers or cover them.

▶ Foods which give off a large amount of ethylene gas and delicate foods, such as fruit, vegetables, salad, should always be stored separately or wrapped so as not to reduce the storage life; e.g. do not store tomatoes together with kiwis or cabbage.
- Use the front area of the refrigerator compartment floor only for briefly putting down cooled products, e.g. when rearranging and sorting. However do not leave cooled products there otherwise they may be pushed back or tipped over when the door is closed.
Do not store food too close together to enable good air circulation.

5.4.2 Setting the temperature

The temperature depends on the following factors:

• the frequency of opening the door
• the room temperature of the installation location
• the type, temperature and quantity of the food

Recommended temperature setting: 5^

The temperature can be adjusted continually. Once the setting 3^ C is reached, the cycle is begun again at 9^ C .

• Call up the temperature function: press the refrigerator compartment setting button Fig. 2 (3).
  The value previously set flashes in the temperature display.
  Change temperature in 1^ steps: press the refrigerator compartment setting button Fig. 2 (3) until the required temperature is indicated in the temperature display.
  Change temperature continually: hold down setting button.
  During adjustment the value flashes on the display.
  The new setting is adopted approx. 5 seconds after the last time the button was pressed and the set temperature is again displayed. The temperature in the interior gradually adjusts to the new value.

5.4.3 SuperCool

With SuperCool you switch to the highest cooling performance to reach lower cooling temperatures. Use SuperCool, to rapidly cool large amounts of food.

The SuperCool function uses slightly more energy.

Cooling with SuperCool

Briefly press SuperCool button Fig. 2 (4).
The SuperCool symbol Fig. 2 (5) lights up in the display.
The cooling temperature drops to the coldest value. SuperCool is activated.
SuperCool is automatically deactivated after 12 hours. The appliance continues to operate in the energy-saving, normal mode.

To prematurely deactivate SuperCool

Briefly press SuperCool button Fig. 2 (4).
The SuperCool symbol Fig. 2 (5) goes out in the display.
SuperCool is deactivated.

5.4.4 Shelves

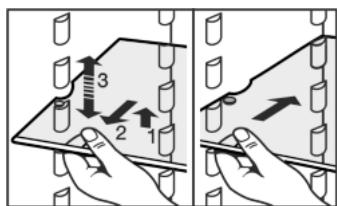

Relocating the shelves

The shelves have stops preventing them from being unintentionally pulled out.

Lift the shelf and draw it out forwards.
- Re-insert shelves at the required height. The stops must face downwards and lie behind the front shelves.

Dismantling shelves

The shelves can be dismantled for cleaning.

5.4.5 Using the sectioned shelf

Fig. 3

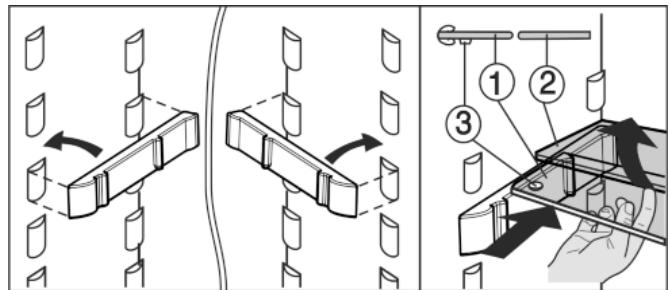

The glass plate (1) with pull-out stops must be at the front so that the stops (3) face downwards.

5.4.6 Door racks

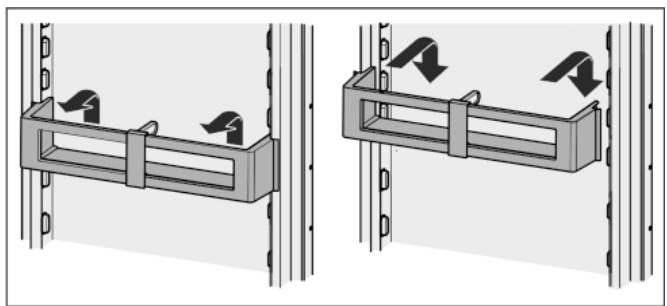

Moving the storage rack

Fig. 4

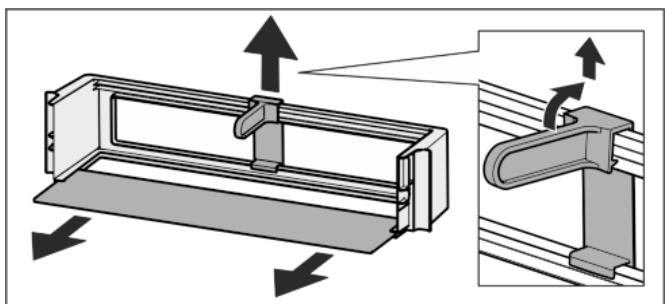

Dismantling door racks

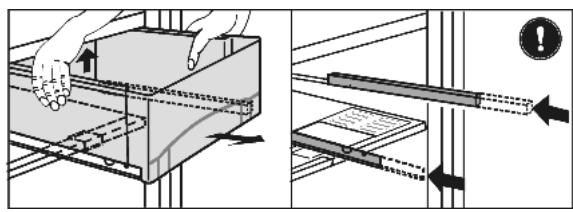

Fig. 5

The door racks can be dismantled for cleaning.

5.4.7 Using the bottle holder

To avoid the bottles tipping over, push the bottle holder along.

5.5 BioFresh compartment

The BioFresh compartment allows some types of fresh food to be stored up to three times longer than in conventional refrigerators, without compromising quality.

For food with an indicated best before date, the date specified on the packaging always applies.

5.5.1 DrySafe

The DrySafe is suitable for storing dry or wrapped food (e.g. dairy products, meat, fish, sausages). A relatively dry storage climate is established here.

5.5.2 HydroSafe

The HydroSafe at the moist setting is suited for storing unwrapped salad, vegetables and fruit with high inherent moisture. When the drawer is well filled, a dewy climate with up to 90% humidity is established. The humidity in the compartment depends on the moisture content of the food stored and on the opening frequency. You can set the humidity yourself.

5.5.3 Setting the humidity in the HydroSafe

the left.

High humidity: move the regulator to the right.

5.5.4 Storing food

Note

Vegetables sensitive to cold, such as cucumbers, aubergines, semi-ripe tomatoes, zucchini and all tropical fruits sensitive to cold, do not belong in the BioFresh compartment.
To prevent food spoilage due to transfer of germs: Store unwrapped animal and vegetable products separate from one another in the drawers. This also applies to different sorts of meat. If food has to be stored together due to lack of space:
wrap the food.

5.5.5 Storage times

Standard values for storage time at low humidity
Butter	up to	90	days
Hard cheese	up to	110	days
Milk	up to	12	days
Sausage, cold meat	up to	9	days
Poultry	up to	6	days
Pork	up to	7	days
Beef	up to	7	days

Standard values for storage time at low humidity

Game

up to

7

days

Note

Please note that protein-rich food deteriorates faster, i.e. shellfish and crustaceans deteriorate faster than fish, fish faster than meat.

Standard values for storage time at high humidity
Vegetables, salad
Artichokes	up to	14	days
Celery	up to	28	days
Cauliflower	up to	21	days
Broccoli	up to	13	days
Chicory	up to	27	days
Lamb's lettuce	up to	19	days
Peas	up to	14	days
Kale	up to	14	days
Carrots	up to	80	days
Garlic	up to	160	days
Kohlrabi	up to	55	days
Lettuce	up to	13	days
Herbs	up to	13	days
Leek	up to	29	days
Mushrooms	up to	7	days
Radishes	up to	10	days
Brussels sprouts	up to	20	days
Asparagus	up to	18	days
Spinach	up to	13	days
Savoy cabbage	up to	20	days
Fruit
Apricots	up to	13	days
Apples	up to	80	days
Pears	up to	55	days
Blackberries	up to	3	days
Dates	up to	180	days
Strawberries	up to	7	days
Figs	up to	7	days
Blueberries	up to	9	days
Raspberries	up to	3	days
Currants	up to	7	days
Sweet cherries	up to	14	days
Kiwis	up to	80	days
Peaches	up to	13	days
Plums	up to	20	days
Cranberries	up to	60	days
Rhubarb	up to	13	days
Gooseberries	up to	13	days
Grapes	up to	29	days

5.5.6 Adjusting the temperature in the BioFresh compartment

The temperature is automatically controlled. If the refrigerator compartment temperature is 5^ , the temperature in the BioFresh compartment will be between 0^ and 3^ .

You can set the temperature slightly lower or higher. The temperature can be set from b1 (lowest temperature) up to b9 (highest temperature). The temperature is preset at b5. At values b1 to b4 the temperature can drop below 0^ so that food can freeze slightly.

The value can be changed continually. Once setting b9 is reached, the cycle is started at b1 again.

Activate setting mode: press SuperFrost button Fig. 2 (9) for approx. 5 seconds.
The menu symbol Fig. 2 (13) shines. c is indicated on the display.
Press the freezer compartment setting button Fig. 2 (8) until b flashes on the display.
Confirm: press the SuperFrost button Fig. 2 (9) briefly.
Press the freezer compartment setting button Fig. 2 (8) until the required value is indicated on the display.
Confirm: press the SuperFrost button Fig. 2 (9).
b flashes on the display.
Deactivate setting mode: press freezer compartment On/Off button Fig. 2 (6).
The refrigerator compartment temperature is again indicated on the temperature display.
The temperature in the BioFresh compartment gradually adjusts to the new value.

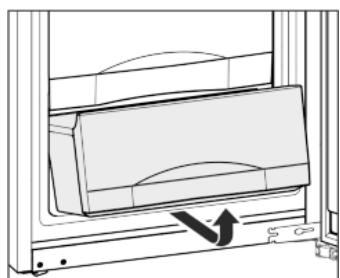

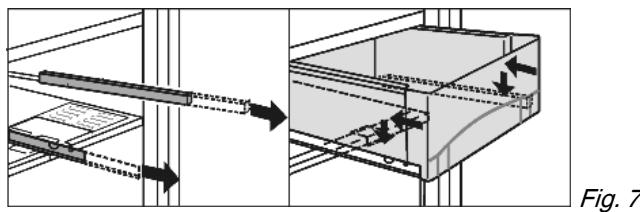

5.5.7 Drawers

Pull out the drawer, lift it at the back and draw it forwards for removal.
Push the rails in again!

Pull out the rails.
Attach the drawer to the rails and push it in until it engages audibly at the back.

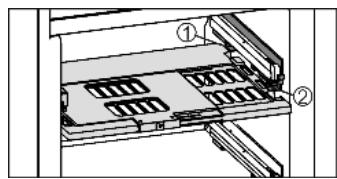

5.5.8 Humidity control plate

Fig. 8

To remove the humidity control plate: Having removed the drawers, carefully draw the plate forwards and lower it for removal.
To insert the humidity control plate: Insert the cover mouldings of the plate into the rear holder Fig. 8 (1) from underneath and engage them in the holder Fig. 8 (2) at the front.

5.6 Freezer compartment

You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

5.6.1 Freezing food

The rating plate indicates the maximum quantity of fresh food you can freeze within 24 hours (see Appliance at a glance) under "Freezing capacity ... kg/24h".

The maximum load of frozen food for the drawers is 25kg each and for the shelves 35kg each.

A vacuum is generated after the door is closed. After closing the door, wait for about 1 minute and then it opens more easily.

CAUTION

Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being frozen. This applies particularly to sparkling drinks.
Do not freeze bottles and cans containing drinks!

In order that the food is rapidly frozen through to the core, do not exceed the following quantities per pack:

• Fruit, vegetables up to 1 kg
• Meat up to 2.5kg
  Pack the food in portions in freezer bags, reusable plastic, metal or aluminium containers.

5.6.2 Storage life

Standard values for the storage life of various types of food in the freezer compartment:
Ice-cream	2 to 6 months
Sausage, ham	2 to 6 months
Bread, bakery products	2 to 6 months
Game, pork	6 to 10 months
Fatty fish	2 to 6 months
Lean fish	6 to 12 months
Cheese	2 to 6 months
Poultry, beef	6 to 12 months
Vegetables, fruit	6 to 12 months

The values indicated for storage life are standard ones.

5.6.3 Thawing food

• in the refrigerator compartment
• at room temperature
• in a microwave oven
• in a conventional or fan oven

Remove only as much food as is required. Use thawed food as quickly as possible.
▶ Food once thawed should be re-frozen only in exceptional cases.

5.6.4 Setting the temperature

The temperature depends on the following factors:

• the frequency of opening the door
• the room temperature of the installation location
• the type, temperature and quantity of the food

Recommended temperature setting: -18 °C

The temperature can be adjusted continually. Once the setting -26^ is reached, the cycle is begun again at -15^ .

Call up temperature function: press the freezer compartment setting button Fig. 2 (8) once.
The value previously set flashes in the temperature display.
Change temperature in 1^ steps: press freezer compartment setting button Fig. 2 (8) until the required temperature is indicated in the temperature display.
Change temperature continually: hold down setting button.
During adjustment the value flashes on the display.
The new setting is adopted approx. 5 seconds after the last time the button was pressed and the set temperature is again displayed. The temperature in the interior gradually adjusts to the new value.

5.6.5 SuperFrost

With this function you can freeze fresh food quickly through to the core. The appliance operates with maximum refrigeration. The noise of the refrigeration unit may be temporarily louder as a result.

In addition, frozen food already in storage is given a "cold reserve". The food stays frozen longer as a result when you defrost the appliance.*

The maximum amount of fresh food which can be frozen in 24 h is indicated on the type plate under "freezing capacity ... kg/24h". This amount varies according to the model and climate rating.

You have to activate SuperFrost in good time, depending on how much fresh food is to be frozen: about 6 hours before placing the food inside in case of small amounts and about 24 hours in advance in case of the maximum amount of food to be frozen.

Wrap produce and spread it out as far as possible. Do not allow produce to be frozen to touch produce that is already frozen to prevent the latter thawing.

You do not have to activate SuperFrost in the following cases:

• when placing frozen food in the freezer
• when freezing up to approx. 1 kg fresh food daily

Freezing with SuperFrost

Briefly press the SuperFrost button Fig. 2 (9) once.
The SuperFrost symbol Fig. 2 (10) shines.
The freezer temperature drops, the appliance operates with maximum refrigerating performance. For a smaller quantity of produce to be frozen:

wait approx. 6 h.
- Appliances with NoFrost: place wrapped produce in the top drawers.
- Appliances without NoFrost: place wrapped produce in the bottom drawers. For the maximum quantity of produce to be frozen:
wait approx. 24 h.
Appliances with NoFrost: remove top drawers and place produce directly on the top shelves.

• Appliances without NoFrost: remove bottom drawer and place produce directly in the appliance so that it touches the base or sides.
  SuperFrost is automatically deactivated after 65 hours.
  The SuperFrost symbol Fig. 2 (10) extinguishes once freezing is completed.
  Place produce in the drawers and push the latter back in again.
  The appliance continues to operate in the energy-saving, normal mode.

5.6.6 Drawers

To store frozen food directly on the shelves: pull the drawer forwards and lift it out.

5.6.7 Shelves

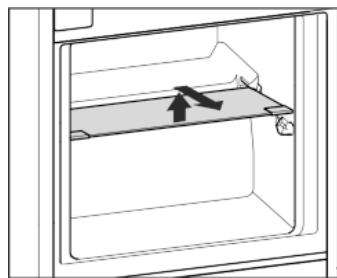

To remove the shelf: lift up at the front and pull out.
To put the shelf back: simply push in as far as it will go.

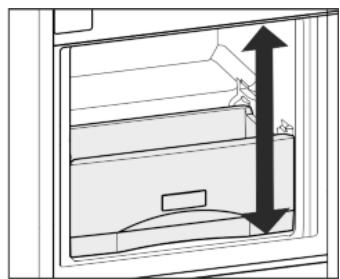

5.6.8 VarioSpace

Apart from being able to remove the drawers, you can also remove the shelves, creating space for large items of frozen food. Poultry, meat, large pieces of game and high bakery products can be frozen in one piece and prepared.

The maximum load of frozen food for the drawers is 25kg each and for the shelves 35kg each.

6 Maintenance

6.1 Defrosting with NoFrost*

The NoFrost system automatically defrosts the appliance.

Refrigerator compartment:

The defrost water evaporates due to the compressor heat.

Regularly clean the drain opening to allow the water to flow away (see 6.3).

Freezer compartment:

The moisture condenses on the evaporator, is periodically defrosted and evaporates.

The appliance does not have to be manually defrosted.

6.2 Manual defrosting*

The refrigerator compartment is defrosted automatically. The defrost water evaporates as a result of the heat of the compressor. Drops of water on the rear wall are perfectly normal.

Regularly clean the drain opening to allow the water to flow away (see 6.3).

A layer of frost or ice can build up in the freezer compartment after a long period of operation.

The layer of frost or ice builds up faster if the appliance is opened often or if the food is warm when placed inside. However, a thick layer of ice will increase the appliance's energy consumption. You should therefore defrost the appliance regularly.

CAUTION

Risk of injury and damage as a result of hot steam!

Do not use electric heaters or steam cleaners, naked flames or defrosting sprays for defrosting.
Do not remove ice using sharp instruments.

Switch on SuperFrost one day before defrosting.

The frozen goods are provided with a "cold reserve".
Switch off the appliance.
The temperature display goes out.
If the temperature display does not go out, the child lock function (see 5.1) is active.
Pull out the power plug or switch off the fuse.
If possible, put the frozen goods in the freezer drawer, wrapped in newspaper or a blanket, and store in a cool place.
Place a pan with hot, not boiling water on a middle shelf.

-or-

Half-fill the two lower drawers with lukewarm water and put them in the appliance.

Defrosting is speeded up.
Defrost water is collected in the drawers.
Leave the door of the appliance open while defrosting.
Remove detached pieces of ice.
Pay attention that the defrost water does not run into the kitchen unit.
Clean the appliance (see 6.3) and rub dry.

6.3 Cleaning the appliance

CAUTION

Risk of injury and damage as a result of hot steam! Hot steam may damage the surfaces and cause burns.

Do not use any steam cleaners!

NOTICE

Incorrect cleaning damages the appliance!
Do not use cleaning agents in concentrated form.
Do not use any scouring or abrasive sponges or steel wool.
Please do not use any aggressive, scouring, sand-, chloride-, chemical- or acid-based cleaning agents.
Do not use chemical solvents.
- Do not damage or remove the type plate on the inside of the appliance. It is important for the customer service.
Do not pull off, bend or damage cables or other components.
- Do not allow any cleaning water to enter the drain channel, ventilation grille or electrical parts.
Please use soft cleaning cloths and a universal pH-neutral cleaning agent.
Please use cleaning and care products suitable for contact with foodstuffs in the appliance interior.

Empty appliance.

Pull out the power plug.

Clean plastic outer and inner surfaces with lukewarm water and a little washing-up liquid.

Clean drain hole: Remove deposits with a narrow instrument, e.g. a cotton bud.

Most of the parts can be dismantled for cleaning: see the relevant chapter.
Clean items of equipment by hand with lukewarm water and a little washing-up liquid.

After cleaning:

Wipe dry the appliance and items of equipment.
Connect the appliance and switch it on again.
Switch on SuperFrost (see 5.6.5)
When the temperature is sufficiently cold:
Put the food back inside.

6.4 Customer service

First check whether you can correct the fault yourself by reference to the list (see Malfunction). If this is not the case, please contact the customer service whose address is given in the enclosed customer service list.

WARNING

Risk of injury if repair work is not carried out professionally!

Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see Maintenance)

Read the appliance designation

Fig. 9 (1), service No. Fig. 9 (2) and serial No. Fig. 9 (3) off the type plate located inside the appliance on the left-hand side.

Fig. 9

• Notify the customer service, specifying the fault, appliance designation Fig. 9 (1), service No. Fig. 9 (2) and serial No. Fig. 9 (3).

This will help us to provide you with a faster and more accurate service.
- Keep the appliance closed until the customer service arrives.
The food will stay cool longer.
Pull out the mains plug (not by pulling the connecting cable) or switch off the fuse.

7 Malfunction

Your appliance is designed and manufactured for a long life span and reliable operation. If a malfunction nonetheless occurs during operation, check whether it is due to a handling error. In this case you will have to be charged for the costs incurred, even during the warranty period. You may be able to rectify the following faults yourself:

Appliance does not work.

The appliance is not switched on.
Switch on the appliance.
The power plug is not properly inserted in the wall socket.
Check power plug.
The fuse of the wall socket is not in order.
Check fuse.

The compressor runs for a long time.

The compressor switches to a low speed when little cold is needed. Although the running time is increased as a result, energy is saved.
This is normal in energy-saving models.
SuperFrost is activated.
The compressor runs for longer in order to rapidly cool the food. This is normal.
SuperCool is activated.
The compressor runs for longer in order to rapidly cool the food. This is normal.

A LED on the bottom rear of the appliance (at the compressor) flashes repeatedly every 5 seconds*.

There is a fault.
Please contact the after sales service. (see Maintenance).

Excessive noise.

Speed-controlled* compressors may produce varying running noise due to different speed steps.
The sound is normal.

A bubbling and gurgling noise.

This noise comes from the refrigerant flowing in the refrigeration circuit.
The sound is normal.

A quiet clicking noise.

The noise is produced whenever the refrigeration unit (motor) automatically switches on or off.
The sound is normal.

A hum. It is briefly a little louder when the refrigeration unit (the motor) switches on.

→ The refrigeration increases automatically when the SuperFrost, function is activated, fresh food has just been placed in the appliance or the door has been left open for a while.
The sound is normal.
→ The refrigeration increases automatically when the SuperCool function is activated, fresh food has just been placed in the appliance or the door has been left open for a while.

The sound is normal.
→ The ambient temperature is too high.
Solution: (see 1.2)

A low hum.

The sound is produced by air flow noise of the fan.
The sound is normal.

Vibratory noise.

→ The appliance is not fixed to the ground. The running of the cooling unit therefore makes objects and adjacent furniture vibrate.
Check installation and reposition appliance as required.
Move bottles and containers apart.

The temperature display indicates: F0 to F9

There is a fault.
Contact the customer service. (see Maintenance).

The temperature display indicates power failure. The warmest temperature reached during the power failure appears in the temperature display.

→ The freezer temperature rose too high over the last hours or days due to a power failure or power interruption. When the power interruption is over, the appliance will continue to operate in the last temperature setting.
To cancel the display of the warmest temperature: press alarm button Fig. 2 (11).
- Check the quality of the food. Do not consume spoiled food.
- Do not re-freeze thawed food.

DEMO shines in the temperature display.

The demo mode is activated.
Contact the customer service. (see Maintenance).

The outside surfaces of the appliance are warm.

The heat of the refrigeration circuit is used to prevent condensate from forming.
This is normal.

The temperature is not cold enough.

The door of the appliance is not properly closed.
Close the door of the appliance.
Insufficient ventilation.
Clear ventilation grilles.
→ The ambient temperature is too high.
Solution: (see 1.2).
The appliance was opened too frequently or for too long.
- Wait until the appliance reaches the required temperature itself. If not, contact the customer service. (see Maintenance).
Too much fresh food was placed inside without SuperFrost.
Solution: (see 5.6.5)
The temperature is incorrectly set.
Set the temperature to a colder setting and check after 24 hours.
→ The appliance is too close to a source of heat (stove, heater etc).
Change the position of the appliance or the source of heat.
→ The appliance was not inserted properly into the recess.
- Check whether the appliance was inserted correctly and the door closes properly.

The interior light is not on.

→ The appliance is not switched on.
Switch on the appliance.
The door was open longer than 15 min.
The interior light automatically switches off if the door has been open for about 15 min.
The LED illumination is defective or the cover is damaged:

WARNING

Risk of injury due to electric shock!

Live parts are located under the cover.

Have the LED interior light changed or repaired only by the customer service or by specialized personnel trained for the purpose.

WARNING

Danger of injury by LED lamp!

The light intensity of the LED illumination corresponds to laser class 1/1M.

If the cover is defective:

Do not look into the illumination with optical lenses from the immediate proximity. This can cause injury to the eyes.

8 Decommissioning

8.1 Switching off the appliance

Note

To switch off the entire appliance, only the freezer compartment need be switched off. The refrigerator compartment is automatically switched off at the same time.
The refrigerator compartment can be switched off separately (e.g. during extended periods of absence such as holidays), while the freezer compartment remains in operation.
If the appliance or refrigerator compartment does not switch off, the child lock function is active (see 5.1).

8.1.1 Switch off the freezer compartment

Press the freezer compartment On/Off button Fig. 2 (6) for approx. 2 seconds.
A long beep is emitted. The temperature displays are dark. The appliance (refrigerator and freezer compartments) is switched off.

8.1.2 Switch off refrigerator compartment

Press the refrigerator compartment On/Off button Fig. 2 (1) for approx. 2 seconds.
The refrigerator compartment temperature display is dark. The refrigerator compartment is switched off. The freezer compartments remains in operation.

8.2 Taking the appliance out of service

Empty the appliance.
Pull out the power plug.
Clean the appliance (see 6.3).

Leave the door open to prevent odour.

9 Disposing of the appliance

The appliance contains some reusable materials and should be disposed of properly - not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

When disposing of the appliance, ensure that the refrigeration circuit is not damaged to prevent uncontrolled escape of the refrigerant it contains (data on type plate) and oil.

Disable the appliance.
Pull out the plug.
Cut through the connecting cable.
