HUAWEI E3531S - Clé 3G/4G

E3531S - Clé 3G/4G HUAWEI - Notice d'utilisation et mode d'emploi gratuit

Retrouvez gratuitement la notice de l'appareil E3531S HUAWEI au format PDF.

📄 10 pages Français FR ⬇ Télécharger 💬 Question IA ❓ 10 questions ⚙️ Specs
Notice HUAWEI E3531S - page 1
1 / 10
Choisissez votre langue et indiquez votre email : nous vous enverrons une version traduite specifiquement.
Type de produit Clé USB 3G/4G
Marque Huawei
Modèle E3531S
Dimensions (approx.) 85 x 25 x 10 mm
Poids 20 g
Alimentation Via port USB (5V, 500mA)
Fonctions principales Connexion internet mobile 3G/4G LTE, support des réseaux HSPA+ et LTE, slot microSD (jusqu'à 32 Go), interface USB 2.0, compatible Windows/Mac/Linux
Entretien et nettoyage Nettoyer avec un chiffon doux et sec. Éviter l'humidité et les chocs.
Sécurité Ne pas exposer à des températures extrêmes (au-dessus de 45°C ou en dessous de -10°C).
Pièces détachées et réparabilité Non réparable par l'utilisateur. Contacter le service après-vente Huawei en cas de panne.
Informations générales Garantie constructeur 2 ans. Utilisation en intérieur ou en extérieur avec couverture réseau.

FOIRE AUX QUESTIONS - E3531S HUAWEI

Comment installer la clé Huawei E3531S sur Windows ?
Insérez la clé dans un port USB. Le pilote s'installe automatiquement. Si ce n'est pas le cas, téléchargez le logiciel Mobile Partner depuis le site Huawei.
La clé n'est pas reconnue par mon ordinateur, que faire ?
Vérifiez que le port USB fonctionne. Essayez un autre port. Assurez-vous que les pilotes sont installés. Redémarrez l'ordinateur.
Comment configurer la connexion réseau ?
Après installation, le logiciel Mobile Partner ou l'interface intégrée propose de configurer le profil APN de votre opérateur. Saisissez les paramètres fournis par votre opérateur.
Puis-je utiliser une carte SIM de n'importe quel opérateur ?
Oui, la clé est déverrouillée (généralement). Utilisez une carte SIM micro-SIM ou standard avec un abonnement data 3G/4G.
Comment insérer une carte microSD ?
Retirez le capuchon arrière de la clé (si présent). Insérez la carte microSD dans le slot prévu. Elle servira de stockage amovible.
Comment savoir si je suis en 3G ou 4G ?
Le voyant lumineux de la clé change de couleur : bleu pour 4G, vert pour 3G, orange pour 2G. Consultez le manuel pour plus de détails.
La clé chauffe, est-ce normal ?
Une légère chaleur est normale lors d'une utilisation prolongée. Si elle devient très chaude, débranchez-la et laissez-la refroidir.
Comment réinitialiser la clé aux paramètres d'usine ?
Dans le logiciel Mobile Partner, allez dans 'Outils' > 'Réinitialiser' ou maintenez le bouton de réinitialisation (si présent) pendant 10 secondes.
Le débit est lent, que puis-je faire ?
Vérifiez la couverture réseau. Essayez dans une autre zone. Évitez les interférences. Contactez votre opérateur si le problème persiste.
Où télécharger les pilotes pour Mac/Linux ?
Sur le site officiel Huawei, section support. Cherchez le modèle E3531S. Téléchargez le pilote adapté à votre système d'exploitation.

Questions des utilisateurs sur E3531S HUAWEI

0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.

Poser une nouvelle question sur cet appareil

L'email reste privé : il sert seulement à vous prévenir si quelqu'un répond à votre question.

Aucune question pour l'instant. Soyez le premier à en poser une.

Téléchargez la notice de votre Clé 3G/4G au format PDF gratuitement ! Retrouvez votre notice E3531S - HUAWEI et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil E3531S de la marque HUAWEI.

MODE D'EMPLOI E3531S HUAWEI

Driver Installation Guide for MAC10.15 OS

HUAWEI E3531S - Driver Installation Guide for MAC10.15 OS - 1

natural_image Huawei corporate logo featuring a red stylized flower or star design (no text or symbols)

HUAWEI

Huawei Technologies Co., Ltd.

All rights reserved

Once the package is downloaded from Huawei support web-page, user will find below software's and documents in the downloaded zip file.

  1. Mobile Partner.zip (This can be used to install dashboard software in MAC system)
  2. Update_MAC23.017.01.00.983.zip – (This can be used to upgrade the software to device and install dashboard in MAC system)
  3. Driver Installation Guide for MAC10.15 OS (Stick).doc (this document)

Here is the information on how to use these software to install Mobile Partner in the MAC OS.

1.1 Install Procedure

1.1.1 Using Mobile Partner.app

a. Download Mobile Partner.app to MAC, Double click on "Mobile Partner.app"

"Mobile Partner" can't be opened because it was not downloaded from the App Store. Your security preferences allow installation of only apps from the App Store. Safari downloaded this file today at 6:55 PM from consumer-tkbdownload.huawei.com Show in Finder OK

b.

Finder File Edit View Go Window Help About This Mac System Preferences... App Store... Recent Items Force Quit Finder Sleep Restart... Shut Down... Lock Screen ^*Q Log Out huawei... ^*Q

C.

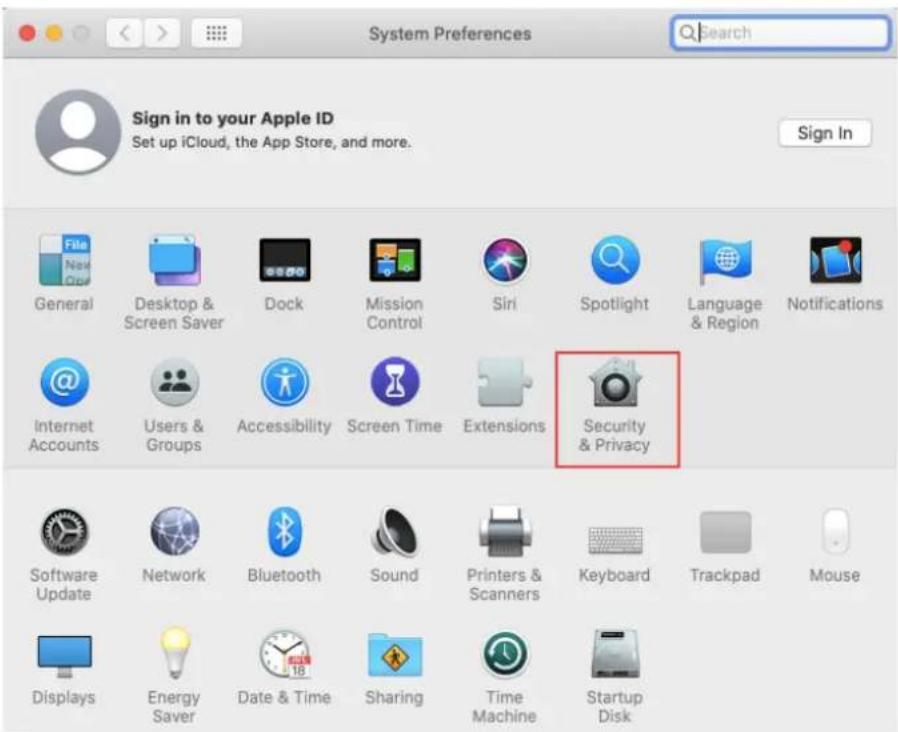

System Preferences Sign in to your Apple ID Set up iCloud, the App Store, and more. Sign In General Desktop & Screen Saver Dock Mission Control Siri Spotlight Language & Region Notifications Internet Accounts Users & Groups Accessibility Screen Time Extensions Security & Privacy Software Update Network Bluetooth Sound Printers & Scanners Keyboard Trackpad Mouse Displays Energy Saver Date & Time Sharing Time Machine Startup Disk

d.

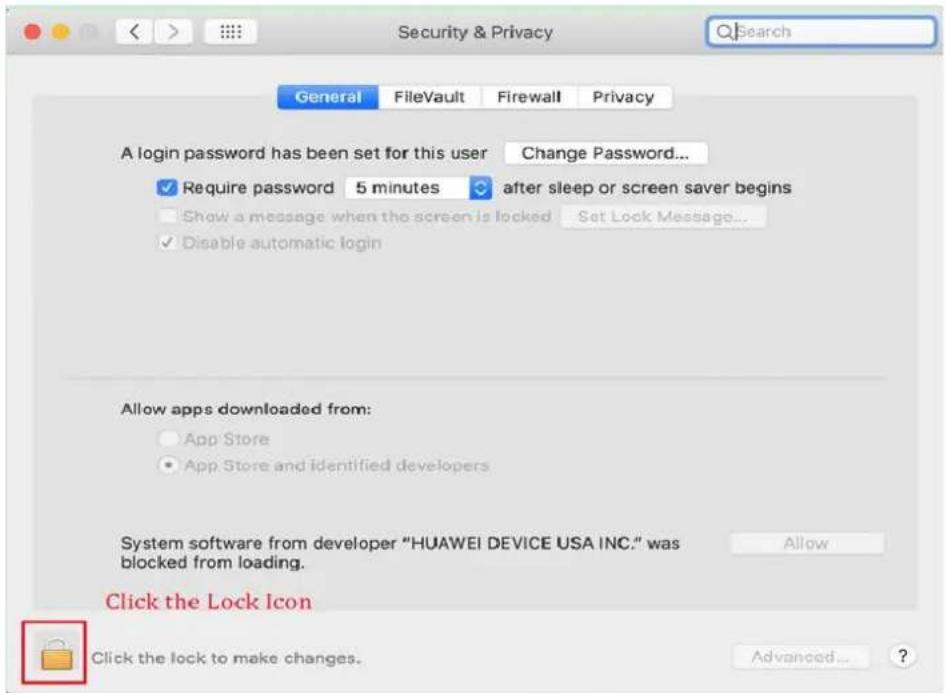

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "HUAWEI DEVICE USA INC." was blocked from loading. Allow Click the Lock Icon Click the lock to make changes. Advanced... ?

e.

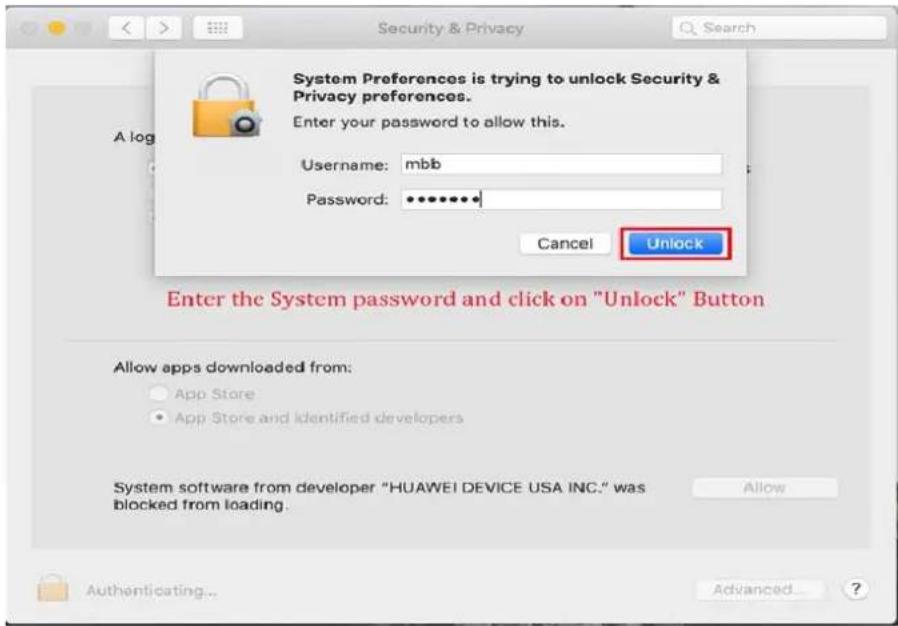

Security & Privacy System Preferences is trying to unlock Security & Privacy preferences. Enter your password to allow this. Username: mbb Password: ************ Cancel Unlock Enter the System password and click on "Unlock" Button Allow apps downloaded from: App Store App Store and identified developers System software from developer "HUAWEI DEVICE USA INC." was blocked from loading. Allow Authenticating... Advanced... ?

f.

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers Click on "Allow" Button System software from developer "HUAWEI DEVICE USA INC." was blocked from loading. Allow Click the lock to prevent further changes. Advanced... ?

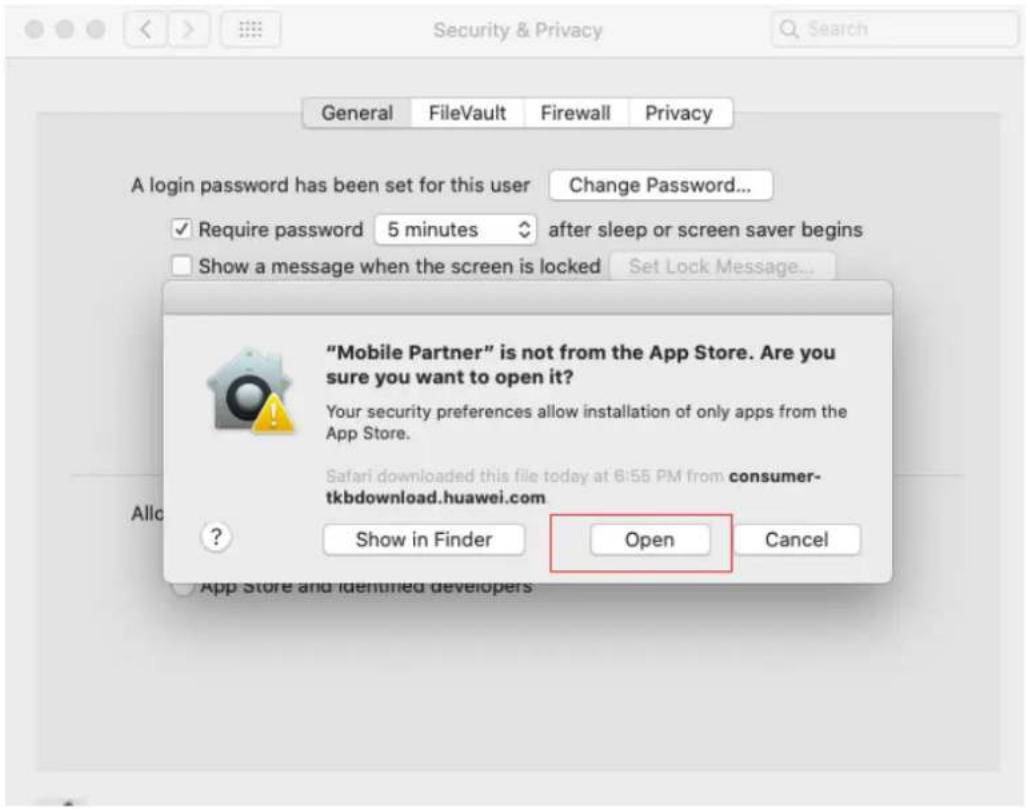

g. Re-open the following prompt box, Click "open" button

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... "Mobile Partner" is not from the App Store. Are you sure you want to open it? Your security preferences allow installation of only apps from the App Store. Safari downloaded this file today at 6:55 PM from consumer-tkbdownload.huawei.com ? Show in Finder Open Cancel App Store and identified developers

1.1.2 Installation steps

initiate the installation process.

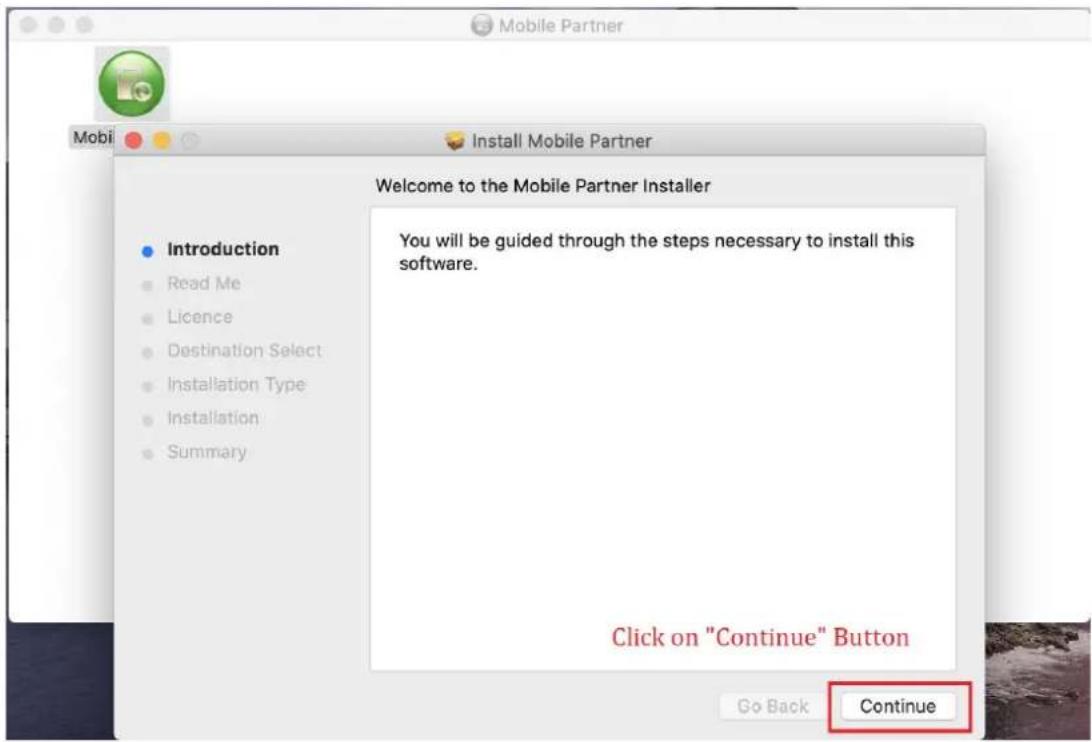

Mobile Partner Mobi Install Mobile Partner Welcome to the Mobile Partner Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary You will be guided through the steps necessary to install this software. Click on "Continue" Button Go Back Continue

Mobile Partner Mobi Install Mobile Partner Important Information Introduction Read Me Licence Destination Select Installation Type Installation Summary Privacy policy To better understand how we use and protect your personal information, please read the Privacy Policy at http://consumer.huawei.com/privacy-policy. Click on "Continue" Button Print... Save... Go Back Continue

Mobile Partner Install Mobile Partner Software Licence Agreement English Introduction Read Me Licence Destination Select Installation Type Installation Summary Huawei Technologies Co., Ltd. END-USER LICENSE AGREEMENT FOR HUAWEI SOFTWARE IMPORTANT-READ CAREFULLY: This END-USER License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Huawei Technologies Co., Ltd. ("HUAWEI") for the HUAWEI Software accompanying this EULA, which includes computer software and may include associated media, printed materials, and "online" or electronic documentation ("SOFTWARE PRODUCT" or "SOFTWARE"). By installing, copy or otherwise using the SOFTWARE PRODUCT, you agree to be bound by the terms of this EULA. If you do not agree to the terms of this EULA, discontinue installation, copy, or use of the SOFTWARE PRODUCT, destroy all copies and all component parts of the SOFTWARE PRODUCT, and promptly contact HUAWEI for instructions on return of the SOFTWARE PRODUCT for a refund. SOFTWARE PRODUCT LICENSE The SOFTWARE PRODUCT is protected by copyright laws and international copyright treaties, as well as other applicable intellectual property laws and treaties. This is a License and not a "sale" of the SOFTWARE PRODUCT. HUAWEI grants you a non-exclusive right to use this copy of the SOFTWARE PRODUCT. Please click on "Continue" Button Print... Save... Go Back Continue

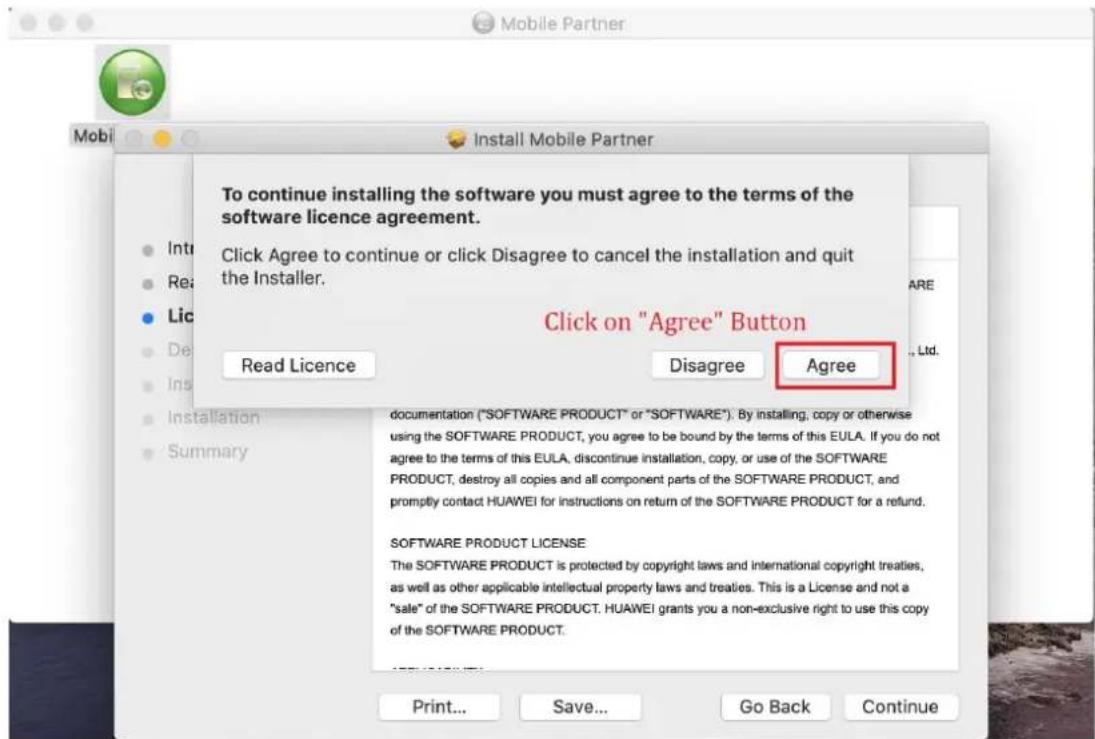

To continue installing the software you must agree to the terms of the software licence agreement. Click Agree to continue or click Disagree to cancel the installation and quit the Installer. Click on "Agree" Button Read Licence Disagree Agree documentation ("SOFTWARE PRODUCT" or "SOFTWARE"). By installing, copy or otherwise using the SOFTWARE PRODUCT, you agree to be bound by the terms of this EULA. If you do not agree to the terms of this EULA, discontinue installation, copy, or use of the SOFTWARE PRODUCT, destroy all copies and all component parts of the SOFTWARE PRODUCT, and promptly contact HUAWEI for instructions on return of the SOFTWARE PRODUCT for a refund. SOFTWARE PRODUCT LICENSE The SOFTWARE PRODUCT is protected by copyright laws and international copyright treaties, as well as other applicable intellectual property laws and treaties. This is a License and not a "sale" of the SOFTWARE PRODUCT. HUAWEI grants you a non-exclusive right to use this copy of the SOFTWARE PRODUCT.

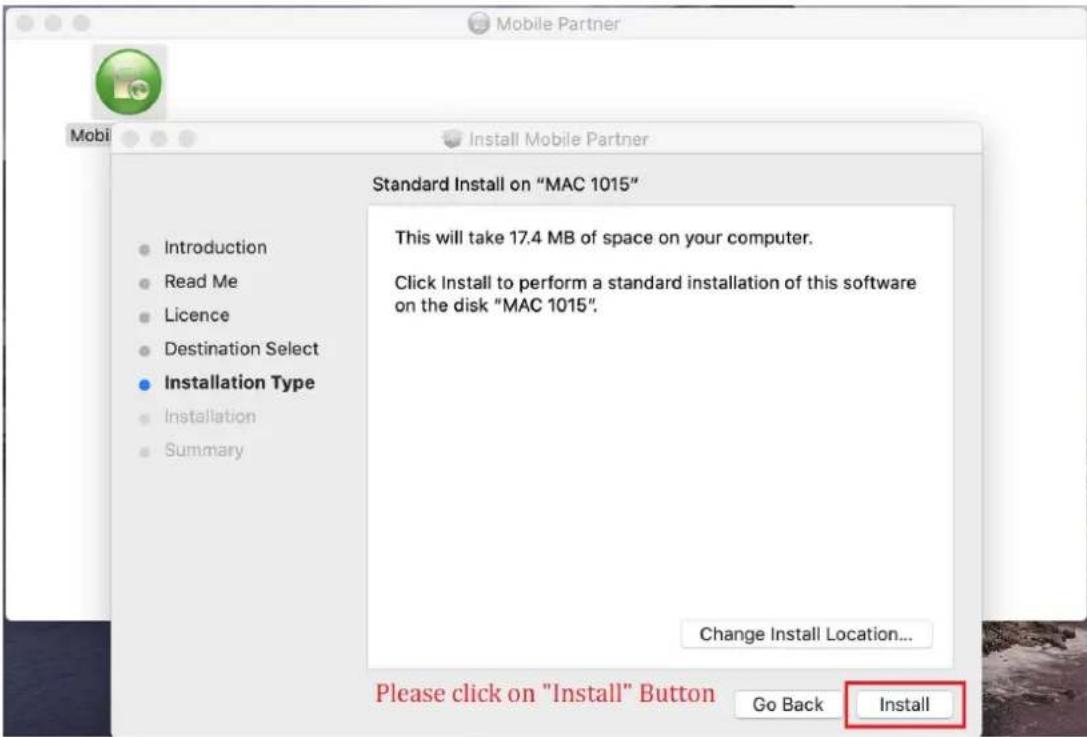

Mobile Partner Mobi Install Mobile Partner Standard Install on "MAC 1015" • Introduction • Read Me • Licence • Destination Select • Installation Type • Installation • Summary This will take 17.4 MB of space on your computer. Click Install to perform a standard installation of this software on the disk "MAC 1015". Change Install Location... Please click on "Install" Button Go Back Install

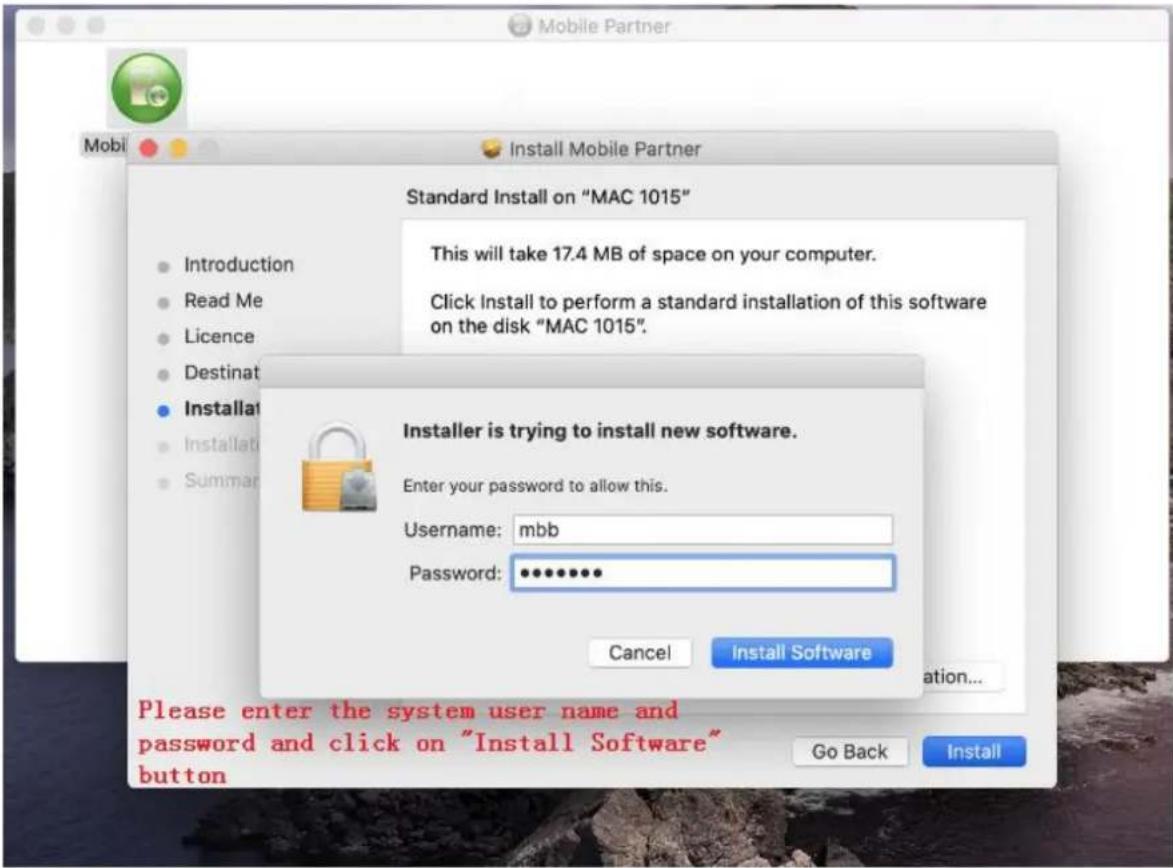

Mobile Partner Mobil Install Mobile Partner Standard Install on "MAC 1015" This will take 17.4 MB of space on your computer. Click Install to perform a standard installation of this software on the disk "MAC 1015". Installer is trying to install new software. Enter your password to allow this. Username: mbb Password: ************ Cancel Install Software Please enter the system user name and password and click on "Install Software" button Go Back Install

Enabling this system software requires a restart1 Restart After installation is successful, then click on "Restart" Button Allow apps downloaded from: App Store App Store and identified developers Click the lock to prevent further changes. Advanced... Install Mobile Partner The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Go Back Close

1.1.3 After installation finish the dashboard will start automatically.

Mobile Partner Connection Statistics Text Phonebook Profile Name: Connect WCDMA CHN05 Ge org!

Note : Incase, if permission denied by user, then the automatic launch of Dashboard will not happen on device insertion.

Mobile Partner Mobile Partner

Note : If this page is displayed, please close the dashboard, and then open the newly installed dashboard.

HUAWEI E3531S - After installation finish the dashboard will start automatically. - 3

"HWPortCfg" would like to access files on a removable volume.

Click on "OK" Button

Don't Allow

OK
