KR-375 - Instrument de musique ROLAND - Notice d'utilisation et mode d'emploi gratuit

Type d'instrument	Piano numerique intelligent (Intelligent Digital Piano)
Clavier	88 touches
Mecanique	Mecanique a marteaux (Hammer Action)
Sensibilite au toucher	3 niveaux predefinis ou 60 niveaux reglables
Polyphonie maximale	64 voix
Nombre de sons	434 variations de sons
Kits de batterie / SFX	12 kits de batterie + 1 kit SFX
Styles d'accompagnement	100 styles x 2 types (Style Orchestrator), 11 groupes
Styles pianiste	22 Pianist Styles
Effets reverb	8 types, reglage continu
Effets chorus	8 types
Autres effets	Resonance sympathique, rotatif, 32 types supplementaires
Stockage notes (sequenceur)	Environ 30 000 notes
Puissance amplification	30 W x 2 (stereo)
Haut-parleurs	2 x 20 cm
Connectique audio	Sorties L/Mono + R, entrees L/Mono + R, prise micro (echo), 2 prises casque stereo
Connectique MIDI	2 entrees MIDI, 1 sortie MIDI, connecteur ordinateur
Pedalier	Prise DIN 8 broches
Dimensions (L x P x H)	1 445 x 525 x 892 mm
Poids	62,5 kg

FOIRE AUX QUESTIONS - KR-375 ROLAND

Combien de sons le Roland KR-375 propose-t-il ?

Le KR-375 offre 434 variations de sons, dont 12 kits de batterie et 1 kit SFX. Ces sons sont organisés en 8 groupes pour une navigation rapide depuis le panneau de commande.

Quelle est la polyphonie maximale du KR-375 ?

Le KR-375 dispose d'une polyphonie maximale de 64 voix simultanées. Lors de jeux complexes avec accompagnement automatique et couches de sons actives, certaines notes anciennes peuvent être tronquées si cette limite est atteinte.

Comment fonctionne la sensibilité au toucher ?

La sensibilité au toucher propose 3 niveaux prédéfinis ou 60 niveaux réglables par l'utilisateur. Pour la modifier, accédez au menu des paramètres clavier et ajustez la valeur selon votre jeu. Il est aussi possible de désactiver complètement la sensibilité pour un rendu uniforme.

Comment utiliser la fonction Split (partage du clavier) ?

Le mode Split divise le clavier en deux zones : main gauche et main droite, chacune avec son propre son. Le point de partage est réglable. Appuyez sur le bouton Split et maintenez-le pour définir la touche de séparation souhaitée.

Comment enregistrer un morceau sur le KR-375 ?

Le KR-375 permet l'enregistrement en temps réel (modes replace, mix, auto punch in, manual punch in, boucle) et en pas à pas. La mémoire interne stocke environ 30 000 notes. Appuyez sur REC puis START/STOP pour démarrer l'enregistrement.

Comment connecter un casque au KR-375 ?

Le KR-375 est équipé de 2 prises casque stéréo situées sur la face avant ou latérale de l'instrument. Branchez un casque jack 6,35 mm (ou 3,5 mm avec adaptateur). Le son des haut-parleurs est automatiquement coupé lors du branchement.

Comment connecter le KR-375 à un ordinateur ?

Le KR-375 dispose d'un connecteur ordinateur dédié (interface MIDI intégrée) ainsi que de 2 entrées MIDI et 1 sortie MIDI. Reliez le piano à votre ordinateur via le connecteur propriétaire ou par câbles MIDI avec une interface MIDI externe pour l'utiliser avec un séquenceur ou logiciel DAW.

Comment utiliser les styles d'accompagnement ?

Le KR-375 propose 100 styles × 2 variations (Style Orchestrator) répartis en 11 groupes, plus 22 styles pianiste. Sélectionnez un style via les boutons de catégorie, réglez le tempo, puis jouez des accords dans la zone d'accompagnement pour déclencher l'arrangement automatique.

Peut-on connecter un microphone au KR-375 ?

Oui, le KR-375 dispose d'une prise microphone avec effet écho intégré. Branchez un microphone jack 6,35 mm et réglez le volume via le curseur dédié. L'effet écho permet d'ajouter une réverbération naturelle à la voix.

Quels types d'effets sont disponibles ?

Le KR-375 offre une réverbération (8 types, réglable en continu), un chorus (8 types), une résonance sympathique des cordes, un effet rotatif (type Leslie) et 32 autres types d'effets. Tous sont accessibles et paramétrables depuis le panneau de commande.

Comment transposer ou utiliser la fonction Layer ?

La fonction Layer superpose deux sons sur toute l'étendue du clavier, idéale pour combiner piano et cordes par exemple. La transposition globale se règle dans les paramètres système. Le mode Piano Style Arranger permet en outre de jouer un accompagnement automatique dans un style pianistique naturel.

Quelles sont les dimensions et le poids du KR-375 ?

Le Roland KR-375 mesure 1 445 mm de largeur, 525 mm de profondeur et 892 mm de hauteur, pour un poids de 62,5 kg. Il s'agit d'un piano meuble de salon, généralement livré avec son banc.

MODE D'EMPLOI KR-375 ROLAND

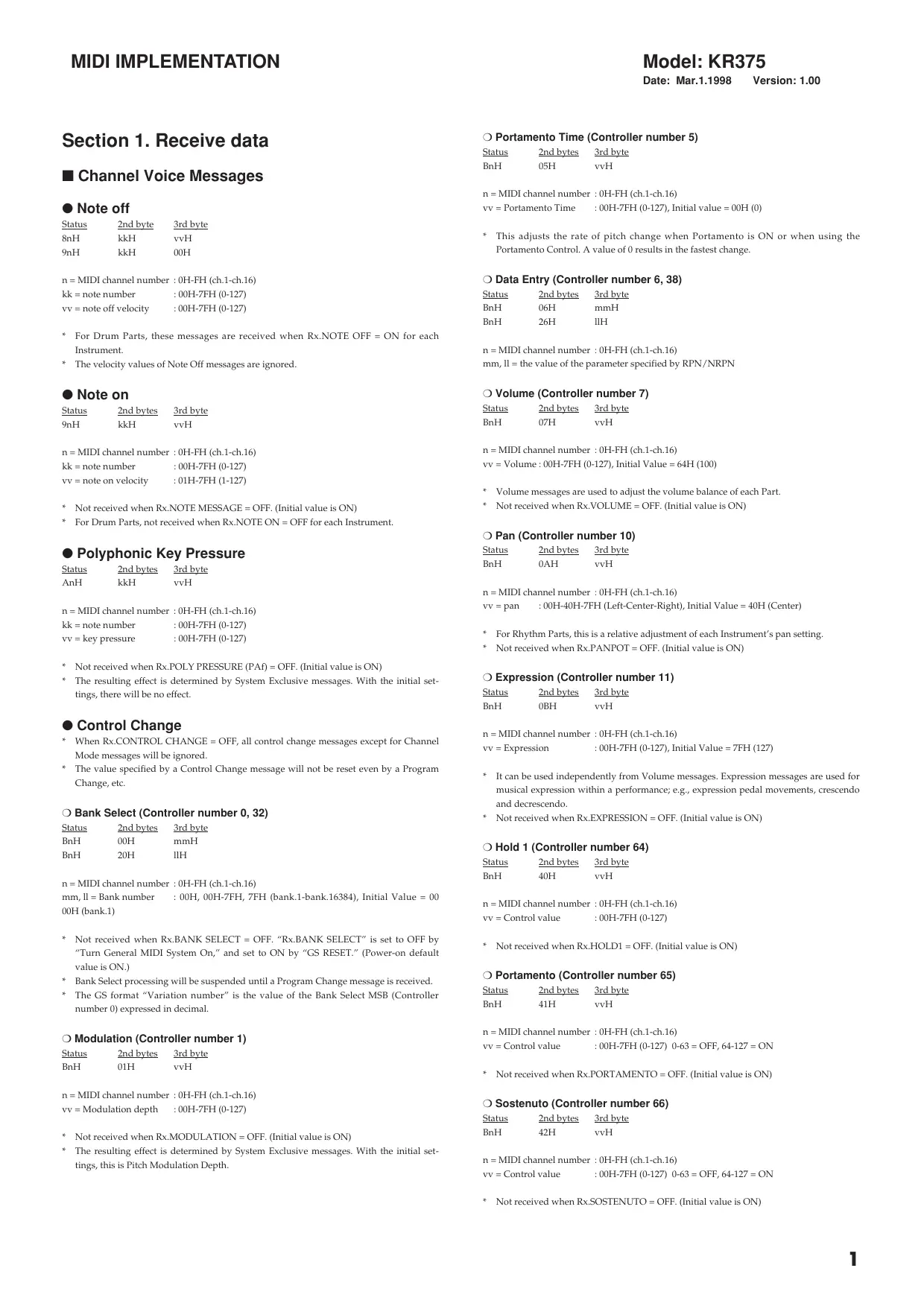

Section 1. Receive data

■ Channel Voice Messages

● Note off

Status	2nd byte	3rd byte
8nH	kkH	vvH
9nH	kkH	00H

n = MIDI channel number : 0H-FH (ch.1-ch.16)

kk = note number : 00H-7FH (0-127)

vv = note off velocity : 00H-7FH (0-127)

* For Drum Parts, these messages are received when Rx.NOTE OFF = ON for each Instrument.
* The velocity values of Note Off messages are ignored.

● Note on

Status	2nd bytes	3rd byte
9nH	kkH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

kk = note number : 00H-7FH (0-127)

vv = note on velocity : 01H-7FH (1-127)

* Not received when Rx.NOTE MESSAGE = OFF. (Initial value is ON)
* For Drum Parts, not received when Rx.NOTE ON = OFF for each Instrument.

● Polyphonic Key Pressure

Status	2nd bytes	3rd byte
AnH	kkH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

kk = note number : 00H-7FH (0-127)

vv = key pressure : 00H-7FH (0-127)

* Not received when Rx.POLY PRESSURE (PAf) = OFF. (Initial value is ON)
* The resulting effect is determined by System Exclusive messages. With the initial settings, there will be no effect.

● Control Change

* When Rx.CONTROL CHANGE = OFF, all control change messages except for Channel Mode messages will be ignored.
* The value specified by a Control Change message will not be reset even by a Program Change, etc.

○ Bank Select (Controller number 0, 32)

Status	2nd bytes	3rd byte
BnH	00H	mmH
BnH	20H	llH

n = MIDI channel number : 0H-FH (ch.1-ch.16) mm, ll = Bank number : 00H, 00H-7FH, 7FH (bank.1-bank.16384), Initial Value = 0000H (bank.1)

* Not received when Rx.BANK SELECT = OFF. "Rx.BANK SELECT" is set to OFF by "Turn General MIDI System On," and set to ON by "GS RESET." (Power-on default value is ON.)
* Bank Select processing will be suspended until a Program Change message is received.
* The GS format "Variation number" is the value of the Bank Select MSB (Controller number 0) expressed in decimal.

○ Modulation (Controller number 1)

Status	2nd bytes	3rd byte
BnH	01H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Modulation depth : 00H-7FH (0-127)

* Not received when Rx.MODULATION = OFF. (Initial value is ON)
* The resulting effect is determined by System Exclusive messages. With the initial settings, this is Pitch Modulation Depth.

○ Portamento Time (Controller number 5)

Status	2nd bytes	3rd byte
BnH	05H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16) vv = Portamento Time : 00H-7FH (0-127), Initial value = 00H (0)

* This adjusts the rate of pitch change when Portamento is ON or when using the Portamento Control. A value of 0 results in the fastest change.

○ Data Entry (Controller number 6, 38)

Status	2nd bytes	3rd byte
BnH	06H	mmH
BnH	26H	llH

n = MIDI channel number : 0H-FH (ch.1-ch.16) mm, ll = the value of the parameter specified by RPN/NRPN

○ Volume (Controller number 7)

Status	2nd bytes	3rd byte
BnH	07H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16) vv = Volume : 00H-7FH (0-127), Initial Value = 64H (100)

* Volume messages are used to adjust the volume balance of each Part.
* Not received when Rx.VOLUME = OFF. (Initial value is ON)

○ Pan (Controller number 10)

Status	2nd bytes	3rd byte
BnH	0AH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16) vv = pan : 00H-40H-7FH (Left-Center-Right), Initial Value = 40H (Center)

* For Rhythm Parts, this is a relative adjustment of each Instrument's pan setting.
* Not received when Rx.PANPOT = OFF. (Initial value is ON)

○ Expression (Controller number 11)

Status	2nd bytes	3rd byte
BnH	0BH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16) vv = Expression : 00H-7FH (0-127), Initial Value = 7FH (127)

* It can be used independently from Volume messages. Expression messages are used for musical expression within a performance; e.g., expression pedal movements, crescendo and decrescendo.
* Not received when Rx.EXPRESSION = OFF. (Initial value is ON)

○ Hold 1 (Controller number 64)

Status	2nd bytes	3rd byte
BnH	40H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16) vv = Control value : 00H-7FH (0-127)

* Not received when Rx.HOLD1 = OFF. (Initial value is ON)

○ Portamento (Controller number 65)

Status	2nd bytes	3rd byte
BnH	41H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16) vv = Control value : 00H-7FH (0-127) 0-63 = OFF, 64-127 = ON

* Not received when Rx.PORTAMENTO = OFF. (Initial value is ON)

○ Sostenuto (Controller number 66)

Status	2nd bytes	3rd byte
BnH	42H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16) vv = Control value : 00H-7FH (0-127) 0-63 = OFF, 64-127 = ON

* Not received when Rx.SOSTENUTO = OFF. (Initial value is ON)

○ Soft (Controller number 67)

Status	2nd bytes	3rd byte
BnH	43H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Control value : 00H-7FH (0-127) 0-63 = OFF, 64-127 = ON

* Not received when Rx.SOFT = OFF. (Initial value is ON)

○ Portamento control (Controller number 84)

Status	2nd bytes	3rd byte
BnH	54H	kkH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

kk = source note number : 00H-7FH (0-127)

* A Note-on received immediately after a Portamento Control message will change continuously in pitch, starting from the pitch of the Source Note Number.
* If a voice is already sounding for a note number identical to the Source Note Number, this voice will continue sounding (i.e., legato) and will, when the next Note-on is received, smoothly change to the pitch of that Note-on.
* The rate of the pitch change caused by Portamento Control is determined by the Portamento Time value.

Example 1.

On MIDI (Description)	Result
90 3C 40(Note on C4)	C4 on
B0 54 3C(Portamento Control from C4)	no change (C4 voice still sunding)
90 40 40(Note on E4)	glide from C4 to E4
80 3C 40(Note off C4)	no change
80 40 40(Note off E4)	E4 off

Example 2.

On MIDI (Description)	Result
B0 54 3C(Portamento Control from C4)	no change
90 40 40(Note on E4)	E4 is played with glide from C4 to E4
80 40 40(Note off E4)	E4 off

○ Effect 1 (Reverb Send Level) (Controller number 91)

Status	2nd bytes	3rd byte
BnH	5BH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Control value : 00H-7FH (0-127), Initial Value = 28H (40)

* This message adjusts the Reverb Send Level of each Part.

○ Effect 3 (Chorus Send Level) (Controller number 93)

Status	2nd bytes	3rd byte
BnH	5DH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Control value : 00H-7FH (0-127), Initial Value = 00H (0)

* This message adjusts the Chorus Send Level of each Part.

○ NRPN MSB/LSB (Controller number 98, 99)

Status	2nd bytes	3rd byte
BnH	63H	mmH
BnH	62H	llH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

mm = upper byte of the parameter number specified by NRPN

ll = lower byte of the parameter number specified by NRPN

* NRPN can be received when Rx.NRPN = ON. "Rx.NRPN" is set to OFF by power-on reset or by receiving "Turn General MIDI System On," and it is set to ON by "GS RESET."
* The value set by NRPN will not be reset even if Program Change or Reset All Controllers is received.

\*\*NRPN\*\*

The NRPN (Non Registered Parameter Number) message allows an extended range of control changes to be used.

To use these messages, you must first use NRPN MSB and NRPN LSB messages to specify the parameter to be controlled, and then use Data Entry messages to specify the value of the specified parameter. Once an NRPN parameter has been specified, all Data Entry messages received on that channel will modify the value of that parameter. To prevent accidents, it is recommended that you set RPN Null (RPN Number = 7FH/7FH) when you have finished setting the value of the desired parameter. Refer to Section 4. Supplementary material "Examples of actual MIDI messages" (page 12). On the GS devices, Data entry LSB (llH) of NRPN is ignored, so it is no problem to send Data entry MSB (mmH) only (without Data entry LSB).

On the KR375, NRPN can be used to modify the following parameters.

NRPN Data entry

MSB LSB	MSB	Description
01H 08H	mmH	Vibrato rate (relative change on specified channel)mm : 0EH-40H-72H(-50 - 0 - +50)
01H 09H	mmH	Vibrato depth (relative change on specified channel)mm : 0EH-40H-72H(-50 - 0 - +50)
01H 0AH	mmH	Vibrato delay (relative change on specified channel)mm : 0EH-40H-72H(-50 - 0 - +50)
01H 20H	mmH	TVF cutoff frequency (relative change on specified channel)mm : 0EH-40H-72H(-50 - 0 - +50)
01H 21H	mmH	TVF resonance (relative change on specified channel)mm : 0EH-40H-72H(-50 - 0 - +50)
01H 63H	mmH	TVF&TVA Env.Attack time (relative change on specified channel)mm : 0EH-40H-72H(-50 - 0 - +50)
01H 64H	mmH	TVF&TVA Env.Decay time (relative change on specified channel)mm : 0EH-40H-72H(-50 - 0 - +50)
01H 66H	mmH	TVF&TVA Env.Release time (relative change on specified channel)mm : 0EH-40H-72H(-50 - 0 - +50)
18H rrH	mmH	Pitch coarse of drum instrument (relative change on specified drum instrument)rr : key number of drum instrumentmm : 00H-40H-7FH(-63 - 0 - +63 semitone)
1AH rrH	mmH	TVA level of drum instrument (absolute change on specified drum instrument)rr : key number of drum instrumentmm : 00H-7FH(zero-maximum)
1CH rrH	mmH	Panpot of drum instrument (absolute change on specified drum instrument)rr : key number of drum instrumentmm : 00H, 01H-40H-7FH(Ramdom, Left-Center-Right)
1DH rrH	mmH	Reverb send level of drum instrument (absolute change on specified drum instrument)rr : key number of drum instrumentmm : 01H-7FH(zero-maximum)
1EH rrH	mmH	Chorus send level of drum instrument (absolute change on specified drum instrument)rr : key number of drum instrumentmm : 01H-7FH(zero-maximum)

* Parameters marked "relative change" will change relative to the preset value.
* Parameters marked "absolute change" will be set to the absolute value of the parameter, regardless of the preset value.

○ RPN MSB/LSB (Controller number 100, 101)

Status	2nd bytes	3rd byte
BnH	65H	mmH
BnH	64H	llH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

mm = upper byte of parameter number specified by RPN

ll = lower byte of parameter number specified by RPN

* Not received when Rx.RPN = OFF. (Initial value is ON)
* The value specified by RPN will not be reset even by messages such as Program Change or Reset All Controller.

**RPN**

The RPN (Registered Parameter Number) messages are expanded control changes, and each function of an RPN is described by the MIDI Standard.

To use these messages, you must first use RPN MSB and RPN LSB messages to specify the parameter to be controlled, and then use Data Entry messages to specify the value of the specified parameter. Once an RPN parameter has been specified, all Data Entry messages received on that channel will modify the value of that parameter. To prevent accidents, it is recommended that you set RPN Null (RPN Number = 7FH/7FH) when you have finished setting the value of the desired parameter. Refer to Section 4. "Examples of actual MIDI messages" (page 12).

On the KR375, RPN can be used to modify the following parameters.

RPN Data entry

MSB LSB MSB LSB Explanation

00H 00H mmH — Pitch Bend Sensitivity

mm : 00H-18H(0-24 semitones), Initial Value = 02H (2 semitones) ll : ignored (processed as 00h)

specify up to 2 octaves in semitone steps

00H 01H mmH llH Master Fine Tuning

mm, ll : 00 00H - 40 00H - 7F 7FH (-100 - 0 - +99.99 cents), Initial Value = 40 00H (0 cent)

ll: ignored (processed as 00h)

specify up to 2 octaves in semitone steps

Refer to 4. Supplementary material, "About tuning" (P.13)

00H 02H mmH — Master Coarse Tuning

mm : 28H - 40H - 58H(-24 - 0 - +24 semitones), Initial Value = 40H (0 cent)

ll : ignored (processed as 00h)

7FH 7FH — — RPN null

Set condition where RPN and NRPN are unspecified. The data entry messages after set RPN null will be ignored. (No Data entry messages are required after RPN null).

Settings already made will not change.

mm, ll : ignored

● Program Change

Status 2nd bytes

CnH ppH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

pp = Program number : 00H-7FH (prog.1-prog.128)

* Not received when Rx.PROGRAM CHANGE = OFF. (Initial value is ON)
* After a Program Change message is received, the sound will change beginning with the next Note-on. Voices already sounding when the Program Change message was received will not be affected.
* For Drum Parts, Program Change messages will not be received on bank numbers 129-16384 (the value of Control Number 0 is other than 0 (00H)).

● Channel Pressure

Status 2nd bytes

DnH vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Channel Pressure : 00H-7FH (0-127)

* Not received when Rx.CH PRESSURE (CAf) = OFF. (Initial value is ON)

* The resulting effect is determined by System Exclusive messages. With the initial settings there will be no effect.

● Pitch Bend Change

Status 2nd byte 3rd bytes

EnH llH mmH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

mm, ll = Pitch Bend value : 00 00H - 40 00H - 7F 7FH (-8192 - 0 - +8191)

* Not received when Rx.PITCH BEND = OFF. (Initial value is ON)
* The resulting effect is determined by System Exclusive messages. With the initial settings the effect is Pitch Bend.

■ Channel Mode Messages

● All Sounds Off (Controller number 120)

Status 2nd byte 3rd bytes

BnH 78H 00H

n = MIDI channel number : 0H-FH (ch.1-ch.16)

* When this message is received, all currently-sounding notes on the corresponding channel will be turned off immediately.

- Reset All Controllers (Controller number 121)

Status 2nd byte 3rd bytes

BnH 79H 00H

n = MIDI channel number : 0H-FH (ch.1-ch.16)

* When this message is received, the following controllers will be set to their reset values.

Controller	Reset value
Pitch Bend Change	+-0 (Center)
Polyphonic Key Pressure	0 (off)
Channel Pressure	0 (off)
Modulation	0 (off)
Expression	127 (max)
Hold 1	0 (off)
Portamento	0 (off)
Sostenuto	0 (off)
Soft	0 (off)
RPN	unset; previously set data will not change
NRPN	unset; previously set data will not change

● All Notes Off (Controller number 123)

Status 2nd byte 3rd bytes

BnH 7BH 00H

n = MIDI channel number : 0H-FH (ch.1-ch.16)

* When All Notes Off is received, all notes on the corresponding channel will be turned off. However if Hold 1 or Sostenuto is ON, the sound will be continued until these are turned off.

● OMNI OFF (Controller number 124)

Status 2nd byte 3rd bytes

BnH 7CH 00H

n = MIDI channel number : 0H-FH (ch.1-ch.16)

* The same processing will be carried out as when All Notes Off is received.

● OMNI ON (Controller number 125)

Status 2nd byte 3rd bytes

BnH 7DH 00H

n = MIDI channel number : 0H-FH (ch.1-ch.16)

* OMNI ON is only recognized as "All notes off"; the Mode doesn't change (OMNI OFF remains).

● MONO (Controller number 126)

Status 2nd byte 3rd bytes

BnH 7EH mmH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

mm = mono number : 00H-10H (0-16)

* The same processing will be carried out as when All Sounds Off and All Notes Off is received, and the corresponding channel will be set to Mode 4 (M = 1) regardless of the value of “mono number.”

● POLY (Controller number 127)

Status	2nd byte	3rd bytes
BnH	7FH	00H

n = MIDI channel number : 0H-FH (ch.1-ch.16)

* The same processing will be carried out as when All Sounds Off and All Notes Off is received, and the corresponding channel will be set to Mode 3.

■ System Realtime Message

● Active Sensing

Status

FEH

* When Active Sensing is received, the unit will begin monitoring the intervals of all further messages. While monitoring, if the interval between messages exceeds 420 ms, the same processing will be carried out as when All Sounds Off, All Notes Off and Reset All Controllers are received, and message interval monitoring will be halted.

■ System Exclusive Message

Status	Data byte	Status
F0H	iiH, ddH, ......, eeH	F7H

F0H :System Exclusive Message status

ii = ID number an ID number (manufacturer ID) to indicate the manufacturer whose Exclusive message this is. Roland's manufacturer ID is 41H.

ID numbers 7EH and 7FH are extensions of the MIDI standard; Universal Non-realtime Messages (7EH) and Universal Realtime Messages (7FH).

dd,...,ee = dat:: 00H-7FH (0-127)

F7H :EOX (End Of Exclusive)

The System Exclusive Messages received by the KR375 are; messages related to mode settings, Universal Realtime System Exclusive messages and Data Set (DT1).

● System exclusive messages related to mode settings

These messages are used to initialize a device to GS or General MIDI mode, or change the operating mode. When creating performance data, a "Turn General MIDI System On" message should be inserted at the beginning of a General MIDI score, and a "GS Reset" message at the beginning of a GS music data. Each song should contain only one mode message as appropriate for the type of data. (Do not insert two or more mode setting messages in a single song.)

"Turn General MIDI System On and "Turn General MIDI System Off" use Universal Non-realtime Message format. "GS Reset" use Roland system exclusive format "Data Set 1 (DT1)."

○ Turn General MIDI System On

This is a command message that resets the internal settings of the unit to the General MIDI initial state (General MIDI System-Level 1). After receiving this message KR375, will automatically be set to the proper condition for correctly playing a General MIDI score.

Status	Data byte	Status
F0H	7EH, 7FH, 09H, 01H	F7H

Byte Explanaton

F0H Exclusive status

7EH ID number (Universal Non-realtime Message)

7FH Device ID (Broadcast)

09H Sub ID#1 (General MIDI Message)

01H Sub ID#2 (General MIDI On)

F7H EOX (End Of Exclusive)

* When this message is received, Rx.BANK SELECT will be OFF and Rx.NRPN will be OFF.

* There must be an interval of at least 50 ms between this message and the next message.

○ General MIDI System Off

Status	Data byte	Status
F0H	7EH, 7FH, 09H, 02H	F7H

Byte Explanation

F0H Exclusive status

7EH ID number (Universal Non-realtime Message)

7FH Device ID (Broadcast)

09H sub-ID#1 (General MIDI message)

02H sub-ID#2 (General MIDI Off)

40H EOX (End of exclusive)

* There must be an interval of at least 50 ms between this message and the next.

○ GS reset

GS Reset is a command message that resets the internal settings of a device to the GS initial state. This message will appear at the beginning of GS music data, and a GS device that receives this message will automatically be set to the proper state to correctly playback GS music data.

Status	Data byte	Status
F0H	41H, 10H, 42H, 12H, 40H, 00H, 7FH, 00H, 41H	F7H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID (dev: 00H-1FH (1-32), Initial value is 10H (17))

42H Model ID (GS)

12H Command ID (DT1)

40H Address MSB

00H Address

7FH Address LSB

00H Data (GS reset)

41H Checksum

F7H EOX (End Of Exclusive)

* When this message is received, Rx.NRPN will be ON.

* There must be an interval of at least 50 ms between this message and the next.

○ Exit GS mode

Status	Data byte	Status
F0H	41H, 10H, 42H, 12H, 40H, 00H, 7FH, 7FH, 42H	F7H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID

42H Model ID (GS)

12H Command ID (DT1)

40H Address MSB

00H

7FH Address LSB

7FH Data (Exit GS mode)

42H Checksum

F7H EOX (End of exclusive)

* There must be an interval of at least 50 ms between this message and the next.

● Universal Realtime System Exclusive Messages

○ Master volume

Status	Data byte	Status
F0H	7FH, 7FH, 04H, 01H, llH, mmH	F7H

Byte Explanation

F0H Exclusive status

7FH ID number (universal realtime message)

7FH Device ID (Broadcast)

04H Sub ID#1 (Device Control messages)

01H Sub ID#2 (Master Volume)

llH Master volume lower byte

mmH Master volume upper byte

F7H EOX (End Of Exclusive)

* The lower byte (llH) of Master Volume will be handled as 00H.

○ Identity Request Message

Status	Data byte	Status
F0H	7FH, 10H, 06H, 01H	F7H

Byte Explanation

F0H Exclusive status

7FH ID number (universal realtime message)

10H Device ID

06H Sub ID#1 (General Information)

01H Sub ID#2 (Identity Request)

F7H EOX (End Of Exclusive)

* The "dev" is own device number or 7FH (Broadcast)

● Data transmission

KR375 can receive the various parameters using System Exclusive messages.

The exclusive message of GS format data has a model ID of 42H and a device ID of 10H (17), and it is common to all the GS devices.

○ Data set 1 DT1

This is the message that actually performs data transmission, and is used when you wish to transmit the data.

Status	Data byte	Status
F0H	41H, 10H, 42H, 12H, aaH, bbH, ccH, ddH, ... eeH, sum	F7H

Byte Explanation

F0H Exclusive status

41H ID number (Roland)

10H Device ID

42H Model ID (GS)

12H Command ID (DT1)

aaH Address MSB: upper byte of the starting address of the transmitted data

bbH Address: middle byte of the starting address of the transmitted data

ccH Address LSB: lower byte of the starting address of the transmitted data

ddH Data: the actual data to be transmitted. Multiple bytes of data are transmitted starting from the address.

eeH Data

sum Checksum

F7H EOX (End Of Exclusive)

* The amount of data that can be transmitted at one time depends on the type of data, and data can be received only from the specified starting address and size. Refer to the Address and Size given in Section 3 (page 6).
* Data larger than 128 bytes must be divided into packets of 128 bytes or less. If "Data Set 1" is transmitted successively, there must be an interval of at least 40 ms between packets.
* Regarding the checksum please refer to section 4 (page 12).

Section 2. Transmit data

Arranger and composer data can not be transmitted.

■ Channel Voice Messages

● Note off

Status	2nd byte	3rd byte
8nH	kkH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

kk = note number : 00H-7FH (0-127)

vv = note off velocity : 00H-7FH (0-127)

* Note off message is sent out with the velocity of 40H.

● Note on

Status	2nd bytes	3rd byte
9nH	kkH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

kk = note number : 00H-7FH (0-127)

vv = note on velocity : 01H-7FH (1-127)

● Control Change

○ Bank Select (Controller number 0, 32)

Status	2nd bytes	3rd byte
BnH	00H	mmH
BnH	20H	llH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

mm, ll = Bank number : 00H-7FH (bank.1-bank.16384)

○ Volume (Controller number 7)

Status	2nd bytes	3rd byte
BnH	07H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Volume : 00H-7FH (0-127)

○ Hold 1 (Controller number 64)

Status	2nd bytes	3rd byte
BnH	40H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Control value : 00H-7FH (0-127)

○ Sostenuto (Controller number 66)

Status	2nd bytes	3rd byte
BnH	42H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Control value : 00H-7FH (0-127) 0-63 = OFF, 64-127 = ON

○ Soft (Controller number 67)

Status	2nd bytes	3rd byte
BnH	43H	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Control value : 00H-7FH (0-127)

○ Effect 1 (Reverb Send Level) (Controller number 91)

Status	2nd bytes	3rd byte
BnH	5BH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Control value : 00H-7FH (0-127)

○ Effect 3 (Chorus Send Level) (Controller number 93)

Status	2nd bytes	3rd byte
BnH	5DH	vvH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

vv = Control value : 00H-7FH (0-127)

● Program Change

Status 2nd bytes

CnH ppH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

pp = Program number : 00H-7FH (prog.1-prog.128)

● Pitch Bend Change

Status	2nd byte	3rd bytes
EnH	llH	mmH

n = MIDI channel number : 0H-FH (ch.1-ch.16)

mm, ll = Pitch Bend value : 00 00H - 40 00H - 7F 7FH (-8192 - 0 - +8191)

■ System Realtime Message

● Realtime Clock

Status

F8H

● Active sensing

Status

FEH

* This will be transmitted constantly at intervals of approximately 250 ms.

■ System exclusive messages

○ Identity Reply

Status	Data byte	Status
F0H	7EH, 10H, 06H, 02H, 41H, 42H, 00H, 01H, 03H, 00H, 01H, 00H, 00H, F7H	F7H

Byte Explanation

F0H Exclusive status

7EH ID number (universal non-realtime message)

10H Device ID (use the same as the device ID of Roland)

06H Sub ID#1 (General Information)

02H Sub ID#2 (Identity Reply)

41H ID number (Roland)

42H Device family code (LSB)

00H Device family code (MSB)

02H Device family number code (LSB)

03H Device family number code (MSB)

03H Software revision level

01H Software revision level

00H Software revision level

00H Software revision level

F7H EOX (End of Exclusive)

Section 3. Parameter Address Map (Model ID = 42H)

This map indicates address, size, Data (range), Parameter, Description, and Default Value of parameters which can be transferred using and "Data set 1 (DT1)."

All the numbers of address, size, Data, and Default Value are indicated in 7-bit Hexadecimal-form.

■ Address Block map

An outlined address map of the Exclusive Communication is as follows;

Address(H) Block

40 00 00	+----+
	| SYSTEM PARAMETERS |	Individual
40 01 3F	+----+
40 1x 00	+----+
	| PART PARAMETERS | (x = 0-F) |	Individual
40 2x 5A	+----+
41 m0 00	+----+
	| SRUM SETUP PARAMETERS | (m = 0-1) |	Individual
41 m8 7F	+----+
48 00 00	+----+
	| SYSTEM PARAMETERS |	Bulk
48 01 10	+----+
	| PART PARAMETERS |	Bulk
48 1D 0F	+----+
49 m0 00	+----+
	| DRUM SETUP PARAMETER | (m = 0-1) |	Bulk
49 mE 17	+----+

There are two ways in which GS data is transmitted: Individual Parameter Transmission in which individual parameters are transmitted one by one, and Bulk Dump Transmission in which a large amount of data is transmitted at once.

■ Individual Parameters

Individual Parameter Transmission transmits data (or requests data) for one parameter as one exclusive message (one packet of "F0 ..... F7").

In Individual Parameter Transmission, you must use the Address and Size listed in the following "Parameter Address Map." Addresses marked at "#" cannot be used as starting addresses.

● System Parameters
Parameters related to the system of the device are called System Parameters.

Address (H)	Size (H)	Data (H)	Parameter	Description	Default Value (H)	Description
40 00 00	00 00 04	0018-07E8	MASTER TUNE	-100.0 - +100.0 [cent]	00 04 00 00	0 [cent]
40 00 01#			Use nibblized data.
40 00 02#
40 00 03#

* Refer to section 4. Supplementary material, "About tuning" (page 13).

40 00 04	00 00 01	00-7F	MASTER VOLUME(= F0 7F 7F 04 01 00 vv F7)	0-127	7F	127
40 00 05	00 00 01	28-58	MASTER KEY-SHIFT	-24 - +24 [semitones]	40	0 [semitones]
40 00 06	00 00 01	01-7F	MASTER PAN	-63 (LEFT) - +63 (RIGHT)	40	0 (CENTER)
40 00 7F	00 00 01	00	MODE SET(Rx. only)	00 = GS Reset127 = Exit GS	***

* Refer to "System exclusive messages related to Mode settings" (page 4).

40 01 10	00 00 10	00-40	VOICE RESERVE	Part 10 (Drum Part)	02	2
40 01 11#				Part 1	06	6
40 01 12#				Part 2	02	2
40 01 13#				Part 3	02	2
40 01 14#				Part 4	02	2
40 01 15#				Part 5	02	2
40 01 16#				Part 6	02	2
40 01 17#				Part 7	02	2
40 01 18#				Part 8	02	2
40 01 19#				Part 9	02	2
40 01 1A#				Part 11	00	0
40 01 :#				:
40 01 1F#				Part 16	00	0

* The sum total of voices in the voice reserve function must be equal to or less than the number of the maximum polyphony. The maximum polyphony of the KR375 is 64. For compatibility with other GS models, it is recommended that the maximum polyphony be equal or less than 24.

40 01 30	00 00 01	00-07	REVERB MACRO	00: Room 1	04	Hall 2
				01: Room 2
				02: Room 3
				03: Hall 1
				04: Hall 2
				05: Plate
				06: Delay
				07: Panning Delay
40 01 31	00 00 01	00-07	REVERB CHARACTER	0-7	04	4
40 01 32	00 00 01	00-07	REVERB PRE-LPF	0-7	00	0
40 01 33	00 00 01	00-7F	REVERB LEVEL	0-127	40	64
40 01 34	00 00 01	00-7F	REVERB TIME	0-127	40	64
40 01 35	00 00 01	00-7F	REVERB DELAY FEEDBACK	0-127	00	0

* REVERB MACRO is a macro parameter that allows global setting of reverb parameters. When you select the reverb type with REVERB MACRO, each reverb parameter will be set to the most suitable value.
* REVERB CHARACTER is a parameter that changes the reverb algorithm. The value of REVERB CHARACTER corresponds to the REVERB MACRO of the same number.

40 01 38	00 00 01	00-07	CHORUS MACRO	00: Chorus 101: Chorus 202: Chorus 303: Chorus 404: Feedback Chorus05: Flanger06: Short Delay07: Short Delay (FB)	02	Chorus 3
40 01 39	00 00 01	00-07	CHORUS PRE-LPF	0-7	00	0
40 01 3A	00 00 01	00-7F	CHORUS LEVEL	0-127	40	64
40 01 3B	00 00 01	00-7F	CHORUS FEEDBACK	0-127	08	8
40 01 3C	00 00 01	00-7F	CHORUS DELAY	0-127	50	80
40 01 3D	00 00 01	00-7F	CHORUS RATE	0-127	03	3
40 01 3E	00 00 01	00-7F	CHORUS DEPTH	0-127	13	19
40 01 3F	00 00 01	00-7F	CHORUS SEND LEVEL TO REVERB	0-127	00	0

* CHORUS MACRO is a macro parameter that allows global setting of chorus parameters. When you use CHORUS MACRO to select the chorus type, each chorus parameter will be set to the most suitable value.

40 03 00

00 00 02

00 - 7F

EFX TYPE (MSB, LSB)

00 00 - 7F 7F

00 01

Thru

* Refer to EFX Type Table (P.11)

* This EFX Type is current EFX type of this system. When part EFX type is same to this EFX type, that part connect to EFX.

40 03 03	00 00 01	00 - 7F	EFX Parameter 1
40 03 04	00 00 01	00 - 7F	EFX Parameter 2
40 03 05	00 00 01	00 - 7F	EFX Parameter 3
40 03 06	00 00 01	00 - 7F	EFX Parameter 4
40 03 07	00 00 01	00 - 7F	EFX Parameter 5
40 03 08	00 00 01	00 - 7F	EFX Parameter 6
40 03 09	00 00 01	00 - 7F	EFX Parameter 7
40 03 0A	00 00 01	00 - 7F	EFX Parameter 8
40 03 0B	00 00 01	00 - 7F	EFX Parameter 9
40 03 0C	00 00 01	00 - 7F	EFX Parameter 10
40 03 0D	00 00 01	00 - 7F	EFX Parameter 11
40 03 0E	00 00 01	00 - 7F	EFX Parameter 12
40 03 0F	00 00 01	00 - 7F	EFX Parameter 13
40 03 10	00 00 01	00 - 7F	EFX Parameter 14
40 03 11	00 00 01	00 - 7F	EFX Parameter 15
40 03 12	00 00 01	00 - 7F	EFX Parameter 16
40 03 13	00 00 01	00 - 7F	EFX Parameter 17
40 03 14	00 00 01	00 - 7F	EFX Parameter 18
40 03 15	00 00 01	00 - 7F	EFX Parameter 19
40 03 16	00 00 01	00 - 7F	EFX Parameter 20

* Each parameter will be changed by EFX type. Refer to EFX Parameter Map. (P.12)

40 03 17

00 00 01

00 - 7F

EFX Send Level to Reverb

* Set to 0 when EFX type is changed.

40 03 18

00 00 01

00 - 7F

EFX Send Level to Chorus

* Set to 0 when EFX type is changed.

40 03 1A	00 00 01	00 - 7F	EFX Depth	Dry 100% - EFX 100%	7F
40 03 1B	00 00 01	00 - 7F	EFX Control Source 1	00: OFF	00
				01 - 5F: Control Change No.
				71: CAf
				72: Bender
40 03 1C	00 00 01	00 - 7F	EFX Control Depth 1		7F	-100% - +100%
40 03 1D	00 00 01	00 - 7F	EFX Control Source 2	*Refer to EFX Control Source 1	00
40 03 1E	00 00 01	00 - 7F	EFX Control Depth 2		7F	-100% - +100%

* Marked #1 or #2 can be controlled by EFX CONTROL SOURCE 1 or 2.

● Part Parameters

KR375 has 16 parts. Parameters that can be set individually for each Part are called Part parameters.

If you use exclusive messages to set Part parameters, specify the address by Block number rather than Part Number (normally the same number as the MIDI channel). The Block number can be specified as one of 16 blocks, from 0 (H) to F (H).

The relation between Part number and Block number is as follows.

x...BLOCK NUMBER (0-F), Part 1 (MIDI ch = 1) x = 1

Part 2 (MIDI ch = 2) x = 2

: : :

Part 9 (MIDI ch = 9) x = 9

Part10 (MIDI ch = 10) x = 0

Part11 (MIDI ch = 11) x = A

Part12 (MIDI ch = 12) x = B

: : :

Part16 (MIDI ch = 16) x = F

Address (H)	Size (H)	Data (H)	Parameter	Description	Default Value (H)	Description
40 1x 00	00 00 02	00-7F	TONE NUMBER	CC#00 VALUE 0-127	00	0
40 1x 01#		00-7F		P.C. VALUE 1-128	00	1
40 1x 02	00 00 01	00-10	Rx. CHANNEL	1-16, OFF	Same as the Part Number
40 1x 03	00 00 01	00-01	Rx. PITCH BEND	OFF/ON	01	ON
40 1x 04	00 00 01	00-01	Rx. CH PRESSURE (CAf)	OFF/ON	01	ON
40 1x 05	00 00 01	00-01	Rx. PROGRAM CHANGE	OFF/ON	01	ON
40 1x 06	00 00 01	00-01	Rx. CONTROL CHANGE	OFF/ON	01	ON
40 1x 07	00 00 01	00-01	Rx. POLY PRESSURE (PAf)	OFF/ON	01	ON
40 1x 08	00 00 01	00-01	Rx. NOTE MESSAGE	OFF/ON	01	ON
40 1x 09	00 00 01	00-01	Rx. RPN	OFF/ON	01	ON
40 1x 0A	00 00 01	00-01	Rx. NRPN	OFF/ON	00 (01*)	OFF (ON*)

* Rx. NRPN is set to OFF by power-on or by receiving "Turn General MIDI System On," and it will be set ON when "GS RESET" is received.

40 1x 0B	00 00 01	00-01	Rx. MODULATION	OFF/ON	01	ON
40 1x 0C	00 00 01	00-01	Rx. VOLUME	OFF/ON	01	ON
40 1x 0D	00 00 01	00-01	Rx. PANPOT	OFF/ON	01	ON
40 1x 0E	00 00 01	00-01	Rx. EXPRESSION	OFF/ON	01	ON
40 1x 0F	00 00 01	00-01	Rx. HOLD1	OFF/ON	01	ON
40 1x 10	00 00 01	00-01	Rx. PORTAMENTO	OFF/ON	01	ON
40 1x 11	00 00 01	00-01	Rx. SOSTENUTO	OFF/ON	01	ON

40 1x 12	00 00 01	00-01	Rx. SOFT	OFF/ON	01	ON
40 1x 13	00 00 01	00-01	MONO/POLY MODE(= CC# 126 01 / CC# 127 00)	Mono/Poly	01	Poly
40 1x 14	00 00 01	00-02	ASSIGN MODE	0 = SINGLE1 = LIMITED-MULTI	00 at x = 001 at x ≠0	SINGLE at x = 0LIMITED-MULTI at x
≠0				2 = FULL-MULTI

* ASSIGN MODE is the parameter that determines how voice assignment will be handled when sounds overlap on identical note numbers in the same channel (i.e., repeatedly struck notes). This is initialized to a mode suitable for each Part, so for general purposes there is no need to change this.

40 1x 15	00 00 01	00-02	USE FOR RHYTHM PART	0 = OFF	00 at x ≠0	OFF at x ≠0
				1 = MAP1	01 at x = 0	MAP1 at x ≠0
				2 = MAP2

* This parameter sets the Drum Map of the Part used as the Drum Part. KR375 can simultaneously (in different Parts) use up to two Drum Maps (MAP1, MAP2). With the initial settings, Part10 (MIDI CH = 10, x = 0) is set to MAP1 (1), and other Parts are set to normal instrumental Parts (OFF (0)).

40 1x 16	00 00 01	28-58	PITCH KEY SHIFT	-24 - +24 [semitones]	40	0 [semitones]
40 1x 17	00 00 02	08-F8	PITCH OFFSET FINE	-12.0 - +12.0 [Hz]	08 00	0 [Hz]
40 1x 18#			Use nibblized data.

* PITCH OFFSET FINE allows you to alter, by a specified frequency amount, the pitch at which notes will sound. This parameter differs from the conventional Fine Tuning (RPN #1) parameter in that the amount of frequency alteration (in Hertz) will be identical no matter which note is played. When a multiple number of Parts, each of which has been given a different setting for PITCH OFFSET FINE, are sounded by means of an identical note number, you can obtain a Celeste effect.

40 1x 19	00 00 01	00-7F	PART LEVEL(= CC# 7)	0-127	64	100
40 1x 1A	00 00 01	00-7F	VELOCITY SENSE DEPTH	0-127	40	64
40 1x 1B	00 00 01	00-7F	VELOCITY SENSE OFFSET	0-127	40	64
40 1x 1C	00 00 01	00-7F	PART PANPOT(= CC# 10, except RANDOM)	-64 (RANDOM), -63 (LEFT) - +63 (RIGHT)	40	0 (CENTER)
40 1x 1D	00 00 01	00-7F	KEY RANGE LOW	(C-1)-(G9)	00	C-1
40 1x 1E	00 00 01	00-7F	KEY RANGE HIGH	(C-1)-(G9)	7F	G 9
40 1x 1F	00 00 01	00-5F	CC1 CONTROLLER NUMBER	0-95	10	16
40 1x 20	00 00 01	00-5F	CC2 CONTROLLER NUMBER	0-95	11	17
40 1x 21	00 00 01	00-7F	CHORUS SEND LEVEL(= CC# 93)	0-127	00	0
40 1x 22	00 00 01	00-7F	REVERB SEND LEVEL(= CC# 91)	0-127	28	40
40 1x 23	00 00 01	00-01	Rx. BANK SELECT	OFF/ON	01 (00*)	ON (OFF*)

* Rx. BANK SELECT is set to ON by power-on or by receiving "GS RESET," and will be set OFF when "Turn General MIDI System On" is received.

40 1x 24	00 00 01	00-01	Rx.BANK SELECT LSB	OFF/ON	00	OFF
* KR375 can be recognise Bank Select LSB (40H-43H) even if this message is OFF.

40 1x 25	00 00 01	00-01	TONE REMAIN	OFF/ON	01	ON
40 1x 28	00 00 03	00-7F	Bank Select LSB Range	LSB (from)	40	40H
40 1x 29#				LSB (to)	43	43H
40 1x 30	00 00 01	0E-72	TONE MODIFY 1Vibrato rate (= NRPN# 8)	-50 - +50	40	0
40 1x 31	00 00 01	0E-72	TONE MODIFY 2Vibrato depth (= NRPN# 9)	-50 - +50	40	0
40 1x 32	00 00 01	0E-72	TONE MODIFY 3TVF cutoff frequency (= NRPN# 32)	-50 - +50	40	0
40 1x 33	00 00 01	0E-72	TONE MODIFY 4TVF resonance (= NRPN# 33)	-50 - +50	40	0
40 1x 34	00 00 01	0E-72	TONE MODIFY 5TVF&TVA Env.attack (= NRPN# 99)	-50 - +50	40	0
40 1x 35	00 00 01	0E-72	TONE MODIFY 6TVF&TVA Env.decay (= NRPN# 100)	-50 - +50	40	0
40 1x 36	00 00 01	0E-72	TONE MODIFY 7TVF&TVA Env.release (= NRPN# 102)	-50 - +50	40	0
40 1x 37	00 00 01	0E-72	TONE MODIFY 8Vibrato delay (= NRPN# 10)	-50 - +50	40	0

40 1x 40	00 00 0C	00-7F	SCALE TUNING C	-64 - +63 [cent]	40	0 [cent]
40 1x 41#		00-7F	SCALE TUNING C#	-64 - +63 [cent]	40	0 [cent]
40 1x 42#		00-7F	SCALE TUNING D	-64 - +63 [cent]	40	0 [cent]
40 1x 43#		00-7F	SCALE TUNING D#	-64 - +63 [cent]	40	0 [cent]
40 1x 44#		00-7F	SCALE TUNING E	-64 - +63 [cent]	40	0 [cent]
40 1x 45#		00-7F	SCALE TUNING F	-64 - +63 [cent]	40	0 [cent]
40 1x 46#		00-7F	SCALE TUNING F#	-64 - +63 [cent]	40	0 [cent]
40 1x 47#		00-7F	SCALE TUNING G	-64 - +63 [cent]	40	0 [cent]
40 1x 48#		00-7F	SCALE TUNING G#	-64 - +63 [cent]	40	0 [cent]
40 1x 49#		00-7F	SCALE TUNING A	-64 - +63 [cent]	40	0 [cent]
40 1x 4A#		00-7F	SCALE TUNING A#	-64 - +63 [cent]	40	0 [cent]
40 1x 4B#		00-7F	SCALE TUNING B	-64 - +63 [cent]	40	0 [cent]

* SCALE TUNING is a function that allows fine adjustment to the pitch of each note in the octave. The pitch of each identically-named note in all octaves will change simultaneously. A setting

of ±fi0 cent (40H) is equal temperament. Refer to section 4. Supplementary material, "The Scale Tune Feature" (p-13).

40 2x 00	00 00 01	28-58	MOD PITCH CONTROL	-24 - +24 [semitone]	40	0 [semitones]
40 2x 01	00 00 01	00-7F	MOD TVF CUTOFF CONTROL	-9600 - +9600 [cent]	40	0 [cent]
40 2x 02	00 00 01	00-7F	MOD AMPLITUDE CONTROL	-100.0 - +100.0 [%]	40	0 [%]
40 2x 03	00 00 01	00-7F	MOD LFO1 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 04	00 00 01	00-7F	MOD LFO1 PITCH DEPTH	0-600 [cent]	0A	47 [cent]
40 2x 05	00 00 01	00-7F	MOD LFO1 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 06	00 00 01	00-7F	MOD LFO1 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 07	00 00 01	00-7F	MOD LFO2 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 08	00 00 01	00-7F	MOD LFO2 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 09	00 00 01	00-7F	MOD LFO2 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 0A	00 00 01	00-7F	MOD LFO2 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 10	00 00 01	40-58	BEND PITCH CONTROL	0-24 [semitone]	42	2 [semitones]
40 2x 11	00 00 01	00-7F	BEND TVF CUTOFF CONTROL	-9600 - +9600 [cent]	40	0 [cent]
40 2x 12	00 00 01	00-7F	BEND AMPLITUDE CONTROL	-100.0 - +100.0 [%]	40	0 [%]
40 2x 13	00 00 01	00-7F	BEND LFO1 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 14	00 00 01	00-7F	BEND LFO1 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 15	00 00 01	00-7F	BEND LFO1 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 16	00 00 01	00-7F	BEND LFO1 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 17	00 00 01	00-7F	BEND LFO2 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 18	00 00 01	00-7F	BEND LFO2 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 19	00 00 01	00-7F	BEND LFO2 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 1A	00 00 01	00-7F	BEND LFO2 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 20	00 00 01	28-58	CAf PITCH CONTROL	-24 - +24 [semitone]	40	0 [semitones]
40 2x 21	00 00 01	00-7F	CAf TVF CUTOFF CONTROL	-9600 - +9600 [cent]	40	0 [cent]
40 2x 22	00 00 01	00-7F	CAf AMPLITUDE CONTROL	-100.0 - +100.0 [%]	40	0 [%]
40 2x 23	00 00 01	00-7F	CAf LFO1 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 24	00 00 01	00-7F	CAf LFO1 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 25	00 00 01	00-7F	CAf LFO1 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 26	00 00 01	00-7F	CAf LFO1 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 27	00 00 01	00-7F	CAf LFO2 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 28	00 00 01	00-7F	CAf LFO2 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 29	00 00 01	00-7F	CAf LFO2 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 2A	00 00 01	00-7F	CAf LFO2 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 30	00 00 01	28-58	PAf PITCH CONTROL	-24 - +24 [semitone]	40	0 [semitones]
40 2x 31	00 00 01	00-7F	PAf TVF CUTOFF CONTROL	-9600 - +9600 [cent]	40	0 [cent]
40 2x 32	00 00 01	00-7F	PAf AMPLITUDE CONTROL	-100.0 - +100.0 [%]	40	0 [%]
40 2x 33	00 00 01	00-7F	PAf LFO1 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 34	00 00 01	00-7F	PAf LFO1 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 35	00 00 01	00-7F	PAf LFO1 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 36	00 00 01	00-7F	PAf LFO1 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 37	00 00 01	00-7F	PAf LFO2 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 38	00 00 01	00-7F	PAf LFO2 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 39	00 00 01	00-7F	PAf LFO2 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 3A	00 00 01	00-7F	PAf LFO2 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 40	00 00 01	28-58	CC1 PITCH CONTROL	-24 - +24 [semitone]	40	0 [semitones]
40 2x 41	00 00 01	00-7F	CC1 TVF CUTOFF CONTROL	-9600 - +9600 [cent]	40	0 [cent]
40 2x 42	00 00 01	00-7F	CC1 AMPLITUDE CONTROL	-100.0 - +100.0 [%]	40	0 [%]
40 2x 43	00 00 01	00-7F	CC1 LFO1 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 44	00 00 01	00-7F	CC1 LFO1 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 45	00 00 01	00-7F	CC1 LFO1 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 46	00 00 01	00-7F	CC1 LFO1 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 47	00 00 01	00-7F	CC1 LFO2 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 48	00 00 01	00-7F	CC1 LFO2 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 49	00 00 01	00-7F	CC1 LFO2 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 4A	00 00 01	00-7F	CC1 LFO2 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 50	00 00 01	28-58	CC2 PITCH CONTROL	-24 - +24 [semitone]	40	0 [semitones]
40 2x 51	00 00 01	00-7F	CC2 TVF CUTOFF CONTROL	-9600 - +9600 [cent]	40	0 [cent]
40 2x 52	00 00 01	00-7F	CC2 AMPLITUDE CONTROL	-100.0 - +100.0 [%]	40	0 [%]
40 2x 53	00 00 01	00-7F	CC2 LFO1 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 54	00 00 01	00-7F	CC2 LFO1 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 55	00 00 01	00-7F	CC2 LFO1 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 56	00 00 01	00-7F	CC2 LFO1 TVA DEPTH	0-100.0 [%]	00	0 [%]
40 2x 57	00 00 01	00-7F	CC2 LFO2 RATE CONTROL	-10.0 - +10.0 [Hz]	40	0 [Hz]
40 2x 58	00 00 01	00-7F	CC2 LFO2 PITCH DEPTH	0-600 [cent]	00	0 [cent]
40 2x 59	00 00 01	00-7F	CC2 LFO2 TVF DEPTH	0-2400 [cent]	00	0 [cent]
40 2x 5A	00 00 01	00-7F	CC2 LFO2 TVA DEPTH	0-100.0 [%]	00	0 [%]

* This EFX type is same to EFX type of System Parameter. When this EFX type is same to EFX type of System parameter (see the page.7), the part connect to EFX.

40 4x 25#	00 00 01	00 - 7F	PART EFX MACRO	00 00	0
40 4x 26#	00 00 01	00 - 7F	PART EFX DEPTH	00 00	0

● Drum Setup Parameters

* m: Map number (0 = MAP1, 1 = MAP2)
* rr: drum part note number (00H-7FH)

Address (H)	Size (H)	Data (H)	Parameter	Description
41 m1 rr	00 00 01	00-7F	PLAY NOTE NUMBER	Pitch coarse
41 m2 rr	00 00 01	00-7F	LEVEL(= NRPN# 26)	TVA level
41 m3 rr	00 00 01	00-7F	ASSIGN GROUP NUMBER	Non, 1-127
41 m4 rr	00 00 01	00-7F	PANPOT(= NRPN# 28, except RANDOM)	-64 (RANDOM), -63 (LEFT) - +63 (RIGHT)
41 m5 rr	00 00 01	00-7F	REVERB SEND LEVEL(= NRPN# 29)	0.0-1.0Multiplicand of the part reverb depth
41 m6 rr	00 00 01	00-7F	CHORUS SEND LEVEL(= NRPN# 30)	0.0-1.0Multiplicand of the part chorus depth
41 m7 rr	00 00 01	00-01	Rx. NOTE OFF	OFF/ON
41 m8 rr	00 00 01	00-01	Rx. NOTE ON	OFF/ON

* When the Drum Set is changed, DRUM SETUP PARAMETER values will all be initialized.

Section 4. Supplementary material

- Decimal and Hexadecimal table

In MIDI documentation, data values and addresses/sizes of exclusive messages etc. are expressed as hexadecimal values for each 7 bits.

The following table shows how these correspond to decimal numbers.

Dec.	Hex.	Dec.	Hex.	Dec.	Hex.	Dec.	Hex.
0	00H	32	20H	64	40H	96	60H
1	01H	33	21H	65	41H	97	61H
2	02H	34	22H	66	42H	98	62H
3	03H	35	23H	67	43H	99	63H
4	04H	36	24H	68	44H	100	64H
5	05H	37	25H	69	45H	101	65H
6	06H	38	26H	70	46H	102	66H
7	07H	39	27H	71	47H	103	67H
8	08H	40	28H	72	48H	104	68H
9	09H	41	29H	73	49H	105	69H
10	0AH	42	2AH	74	4AH	106	6AH
11	0BH	43	2BH	75	4BH	107	6BH
12	0CH	44	2CH	76	4CH	108	6CH
13	0DH	45	2DH	77	4DH	109	6DH
14	0EH	46	2EH	78	4EH	110	6EH
15	0FH	47	2FH	79	4FH	111	6FH
16	10H	48	30H	80	50H	112	70H
17	11H	49	31H	81	51H	113	71H
18	12H	50	32H	82	52H	114	72H
19	13H	51	33H	83	53H	115	73H
20	14H	52	34H	84	54H	116	74H
21	15H	53	35H	85	55H	117	75H
22	16H	54	36H	86	56H	118	76H
23	17H	55	37H	87	57H	119	77H
24	18H	56	38H	88	58H	120	78H
25	19H	57	39H	89	59H	121	79H
26	1AH	58	3AH	90	5AH	122	7AH
27	1BH	69	3BH	91	5BH	123	7BH
28	1CH	60	3CH	92	5CH	124	7CH
29	1DH	61	3DH	93	5DH	125	7DH
30	1EH	62	3EH	94	5EH	126	7EH
31	1FH	63	3FH	95	5FH	127	7FH

* Decimal values such as MIDI channel, bank select, and program change are listed as one (1) greater than the values given in the above table.
* A 7-bit byte can express data in the range of 128 steps. For data where greater precision is required, we must use two or more bytes. For example, two hexadecimal numbers aa bbH expressing two 7-bit bytes would indicate a value of aa x 128 + bb.
* In the case of values which have a ± sign, 00H = -64, 40H = ±0, and 7FH = +63, so that the decimal expression would be 64 less than the value given in the above chart. In the case of two types, 00 00H = -8192, 40 00H = ±0, and 7F 7FH = +8191. For example if aa bbH were expressed as decimal, this would be aa bbH - 40 00H = aa x 128 + bb - 64 x 128.
* Data marked "nibbled" is expressed in hexadecimal in 4-bit units. A value expressed as a 2-byte nibble 0a 0bH has the value of a x 16 + b.

What is the decimal expression of 5AH?

From the preceding table, 5AH = 90

What is the decimal expression of the value 12 34H given as hexadecimal for each 7 bits?

From the preceding table, since 12H = 18 and 34H = 52

18 × 128 + 52 = 2356

What is the decimal expression of the nibbled value 0A 03 09 0D ?

From the preceding table, since 0AH = 10, 03H = 3, 09H = 9, 0DH = 13

((10 × 16 + 3) × 16 + 9) × 16 + 13 = 41885

What is the nibbled expression of the decimal value 1258?

$$ \begin{array}{l} 1 6 \quad) 1 2 5 8 \ 1 6 \quad) \underline {{7 8}} \dots 1 0 \ 1 6 \quad) \underline {{\quad 4 \quad}} \dots 1 4 \ 0 \dots 4 \ \end{array} $$

Since from the preceding table, 0 = 00H, 4 = 04H, 14 = 0EH, 10 = 0AH, the answer is 00 04 0E 0AH.

● Examples of actual MIDI messages

92 3E 5F

9n is the Note-on status, and n is the MIDI channel number. Since 2H = 2, 3EH = 62, and 5FH = 95, this is a Note-on message with MIDI CH = 3, note number 62 (note name is D4), and velocity 95.

CE 49

CnH is the Program Change status, and n is the MIDI channel number. Since EH = 14 and 49H = 73, this is a Program Change message with MIDI CH = 15, program number 74 (Flute in GS).

EA 00 28

EnH is the Pitch Bend Change status, and n is the MIDI channel number. The 2nd byte (00H = 0) is the LSB and the 3rd byte (28H = 40) is the MSB, but Pitch Bend Value is a signed number in which 40 00H (= 64 x 128 + 0 = 8192) is 0, so this Pitch Bend Value is 28 00H - 40 00H = 40 x 128 + 0 - (64 x 128 + 0) = 5120 - 8192 = -3072

If the Pitch Bend Sensitivity is set to 2 semitones, -8192 (00 00H) will cause the pitch to change -200 cents, so in this case -200 x (-3072) / (-8192) = -75 cents of Pitch Bend is being applied to MIDI channel 11.

B3 64 00 65 00 06 0C 26 00 64 7F 65 7F

BnH is the Control Change status, and n is the MIDI channel number. For Control Changes, the 2nd byte is the control number, and the 3rd byte is the value. In a case in which two or more messages consecutive messages have the same status, MIDI has a provision called “running status” which allows the status byte of the second and following messages to be omitted. Thus, the above messages have the following meaning.

B3	64 00	MIDI ch.4, lower byte of RPN parameter number: 00H
(B3)	65 00	(MIDI ch.4) upper byte of RPN parameter number: 00H
(B3)	06 0C	(MIDI ch.4) upper byte of parameter value: 0CH
(B3)	26 00	(MIDI ch.4) lower byte of parameter value: 00H
(B3)	64 7F	(MIDI ch.4) lower byte of RPN parameter number: 7FH
(B3)	65 7F	(MIDI ch.4) upper byte of RPN parameter number: 7FH

In other words, the above messages specify a value of 0C 00H for RPN parameter number 00 00H on MIDI channel 4, and then set the RPN parameter number to 7F 7FH.

RPN parameter number 00 00H is Pitch Bend Sensitivity, and the MSB of the value indicates semitone units, so a value of 0CH = 12 sets the maximum pitch bend range to ±12 semitones (1 octave). (On GS sound sources the LSB of Pitch Bend Sensitivity is ignored, but the LSB should be transmitted anyway (with a value of 0) so that operation will be correct on any device.)

Once the parameter number has been specified for RPN or NRPN, all Data Entry messages transmitted on that same channel will be valid, so after the desired value has been transmitted, it is a good idea to set the parameter number to 7F 7FH to prevent accidents. This is the reason for the (B3) 64 7F (B3) 65 7F at the end.

It is not desirable for performance data (such as Standard MIDI File data) to contain many events with running status as given in . This is because if playback is halted during the song and then rewound or fast-forwarded, the sequencer may not be able to transmit the correct status, and the sound source will then misinterpret the data. Take care to give each event its own status.

It is also necessary that the RPN or NRPN parameter number setting and the value setting be done in the proper order. On some sequencers, events occurring in the same (or consecutive) clock may be transmitted in an order different than the order in which they were received. For this reason it is a good idea to slightly skew the time of each event (about 1 tick for TPQN = 96, and about 5 ticks for TPQN = 480).

* TPQN: Ticks Per Quarter Note

● Example of an Exclusive message and calculating a Checksum

Roland Exclusive messages are transmitted with a checksum at the end (before F7) to make sure that the message was correctly received. The value of the checksum is determined by the address and data (or size) of the transmitted exclusive message.

uHow to calculate the checksum (hexadecimal numbers are indicated by 'H')

The checksum is a value derived by adding the address, size and checksum itself and inverting the lower 7 bits.

Here's an example of how the checksum is calculated. We will assume that in the exclusive message we are transmitting, the address is aa bb ccH and the data or size is dd ee ffH.

aa + bb + cc + dd + ee + ff = sum

sum / 128 = quotient ... remainder

128 - remainder = checksum

* Checksum is 0 if the remainder is 0.

Setting REVERB MACRO to ROOM 3

According to the "Parameter Address Map," the REVERB MACRO Address is 40 01 30H, and ROOM 3 is a value of 02H. Thus,

F0(1)

41(2)

10(3)

42(4)

12(5)

40 01 30Address

02data

??Checksum

F7(6)

(1) Exclusive Status, (2) ID (Roland), (3) Device ID (17),

(4) Model ID (GS), (5) Command ID (DT1), (6) End of Exclusive

Next we calculate the checksum.

40H + 01H + 30H + 02H = 64 + 1 + 48 + 2 = 115 (sum)

115 (sum) / 128 = 0 (quotient) ... 115 (remainder)

checksum = 128 - 115 (remainder) = 13 = 0DH

This means that F0 41 10 42 12 40 01 30 02 0D F7 is the message we transmit.

● About tuning

In MIDI, individual Parts are tuned by sending RPN #1 (Master Fine Tuning) to the appropriate MIDI channel.

In MIDI, an entire device is tuned by either sending RPN #1 to all MIDI channels being used, or by sending a System Exclusive MASTER TUNE (address 40 00 00H).

RPN #1 allows tuning to be specified in steps of approximately 0.012 cents (to be precise, 100/8192 cent), and System Exclusive MASTER TUNE allows tuning in steps of 0.1 cent. One cent is 1/100th of a semitone.

The values of RPN #1 (Master Fine Tuning) and System Exclusive MASTER TUNE are added together to determine the actual pitch sounded by each Part.

Frequently used tuning values are given in the following table for your reference. Values are in hexadecimal (decimal in parentheses).

|Hz in A4	+	+	RPN #1			+	Sys.Ex. 40 00 00
			cent
+	445.0	+19.56	4C	43 (+1603)		00	04	0C	04 (+196)
	444.0	+15.67	4A	03 (+1283)		00	04	09	0D (+157)
	443.0	+11.76	47	44 (+ 964)		00	04	07	06 (+118)
	442.0	+ 7.85	45	03 (+ 643)		00	04	04	0F (+ 79)
	441.0	+ 3.93	42	42 (+ 322)		00	04	02	07 (+ 39)
	440.0	0.00	40	00 ( 0)		00	04	00	00 ( 0)
	439.0	- 3.94	3D	3D (- 323)		00	03	0D	09 (- 39)
	438.0	- 7.89	3A	7A (- 646)		00	03	0B	01 (- 79)

Set the tuning of MIDI channel 3 to A4 = 442.0 Hz

Send RPN#1 to MIDI channel 3. From the above table, the value is 4503H.

B2	64 00	MIDI ch.3, lower byte of RPN parameter number: 00H
(B2)	65 01	(MIDI ch.3) upper byte of RPN parameter number: 01H
(B2)	06 45	(MIDI ch.3) upper byte of parameter value: 45H
(B2)	26 03	(MIDI ch.3) lower byte of parameter value: 03H
(B2)	64 7F	(MIDI ch.3) lower byte of RPN parameter number: 7FH
(B2)	65 7F	(MIDI ch.3) upper byte of RPN parameter number: 7FH

● The Scale Tune Feature (address: 40 1x 40)

The scale Tune feature allows you to finely adjust the individual pitch of the notes from C through B. Though the settings are made while working with one octave, the fine adjustments will affect all octaves. By making the appropriate Scale Tune settings, you can obtain a complete variety of tuning methods other than equal temperament. As examples, three possible types of scale setting are explained below.

○ Equal Temperament

This method of tuning divides the octave into 12 equal parts. It is currently the most widely used form of tuning,

especially in occidental music. On KR375, the default settings for the Scale Tune feature produce equal temperament.

○ Just Temperament (Keytone C)

The three main chords resound much more beautifully than with equal temperament, but this benefit can only be obtained in one key. If transposed, the chords tend to become ambiguous. The example given involves settings for a key in which C is the keynote.

○ Arabian Scale

By altering the setting for Scale Tune, you can obtain a variety of other tunings suited for ethnic music. For example, the settings introduced below will set the unit to use the Arabian Scale.

Example Settings

Note name	Equal Temperament	Just Temperament (Keytone C)	Arabian Scale
C	0	0	-6
C#	0	-8	+45
D	0	+4	-2
D#	0	+16	-12
E	0	-14	-51
F	0	-2	-8
F#	0	-10	+43
G	0	+2	-4
G#	0	+14	+47
A	0	-16	0
A#	0	+14	-10
B	0	-12	-49

The values in the table are given in cents. Refer to the explanation of Scale Tuning on page 9 to convert these values to hexadecimal, and transmit them as exclusive data.

For example, to set the tune (C-B) of the Part1 Arabian Scale, send the data as follows:

F0 41 10 42 12 40 11 40 3A 6D 3E 34 0D 38 6B 3C 6F 40 36 0F 50 F7

Copyright(c) 1998 ROLAND CORPORATION

All right reserved. No part of this publication may reproduced in any form without the written permission of ROLAND CORPORATION.

● EFX Type Table

MSB	LSB	Type
01H	00H	Equalizer
01H	01H	Spectrum
01H	02H	Enhancer
01H	10H	Overdrive
01H	11H	Distortion
01H	20H	Phaser
01H	21H	Auto Wah
01H	22H	Rotary
01H	23H	Stereo Flanger
01H	24H	Step Flanger
01H	30H	Compressor
01H	31H	Limiter
01H	40H	Hexa Chorus
01H	41H	Tremolo Chorus
01H	42H	Stereo Chorus
01H	43H	Space D
01H	50H	Stereo Delay
01H	51H	Modulation Delay
01H	52H	Triple Tap Delay
01H	53H	QuadrupleTap Delay
01H	54H	Time Controllable Delay
01H	55H	Reverb
01H	56H	Gate Reverb
01H	60H	Feedback Pitch Shifter
01H	61H	2 Voice Pitch Shifter
02H	00H	Overdrive -> Chorus
02H	01H	Overdrive -> Flanger
02H	02H	Overdrive -> Delay
02H	03H	Distortion -> Chorus
02H	04H	Distortion -> Flanger
02H	05H	Distortion -> Delay
02H	06H	Enhancer -> Chorus
02H	07H	Enhancer -> Flanger
02H	08H	Enhancer -> Delay
02H	09H	Chorus -> Delay
02H	0AH	Flanger -> Delay
02H	0BH	Chorus -> Flanger
11H	00H	Chorus / Delay
11H	01H	Flanger / Delay
11H	02H	Chorus / Flanger

● EFX Parameter Map

* Marked #1 or #2 can be controlled by EFX CONTROL SOURCE1 or 2.

● 01H, 00H: Equalizer

No.	Parameter	Value	Default	Description
1	Low Frequency	00 - 01	01	00: 200Hz, 01: 400Hz
2	Low Gain	31 - 4F	45	-15dB - +15dB (00: 0dB)
3	High Frequency	00 - 01	01	00: 4000Hz, 01: 8000Hz
4	High Gain	31 - 4F	40	-15dB - +15dB (00: 0dB)
5	Mid 1 Frequency	00 - 7F	4C	00: 200Hz - 7F: 6300Hz
6	Mid 1 Q	00 - 04	00	00: 0.5, 01: 1.0, 02: 2.0, 03: 4.0, 04:9.0
7	Mid 1 Gain	41 - 4F	48	-15dB - +15dB
8	Mid 2 Frequency	00 - 7F	38	00: 200Hz - 7F: 6300Hz
9	Mid 2 Q	00 - 04	00	00: 0.5, 01: 1.0, 02: 2.0, 03: 4.0, 04:9.0
10	Mid 2 Gain	41 - 4F	39	-15dB - +15dB
20	Level (#1)	00 - 7F	70

● 01H, 01H: Spectrum

No	Parameter	Value	Default	Description
1	Band 1 Gain (200H)	31 - 4F	3C	-15dB - +15dB (40 0dB), 1dB/1 Step
2	Band 2 Gain (500Hz)	31 - 4F	41	-15dB - +15dB (40 0dB), 1dB/1 Step
3	Band 3 Gain (1000Hz)	31 - 4F	43	-15dB - +15dB (40 0dB), 1dB/1 Step
4	Band 4 Gain (1250Hz)	31 - 4F	46	-15dB - +15dB (40: 0dB), 1dB/1 Step
5	Band 5 Gain (200Hz)	31 - 4F	42	-15dB - +15dB (40: 0dB), 1dB/1 Step
6	Band 6 Gain (3150Hz)	31 - 4F	3F	-15dB - +15dB (40: 0dB), 1dB/1 Step
7	Band 7 Gain (4000Hz)	31 - 4F	3C	-15dB - +15dB (40: 0dB), 1dB/1 Step
8	Band 8 Gain (5000Hz)	31 - 4F	3B	-15dB - +15dB (40: 0dB), 1dB/1 Step
9	Width	00 - 04	02	00: 0.5, 01: 1.0, 02: 2.0, 03: 4.0, 04:9.0
19	Pan (#1)	00 - 7F	40	40:Center, 00:far Left, 7F:far Right
20	Level (#2)	00 - 7F	7F

● 01H, 02H: Enhancer

No	Parameter	Value	Default	Description
1	Sence. (#1)	00 - 7F	70
2	Mix (#2)	00 - 7F	40
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	7F

● 01H, 10H: Overdrive

No	Parameter	Value	Default	Description
1	Drive (#1)	00 - 7F	30
2	Amp Type	00 - 03	01	0:Small, 1:Built-in, 2:2-Stack, 3:3-Stack
3	Amp SW	00 - 7F	01
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
19	Pan (#2)	00 - 7F	40	40:Center, 00:far Left, 7F:far Right
20	Level	00 - 7F	7F

● 01H, 11H: Distortion

No	Parameter	Value	Default	Description
1	Drive (#1)	00 - 7F	30
2	Amp Type	00 - 03	03	0:Small, 1:Built-in, 2:2-Stack, 3:3-Stack
3	Amp Sw	00 - 7F	01
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
19	Pan (#2)	00 - 7F	40	40:Center, 00:far Left, 7F:far Right
20	Level	00 - 7F	7F

● 01H, 20H: Phaser

No	Parameter	Value	Default	Description
1	Manual (#1)	00 - 7F	28
2	Rate (#2)	00 - 7D	10
3	Depth	00 - 7F	48
4	Resonance	00 - 7F	50
5	Mix	00 - 7F	60
19	Pan (#2)	00 - 7F	40	40:Center, 00:far Left, 7F:far Right
20	Level	00 - 7F	70

● 01H, 21H: Auto Wah

No	Parameter	Value	Default	Description
1	Filter Type	00 - 01	01	0: LPF, 1: BPF
2	Senese	00 - 7F	00
3	Manual (#1)	00 - 7F	44
4	Peak	00 - 7F	3E
5	Rate (#2)	00 - 7F	28
6	Depth	00 - 7F	48
20	Level	00 - 7F	60

● 01H, 22H: Rotary

No	Parameter	Value	Default	Description
1	Low Rate-Slow	00 - 7F	06	0.01Hz - 10Hz
2	Low Rate-Fast	00 - 7F	71	0.01Hz - 10Hz
3	Low Accel	00 - 7F	18
4	Low Level	00 - 7F	7F
5	High Rate-Slow	00 - 7F	11	0.01Hz - 10Hz
6	High Rate-Fast	00 - 7F	78	0.01Hz - 10Hz
7	High Accel	00 - 7F	58
8	High Level	00 - 7F	40
9	Separation	00 - 7F	60
10	Color	00 - 7F	00
11	Speed (#1)	00 - 7F	00	00-3F: Slow, 40-7F: Fast
20	Level (#2)	00 - 7F	7F

● 01H, 23H: Stereo Flanger

No	Parameter	Value	Default	Description
1	Pre Filter	00 - 02	00	0: OFF, 1: LPF, 2: HPF
2	Cutoff Frequency	00 - 7F	00
3	Pre Delay	00 - 7F	0B
4	Rate (#1)	00 - 7F	0B
5	Depth	00 - 7F	18
6	Feedback (#2)	00 - 7F	68	40: 0%, 2%/ 1 Step
7	Phase	00 - 7F	5A	5A: 180 degree
16	Balance	00 - 7F	40
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level (#2)	00 - 7F	68

● 01H, 24H: Step Flanger

No	Parameter	Value	Default	Description
1	Pre Delay	00 - 7F	0B
2	Rate	00 - 7F	0B
3	Depth	00 - 7F	10
4	Feedback (#1)	00 - 7F	60	40: 0%, 2%/ 1 Step
5	Phase	00 - 7F	5A	5A: 180 degree
6	Step Rate (#2)	00 - 7F	50
16	Balance	00 - 7F	40
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level (#2)	00 - 7F	70

● 01H, 30H: Compressor

No	Parameter	Value	Default	Description
1	Attack	00 - 7F	48
2	Sustain	00 - 7F	58
3	Post Gain	00 - 7F	02
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
19	Pan (#1)	31 - 4F	40	40:Center, 00:far Left, 7F:far Right
20	Level (#2)	00 - 7F	60

● 01H, 31H: Limiter

No	Parameter	Value	Default	Description
1	Threshold	00 - 7F	5A
2	Ratio	00 - 7F	03
3	Release	00 - 7F	50
4	Post Gain	00 - 7F	01
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
19	Pan (#1)	31 - 4F	40	40:Center, 00:far Left, 7F:far Right
20	Level (#2)	00 - 7F	7F

● 01H, 40H: Hexa Chorus

No	Parameter	Value	Default	Description
1	Pre Delay	00 - 7F	0A
2	Rate (#1)	00 - 7D	08
3	Depth	00 - 7F	48
4	Pre Delay Dev.	00 - 20	02
5	Depth Dev.	2C - 54	38
6	Pan Dev.	00 - 20	18
16	Balance (#2)	00 - 7F	40
20	Level	00 - 7F	68

● 01H, 41H: Tremolo Chorus

No	Parameter	Value	Default	Description
1	Pre Delay	00 - 7F	0A
2	Rate	00 - 7D	08
3	Depth	00 - 7F	28
4	Trem. Phase	00 - 5A	28
5	Trem. Rate (#1)	00 - 7F	3C
6	Trem. Sep.	00 - 7F	60
16	Balance (#2)	00 - 7F	7F
20	Level	00 - 7F	7F

● 01H, 42H: Stereo Chorus

No	Parameter	Value	Default	Description
1	Pre Filter	00 - 02	00
2	Cutoff Frequency	00 - 7F	00
3	Pre Delay	00 - 7F	0A
4	Rate (#1)	00 - 7D	08
5	Depth	00 - 7F	48
7	Phase	00 - 5A	5A
16	Balance (#2)	00 - 7F	40
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	68

● 01H, 43H: Space D

No	Parameter	Value	Default	Description
1	Pre Delay	00 - 7F	0A
2	Rate (#1)	00 - 7D	10
3	Depth	00 - 7F	48
4	Phase	00 - 5A	5A
16	Balance (#2)	00 - 7F	40
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	60

● 01H, 50H: Stereo Delay

No	Parameter	Value	Default	Description
1	Delay Left	00 - 7E	70
2	Delay Right	00 - 7E	70
3	Feedback (#1)	0F - 71	48
4	Feedback Mode	00 - 01	01	0: Normal, 1: Cross
5	Phase Left	00 - 01	00	0: Normal, 1: Invert
6	Phase Right	00 - 01	00	0: Normal, 1: Invert
8	HF Damp	00 - 7F	58	7F: Bypass
16	Balance (#2)	00 - 7F	10
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	7F

● 01H, 51H: Modulation Delay

No	Parameter	Value	Default	Description
1	Delay Left	00 - 7E	5A
2	Delay Right	00 - 7E	6C
3	Feedback	0F - 71	54	40: 0%, 2% / 1 Step
4	Feedback Mode	00 - 01	01	0: Normal, 1: Cross
5	Mod: Rate (#1)	00 - 7D	0C
6	Mod: Depth	00 - 7F	15
7	Mod: Phase	00 - 5A	5A	5A: 180 degree
8	HF Damp	00 - 7F	58	7F: Bypass
16	Balance (#2)	00 - 7F	10
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	7F

● 01H, 52H: Triple Tap Delay

No	Parameter	Value	Default	Description
1	Delay Center	00 - 73	1E
2	Delay Left	00 - 73	00
3	Delay Right	00 - 73	0F
4	Feedback (#1)	0F - 71	48	40: 0%, 2% / 1 Step
5	Center Level	00 - 7F	20
6	Left Level	00 - 7F	20
7	Right Level	00 - 7F	20
8	HF Damp	00 - 7F	58	7F: Bypass
16	Balance (#2)	00 - 7F	30
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	7F

● 01H, 53H: QuadrupleTap Delay

No	Parameter	Value	Default	Description
1	Delay 1	00 - 73	2D
2	Delay 2	00 - 73	1E
3	Delay 3	00 - 73	0F
4	Delay 4	00 - 73	00
5	Level 1	00 - 7F	20
6	Level 2	00 - 7F	20
7	Level 3	00 - 7F	20
8	Level 4	00 - 7F	20
9	Feedback (#1)	0F - 71	48	40: 0%, 2% / 1 Step
10	HF Damp	00 - 7F	58	7F: Bypass
16	Balance (#2)	00 - 7F	30
20	Level	00 - 7F	7F

● 01H, 54H: Time Controllable Delay

No	Parameter	Value	Default	Description
1	Delay (#1)	00 - 73	12
2	Acceleration	00 - 7F	60
3	Feedback (#2)	0F - 71	48	40: 0%, 2% / 1 Step
4	HF Damp	00 - 7F	58	7F: Bypass
5	Effect Pan	00 - 7F	40
16	Balance	00 - 7F	10
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	7F

● 01H, 55H: Reverb

No	Parameter	Value	Default	Description
1	Type	00 - 05	04
2	Pre Delay	00 - 7F	30
3	Time (#1)	00 - 7F	70
4	HF Damp	00 - 7F	68	7F: Bypass
16	Balance (#2)	00 - 7F	30
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	7F

* Type: 0: Room1, 1: Room2, 2: Stage1, 3: Stage 2, 4: Holl1, 5:Holl2

● 01H, 56H: Gate Reverb

No	Parameter	Value	Default	Description
1	Type	00 - 03	00
2	Pre Delay	00 - 7F	10
3	Gate Time	00 - 7F	28
16	Balance (#1)	00 - 7F	40
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level (#2)	00 - 7F	60

* Type: 0: Normal, 1: Reverse, 2: Sweep1, 3: Sweep2

● 01H, 61H: 2 Voice Pitch Shifter

No	Parameter	Value	Default	Description
1	Pitch Contro 1 (#1)	28 - 4C	47
2	Pitch Fine 1	00 - 7F	3E
3	Pre Delay 1	00 - 7F	00
4	Effect Pan 1	00 - 7F	7F
5	Pitch Control 2 (#2)	28 - 4C	3B
6	Pitch Fine 2	00 - 7F	42
7	Pre Delay 2	00 - 7F	00
8	Effect Pan 2	00 - 7F	00
9	Mode	00 - 7F	02
10	Level Balance	00 - 7F	40
16	Balance	00 - 7F	20
20	Level	00 - 7F	60

● 01H, 60H: Feedback Pitch Shifter

No	Parameter	Value	Default	Description
1	Pitch Coarse (#1)	28 - 4C	47
2	Pitch Fine	00 - 7F	40
3	Feedback (#2)	0F - 71	4C	40: 0%, 2% / 1 Step
4	Pre Delay	00 - 7F	5C
5	Mode	00 - 04	02
6	Effect Pan	00 - 7F	40
16	Balance	00 - 7F	40
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	7F

● 02H, 00H: Overdrive -> Chorus

No	Parameter	Value	Default	Description
1	OD: Drive	00 - 7F	20
2	OD: Pan (#1)	00 - 7F	40
3	OD: Amp Type	00 - 03	03	0:Small, 1:Built-in, 2:2-Stack, 3:3-Stack
4	OD: Amp Sw	00 - 7F	01
6	Cho: Delay	00 - 7F	0A
7	Cho: Rate	00 - 7D	08
8	Cho: Depth	00 - 7F	48
10	Cho: Balance (#2)	00 - 7F	40
20	Level	00 - 7F	7F

● 02H, 01H: Overdrive -> Flanger

No	Parameter	Value	Default	Description
1	OD: Drive	00 - 7F	20
2	OD: Pan (#1)	00 - 7F	40
3	OD: Amp Type	00 - 03	03	0:Small, 1:Built-in, 2:2-Stack, 3:3-Stack
4	OD: Amp Sw	00 - 7F	01
6	Flg: Delay	00 - 7F	0B
7	Flg: Rate	00 - 7F	0B
8	Flg: Depth	00 - 7F	18
9	Flg: Feedback	0F -71	68
10	Flg: Blance (#2)	00 - 7F	20
17	EQ Low Gain (200Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
18	EQ High Gain (4000Hz)	31 - 4F	40	-15dB - +15dB (40: 0dB), 1dB/1 Step
20	Level	00 - 7F	7F

● 02H, 02H: Overdrive -> Delay

No	Parameter	Value	Default	Description
1	OD: Drive	00 - 7F	20
2	OD: Pan (#1)	00 - 7F	40
3	OD: Amp Type	00 - 03	03	0:Small, 1:Built-in, 2:2-Stack, 3:3-Stack
4	OD: Amp Sw	00 - 7F	01
6	Dly: Delay	00 - 7F	6F
7	Dly: Feedback	0F - 71	48
8	Dly: HP Damp	00 - 7F	58
10	Dly: Blance (#2)	00 - 7F	10
20	Level	00 - 7F	7F

● 02H, 03H: Distortion -> Chorus

No	Parameter	Value	Default	Description
1	DS: Drive	00 - 7F	30
2	DS: Pan (#1)	00 - 7F	40
3	DS: Amp Type	00 - 03	03	0:Small, 1:Built-in, 2:2-Stack, 3:3-Stack
4	DS: Amp Sw	00 - 7F	01
6	Cho: Delay	00 - 7F	0A
7	Cho: Rate	00 - 7D	08
8	Cho: Depth	00 - 7F	48
10	Cho: Blance (#2)	00 - 7F	40
20	Level	00 - 7F	7F

● 02H, 04H: Distortion -> Flanger

No	Parameter	Value	Default	Description
1	DS: Drive	00 - 7F	30
2	DS: Pan (#1)	00 - 7F	40
3	DS: Amp Type	00 - 03	03	0:Small, 1:Built-in, 2:2-Stack, 3:3-Stack
4	DS: Amp Sw	00 - 7F	01
6	Flg: Delay	00 - 7F	0B
7	Flg: Rate	00 - 7F	0B
8	Flg: Depth	00 - 7F	18
9	Flg: Feedback	0F -71	68	40: 0%, 2% / 1 Step
10	Flg: Blance (#2)	00 - 7F	20
20	Level	00 - 7F	7F

● 02H, 05H: Distortion -> Delay

No	Parameter	Value	Default	Description
1	DS: Drive	00 - 7F	30
2	DS: Pan (#1)	00 - 7F	40
3	DS: Amp Type	00 - 03	03	0:Small, 1:Built-in, 2:2-Stack, 3:3-Stack
4	DS: Amp Sw	00 - 7F	01
6	Dly: Delay	00 - 7F	6F
7	Dly: Feedback	0F - 71	48	40: 0%, 2% / 1 Step
8	Dly: HP Damp	00 - 7F	58
10	Dly: Blance (#2)	00 - 7F	10
20	Level	00 - 7F	7F

● 02H, 06H: Enhancer -> Chorus

No	Parameter	Value	Default	Description
1	Enh: Sens. (#1)	00 - 7F	70
2	Enh: Mix	00 - 7F	40
6	Cho: Delay	00 - 7F	0A
7	Cho: Rate	00 - 7D	08
8	Cho: Depth	00 - 7F	48
10	Cho: Blance (#2)	00 - 7F	40
20	Level	00 - 7F	50

● 02H, 07H: Enhancer -> Flanger

No	Parameter	Value	Default	Description
1	Enh: Sens. (#1)	00 - 7F	70
2	Enh: Mix	00 - 7F	40
6	Flg: Delay	00 - 7F	0B
7	Flg: Rate	00 - 7D	0B
8	Flg: Depth	00 - 7F	18
9	Flg: Feedback	0F -71	68	40: 0%, 2% / 1 Step
10	Flg: Blance (#2)	00 - 7F	40
20	Level	00 - 7F	60

● 02H, 08H: Enhancer -> Delay

No	Parameter	Value	Default	Description
1	Enh: Sens. (#1)	00 - 7F	70
2	Enh: Mix	00 - 7F	40
6	Dly: Delay	00 - 7F	6F
7	Dly: Feedback	0F - 71	48	40: 0%, 2% / 1 Step
8	Dly: HP Damp	00 - 7F	58
10	Dly: Blance (#2)	00 - 7F	10
20	Level	00 - 7F	60

● 02H, 09H: Chorus -> Delay

No	Parameter	Value	Default	Description
1	Cho: Delay	00 - 7F	0A
2	Cho: Rate	00 - 7D	08
3	Cho: Depth	00 - 7F	48
5	Cho: Balance (#1)	00 - 7F	40
6	Dly: Delay	00 - 7F	6F
7	Dly: Feedback	0F - 71	48	40: 0%, 2% / 1 Step
8	Dly: HP Damp	00 - 7F	58
10	Dly: Blance (#2)	00 - 7F	10
20	Level	00 - 7F	7F

● 02H, 0AH: Flanger -> Delay

No	Parameter	Value	Default	Description
1	Flg: Delay	00 - 7F	0B
2	Flg: Rate	00 - 7D	0B
3	Flg: Depth	00 - 7F	18
4	Flg: Feedback (#1)	0F -71	68	40: 0%, 2% / 1 Step
5	Flg: Blance	00 - 7F	40
6	Dly: Delay	00 - 7F	6F
7	Dly: Feedback	0F - 71	48	40: 0%, 2% / 1 Step
8	Dly: HP Damp	00 - 7F	58
10	Dly: Blance (#2)	00 - 7F	10
20	Level	00 - 7F	7F

● 02H, 0BH: Chorus -> Flanger

No	Parameter	Value	Default	Description
1	Cho: Delay	00 - 7F	0A
2	Cho: Rate	00 - 7D	08
3	Cho: Depth	00 - 7F	48
5	Cho: Balance (#1)	00 - 7F	40
6	Flg: Delay	00 - 7F	0B
7	Flg: Rate	00 - 7D	0B
8	Flg: Depth	00 - 7F	18
9	Flg: Feedback	3F -71	68	40: 0%, 2% / 1 Step
10	Flg: Blance (#2)	00 - 7F	40
20	Level	00 - 7F	68

● 11H, 00H: Chorus / Delay

No	Parameter	Value	Default	Description
1	Cho: Delay	00 - 7F	0A
2	Cho: Rate	00 - 7D	08
3	Cho: Depth	00 - 7F	48
5	Cho: Balance (#1)	00 - 7F	40
6	Dly: Delay	00 - 7F	6F
7	Dly: Feedback	0F - 71	48	40: 0%, 2% / 1 Step
8	Dly: HP Damp	00 - 7F	58
10	Dly: Blance (#2)	00 - 7F	10
20	Level	00 - 7F	7F

● 11H, 01H: Flanger / Delay

No	Parameter	Value	Default	Description
1	Flg: Delay	00 - 7F	0B
2	Flg: Rate	00 - 7D	0B
3	Flg: Depth	00 - 7F	18
4	Flg: Feedback	0F -71	68	40: 0%, 2% / 1 Step
5	Flg: Blance (#1)	00 - 7F	40
6	Dly: Delay	00 - 7F	6F
7	Dly: Feedback	0F - 71	48	40: 0%, 2% / 1 Step
8	Dly: HP Damp	00 - 7F	58
10	Dly: Blance (#2)	00 - 7F	10
20	Level	00 - 7F	7F

● 11H, 02H: Chorus / Flanger

No	Parameter	Value	Default	Description
1	Cho: Delay	00 - 7F	0A
2	Cho: Rate	00 - 7D	08
3	Cho: Depth	00 - 7F	48
5	Cho: Balance (#1)	00 - 7F	40
6	Flg: Delay	00 - 7F	0B
7	Flg: Rate	00 - 7D	0B
8	Flg: Depth	00 - 7F	18
9	Flg: Feedback	0F -71	68	40: 0%, 2% / 1 Step
10	Flg: Blance (#2)	00 - 7F	40
20	Level	00 - 7F	7F

Pre Delay Table

Value	(msec)	Value	(msec)	Value	(msec)	Value	(msec)
00H	0.0	20H	3.2	40H	14	60H	46
01H	0.1	21H	3.3	41H	15	61H	47
02H	0.2	22H	3.4	42H	16	62H	48
03H	0.3	23H	3.5	43H	17	63H	49
04H	0.4	24H	3.6	44H	18	64H	50
05H	0.5	25H	3.7	45H	19	65H	52
06H	0.6	26H	3.8	46H	20	66H	54
07H	0.7	27H	3.9	47H	21	67H	56
08H	0.8	28H	4.0	48H	22	68H	58
09H	0.9	29H	4.1	49H	23	69H	60
0AH	1.0	2AH	4.2	4AH	24	6AH	62
0BH	1.1	2BH	4.3	4BH	25	6BH	64
0CH	1.2	2CH	4.4	4CH	26	6CH	66
0DH	1.3	2DH	4.5	4DH	27	6DH	68
0EH	1.4	2EH	4.6	4EH	28	6EH	70
0FH	1.5	2FH	4.7	4FH	29	6FH	72
10H	1.6	30H	4.8	50H	30	70H	74
11H	1.7	31H	4.9	51H	31	71H	76
12H	1.8	32H	5.0	52H	32	72H	78
13H	1.9	33H	5.5	53H	33	73H	80
14H	2.0	34H	6.0	54H	34	74H	82
15H	2.1	35H	6.5	55H	35	75H	84
16H	2.2	36H	7.0	56H	36	76H	86
17H	2.3	37H	7.5	57H	37	77H	88
18H	2.4	38H	8.0	58H	38	78H	90
19H	2.5	39H	8.5	59H	39	79H	92
1AH	2.6	3AH	9.0	5AH	40	7AH	94
1BH	2.7	3BH	9.5	5BH	41	7BH	96
1CH	2.8	3CH	10	5CH	42	7CH	98
1DH	2.9	3DH	11	5DH	43	7DH	100
1EH	3.0	3EH	12	5EH	44	7EH	100
1FH	3.1	3FH	13	5FH	45	7FH	100

Long Delay Table(Triple Tap Delay, Quadple Delay)

Value	(msec)	Value	(msec)	Value	(msec)	Value	(msec)
00H	200	20H	360	40H	520	60H	810
01H	205	21H	365	41H	525	61H	820
02H	210	22H	370	42H	530	62H	830
03H	215	23H	375	43H	535	63H	840
04H	220	24H	380	44H	540	64H	850
05H	225	25H	385	45H	545	65H	860
06H	230	26H	390	46H	550	66H	870
07H	235	27H	395	47H	560	67H	880
08H	240	28H	400	48H	570	68H	890
09H	245	29H	405	49H	580	69H	900
0AH	250	2AH	410	4AH	590	6AH	910
0BH	255	2BH	415	4BH	600	6BH	920
0CH	260	2CH	420	4CH	610	6CH	930
0DH	265	2DH	425	4DH	620	6DH	940
0EH	270	2EH	430	4EH	630	6EH	950
0FH	275	2FH	435	4FH	640	6FH	960
10H	280	30H	440	50H	650	70H	970
11H	285	31H	445	51H	660	71H	980
12H	290	32H	450	52H	670	72H	990
13H	295	33H	455	53H	680	73H	1000
14H	300	34H	460	54H	690	74H	-
15H	305	35H	465	55H	700	75H	-
16H	310	36H	470	56H	710	76H	-
17H	315	37H	475	57H	720	77H	-
18H	320	38H	480	58H	730	78H	-
19H	325	39H	485	59H	740	79H	-
1AH	330	3AH	490	5AH	750	7AH	-
1BH	335	3BH	495	5BH	760	7BH	-
1CH	340	3CH	500	5CH	770	7CH	-
1DH	345	3DH	505	5DH	780	7DH	-
1EH	350	3EH	510	5EH	790	7EH	-
1FH	355	3FH	515	5FH	800	7FH	-

Stereo Delay Table(Stereo Delay, Modulation Delay)

+Value	+(msec)	++	+Value	+(msec)	++	+Value	+(msec)	++	+Value	+(msec)
+00H	0.0	++	20H	3.2	++	40H	14	++	60H	110
01H	0.1	++	21H	3.3	++	41H	15	++	61H	120
02H	0.2	++	22H	3.4	++	42H	16	++	62H	130
03H	0.3	++	23H	3.5	++	43H	17	++	63H	140
04H	0.4	++	24H	3.6	++	44H	18	++	64H	150
05H	0.5	++	25H	3.7	++	45H	19	++	65H	160
06H	0.6	++	26H	3.8	++	46H	20	++	66H	170
07H	0.7	++	27H	3.9	++	47H	21	++	67H	180
08H	0.8	++	28H	4.0	++	48H	22	++	68H	190
09H	0.9	++	29H	4.1	++	49H	23	++	69H	200
0AH	1.0	++	2AH	4.2	++	4AH	24	++	6AH	210
0BH	1.1	++	2BH	4.3	++	4BH	25	++	6BH	220
0CH	1.2	++	2CH	4.4	++	4CH	26	++	6CH	230
0DH	1.3	++	2DH	4.5	++	4DH	27	++	6DH	240
0EH	1.4	++	2EH	4.6	++	4EH	28	++	6EH	250
0FH	1.5	++	2FH	4.7	++	4FH	29	++	6FH	260
10H	1.6	++	30H	4.8	++	50H	30	++	70H	270
11H	1.7	++	31H	4.9	++	51H	31	++	71H	280
12H	1.8	++	32H	5.0	++	52H	32	++	72H	290
13H	1.9	++	33H	5.5	++	53H	33	++	73H	300
14H	2.0	++	34H	6.0	++	54H	34	++	74H	320
15H	2.1	++	35H	6.5	++	55H	35	++	75H	340
16H	2.2	++	36H	7.0	++	56H	36	++	76H	360
17H	2.3	++	37H	7.5	++	57H	37	++	77H	380
18H	2.4	++	38H	8.0	++	58H	38	++	78H	400
19H	2.5	++	39H	8.5	++	59H	39	++	79H	420
1AH	2.6	++	3AH	9.0	++	5AH	40	++	7AH	440
1BH	2.7	++	3BH	9.5	++	5BH	50	++	7BH	460
1CH	2.8	++	3CH	10	++	5CH	70	++	7CH	480
1DH	2.9	++	3DH	11	++	5DH	80	++	7DH	500
1EH	3.0	++	3EH	12	++	5EH	90	++	7EH	500
1FH	3.1	++	3FH	13	++	5FH	100	++	7FH	500

Rate Table(Chorus, Flanger, etc)

Value	(sec)	Value	(sec)	Value	(sec)	Value	(sec)
00H	0.05	20H	1.65	40H	3.25	60H	4.85
01H	0.10	21H	1.70	41H	3.30	61H	4.90
02H	0.15	22H	1.75	42H	3.35	62H	4.95
03H	0.20	23H	1.80	43H	3.40	63H	5.00
04H	0.25	24H	1.85	44H	3.45	64H	5.10
05H	0.30	25H	1.90	45H	3.50	65H	5.20
06H	0.35	26H	1.95	46H	3.55	66H	5.30
07H	0.40	27H	2.00	47H	3.60	67H	5.40
08H	0.45	28H	2.05	48H	3.65	68H	5.50
09H	0.50	29H	2.10	49H	3.70	69H	5.60
0AH	0.55	2AH	2.15	4AH	3.75	6AH	5.70
0BH	0.60	2BH	2.20	4BH	3.80	6BH	5.80
0CH	0.65	2CH	2.25	4CH	3.85	6CH	5.90
0DH	0.70	2DH	2.30	4DH	3.90	6DH	6.00
0EH	0.75	2EH	2.35	4EH	3.95	6EH	6.10
0FH	0.80	2FH	2.40	4FH	4.00	6FH	6.20
10H	0.85	30H	2.45	50H	4.05	70H	6.30
11H	0.90	31H	2.50	51H	4.10	71H	6.40
12H	0.95	32H	2.55	52H	4.15	72H	6.50
13H	1.00	33H	2.60	53H	4.20	73H	6.60
14H	1.05	34H	2.65	54H	4.25	74H	6.70
15H	1.10	35H	2.70	55H	4.30	75H	6.80
16H	1.15	36H	2.75	56H	4.35	76H	6.90
17H	1.20	37H	2.80	57H	4.40	77H	7.00
18H	1.25	38H	2.85	58H	4.45	78H	7.50
19H	1.30	39H	2.90	59H	4.50	79H	8.00
1AH	1.35	3AH	2.95	5AH	4.55	7AH	8.50
1BH	1.40	3BH	3.00	5BH	4.60	7BH	9.00
1CH	1.45	3CH	3.05	5CH	4.65	7CH	9.50
1DH	1.50	3DH	3.10	5DH	4.70	7DH	10.00
1EH	1.55	3EH	3.15	5EH	4.75	7EH	10.00
1FH	1.60	3FH	3.20	5FH	4.80	7FH	10.00

HF Damp

Value	(Hz)
00H-07H	315
08H-0FH	400
10H-17H	500
18H-1FH	630
20H-27H	800
28H-2FH	1000
30H-37H	1250
38H-3FH	1600
40H-47H	2000
48H-4FH	2500
50H-57H	3150
58H-5FH	4000
60H-67H	5000
68H-6FH	6300
70H-77H	8000
78H-7FH	Bypass

● Tone List

KR375 TONE MAPPING

PC#/CC0/CC32	Tone Name	Voices	iicl
00h / 00h / 00h	Piano 1	1	1-13,	8-4
00h / 08h / 00h	Piano 1w	2	8-5
00h / 10h / 00h	Piano 1d	1	8-6
01h / 00h / 00h	Piano 2	1	1-14,	8-7
01h / 08h / 00h	Piano 2w	2	8-8
02h / 00h / 00h	Piano 3	1	1-15,	8-9
02h / 08h / 00h	Piano 3w	2	8-10
03h / 00h / 00h	Honky-tonk	2	8-11
03h / 08h / 00h	Honky-tonk 2	2	1-10,	8-12
04h / 00h / 00h	GS E.Piano1	1	1-28,	8-13
04h / 08h / 00h	Detuned EP 1	2	1-23,	8-14
04h / 10h / 00h	E.Piano 1v	2	1-30,	8-15
04h / 18h / 00h	60's E.Piano	1	1-21,	8-16
05h / 00h / 00h	GS E.Piano2	1	1-29,	8-17
05h / 08h / 00h	Detuned EP 2	2	1-24,	8-18
05h / 10h / 00h	E.Piano 2v	2	1-31,	8-19
06h / 00h / 00h	Harpsichord	1	8-20
06h / 08h / 00h	Coupled Hps.	2	1-32,	8-21
06h / 10h / 00h	Harpsi.w	2	8-22
06h / 18h / 00h	Harpsi.o	2	1-33,	8-23
07h / 00h / 00h	Clav.	1	1-34,	8-24
08h / 00h / 00h	Celesta	1	2-2,	8-25
09h / 00h / 00h	Glockenspiel	1	2-6,	8-26
0Ah / 00h / 00h	Music Box	1	2-7,	8-27
0Bh / 00h / 00h	GS Vibe	1	8-28
0Bh / 08h / 00h	Vibe.w	2	8-29
0Ch / 00h / 00h	GS Marimba	1	8-30
0Ch / 08h / 00h	Marimba	1	2-3,	8-31
0Dh / 00h / 00h	Xylophone	1	2-5,	8-32
0Eh / 00h / 00h	Tubular-bell	1	2-8,	8-33
0Eh / 08h / 00h	Church Bell	1	8-34
0Eh / 09h / 00h	Carillon	1	8-35
0Fh / 00h / 00h	GS Santur	1	8-36
10h / 00h / 00h	Organ 1	1	8-37
10h / 01h / 00h	Full Organ 1	1
10h / 08h / 00h	Detuned Or.1	2	8-38
10h / 09h / 00h	Full Organ 2	1
10h / 10h / 00h	Pop Organ 1	1	8-39
10h / 11h / 00h	Pop Organ 2	1
10h / 12h / 00h	Pop Organ	1	3-9
10h / 20h / 00h	Full Organ 4	1	8-40
10h / 21h / 00h	Full Organ 3	1
11h / 00h / 00h	Organ 2	1	8-41
11h / 01h / 00h	Jazz Organ 3	2
11h / 08h / 00h	Detuned Or.2	2	8-42
11h / 20h / 00h	Jazz Organ 1	2	8-43
12h / 00h / 00h	Rock Organ 2	2	3-12,	8-44
13h / 00h / 00h	Church Org.1	1	8-45
13h / 08h / 00h	Church Org.2	2	8-46
13h / 10h / 00h	Church Org.3	2	8-47
14h / 00h / 00h	Reed Organ	1	8-48
15h / 00h / 00h	Accordion Fr	2	8-49
15h / 08h / 00h	Accordion It	2	8-50
16h / 00h / 00h	GS Harmonica	1	8-51
16h / 01h / 00h	Harmonica	1
17h / 00h / 00h	Bandoneon	2	8-52
18h / 00h / 00h	GS Nylon Gt.	1	8-53
18h / 08h / 00h	Ukulele	1	4-13,	8-54
18h / 10h / 00h	Nylon Gt.o	2	4-10,	8-55
18h / 20h / 00h	Nylon Guitar	1	8-56
19h / 00h / 00h	Steel-str.Gt	1	8-57
19h / 08h / 00h	12-str.Gt	2	8-58
19h / 09h / 00h	Nylon+Steel	2
19h / 10h / 00h	Mandolin	1	8-59
19h / 20h / 00h	Steel Gt.2	1
1Ah / 00h / 00h	Jazz Guitar	1	4-4,	8-60
1Ah / 08h / 00h	GS Hawaiian	1	8-61
1Bh / 00h / 00h	Clean Gt.	1	8-62
1Bh / 08h / 00h	Chorus Gt.	2	8-63
1Ch / 00h / 00h	Muted Gt.	1	4-16,	8-64
1Ch / 08h / 00h	Funk Gt.	1	8-65
1Ch / 10h / 00h	Funk Gt.2	2	8-66
1Dh / 00h / 00h	Overdrive Gt	1	4-17,	8-67
1Eh / 00h / 00h	GS Dist.Gt	1	8-68
PC#/CC0/CC32	Tone Name	Voices	icl
1Eh / 08h / 00h	Feedback Gt.	2	8-69
1Fh / 00h / 00h	Gt.Harmonics	1	8-70
1Fh / 08h / 00h	Gt. Feedback	1	8-71
1Fh / 10h / 00h	Gt.Harmonics	1
20h / 00h / 00h	GS Ac.Bass	1	8-72
21h / 00h / 00h	GS Fing.Bass	1	8-73
22h / 00h / 00h	GS Picked Bs	1	8-74
23h / 00h / 00h	Fretless Bs.	1	4-8,	8-75
24h / 00h / 00h	Slap Bass 1	1	4-23,	8-76
25h / 00h / 00h	Slap Bass 2	1	8-77
26h / 00h / 00h	Synth Bass 1	1	8-78
26h / 01h / 00h	SynthBass101	1	4-24,	8-79
26h / 08h / 00h	Synth Bass 3	1	8-80
27h / 00h / 00h	Synth Bass 2	2	8-81
27h / 08h / 00h	Synth Bass 4	2	8-82
27h / 10h / 00h	Rubber Bass	2	8-83
28h / 00h / 00h	Violin	1	5-3,	8-84
28h / 08h / 00h	Slow Violin	1	8-85
29h / 00h / 00h	Viola	1	8-86
2Ah / 00h / 00h	Cello	1	5-4,	8-87
2Bh / 00h / 00h	Contrabass	1	8-88
2Ch / 00h / 00h	Tremolo Str	1	8-89
2Dh / 00h / 00h	PizzicatoStr	1	5-5,	8-90
2Eh / 00h / 00h	GS Harp	1	8-91
2Fh / 00h / 00h	Timpani	1	8-92
30h / 00h / 00h	GS Strings	1	8-93
30h / 08h / 00h	Orchestra	2	5-7,	8-94
31h / 00h / 00h	GS Sl.Str	1	8-95
32h / 00h / 00h	Syn.Strings1	1	5-8,	8-96
32h / 08h / 00h	Syn.Strings3	2	8-97
33h / 00h / 00h	Syn.Strings2	2	8-98
34h / 00h / 00h	Choir Aahs	1	8-99
34h / 20h / 00h	Choir	1	5-12,	8-100
35h / 00h / 00h	Pop Voice	1	5-13,	8-101
36h / 00h / 00h	SynVox	1	5-14,	8-102
37h / 00h / 00h	OrchestraHit	2	5-15,	8-103
38h / 00h / 00h	GS Trumpet	1	8-104
38h / 01h / 00h	Trumpet	1
39h / 00h / 00h	GS Trombone	1	8-105
39h / 01h / 00h	Trombone 2	2	8-106
3Ah / 00h / 00h	Tuba	1	8-107
3Bh / 00h / 00h	MutedTrumpet	1	7-5,	8-108
3Ch / 00h / 00h	French Horn	2	7-6,	8-109
3Ch / 01h / 00h	Fr.Horn 2	2	8-110
3Dh / 00h / 00h	Brass 1	1	8-111
3Dh / 08h / 00h	Brass 2	2	8-112
3Eh / 00h / 00h	Synth Brass1	2	7-7,	8-113
3Eh / 08h / 00h	Synth Brass3	2	8-114
3Eh / 10h / 00h	AnalogBrass1	2	8-115
3Fh / 00h / 00h	Synth Brass2	2	7-8,	8-116
3Fh / 08h / 00h	Synth Brass4	1	8-117
3Fh / 10h / 00h	AnalogBrass2	2	8-118
40h / 00h / 00h	GS Sop.Sax	1	8-119
41h / 00h / 00h	Alto Sax	1	6-4,	8-120
41h / 08h / 00h	Blow Sax	1
42h / 00h / 00h	Tenor Sax	1	6-2,	8-121
42h / 08h / 00h	Blow Sax	1
43h / 00h / 00h	Baritone Sax	1	8-122
44h / 00h / 00h	GS Oboe	1	8-123
45h / 00h / 00h	English Horn	1	8-124
46h / 00h / 00h	Bassoon	1	6-6,	8-125
47h / 00h / 00h	Clarinet	1	6-7,	8-126
48h / 00h / 00h	Piccolo	1	8-127
49h / 00h / 00h	GS Flute	1	8-128
4Ah / 00h / 00h	Recorder	1	8-129
4Bh / 00h / 00h	Pan Flute	1	6-9,	8-130
4Ch / 00h / 00h	Bottle Blow	2	8-131
4Dh / 00h / 00h	Shakuhachi	2	8-132
4Eh / 00h / 00h	Whistle	1	8-133
4Fh / 00h / 00h	Ocarina	1	8-134
50h / 00h / 00h	Square Wave	2	8-135
50h / 01h / 00h	Square	1	8-136
50h / 08h / 00h	Sine Wave	1	8-137
51h / 00h / 00h	Saw Wave	2	8-138
51h / 01h / 00h	Saw	1	8-139
51h / 08h / 00h	Doctor Solo	2	8-140

PC#/CC0/CC32	Tone Name	Voices	iicl
52h / 00h / 00h	Syn.Calliope	2	8-141
53h / 00h / 00h	Chiffer Lead	2	8-142
54h / 00h / 00h	Charang	2	8-143
55h / 00h / 00h	Solo Vox	2	8-144
56h / 00h / 00h	5th Saw Wave	2	8-145
57h / 00h / 00h	Bass & Lead	2	8-146
58h / 00h / 00h	Fantasia	2	8-1
59h / 00h / 00h	Warm Pad	1	5-9, 8-147
5Ah / 00h / 00h	Polysynth	2	8-148
5Bh / 00h / 00h	Space Voice	1	8-149
5Ch / 00h / 00h	Bowed Glass	2	8-150
5Dh / 00h / 00h	Metal Pad	2	8-151
5Eh / 00h / 00h	Halo Pad	2	8-152
5Fh / 00h / 00h	Sweep Pad	1	8-153
60h / 00h / 00h	Ice Rain	2	8-154
61h / 00h / 00h	Soundtrack	2	8-155
62h / 00h / 00h	Crystal	2	8-3
62h / 01h / 00h	Syn Mallet	1	8-156
63h / 00h / 00h	Atmosphere	2	8-157
64h / 00h / 00h	Brightness	2	8-2
65h / 00h / 00h	Goblin	2	8-158
66h / 00h / 00h	Echo Drops	1	8-159
66h / 01h / 00h	Echo Bell	2	8-160
66h / 02h / 00h	Echo Pan	2	8-161
67h / 00h / 00h	Star Theme	2	8-162
68h / 00h / 00h	Sitar	1	8-163
68h / 01h / 00h	Sitar 2	2	8-164
69h / 00h / 00h	Banjo	1	4-14, 8-165
6Ah / 00h / 00h	GS Shamisen	1	8-166
6Bh / 00h / 00h	Koto	1	4-22, 8-167
6Bh / 08h / 00h	Taisho Koto	2	8-168
6Ch / 00h / 00h	Kalimba	1	2-11, 8-169
6Dh / 00h / 00h	Bagpipe	1	8-170
6Eh / 00h / 00h	Fiddle	1	8-171
6Fh / 00h / 00h	Shanai	1	8-172
70h / 00h / 00h	Tinkle Bell	1	8-173
71h / 00h / 00h	Agogo	1	8-174
72h / 00h / 00h	Steel Drums	1	2-10, 8-175
73h / 00h / 00h	Woodblock	1	8-176
73h / 08h / 00h	Castanets	1	8-177
74h / 00h / 00h	Taiko	1	8-178
74h / 08h / 00h	Concert BD	1	8-179
75h / 00h / 00h	Melo. Tom 1	1	8-180
75h / 08h / 00h	Melo. Tom 2	1	8-181
76h / 00h / 00h	Synth Drum	1	8-182
76h / 08h / 00h	808 Tom	1	8-183
76h / 09h / 00h	Elec Perc.	1	8-184
77h / 00h / 00h	Reverse Cym.	1	8-185
78h / 00h / 00h	Gt.FretNoise	1	8-186
78h / 01h / 00h	Gt.Cut Noise	1	8-187
78h / 02h / 00h	String Slap	1	8-188
79h / 00h / 00h	Breath Noise	1	8-189
79h / 01h / 00h	Fl.Key Click	1	8-190
7Ah / 00h / 00h	Seashore	1	8-191
7Ah / 01h / 00h	Rain	1	8-192
7Ah / 02h / 00h	Thunder	1	8-193
7Ah / 03h / 00h	Wind	1	8-194
7Ah / 04h / 00h	Stream	2	8-195
7Ah / 05h / 00h	Bubble	2	8-196
7Bh / 00h / 00h	Bird	2	8-197
7Bh / 01h / 00h	Dog	1	8-198
7Bh / 02h / 00h	Horse-Gallop	1	8-199
7Bh / 03h / 00h	Bird 2	1	8-200
7Ch / 00h / 00h	Telephone 1	1	8-201
7Ch / 01h / 00h	Telephone 2	1	8-202
7Ch / 02h / 00h	DoorCreaking	1	8-203
7Ch / 03h / 00h	Door	1	8-204
7Ch / 04h / 00h	Scratch	1	8-205
7Ch / 05h / 00h	Windchime	2	8-206
7Dh / 00h / 00h	Helicopter	1	8-207
7Dh / 01h / 00h	Car-Engine	1	8-208
7Dh / 02h / 00h	Car-Stop	1	8-209
7Dh / 03h / 00h	Car-Pass	1	8-210
7Dh / 04h / 00h	Car-Crash	2	8-211
7Dh / 05h / 00h	Siren	1	8-212
7Dh / 06h / 00h	Train	1	8-213
PC#/CC0/CC32	Tone Name	Voices	içl
7Dh / 07h / 00h	Jetplane	2	8-214
7Dh / 08h / 00h	Starship	2	8-215
7Dh / 09h / 00h	Burst Noise	2	8-216
7Eh / 00h / 00h	Applause	2	8-217
7Eh / 01h / 00h	Laughing	1	8-218
7Eh / 02h / 00h	Screaming	1	8-219
7Eh / 03h / 00h	Punch	1	8-220
7Eh / 04h / 00h	Heart Beat	1	8-221
7Eh / 05h / 00h	Footsteps	1	8-222
7Fh / 00h / 00h	Gun Shot	1	8-223
7Fh / 01h / 00h	Machine Gun	1	8-224
7Fh / 02h / 00h	Lasergun	1	8-225
7Fh / 03h / 00h	Explosion	2	8-226

PC#/CC0/CC32	Tone Name	Voices	iicl
00h / 08h / 40h	Grand Piano1	2~4	1-1
00h / 10h / 40h	UprightPiano	2~4	1-7
01h / 08h / 40h	Grand Piano2	2~4	1-2
02h / 08h / 40h	Rock Piano	2~4	1-8
03h / 08h / 40h	Honky-tonk 1	2~4	1-9
04h / 08h / 40h	Soft E.Piano	2	1-20
04h / 10h / 40h	E.Piano 1	2	1-3
04h / 18h / 40h	Sine Rhodes	1
05h / 00h / 40h	Hard E.Piano	2	1-22
05h / 08h / 40h	St.FM EP	2	1-26
05h / 10h / 40h	E.Piano 2	1	1-4
06h / 00h / 40h	Harpsichord1	1	1-5
06h / 08h / 40h	Harpsichord2	2	1-6
07h / 00h / 40h	Analog Clav.	2	1-35
0Ah / 00h / 40h	Music Box	1
0Bh / 00h / 40h	Vibraphone	1	2-1
0Ch / 08h / 40h	Barafon	1	2-4
0Fh / 00h / 40h	Santur	2	2-9
10h / 20h / 40h	VS Organ	2	3-10
11h / 00h / 40h	Jazz Organ 1	2	3-1
11h / 08h / 40h	Jazz Organ 3	2
11h / 20h / 40h	Jazz Organ 2	2	3-2
12h / 00h / 40h	Rock Organ 1	2	3-11
13h / 00h / 40h	Organ Flute	1	3-8
13h / 08h / 40h	Trem.Flute	2	3-14
13h / 10h / 40h	Theater Org.	2	3-13
14h / 00h / 40h	Digi Church	2
15h / 00h / 40h	Accordion	1	3-16
16h / 00h / 40h	Harmonica	1	3-17
18h / 00h / 40h	Nylon Guitar	1	4-1
18h / 10h / 40h	Nylon Gt.o	2
18h / 20h / 40h	Nylon Gt.2	1
19h / 00h / 40h	Steel Guitar	1	4-2
19h / 08h / 40h	12str Guitar	2	4-3
19h / 10h / 40h	Mandolin	1	4-12
1Ah / 08h / 40h	Hawaiian Gt.	1	4-15
1Bh / 00h / 40h	JC E.Guitar	2	4-9
1Ch / 00h / 40h	Muted Dis.Gt	1
1Eh / 00h / 40h	DistortionGt	1	4-18
1Eh / 08h / 40h	Power Gt.2	2
20h / 00h / 40h	Acoustic Bs.	2	4-5
21h / 00h / 40h	Fingered Bs.	1	4-6
22h / 00h / 40h	Picked Bs.	1	4-7
27h / 10h / 40h	SH101 Bass	1
2Eh / 00h / 40h	Harp	1	5-6
30h / 00h / 40h	Strings	2	5-1
31h / 00h / 40h	Slow Strings	2	5-2
36h / 00h / 40h	Choir Oohs	2
38h / 00h / 40h	Trumpet	1	7-1
39h / 00h / 40h	Trombone	1	7-2
3Ch / 00h / 40h	Fr.Horn Solo	1	7-3
3Dh / 00h / 40h	Brass 1	1	7-4
40h / 00h / 40h	Soprano Sax	1	6-3
42h / 00h / 40h	Blow Sax	1	6-1
44h / 00h / 40h	Oboe	1	6-5
49h / 00h / 40h	Flute	1	6-8
4Bh / 00h / 40h	Blow Pipe	1	6-10
50h / 00h / 40h	Syn.Square	2
50h / 01h / 40h	FM Lead 1	2
50h / 08h / 40h	JP8 Square	1
51h / 00h / 40h	Mg Lead	1

PC#/CC0/CC32	Tone Name	Voices	iicl
51h / 01h / 40h	P5 Saw Lead	1
51h / 08h / 40h	Rhythmic Saw	2
52h / 00h / 40h	JP8 Pulse	2
53h / 00h / 40h	Cheese Saw	1
54h / 00h / 40h	Reso Saw	1
55h / 00h / 40h	RAVE Vox	2
56h / 00h / 40h	5th Lead	2
57h / 00h / 40h	FM Lead 2	1
58h / 00h / 40h	Fantasia 2	2
59h / 00h / 40h	Soft Pad	2
5Ah / 00h / 40h	P5 Poly	2
5Bh / 00h / 40h	Heaven II	2
5Dh / 00h / 40h	Tine Pad	2
5Eh / 00h / 40h	JP8 Sqr Pad	2
5Fh / 00h / 40h	Sweep Pad 2	2
60h / 00h / 40h	LFO RAVE	2
61h / 00h / 40h	Ancestral	2
62h / 00h / 40h	Vibra Bells	2
63h / 00h / 40h	Harpvox	2	5-10
65h / 00h / 40h	Calculating	2
66h / 00h / 40h	Big Panner	2
66h / 01h / 40h	Ai-yai-a	2
66h / 02h / 40h	Echo Pan 2	2
6Ah / 00h / 40h	Shamisen	2	4-21
78h / 01h / 40h	Wah Brush Gt	1
78h / 06h / 40h	Pick Scrape	1
7Ah / 02h / 40h	Thunder Bell	2
7Bh / 04h / 40h	Cat	1
7Ch / 05h / 40h	Bar Chimes	1
7Dh / 07h / 40h	Falling Down	2
7Eh / 07h / 40h	Finger Snap	1

PC#/CC0/CC32	Tone Name	Voices	iicl
00h / 00h / 41h	MIDI Piano1	2	1-11
01h / 00h / 41h	MIDI Piano2	2	1-12
02h / 00h / 41h	EG+Rhodes 1	2	1-17
04h / 00h / 41h	Hard Rhodes	2	1-19
05h / 00h / 41h	E.Piano 3	1	1-16
05h / 08h / 41h	FM+SA EP	2	1-25
07h / 00h / 41h	5th Ana.Clav	2
0Ah / 00h / 41h	Music Box	1
10h / 00h / 41h	Full Organ 1	1	3-3
10h / 08h / 41h	Full Organ 2	1	3-4
10h / 10h / 41h	Full Organ 3	1
10h / 20h / 41h	Full Organ 4	1
11h / 00h / 41h	Jazz Organ 4	2
11h / 08h / 41h	Organ Bass	2	3-15
11h / 20h / 41h	Pipe Org. Bs	2
12h / 00h / 41h	Rotary Org.S	1
13h / 08h / 41h	Church Organ	2	3-7
19h / 08h / 41h	Nylon+Steel	2	4-11
1Eh / 00h / 41h	Dazed Guitar	2
1Eh / 08h / 41h	Power Guitar	2	4-20
20h / 00h / 41h	A.Bass+Cymbl	2	4-25
22h / 00h / 41h	Mute PickBs.	1
50h / 00h / 41h	CC Solo 2	2	5-11
5Dh / 00h / 41h	Panner Pad	2
5Fh / 00h / 41h	Polar Pad	1
61h / 00h / 41h	Prologue	2
62h / 00h / 41h	Clear Bells	2
63h / 00h / 41h	Nylon Harp	2
65h / 00h / 41h	Goblinson	2
66h / 02h / 41h	Water Piano	2

PC#/CC0/CC32	Tone Name	Voices	iicl
02h / 00h / 42h	EG+Rhodes 2	2	1-18
05h / 08h / 42h	Hard FM EP	2	1-27
05h / 10h / 42h	Hard E.Piano	2
10h / 00h / 42h	Lower Organ1	1	3-5
10h / 08h / 42h	Lower Organ2	1	3-6
10h / 10h / 42h	Lower Organ3	1
10h / 20h / 42h	Metallic Org.	2
11h / 00h / 42h	Jazz Organ 5	2
11h / 08h / 42h	Jazz Organ 6	2
11h / 20h / 42h	Jazz Organ 7	2
12h / 00h / 42h	Rotary Org.F	1
1Eh / 00h / 42h	Rock Rhythm2	2
1Eh / 08h / 42h	Rock Rhythm	2	4-19
5Fh / 00h / 42h	Converge	1
62h / 00h / 42h	ChristmasBel	2
63h / 00h / 42h	Nylon+Rhodes	2
65h / 00h / 42h	50's Sci-Fi	2

PC#/CC0/CC32	Tone Name	Voices	içl
10h / 00h / 43h	Full Organ 5	2
10h / 08h / 43h	Full Organ 6	2
10h / 10h / 43h	Full Organ 7	2
10h / 20h / 43h	Full Organ 8	2

PC#/CC0/CC32	Tone Name	Voices	iicl
00h / 00h / 48h	Piano 1*	1	8-227
01h / 00h / 48h	Piano 2*	1	8-228
02h / 00h / 48h	Piano 3*	1	8-229
03h / 00h / 48h	Honky-tonk*	2	8-230
04h / 00h / 48h	E.Piano 1*	1	8-231
05h / 00h / 48h	E.Piano 2*	1	8-232
06h / 00h / 48h	Harpsichord*	1	8-233
07h / 00h / 48h	Clav.*	1	8-234
08h / 00h / 48h	Celesta*	1	8-235
09h / 00h / 48h	Glocken*	1	8-236
0Ah / 00h / 48h	Music Box*	1	8-237
0Bh / 00h / 48h	Vibraphone*	1	8-238
0Ch / 00h / 48h	Marimba*	1	8-239
0Dh / 00h / 48h	Xylophone*	1	8-240
0Eh / 00h / 48h	Tubularbell*	1	8-241
0Fh / 00h / 48h	Santur*	1	8-242
10h / 00h / 48h	Organ 1*	1	8-243
10h / 10h / 48h	Pop Organ 1*	1	8-244
11h / 00h / 48h	Organ 2*	1	8-245
12h / 00h / 48h	Rock Organ2*	2	8-246
13h / 00h / 48h	ChurchOrg.1*	1	8-247
14h / 00h / 48h	Reed Organ*	1	8-248
15h / 00h / 48h	AccordionFr*	2	8-249
16h / 00h / 48h	Harmonica*	1	8-250
17h / 00h / 48h	Bandoneon*	2	8-251
18h / 00h / 48h	Nylon-strGt*	1	8-252
19h / 00h / 48h	Steel-strGt*	1	8-253
1Ah / 00h / 48h	Jazz Guitar*	1	8-254
1Bh / 00h / 48h	Clean Gt.*	1	8-255
1Ch / 00h / 48h	Muted Gt.*	1	8-256
1Ch / 08h / 48h	Funk Gt.*	1	8-257
1Dh / 00h / 48h	OverdriveGt*	1	8-258
1Eh / 00h / 48h	Dist.Guitar*	1	8-259
1Fh / 00h / 48h	Gt.Harmo*	1	8-260
20h / 00h / 48h	Acoustic Bs*	1	8-261
21h / 00h / 48h	Fingered Bs*	1	8-262
22h / 00h / 48h	Picked Bs.*	1	8-263
23h / 00h / 48h	Fretless Bs*	1	8-264
24h / 00h / 48h	Slap Bass 1*	1	8-265
25h / 00h / 48h	Slap Bass 2*	1	8-266
26h / 00h / 48h	Synth Bass1*	1	8-267
27h / 00h / 48h	Synth Bass2*	2	8-268
27h / 10h / 48h	Rubber Bass*	2	8-269
28h / 00h / 48h	Violin*	1	8-270
29h / 00h / 48h	Viola*	1	8-271
2Ah / 00h / 48h	Cello*	1	8-272
2Bh / 00h / 48h	Contrabass*	1	8-273
2Ch / 00h / 48h	Tremolo Str*	1	8-274
2Dh / 00h / 48h	Pizzicato*	1	8-275
2Eh / 00h / 48h	Harp*	1	8-276
2Fh / 00h / 48h	Timpani*	1	8-277
30h / 00h / 48h	Strings*	1	8-278
31h / 00h / 48h	SlowStrings*	1	8-279
32h / 00h / 48h	Syn.Str 1*	1	8-280
33h / 00h / 48h	Syn.Str 2*	2	8-281
34h / 00h / 48h	Choir Aahs*	1	8-282
35h / 00h / 48h	Pop Voice*	1	8-283
36h / 00h / 48h	SynVox*	1	8-284
37h / 00h / 48h	Orche.Hit*	2	8-285
38h / 00h / 48h	Trumpet*	1	8-286
39h / 00h / 48h	Trombone*	1	8-287
3Ah / 00h / 48h	Tuba*	1	8-288

PC#/CC0/CC32	Tone Name	Voices	ficl
3Bh / 00h / 48h	M.Trumpet*	1	8-289
3Ch / 00h / 48h	FrenchHorns*	2	8-290
3Dh / 00h / 48h	Brass 1*	1	8-291
3Eh / 00h / 48h	SynthBrass1*	2	8-292
3Eh / 10h / 48h	A.Brass 1*	2	8-293
3Fh / 00h / 48h	SynthBrass2*	2	8-294
40h / 00h / 48h	Soprano Sax*	1	8-295
41h / 00h / 48h	Alto Sax*	1	8-296
42h / 00h / 48h	Tenor Sax*	1	8-297
43h / 00h / 48h	BaritoneSax*	1	8-298
44h / 00h / 48h	Oboe*	1	8-299
45h / 00h / 48h	EnglishHorn*	1	8-300
46h / 00h / 48h	Bassoon*	1	8-301
47h / 00h / 48h	Clarinet*	1	8-302
48h / 00h / 48h	Piccolo*	1	8-303
49h / 00h / 48h	Flute*	1	8-304
4Ah / 00h / 48h	Recorder*	1	8-305
4Bh / 00h / 48h	Pan Flute*	1	8-306
4Ch / 00h / 48h	Bottle Blow*	2	8-307
4Dh / 00h / 48h	Shakuhachi*	2	8-308
4Eh / 00h / 48h	Whistle*	1	8-309
4Fh / 00h / 48h	Ocarina*	1	8-310
50h / 00h / 48h	Square Wave*	2	8-311
51h / 00h / 48h	Saw Wave*	2	8-312
51h / 08h / 48h	Doctor Solo*	2	8-313
52h / 00h / 48h	SynCalliope*	2	8-314
53h / 00h / 48h	ChifferLead*	2	8-315
54h / 00h / 48h	Charang*	2	8-316
55h / 00h / 48h	Solo Vox*	2	8-317
56h / 00h / 48h	5th SawWave*	2	8-318
57h / 00h / 48h	Bass & Lead*	2	8-319
58h / 00h / 48h	Fantasia*	2	8-320
59h / 00h / 48h	Warm Pad*	1	8-321
5Ah / 00h / 48h	Polysynth*	2	8-322
5Bh / 00h / 48h	Space Voice*	1	8-323
5Ch / 00h / 48h	Bowed Glass*	2	8-324
5Dh / 00h / 48h	Metal Pad*	2	8-325
5Eh / 00h / 48h	Halo Pad*	2	8-326
5Fh / 00h / 48h	Sweep Pad*	1	8-327
60h / 00h / 48h	Ice Rain*	2	8-328
61h / 00h / 48h	Soundtrack*	2	8-329
62h / 00h / 48h	Crystal*	2	8-330
62h / 01h / 48h	Syn Mallet*	1	8-331
63h / 00h / 48h	Atmosphere*	2	8-332
64h / 00h / 48h	Brightness*	2	8-333
65h / 00h / 48h	Goblin*	2	8-334
66h / 00h / 48h	Echo Drops*	1	8-335
67h / 00h / 48h	Star Theme*	2	8-336
68h / 00h / 48h	Sitar*	1	8-337
69h / 00h / 48h	Banjo*	1	8-338
6Ah / 00h / 48h	Shamisen*	1	8-339
6Bh / 00h / 48h	Koto*	1	8-340
6Bh / 08h / 48h	Taisho Koto*	2
6Ch / 00h / 48h	Kalimba*	1	8-341
6Dh / 00h / 48h	Bagpipe*	1	8-342
6Eh / 00h / 48h	Fiddle*	1	8-343
6Fh / 00h / 48h	Shanai*	1	8-344
70h / 00h / 48h	Tinkle Bell*	1	8-345
71h / 00h / 48h	Agogo*	1	8-346
72h / 00h / 48h	Steel Drums*	1	8-347
73h / 00h / 48h	Woodblock*	1	8-348
74h / 00h / 48h	Taiko*	1	8-349
74h / 08h / 48h	Concert BD*	1
75h / 00h / 48h	Melo.Tom 1*	1	8-350
76h / 00h / 48h	Synth Drum*	1	8-351
77h / 00h / 48h	ReverseCym.*	1	8-352
78h / 00h / 48h	Fret Noise*	1	8-353
79h / 00h / 48h	BreathNoise*	1	8-354
7Ah / 00h / 48h	Seashore*	1	8-355
7Bh / 00h / 48h	Bird*	2	8-356
7Ch / 00h / 48h	Telephone 1*	1	8-357
7Dh / 00h / 48h	Helicopter*	1	8-358
7Eh / 00h / 48h	Applause*	2	8-359
7Fh / 00h / 48h	Gun Shot*	1	8-360

KR-375 Drum MAPPING

PC# / CC0 / CC32	Tone Name
00h / 00h / 40h	STANDARD*	1
08h / 00h / 40h	ROOM*	3
10h / 00h / 00h	POWER	4
18h / 00h / 00h	ELECTRONIC	5
19h / 00h / 00h	TR-808	6
19h / 00h / 40h	DANCE	7
20h / 00h / 00h	JAZZ	8
28h / 00h / 40h	BRUSH*	9
00h / 00h / 00h	STANDARD	11
08h / 00h / 00h	ROOM	12
28h / 00h / 00h	BRUSH	13
30h / 00h / 00h	ORCHESTRA	10
38h / 00h / 00h	SOUND EFFECT	2

* The tones which marked in Notes can be selected from panel.

○ Tone groups number as follows,

1:	Piano
2:	Vibes
3:	Organ
4:	Guitar/Bass
5:	Strings
6:	Sax
7:	Brass
8:	Fantasia
