SDVD6670 - Lecteur dvd CURTIS - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Lecteur DVD
Marque	Curtis
Modèle	SDVD6670
Dimensions (L x P x H)	43 x 26 x 5 cm
Poids	Environ 2,5 kg
Alimentation	AC 220-240 V, 50 Hz
Formats de disques pris en charge	DVD, CD, CD-R/RW, MP3, JPEG
Connectiques	Sortie HDMI, sortie composite, sortie audio numérique coaxiale
Fonctions principales	Lecture, arrêt, pause, recherche avant/arrière, programmation de titres
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Ne pas utiliser de solvants.
Sécurité	Ne pas exposer à l'humidité, aux sources de chaleur ou aux chocs.
Pièces détachées	Non fournies. Contacter le service après-vente.
Réparabilité	Confier toute réparation à un technicien qualifié.
Informations générales	Notice d'utilisation disponible en téléchargement sur le site du fabricant.

FOIRE AUX QUESTIONS - SDVD6670 CURTIS

Comment connecter le lecteur DVD à un téléviseur ?

Utilisez un câble HDMI (recommandé) ou un câble composite (RCA). Branchez une extrémité sur la sortie du lecteur et l'autre sur l'entrée correspondante du téléviseur. Sélectionnez la source appropriée sur le téléviseur.

Pourquoi le DVD ne se lit-il pas ?

Vérifiez que le disque est compatible (DVD, CD, MP3, JPEG). Nettoyez le disque avec un chiffon doux du centre vers le bord. Si le problème persiste, essayez un autre disque pour écarter un défaut de l'appareil.

Le son ne fonctionne pas, que faire ?

Vérifiez les connexions audio (HDMI ou RCA). Assurez-vous que le volume du téléviseur est suffisant et que le mode audio du lecteur est réglé sur PCM ou Bitstream selon votre système.

Puis-je lire des fichiers MP3 depuis une clé USB ?

Ce lecteur peut lire des fichiers MP3 et JPEG gravés sur CD-R/RW, mais ne dispose pas de port USB. Pour la lecture de fichiers numériques, utilisez un disque gravé.

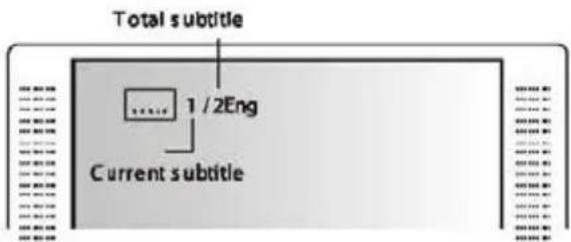

Comment régler la langue des sous-titres ?

Pendant la lecture, appuyez sur la touche 'Subtitle' de la télécommande pour parcourir les langues disponibles. Les options dépendent du contenu du disque.

Le lecteur chauffe-t-il normalement ?

Une certaine chaleur est normale. Assurez-vous que les fentes de ventilation sont dégagées et que l'appareil n'est pas placé sur une surface molle. Si la chaleur est excessive, éteignez l'appareil et vérifiez l'environnement.

Comment entretenir le lecteur ?

Nettoyez régulièrement le boîtier avec un chiffon doux et sec. N'utilisez jamais de produits chimiques ou d'alcool. Pour nettoyer la lentille, utilisez un disque de nettoyage spécial.

La télécommande ne fonctionne plus, que faire ?

Vérifiez les piles (remplacez-les si nécessaire). Assurez-vous qu'aucun obstacle ne bloque le signal entre la télécommande et le lecteur. Pointez directement vers le capteur infrarouge.

Puis-je lire des DVD de toutes les régions ?

Ce lecteur est conçu pour la région correspondant à son marché. Pour lire un DVD d'une autre région, vous devrez peut-être utiliser un convertisseur ou un lecteur multirégion.

Où trouver le manuel d'utilisation ?

Le manuel est disponible en téléchargement gratuit au format PDF sur le site notice-facile.com. Vous pouvez également consulter la notice en ligne.

MODE D'EMPLOI SDVD6670 CURTIS

SYLVANIA

VIDEO

MANUAL INSTRUCTION

SDVD6670

SAFETY INFORMATION

TO REDUCE THERISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. 18. Do not defeat the safety purpose of the polarize

- This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.

- The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions carefully, even if you are familiar with the appliance.

1. This appliance is not intended for use by children or infirm persons without supervision.

2. Children should be prevented from playing with the appliance.

3. INDOOR USE ONLY: this appliance is not intended for outdoor use.

4. This appliance is not intended for use in bathrooms, laundry areas or similar moist locations. Never locate this appliance in the immediate surroundings of, or where it may fall into, a bath, basin, washtub, shower or swimming pool.

5. Do not place naked flame sources, such as candles, on the appliance.

6. Do not insert or allow foreign objects to enter any grille openings.

7. Do not run the cord under carpeting. Instead, arrange the cord away from traffic areas where it will not become a trip hazard.

8. To disconnect the appliance, turn the appliance off, switch off the power outlet and remove the plug from the power outlet.

9. Do not misuse the cord. Never carry the appliance by the cord or pull to disconnect it from the outlet. Instead, grasp the plug and pull to disconnect.

10. Read these instructions – All the safety and operating instructions should be read before this product is operated.

11. Keep these instructions – The safety and operating instructions should be retained for future reference.

12. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.

13. Follow all instructions – All operating and use instructions should be followed.

14. Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.

15. Clean only with dry cloth.

16. Do not block any ventilation openings. Install in accordance with the manufacture's instructions.

17. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

18. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

19. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

20. Only use attachments/accessories specified by the manufacturer.

21. se only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug the apparatus during lightning storms or when unused for long periods of time

2. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

4. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

5. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

6. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

7. Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.

8. WARNING: Only use attachments/accessories specified or provided by the manufacturer.

9. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.

10. No naked fame sources, such as lighted candles, should be placed on the apparatus.

11. Attention should be drawn to environmental aspects of battery disposal.

12. Use of the apparatus in moderate climates. Caution

Do not open do not attempt to repair, disassemble or modify this appliance.

Dangerous high voltages exist inside this appliance. This appliance is only to be serviced by Service Technician. There are no user-serviceable parts inside. Do not look at laser pick-up directly. Do not touch the lens.

SAFETY INFORMATION

Installation Warnings

Ventilation Slots and openings in the case are provided for ventilation to ensure reliable operation of the video product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or heat register. This product should not be placed in a built-in installation such as a bookcase or rack, unless proper ventilation is provided or the video product manufacturer instructions have been followed.

Outdoor Antenna Grounding: If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and builtup static charges. ANSI/NFPA No. 70-1984 provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Power Lines: An outside antenna system should not be located in the vicinity of overhead power lines, other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching or approaching such power lines or circuits, as contact with them might be fatal. Installing an outdoor antenna can be hazardous and should be left to a professional antenna installer.

Lightning: For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power line surges.

Compulsory Warnings

If the supply cord is damaged, it must be replaced by service Technicion, in order to avoid a hazard. This product has not been designed for any uses other than those specified in this booklet.

Laser Safety

This compact disc player is classified as a CLASS 1 LASER PRODUCT.

Only qualified service personnel should remove the cover or attempt to service this device due to possible eye injury.

Invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following.

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FEATURES

DVD, CD, MP3, Picture CD compatible

CD-R, CD-RW capable

TV format:

4:3 /16:9 screen format select

Video output:

Composite Video output

HDMI

YUV

Audio output:

2.0 Channel output

Coaxial

DVD features:

Multi Subtitle select

Multi Language select

Multi Angle select

Other features:

On screen control menu

Digital zooming

Slow motion forward

Child lock

Auto screen saver

Packing List

1. Remote control 1 piece

2. Audio/video cable ...... 1 piece

3. Use Manual 1 book

CONTENTS

Page

WARNING

IMPORTANT NOTICE

FEATURES

ESSENTIAL SETUP 1

INTRODUCTION 2

About DVD 3

About the player 4

Remote control 5

SYSTEM CONNECTION 6

GETTING STARTED

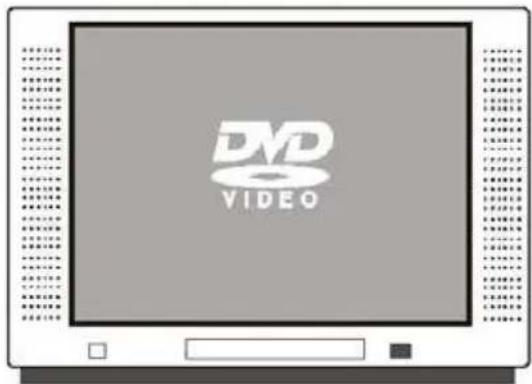

Play a disc 7

Screen saver 8

FUNCTION BUTTONS

[Power], [Open/Close], [Play/Pause/Stop]

[Skip], [Slow], [Select an item], [Title/Menu], [Clear] 10-11

[Angle], [Subdote] 12

[ GOTO a desired section ] 13

(Repeat), [A-B], [Zoom], [Mute], [PBC] 14-15

[Programme] 17

[ Return ][ USD ] 18

ON SCREEN DISPLAY

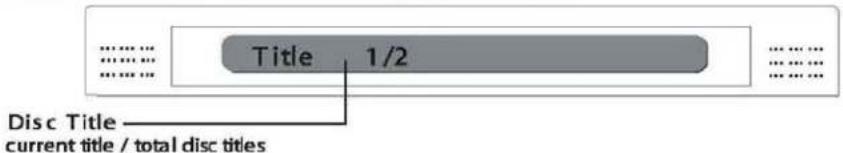

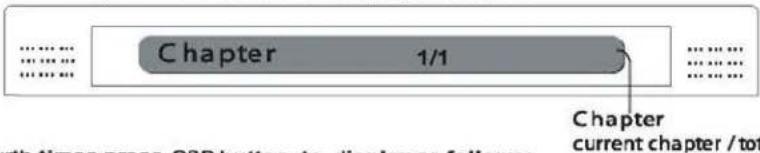

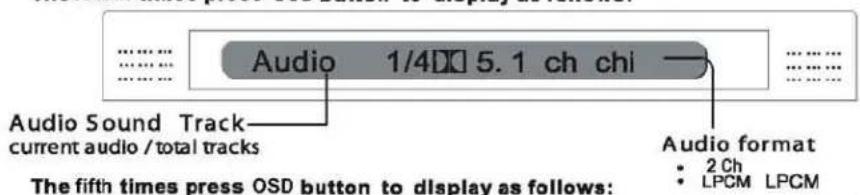

OSD DVD mode 19

OSO Mp3 mode 20

SETUP MENU

LANGUAGE MENU 21

OSD Menu/Subtitle/Mpeg4 subtitle/Audio/DVD Menu

VIDEO MENU 22

TV Shape

AUDIO MENU 22

Digital output

RATING MENU 22

Password/Rating

TROUBLE SHOOTING 23-24

SPECIFICATIONS 25

ESSENTIAL SETUP

Video outputs

The player is equipped with the following video output ports Composite Video, HDMI, Coaxial, YUV

For TV System setting

TV System menu is to set up the output TV system to PAL or NTSC

1. In STOP mode, press SETUP button, setup menu appears.
2. Press DOWN button, highlight "Video" icon.
3. Press RIGHT button, and scroll down to highlight "TV System".
4. Press ENTER button, sub menu appears. Highlight "NTSC" or "PAL" or "AUTO", press ENTER button.
5. Press SETUP button to quit.

INTRODUCTION

Loading batteries to the remote control

• Remove the battery compartment cover.
• Load two AAA (UM-4 or R03) batteries into the battery compartment.
• Make sure that the batteries have been inserted in the correct polarities matching to the symbols +, - marked in the battery compartment. Close the battery compartment cover.
• When replacing batteries, replace both batteries. Do not mix new and used batteries operating together, otherwise, the operation lifetime will be much shorter than normal.
• Remove the batteries if the unit will not be used for a prolonged period of time.

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the infrared sensor of the unit during operation.

If the sensor has been covered or there is a large object between the remote control and the sensor, the sensor will not respond.

The sensor may be not able to receive the remote signal when it is exposed to direct sunlight or a strong artificial light (fluorescent or strobe light). In this case, change the direction of the light or reposition the unit to avoid direct lighting.

BE ENVIRONMENTALLY FRIENDLY

Do not dispose of batteries as normal rubbish. Be environmentally friendly, dispose of batteries following the Government's regulation.

About DVD

DVD (Digital Versatile Disc) is a digital video medium under the MPEG II format, featuring a variety of revolutionary entertainment capabilities. The MPEG II video compression technology provides capacity for an excellent picture of minimum 500 lines resolution on screen, up to 8 language soundtracks, up to 9 views from different camera angles and up to 32 language subtitles (provided the DVD disc itself supports these features).

Disc information

Disc types	DVD	CD
Recording Method	Digital / MPEG II	Digital
Capacity	Single-layer / Single side4.7GB = 2 hrSingle-layer / Double sides8.5GB = 4 hrDouble-layers / Single side9.4GB = 4.5 hrDouble-layers / Double sides17GB = 8 hr	650MB=74min
Disc size	12cm / 8cm	12cm / 8cm
Horizontal Resolution	500 lines up	-
Sub-titles	32	-
Sound tracks	8	1
Symbol

REMARK

Some features contained in this DVD player are related to the DVD disc's software.

Some features cannot be performed if the disc does not support the feature, or requires special settings.

Check the features printed on the disc's packing or follow the instructions of the Disc's on screen menu.

The region code of the player is region 1.

Select a DVD disc

DVD Region Code

DVD discs and DVD players are manufactured under the worldwide agreed DVD Regional Code System that the player will operate only with corresponding disc of the same Regional Code.

Region code	Region
1	Canada, USA
2	Europe (incl. Poland, Romania, The Czech republic), Japan, Middle East (incl. Saudi Arabia, Egypt, Iran, South Africa)
3	East Asia (incl. Hong Kong, Taiwan, South Korea), South-East Asia
4	Austria, Caribbean, Central & South America, Mexico, New Zealand
5	Africa, Former Soviet Union, India, North Korea, Pakistan, Turkmenistan
6	China

Care of disc

Video disc contains high-density compressed data that needs proper handling

- Hold the disc with fingers. Hold the disc's outer edge and/or the center spindle hole. Do not touch the disc surface.

- Do not bend or press the disc. Do NOT expose the disc to direct sunlight or heating sources.

- Store discs in cabinet vertically, in dry condition. Prevent exposure to:

• Direct sunlight
  • Heat or exhaust from a heating device.
  • Extreme humidity

- Clean the disc surface with a soft, dry cleaning cloth. Wipe the disc surface gently, radically, from center toward the outer edge.

- Do not apply thinner, alcohol chemical solvent, or sprays when cleaning. Such cleaning fluids will permanently damage the disc surface.

About the player

Front panel

① POWER

③ DVD DOOR

⑤ PLAY/PAUSE

⑦ OPEN/CLOSE

② USB PORT

④ PREV

⑥ NEXT

Back panel

① RIGHT output jack

⑤ Component YUV(Y.Cb.Cr) output

② LEFT output jack

⑥ HDMI output jack

③ Video output

④ Coaxial digital signal output

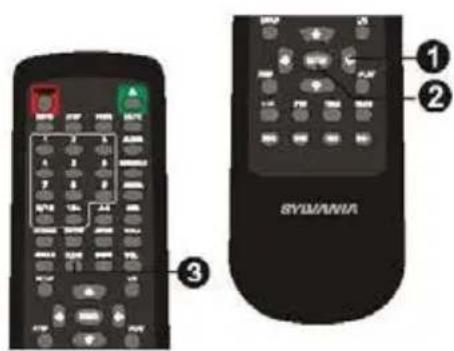

Remote control

Some features of the player can only be performed by the remote control.

Some features described in this owner's manual are related to the Disc's encoding.

Some features may not be available, if the disc encoding does not support the feature.

REMARK

Some features contained in this DVD player are related to the DVD Disc's software.

Some features cannot be performed if the disc does not support the feature, or requires special settings.

Check the features printed on the disc's packing or follow the instructions of the Disc's on screen menu.

1.POWER	19.PROG
2.GOTO	20.AUDIO
3.STEP	21.SUBTITLE
4.0-10+ NUMBER	22.ZOOM
5.RETURN	23.OSD
6.REPEAT	24.A-B
7.ANGLE	25.VOL+
8.CLEAR	26.MENU
9.SETUP	27.VOL-
10.UP	28.SLOW
11.LEFT	29.L/R
12.STOP	30.RIGHT
13.USB	31.ENTER
14.PBC	32.PLAY
15.PREV	33.DOWN
16.NEXT	34.PAUSE
17.OPEN/CLOSE	35.TITLE
18.MUTE	36.FWD
	37.REV

Notes

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the infrared sensor during operation. When the sensor is covered or there is a large object between the remote control and the sensor, the sensor cannot receive signals. The sensor may not be able to receive signals properly when it is exposed to direct sunlight or a strong artificial light (such as a fluorescent or strobe light). In this case, change the direction of the light or reposition the unit to avoid direct lighting.

SYSTEM CONNECTION

Preparations

Accessories

1. Remote control

2. Audio/Video cable

3. User's manual

(check whether be fully equipped after open the box)

Battery installation of remote controller (Batteries not included)

Place two AAA batteries not supplied into the battery compartment. Be sure the polarities are correct. There should be no large obstacles between the remote controller and the main unit.

System connection(Optional according to your back panel)

1. When making connection between this unit and other components, be sure all connection with power-off.
2. Audio/Video cables are connected according to the different colour identification and they should be fitted firmly.

Yellow to video terminal

White to audio terminal L,

Red to audio terminal R,

GETTING STARTED

• Unpack the unit.
• Read through this owner's manual before installation and use.
• Load batteries into the remote control unit.
• Connect the system, make sure the connections are secured.
• Connect the power plug to the AC power outlet.

REMARK

Some features contained in this DVD player are related to the DVD disc's software. Some features cannot be performed if the disc does not support The feature, or requires special settings. Check the features printed on the disc's packing or follow the instructions of the Disc's on screen menu.

Play a disc

Switch on the player

Push the main power button to turn on the DVD unit. Power on the TV.

Load a disc

Press ENCLOSE button on the remote control (or front panel) to open the disc tray. Load a disc and press OPENCLOSE to close the disc tray (Note, place the disc's label side up, blank side down)

Automatic Play

The unit will take a few seconds to download the disc initial data, display the disc type logo in the left upper corner of the V screen, and then start playing automatically.

If a DVD Disc Menu appears on screen

or

Press PLAY button on the remote (or on the unit) to start playing.

Press UP/DOWN buttons to select the desired feature In the menu,

And then press the ENTER button to confirm a selection.

1

2

NOTE

Normally, when a MP3 disc is loaded, the unit will

take longer time to download the initial data.

DVD disc that does not match the region code cannot be executed by this player.

Return to the disc main menu, press MENU button on the remote.

Prevent loading the disc upside down.

Screen saver

The player is equipped with an automatic screen saver, for the purpose of protecting the TV screen.

The TV screen will be black and a screen Saver DVD video will appear on screen if :

• No disc is loaded for 300 seconds
- In STOP mode and no button has been Pressed for 300 seconds. (except in the player or disc menu)

When any button is pressed, the player will resume to normal active mode.

FUNCTION BUTTONS

Power ON/OFF

To switch the player Between power on and off mode:

Press POWER button on front panel

(Always switch off the player after use)

Open /Close disctray

To open and close The disc tray:

Press OPEN/CLOSE button

on the remote

Play / Pause / Stop

① Press PLAY button To play the Disc

② Then Press PAUSE button to pause.

Press

to resume normal playback.

3 Press STOP button to stop in two modes:

a) Press Once : STOP memorizes the interrupt position. (May resume with Play button ▶) b) Press Twice : To stop completely (Will NOT resume with Play button)

Skip Forward / Backward

1 Press 🏠 to skip forward (chapters)
2 Press to skip backward (chapters)

Player will not advance or reverse during "WARNING" section of any disc.

Forward / Backward

The unit mode

1 Press 📋 to Search forward Repeat pressing the button to change search speed → 2 → 4 → 8 → 16 ↑
2 Press <4 to search backward Repeat pressing the Button to change search speed → 2 → 4 → 8 → 16
③ Press PLAY button to resume normal playback

Player will not advance or reverse during "WARNING" section of any Disc.

Slow Forward

1 Press EDW to play slow forward Repeat pressing the Button to change slow forward speed ▶→▶ 1/2 →▶ 1/4 →▶ 1/6 →▶ 1/8 ↑
2 Press PLAY button to resume normal playback

Select an item in menu

In the disc menu or setup menu

① press cursor button to move between function items.
② Press to confirm a selection.
③ Press CLEAR to cancel an entry.

Disc Title /Menu

① Press MENU button return to the DVD disc Menu.
② Press TITLE Button return to the DVD disc Title.

Disc MENU Disc menu is a DVD disc feature, allowing users to select functions on screen.

Disc TITLE Disc title is the beginning track of a DVD disc. Some DVD discs refuse the "TITLE" function.

Clear

① Setting program or searching need to input number press CLEAR ^CLEAR button to clear the number when the input number is wrong.

Multi-Angle

A DVD also may contain up to 9 selectable viewing angles.

If a DVD disc contains Multi-Angle feature, viewing angles may be selected:

① During in playback, repeat pressing ANGLE button 📄 to select the desired viewing angle Status will be displayed on screen..

Multi-Subtitle

If a DVD disc contains the Multi-Subtitle feature, subtitle may be selected:

① During in playback, repeat pressing SUBTITLE button to select the desired subtitle. Status will be displayed on screen.

NOTE

A DVD disc may contain up to 32 subtitle selections.

GOTO a desired section

This function does NOT apply to M P 3

Press the GOTO button to play at a desired Title, Chapter or Time.

button

DVD disc

Press the

GOTO

button it will appear Title and chapter mode.

Press RIGHT

button Input the desired Title or chapter number.

TITLE —

Input title number

CHAPTER —

Input chapter number

Press ENTER

button conform.

Press the GOTO

button two time.it will show Time mode.

Press RIGHT

button Input time.

TIME -:-:-

Input time hh:mm:ss (Hour : Minute : Second)

Press ENTER

button conform.

CD disc

Press the GOTO

button. It will show Disc Time.

TIME -:-:-

Input time hh:mm:ss (Hour: Minute: Second)

Press ENTER

button.

NOTE

• SEARCH functionality depends on different DVD disc's format. Some DVD discs do not allow SEARCH function.
• SEARCH does NOT function during Program playback.

Repeat

Press REPEAT to reach desired

button multiple times repeat mode (see below).

DVD disc

Repeat Chapter Repeat Title Repeat All Repeat Off

Repeat the Chapter Repeat the Title Repeat All Repeat function off

CD disc

Repeat Single Repeat All Repeat Off

Repeat the existing track Repeat all tracks Repeat function off

MP3 disc

Repeat Single Repeat Folder Repeat Off

Repeat the existing track Repeat all tracks Repeat function off

NOTE

Repeat functionality depends on different disc's production format, some DVD discs do not allow repeat function.

Repeat the section A-B

To repeat playback of a desired section:

1) Press the A-B at the beginnin
A-B button of the design
2) Press the A-B button again at the end of the desired section, "B".

The player will repeat playback of the section from A to B. Press the A-B button again to cancel the function and return to normal play.

NOTE

- A-B repeat depends on different disc's production format, some DVD discs do not allow repeat function.

ZOOM

In DVD mode

1 Press the ZOOM ZOOM Button to enlarge viewable picture.

Press the button repeatedly to change the zoom scale:

② Press the CURSOR buttons to adjust the zooming position.

NOTE

The picture quality is degraded as the picture is increased.

Mute

① Press MUTE button To mute (turn off) the audio output.

Press the button again To resume normal audio output.

PBC Play

For VCD2.0 disc playing in the condition of PBC ON, Song selection can only be done, when the playing returned to main menu in the condition of PBC OFF, press relevant number Key to get favorite song during playing

Program setting

Programto play a DVD, CD and MP3 disc in a desired sequence automatically

DVD/VCD program menu

Loading a DVD or VCD Disc:

1. Press the PROG button, the program menu will appear, use the left key to move the cursor to the left side, then
2. Put the number of the title/chapter which you want to program, then press right and up button to move to "play", then press "enter" to confirm.
3. If you want to cancel the program, press right and down button to move to "clear program". then press "enter" to confirm
4. If you want to show the "DVD" or "VCD" on the TV screen, press "OSD" button

CD/MP3 program menu

Program CD or MP3 disc

1, CD and MP3 play back menu will appear immediately once you put CD or MP3 disc in the player.
2. Press right button, then up and down direction button to highlight "Edit Mode", and press ENTER button
3, press left button to move cursor back to tracks and select desired tracks which you want to program and press ENTER button to confirm.
4, press right direction button to move cursor to "Add To Program" press ENTER button to confirm program.
5. High light program view and press ENTER, the program tracks will appear, then press PLAY on the remote control to activate the MP3 or CD program.
6. If you want to clear program, press Stop button twice to return player to stop mode, use LEFT button, then use UP/DOWN button to select the tracks you want to clear, then press ENTER, then move RIGHT cursor to high light "CLEAR PROGRAM", Press Enter button to clear program.

( NOTE: High Light the Browser view and press ENTER to return back to Disc Menu )

NOTE

• Some DVD discs do not allow programming.
• Single track disc cannot be programmed.

Return

in PBC mode, when pressing "RETURN" Key to return to the menu, thus canceling the PBC mode, the "RETURN" key will be invalid

USB

① Connecting a USB device

1) power-on the unit.
2) when no disc, insert a USB key inside the connector, the unit can read USB automatically.
3) when watching DVD programme, pls press STOP button firstly then press USB button to switch the input source between DISC and USB

ON SCREEN DISPLAY

OSD

Press ● button

an On Screen Display indicator will be displayed at the upper part of the TV screen in displaying the disc information and operation status.

The Display indicator will remain on screen until pressing the OSD button to turn it off.

The Display Indicator is a user friendly interface designed for displaying the status of the playback. When a different disc is loaded (DVD, CD or MP3), the Display Indicator will be different.

If you want to show the "DVD" or "VCD" on the TV screen. Press display button.

DISPLAY- DVD mode

Press OSD button first to display as follows:

Press OSD button twice times to display as follows:

The third times press OSD button to display as follows:

The sixth times press OSD button to display as follows:

ON SCREEN DISPLAY

MP3 mode
Playback time

Playing track file information
(Information provided by the disc)

Selection highlight

(Press ENTER

button to play this track)

Select a track

Press DIRECTION button to highlight the desired track, and switch between folder and pages.

Press ENTER

button to play the selected track.

Playing track file information

You may add the information of the MP3 file while you create the disc, e.g. artist, song name and date etc., Those information of the playing track will be display at the lower part of the screen.

SETUP

Various features of the player can be adjusted in the SETUP menu:

Press SETUP ● button SETUP menu appears.

Highlight the desired icon Press RIGHT button to activate the setting sub menu.

Language

Enter this menu to setup the language in OSD display, DVD disc subtitle, DVD disc audio and DVD disc start menu.

Press SETUP ● button

Highlight "Language",

Press right direction button twice, Language sub-menu appears, press UP/DOWN to select your language, then press enter to confirm.

Video

Enter this menu to setup the video setting

Press SETUP SETUP button

Highlight "Video",

Press right direction button, Video sub menu appears.

Highlight the desired item,

Press ENTER, button to confirm.

Press SETUP ● button to save the setting and quit.

TV screen

The aspect ratio of the picture provided by the DVD player can be varied in line with the features available on the TV in use.

4:3 Letter

Allow you to see movies in their original aspect ratio.

Entire frame of the movie will be display on screen, but it will occupy a smaller portion of the screen.

SETUP MENU (Press SETUP button)

16:9 Wide Scr

When you connect to a wide screen TV, this setting will allow the original aspect ratio will be display full screen.

NOTE

Depending on the DVD disc format, e.g. 2.35:1, the wide screen setting may still having black margins above and below the picture.

TV System

TV System menu is to set up the broadcast system:

AUTO Auto switch to NTSC system according to the disc, if not, the default system is NTSC

NTSC NTSC TV system

HD Resolution

Used to set the resolution of HDMI image output, In this option, you can select different HDMI image resolution.

Audio (digital audio)

Enter this menu to setup the digital audio output format of different signal type. The selectable output formats are PCM, All or Off

Press SETUP ⚪ Button

Highlight "Audio",

Press RIGHT, Audio sub menu appears.

Highlight the desired item and press RIGHT button, Highlight the desired item,

Press RIGHT button to confirm.

Press SETUP SETUP button to save the setting and quit.

Rating

RATING

Enter this menu to setup the rating level of the player. The player will require a password to play any disc with rating level higher than the setting.

Press SETUP button.

Highlight "Rating", press RIGHT button, Rating sub menu appears.

Highlight "Parental Control" selection, press ENTER, input the 4 digits password, press ENTER button. The rating lock release.

Default setting

Password : 8888

Press RIGHT button and scroll down to the desired rating you need, then press enter again to change the setting:

1. Kid Safe 3. PG 5. PG-R 7. NC-17

2. G 4. PG-13 6. R 8. Adult

Highlight "Set Password" selection, press ENTER button, input the 4 digits password, press ENTER button, to Press SETUP button to save the setting and quit.

Misc

1. Using the UP/DOWN direction buttons, move to the Misc. The player's Misc settings will appear.

1. Use the RIGHT direction buttons to skip to select the setting.
2. Use the UP/DOWN direction to choose the setting.
3. Press ENTER for each setting to cycle through the options and change the settings.

The following subsections explain the available options for each of the player's Misc setting.

Use Default Settings:

Press ENTER, pop up window " Do You Want to use default setting ".

There are two selections: YES/NO.

No=Return to Use Default Setting Yes=Close Setup menu, play disc.

TROUBLE SHOOTING

Should your DVD player develop a problem, please check below before requesting service:

Symptom	Check and Action
No Power	Check if the power cord has been properly connected to the power outlet.Check if the main power has been switched on.
Does not play	No disc, load a disc.Disc has been loaded upside down. Place the disc with the label side up.Disc's region code does not match to the player.Disc is not correct type for player.Disc is damaged or dirty, clean the disc or try another disc.Moisture may be condensed inside the player. Remove the disc and leave the unit power on for one or two hours.
No Picture	Check if the TV set has power on, use TV remote to select A/V signal for DVD rather than broadcast.Check if the system connection is proper and secure.Check if the connection cables are damaged.Clean the disc.
Picture noise / distorted	The disc is dirty or damaged. Clean the disc or try another disc.Reset the color system of the player or the TV set.Try to direct the player to the TV set instead of via other components, such as a VCR.
Picture not full screen	Select the screen format from the player's SETUP MENU, see "SETUP MENU " of this manual.Select the screen format from DVD disc menu.
Malfunction	Should the player develop a malfunction, unplug the player for 30 minutes. After 30 minutes, power on the player and the restore function should reset the player.

CAUTION : To reduce the risk of fire and electric shock, do not remove the cover (or back) of the unit. Refer servicing only to Singer Service Technician

Symptom	Check and Action
Cannot SKIP or SEARCH	Some discs are programmed that do not allow users to SKIP or SEARCH at some sections, especially at the beginning WARNING section.Single Chapter disc cannot apply SKIP function.
No sound or sound output not complete	Check if the TV and Amplifier have been switched on, and correctly set.Check if the TV and Amplifier system connection is secured.Press LANGUAGE button to select other audio tracks output of disc.Check if the MUTE function of the TV or Amplifier has been activated.There will be no sound output during PAUSE / STEP / SLOW and SEARCH.
MP3 disc no sound or noisy	When PC program files or other data files are mixed with MP3 files in the same disc, the player may play the non-MP3 files with noise or no sound.Check the disc, if all the files on disc are MP3 files Skip the file, try other files.
Remote control does not function	Remove the obst acles between the remote control and the player.Point the remote control towards the remote sensor on the player.Check if the batteries of the remote control have been loaded with correct polarities.Replace the batteries of the remote control.

SPECIFICATIONS

Type of Disc	DVDCD-DACD-MP3Kodak Picture CDCD-R / CD-RW
Video Format	MPEG 2
Audio Format	MPEG 1, LAYER 1, LAYER 2, LAYER 3
Signal Output	Color System: NTSCAudio System: DIGITAL down mix stereoDIGITAL digital outputAudio DAC 16bit/48KHzVideo Output: 1 Vpp (at 75 ohm)Audio Output (Stereo): 2 Vpp
Frequency Response	CD: 4Hz 20KHz (EIAT)DVD: 4Hz 22KHz (48K)4Hz 44KHz (96K)
S/N radio	>92 dB
THD	<0.04%
Output Terminals	Video (composite) output X12.0CH output X1Component YUV(Y.Cb.Cr) output X1Coaxial digital signal output X1HDMI output X1
Power Supply	AC 100-240V~ 50/60Hz
Dimensions	DVD size: W225xD235xH50mm
