40204 - Destructeur de document Dahle - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Destructeur de documents à coupe bandes (3,9 mm)
Marque	Dahle
Modèle	40204
Niveau de sécurité	S2 (coupe bandes 3,9 mm)
Dimensions (H x L x P)	706 x 430 x 347 mm
Poids	25,5 kg
Capacité du bac de collecte	40 litres
Alimentation électrique	220-240 V, 50-60 Hz, 350 W
Niveau sonore	≤ 46 dB(A)
Capacité de coupe (70 g/m²)	17 feuilles A4
Capacité de coupe (80 g/m²)	14 feuilles A4
Type de coupe	Coupe bandes (3,9 mm de large)
Matériaux destructibles	Papier (pas de CD/DVD ni cartes bancaires)
Fonctions principales	Marche/Arrêt/Stop automatique, capteur photoélectrique, marche avant/arrière, inversion en cas de bourrage, arrêt automatique en cas de bac plein ou porte ouverte, protection thermique
Mode économie d'énergie	Passage en veille après 10 min, arrêt après 20 min
Entretien et nettoyage	Nettoyer avec un chiffon sec. Huilage non nécessaire (coupe bandes). Utiliser exclusivement de l'huile DAHLE si applicable.
Sécurité	Freins de verrouillage, verrouillage de porte, arrêt automatique si porte ouverte, bac plein ou surchauffe, protection contre les courts-circuits (max 20 A)
Pièces détachées et réparabilité	Utiliser uniquement des pièces DAHLE d'origine. Toute modification non autorisée annule la garantie.
Conditions d'utilisation	Température ambiante de 15 à 32 °C, humidité non condensée de 15 à 95 %. Utilisation en intérieur uniquement. Distance minimale de 100 mm du mur.
Garantie	L'usure et les dommages dus à une utilisation inappropriée ne sont pas couverts.

FOIRE AUX QUESTIONS - 40204 Dahle

Comment démarrer le destructeur Dahle 40204 ?

Branchez l'appareil, allumez l'interrupteur principal, puis appuyez sur le bouton Marche/Arrêt/Stop. L'appareil se met en veille. Insérez le papier au milieu de la fente d'alimentation, le capteur photoélectrique démarre automatiquement la coupe.

Quel type de papier puis-je détruire avec ce modèle ?

Le Dahle 40204 est conçu pour la destruction de papier. Il ne peut pas détruire de CD/DVD ni de cartes bancaires. La capacité maximale est de 17 feuilles A4 de 70 g/m² ou 14 feuilles de 80 g/m².

Que faire en cas de bourrage papier ?

L'appareil inverse automatiquement le sens de coupe pour éjecter le papier. Si le bourrage persiste, appuyez brièvement sur le bouton Inversion (marche arrière). Réduisez ensuite le nombre de feuilles et réinsérez le papier.

Comment entretenir le destructeur ?

Nettoyez l'extérieur avec un chiffon sec. Ce modèle à coupe bandes ne nécessite pas d'huilage. Utilisez uniquement un chiffon sec et évitez les produits chimiques.

Que signifie le clignotement des LED ?

LED clignotante : mode économie d'énergie après 10 min d'inactivité. LED allumée fixe : appareil en veille. Si la LED clignote et une alarme sonore retentit, cela peut indiquer un bac plein, une porte ouverte, une surchauffe ou un bourrage.

Comment vider le bac de collecte ?

Éteignez l'appareil et débranchez-le. Ouvrez la porte, retirez le bac, videz-le, puis replacez-le et fermez la porte. Rebranchez et allumez.

Quelle est la position de transport ?

L'appareil doit être transporté et stocké en position verticale. Avant le premier usage, retirez les vis de blocage situées sous le mécanisme de coupe. Replacez ces vis lors de chaque déplacement.

Puis-je utiliser une rallonge ?

Utilisez uniquement le câble d'alimentation fourni par DAHLE. La prise secteur doit être facilement accessible. L'installation électrique doit être protégée contre les courts-circuits (max 20 A).

Quelle est la garantie sur ce produit ?

La garantie ne couvre pas l'usure normale, les dommages dus à une utilisation inappropriée ou les modifications non autorisées. Utilisez uniquement des pièces DAHLE.

Le destructeur est-il adapté aux enfants ?

Non, ce destructeur n'est pas destiné à être utilisé par des enfants. Ne laissez pas les enfants jouer avec l'appareil. Gardez les mains, les cheveux et les vêtements éloignés de la fente d'alimentation.

MODE D'EMPLOI 40204 Dahle

White portable electronic device labeled 'RIOAHLE' with wheels, no visible text or symbols beyond the label.

40204 - 40634

DE Bedienungsanleitung
UK/US Operating instructions
FR Instructions de service
ES Manual de instrucciones
IT Istruzioni per l'uso
PT Manual de instruções
NL Gebruiksaanwijzing

General information

Prior to placing in operation the document shredder, read the operating instructions and safety instructions carefully! Keep the instructions for later use.

• Only store, transport and operate the document shredder in an upright position!
• Only use liquids and gases that comply with DAHLE guidelines on the document shredder!
• The document shredder must only be operated in closed rooms at temperatures of 15 °C to 32 °C and with a non-condensed humidity of 15% to 95%!
• Do not place the document shredder near a source of heat!
• Ensure the document shredder is standing firmly on the floor and with a distance of 100 mm to the wall; activate brakes and fasten using the mounting kit if supplied!
• Avoid any accumulation of heat!
• The mains socket must be easily accessible at all times!
• Only use the mains cable supplied by DAHLE!
• It is to be ensured the installation in the building is protected against short circuits (max. 20 A)!
• Do not use near inflammable liquids or gases!
• Do not use near caustic substances!
• Do not subject to moisture!
• Remove paper clips and staples prior to shredding!
• Starts automatically!
• Do not operate the document shredder without inserting documents!

1 - Follow safety regulations!
2 Prior to placing in operation the document shredder, read the operating instructions and safety instructions carefully!
3 - This document shredder is not intended to be used by children (the product is not a toy)!
4 - Do not touch the paper feed with your hands!
5 - Do not allow items of clothing to touch the paper feed!
^6 - Do not allow your hair to touch the paper feed!
7 - Prior to maintenance work, disconnect the document shredder from the electrical power supply!

Pay attention to warnings!

1

EMN

1 - Noise in operation without shredding documents (in accordance with DIN)
2 - Do not shred CDs/DVDs or bank cards/credit cards!
3 - Document shredder in standby
4 - Document shredder in operation
5 - Starts automatically
^6 - Oiling (only use DAHLE oil!)
7 - Dispose of the document shredder appropriately and in an environmentally friendly manner at an authorised collection point. Do not dispose of any parts of the document shredder or packing in domestic waste.

General information

Intended use, warranty

The document shredder is intended to be used for shredding paper.

Depending on the model variant, a small amount of the following materials can also be shredded:

CDs/DVDs, bank cards and credit cards (see technical data)

Wear, damage due to improper use or unauthorised modifications and repairs is not covered by the warranty or the guarantee.

Subject to technical change!

Remove transport lock!

1. Actuate brakes! Prior to placing in operation for the first time, open the door, remove paper collection bin.
2. Remove the screws for the transport lock (paper collection bin compartment) from the base plate underneath the shredding mechanism, re-fit paper collection bin and close door.
3. Each time the appliance is moved, the transport lock is to be re-fitted.

1

2

Interior view of a room with ceiling and window, showing a wall-mounted device and fabric-covered materials (no visible text or symbols)

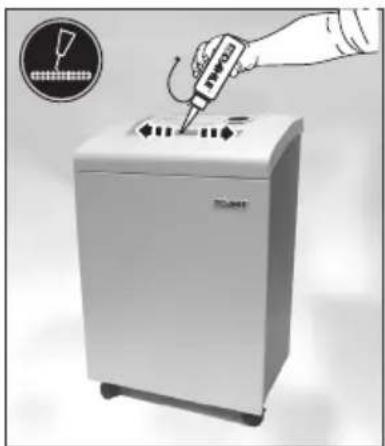

1. Oil the shredding rollers using DAHLE document shredder oil (only cross-cut shredding)!

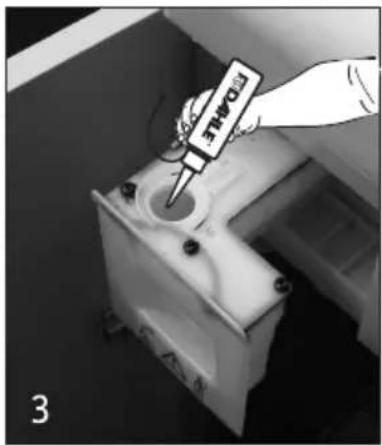

2. Fill the oil tank using DAHLE document shredder oil!

General information

Depending on the model variant, your document shredder may not have all the possible components and functions.

General information

Depending on the model variant, your document shredder may not have all the possible components and functions.

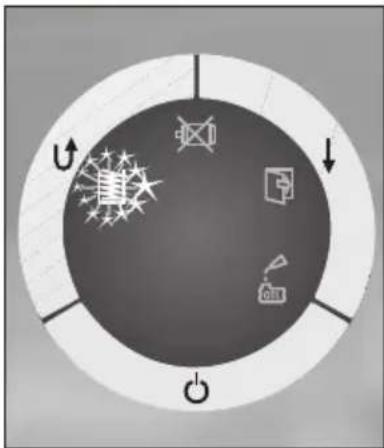

On, Off, Stop button
On indicator (LED illuminated) optionally stand-by indicator
Energy-saving mode (LED flashing)

Interior view of a laboratory oven with a bag of contents inside (no visible text or symbols)

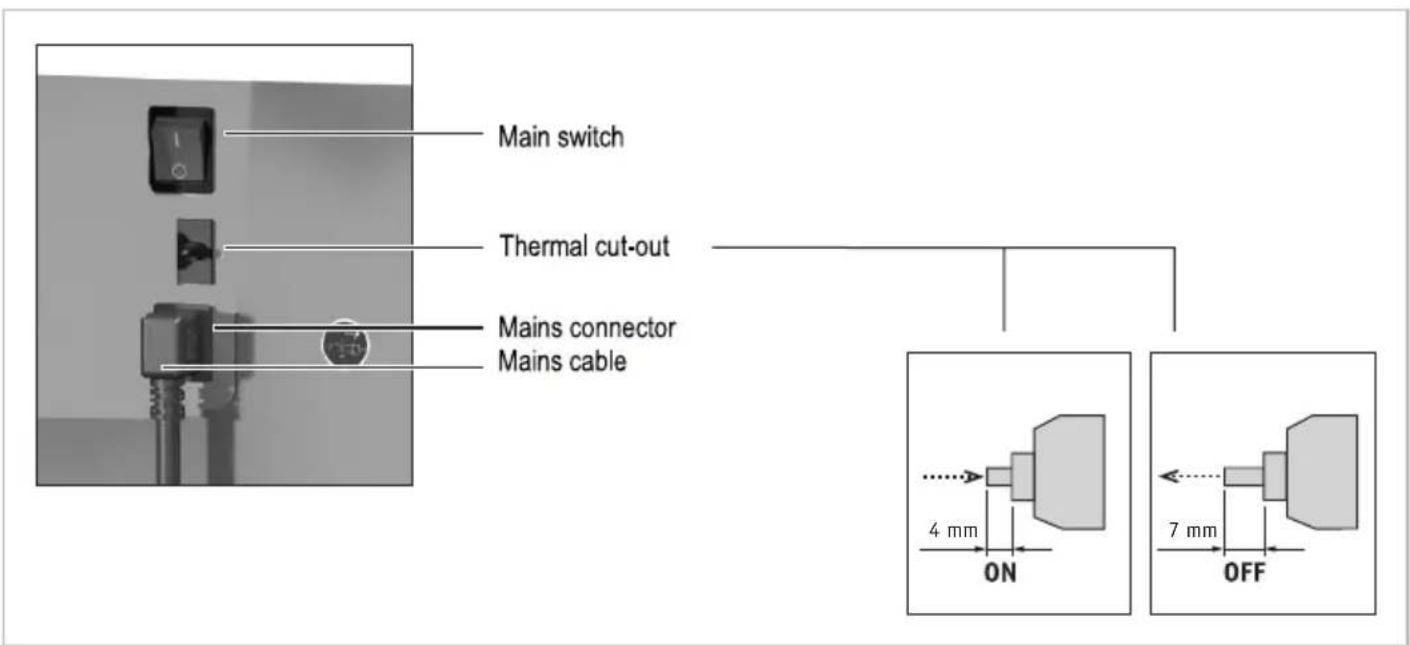

1. Check the voltage and mains frequency of your electricity supply match the information on the rating plate.

Technical data

	DIN A4 - 70 g/m	DIN A4 - 80 g/m					Security level
40204	17	14	3,9 mm			[0066]	S2
40206	19	16	5,8 mm		[X4DD]	[9Y3C]	S2
40214	10	8		3,9 mm x 40,0 mm	[W8VY]		S3
40222	6	5		2,0 mm x 15,0 mm		[7SHW]	S4
40230	3	2		0,8 mm x 12,0 mm		[2C26]	S5
40304	23	18	3,9 mm				S2
40306	27	22	5,8 mm		[154W]	[24H45]	S2
40314	16	13		3,9 mm x 40,0 mm		[22DD]	S3
40322	11	9		2,0 mm x 15,0 mm	[0706]	[ADOT]	S4
40330	6	5		0,8 mm x 12,0 mm		[TRAX]	S5
40334	6	5		1,0 mm x 4,7 mm	[XC4D]	[1YTW]	S6
40404	24	19	3,9 mm		[W428]		S2
40406	29	23	5,8 mm		[HODA]	[00XA]	S2
40414	16	13		3,9 mm x 40,0 mm			S3
40422	13	10		2,0 mm x 15,0 mm	[50BX]		S4
40430	7	6		0,8 mm x 12,0 mm	[5HY3]	[ADWA]	S5
40434	6	5		1,0 mm x 4,7 mm	[53BB]		S6

Technical data

			DimensionsH x W x D mm		Capacity
≤ 46 dB/A	220-240V 50-60Hz 350W100-120V 50-60Hz 400W	[2248]	706 x 430 x 347 mm	25,5 kg	40 l
≤ 47 dB/A	220-240V 50-60Hz 350W100-120V 50-60Hz 400W	[X720]	706 x 430 x 347 mm	25,5 kg	40 l
≤ 46 dB/A	220-240V 50-60Hz 350W100-120V 50-60Hz 400W	[A9HT]	706 x 430 x 347 mm	25,5 kg	40 l
≤ 47 dB/A	220-240V 50-60Hz 350W100-120V 50-60Hz 400W		706 x 430 x 347 mm	25,5 kg	40 l
≤ 50 dB/A	220-240V 50-60Hz 350W100-120V 50-60Hz 400W		706 x 430 x 347 mm	25,5 kg	40 l
≤ 46 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 680W		869 x 546 x 435 mm	40,0 kg	60 l
≤ 47 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 680W	[78AY]	869 x 546 x 435 mm	40,0 kg	60 l
≤ 46 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 680W		869 x 546 x 435 mm	40,0 kg	60 l
≤ 46 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 680W		869 x 546 x 435 mm	40,0 kg	60 l
≤ 47 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 680W	[5045]	869 x 546 x 435 mm	40,0 kg	60 l
≤ 50 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 680W	[78CH]	869 x 546 x 435 mm	40,0 kg	60 l
≤ 51 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 900W	[5AYY]	944 x 546 x 435 mm	43,0 kg	100 l
≤ 51 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 900W	[CCX7]	944 x 546 x 435 mm	43,0 kg	100 l
≤ 52 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 900W		944 x 546 x 435 mm	43,0 kg	100 l
≤ 53 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 900W		944 x 546 x 435 mm	43,0 kg	100 l
≤ 52 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 900W	[4X8O]	944 x 546 x 435 mm	43,0 kg	100 l
≤ 52 dB/A	220-240V 50-60Hz 650W100-120V 50-60Hz 900W		944 x 546 x 435 mm	43,0 kg	100 l

Technical data

	DIN A4 - 70 g/m	DIN A4 - 80 g/m							Security level
40504	33	26	3,9 mm						S2
40506	43	35	5,8 mm						S2
40514	26	21		3,9 mm x 40,0 mm					S3
40522	19	15		2,0 mm x 15,0 mm					S4
40530	11	9		0,8 mm x 12,0 mm					S5
40534	9	7		1,0 mm x 4,7 mm					S6
40604	35 28		3,9 mm						S2
40606	45	36	5,8 mm						S2
40614	30	24		3,9 mm x 40,0 mm					S3
40622	20	16		2,0 mm x 15,0 mm					S4
40630	14	11		0,8 mm x 12,0 mm					S5
40634	11	9		1,0 mm x 4,7 mm					S6

Technical data

			DimensionsH x W x D mm		Capacity
≤ 47 dB/A	220-240V 50-60Hz 900W100-120V 50-60Hz 900W	[3S87]	890 x 734 x 510 mm 1	40 l25,5 kg
≤ 46 dB/A	220-240V 50-60Hz 900W100-120V 50-60Hz 900W	[40T7]	890 x 734 x 510 mm 1	40 l25,5 kg
≤ 52 dB/A	220-240V 50-60Hz 900W100-120V 50-60Hz 900W		890 x 734 x 510 mm 1	40 l25,5 kg
≤ 53 dB/A	220-240V 50-60Hz 900W100-120V 50-60Hz 900W		890 x 734 x 510 mm	25,5 kg	140 l
≤ 50 dB/A	220-240V 50-60Hz 900W100-120V 50-60Hz 900W		890 x 734 x 510 mm 1	40 l25,5 kg
≤ 52 dB/A	220-240V 50-60Hz 900W100-120V 50-60Hz 900W		890 x 734 x 510 mm 1	40 l40,0 kg
≤ 58,5 dB/A	220-240V 50-60Hz 1650W100-120V 50-60Hz 1650W	[6S4D]	960 x 734 x 510 mm	40,0 kg	160 l
≤ 56 dB/A	220-240V 50-60Hz 1650W100-120V 50-60Hz 1650W	[CBWZ]	960 x 734 x 510 mm 1	60 l40,0 kg
≤ 57 dB/A	220-240V 50-60Hz 1650W100-120V 50-60Hz 1650W		960 x 734 x 510 mm 1	60 l40,0 kg
≤ 55,5 dB/A	220-240V 50-60Hz 1650W100-120V 50-60Hz 1650W	[CHWG]	960 x 734 x 510 mm 1	60 l40,0 kg
≤ 60 dB/A	220-240V 50-60Hz 1650W100-120V 50-60Hz 1650W	[SOHS]	960 x 734 x 510 mm 1	60 l40,0 kg
≤ 62 dB/A	220-240V 50-60Hz 1650W100-120V 50-60Hz 1650W	[CBKX]	960 x 734 x 510 mm 1	60 l40,0 kg

Operation - shredding paper

Depending on the model variant, your document shredder may not have all the possible components and functions.

Interior view of a refrigerator with a white arrow pointing to the drawer (no visible text or symbols)

Circular diagram with directional arrows and icons, no readable text or symbols

Please follow the safety instructions.

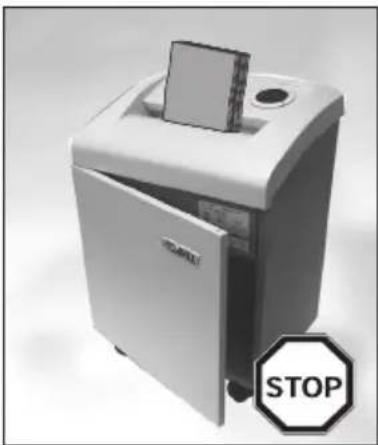

1. Prior to using the document shredder, please check the position of the collection bin for CDs/DVDs and bank cards/credit cards. On shredding paper this bin must be at the front of the collection bin for paper.
2. Close the door of the document shredder.
3. Connect the mains cable supplied to the document shredder and plug into a mains socket. Switch on the main switch.
4. Switch on the document shredder with the On, Off, Stop button.

Simple line drawing of a sad face above a stack of papers (no text or symbols)

White industrial waste bin with a downward arrow sign (no readable text or symbols)

1. Pay attention to maximum number of sheets of paper in the technical data!

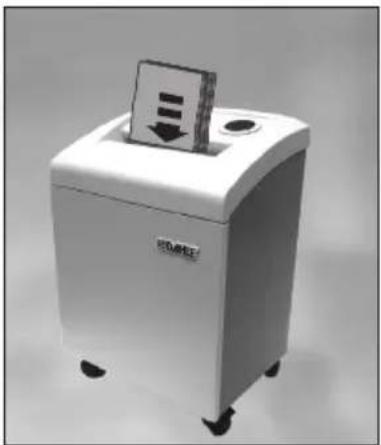

2. Place the paper in the middle of the paper feed, the built-in photoelectric sensor starts the document shredder automatically.
3. Once the paper feed is clear again, the document shredder switches off automatically and goes into stand-by.
4. Continuous operation - after extended operation (approx. 5 sec.) of the forward button, the document shredder changes to continuous operation.
5. If the supply of paper is interrupted for 15 seconds, continuous operation is interrupted.

Operation - shredding CDs/DVDs & bank cards

Depending on the model variant, your document shredder may not have all the possible components and functions.

Close-up of a refrigerator interior with a white arrow pointing to the drawer (no visible text or symbols)

Please follow the safety instructions.

1. Prior to using the document shredder, please check the position of the collection bin for CDs/DVDs and bank cards/credit cards. On shredding CDs/DVDs and bank cards/credit cards this bin must be at the rear of the collection bin for paper.

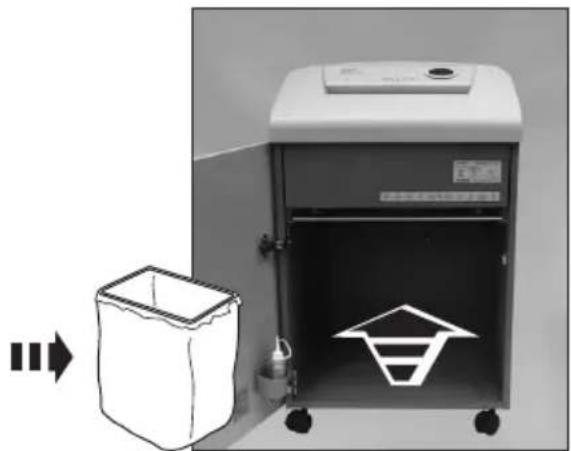

2. Pull out collection bin and position the collection bin for CDs/DVDs and credit cards/bank cards at the rear.
3. Close the door of the document shredder.

Simple geometric shapes: a donut, a credit card, and a right-pointing arrow (no text or symbols)

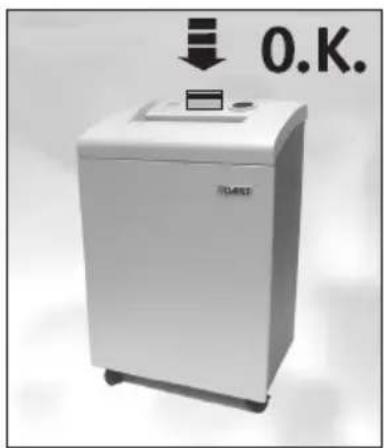

1. Insert the CDs, DVDs or bank cards/credit cards in the middle of the feeder while keeping the Forward button pressed.
2. Once the CD/DVD feed is clear again, the document shredder switches off automatically and goes into stand-by.

Significance of the signals

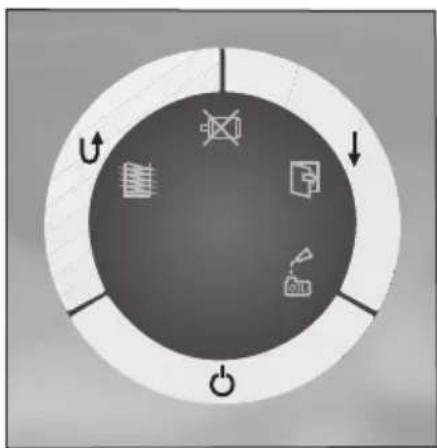

Depending on the model variant, your document shredder may not have all the possible components and functions.

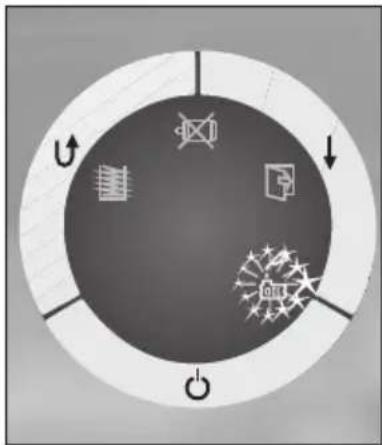

Collection bin full - the LED flashes and an audible warning sounds.

Exterior view of a modern kitchen appliance with a white plastic bag and a triangular-shaped warning symbol on the door (no text or labels visible)

Exterior view of a portable industrial machine with a paper bag and a warning sign (no readable text)

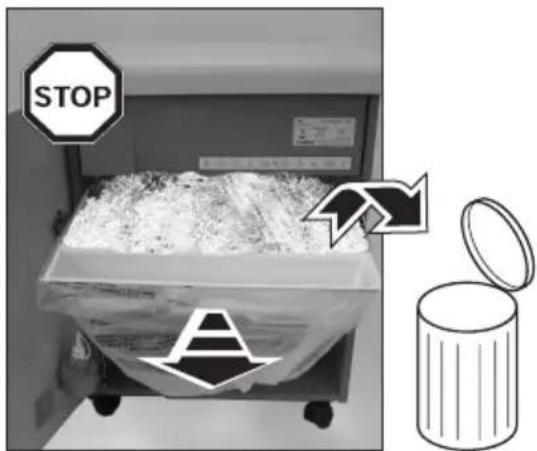

1. If the collection bin is full, the shredding process is stopped, this situation is indicated acoustically and optically.
2. Switch off the main switch and unplug the mains cable from the mains socket.
3. Remove collection bin, empty and re-fit.
4. Plug the mains cable into the mains socket and switch on the main switch.

Significance of the signals

Depending on the model variant, your document shredder may not have all the possible components and functions.

Automatic motor shut down - the LED flashes and an audible warning sounds.

Circular diagram with icons and directional arrows, no readable text or symbols

1. Automatic motor shut down with audible warning in case of:

2. Overheating of the motor

3. Paper jam

Door open - the LED flashes and an audible warning sounds.

Exterior view of a modern kitchen appliance with a door and top handle, featuring a stop button symbol (no text or symbols on the device itself)

White industrial waste sorting bin with a downward arrow and circular base (no text or symbols visible)

1. If the door is open, the shredding process is stopped and a signal sounds, close the door.

Significance of the signals

Depending on the model variant, your document shredder may not have all the possible components and functions.

Oiling - the LED flashes.

Circular diagram with directional arrows and icons, no readable text or symbols

Exterior view of a white industrial water heater (no visible text or symbols)

Illustration of a hand using a handheld device to press down a white washing machine (no text or symbols visible)

Oil the shredding mechanism if the shredding performance drops (only for cross-cut shredding S3 and S4).

1. Switch off the document shredder with the On, Off, Stop button.

Oil the shredding rollers manually (use DAHLE document shredder oil!).

1. Switch on the document shredder with the On, Off, Stop button, leave shredding mechanism to run in reverse without paper feed.

2. Reset oil indication

Keep the Forward and Reverse button pressed for approx. 5 seconds.

Significance of the signals

Depending on the model variant, your document shredder may not have all the possible components and functions.

Automatic oiling - only for cross-cut shredding

Fill oil tank with DAHLE document shredder oil.

Integrated oil tank for regulated, automatic oiling of the rollers.

Circular diagram with directional arrows and icons, no readable text or symbols

Close-up of a white mechanical device with a circular component and mounting base, no visible text or symbols

Close-up of a hand using a handheld tool to test a component on a mechanical device (no visible text or symbols)

Fill the integrated oil tank in the document shredder in case of indication on the display.

1. Switch off the document shredder with the On, Off, Stop button.
2. Open the door, the integrated oil tank is in the cabinet, open the cap.
3. Fill oil tank with oil (use DAHLE document shredder oil!) and close again.

Attention - 115 V

It is only possible to shred paper after filling (use DAHLE document shredder oil!) the oil tank.

Possible malfunctions

Depending on the model variant, your document shredder may not have all the possible components and functions.

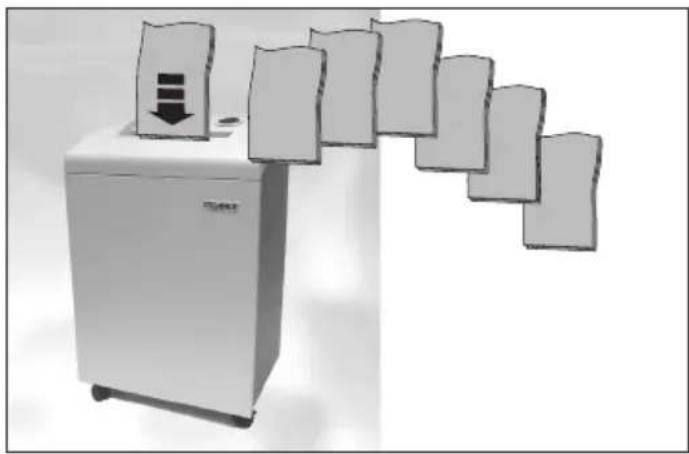

1. If there are too many sheets of paper, the shredding process is stopped.
2. The shredding mechanism automatically runs in reverse for a short time and the paper is ejected.

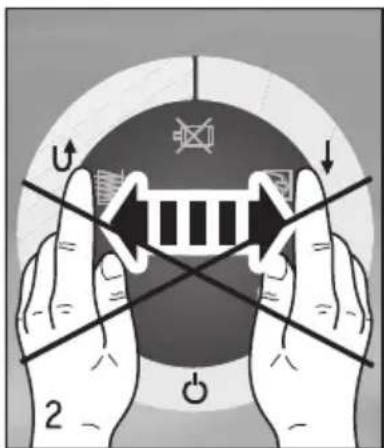

3. ATTENTION! To avoid damaging the shredding mechanism, do not operate the forward-reverse switch alternately!

1. If paper continues to be jammed, operate the Reverse button briefly.
2. Reduce the number of sheets of paper by removing or tearing off.
3. The shredding process starts automatically after the paper is inserted again, otherwise operate the Forward button.

40334, 40434, 40534, 40634

1. In the event of a paper jam, the shredding mechanism runs in reverse for 0.5 seconds.
2. Remove the paper. Then operate the Forward switch to clear the shredding mechanism.
   The Reverse switch is inhibited until the Forward switch has been actuated.
3. Reduce the number of sheets of paper.

Possible malfunctions

Depending on the model variant, your document shredder may not have all the possible components and functions.

Illustration of a refrigerator with multiple hanging paper sheets and a downward arrow, symbolizing a sorting or sorting process (no text or symbols present)

The document shredder switches off automatically after extended operation and/or overheating to cool down.

Exterior view of a white industrial waste sorting device with a paper lid and wheels (no visible text or symbols)

Close-up of a wall-mounted electrical outlet with a control panel and plug (no visible text or symbols)

Thermal cut-out

1. The shredding process is not started:

1.1 LED not illuminated

• Mains cable not plugged into the mains socket?
• Main switch not on?
• On, Off, Stop button not switched on?
• Thermal cut-out OFF?

1.2 LED illuminated

• Door open?
• Collection bin full?
• Overload?
• Oil tank empty (115 V)?

Place the thermal cut-out in the correct position - ON.

Possible malfunctions

Depending on the model variant, your document shredder may not have all the possible components and functions.

Energy-saving mode

Exterior view of a white industrial water heater (no visible text or symbols)

If not used, the document shredder switches to the energy saving mode (flashing LED) after approx. 10 minutes. On renewed use, the document shredder requires approx. 3 seconds to start.

In the energy-saving mode the document shredder switches off if it is not used after approx. 20 minutes (LED off). To use the document shredder, switch it back on with the On, Off, Stop button.

Maintenance and care

Use only DAHLE spare parts!

Hand opening a small white appliance into a container (no text or symbols visible)

1. Switch off the document shredder and unplug the mains cable from the mains socket.
2. Only clean the appliance with a dry cloth.
3. Plug the mains cable into the mains socket, switch on the document shredder.

Dahle Bürotechnik GmbH

Postfach 11 10

96466 Rödental | Germany

Nikolaus-A.-Otto-Straße 11

96472 Rödental | Germany

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Internet: www.dahle.de
