Type de produit	Destructeur de document
Marque	Dahle
Modèle	PaperSAFE PS 240
Dimensions (L x P x H)	400 x 300 x 500 mm
Poids	10 kg
Alimentation électrique	230 V / 50 Hz
Type de coupe	Coupe croisée (cross-cut)
Niveau de sécurité	P-4 (DIN 66399)
Capacité de coupe	10-12 feuilles (70 g/m²)
Largeur d'entrée	240 mm
Volume du bac	20 litres
Fonctions principales	Coupe croisée, arrêt automatique, marche arrière, indicateur de bac plein, fonctionnement silencieux
Entretien et nettoyage	Lubrification régulière des lames avec huile spéciale, nettoyage du bac
Sécurité	Protection contre surchauffe, arrêt automatique en cas de porte ouverte ou de bourrage
Pièces détachées et réparabilité	Lames de rechange, courroie, bac amovible
Informations générales	Garantie 2 ans, adapté pour usage domestique et petit bureau

FOIRE AUX QUESTIONS - PaperSAFE PS 240 Dahle

Quel type de coupe offre le Dahle PaperSAFE PS 240 ?

Le destructeur offre une coupe croisée (cross-cut) avec un niveau de sécurité P-4, réduisant les documents en petites particules.

Combien de feuilles peut-il détruire en une fois ?

La capacité est de 10 à 12 feuilles de papier standard (70 g/m²) en une seule passe.

Comment entretenir mon destructeur Dahle PaperSAFE PS 240 ?

Il est recommandé de lubrifier les lames toutes les 2 à 3 utilisations avec une huile spéciale pour destructeurs, et de vider régulièrement le bac.

Que faire en cas de bourrage papier ?

Utilisez la fonction marche arrière pour retirer le papier coincé. Si nécessaire, coupez l'alimentation et retirez délicatement les feuilles.

Le destructeur est-il silencieux ?

Oui, le PaperSAFE PS 240 est conçu pour un fonctionnement silencieux, adapté aux environnements de bureau.

Quelles sont les dimensions du bac de collecte ?

Le bac a une capacité de 20 litres, ce qui permet de détruire environ 200 feuilles avant vidage.

Le destructeur peut-il détruire des agrafes ou trombones ?

Oui, il peut détruire des agrafes et des petits trombones sans endommager les lames.

Comment savoir si le bac est plein ?

L'appareil dispose d'un indicateur de bac plein qui vous alerte lorsque le bac doit être vidé.

Quelle est la garantie du Dahle PaperSAFE PS 240 ?

La garantie constructeur est de 2 ans à compter de la date d'achat.

Puis-je détruire des cartes de crédit ou CD ?

Oui, le modèle PaperSAFE PS 240 peut détruire des cartes de crédit et des CD/DVD, mais vérifiez la fente spécifique si disponible.

MODE D'EMPLOI PaperSAFE PS 240 Dahle

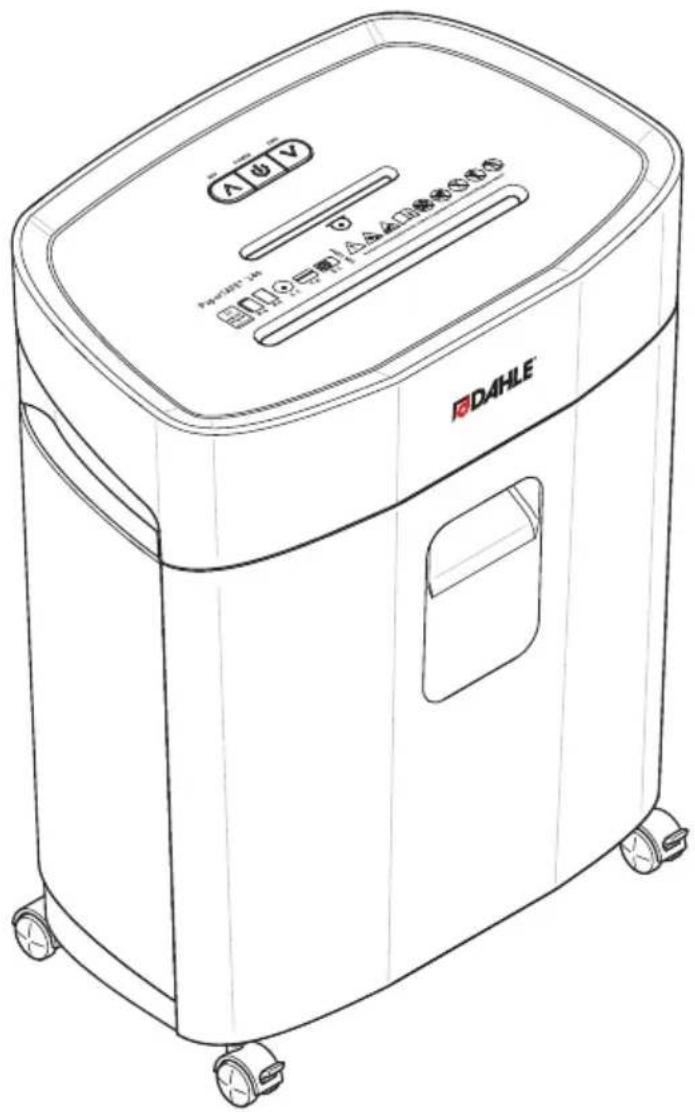

PS 240 PS 260

Type: 23240

Type: 23260

PS 380 PS 420

Type: 23380

Type: 23420

PaperSAFE®

en Instructions

IMPORTANT!

Read the operating and safety instructions BEFORE placing the document shredder into operation.

You must follow the instructions. Keep the operating instructions in a safe place ready for later use.

Table of Contents

1 Important information....6
1.4 Scope of supply 60
1.4.1 Accessories (not included) 60
1.5 Technical specifications ....60
2 Operation 61

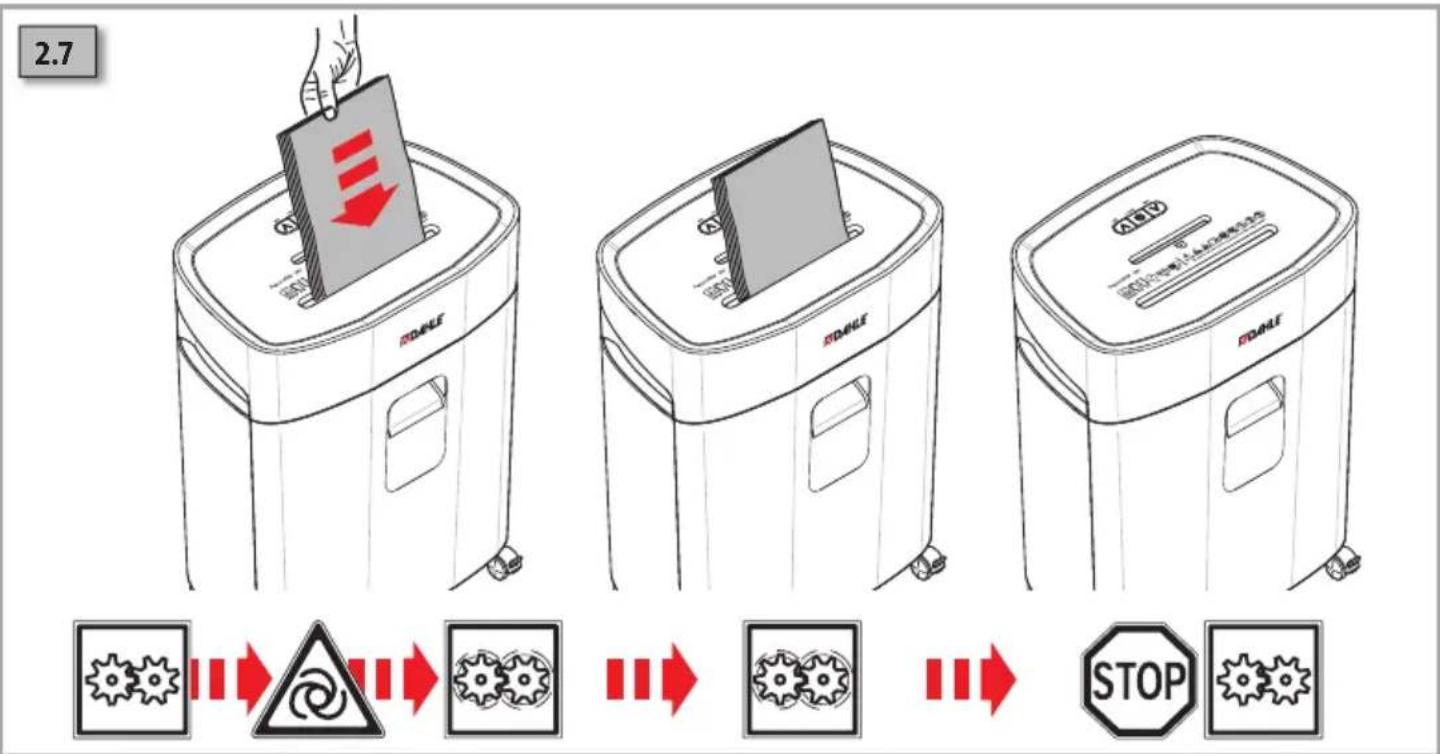

2.5 Paper shredding 62
2.8 Overload 63
2.10 Overheated 63

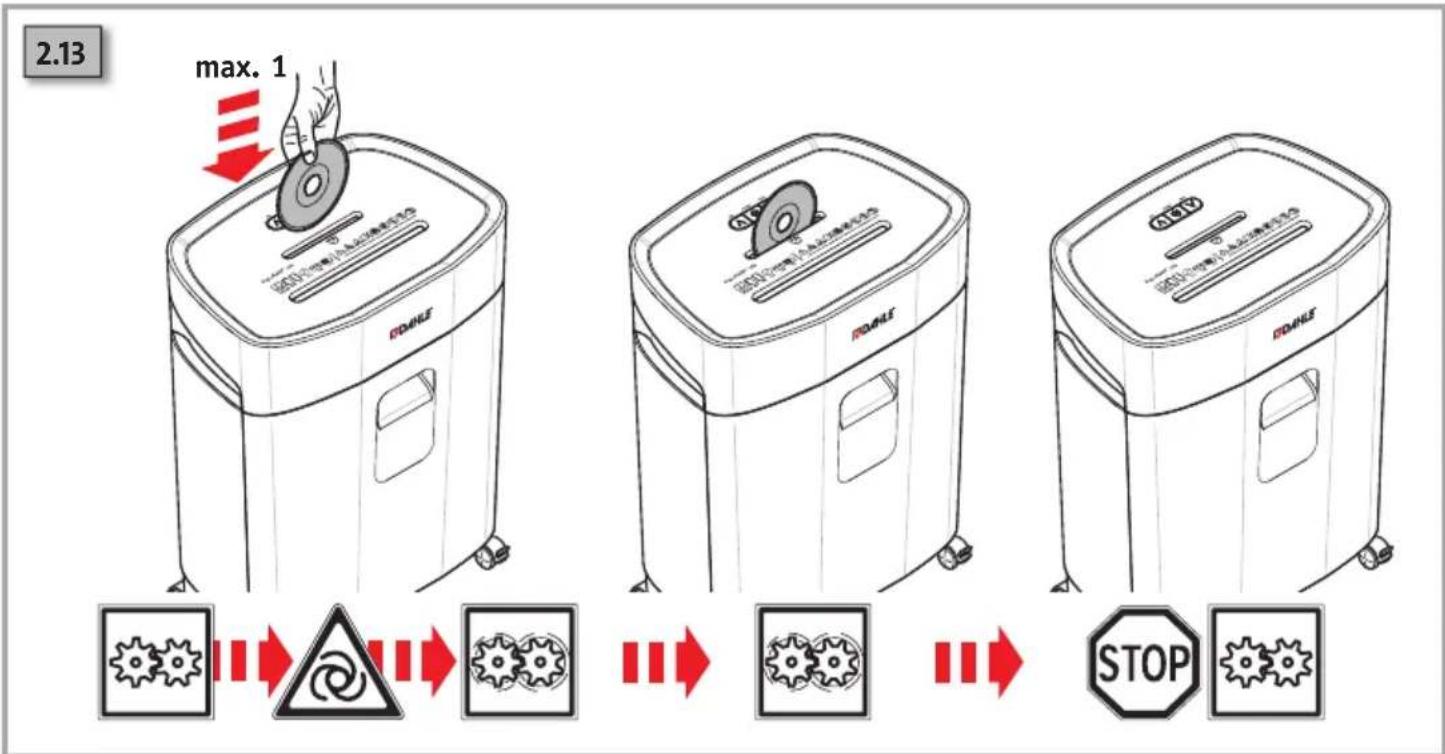

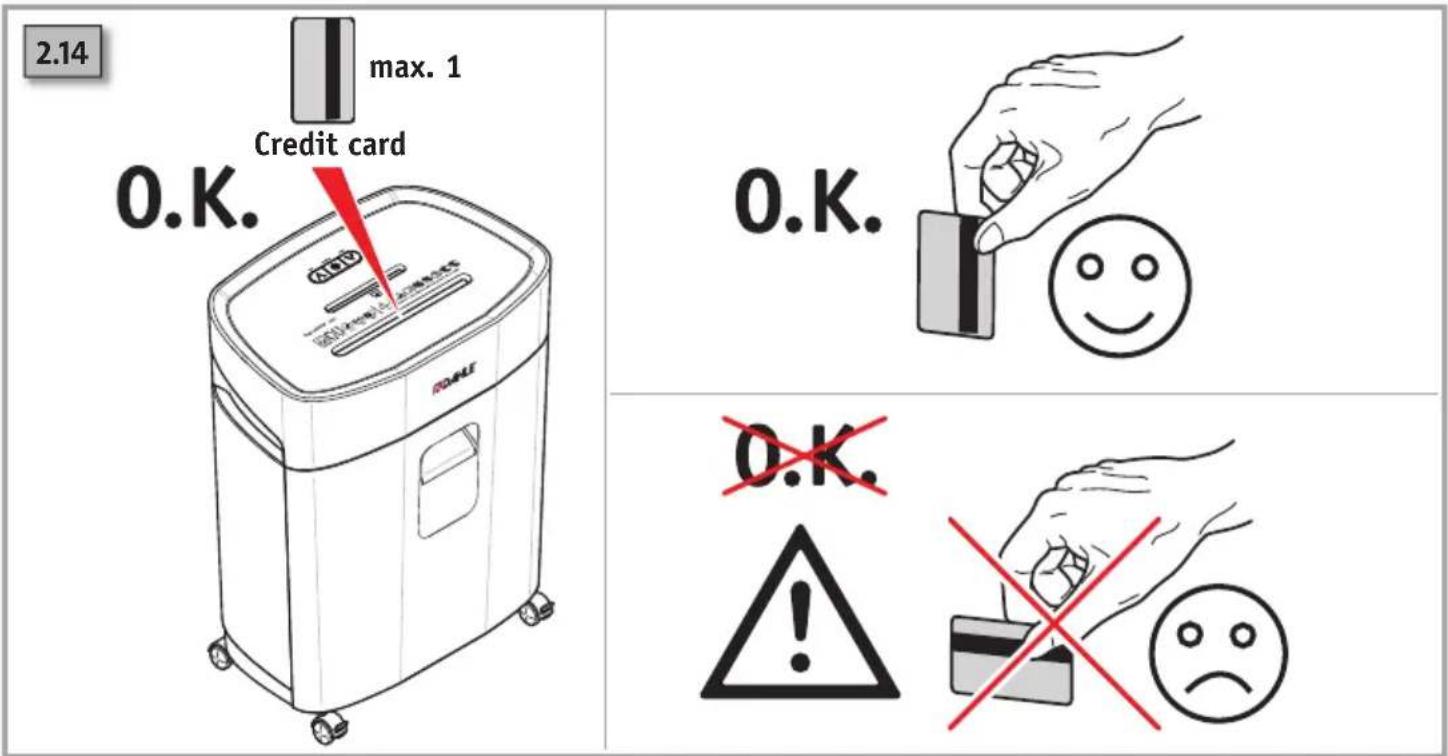

2.11 CD, DVD & card shredding 64
3 Maintenance....66
3.1 Emptying shredding waste 66
3.4 Possible malfunctions....67
3.5 Cleaning the shredder 67

1.1 Intended use, warranty

The document shredder is intended to be used for shredding paper.

Depending on the model variant, a small amount of the following materials can also be shredded:

• CDs/DVDs, bank cards and credit cards (see technical data).
• The normal staples and paper clips found in paper documents (exception: security level P6 and P7 devices).

Wear, damage due to improper use or unauthorised modifications and repairs are not covered by the warranty or the guarantee.

The document shredder was designed for private use and for use in normal office environments.

The following conditions apply to the performance in terms of sheets listed under technical data:

Maximum number of sheets that are shredded in one pass under the following conditions: New cutting rollers, oiled if needed, cold motor, power supply with nominal voltage and nominal frequency (230 V/50 Hz; 120 V/60 Hz). Deviations may result in reduced sheet processing and increased operating noises. The sheets are fed centrally and lengthwise at a 90 degree angle. The performance in terms of sheets can also vary depending on the paper properties and input.

1.2 Safety instructions

• Do not place the device near a source of heat.
• Store, transport and operate the device in an upright position only.
• Only use liquids and gases on the device that comply with DAHLE guidelines.
• Do not open up the device. Risk of electric shock.
• Only operate the device in closed spaces, at temperatures of between 10 °C and 25 °C (50 °F to 77 °F) and at a non-condensing humidity of between 15 % and 95 %.
• Ensure that the building installation has short-circuit protection: max. 16 A(US max. 20 A).
• Do not operate the document shredder without inserting documents.
• The device is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or a lack of experience and knowledge, unless they are working under supervision or receive detailed instruction about how to use the device from a person who is responsible for safety.

Dispose of the document shredder properly in an environmentally friendly way at an authorised collection point. Do not dispose of any parts of the document shredder or packaging in domestic waste.

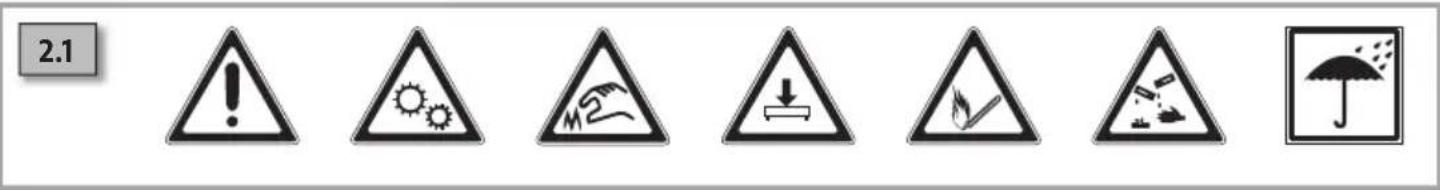

1.3 Key to pictograms

Important information

User information/safety instructions

WARNING

CAUTION! Risk of electric shock.

WARNING, moving parts This equipment is not intended for use use by children. Avoid touching the media feed opening with the hands, clothing or hair. Unplug this equipment when not in use for an extended period of time, hazardous moving parts in this equipment, keep body parts away from moving parts.

ATTENTION, sharp edges. Do not touch.

Do not use near caustic substances.

Place the device in a stable position on the floor, leaving a gap of 100 mm to the wall, ensure no heat can accumulate, engage brake mechanisms (depending on type)

Do not use near inflammable liquids or gases.

Automatic start-up

Do not expose to moisture

This document shredder is not intended to be used by children (the product is not a toy).

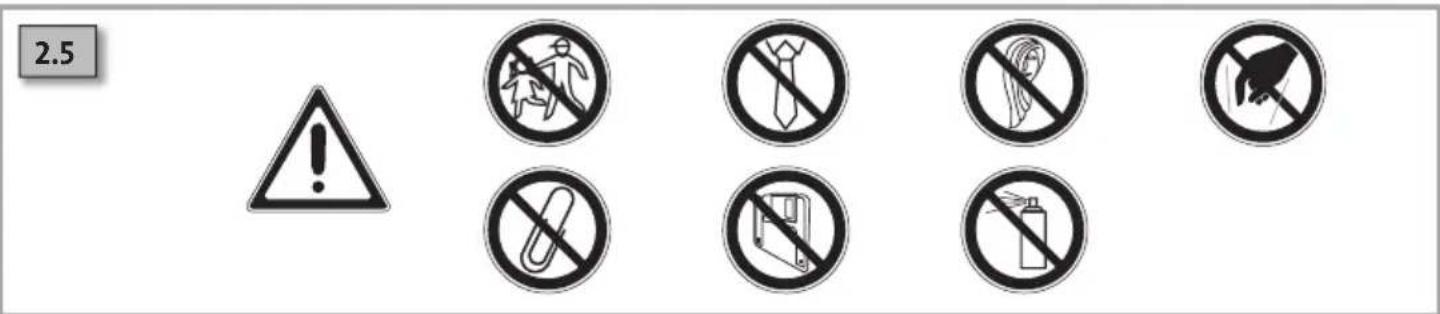

Do not touch the paper feed with your hands.

Do not allow items of clothing to come into contact with the paper feed.

Do not allow your hair to come into contact with the paper feed.

Keep spray cans away from the device.

Remove paper clips and staples before shredding.

Do not insert any diskettes.

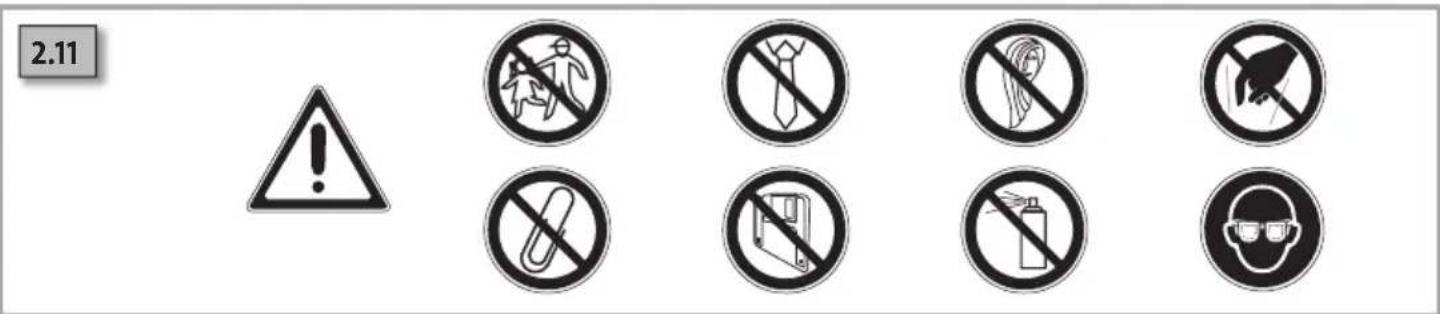

Always wear safety goggles when destroying CDs/DVDs!

Disconnect the document shredder from the electrical power supply before performing maintenance work.

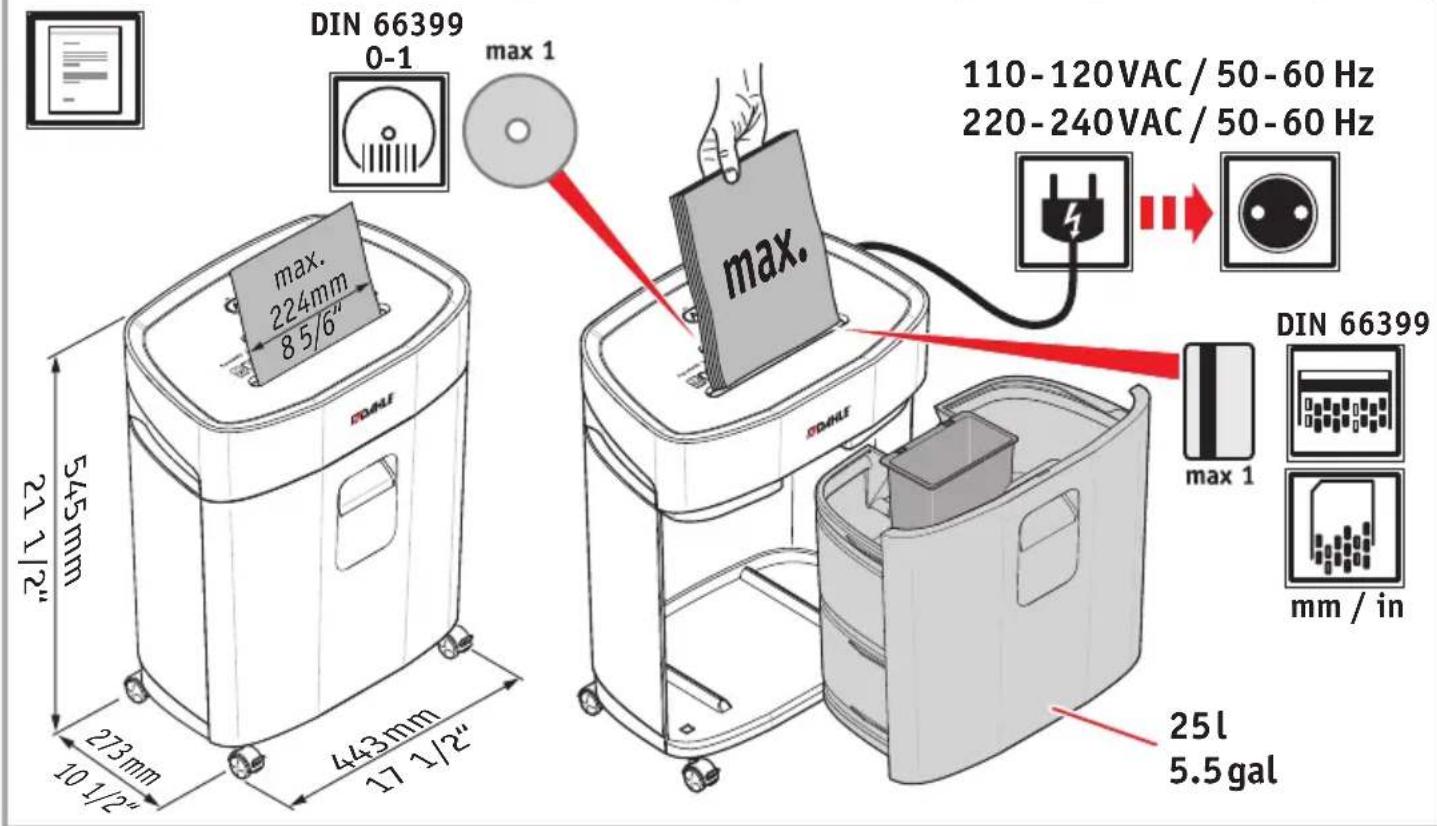

Technical specifications - Subject to technical modifications.

Noise level when operated without shredding documents

Intake speed

Paper - cross cut

CD/DVD strip cut

Card - cross cut

Weight

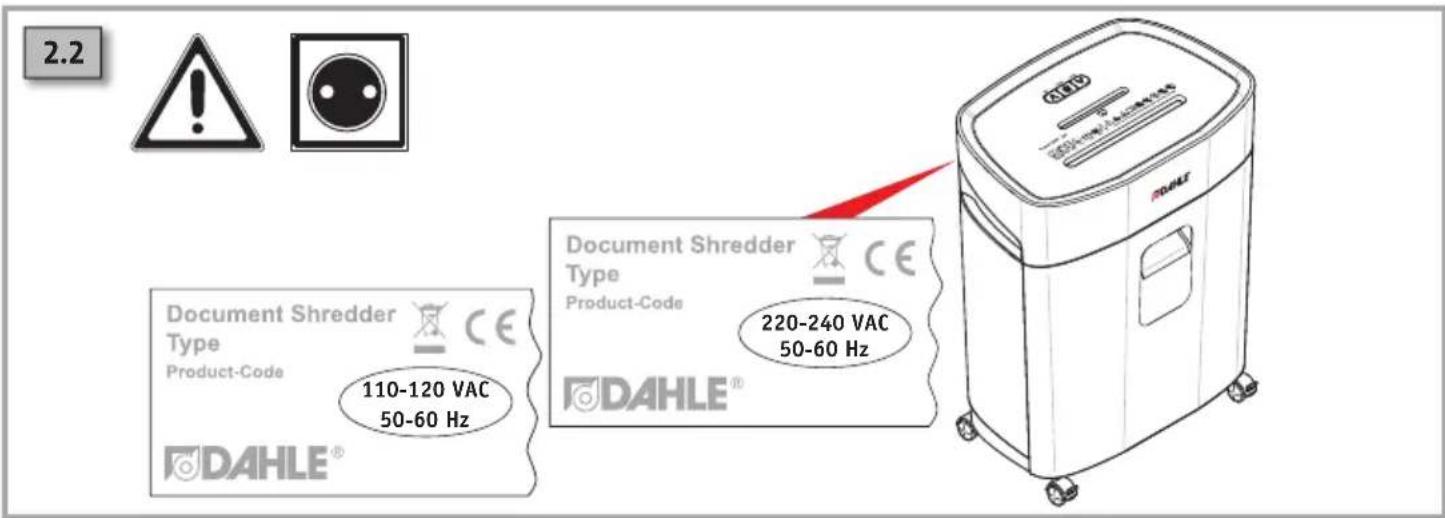

The power plug is used to disconnect the power supply.

The mains socket must be easily accessible at all times.

How to use

Document shredder on standby

Document shredder in operation

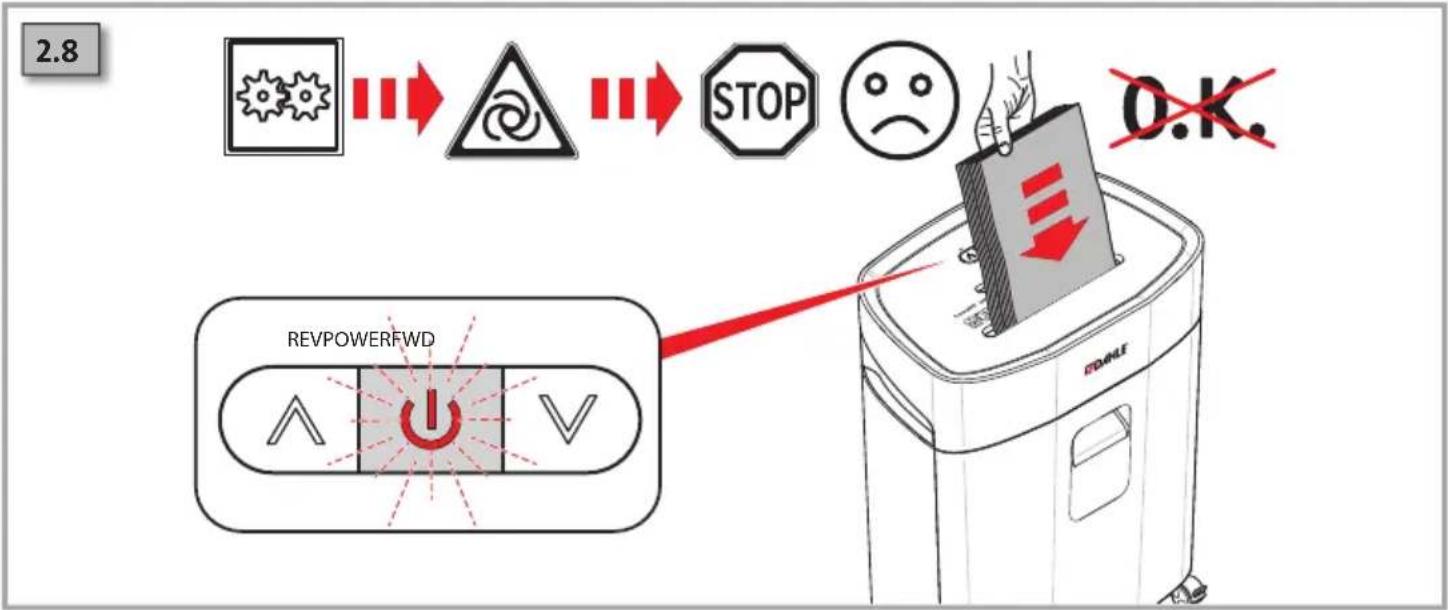

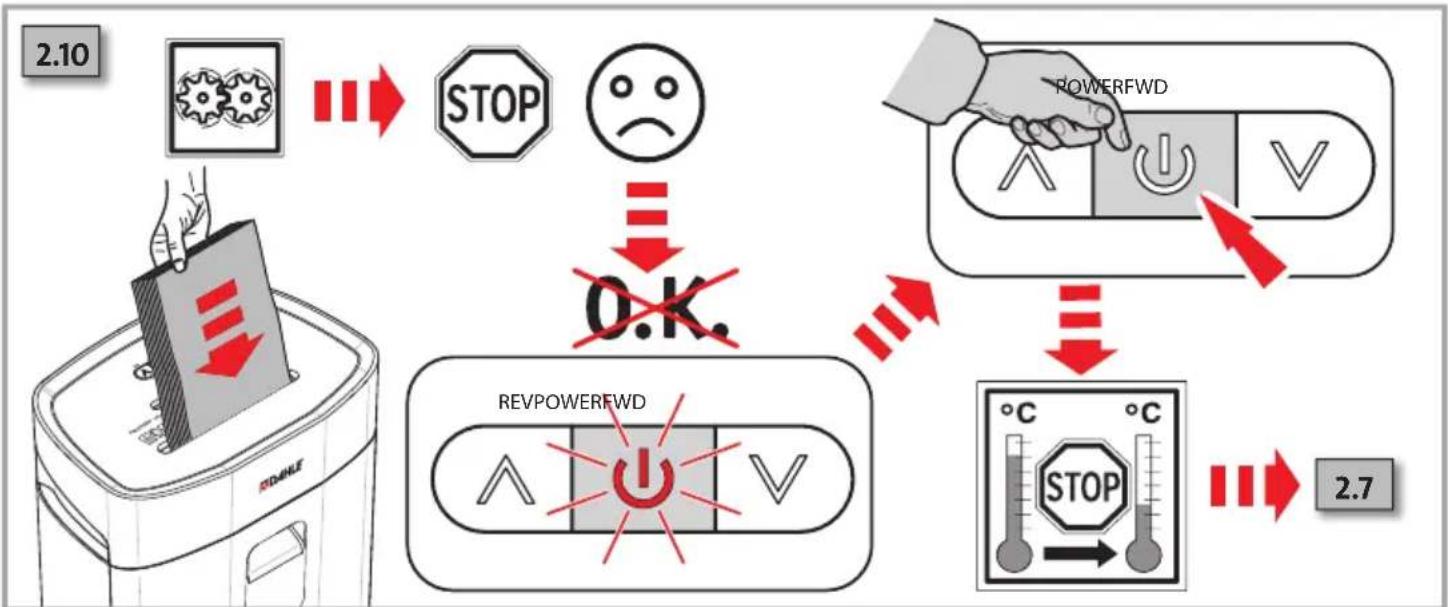

Automatic shut-down!

The document shredder will switch off automatically to cool down if used for a long time and /or if overloaded

Maintenance instructions / troubleshooting

Container full

Possible malfunctions

Automatic switch-off when housing is open

1.5	Type
		mm / in		DIN 66399	70/80 g 16/20 lb	kg/lb (m/min / f/m) (dB(A))
	23240 / PS 240	4x12 / 3/19x1/2	P-4/F-1/T-4/E-3	10	9 / 19,84 2,0 / 6,6	<65
	23260 / PS 260	4x12 / 3/19x1/2		P-4/F-1/T-4/E-3	12	10,5 / 23,15	2,0 / 6,6	<60
	23380 / PS 380	4x12 / 3/19x1/2		P-4/F-1/T-4/E-3	15	13 / 28,66	2,0 / 6,6	<60
	23420 / PS 420	2x15 / 1/13x9/16		P-5/F-2/T-5/E-4	10	13 / 28,66	1,8 / 5,9	<60
