| Type de produit | Destructeur de documents |
| Marque | Dahle |
| Modèle | PaperSAFE PS 260 |
| Dimensions (L x P x H) | 30 x 20 x 40 cm |
| Poids | 5 kg |
| Alimentation | 220-240 V, 50/60 Hz |
| Type de coupe | Micro-coupe (cross-cut) – niveau de sécurité P-2 |
| Capacité de coupe | Jusqu'à 8 feuilles (70 g/m²) |
| Largeur d'entrée | 220 mm |
| Volume de la corbeille | 15 litres |
| Fonctions principales | Coupe automatique avec arrêt en cas de bourrage ; marche arrière ; indicateur de corbeille pleine |
| Sécurité | Arrêt automatique en cas de surchauffe ; sécurité enfant (interrupteur à clé) |
| Entretien et nettoyage | Huilez les lames régulièrement avec de l'huile spéciale ; nettoyez l'extérieur avec un chiffon humide |
| Pièces détachées et réparabilité | Lames de rechange disponibles ; corbeille amovible ; réparation par service agréé |
| Informations générales | Conçu pour une utilisation domestique ou petit bureau ; cycle de fonctionnement : 2 minutes allumé / 30 minutes de refroidissement |
FOIRE AUX QUESTIONS - PaperSAFE PS 260 Dahle
Questions des utilisateurs sur PaperSAFE PS 260 Dahle
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Destructeur de document au format PDF gratuitement ! Retrouvez votre notice PaperSAFE PS 260 - Dahle et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil PaperSAFE PS 260 de la marque Dahle.
MODE D'EMPLOI PaperSAFE PS 260 Dahle
PS 240 PS 260
Type: 23240
Type: 23260
PS 380 PS 420
Type: 23380
Type: 23420
PaperSAFE®
en Instructions
IMPORTANT!
Read the operating and safety instructions BEFORE placing the document shredder into operation.
You must follow the instructions. Keep the operating instructions in a safe place ready for later use.
Table of Contents
1 Important information....6
1.4 Scope of supply 60
1.4.1 Accessories (not included) 60
1.5 Technical specifications ....60
2 Operation 61
2.5 Paper shredding 62
2.8 Overload 63
2.10 Overheated 63
2.11 CD, DVD & card shredding 64
3 Maintenance....66
3.1 Emptying shredding waste 66
3.4 Possible malfunctions....67

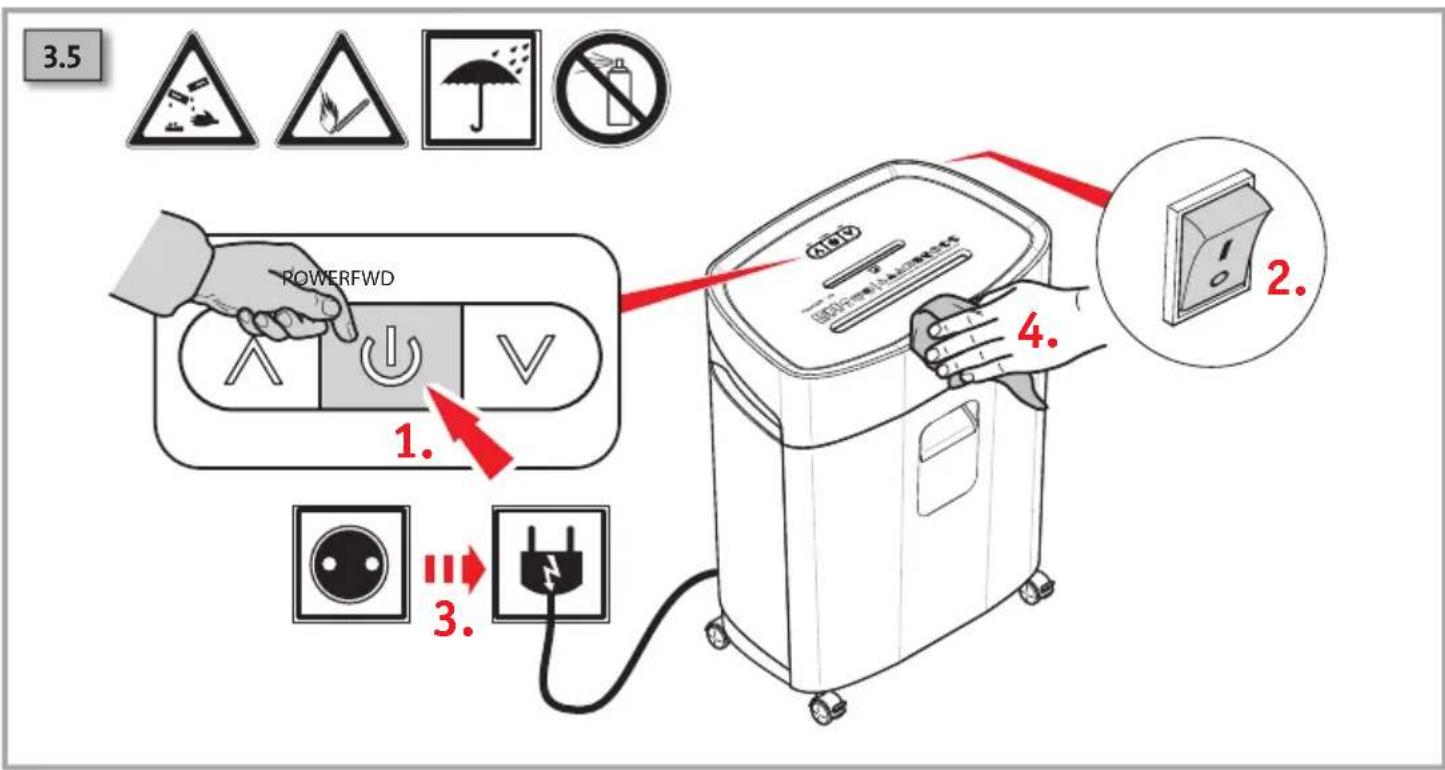

3.5 Cleaning the shredder 67
1.1 Intended use, warranty
The document shredder is intended to be used for shredding paper.
Depending on the model variant, a small amount of the following materials can also be shredded:
- CDs/DVDs, bank cards and credit cards (see technical data).
- The normal staples and paper clips found in paper documents (exception: security level P6 and P7 devices).
Wear, damage due to improper use or unauthorised modifications and repairs are not covered by the warranty or the guarantee.
The document shredder was designed for private use and for use in normal office environments.
The following conditions apply to the performance in terms of sheets listed under technical data:
Maximum number of sheets that are shredded in one pass under the following conditions: New cutting rollers, oiled if needed, cold motor, power supply with nominal voltage and nominal frequency (230 V/50 Hz; 120 V/60 Hz). Deviations may result in reduced sheet processing and increased operating noises. The sheets are fed centrally and lengthwise at a 90 degree angle. The performance in terms of sheets can also vary depending on the paper properties and input.
1.2 Safety instructions
- Do not place the device near a source of heat.
- Store, transport and operate the device in an upright position only.
- Only use liquids and gases on the device that comply with DAHLE guidelines.
- Do not open up the device. Risk of electric shock.
- Only operate the device in closed spaces, at temperatures of between 10 °C and 25 °C (50 °F to 77 °F) and at a non-condensing humidity of between 15 % and 95 %.
- Ensure that the building installation has short-circuit protection: max. 16 A(US max. 20 A).
- Do not operate the document shredder without inserting documents.
- The device is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or a lack of experience and knowledge, unless they are working under supervision or receive detailed instruction about how to use the device from a person who is responsible for safety.
Dispose of the document shredder properly in an environmentally friendly way at an authorised collection point. Do not dispose of any parts of the document shredder or packaging in domestic waste.

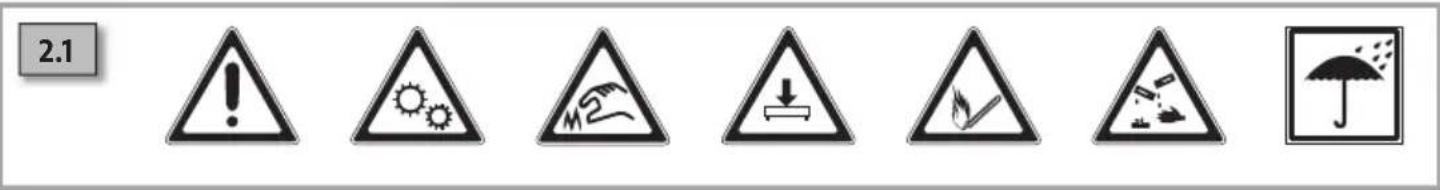

1.3 Key to pictograms
Important information
User information/safety instructions
WARNING
CAUTION! Risk of electric shock.
WARNING, moving parts This equipment is not intended for use use by children. Avoid touching the media feed opening with the hands, clothing or hair. Unplug this equipment when not in use for an extended period of time, hazardous moving parts in this equipment, keep body parts away from moving parts.
ATTENTION, sharp edges. Do not touch.
Do not use near caustic substances.
Place the device in a stable position on the floor, leaving a gap of 100 mm to the wall, ensure no heat can accumulate, engage brake mechanisms (depending on type)
Do not use near inflammable liquids or gases.
Automatic start-up
Do not expose to moisture

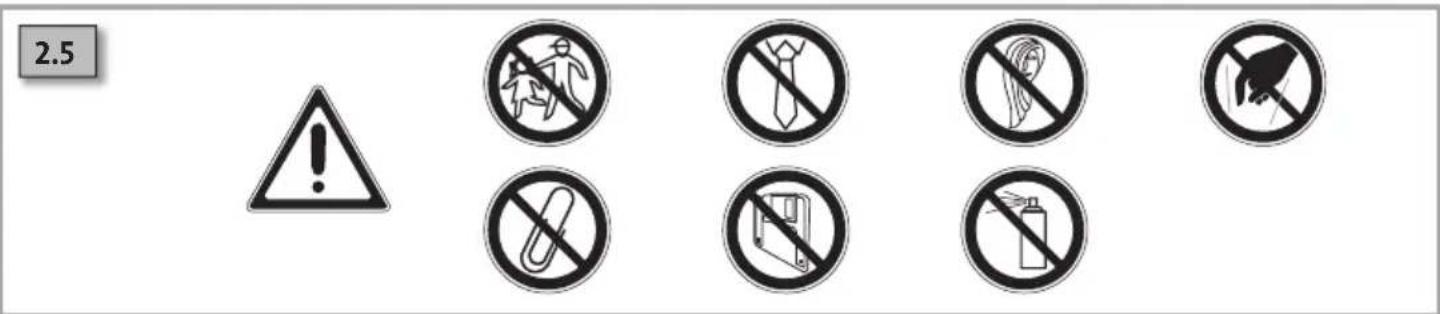

This document shredder is not intended to be used by children (the product is not a toy).
Do not touch the paper feed with your hands.
Do not allow items of clothing to come into contact with the paper feed.
Do not allow your hair to come into contact with the paper feed.
Keep spray cans away from the device.
Remove paper clips and staples before shredding.
Do not insert any diskettes.
Always wear safety goggles when destroying CDs/DVDs!

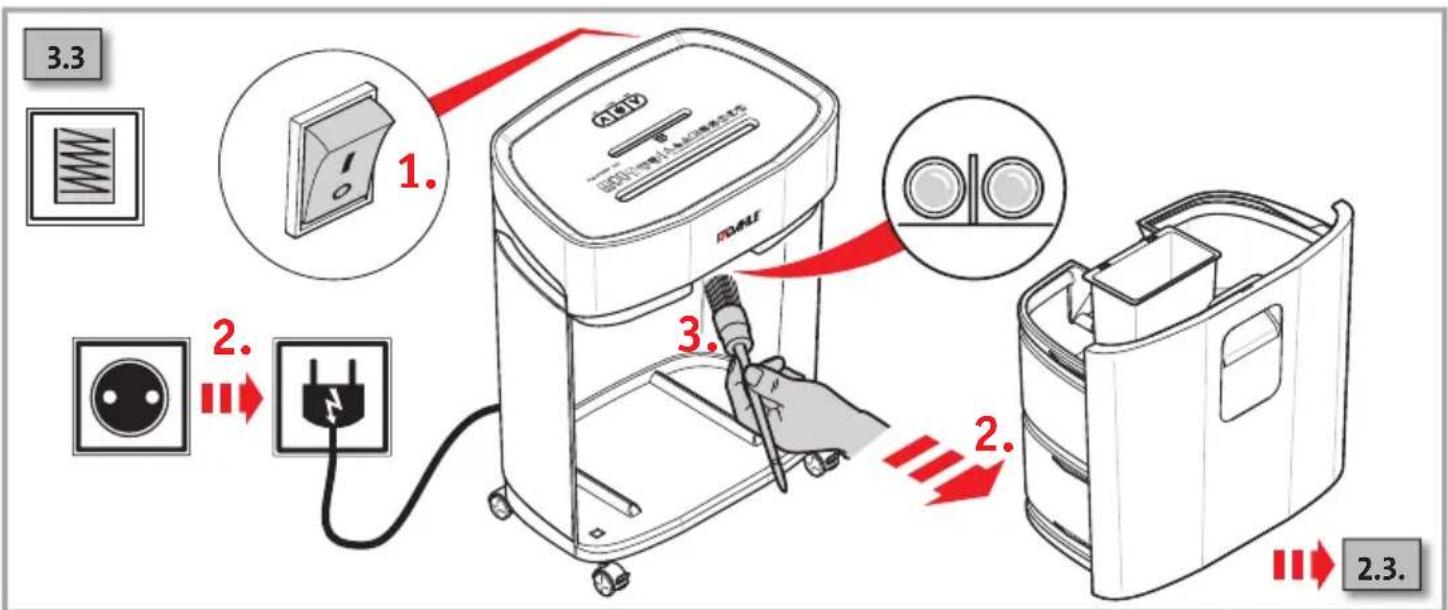

Disconnect the document shredder from the electrical power supply before performing maintenance work.
Technical specifications - Subject to technical modifications.
Noise level when operated without shredding documents
Intake speed
Paper - cross cut
CD/DVD strip cut
Card - cross cut
Weight
The power plug is used to disconnect the power supply.
The mains socket must be easily accessible at all times.
How to use
Document shredder on standby
Document shredder in operation
Automatic shut-down!
The document shredder will switch off automatically to cool down if used for a long time and /or if overloaded
Maintenance instructions / troubleshooting
Container full
Possible malfunctions

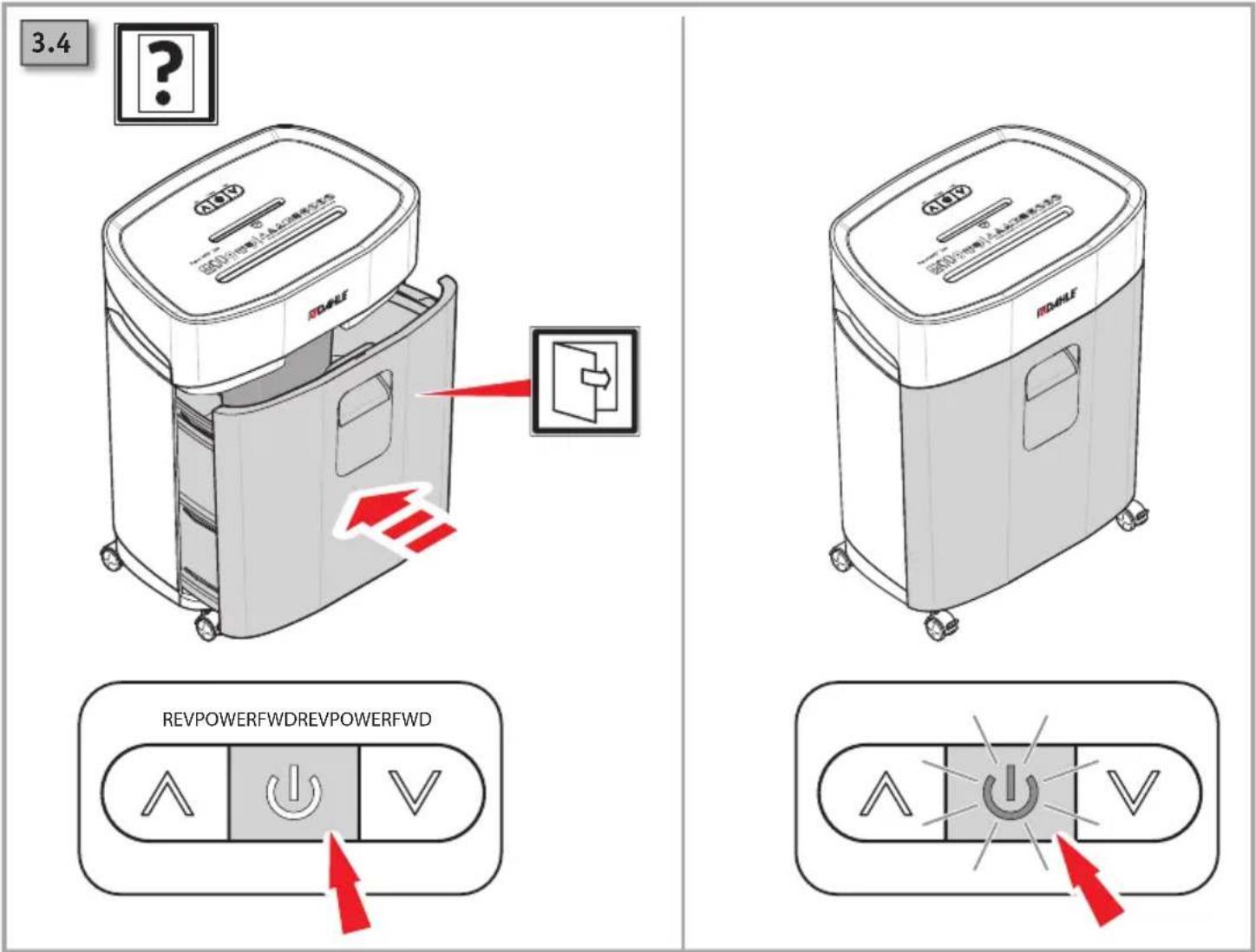

Automatic switch-off when housing is open
| 1.5 | Type |  |  |  |  |  |  | |
| mm / in | DIN 66399 | 70/80 g 16/20 lb | kg/lb (m/min / f/m) (dB(A)) | |||||
| 23240 / PS 240 | 4x12 / 3/19x1/2 | P-4/F-1/T-4/E-3 | 10 | 9 / 19,84 2,0 / 6,6 | <65 | |||
| 23260 / PS 260 | 4x12 / 3/19x1/2 | P-4/F-1/T-4/E-3 | 12 | 10,5 / 23,15 | 2,0 / 6,6 | <60 | ||
| 23380 / PS 380 | 4x12 / 3/19x1/2 | P-4/F-1/T-4/E-3 | 15 | 13 / 28,66 | 2,0 / 6,6 | <60 | ||
| 23420 / PS 420 | 2x15 / 1/13x9/16 | P-5/F-2/T-5/E-4 | 10 | 13 / 28,66 | 1,8 / 5,9 | <60 | ||

