Marque	TOSHIBA
Modèle	RAV-SP1402AT-E
Type	Climatiseur split, unité extérieure
Alimentation électrique	Monophasé 230 V (220-240 V), 50 Hz
Capacité de refroidissement	12,5 kW
Capacité de chauffage	14,0 kW
EER (refroidissement)	3,51 W/W
COP (chauffage)	3,91 W/W
Compresseur	Hermétique, 4 pôles, 3,75 kW
Réfrigérant	R410A, charge 2,95 kg
Dimensions (H x L x P)	1340 x 900 x 320 mm
Poids net	95 kg
Niveau sonore (pression)	53 dB(A) (refroidissement) / 54 dB(A) (chauffage)
Niveau sonore (puissance)	70 dB(A) (refroidissement) / 71 dB(A) (chauffage)
Plage de température extérieure	Refroidissement : -15 à 43 °C ; Chauffage : -15 à 15 °C
Longueur de tuyauterie max.	70 m (standard 7,5 m, min. 5 m)
Différence de hauteur max.	30 m (extérieur plus haut ou plus bas)
Débit d'air (ventilateur)	125 m³/min (vitesse haute)
Moteur du ventilateur	63 W + 63 W
Raccordement gaz	15,9 mm (Ø)
Raccordement liquide	9,5 mm (Ø)
Fonctions principales	Inverter, contrôle de température, redémarrage automatique, minuterie, mode silencieux
Entretien	Nettoyer les filtres régulièrement ; vérifier les connexions électriques et l'état du réfrigérant
Accessoires inclus	Télécommande (selon modèle d'unité intérieure), notice d'installation

FOIRE AUX QUESTIONS - RAV-SP1402AT-E TOSHIBA

Quel type de réfrigérant utilise le RAV-SP1402AT-E ?

Le réfrigérant utilisé est le R410A. La charge de réfrigérant est de 2,95 kg pour l'unité extérieure.

Quelles sont les dimensions de l'unité extérieure RAV-SP1402AT-E ?

Les dimensions sont : Hauteur 1340 mm, Largeur 900 mm, Profondeur 320 mm. Le poids net est de 95 kg.

Quelle est la longueur maximale de tuyauterie autorisée ?

La longueur totale maximale de tuyauterie est de 70 m. La longueur standard est de 7,5 m et la longueur minimale est de 5 m. Au-delà de 30 m, ajoutez 40 g/m de réfrigérant supplémentaire.

Quel est le niveau sonore de l'unité extérieure ?

Le niveau de pression acoustique est de 53 dB(A) en refroidissement et 54 dB(A) en chauffage. Le niveau de puissance acoustique est de 70 dB(A) en refroidissement et 71 dB(A) en chauffage.

Comment réaliser l'entretien courant du climatiseur ?

Nettoyez les filtres à air toutes les deux semaines environ. Vérifiez que les ailettes du condenseur ne sont pas obstruées. Faites contrôler le circuit frigorifique et les connexions électriques par un professionnel une fois par an.

Quelles unités intérieures sont compatibles avec ce modèle extérieur ?

Le RAV-SP1402AT-E est conçu pour fonctionner avec les unités intérieures des gammes 4-way cassette, gainable, plafonnier et murale de la série Super Digital Inverter de Toshiba. Reportez-vous au tableau de compatibilité dans la notice.

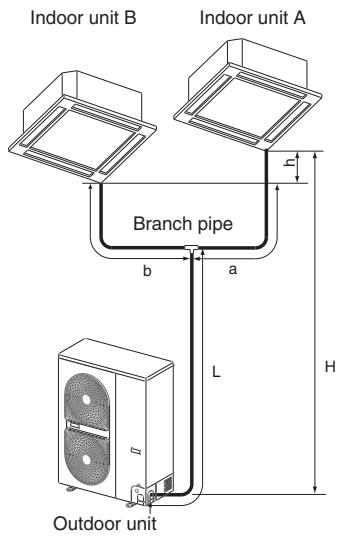

Puis-je installer l'unité extérieure en dessous ou au-dessus des unités intérieures ?

Oui, la différence de hauteur maximale autorisée est de 30 m aussi bien si l'unité extérieure est plus haute que les unités intérieures que si elle est plus basse.

Comment régler la fonction de redémarrage automatique ?

Utilisez la télécommande filaire (RBC-AMT31E) pour paramétrer le code : 0001 active le redémarrage automatique, 0000 le désactive. Par défaut, la fonction est désactivée (0000).

Quelle est la puissance électrique consommée en mode refroidissement ?

La puissance absorbée en refroidissement est de 3,56 kW avec un courant de 16,51 A (à 220 V). Le facteur de puissance est de 98 %.

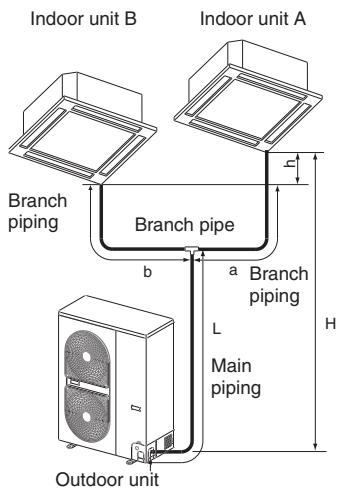

Est-il possible de connecter plusieurs unités intérieures sur ce modèle extérieur ?

Oui, le RAV-SP1402AT-E peut être utilisé en système twin avec deux unités intérieures identiques (ex. deux cassettes de même puissance). Les kits de dérivation (twin kit) sont disponibles en accessoire.

MODE D'EMPLOI RAV-SP1402AT-E TOSHIBA

Super

Digital Inverter

Engineering

Data Book

Super Digital Inverter DATA BOOK

Contents

1. System overview 1-1

1-1. Single sprit system line up 1-2
1-2. Twin sprit system line up 1-3

2. technical data 2-1

2-1. 4-way cassette type 2-2
2-2. Duct type 2-15
2-3. Ceiling type 2-28
2-4. High wall type 2-39

3. Outdoor unit 3-1

3-1. Specifications 3-2

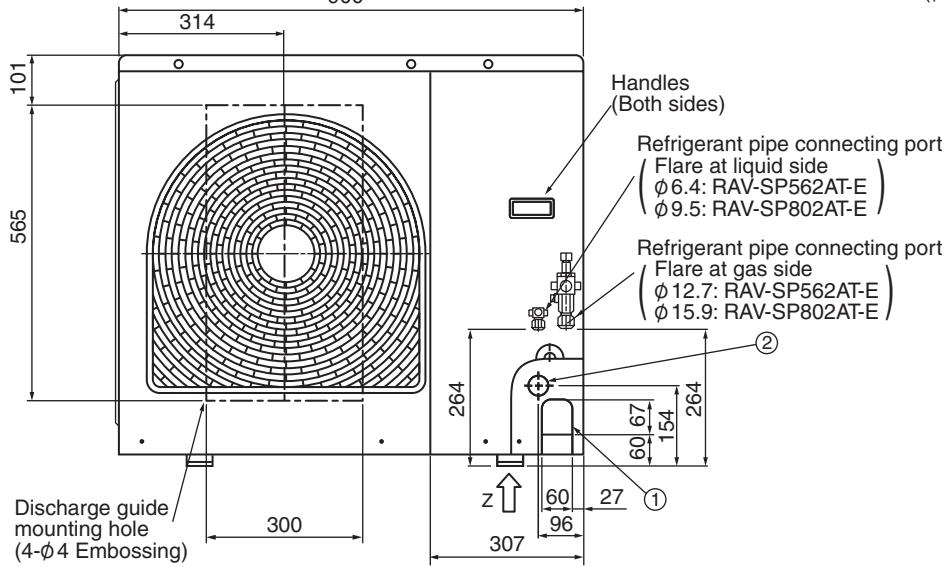

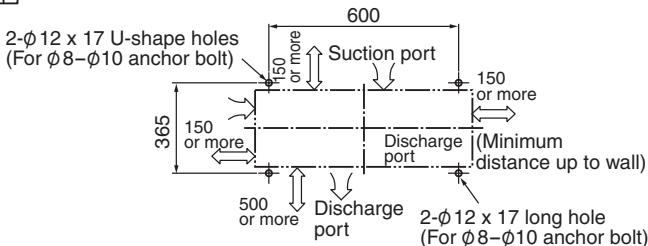

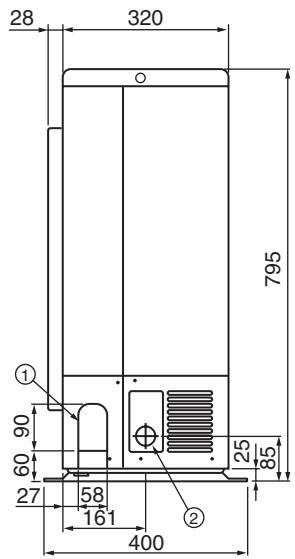

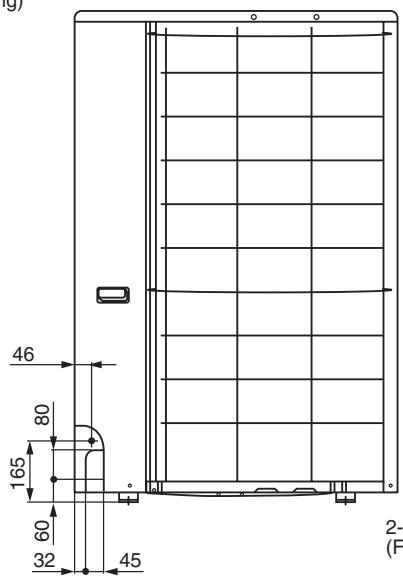

3-2. Dimension 3-3

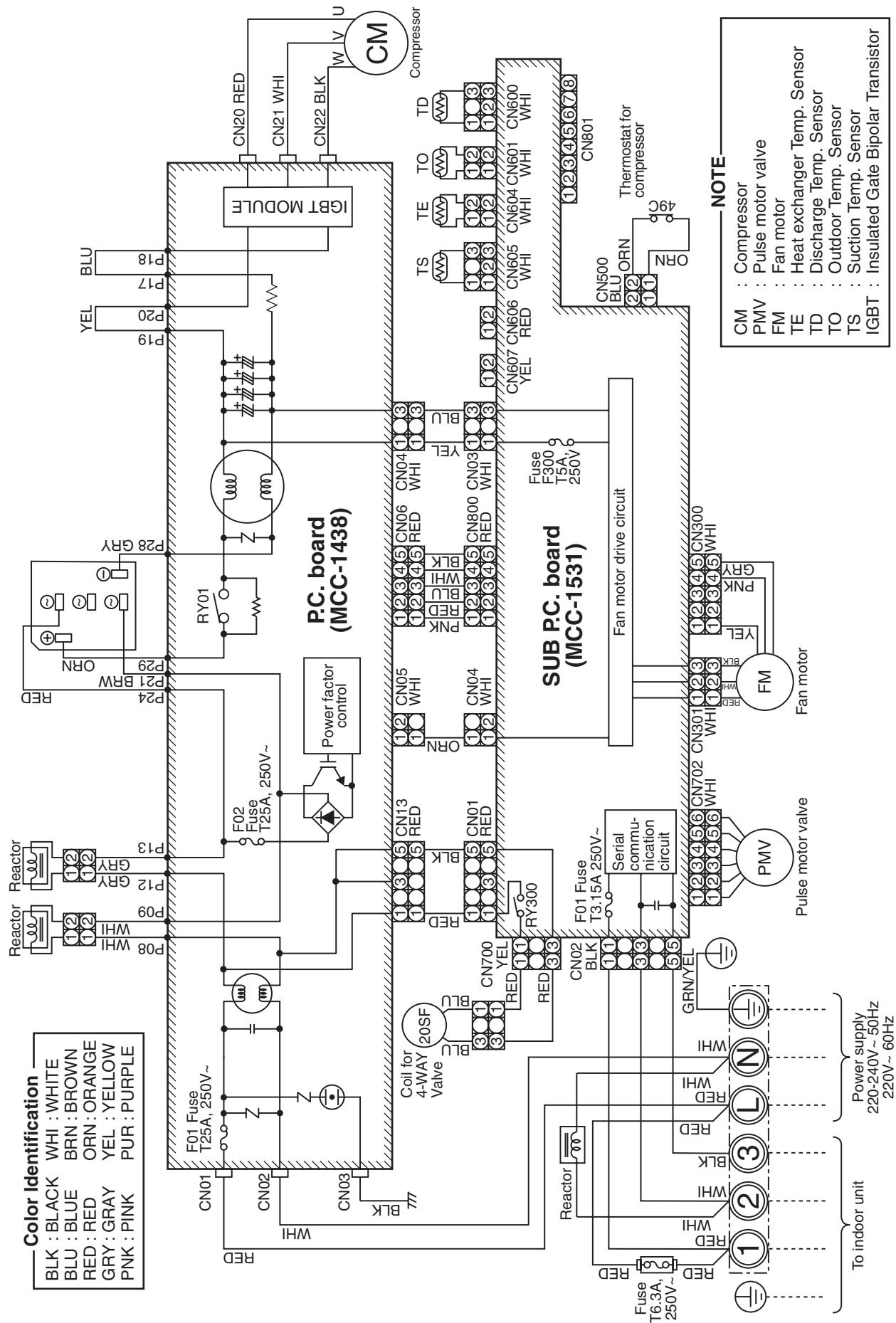

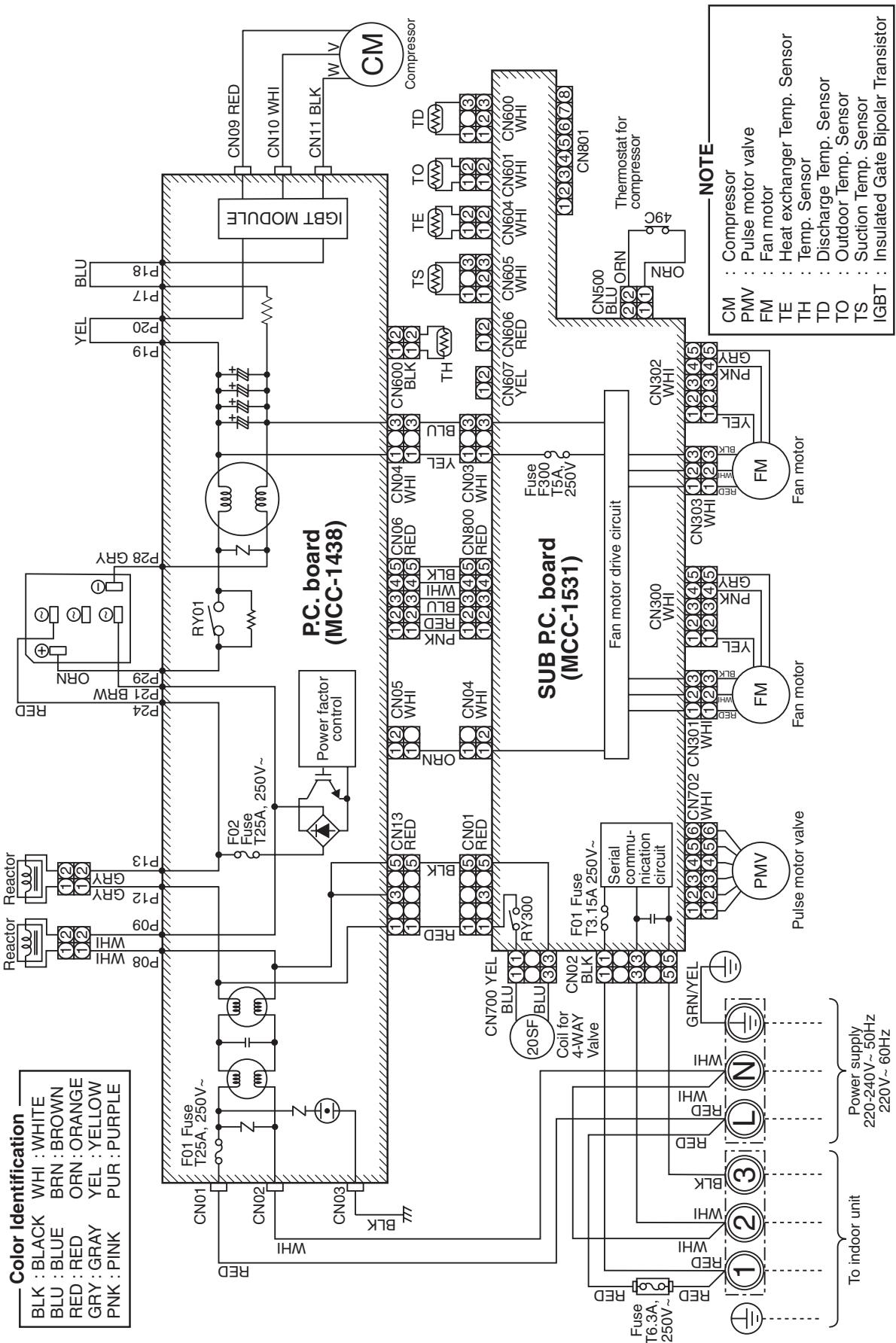

3-3. Wiring diagram 3-5

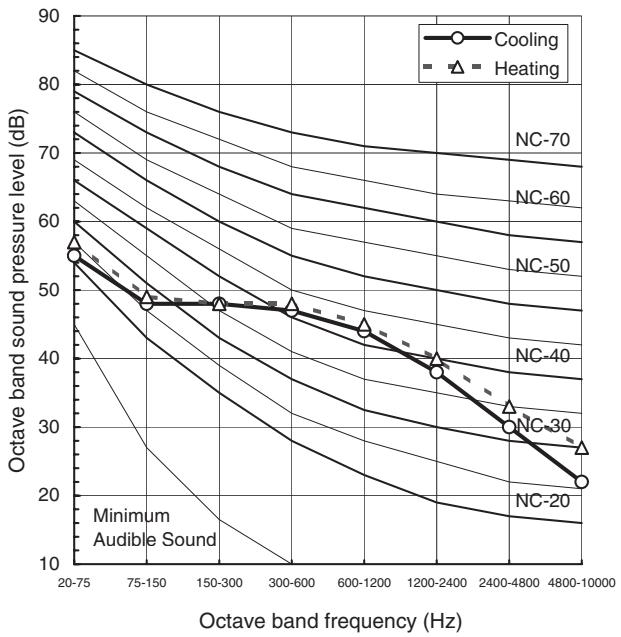

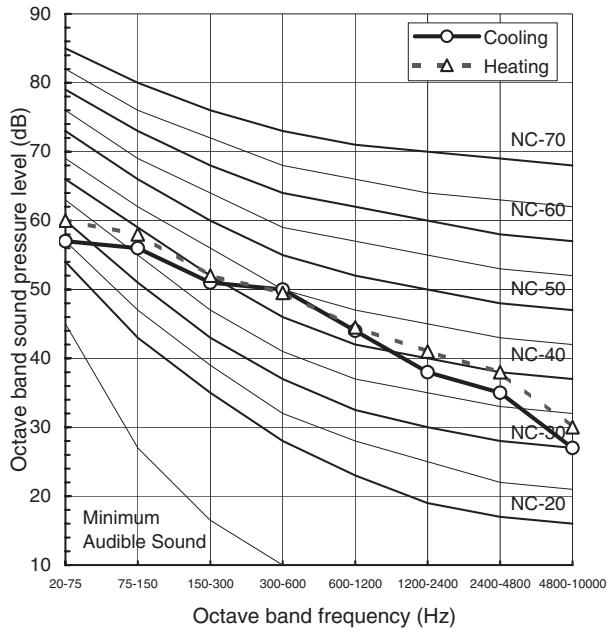

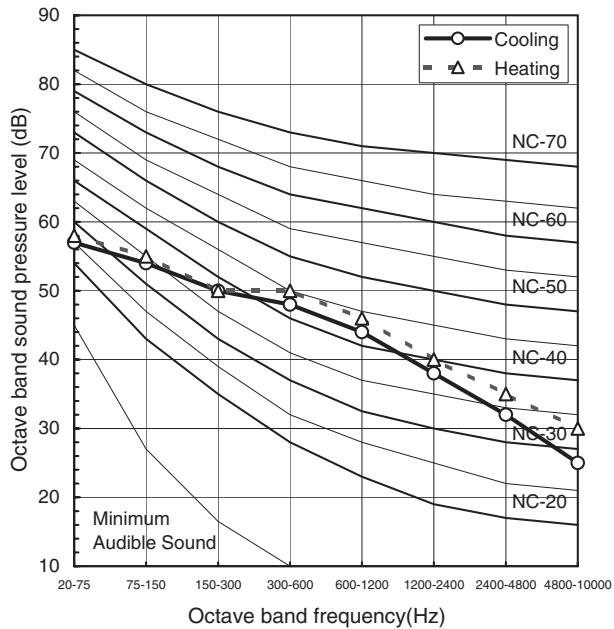

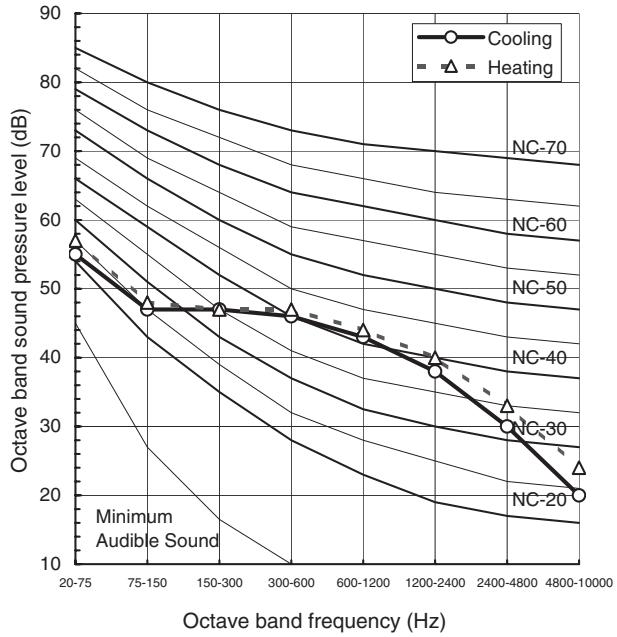

3-4. Sound characteristics 3-7

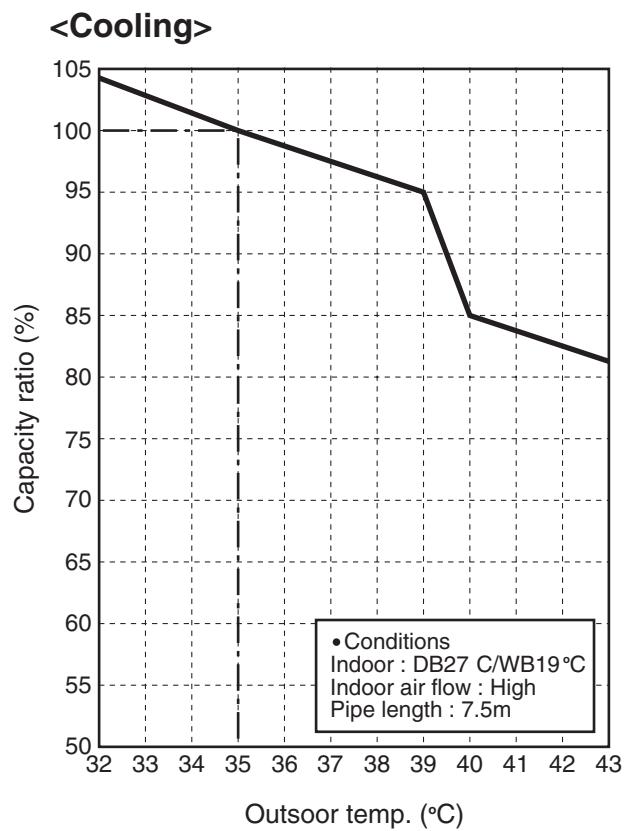

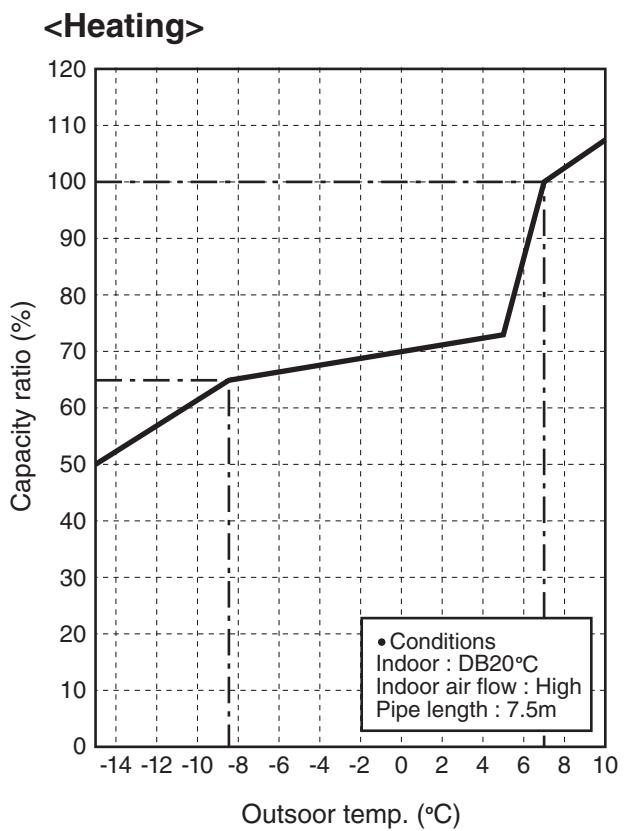

3-5. Capacity variation ratio according to temperature 3-8

4. Controls 4-1

4-1. Remote controller line up 4-2

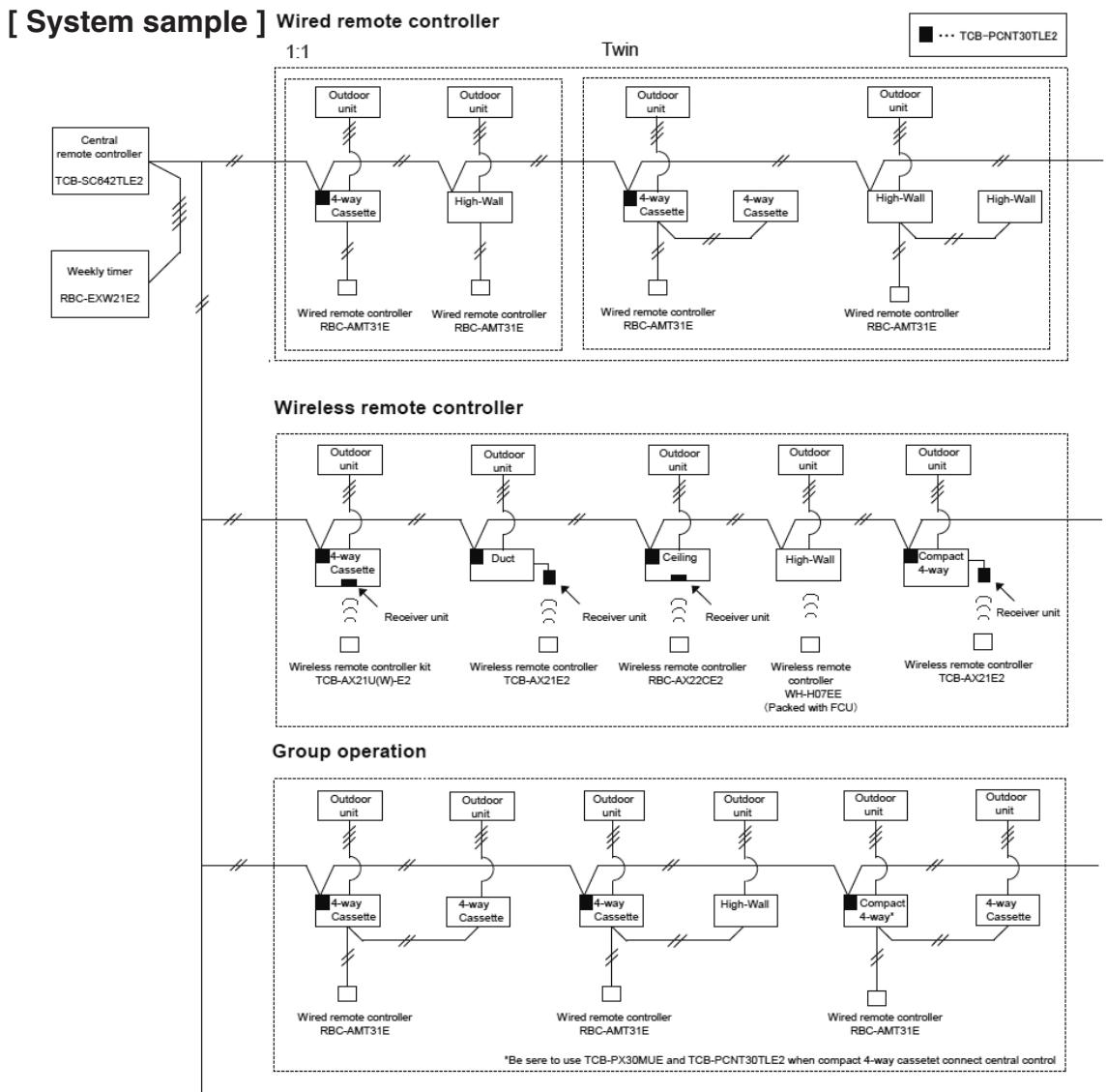

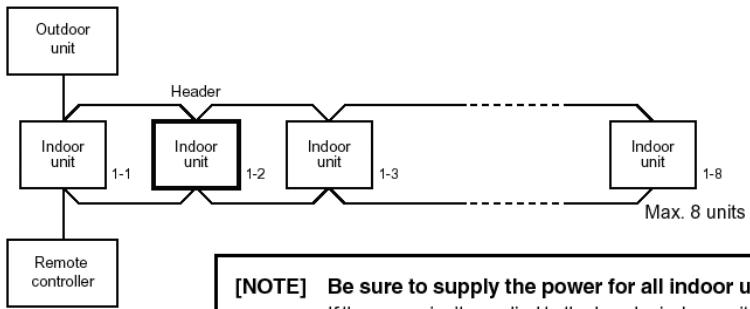

4-2. Group control 4-3
4-3. Central control 4-3

5. Accessories 5-1

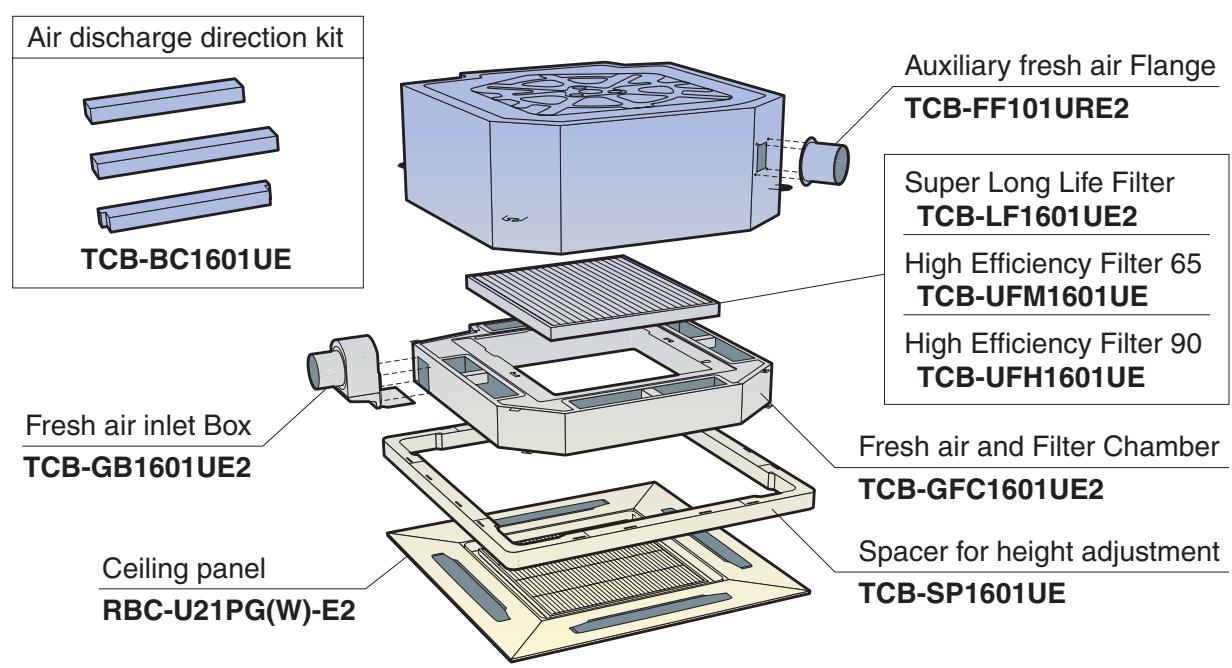

5-1. Accessories 5-2

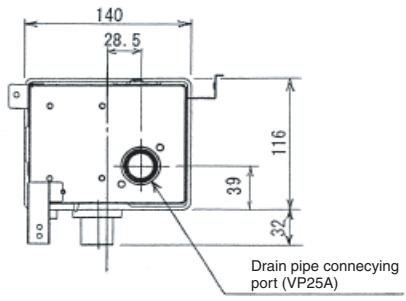

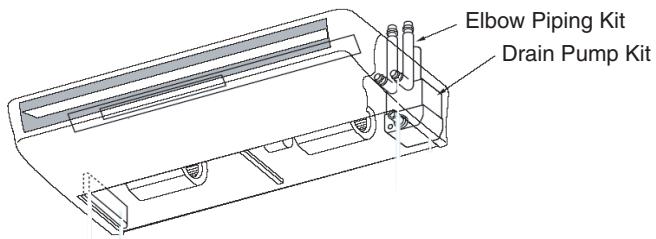

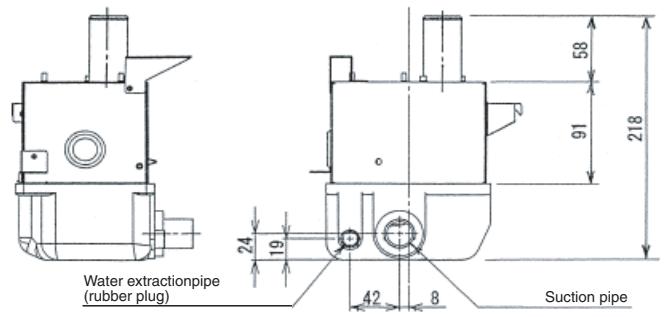

5-2. Drain up kit 5-4
5-3. Twin kit 5-5

1. System Overview

1-1. Single sprit system line up 1-2
1-2. Twin sprit system line up 1-3

1. System Overview

1-1. Single Sprit System Line Up

Type		HP Capacity kW	2	3	4	5
			5.0	7.1	10.0	12.3
		Outdoor unit	TOSHIDA Cocimora a Purin
		Model name	RAV-SP562AT-E	RAV-SP802AT-E	RAV-SP1102AT-E	RAV-SP1402AT-E
4-way Cassette Type		RAV-SM562UT-E	●	●	●	●
		RAV-SM802UT-E
		RAV-SP1102UT-E
		RAV-SM1402UT-E
Duct Type		RAV-SM562BT-E	●	●	●	●
		RAV-SM802BT-E
		RAV-SM1102BT-E
		RAV-SM1402BT-E
Ceiling Type		RAV-SM562CT-E	●	●	●	●
		RAV-SM802CT-E
		RAV-SM1102CT-E
		RAV-SM1402CT-E
High-Wall Type		RAV-SM562KRT-E	●	●	—	—
		RAV-SM802KRT-E

1-2. Twin Sprit System Line Up

Type		HP Capacity kW	2	3	4	5
			5.3	7.1	10.0	12.3
		Outdoor unit	TOSHRA CABLE S
		Model name	RAV-SP562AT-E	RAV-SP802AT-E	RAV-SP1102AT-E	RAV-SP1402AT-E
4-way Cassette Type		RAV- SM562UT-E x 2	—	—	●	●
		RAV- SM802UT-E x 2
Duct Type		RAV- SM562BT-E x 2	—	—	●	●
		RAV- SM802BT-E x 2
Ceiling Type		RAV- SM562CT-E x 2	—	—	●	●
		RAV- SM802CT-E x 2
High-Wall Type		RAV- SM562KRT-E x 2	—	—	●	●
		RAV- SM802KRT-E x 2

2. Technical Data

2-1. 4-way cassette type

2-1-1. Single system Specifications 2-2
2-1-2. Twin system specifications 2-3
2-1-3. Dimension 2-4
2-1-4. Wiring diagram 2-6
2-1-5. Refrigerant cycle diagram 2-7
2-1-6. Sensible capacity table 2-11

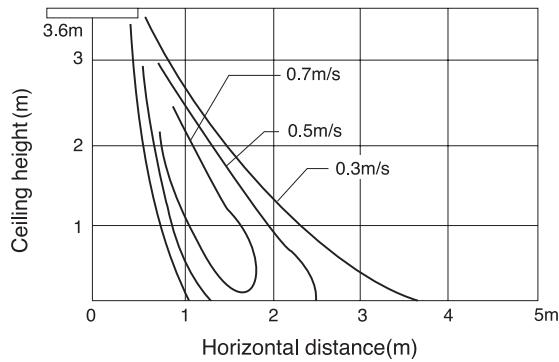

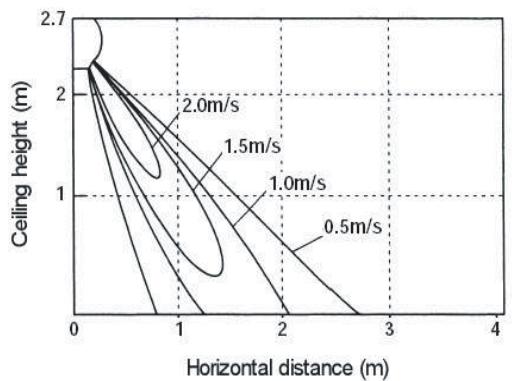

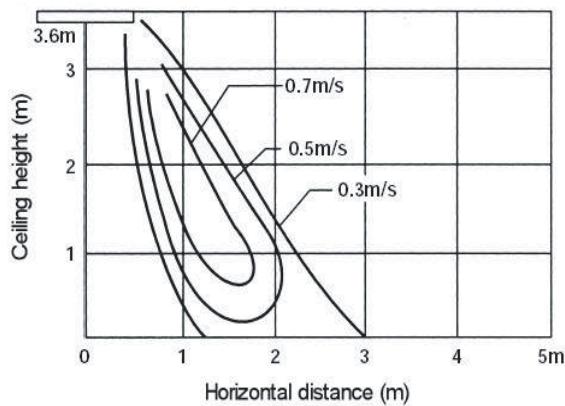

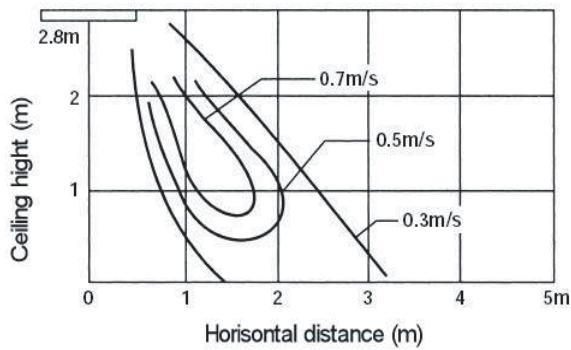

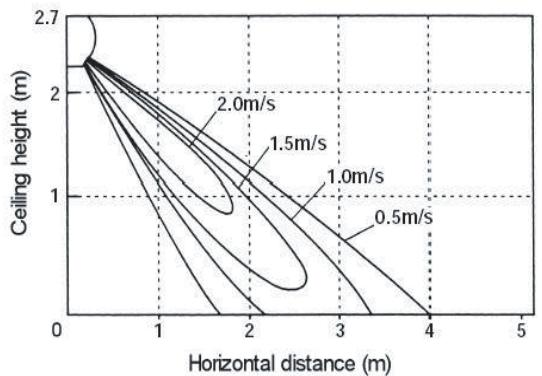

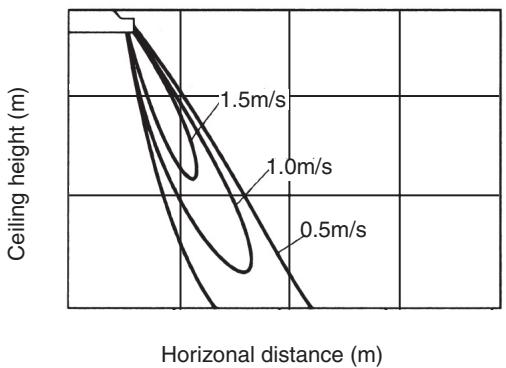

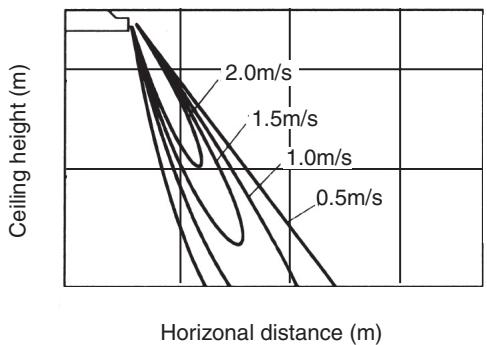

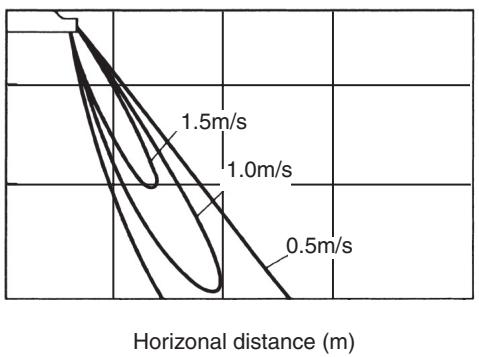

2-1-7. Air throw distance chart 2-12

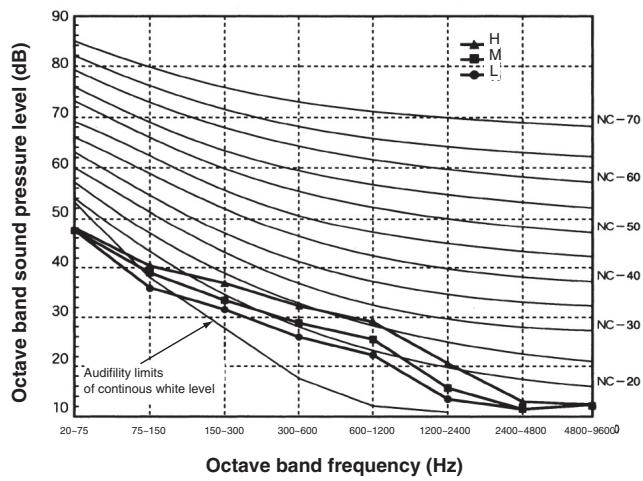

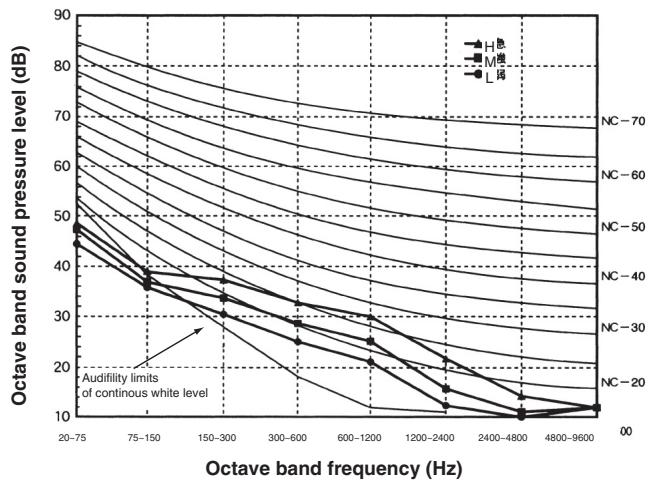

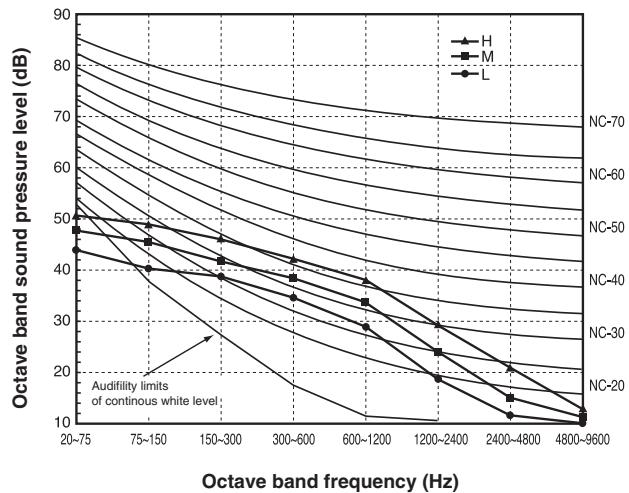

2-1-8. Sound characteristics 2-13

2-1. 4-way cassette type

2-1-1. Single System Specifications

Model		Indoor unit RAV-		SM562UT-E	SM802UT-E	SP1102UT-E	SM1402UT-E
		Outdoor unit RAV-		SP562AT-E	SP802AT-E	SP1102AT-E	SP1402AT-E
Cooling capacity		(kW)		5.3	7.1	10.0	12.5
Heating capacity		(kW)		5.6	8.0	11.2	14.0
Power supply				1 phase 230V (220 - 240V) 50Hz
Electrical characteristics	Cooling	Running current (A)		7.17 - 6.57	8.95 - 8.21	11.24 - 10.31	16.51 - 15.14
		Power consumption (kW)		1.53	1.93	2.40	3.56
		Power factor (%)		97	98	97	98
		EER (W/W)		3.46	3.68	4.17	3.51
		Energy efficiency class *		A	A	A	A
		Energy rating **		—	—	—	—
	Heating	Running current (A)		5.62 - 5.15	9.42 - 8.63	12.28 - 11.25	16.60 - 15.22
		Power consumption (kW)		1.20	2.03	2.62	3.58
		Power factor (%)		97	98	97	98
		COP (W/W)		4.67	3.94	4.27	3.91
		Energy efficiency class *		A	A	A	A
		Energy rating **		—	—	—	—
Appearance	Main unit			Zinc hot dipping steel plate
	Ceiling panel (Sold separately)	Model		RBC-U21PG (W)-E2
		Panel color		Moon-white (Muncel 2.5GY 9.0/0.5)
Outer dimension	Main unit	Height (mm)		256	256	320	320
		Width (mm)		840	840	840	840
		Depth (mm)		840	840	840	840
	Ceiling panel (Sold separately)	Height (mm)		35	35	35	35
		Width (mm)		950	950	950	950
		Depth (mm)		950	950	950	950
Total weight	Main unit (kg)			21	22	26	26
	Ceiling panel (Sold separately) (kg)			4.5	4.5	4.5	4.5
Heat exchanger				Finned tube
Fan unit	Fan			Turbo fan	Turbo fan	Turbo fan	Turbo fan
	Standard air flow	H/M/L (m³/min)		17.5/13.9/12.1	20.0/15.7/13.6	28.0/22.0/18.0	33.0/25.0/20.0
	Motor (W)			60	60	90	90
Air filter				TCB-LF1601UE, UFM1601UE, UFH1601UE
Controller (Sold separately)				RBC-AMT31E2, AS21E2, TCB-SC642TLE2, AX21U (W)-E2
Connecting pipe		Gas side (mm)		12.7	15.9	15.9	15.9
		Liquid side (mm)		6.4	9.5	9.5	9.5
		Drain port (mm)		VP25
Sound pressure level		H/M/L (dB·A)		32/29/27	34/31/28	39/36/33	42/38/34
Sound power level		H/M/L (dB·A)		47/44/42	49/46/43	54/51/48	57/53/49

: IEC standard, *: AS standard

2-1-2. Twin System Specifications

Model	Type			4-Way Air Cassette
	Indoor unit 1 RAV-			SM562UT-E	SM802UT-E
	Indoor unit 2 RAV-			SM562UT-E	SM802UT-E
	Outdoor unit RAV-			SP1102AT-E	SP1402AT-E
Cooling capacity (kW)				10.0	12.5
Heating capacity (kW)				11.2	14.0
Indoor unit
Power supply				1 phase 230V (220 - 240V) 50Hz
Electrical characteristics	Cooling	Running current (A)		11.24-10.31	16.51-15.14
		Power consumption (kW)		2.40	3.56
		Powerfactor (%)		97	98
		EER (W/W)		4.17	3.51
		Energy efficiency class *		A	A
	Heating	Running current (A)		1195-10.95	16.60-15.22
		Power consumption (kW)		2.55	3.58
		Powerfactor (%)		97	98
		COP (W/W)		4.39	3.91
		Energy efficiency class *		A	A
Fan unit	Fan			Turbo fan	Turbo fan
	Standard air flow		H/M/L (m³/min)	17.5/13.9/12.1	20.0/15.7/13.6
	Motor (W)			60	60
Sound pressure level			H/M/L (dB·A)	32/29/27	34/31/28
Sound power level			H/M/L (dB·A)	47/44/42	49/46/43
Outdoor unit
Power supply				1 phase 230V (220 - 240V) 50Hz (Power exclusive to outdoor is required.)
Inter connecting pipes	Standard length (m)			7.5	7.5
	Min. length (m)			5.0	5.0
	Max. total length (m)			50	50
	Over 30m			40g/m (31m to 50m)
	Height difference	Outdoor lower (m)		30	30
		Outdoor high (m)		30	30
Fan unit	Fan			Propeller fan
	Standard air flow high (m³/min)			125	125
	Motor (W)			63 + 63	63 + 63
Connecting pipe	Gas side	Main (mm)		15.9	15.9
		Sub (mm)		12.7	15.9
	Liquid side	Main (mm)		9.5	9.5
		Sub (mm)		6.4	9.5
Sound pressure level		Cooling/Heating (dB·A)		49/51	53/54
Sound power level		Cooling/Heating (dB·A)		66/68	70/71

*: IEC standard

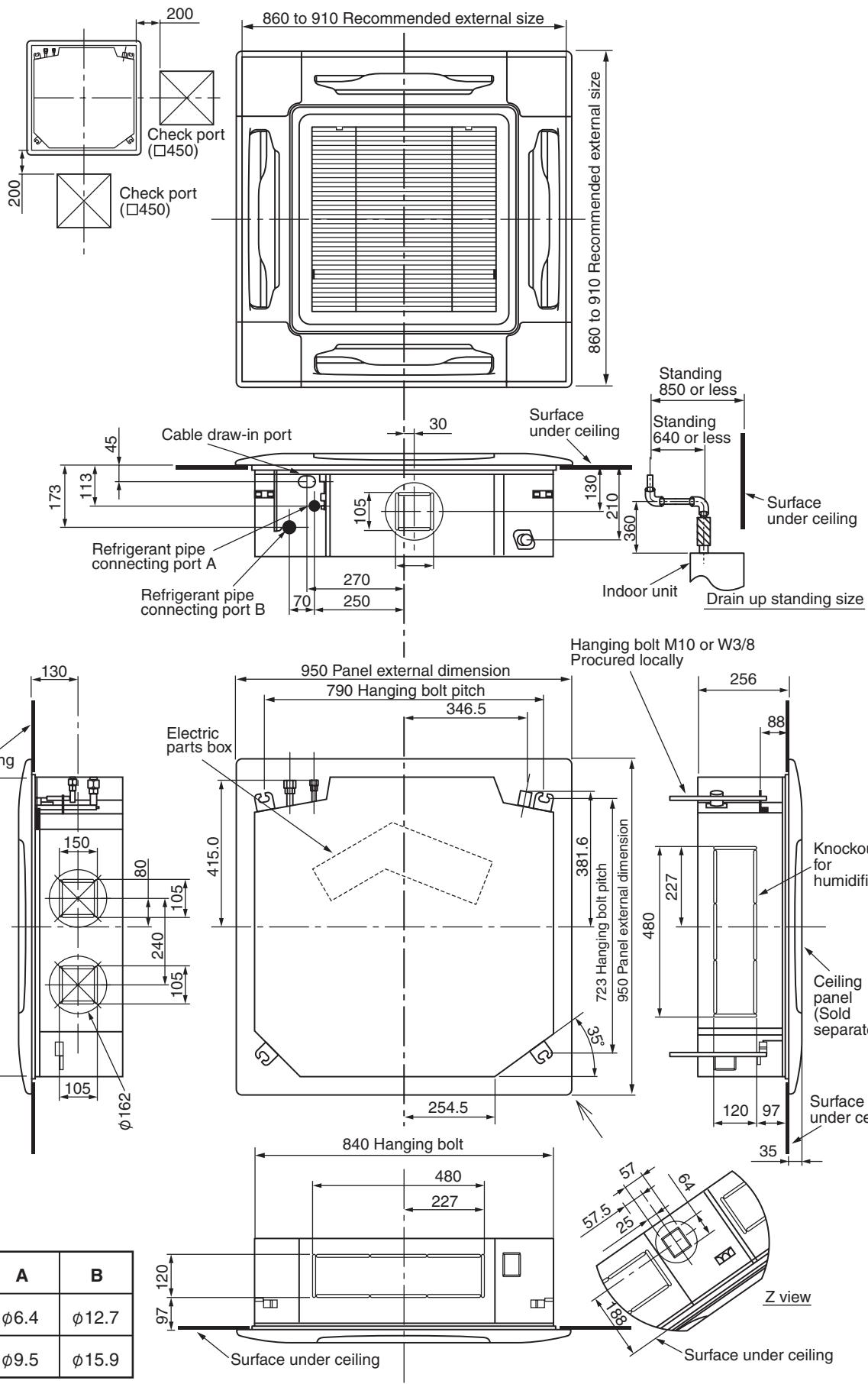

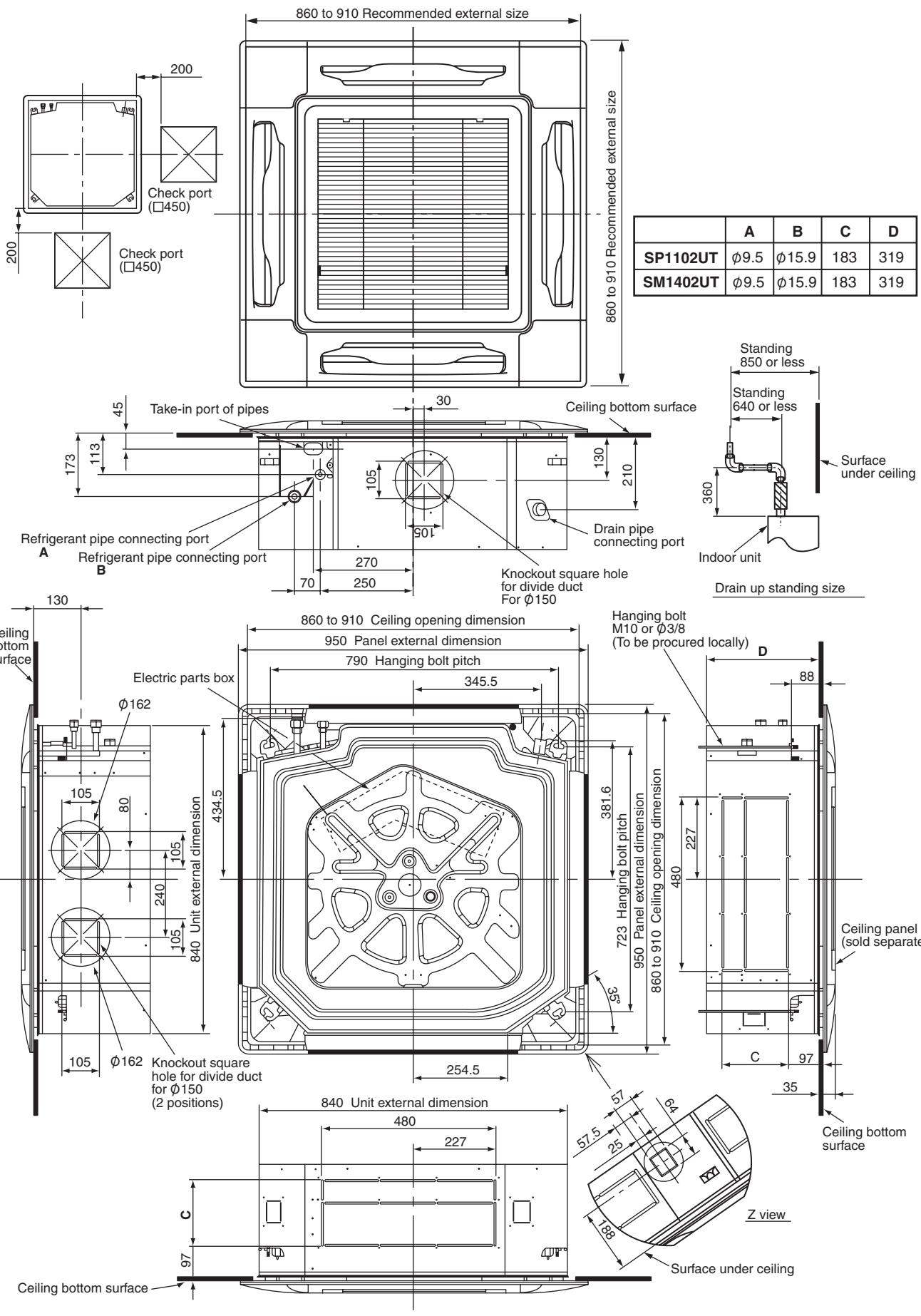

2-1-3. Dimension

RAV-SM562UT-E, RAV-SM802UT-E

	A	B
SM562	φ6.4	φ12.7
SM802	φ9.5	φ15.9

RAV-SP1102UT-E, RAV-SM1402UT-E

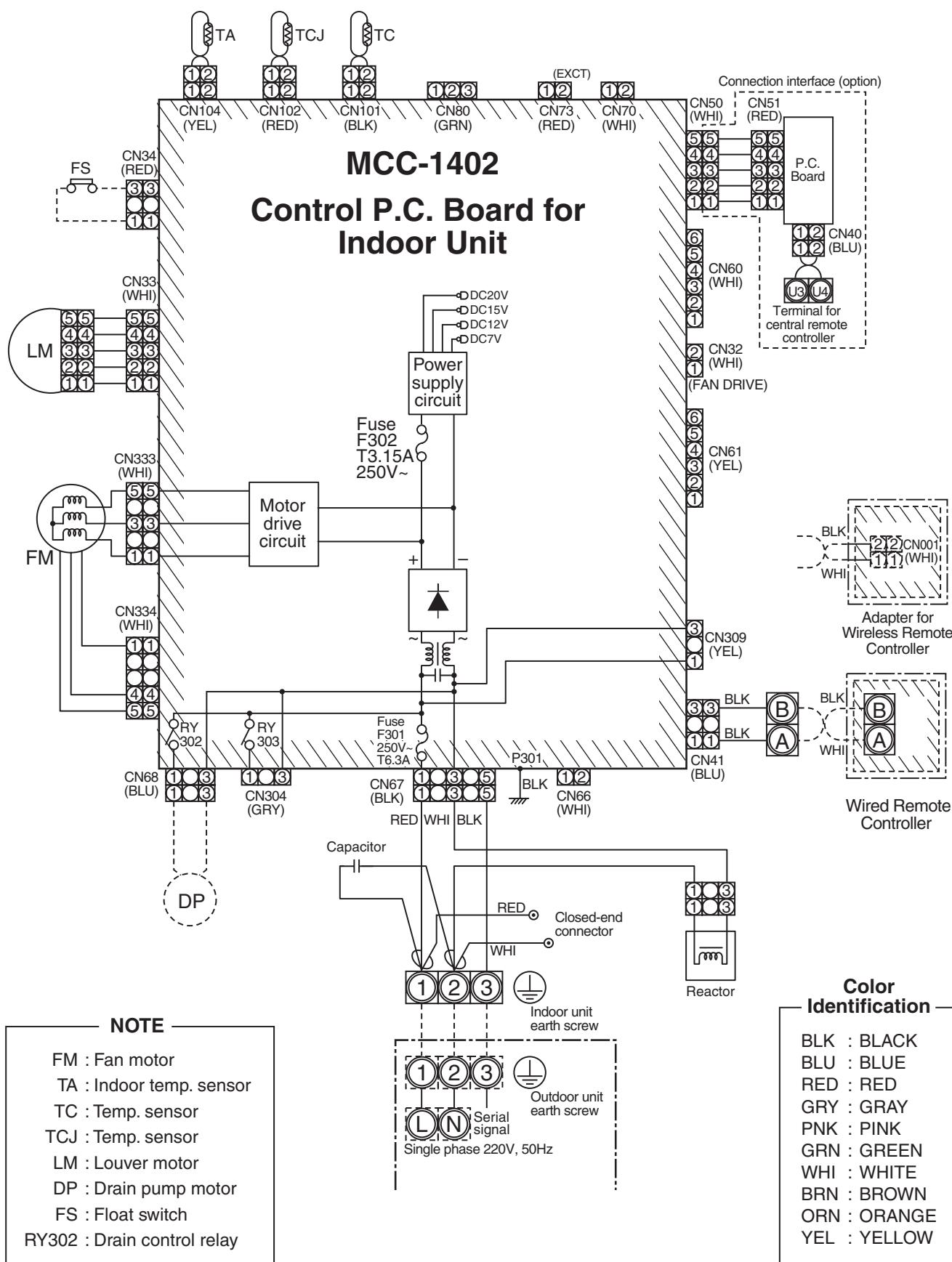

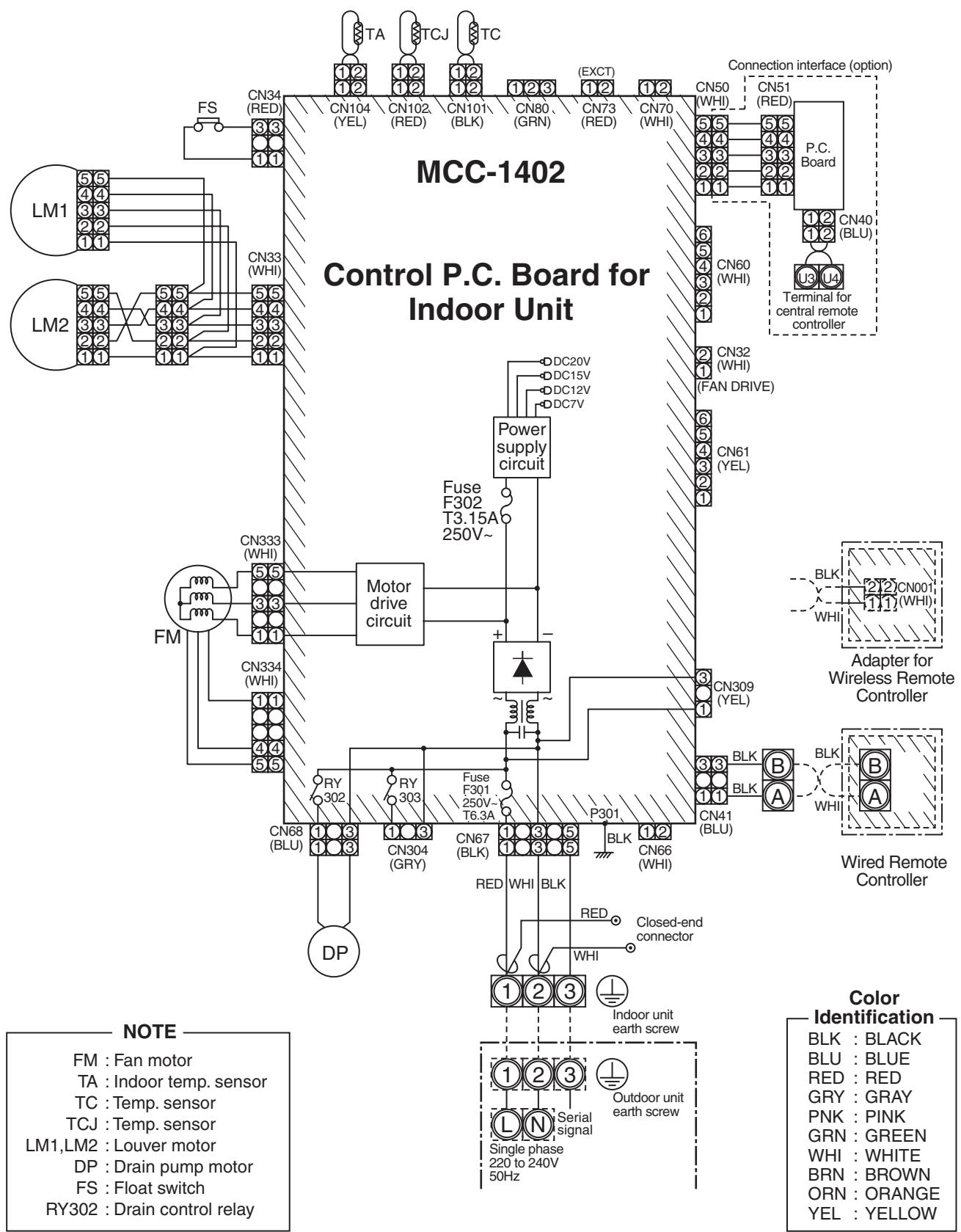

2-1-4. Wiring Diagram

RAV-SM562UT-E, RAV-SM802UT-E, RAV-SP1102UT-E, RAV-SM1402UT-E

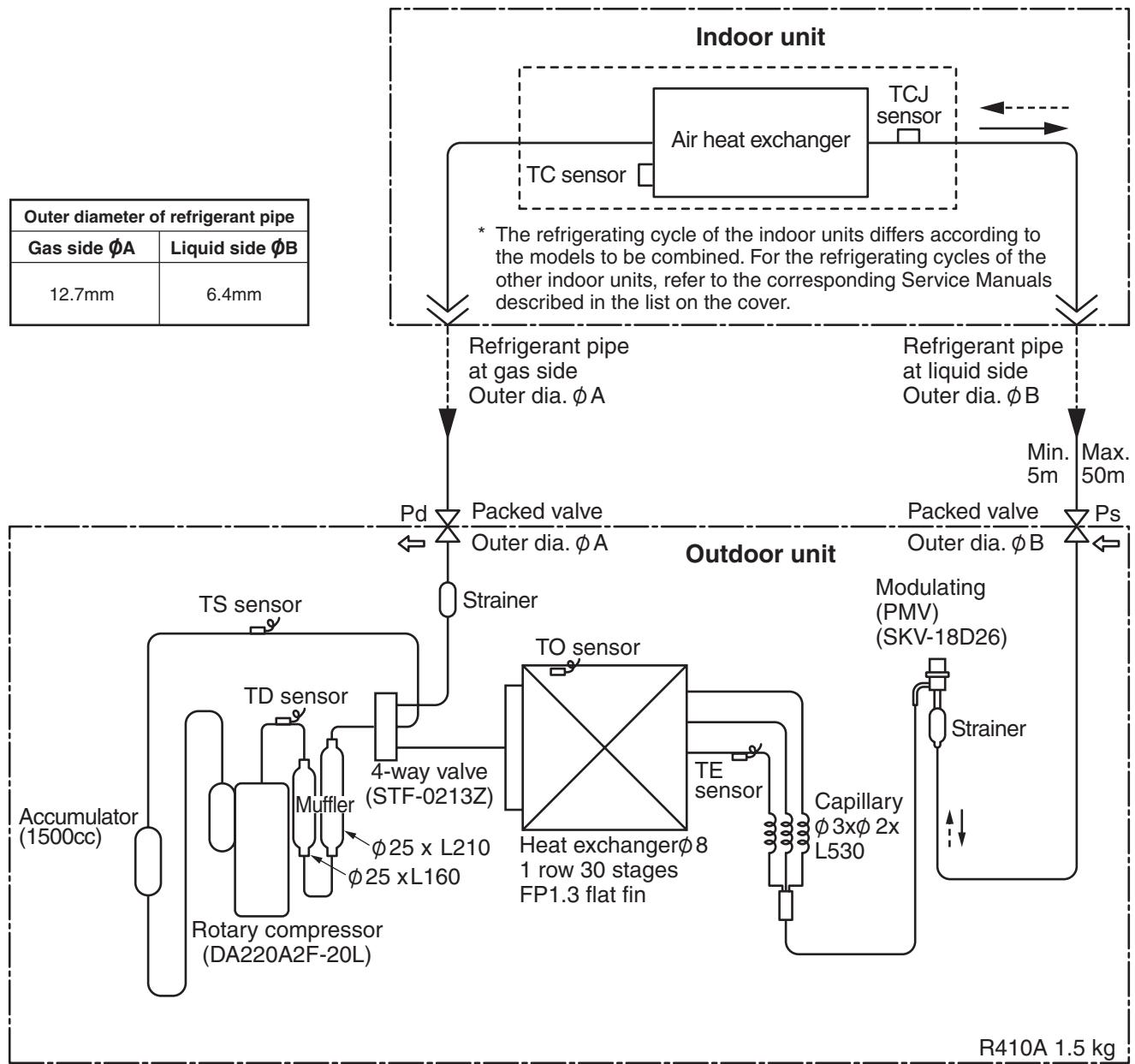

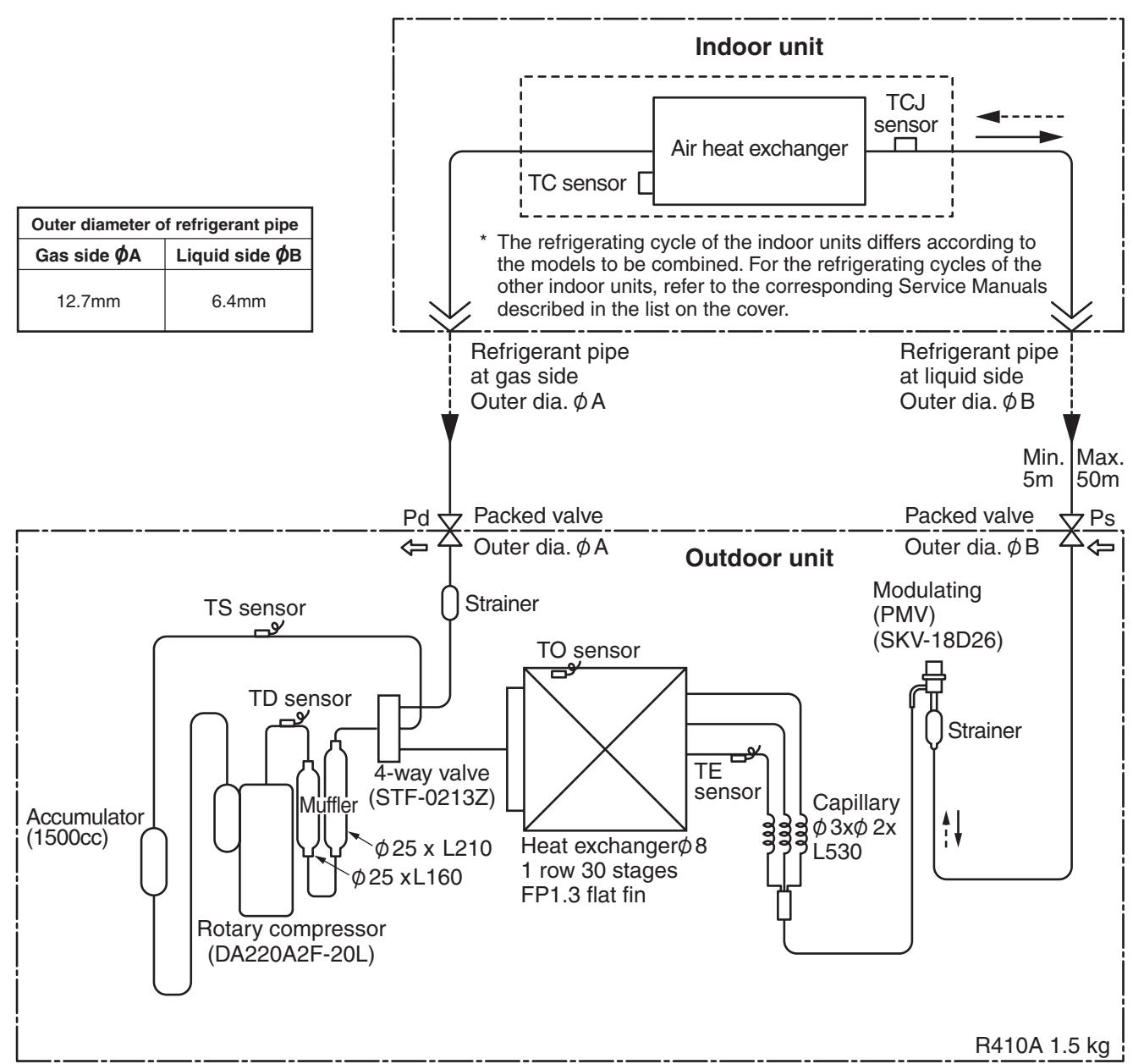

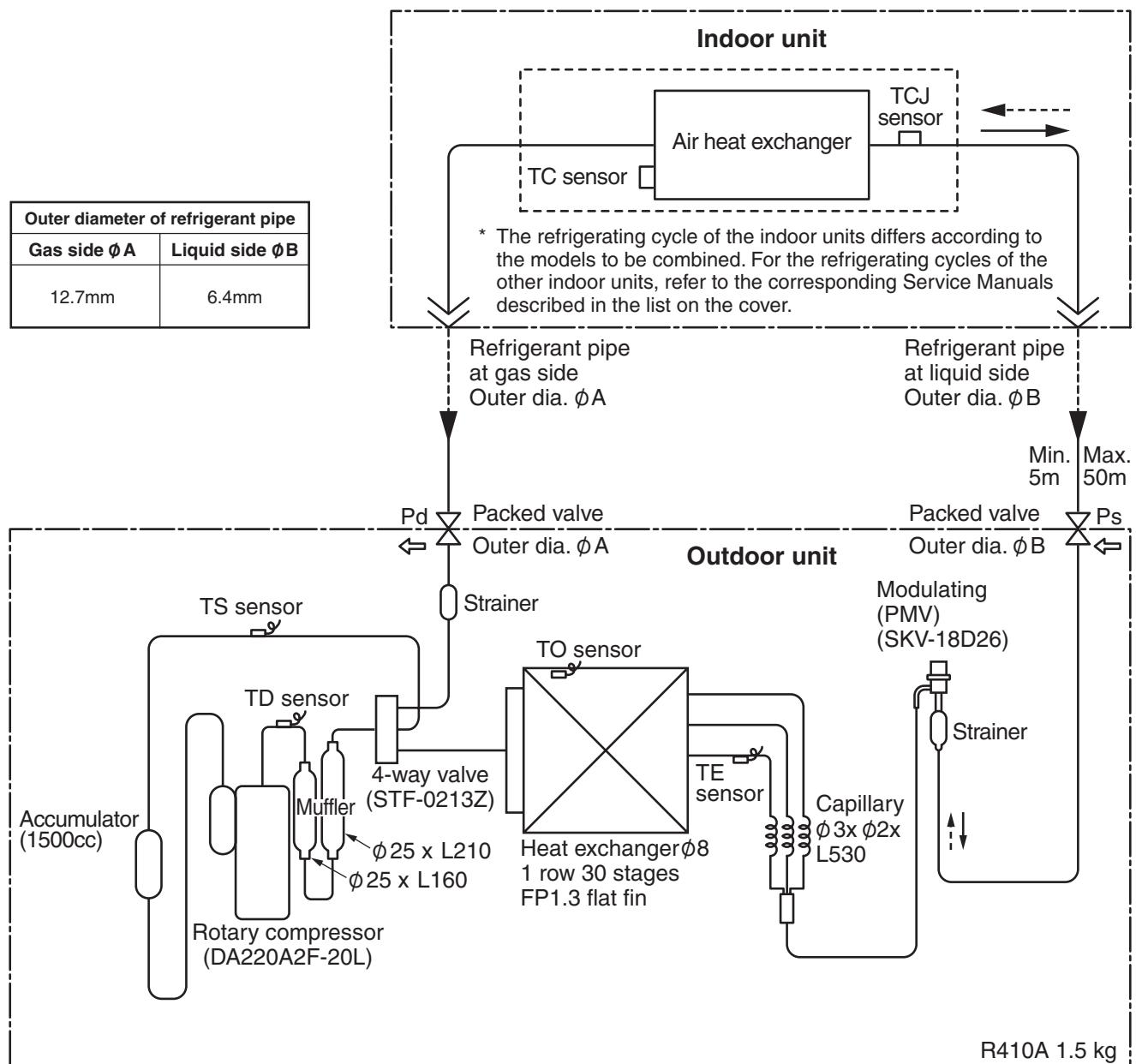

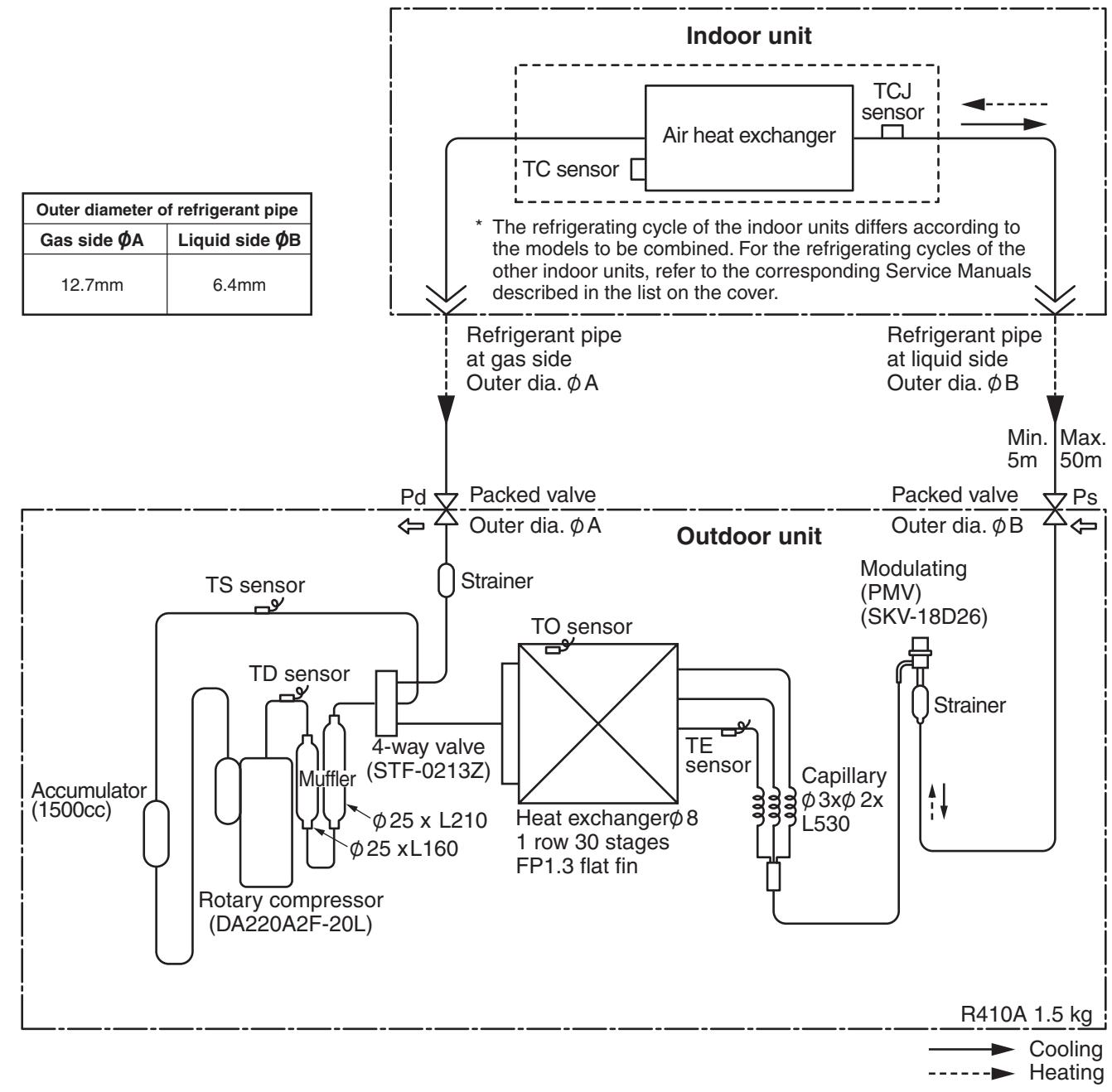

2-1-5. Refrigerant Cycle Diagram

RAV-SM562UT-E, RAV-SP562AT-E

Cooling Heating

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.71	1.03	75	15	10	38	43	HIGH	27/19	35/-
	Overload	3.48	1.16	81	20	16	51	44	HIGH	32/24	43/-
	Low load	1.92	0.74	34	5	2	11	24	LOW	18/15.5	-5/-
Heating	Standard	2.22	0.72	62	6	38	2	41	HIGH	20/-	7/6
	Overload	3.47	1.16	81	20	55	15	41	LOW	30/-	24/18
	Low load	1.79	0.25	71	-16	30	-18	70	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

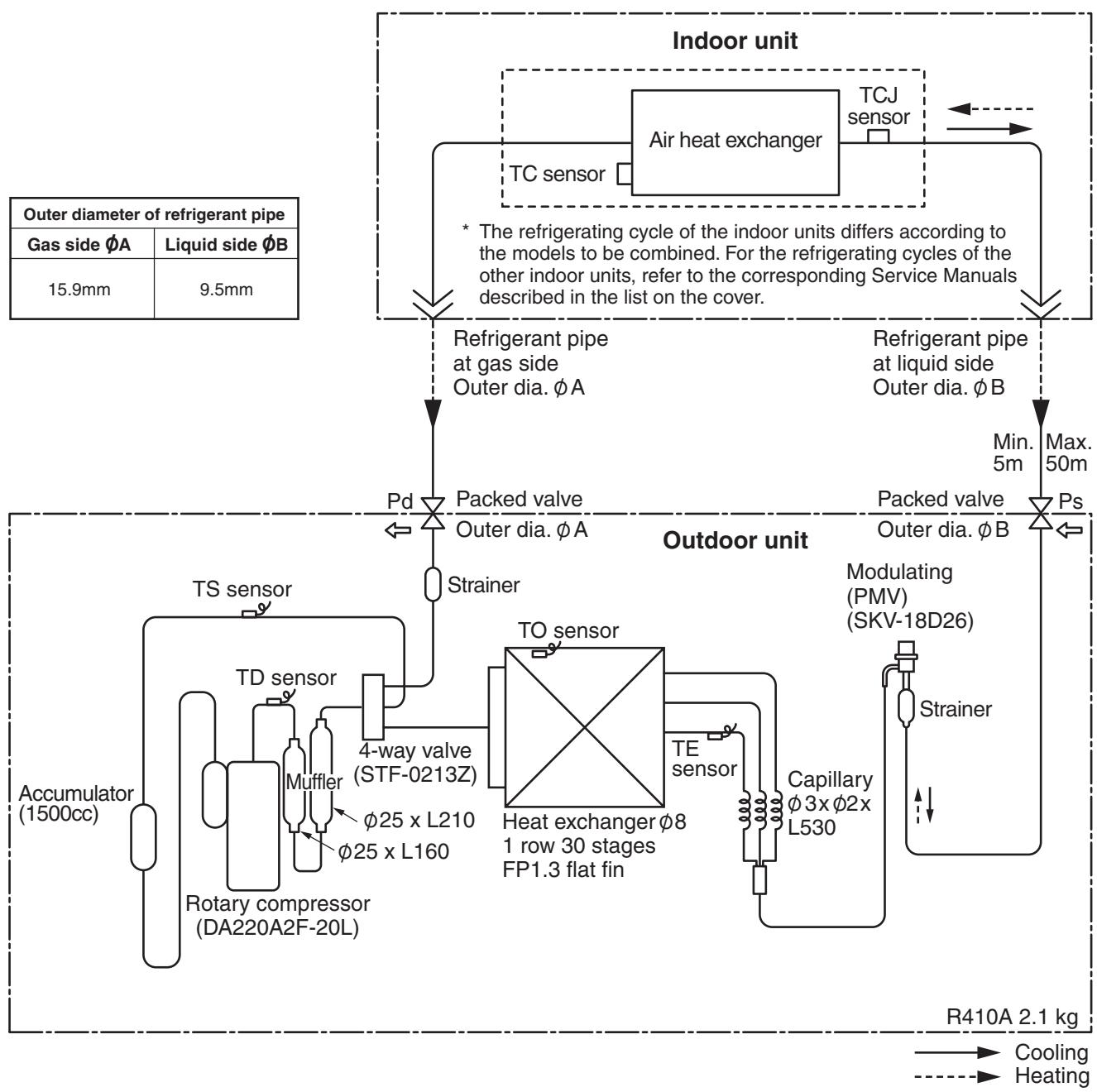

RAV-SM802UT-E, RAV-SP802AT-E

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.72	0.93	74	12	11	40	55	HIGH	27/19	35/-
	Overload	3.57	1.10	80	21	17	52	47	HIGH	32/24	43/-
	Low load	1.89	0.74	34	7	2	12	24	LOW	18/15.5	-5/-
Heating	Standard	2.58	0.68	72	4	41	2	62	HIGH	20/-	7/6
	Overload	3.49	1.22	79	19	55	16	28	LOW	30/-	24/18
	Low load	2.30	0.25	91	-17	37	-19	90	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

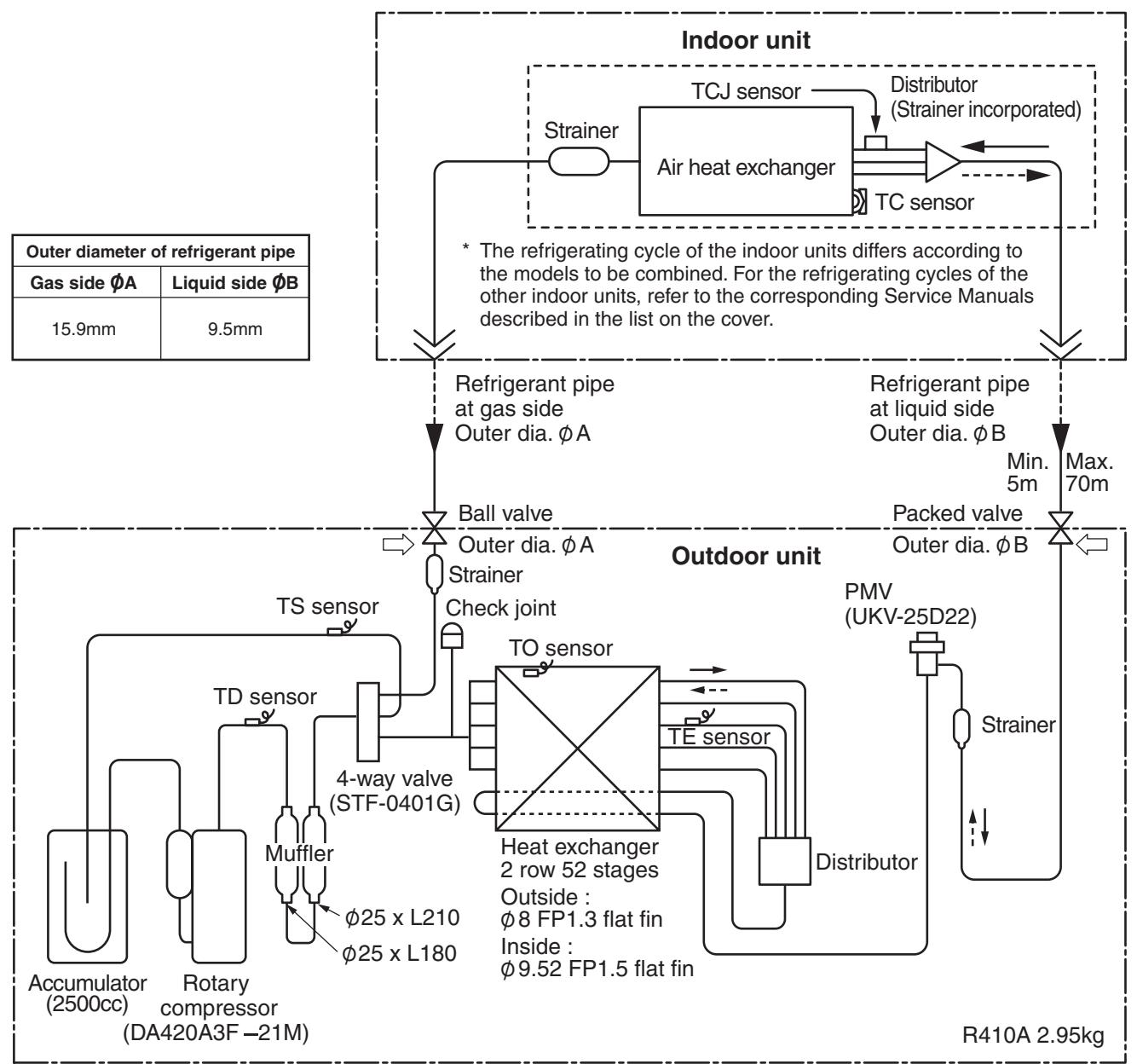

RAV-SP1102UT-E, RAV-SP1102AT-E

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.55	0.98	69	12	10	40	40	HIGH	27/19	35/-
	Overload	3.28	1.08	82	17	16	48	50	HIGH	32/24	43/-
	Low load	1.76	0.76	47	8	5	27	24	LOW	18/15.5	-5/-
Heating	Standard	2.58	0.73	68	3	40	3	44	HIGH	20/-	7/6
	Overload	3.43	1.18	75	20	56	16	24	LOW	30/-	24/18
	Low load	2.10	0.32	88	-14	34	-13	63	HIGH	15/-	-15/(70%)

* 4 poles are provided to this compressor. The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

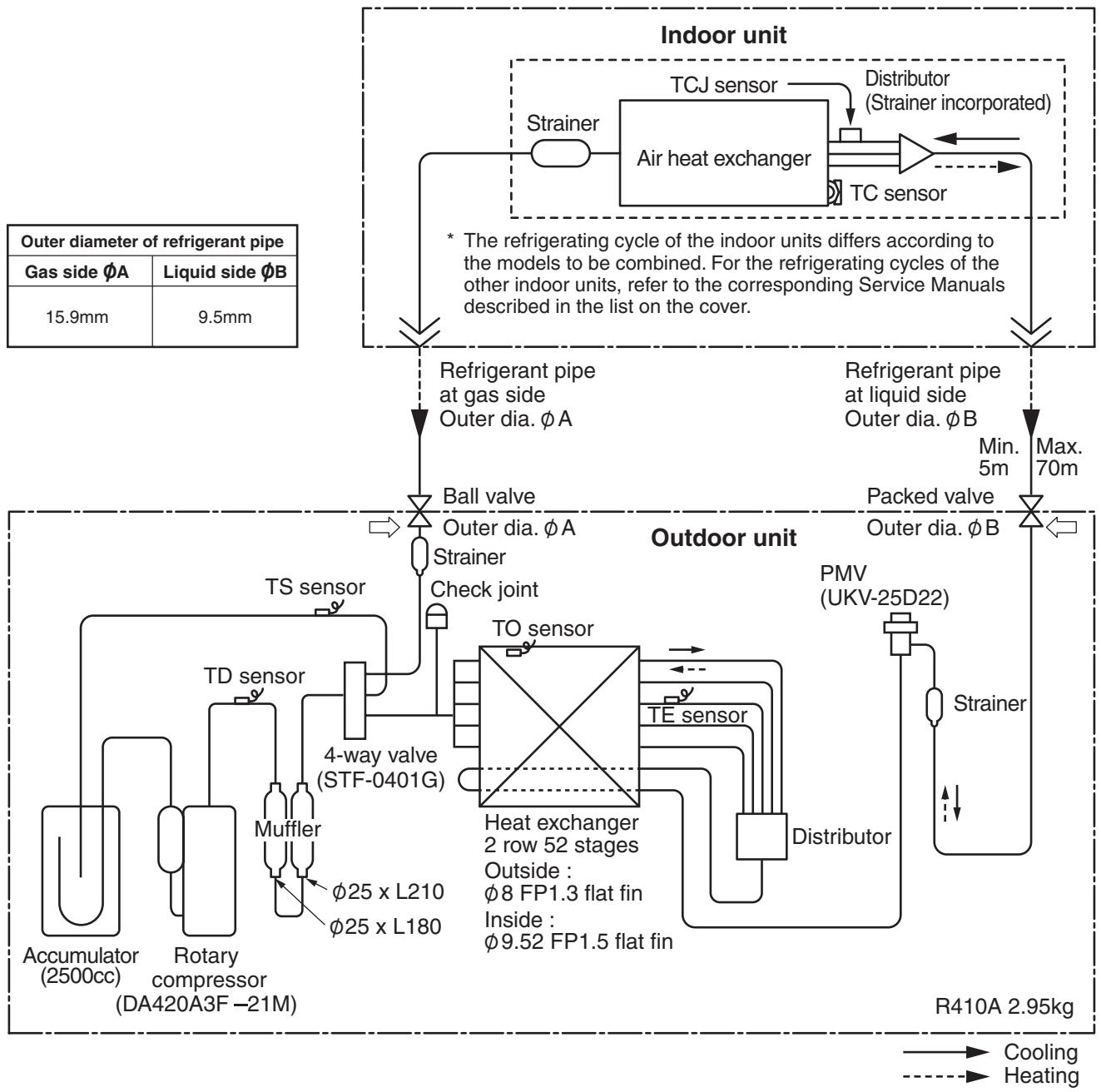

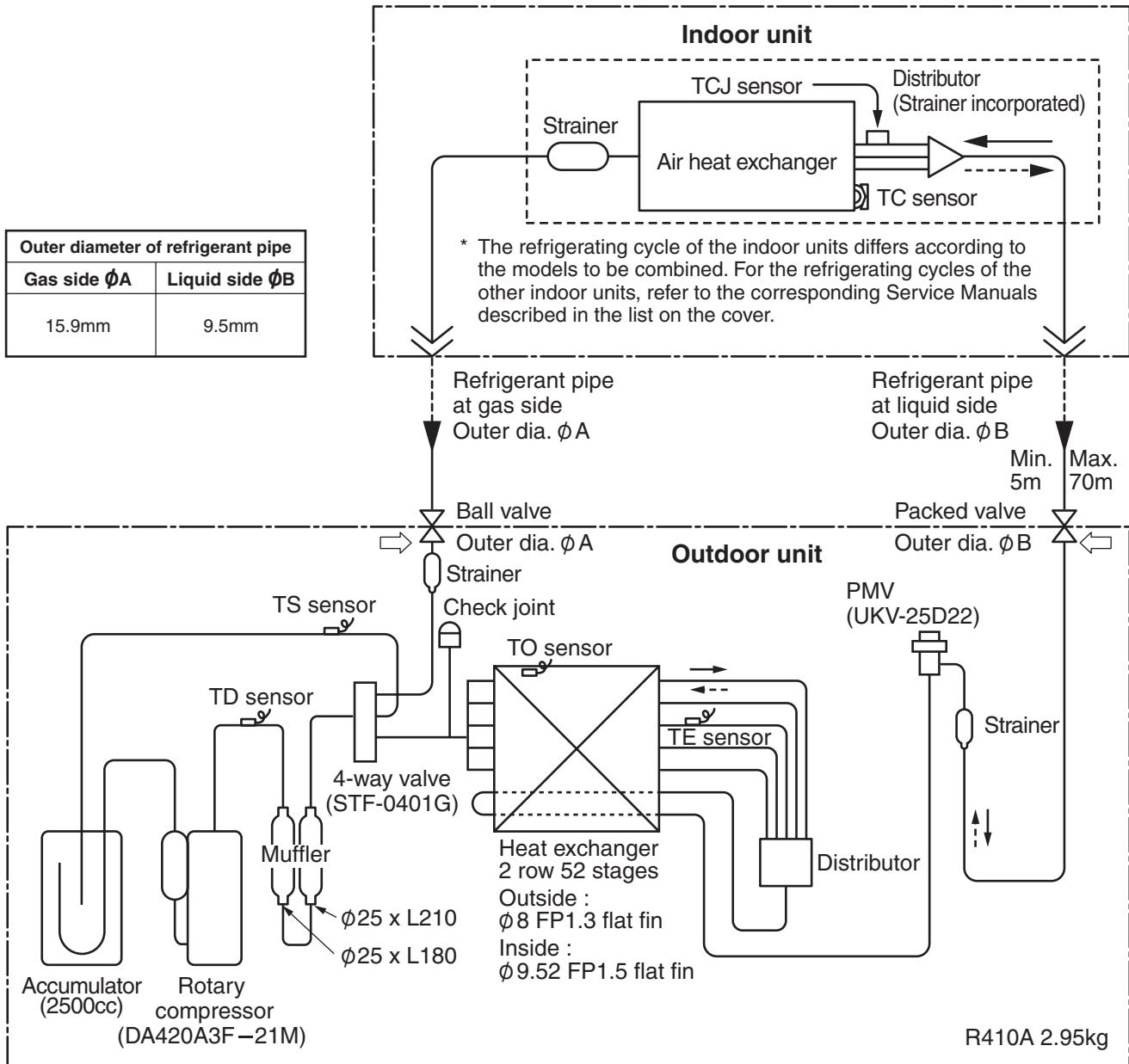

RAV-SM1402UT-E, RAV-SP1402AT-E

Cooling
Heating

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.76	0.91	74	11	9	39	53	HIGH	27/19	35/-
	Overload	3.46	1.03	82	17	16	48	51	HIGH	32/24	43/-
	Low load	1.77	0.78	48	9	6	27	24	LOW	18/15.5	-5/-
Heating	Standard	2.65	0.69	75	3	43	3	55	HIGH	20/-	7/6
	Overload	3.33	1.08	74	19	55	15	24	LOW	30/-	24/18
	Low load	2.50	0.22	98	-22	43	-18	73	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

2-1-6. Sensible Capacity Table

RAV-SM562UT-E, SM802UT-E, SP1102UT-E, SM1402UT-E

indoor air temp.
unit size	outdoor air temp. CDB	14.0CWB 20.0CDB		16.0CWB 23.0CDB		18.0CWB 26.0CDB		19.0CWB 27.0CDB		20.0CWB 28.0CDB		22.0CWB 30.0CDB		24.0CWB 32.0CDB
		TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC
562	10.0	5.0	3.5	5.5	3.8	5.9	4.1	6.1	4.2	6.2	4.4	6.6	4.6	6.9	4.8
	12.0	4.9	3.5	5.5	3.8	5.8	4.1	6.0	4.2	6.2	4.3	6.6	4.6	6.9	4.8
	14.0	4.9	3.4	5.4	3.8	5.8	4.1	6.0	4.2	6.2	4.3	6.5	4.6	6.8	4.8
	16.0	4.9	3.4	5.4	3.8	5.8	4.0	5.9	4.1	6.1	4.3	6.5	4.5	6.8	4.7
	18.0	4.8	3.4	5.3	3.7	5.7	4.0	5.9	4.1	6.1	4.2	6.4	4.5	6.7	4.7
	20.0	4.8	3.4	5.3	3.7	5.7	4.0	5.8	4.1	6.0	4.2	6.4	4.4	6.7	4.6
	21.0	4.8	3.3	5.3	3.7	5.7	3.9	5.8	4.1	6.0	4.2	6.3	4.4	6.6	4.6
	23.0	4.7	3.3	5.2	3.6	5.6	3.9	5.8	4.0	5.9	4.1	6.3	4.4	6.6	4.6
	25.0	4.7	3.3	5.2	3.6	5.5	3.9	5.7	4.0	5.9	4.1	6.2	4.3	6.5	4.5
	27.0	4.6	3.2	5.1	3.6	5.5	3.8	5.6	3.9	5.8	4.0	6.1	4.3	6.4	4.5
	29.0	4.6	3.2	5.0	3.5	5.4	3.8	5.6	3.9	5.7	4.0	6.1	4.2	6.3	4.4
	31.0	4.5	3.1	5.0	3.5	5.3	3.7	5.5	3.8	5.6	3.9	6.0	4.2	6.2	4.4
	33.0	4.4	3.1	4.9	3.4	5.2	3.7	5.4	3.8	5.5	3.9	5.9	4.1	6.1	4.3
	35.0	4.4	3.0	4.8	3.4	5.1	3.6	5.3	3.7	5.5	3.8	5.8	4.0	6.0	4.2
	37.0	4.3	3.0	4.7	3.3	5.1	3.5	5.2	3.6	5.3	3.7	5.7	4.0	5.9	4.1
	39.0	4.2	2.9	4.6	3.2	4.9	3.5	5.1	3.6	5.2	3.7	5.5	3.9	5.8	4.1
802	10.0	6.7	4.6	7.4	5.1	7.9	5.4	8.1	5.6	8.3	5.8	8.8	6.1	9.2	6.4
	12.0	6.6	4.6	7.3	5.0	7.8	5.4	8.1	5.6	8.3	5.7	8.8	6.1	9.2	6.3
	14.0	6.6	4.5	7.3	5.0	7.8	5.4	8.0	5.5	8.2	5.7	8.7	6.0	9.1	6.3
	16.0	6.5	4.5	7.2	5.0	7.7	5.3	8.0	5.5	8.2	5.6	8.7	6.0	9.1	6.3
	18.0	6.5	4.5	7.2	4.9	7.7	5.3	7.9	5.4	8.1	5.6	8.6	5.9	9.0	6.2
	20.0	6.4	4.4	7.1	4.9	7.6	5.3	7.8	5.4	8.1	5.6	8.5	5.9	8.9	6.2
	21.0	6.4	4.4	7.1	4.9	7.6	5.2	7.8	5.4	8.0	5.5	8.5	5.9	8.9	6.1
	23.0	6.3	4.4	7.0	4.8	7.5	5.2	7.7	5.3	7.9	5.5	8.4	5.8	8.8	6.1
	25.0	6.3	4.3	6.9	4.8	7.4	5.1	7.6	5.3	7.9	5.4	8.3	5.7	8.7	6.0
	27.0	6.2	4.3	6.8	4.7	7.3	5.1	7.5	5.2	7.8	5.4	8.2	5.7	8.6	5.9
	29.0	6.1	4.2	6.7	4.7	7.2	5.0	7.4	5.1	7.7	5.3	8.1	5.6	8.5	5.9
	31.0	6.0	4.2	6.7	4.6	7.1	4.9	7.3	5.1	7.5	5.2	8.0	5.5	8.4	5.8
	33.0	5.9	4.1	6.5	4.5	7.0	4.8	7.2	5.0	7.4	5.1	7.9	5.4	8.2	5.7
	35.0	5.8	4.0	6.4	4.4	6.9	4.8	7.1	4.9	7.3	5.0	7.7	5.3	8.1	5.6
	37.0	5.7	3.9	6.3	4.4	6.8	4.7	7.0	4.8	7.2	4.9	7.6	5.2	7.9	5.5
	39.0	5.6	3.9	6.2	4.3	6.6	4.6	6.8	4.7	7.0	4.8	7.4	5.1	7.8	5.4
1102	10.0	9.4	7.0	10.4	7.4	11.1	7.9	11.4	7.9	11.8	7.9	12.5	7.8	13.0	7.6
	12.0	9.3	6.9	10.3	7.4	11.0	7.9	11.4	7.8	11.7	7.8	12.4	7.7	12.9	7.6
	14.0	9.3	6.9	10.2	7.3	11.0	7.8	11.3	7.8	11.6	7.8	12.3	7.7	12.9	7.5
	16.0	9.2	6.8	10.2	7.3	10.9	7.8	11.2	7.7	11.5	7.7	12.2	7.6	12.8	7.5
	18.0	9.1	6.8	10.1	7.2	10.8	7.7	11.1	7.7	11.4	7.7	12.1	7.6	12.7	7.4
	20.0	9.1	6.7	10.0	7.2	10.7	7.6	11.0	7.6	11.3	7.6	12.0	7.5	12.6	7.4
	21.0	9.0	6.7	10.0	7.1	10.7	7.6	11.0	7.6	11.3	7.6	12.0	7.5	12.5	7.3
	23.0	8.9	6.6	9.9	7.1	10.6	7.5	10.9	7.5	11.2	7.5	11.8	7.4	12.4	7.3
	25.0	8.8	6.6	9.8	7.0	10.4	7.4	10.8	7.4	11.1	7.4	11.7	7.3	12.2	7.2
	27.0	8.7	6.5	9.6	6.9	10.3	7.3	10.6	7.3	10.9	7.3	11.6	7.2	12.1	7.1
	29.0	8.6	6.4	9.5	6.8	10.2	7.2	10.5	7.2	10.8	7.2	11.4	7.1	11.9	7.0
	31.0	8.5	6.3	9.4	6.7	10.0	7.1	10.3	7.1	10.6	7.1	11.3	7.0	11.8	6.9
	33.0	8.4	6.2	9.2	6.6	9.9	7.0	10.2	7.0	10.5	7.0	11.1	6.9	11.6	6.8
	35.0	8.2	6.1	9.1	6.5	9.7	6.9	10.0	6.9	10.3	6.9	10.9	6.8	11.4	6.7
	37.0	8.1	6.0	8.9	6.4	9.5	6.8	9.8	6.8	10.1	6.8	10.7	6.7	11.2	6.5
	39.0	7.9	5.9	8.7	6.3	9.3	6.6	9.6	6.6	9.9	6.6	10.5	6.5	10.9	6.4
1402	10.0	11.7	8.5	13.0	9.1	13.9	9.6	14.3	9.6	14.7	9.6	15.6	9.5	16.3	9.3
	12.0	11.7	8.4	12.9	9.0	13.8	9.6	14.2	9.5	14.6	9.5	15.5	9.4	16.2	9.2
	14.0	11.6	8.4	12.8	8.9	13.7	9.5	14.1	9.5	14.5	9.5	15.4	9.4	16.1	9.2
	16.0	11.5	8.3	12.7	8.9	13.6	9.4	14.0	9.4	14.4	9.4	15.3	9.3	16.0	9.1
	18.0	11.4	8.3	12.6	8.8	13.5	9.4	13.9	9.3	14.3	9.3	15.1	9.2	15.8	9.0
	20.0	11.3	8.2	12.5	8.7	13.4	9.3	13.8	9.3	14.2	9.3	15.0	9.2	15.7	9.0
	21.0	11.3	8.2	12.4	8.7	13.3	9.2	13.7	9.2	14.1	9.2	15.0	9.1	15.6	8.9
	23.0	11.2	8.1	12.3	8.6	13.2	9.2	13.6	9.1	14.0	9.1	14.8	9.0	15.5	8.8
	25.0	11.0	8.0	12.2	8.5	13.1	9.1	13.4	9.0	13.8	9.0	14.6	8.9	15.3	8.7
	27.0	10.9	7.9	12.0	8.4	12.9	8.9	13.3	8.9	13.7	8.9	14.5	8.8	15.1	8.6
	29.0	10.8	7.8	11.9	8.3	12.7	8.8	13.1	8.8	13.5	8.8	14.3	8.7	14.9	8.5
	31.0	10.6	7.7	11.7	8.2	12.5	8.7	12.9	8.7	13.3	8.7	14.1	8.6	14.7	8.4
	33.0	10.4	7.6	11.5	8.1	12.3	8.6	12.7	8.5	13.1	8.5	13.8	8.4	14.5	8.3
	35.0	10.3	7.4	11.3	7.9	12.1	8.4	12.5	8.4	12.9	8.4	13.6	8.3	14.2	8.1
	37.0	10.1	7.3	11.1	7.8	11.9	8.3	12.3	8.2	12.6	8.2	13.4	8.1	14.0	8.0
	39.0	9.9	7.1	10.9	7.6	11.7	8.1	12.0	8.1	12.4	8.1	13.1	8.0	13.7	7.8

TC:Total Capacity [kW]
SHC:Sensible Heat Capacity [kW]

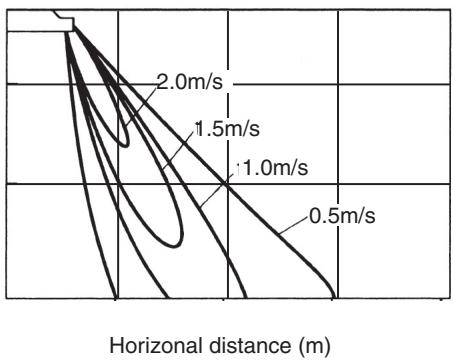

2-1-7. Air Throw Distance Chart

RAV-SM562UT-E

RAV-SM802UT-E

RAV-SM1402UT-E

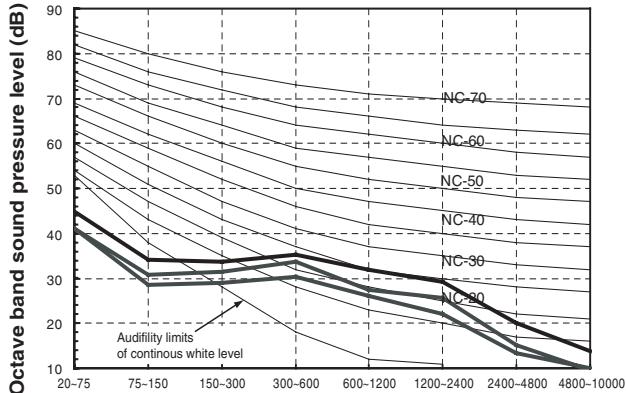

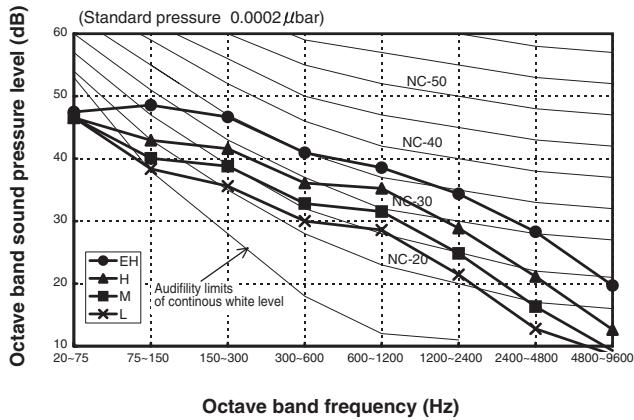

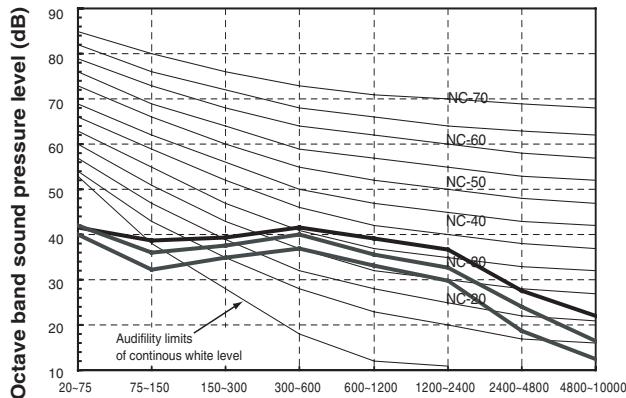

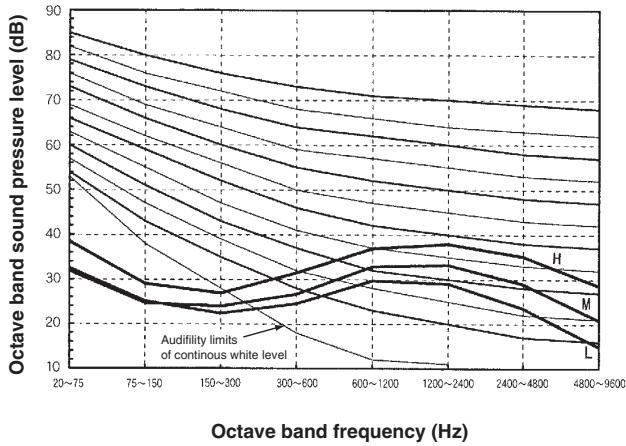

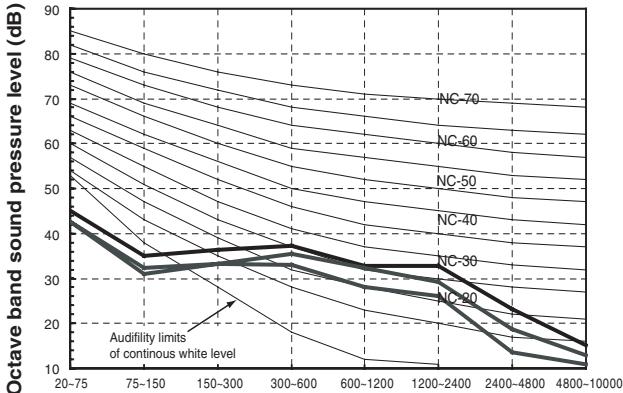

2-1-8. Sound Characteristics (NC curve)

RAV-SM562UT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	32	29	27

RAV-SM802UT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	34	31	28

RAV-SM1402UT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	42	38	34

2-2. Duct type

2-2-1. Single system Specifications 2-15
2-2-2. Twin system specifications 2-16
2-2-3. Dimension 2-17
2-2-4. Wiring diagram 2-18
2-2-5. Refrigerant cycle diagram 2-19
2-2-6. Sensible capacity table 2-23

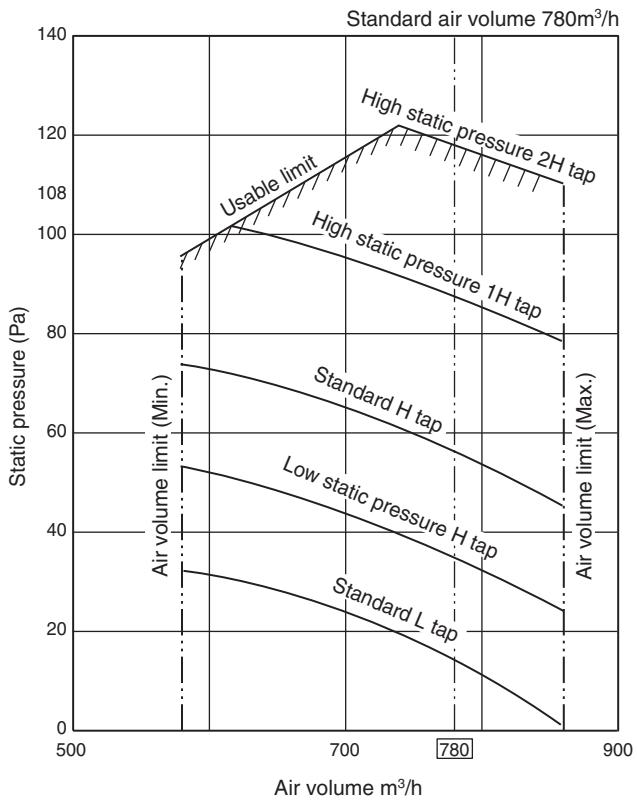

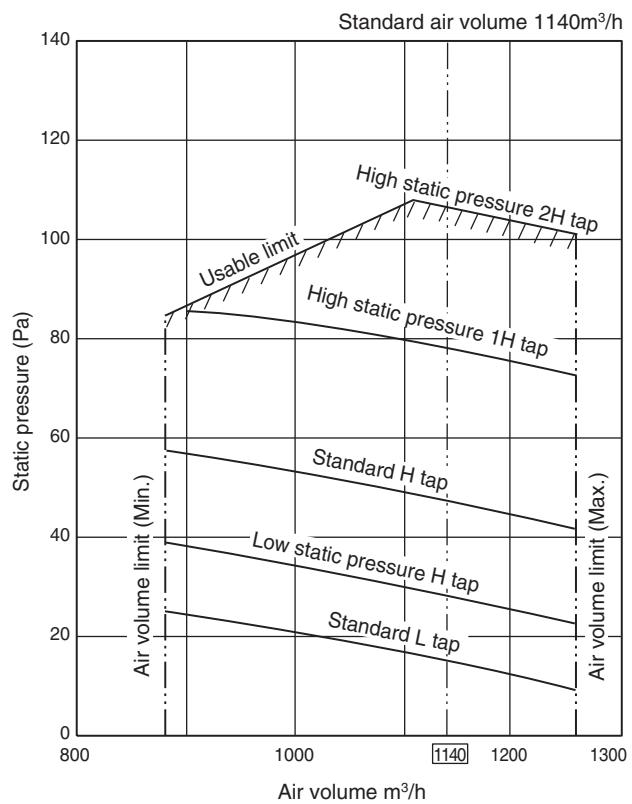

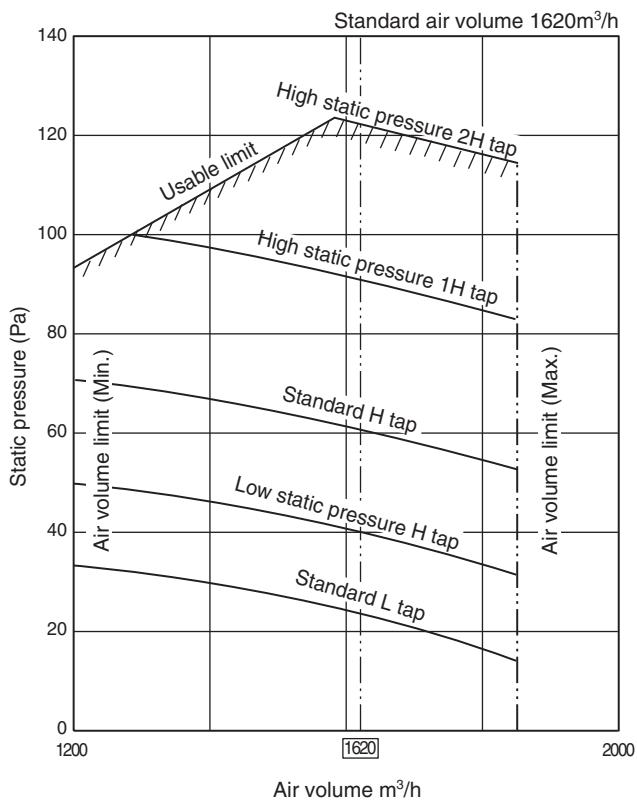

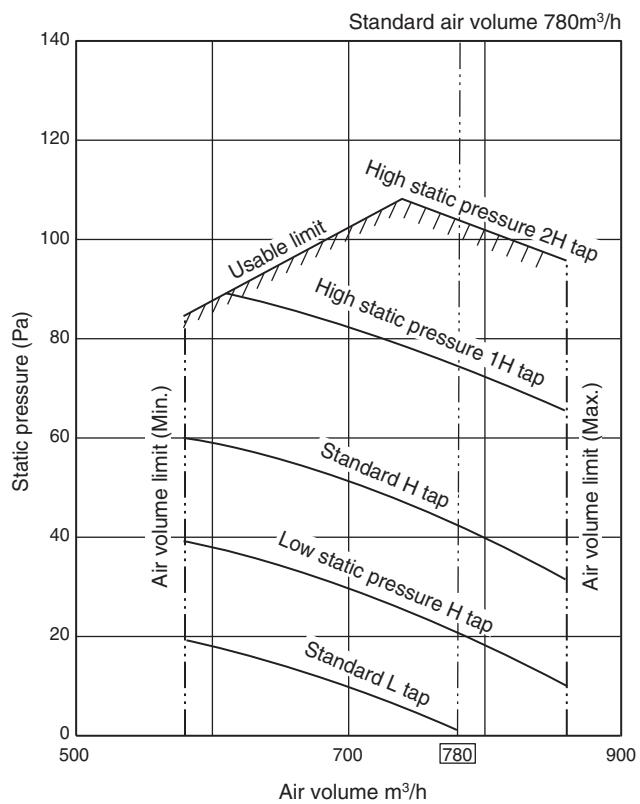

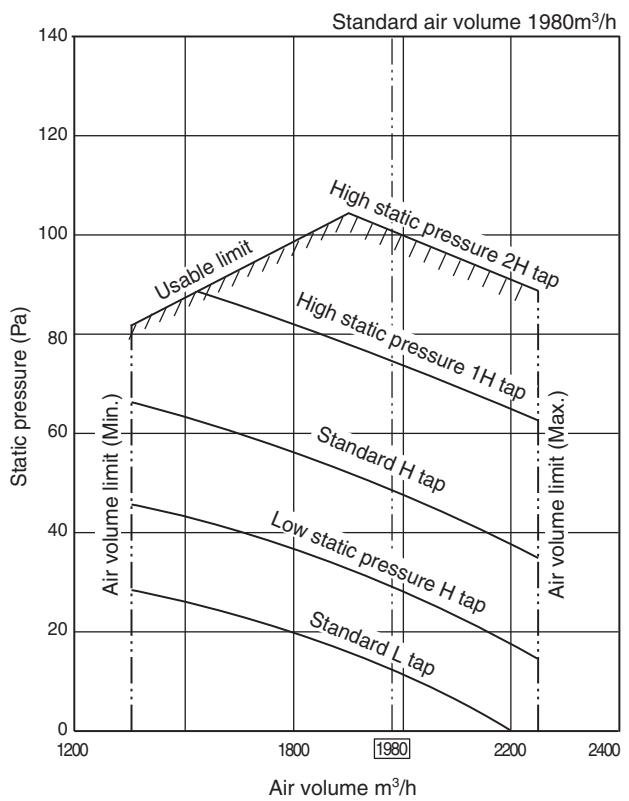

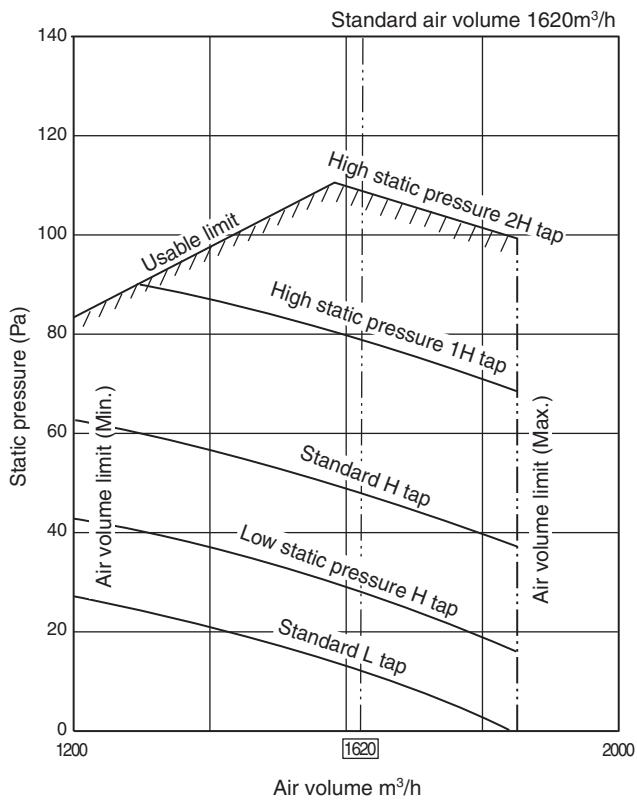

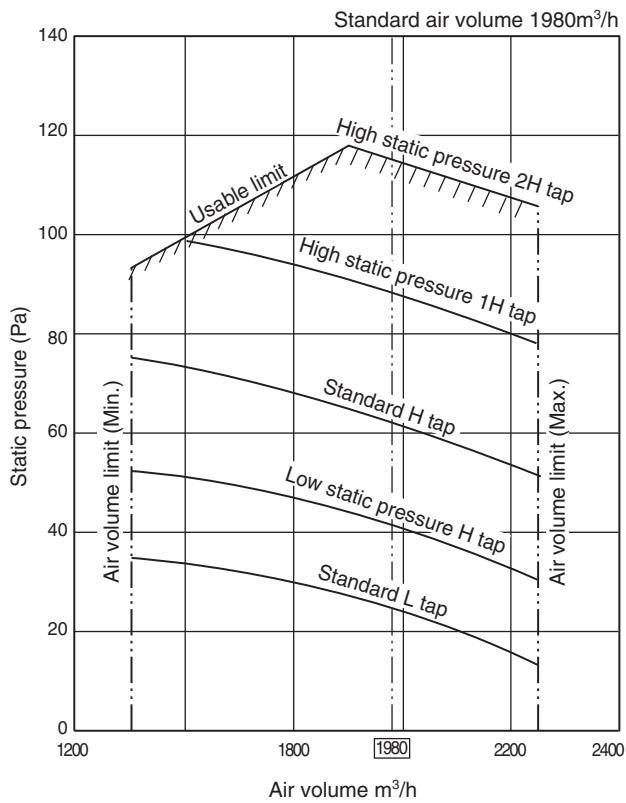

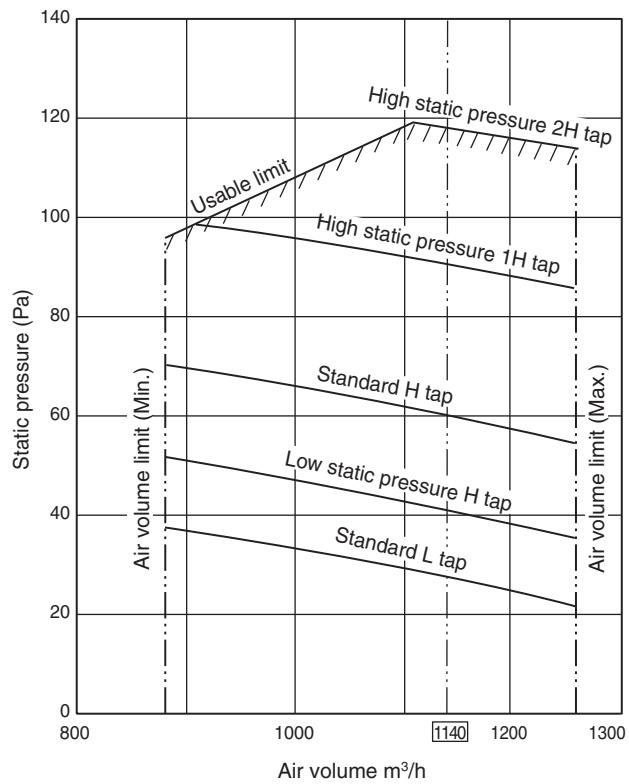

2-2-7. Fan static 2-24

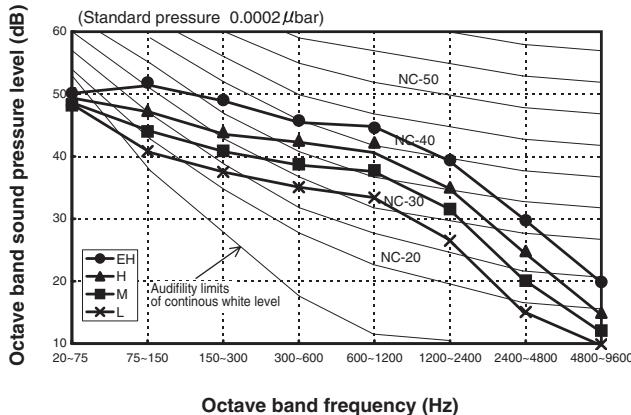

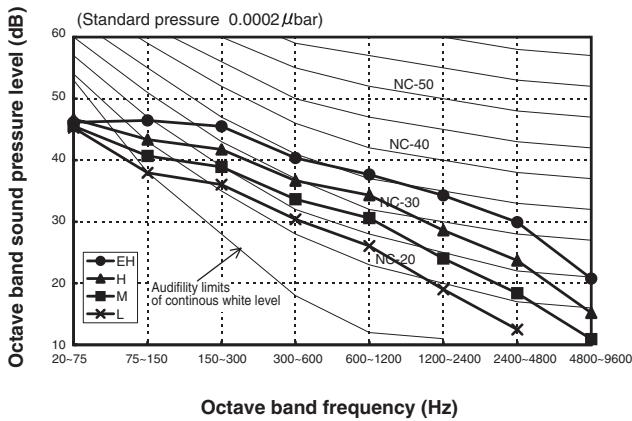

2-2-8. Sound characteristics 2-26

2-2. Duct Type

2-2-1. Single System Specifications

Model		Indoor unit RAV-	SM562BT-E	SM802BT-E	SM1102BT-E	SM1402BT-E
		Outdoor unit RAV-	SP562AT-E	SP802AT-E	SP1102AT-E	SP1402AT-E
Cooling capacity		(kW)	5.0	7.1	10.0	12.5
Heating capacity		(kW)	5.6	8.0	11.2	14.0
Power supply			1 phase 230V (220 - 240V) 50Hz
Electrical characteristics	Cooling	Running current (A)	6.51 - 5.97	9.74 - 8.93	11.72 - 10.74	18.09 - 16.58
		Power consumption (kW)	1.39	2.10	2.50	3.90
		Power factor (%)	97	98	97	98
		EER (W/W)	3.60	3.38	4.00	3.21
		Energy efficiency class *	A	A	A	A
		Energy rating **	—	—	—	—
	Heating	Running current (A)	7.26 - 6.66	9.74 - 8.93	11.72 - 10.74	16.70 - 15.31
		Power consumption (kW)	1.55	2.10	2.50	3.60
		Power factor (%)	97	98	97	98
		COP (W/W)	3.61	3.81	4.48	3.89
		Energy efficiency class *	A	A	A	A
		Energy rating **	—	—	—	—
Appearance	Main unit		Zinc hot dipping steel plate
	Ceiling panel (Sold separately)	Model	—
		Panel color	—
Outer dimension	Main unit	Height (mm)	320	320	320	320
		Width (mm)	700	1000	1350	1350
		Depth (mm)	800	800	800	800
	Ceiling panel (Sold separately)	Height (mm)	—	—	—	—
		Width (mm)	—	—	—	—
		Depth (mm)	—	—	—	—
Total weight	Main unit (kg)		30	39	54	54
	Ceiling panel (Sold separately) (kg)		—	—	—	—
Heat exchanger			Finned tube
Fan unit	Fan		Centrifugal	Centrifugal	Centrifugal	Centrifugal
	Standard air flow	H/M/L (m³/min)	13.0/11.9/9.8	19.0/16.2/13.3	27.0/23.0/18.9	33.0/28.0/23.1
	Motor (W)		120	120	120	120
Air filter		TCB-	UFM21BE UFM61BE	UFM11BFCE UFM31BE UFH51BFCE UFM71BE	UFM21BFCE UFM 41BE UFH61BFCE UFH 81BE
Controller (Sold separately)			RBC-AMT31E2, AS21E2, TCB-SC642TLE2, AX21E2
Connecting pipe		Gas side (mm)	12.7	15.9	15.9	15.9
		Liquid side (mm)	6.4	9.5	9.5	9.5
		Drain port (mm)	VP25
Sound pressure level		H/M/L (dB·A)	40/37/33	40/37/34	42/39/36	44/41/38
Sound power level		H/M/L (dB·A)	55/52/48	55/52/49	57/54/51	59/56/53

: IEC standard, *: AS standard

2-2-2. Twin System Specifications

Model	Type			Concealed Duct
	Indoor unit 1 RAV-			SM562BT-E	SM802BT-E
	Indoor unit 2 RAV-			SM562BT-E	SM802BT-E
	Outdoor unit RAV-			SP1102AT-E	SP1402AT-E
Cooling capacity (kW)				10.0	12.5
Heating capacity (kW)				11.2	14.0
Indoor unit
Power supply				1 phase 230V (220 - 240V) 50Hz
Electrical characteristics	Cooling	Running current (A)		11.72-10.74	18.09-16.58
		Power consumption (kW)		2.50	3.90
		Powerfactor (%)		97	98
		EER (W/W)		4.00	3.21
		Energy efficiency class *		A	A
	Heating	Running current (A)		11.95-10.95	16.70-15.31
		Power consumption (kW)		2.55	3.60
		Powerfactor (%)		97	98
		COP (W/W)		4.39	3.89
		Energy efficiency class *		A	A
Fan unit	Fan			Centrifugal	Centrifugal
	Standard air flow		H/M/L (m³/min)	13.0/11.9/9.8	19.0/16.2/13.3
	Motor (W)			120	120
Sound pressure level			H/M/L (dB·A)	40/37/33	40/37/34
Sound power level			H/M/L (dB·A)	55/52/48	55/52/49
Outdoor unit
Power supply				1 phase 230V (220 - 240V) 50Hz (Power exclusive to outdoor is required.)
Inter connecting pipes	Standard length (m)			7.5	7.5
	Min. length (m)			5.0	5.0
	Max. total length (m)			50	50
	Over 30m			40g/m (31m to 50m)
	Height difference	Outdoor lower (m)		30	30
		Outdoor high (m)		30	30
Fan unit	Fan			Propeller fan
	Standard air flow high (m³/min)			125	125
	Motor (W)			63 + 63	63 + 63
Connecting pipe	Gas side	Main (mm)		15.9	15.9
		Sub (mm)		12.7	15.9
	Liquid side	Main (mm)		9.5	9.5
		Sub (mm)		6.4	9.5
Sound pressure level		Cooling/Heating (dB·A)		49/51	53/54
Sound power level		Cooling/Heating (dB·A)		66/68	70/71

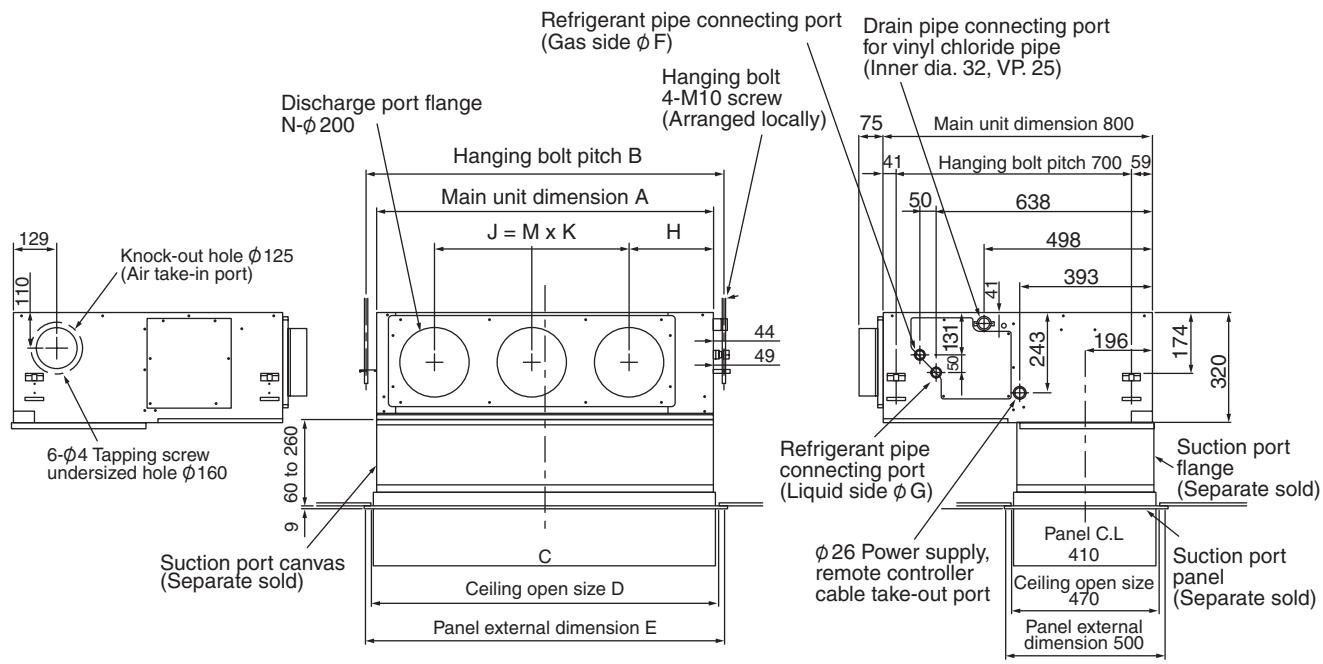

2-2-3. Dimension

RAV-SM562BT-E, RAV-SM802BT-E, RAV-SM1102BT-E, RAV-SM1402BT-E

• Dimension

	A	B	C	D	E	F	G	H	J	K	M	N	O
RAV-SM562BT	700	766	690	750	780	12.7	6.4	252	280	280	1	2	410
RAV-SM802BT	1000	1066	990	1050	1080	15.9	9.5	252	580	290	2	3	410
RAV-SM1102BTRAV-SM1402BT	1350	1416	1340	1400	1430	15.9	9.5	252	930	310	3	4	410

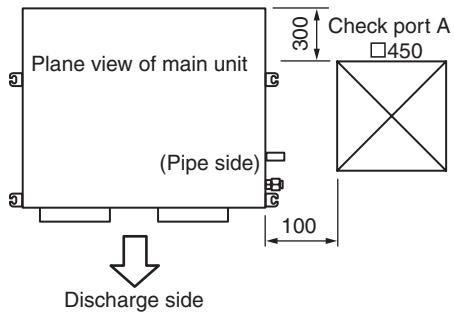

NOTE 1 :

For maintenance of the equipment, be sure to install a check port A at the position as shown below.

NOTE 2 :

Using the drain up kit sold separately, drain-up by 300 (mm) from drain pipe draw-out port of the main unit is necessary. The drain-up over 300mm or more is impossible.

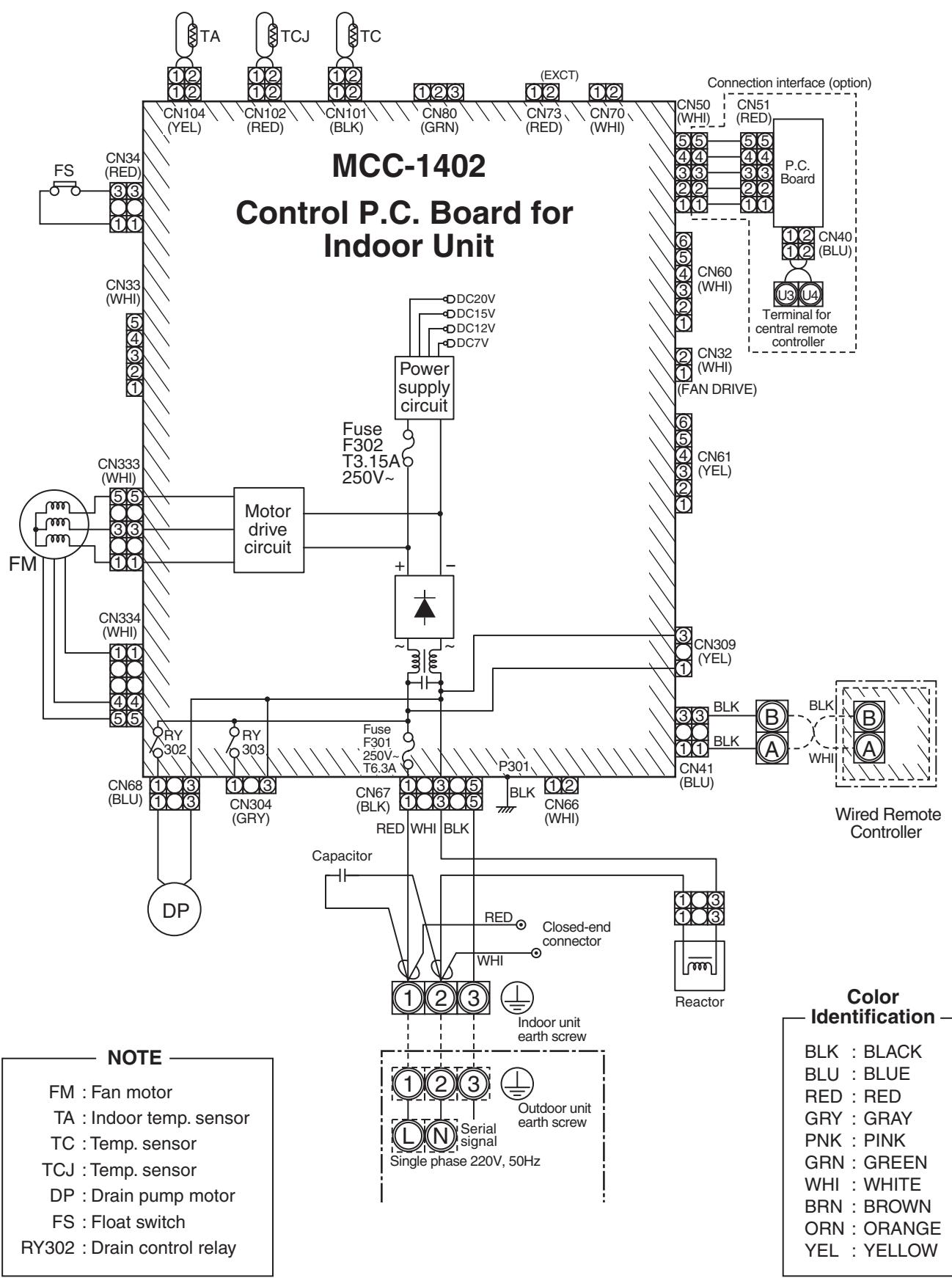

2-2-4. Wiring diagram

RAV-SM562BT-E, RAV-SM802BT-E, RAV-SM1102BT-E, RAV-SM1402BT-E

2-2-5. Refrigerant Cycle Diagram

RAV-SM562BT-E, RAV-SP562AT-E

Cooling Heating

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.71	1.03	75	15	10	38	43	HIGH	27/19	35/-
	Overload	3.48	1.16	81	20	16	51	44	HIGH	32/24	43/-
	Low load	1.92	0.74	34	5	2	11	24	LOW	18/15.5	-5/-
Heating	Standard	2.22	0.72	62	6	38	2	41	HIGH	20/-	7/6
	Overload	3.47	1.16	81	20	55	15	41	LOW	30/-	24/18
	Low load	1.79	0.25	71	-16	30	-18	70	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor. The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

RAV-SM802BT-E, RAV-SP802AT-E

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.72	0.93	74	12	11	40	55	HIGH	27/19	35/-
	Overload	3.57	1.10	80	21	17	52	47	HIGH	32/24	43/-
	Low load	1.89	0.74	34	7	2	12	24	LOW	18/15.5	-5/-
Heating	Standard	2.58	0.68	72	4	41	2	62	HIGH	20/-	7/6
	Overload	3.49	1.22	79	19	55	16	28	LOW	30/-	24/18
	Low load	2.30	0.25	91	-17	37	-19	90	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor. The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

RAV-SM1102BT-E, RAV-SP1102AT-E

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.55	0.98	69	12	10	40	40	HIGH	27/19	35/-
	Overload	3.28	1.08	82	17	16	48	50	HIGH	32/24	43/-
	Low load	1.76	0.76	47	8	5	27	24	LOW	18/15.5	-5/-
Heating	Standard	2.58	0.73	68	3	40	3	44	HIGH	20/-	7/6
	Overload	3.43	1.18	75	20	56	16	24	LOW	30/-	24/18
	Low load	2.10	0.32	88	-14	34	-13	63	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

RAV-SM1402BT-E, RAV-SP1402AT-E

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.76	0.91	74	11	9	39	53	HIGH	27/19	35/-
	Overload	3.46	1.03	82	17	16	48	51	HIGH	32/24	43/-
	Low load	1.77	0.78	48	9	6	27	24	LOW	18/15.5	-5/-
Heating	Standard	2.65	0.69	75	3	43	3	55	HIGH	20/-	7/6
	Overload	3.33	1.08	74	19	55	15	24	LOW	30/-	24/18
	Low load	2.50	0.22	98	-22	43	-18	73	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor. The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

2-2-6. Sensible Capacity Table

RAV-SM562BT-E, SM802BT-E, SM1102BT-E, SM1402BT-E

indoor air temp.
unit size	outdoor air temp. CDB	14.0CWB 20.0CDB		16.0CWB 23.0CDB		18.0CWB 26.0CDB		19.0CWB 27.0CDB		20.0CWB 28.0CDB		22.0CWB 30.0CDB		24.0CWB 32.0CDB
		TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC
562	10.0	4.7	3.3	5.2	3.6	5.6	3.9	5.7	4.0	5.9	4.1	6.2	4.4	6.5	4.6
	12.0	4.7	3.3	5.2	3.6	5.5	3.9	5.7	4.0	5.8	4.1	6.2	4.3	6.5	4.5
	14.0	4.6	3.2	5.1	3.6	5.5	3.8	5.6	4.0	5.8	4.1	6.1	4.3	6.4	4.5
	16.0	4.6	3.2	5.1	3.6	5.4	3.8	5.6	3.9	5.8	4.0	6.1	4.3	6.4	4.5
	18.0	4.6	3.2	5.0	3.5	5.4	3.8	5.6	3.9	5.7	4.0	6.1	4.2	6.3	4.4
	20.0	4.5	3.2	5.0	3.5	5.4	3.8	5.5	3.9	5.7	4.0	6.0	4.2	6.3	4.4
	21.0	4.5	3.2	5.0	3.5	5.3	3.7	5.5	3.8	5.6	4.0	6.0	4.2	6.3	4.4
	23.0	4.5	3.1	4.9	3.5	5.3	3.7	5.4	3.8	5.6	3.9	5.9	4.1	6.2	4.3
	25.0	4.4	3.1	4.9	3.4	5.2	3.7	5.4	3.8	5.5	3.9	5.9	4.1	6.1	4.3
	27.0	4.4	3.1	4.8	3.4	5.2	3.6	5.3	3.7	5.5	3.8	5.8	4.0	6.0	4.2
	29.0	4.3	3.0	4.8	3.3	5.1	3.6	5.2	3.7	5.4	3.8	5.7	4.0	6.0	4.2
	31.0	4.2	3.0	4.7	3.3	5.0	3.5	5.2	3.6	5.3	3.7	5.6	3.9	5.9	4.1
	33.0	4.2	2.9	4.6	3.2	4.9	3.5	5.1	3.6	5.2	3.7	5.5	3.9	5.8	4.1
	35.0	4.1	2.9	4.5	3.2	4.9	3.4	5.0	3.5	5.1	3.6	5.4	3.8	5.7	4.0
	37.0	4.0	2.8	4.4	3.1	4.8	3.3	4.9	3.4	5.0	3.5	5.3	3.7	5.6	3.9
	39.0	3.9	2.8	4.4	3.1	4.7	3.3	4.8	3.4	4.9	3.5	5.2	3.7	5.5	3.8
802	10.0	6.7	4.8	7.4	5.3	7.9	5.7	8.1	5.8	8.3	6.0	8.8	6.3	9.2	6.6
	12.0	6.6	4.8	7.3	5.3	7.8	5.6	8.1	5.8	8.3	6.0	8.8	6.3	9.2	6.6
	14.0	6.6	4.7	7.3	5.2	7.8	5.6	8.0	5.8	8.2	5.9	8.7	6.3	9.1	6.6
	16.0	6.5	4.7	7.2	5.2	7.7	5.6	8.0	5.7	8.2	5.9	8.7	6.2	9.1	6.5
	18.0	6.5	4.7	7.2	5.1	7.7	5.5	7.9	5.7	8.1	5.8	8.6	6.2	9.0	6.5
	20.0	6.4	4.6	7.1	5.1	7.6	5.5	7.8	5.6	8.1	5.8	8.5	6.1	8.9	6.4
	21.0	6.4	4.6	7.1	5.1	7.6	5.4	7.8	5.6	8.0	5.8	8.5	6.1	8.9	6.4
	23.0	6.3	4.6	7.0	5.0	7.5	5.4	7.7	5.5	7.9	5.7	8.4	6.0	8.8	6.3
	25.0	6.3	4.5	6.9	5.0	7.4	5.3	7.6	5.5	7.9	5.6	8.3	6.0	8.7	6.2
	27.0	6.2	4.4	6.8	4.9	7.3	5.3	7.5	5.4	7.8	5.6	8.2	5.9	8.6	6.2
	29.0	6.1	4.4	6.7	4.8	7.2	5.2	7.4	5.3	7.7	5.5	8.1	5.8	8.5	6.1
	31.0	6.0	4.3	6.7	4.8	7.1	5.1	7.3	5.3	7.5	5.4	8.0	5.7	8.4	6.0
	33.0	5.9	4.3	6.5	4.7	7.0	5.0	7.2	5.2	7.4	5.3	7.9	5.6	8.2	5.9
	35.0	5.8	4.2	6.4	4.6	6.9	5.0	7.1	5.1	7.3	5.2	7.7	5.6	8.1	5.8
	37.0	5.7	4.1	6.3	4.5	6.8	4.9	7.0	5.0	7.2	5.1	7.6	5.4	7.9	5.7
	39.0	5.6	4.0	6.2	4.4	6.6	4.8	6.8	4.9	7.0	5.0	7.4	5.3	7.8	5.6
1102	10.0	9.4	7.2	10.4	7.7	11.1	8.1	11.4	8.1	11.8	8.1	12.5	8.0	13.0	7.8
	12.0	9.3	7.1	10.3	7.6	11.0	8.1	11.4	8.1	11.7	8.1	12.4	8.0	12.9	7.8
	14.0	9.3	7.1	10.2	7.6	11.0	8.0	11.3	8.0	11.6	8.0	12.3	7.9	12.9	7.8
	16.0	9.2	7.0	10.2	7.5	10.9	8.0	11.2	8.0	11.5	7.9	12.2	7.9	12.8	7.7
	18.0	9.1	7.0	10.1	7.4	10.8	7.9	11.1	7.9	11.4	7.9	12.1	7.8	12.7	7.6
	20.0	9.1	6.9	10.0	7.4	10.7	7.9	11.0	7.8	11.3	7.8	12.0	7.7	12.6	7.6
	21.0	9.0	6.9	10.0	7.4	10.7	7.8	11.0	7.8	11.3	7.8	12.0	7.7	12.5	7.5
	23.0	8.9	6.8	9.9	7.3	10.6	7.7	10.9	7.7	11.2	7.7	11.8	7.6	12.4	7.5
	25.0	8.8	6.8	9.8	7.2	10.4	7.7	10.8	7.6	11.1	7.6	11.7	7.5	12.2	7.4
	27.0	8.7	6.7	9.6	7.1	10.3	7.6	10.6	7.5	10.9	7.5	11.6	7.4	12.1	7.3
	29.0	8.6	6.6	9.5	7.0	10.2	7.5	10.5	7.4	10.8	7.4	11.4	7.3	11.9	7.2
	31.0	8.5	6.5	9.4	6.9	10.0	7.4	10.3	7.3	10.6	7.3	11.3	7.2	11.8	7.1
	33.0	8.4	6.4	9.2	6.8	9.9	7.2	10.2	7.2	10.5	7.2	11.1	7.1	11.6	7.0
	35.0	8.2	6.3	9.1	6.7	9.7	7.1	10.0	7.1	10.3	7.1	10.9	7.0	11.4	6.9
	37.0	8.1	6.2	8.9	6.6	9.5	7.0	9.8	7.0	10.1	7.0	10.7	6.9	11.2	6.7
	39.0	7.9	6.0	8.7	6.4	9.3	6.8	9.6	6.8	9.9	6.8	10.5	6.7	10.9	6.6
1402	10.0	11.7	8.7	13.0	9.3	13.9	9.9	14.3	9.8	14.7	9.8	15.6	9.7	16.3	9.5
	12.0	11.7	8.7	12.9	9.2	13.8	9.8	14.2	9.8	14.6	9.8	15.5	9.6	16.2	9.4
	14.0	11.6	8.6	12.8	9.2	13.7	9.7	14.1	9.7	14.5	9.7	15.4	9.6	16.1	9.4
	16.0	11.5	8.5	12.7	9.1	13.6	9.7	14.0	9.6	14.4	9.6	15.3	9.5	16.0	9.3
	18.0	11.4	8.5	12.6	9.0	13.5	9.6	13.9	9.6	14.3	9.6	15.1	9.4	15.8	9.2
	20.0	11.3	8.4	12.5	8.9	13.4	9.5	13.8	9.5	14.2	9.5	15.0	9.4	15.7	9.2
	21.0	11.3	8.4	12.4	8.9	13.3	9.5	13.7	9.4	14.1	9.4	15.0	9.3	15.6	9.1
	23.0	11.2	8.3	12.3	8.8	13.2	9.4	13.6	9.3	14.0	9.3	14.8	9.2	15.5	9.0
	25.0	11.0	8.2	12.2	8.7	13.1	9.3	13.4	9.2	13.8	9.2	14.6	9.1	15.3	8.9
	27.0	10.9	8.1	12.0	8.6	12.9	9.2	13.3	9.1	13.7	9.1	14.5	9.0	15.1	8.8
	29.0	10.8	8.0	11.9	8.5	12.7	9.0	13.1	9.0	13.5	9.0	14.3	8.9	14.9	8.7
	31.0	10.6	7.9	11.7	8.4	12.5	8.9	12.9	8.9	13.3	8.9	14.1	8.8	14.7	8.6
	33.0	10.4	7.7	11.5	8.2	12.3	8.8	12.7	8.7	13.1	8.7	13.8	8.6	14.5	8.5
	35.0	10.3	7.6	11.3	8.1	12.1	8.6	12.5	8.6	12.9	8.6	13.6	8.5	14.2	8.3
	37.0	10.1	7.5	11.1	8.0	11.9	8.5	12.3	8.4	12.6	8.4	13.4	8.3	14.0	8.2
	39.0	9.9	7.3	10.9	7.8	11.7	8.3	12.0	8.3	12.4	8.3	13.1	8.2	13.7	8.0

TC:Total Capacity [kW]
SHC:Sensible Heat Capacity [kW]

2-2-7. Fan Static

Static Pressure Characteristics of Each Model

RAV-SM562BT-E, RAV-SM802BT-E, RAV-SM1102BT-E, RAV-SM1402BT-E

Fig. 1 RAV-SM562BT-E (Round duct)

Fig. 3 RAV-SM802BT-E (Round duct)

Fig. 2 RAV-SM562BT-E (Square duct)

Fig. 4 RAV-SM802BT-E (Square duct)

Fig. 5 RAV-SM1102BT-E (Round duct)

Fig. 7 RAV-SM1402BT-E (Round duct)

Fig. 6 RAV-SM1102BT-E (Square duct)

Fig. 8 RAV-SM1402BT-E (Square duct)

2-2-8. Sound Characteristics

RAV-SM562BT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	40	37	33

RAV-SM802BT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	40	37	34

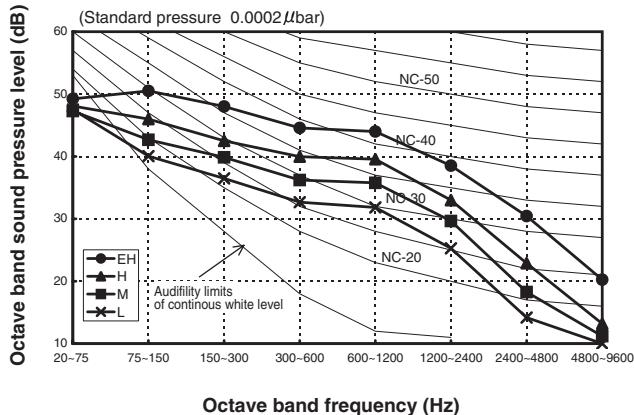

RAV-SM1102BT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	42	39	36

RAV-SM1402BT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	44	41	38

2-3. Ceiling type

2-3-1. Single system Specifications 2-28
2-3-2. Twin system specifications 2-29
2-3-3. Dimension 2-30
2-3-4. Wiring diagram 2-31
2-3-5. Refrigerant cycle diagram 2-32
2-3-6. Sensible capacity table 2-36
2-3-7. Air throw distance chart 2-37
2-3-8. Sound characteristics 2-38

2-3. Ceiling Type

2-3-1. Single System Specifications

Model		Indoor unit RAV-	SM562CT-E	SM802CT-E	SM1102CT-E	SM1402CT-E
		Outdoor unit RAV-	SP562AT-E	SP802AT-E	SP1102AT-E	SP1402AT-E
Cooling capacity		(kW)	5.0	7.1	10.0	12.5
Heating capacity		(kW)	5.6	8.0	11.2	14.0
Power supply			1 phase 230V (220 - 240V) 50Hz
Electrical characteristics	Cooling	Running current (A)	6.61 - 6.06	9.47 - 8.93	11.24 - 10.31	18.09 - 16.58
		Power consumption (kW)	1.41	2.10	2.40	3.90
		Power factor (%)	97	98	97	98
		EER (W/W)	3.55	3.38	4.17	3.21
		Energy efficiency class *	A	A	A	A
		Energy rating **	-	-	-	-
	Heating	Running current (A)	7.03 - 6.44	10.20 - 9.35	11.72 - 10.74	17.39 - 15.94
		Power consumption (kW)	1.50	2.20	2.50	3.75
		Power factor (%)	97	98	97	98
		COP (W/W)	3.73	3.64	4.48	3.73
		Energy efficiency class *	A	A	A	A
		Energy rating **	-	-	-	-
Appearance	Main unit		Shine white
	Ceiling panel (Sold separately)	Model	-
		Panel color	-
Outer dimension	Main unit	Height (mm)	210	210	210	210
		Width (mm)	910	1180	1595	1595
		Depth (mm)	680	680	680	680
	Ceiling panel (Sold separately)	Height (mm)	-	-	-	-
		Width (mm)	-	-	-	-
		Depth (mm)	-	-	-	-
Total weight	Mainunit (kg)		21	25	33	33
	Ceiling panel (Sold separately) (kg)		-	-	-	-
Heat exchanger			Finned tube
Fan unit	Fan		Centrifugal	Centrifugal	Centrifugal	Centrifugal
	Standard air flow	H/M/L (m³/min)	13.0/11.2/10.0	18.5/16.7/14.6	27.5/24.0/21.2	30.0/26.0/23.1
	Motor (W)		30	40	80	80
Air filter			Attached main unit
Controller (Sold separately)			RBC-AMT31E2, AS21E2, TCB-SC642TLE2, AX21E2
Connecting pipe		Gas side (mm)	12.7	15.9	15.9	15.9
		Liquid side (mm)	6.4	9.5	9.5	9.5
		Drain port (mm)	VP25
Sound pressure level		H/M/L (dB·A)	36/33/30	38/36/33	41/38/35	43/40/37
Sound power level		H/M/L (dB·A)	51/48/45	53/51/48	56/53/50	58/55/52

2-3-2. Twin System Specifications

Model	Type			Under Ceiling
	Indoor unit 1 RAV-			SM562CT-E	SM802CT-E
	Indoor unit 2 RAV-			SM562CT-E	SM802CT-E
	Outdoor unit RAV-			SP1102AT-E	SP1402AT-E
Cooling capacity (kW)				10.0	12.3
Heating capacity (kW)				11.2	14.0
Indoor unit
Power supply				1 phase 230V (220 - 240V) 50Hz
Electrical characteristics	Cooling	Running current (A)		11.24-10.31	18.09-16.58
		Power consumption (kW)		2.40	3.90
		Powerfactor (%)		97	98
		EER (W/W)		4.17	3.21
		Energy efficiency class *		A	A
	Heating	Running current (A)		11.95-10.95	17.39-15.94
		Power consumption (kW)		2.55	3.75
		Powerfactor (%)		97	98
		COP (W/W)		4.39	3.79
		Energy efficiency class *		A	A
Fan unit	Fan			Centrifugal	Centrifugal
	Standard air flow		H/M/L (m³/min)	13.0/11.2/10.0	18.5/16.7/14.6
	Motor (W)			30	40
Sound pressure level			H/M/L (dB·A)	36/33/30	38/36/33
Sound power level			H/M/L (dB·A)	51/48/45	53/51/48
Outdoor unit
Power supply				1 phase 230V (220 - 240V) 50Hz (Power exclusive to outdoor is required.)
Inter connecting pipes	Standard length (m)			7.5	7.5
	Min. length (m)			5.0	5.0
	Max. total length (m)			50	50
	Over 30m			40g/m (31m to 50m)
	Height difference	Outdoor lower (m)		30	30
		Outdoor high (m)		30	30
Fan unit	Fan			Propeller fan
	Standard air flow high (m³/min)			125	125
	Motor (W)			63 + 63	63 + 63
Connecting pipe	Gas side	Main (mm)		15.9	15.9
		Sub (mm)		12.7	15.9
	Liquid side	Main (mm)		9.5	9.5
		Sub (mm)		6.4	9.5
Sound pressure level		Cooling/Heating (dB·A)		49/51	53/54
Sound power level		Cooling/Heating (dB·A)		66/68	70/71

• : IEC standard, ** : AS standard

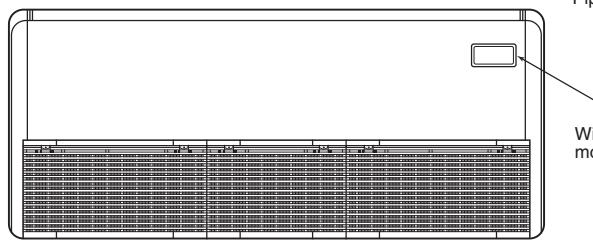

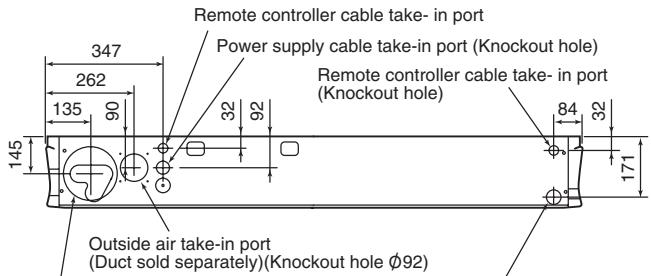

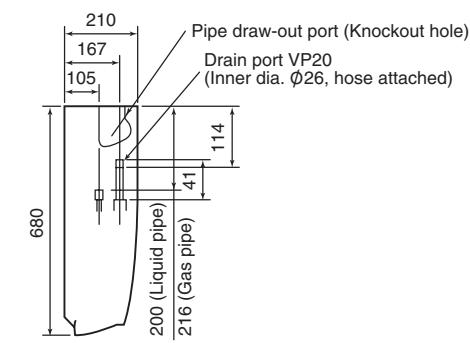

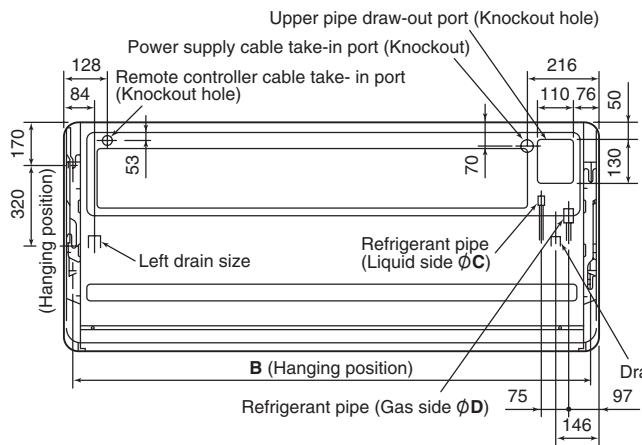

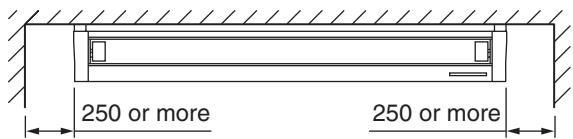

2-3-3. Dimension

RAV-SM562CT-E, RAV-SM802CT-E, RAV-SM1102CT-E, RAV-SM1402CT-E

Drain pipe connecting port

Hanging bolt

Pipe hole on wall (Φ100 hole)
Drain left pipe draw-out port (Knockout hole)

Wireless sensor mounting section

Model name	A	B	C	D
SM562CT	910	855	∅6.4	∅12.7
SM802CT	1180	1125	∅9.5	∅15.9
SM1102CT, SM1402CT	1595	1540

2-3-4. Wiring Diagram

RAV-SM562CT-E, RAV-SM802CT-E, RAV-SM1102CT-E, RAV-SM1402CT-E

2-3-5. Refrigerant Cycle Diagram

RAV-SM562CT-E / RAV-SP562*AT-E

Cooling Heating

		Pressure (MPa)		Pipe surface temperature (°C)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (°C)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.71	1.03	75	15	10	38	43	HIGH	27/19	35/-
	Overload	3.48	1.16	81	20	16	51	44	HIGH	32/24	43/-
	Low load	1.92	0.74	34	5	2	11	24	LOW	18/15.5	-5/-
Heating	Standard	2.22	0.72	62	6	38	2	41	HIGH	20/-	7/6
	Overload	3.47	1.16	81	20	55	15	41	LOW	30/-	24/18
	Low load	1.79	0.25	71	-16	30	-18	70	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

RAV-SM802CT-E / RAV-SP802AT-E

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.72	0.93	74	12	11	40	55	HIGH	27/19	35/-
	Overload	3.57	1.10	80	21	17	52	47	HIGH	32/24	43/-
	Low load	1.89	0.74	34	7	2	12	24	LOW	18/15.5	-5/-
Heating	Standard	2.58	0.68	72	4	41	2	62	HIGH	20/-	7/6
	Overload	3.49	1.22	79	19	55	16	28	LOW	30/-	24/18
	Low load	2.30	0.25	91	-17	37	-19	90	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

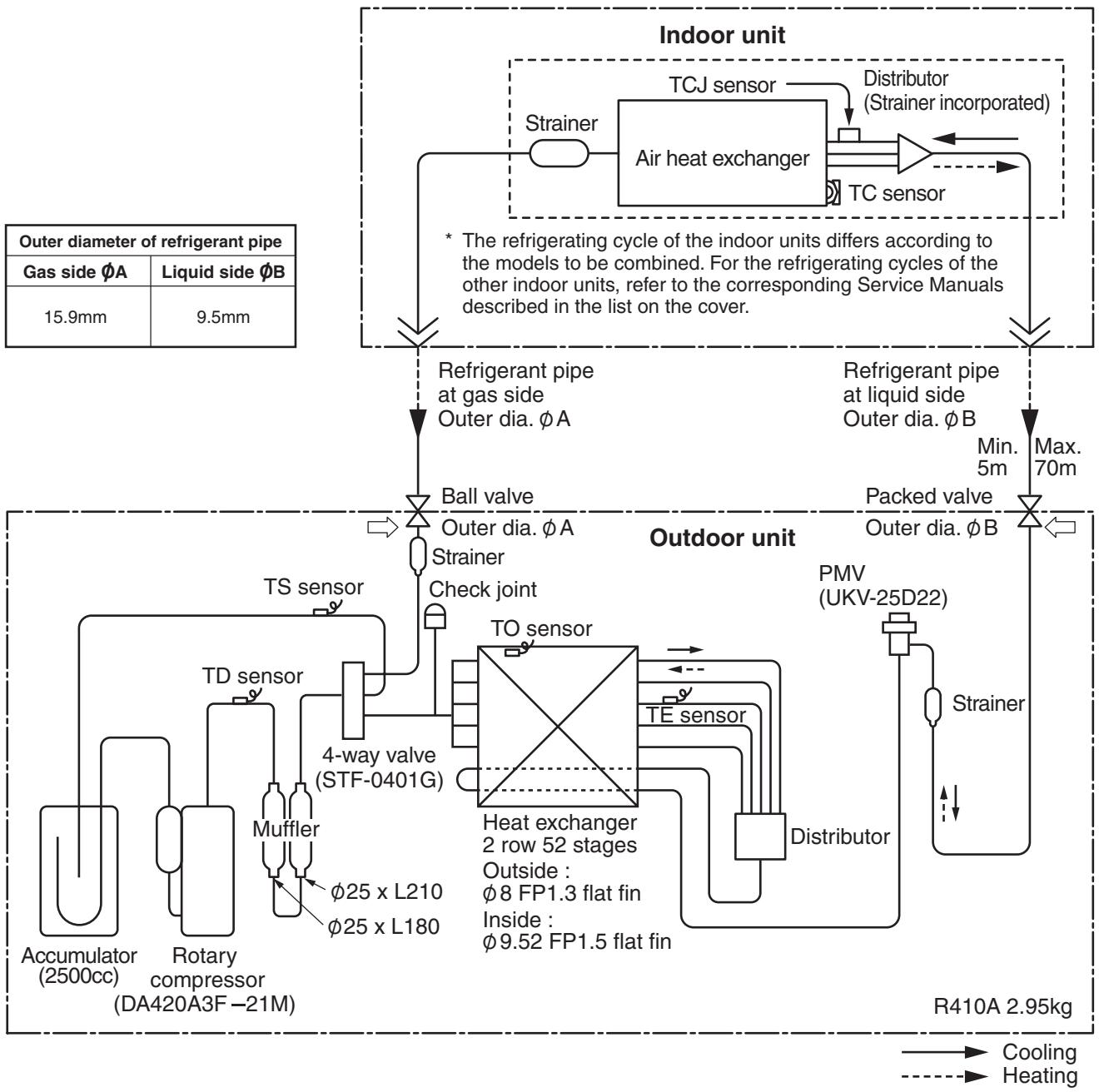

RAV-SM1102CT-E / RAV-SP1102AT-E

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.55	0.98	69	12	10	40	40	HIGH	27/19	35/-
	Overload	3.28	1.08	82	17	16	48	50	HIGH	32/24	43/-
	Low load	1.76	0.76	47	8	5	27	24	LOW	18/15.5	-5/-
Heating	Standard	2.58	0.73	68	3	40	3	44	HIGH	20/-	7/6
	Overload	3.43	1.18	75	20	56	16	24	LOW	30/-	24/18
	Low load	2.10	0.32	88	-14	34	-13	63	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

RAV-SM1402CT-E / RAV-SP1402AT-E

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.76	0.91	74	11	9	39	53	HIGH	27/19	35/-
	Overload	3.46	1.03	82	17	16	48	51	HIGH	32/24	43/-
	Low load	1.77	0.78	48	9	6	27	24	LOW	18/15.5	-5/-
Heating	Standard	2.65	0.69	75	3	43	3	55	HIGH	20/-	7/6
	Overload	3.33	1.08	74	19	55	15	24	LOW	30/-	24/18
	Low load	2.50	0.22	98	-22	43	-18	73	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

2-3-6. Sensible Capacity Table

RAV-SM562CT-E, SM802CT-E, SM1102CT-E, SM1402CT-E

indoor air temp.
unit size	outdoor air temp. CDB	14.0CWB 20.0CDB		16.0CWB 23.0CDB		18.0CWB 26.0CDB		19.0CWB 27.0CDB		20.0CWB 28.0CDB		22.0CWB 30.0CDB		24.0CWB 32.0CDB
		TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC
562	10.0	4.7	3.3	5.2	3.6	5.6	3.9	5.7	4.0	5.9	4.1	6.2	4.4	6.5	4.6
	12.0	4.7	3.3	5.2	3.6	5.5	3.9	5.7	4.0	5.8	4.1	6.2	4.3	6.5	4.5
	14.0	4.6	3.2	5.1	3.6	5.5	3.8	5.6	4.0	5.8	4.1	6.1	4.3	6.4	4.5
	16.0	4.6	3.2	5.1	3.6	5.4	3.8	5.6	3.9	5.8	4.0	6.1	4.3	6.4	4.5
	18.0	4.6	3.2	5.0	3.5	5.4	3.8	5.6	3.9	5.7	4.0	6.1	4.2	6.3	4.4
	20.0	4.5	3.2	5.0	3.5	5.4	3.8	5.5	3.9	5.7	4.0	6.0	4.2	6.3	4.4
	21.0	4.5	3.2	5.0	3.5	5.3	3.7	5.5	3.8	5.6	4.0	6.0	4.2	6.3	4.4
	23.0	4.5	3.1	4.9	3.5	5.3	3.7	5.4	3.8	5.6	3.9	5.9	4.1	6.2	4.3
	25.0	4.4	3.1	4.9	3.4	5.2	3.7	5.4	3.8	5.5	3.9	5.9	4.1	6.1	4.3
	27.0	4.4	3.1	4.8	3.4	5.2	3.6	5.3	3.7	5.5	3.8	5.8	4.0	6.0	4.2
	29.0	4.3	3.0	4.8	3.3	5.1	3.6	5.2	3.7	5.4	3.8	5.7	4.0	6.0	4.2
	31.0	4.2	3.0	4.7	3.3	5.0	3.5	5.2	3.6	5.3	3.7	5.6	3.9	5.9	4.1
	33.0	4.2	2.9	4.6	3.2	4.9	3.5	5.1	3.6	5.2	3.7	5.5	3.9	5.8	4.1
	35.0	4.1	2.9	4.5	3.2	4.9	3.4	5.0	3.5	5.1	3.6	5.4	3.8	5.7	4.0
	37.0	4.0	2.8	4.4	3.1	4.8	3.3	4.9	3.4	5.0	3.5	5.3	3.7	5.6	3.9
	39.0	3.9	2.8	4.4	3.1	4.7	3.3	4.8	3.4	4.9	3.5	5.2	3.7	5.5	3.8
802	10.0	6.7	4.7	7.4	5.2	7.9	5.6	8.1	5.7	8.3	5.9	8.8	6.2	9.2	6.5
	12.0	6.6	4.7	7.3	5.2	7.8	5.5	8.1	5.7	8.3	5.8	8.8	6.2	9.2	6.5
	14.0	6.6	4.6	7.3	5.1	7.8	5.5	8.0	5.6	8.2	5.8	8.7	6.1	9.1	6.4
	16.0	6.5	4.6	7.2	5.1	7.7	5.4	8.0	5.6	8.2	5.8	8.7	6.1	9.1	6.4
	18.0	6.5	4.6	7.2	5.0	7.7	5.4	7.9	5.6	8.1	5.7	8.6	6.1	9.0	6.3
	20.0	6.4	4.5	7.1	5.0	7.6	5.4	7.8	5.5	8.1	5.7	8.5	6.0	8.9	6.3
	21.0	6.4	4.5	7.1	5.0	7.6	5.3	7.8	5.5	8.0	5.6	8.5	6.0	8.9	6.3
	23.0	6.3	4.5	7.0	4.9	7.5	5.3	7.7	5.4	7.9	5.6	8.4	5.9	8.8	6.2
	25.0	6.3	4.4	6.9	4.9	7.4	5.2	7.6	5.4	7.9	5.5	8.3	5.9	8.7	6.1
	27.0	6.2	4.4	6.8	4.8	7.3	5.2	7.5	5.3	7.8	5.5	8.2	5.8	8.6	6.0
	29.0	6.1	4.3	6.7	4.8	7.2	5.1	7.4	5.2	7.7	5.4	8.1	5.7	8.5	6.0
	31.0	6.0	4.2	6.7	4.7	7.1	5.0	7.3	5.2	7.5	5.3	8.0	5.6	8.4	5.9
	33.0	5.9	4.2	6.5	4.6	7.0	4.9	7.2	5.1	7.4	5.2	7.9	5.5	8.2	5.8
	35.0	5.8	4.1	6.4	4.5	6.9	4.9	7.1	5.0	7.3	5.1	7.7	5.4	8.1	5.7
	37.0	5.7	4.0	6.3	4.4	6.8	4.8	7.0	4.9	7.2	5.0	7.6	5.3	7.9	5.6
	39.0	5.6	3.9	6.2	4.4	6.6	4.7	6.8	4.8	7.0	4.9	7.4	5.2	7.8	5.5
1102	10.0	9.4	6.8	10.4	7.2	11.1	7.7	11.4	7.7	11.8	7.6	12.5	7.6	13.0	7.4
	12.0	9.3	6.7	10.3	7.2	11.0	7.6	11.4	7.6	11.7	7.6	12.4	7.5	12.9	7.4
	14.0	9.3	6.7	10.2	7.1	11.0	7.6	11.3	7.6	11.6	7.6	12.3	7.5	12.9	7.3
	16.0	9.2	6.7	10.2	7.1	10.9	7.5	11.2	7.5	11.5	7.5	12.2	7.4	12.8	7.3
	18.0	9.1	6.6	10.1	7.0	10.8	7.5	11.1	7.5	11.4	7.4	12.1	7.4	12.7	7.2
	20.0	9.1	6.5	10.0	7.0	10.7	7.4	11.0	7.4	11.3	7.4	12.0	7.3	12.6	7.1
	21.0	9.0	6.5	10.0	6.9	10.7	7.4	11.0	7.4	11.3	7.3	12.0	7.3	12.5	7.1
	23.0	8.9	6.4	9.9	6.9	10.6	7.3	10.9	7.3	11.2	7.3	11.8	7.2	12.4	7.0
	25.0	8.8	6.4	9.8	6.8	10.4	7.2	10.8	7.2	11.1	7.2	11.7	7.1	12.2	7.0
	27.0	8.7	6.3	9.6	6.7	10.3	7.1	10.6	7.1	10.9	7.1	11.6	7.0	12.1	6.9
	29.0	8.6	6.2	9.5	6.6	10.2	7.0	10.5	7.0	10.8	7.0	11.4	6.9	11.9	6.8
	31.0	8.5	6.1	9.4	6.5	10.0	6.9	10.3	6.9	10.6	6.9	11.3	6.8	11.8	6.7
	33.0	8.4	6.0	9.2	6.4	9.9	6.8	10.2	6.8	10.5	6.8	11.1	6.7	11.6	6.6
	35.0	8.2	5.9	9.1	6.3	9.7	6.7	10.0	6.7	10.3	6.7	10.9	6.6	11.4	6.5
	37.0	8.1	5.8	8.9	6.2	9.5	6.6	9.8	6.6	10.1	6.6	10.7	6.5	11.2	6.4
	39.0	7.9	5.7	8.7	6.1	9.3	6.5	9.6	6.4	9.9	6.4	10.5	6.4	10.9	6.2
1402	10.0	11.5	8.1	12.8	8.6	13.7	9.2	14.1	9.1	14.5	9.1	15.3	9.0	16.0	8.8
	12.0	11.5	8.0	12.7	8.6	13.6	9.1	14.0	9.1	14.4	9.1	15.2	9.0	15.9	8.8
	14.0	11.4	8.0	12.6	8.5	13.5	9.1	13.9	9.0	14.3	9.0	15.1	8.9	15.8	8.7
	16.0	11.3	7.9	12.5	8.5	13.4	9.0	13.8	9.0	14.2	9.0	15.0	8.9	15.7	8.7
	18.0	11.2	7.9	12.4	8.4	13.3	8.9	13.7	8.9	14.1	8.9	14.9	8.8	15.6	8.6
	20.0	11.1	7.8	12.3	8.3	13.2	8.8	13.6	8.8	14.0	8.8	14.8	8.7	15.5	8.5
	21.0	11.1	7.8	12.3	8.3	13.1	8.8	13.5	8.8	13.9	8.8	14.7	8.7	15.4	8.5
	23.0	11.0	7.7	12.1	8.2	13.0	8.7	13.4	8.7	13.8	8.7	14.6	8.6	15.2	8.4
	25.0	10.9	7.6	12.0	8.1	12.8	8.6	13.2	8.6	13.6	8.6	14.4	8.5	15.1	8.3
	27.0	10.7	7.5	11.8	8.0	12.7	8.5	13.1	8.5	13.4	8.5	14.2	8.4	14.9	8.2
	29.0	10.6	7.4	11.7	7.9	12.5	8.4	12.9	8.4	13.3	8.4	14.0	8.3	14.7	8.1
	31.0	10.4	7.3	11.5	7.8	12.3	8.3	12.7	8.3	13.1	8.3	13.8	8.2	14.5	8.0
	33.0	10.3	7.2	11.3	7.7	12.2	8.2	12.5	8.1	12.9	8.1	13.6	8.0	14.3	7.9
	35.0	10.1	7.1	11.2	7.5	11.9	8.0	12.3	8.0	12.7	8.0	13.4	7.9	14.0	7.7
	37.0	9.9	6.9	10.9	7.4	11.7	7.9	12.1	7.8	12.4	7.8	13.1	7.8	13.7	7.6
	39.0	9.7	6.8	10.7	7.3	11.5	7.7	11.8	7.7	12.2	7.7	12.9	7.6	13.5	7.4

TC:Total Capacity [kW]
SHC:Sensible Heat Capacity [kW]

2-3-7. Air Throw Distance Chart

RAV-SM562CT-E

RAV-SM802CT-E
ee e e e e e e e e e e e e e e e e e e e e e e e e e e

RAV-SM1102CT-E

RAV-SM1402CT-E
ee e e e e e e e e e e e e e e e e e e e e e e e e e e e

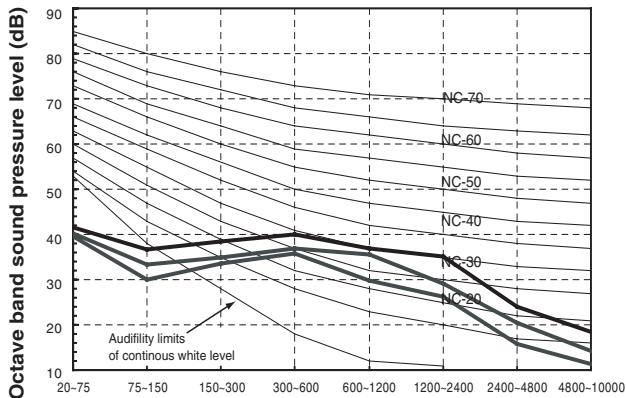

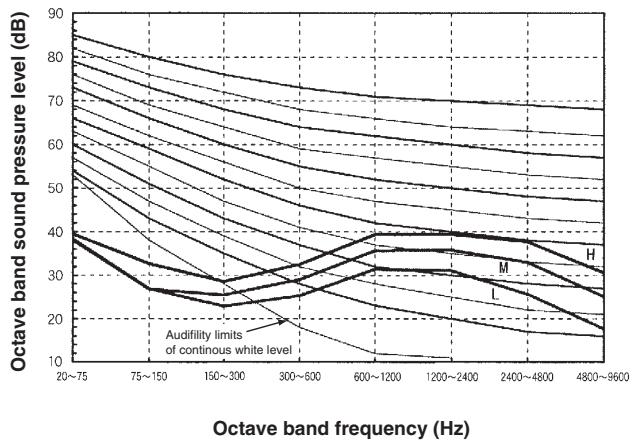

2-3-8. Sound Characteristics (NC Curve)

RAV-SM562CT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	36	33	30

Octave band frequency (Hz)

RAV-SM802CT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	38	36	33

Octave band frequency (Hz)

RAV-SM1102CT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	41	38	35

Octave band frequency (Hz)

RAV-SM1402CT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	43	40	37

Octave band frequency (Hz)

2-4. High wall type

2-4-1. Single system Specifications 2-40
2-4-2. Twin system specifications 2-41
2-4-3. Dimension 2-42
2-4-4. Wiring diagram 2-43
2-4-5. Refrigerant cycle diagram 2-44
2-4-6. Sensible capacity table 2-46
2-4-7. Air throw distance chart 2-47
2-4-8. Sound characteristics 2-48

2-4. High Wall Type

2-4-1. Single Sprit System

Model		Indoor unit		RAV-SM562KRT-E	RAV-SM802KRT-E
		Outdoor unit		RAV-SP562AT-E	RAV-SP801AT-E
Cooling capacity (kW)				5.0	6.9
Heating capacity (kW)				5.6	8.0
Power supply				1 phase 230V (220-240V) 50Hz
Electrical characteristics	Cooling	Running current (A)		8.33-7.63	13.15-12.05
		Power consumption (kW)		1.39	2.40
		Power factor (%)		95	94
		EER (W/W)		3.60	2.88
		Energy efficiency class*		A	C
		Energy rating**		-	-
	Heating	Running current (A)		8.138-7.46	12.91-11.84
		Power consumption (kW)		1.55	2.40
		Power factor (%)		95	94
		COP (W/W)		3.61	3.33
		Energy efficiency class*		A	C
		Energy rating**		-	-
Appearance		Main unit		Pure white
		Ceiling panel (Sold separately)	Model	-
			Panel color	-
Outer dimension		Main unit	Height (mm)	298	298
			Width (mm)	998	998
			Depth (mm)	208	208
		Ceiling panel (Sold separately)	Height (mm)	-	-
			Width (mm)	-	-
			Depth (mm)	-	-
Total weight		Main unit (kg)		12	12
		Ceiling panel (Sold separately) (kg)		-	-
Heat exchanger				Finned tube
Fan unit		Fan		Turbo fan	Turbo fan
		Standard air flow	H/M/L (m³/min)	14.0/12.5/10.7	18.5/14.6/12.2
		Motor (W)		30	30
Air filter				Attached main unit
Controller				FCU attached with WH-H07EE
Connecting pipe		Gas side (mm)		12.7	15.9
		Liquid side (mm)		6.4	9.5
		Drain port (mm)		VP16
Sound pressure level			H/M/L (dB·A)	39/36/33	45/41/36
Sound power level			H/M/L (dB·A)	54/51/48	60/56/51

: IEC standard, *: AS standard

2-4-2. Twin System Specifications

Model	Type			High wall Type
	Indoor unit 1			RAV-SM562KRT-E	RAV-SM802KRT-E
	Indoor unit 2			RAV-SM562KRT-E	RAV-SM802KRT-E
	Outdoor unit			RAV-SP1102AT-E	RAV-SP1402AT-E
Cooling capacity (kW)				10.0	12.3
Heating capacity (kW)				11.2	14.0
Indoor unit
Power supply				1 phase 230V (220-240V) 50Hz
Electrical characteristics	Cooling	Running current (A)		-	-
		Power consumption (kW)		2.40	4.00
		Power factor (%)		-	-
		EER (W/W)		4.17	3.08
		Energy efficiency class*		A	A
	Heating	Running current (A)		-	-
		Power consumption (kW)		2.55	3.85
		Power factor (%)		-	-
		COP (W/W)		4.39	3.64
		Energy efficiency class*		A	A
Fan unit		Fan		Cross flow fan	Cross flow fan
		Standard air flow	H/M/L (m³/min)	14.0/12.5/10.7	18.5/14.6/12.2
		Motor (W)		30	30
Sound pressure level			H/M/L (dB·A)	39/36/33	45/41/36
Sound power level			H/M/L (dB·A)	54/51/48	60/56/51
Outdoor unit
Power supply				phase 230V (220-240V) 50Hz (Power exclusive to outdoor is requirec)
Pipe		Standard length (m)		7.5	7.5
		Max. total length (m)		50	50
		Over 30m		40g/m (31m to 50m)	40g/m (31m to 50m)
		Height difference	Outdoor lower (m)	30	30
			Outdoor high (m)	30	30
Fan unit		Fan		Propeller fan
		Standard air flow High (m³/min)		125	125
		Motor (W)		63 + 63	63 + 63
Connecting pipe		Gas side	Main (mm)	15.9	15.9
			Sub (mm)	12.7	15.9
		Liquid side	Main (mm)	9.5	9.5
			Sub (mm)	6.4	9.5
Sound pressure level			Cooling/Heatir (dB·A)	49/51	53/54
Sound power level			Cooling/Heatir (dB·A)	66/68	70/71

*: IEC standard

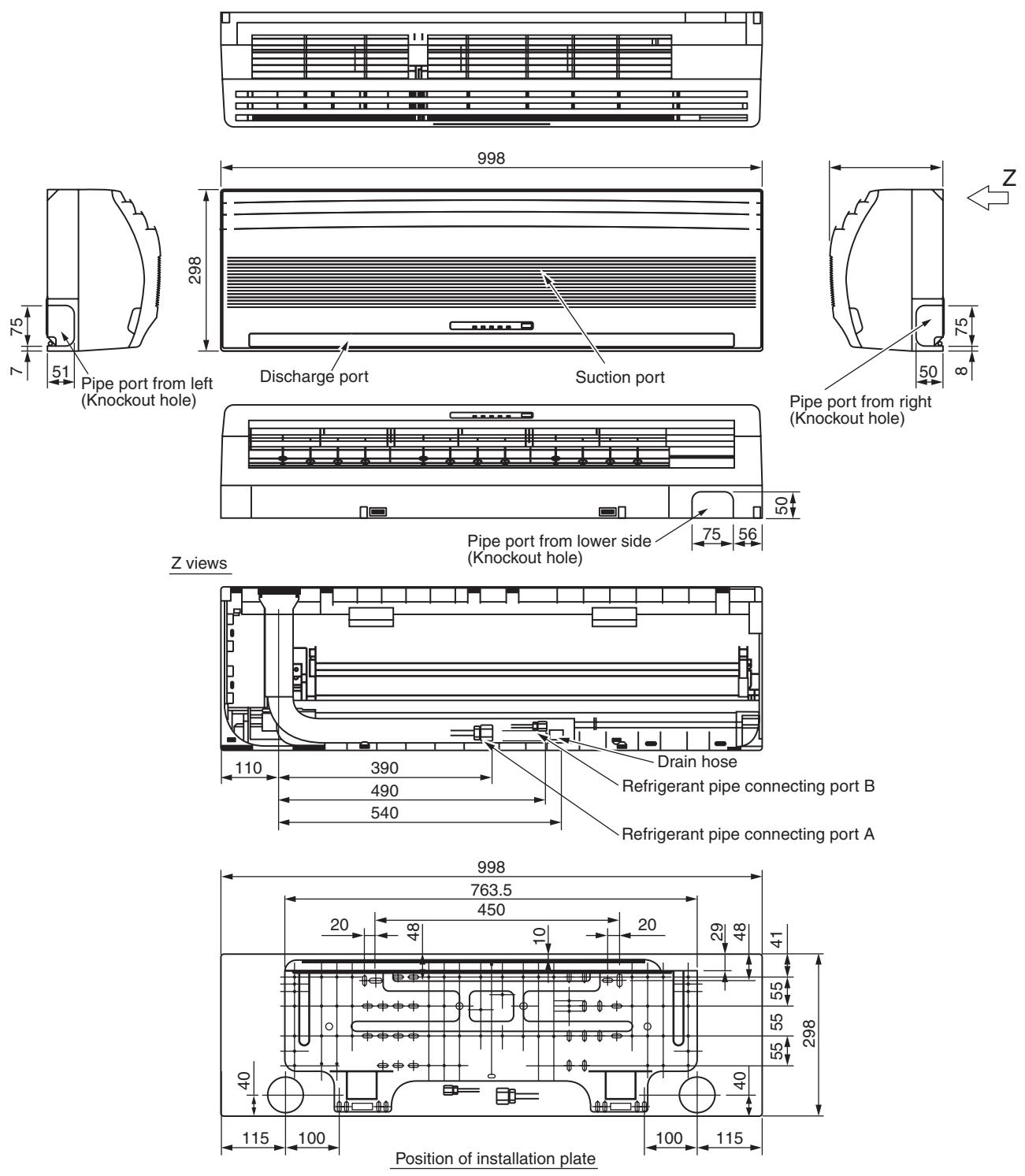

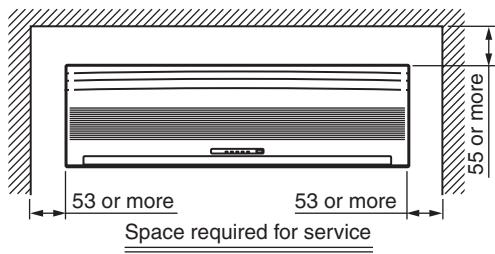

2-4-3. Dimension

RAV-SM562KRT-E/RAV-SM802KRT-E

	Liquid Side	B Gas Side
SM561	∅6.4	∅12.7
SM801	∅9.5	∅15.9

2-4-4. Wiring Diagram

Notes)
1. Material: White slick paper 75kg (with adhesive on the reverse side)
2. Ground color: White
3. Printing color: Black
4. Before the production, submit three copies of photographic printing paper draft
and it should be approved by the designer

2-4-5. Refrigerant Cycle Diagram

RAV-SP562AT-E, RAV-SM562KRT-E

		Pressure (MPa)		Pipe surface temperature (℃)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (℃)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.71	1.03	75	15	10	38	43	HIGH	27/19	35/-
	Overload	3.48	1.16	81	20	16	51	44	HIGH	32/24	43/-
	Low load	1.92	0.74	34	5	2	11	24	LOW	18/15.5	-5/-
Heating	Standard	2.22	0.72	62	6	38	2	41	HIGH	20/-	7/6
	Overload	3.47	1.16	81	20	55	15	41	LOW	30/-	24/18
	Low load	1.79	0.25	71	-16	30	-18	70	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

RAV-SP802AT-E, RAV-SM802KRT-E

		Pressure (MPa)		Pipe surface temperature (°C)				Compressor revolutions per second (rps) *	Indoor fan	Indoor/Outdoor temp. conditions (DB/WB) (°C)
				Discharge (TD)	Suction (TS)	Indoor heat exchanger (TC)	Outdoor heat exchanger (TE)			Indoor	Outdoor
		Pd	Ps
Cooling	Standard	2.72	0.93	74	12	11	40	55	HIGH	27/19	35/-
	Overload	3.57	1.10	80	21	17	52	47	HIGH	32/24	43/-
	Low load	1.89	0.74	34	7	2	12	24	LOW	18/15.5	-5/-
Heating	Standard	2.58	0.68	72	4	41	2	62	HIGH	20/-	7/6
	Overload	3.49	1.22	79	19	55	16	28	LOW	30/-	24/18
	Low load	2.30	0.25	91	-17	37	-19	90	HIGH	15/-	-15/(70%)

• 4 poles are provided to this compressor.
  The compressor frequency (Hz) measured with a clamp meter is 2 times of revolutions (rps) of the compressor.

2-4-6. Sensibles Capacity Table

RAV-SM562KRT-E, SM802KRT-E

indoor air temp.
unit size	outdoor air temp. CDB	14.0CWB 20.0CDB		16.0CWB 23.0CDB		18.0CWB 26.0CDB		19.0CWB 27.0CDB		20.0CWB 28.0CDB		22.0CWB 30.0CDB		24.0CWB 32.0CDB
		TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC	TC	SHC
562	10.0	4.8	4.0	5.3	4.3	5.7	4.6	5.8	4.6	6.0	4.6	6.3	4.5	6.6	4.4
	12.0	4.8	4.0	5.3	4.3	5.6	4.6	5.8	4.5	6.0	4.5	6.3	4.5	6.6	4.4
	14.0	4.7	4.0	5.2	4.3	5.6	4.5	5.8	4.5	5.9	4.5	6.3	4.5	6.6	4.4
	16.0	4.7	4.0	5.2	4.2	5.6	4.5	5.7	4.5	5.9	4.5	6.2	4.4	6.5	4.3
	18.0	4.7	3.9	5.1	4.2	5.5	4.5	5.7	4.4	5.8	4.4	6.2	4.4	6.5	4.3
	20.0	4.6	3.9	5.1	4.2	5.5	4.4	5.6	4.4	5.8	4.4	6.1	4.4	6.4	4.3
	21.0	4.6	3.9	5.1	4.1	5.4	4.4	5.6	4.4	5.8	4.4	6.1	4.3	6.4	4.2
	23.0	4.6	3.8	5.0	4.1	5.4	4.4	5.5	4.3	5.7	4.3	6.0	4.3	6.3	4.2
	25.0	4.5	3.8	5.0	4.1	5.3	4.3	5.5	4.3	5.6	4.3	6.0	4.2	6.2	4.2
	27.0	4.4	3.8	4.9	4.0	5.3	4.3	5.4	4.2	5.6	4.2	5.9	4.2	6.2	4.1
	29.0	4.4	3.7	4.8	4.0	5.2	4.2	5.3	4.2	5.5	4.2	5.8	4.1	6.1	4.1
	31.0	4.3	3.7	4.8	3.9	5.1	4.1	5.3	4.1	5.4	4.1	5.7	4.1	6.0	4.0
	33.0	4.3	3.6	4.7	3.8	5.0	4.1	5.2	4.1	5.3	4.1	5.6	4.0	5.9	3.9
	35.0	4.2	3.5	4.6	3.8	5.0	4.0	5.1	4.0	5.2	4.0	5.6	4.0	5.8	3.9
	37.0	4.1	3.5	4.5	3.7	4.9	3.9	5.0	3.9	5.1	3.9	5.4	3.9	5.7	3.8
	39.0	4.0	3.4	4.4	3.6	4.8	3.9	4.9	3.8	5.0	3.8	5.3	3.8	5.6	3.7
802	10.0	6.3	5.2	6.9	5.5	7.4	5.8	7.7	5.8	7.9	5.8	8.3	5.8	8.7	5.6
	12.0	6.3	5.1	6.9	5.5	7.4	5.8	7.6	5.8	7.8	5.8	8.3	5.7	8.7	5.6
	14.0	6.2	5.1	6.9	5.4	7.3	5.8	7.6	5.8	7.8	5.8	8.2	5.7	8.6	5.6
	16.0	6.2	5.1	6.8	5.4	7.3	5.7	7.5	5.7	7.7	5.7	8.2	5.6	8.6	5.5
	18.0	6.1	5.0	6.8	5.3	7.2	5.7	7.5	5.7	7.7	5.7	8.1	5.6	8.5	5.5
	20.0	6.1	5.0	6.7	5.3	7.2	5.6	7.4	5.6	7.6	5.6	8.1	5.6	8.4	5.4
	21.0	6.0	5.0	6.7	5.3	7.1	5.6	7.4	5.6	7.6	5.6	8.0	5.5	8.4	5.4
	23.0	6.0	4.9	6.6	5.2	7.1	5.6	7.3	5.5	7.5	5.5	7.9	5.5	8.3	5.4
	25.0	5.9	4.9	6.5	5.2	7.0	5.5	7.2	5.5	7.4	5.5	7.8	5.4	8.2	5.3
	27.0	5.8	4.8	6.5	5.1	6.9	5.4	7.1	5.4	7.3	5.4	7.8	5.3	8.1	5.2
	29.0	5.8	4.7	6.4	5.0	6.8	5.4	7.0	5.3	7.2	5.3	7.6	5.3	8.0	5.2
	31.0	5.7	4.7	6.3	5.0	6.7	5.3	6.9	5.3	7.1	5.3	7.5	5.2	7.9	5.1
	33.0	5.6	4.6	6.2	4.9	6.6	5.2	6.8	5.2	7.0	5.2	7.4	5.1	7.8	5.0
	35.0	5.5	4.5	6.1	4.8	6.5	5.1	6.7	5.1	6.9	5.1	7.3	5.0	7.6	4.9
	37.0	5.4	4.4	6.0	4.7	6.4	5.0	6.6	5.0	6.8	5.0	7.2	4.9	7.5	4.8
	39.0	5.3	4.3	5.8	4.6	6.3	4.9	6.4	4.9	6.6	4.9	7.0	4.8	7.3	4.7

TC:Total Capacity [kW]
SHC:Sensible Heat Capacity [kW]

2-4-7. Air Throw Distance Chart

RAV-SM562KRT-E

RAV-SM802KRT-E

2-4-8. Sound Characteristics

RAV-SM562KRT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	39	36	33

RAV-SM802KRT-E

Fan tap	H	M	L
Sound pressure level (dB(A))	45	41	36

3. Outdoor unit

3-1. Specifications 3-2
3-2. Dimension 3-3
3-3. Wiring diaaram 3-5
3-4. Sound characteristics 3-7
3-5. Capacity variation ratio according to temperature 3-8

3-1. Specifications

- Outdoor Unit Specifications

Model name RAV-			SP562AT-E	SP802AT-E	SP1102AT-E	SP1402AT-E
Power supply			1 phase 230V (220 - 240V) 50Hz (Power exclusive to outdoor is required.)
Compressor	Type		Hermetic compressor
	Motor (kW)		2.0	2.0	3.75	3.75
	Pole		4	4	4	4
Refrigerant charged (kg)			1.5	2.1	2.95	2.95
Refrigerant control			Pulse motor valve
Inter connecting pipe	Standard length (m)		7.5	7.5	7.5	7.5
	Min. length (m)		5.0	5.0	5.0	5.0
	Max. total length (m)		50	50	70	70
	Additional refrigerant charge under long piping connector		20g/m (21m to 50m)	40g/m (31m to 50m)	40g/m (31m to 70m)	40g/m (31m to 70m)
	Height difference	Outdoor lower (m)	30	30	30	30
		Outdoor higher (m)	30	30	30	30
Outer dimension	Height (mm)		795	795	1340	1340
	Width (mm)		900	900	900	900
	Depth (mm)		320	320	320	320
Appearance			Silky shade (Muncel 1Y8.5/0.5)
Total weight (kg)			55	62	95	95
Heat exchanger			Finned tube
Fan unit	Fan		Propeller fan
	Standard air flow (m³/min)		57	57	125	125
	Motor (W)		63	63	63 + 63	63 + 63
Connecting pipe	Gas side (mm)		12.7	15.9	15.9	15.9
	Liquid side (mm)		6.4	9.5	9.5	9.5
Sound pressure level	Cooling/Heating (dB·A)		46/47	47/49	49/51	53/54
Sound power level	Cooling/Heating (dB·A)		63/64	64/66	66/68	70/71
Outside air temperature, Cooling (°C)			43 to -15
Outside air temperature, Heating (°C)			15 to -15

3-2. Dimension

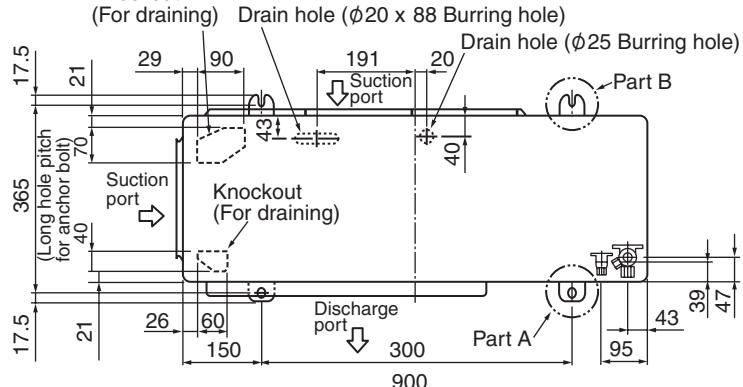

RAV-SP562AT-E, RAV-SP802AT-E

Knockout

Knockout for lower piping

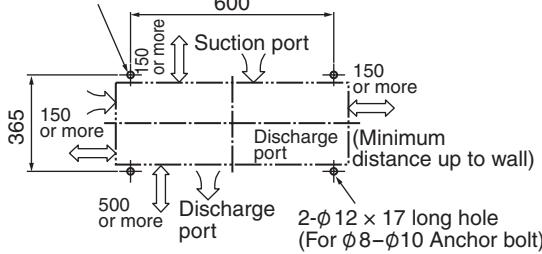

Space required for service

2-φ 12 x 17 U-shape holes (For φ8-φ10 Anchor bolt)

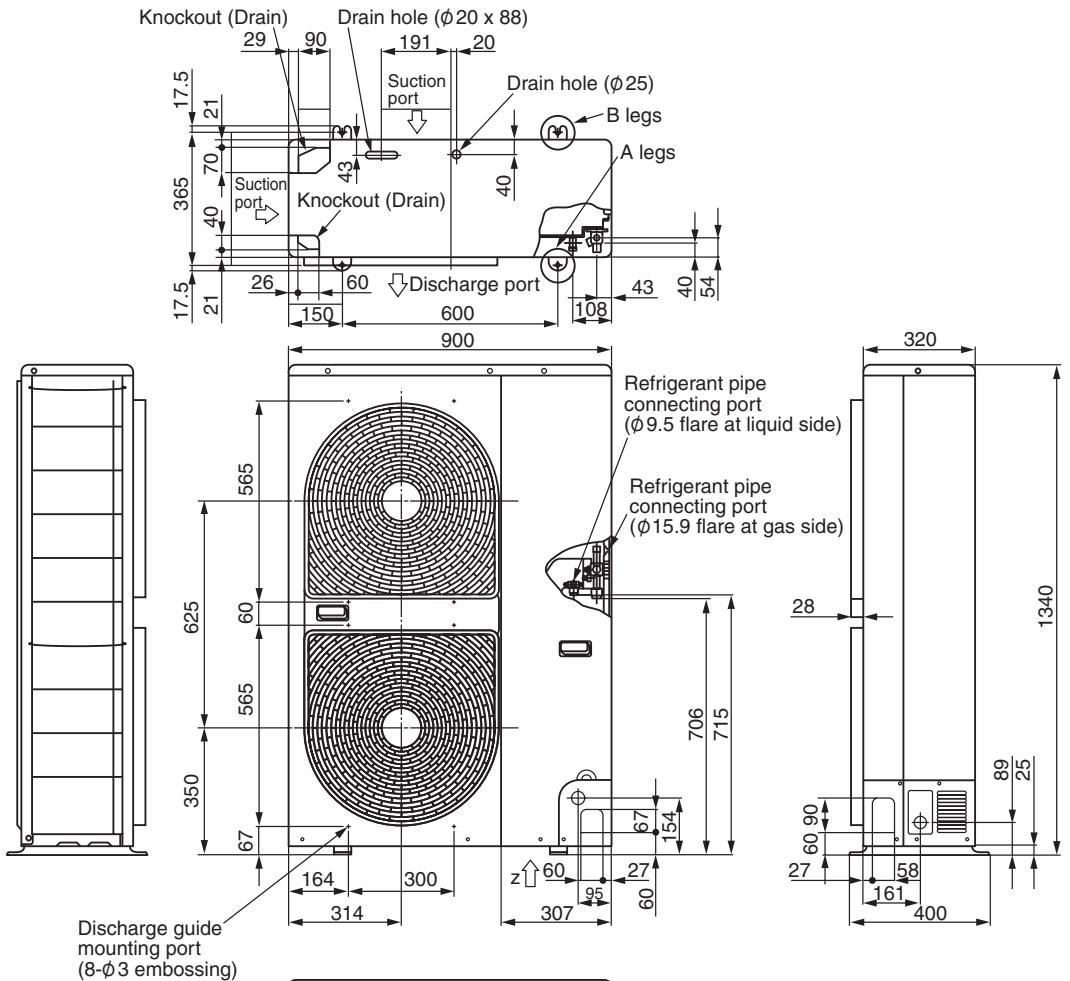

RAV-SP1102AT-E, RAV-SP1402AT-E

Space required for service

3-3. Wiring Diagram

RAV-SP562AT-E, RAV-SP802AT-E

RAV-SP1102AT-E, RAV-SP1402AT-E

3-4. Sound Characteristics (NC Curve)

RAV-SP562AT-E

Sound pressure level (dB(A))	Cooling	Heating
	46	47

RAV-SP802AT-E

Sound pressure level (dB(A))	Cooling	Heating
	47	49

RAV-SP1102AT-E

Sound pressure level (dB(A))	Cooling	Heating
	49	51

RAV-SP1402AT-E

Sound pressure level (dB(A))	Cooling	Heating
	53	54

3-5. Capacity Variation Ratio According To Temperature

RAV-SP562AT-E, RAV-SP802AT-E, RAV-SP1102AT-E, RAV-SP1402AT-E

4. Controls

4-1. Remote controller line-up 4-2
4-2. Group control 4-3
4-3. Central control 4-3

4. Controls

4-1. Remote Controller Line-UP

Remote controller & Adaptor	Indoor unit	4-Way Cassette Type RAV-SM**2UT-ERAV-SP1102UT-E	Duct Type RAV-SM**2BT-E	Ceiling Type RAV-SM**2CT-E	High-Wall Type RAV-SM**2KRT-E
RBC-AMT31E Wired remote controller	●	●	●	●	●
RBC-AS21E2 Simple wired remote controller	●	●	●	●	●
TBC-AX21U(W)-E2 Wireless remote controller kit	●	—	—	—	—
RBC-AX22CE2 Wireless remote controller kit	—	—	●	—	—
TCB-AX21E2 Wireless remote controller kit	—	●	—	●	●
RBC-EXW21E2 Weekly timer	●	●	●	●	●
TCB-SC642TLE2 Central remote controller	●	●	●	●	●
TCB-TC21LE2 Remote sensor	●	●	●	●	●
TCB-PCNT30TLE2 "1:1 model" connection interface (for connecting to central control wiring)	●	●	●	●	—
WH-H2UE Wireless remote controller	—	—	—	●	●

Packed with FCU

	4-Way Cassette Type	Duct Type	Ceiling Type	High-Wall Type
Group control	○	○	○	○
Central remote controller	○ "1:1 model" connection interface TCB-PCNT30TLE2	○ "1:1 model" connection interface TCB-PCNT30TLE2	○ "1:1 model" connection interface TCB-PCNT30TLE2	○ Can connect without "1:1 model" connection interface

Auto Restart Operation How to set the AUTO RESET Function

Indoor unit		Remote controller	Setting Procedure
4-way cassette Type	RAV-SM**2UT-E	RBC-AMT31E	Set the code on wired remote controller. 0001 : Reset 0000 : none *When the unit are shipped from the factory "Auto restart function" is set up "0000" operation.
Duct Type	RAV-SM**2BT-E	RBC-AMT31E	Set the code on wired remote controller. 0001 : Reset 0000 : none *When the unit are shipped from the factory "Auto restart function" is set up "0000" operation.
Ceiling Type	RAV-SM**2CT-E	RBC-AMT31E	Set the code on wired remote controller. 0001 : Reset 0000 : none *When the unit are shipped from the factory "Auto restart function" is set up "0000" operation.
High-wall Type	RAV-SM**2KRT-E	RBC-AMT31E	Set the code on wired remote controller. 0001 : Reset 0000 : none *When the unit are shipped from the factory "Auto restart function" is set up "0000" operation.

4-2. Group Control

Max. 8 indoor units can be controlled by one remote controller on a group control.

Twin control of 1 by 1 model is one group control.

Header indoor unit controls indoor air temperature based on setting temperature of the remote controller.

[ System sample ]

[NOTE] Be sure to supply the power for all indoor units on the group control. If the power isn't supplied to the header indoor unit, communication between indoor units and remote controller can't be performed.

4-3. Central Control

Connectable units

• Max.64 of indoor units or groups can be connected and controlled in one central remote controller.
• It count the number of the twin unit as the one

5. Accessories

5-1. Accessories 5-2
5-2. Drain up kit 5-4
5-3. Twin kit 5-5

5. Accessories

5-1. Accessories line up

4-way Cassette Type

Parts Name	Model name	Notes	Remarks
Ceiling panel	RBC-U21PG(W)-E2	Required accessory
Super Long Life Filter	TCB-LF1601UE2	Dust collecting effect : 50% (Weight method) *Not valid in combination with TCB-FM1601UE, TCB-UFH1601UE and TCB-BC1601UE	Use with TCB-GFC1601UE2
High Efficiency Filter 65	TCB-UFM1601UE	Dust collecting effect : 65% (NBS Colorimetric method) *Not valid in combination with TCB-LF1601UE2, TCB-UFH1601UE, TCB-FF101URE2 and TCB-BC1601UE	Use with TCB-GFC1601UE2
High Efficiency Filter 90	TCB-UFH1601UE	Dust collecting effect : 90% (NBS Colorimetric method) *Not valid in combination with TCB-LF1601UE2, TCB-UFM1601UE, TCB-FF101URE2 and TCB-BC1601UE	Use with TCB-GFC1601UE2
Fresh air inlet Box	TCB-GB1601UE2	For fresh air intake by using the knockout hole of Fresh air and filter chamber. (dia=100mm) *Not valid in combination with TCB-FF101URE2 and TCB-SP1601UE	Use with TCB-GFC1601UE2
Frech air and Filter Chamber	TCB-GFC1601UE2	For fresh air intake and installing high efficiency filter or super long filter *Not valid in combination with TCB-SP1601UE
Auxiliary fresh air Flange	TCB-FF101URE2	For easy fresh air intake by using the knockout hole of indoor unit.(dia=100mm) *Not valid in combination with TCB-GB1601UE2
Spacer for height adjustment	TCB-SP1601UE	Height = 500mm *Not valid in combination with TCB-GB1601UE2 and TCB-GFC1601UE2
Air discharge direction kit	TCB-BC1601UE	Air direction charge by cutting off air discharge port (3pcs) *Not valid in combination with TCB-LF1601UE2, TCB-UFM1601UE, TCB-UFH1601UE

■ Ceiling Type

Parts Name	Model name	Applied Model	Notes	Remarks
Drain Pump Kit	TCB-DP22CE2	MMC-AP0151/0181H	Stand-up 600 or less (from bottom face of ceiling)	Use with TCB-KP12CE
		MMC-AP0241H/0271/0361H/0481H		Use with TCB-KP22CE
Elbow Piping Kit	TCB-KP12CE2	2HP	Needed when Drain Pump Kit is used
	TCB-KP22CE2	3-5HP

Duct Type

	Model name	Remarks
High Efficiency Filter 65	TCB-UFM11BFCE	For rear suction (2P for 3HP)
	TCB-UFM21BFCE	For rear suction (2P for 4-5HP)
	TCB-UFM21BE	For Underside suction (for 2HP)
	TCB-UFM31BE	For Underside suction (for 3HP)
	TCB-UFM41BE	For Underside suction (for 4-5HP)
High Efficiency Filter 90	TCB-UFH51BFCE	For rear suction (2P for 3HP)
	TCB-UFH61BFCE	For rear suction (2P for 4-5HP)
	TCB-UFH61BE	For Underside suction (for 2HP)
	TCB-UFH71BE	For Underside suction (for 3HP)
	TCB-UFH81BE	For Underside suction (for 4-5HP)

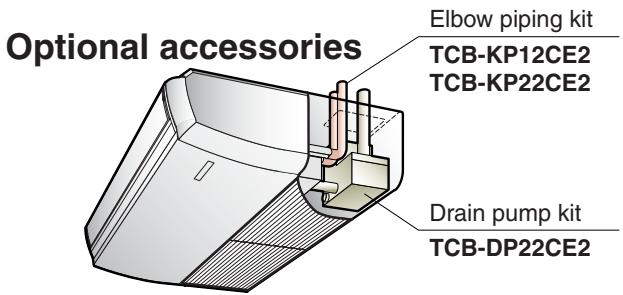

5-2. Drain up kit

* A high-lift drain kit is available as an option (600mm)

model name	Note	RAV-
		SM56*CT-E	SM80*CT-E	SM110*CT-E	SM140*CT-E
Drain Pump Kit		TCB-DP22CE2
Elbow Piping Kit	Necessary when Drain Pump kit is used.	TCB-KP12CE2	TCB-KP22CE2

Dimension

Drain pump kit (TCB-DP22CE2)

Elbow piping kit (TCB-KP12CE2, TCB-KP22CE2)

(Liquid side)

(Gas side)

model	A	B
TCB-KP12CE2	6.4	12.7
TCB-KP22CE2	9.5	15.9

5-3. Twin kit

- COMPONENT

The following parts are supplied as accessories of the branch pipes. Check them when opening the carton box.

Part		Quantity	Shape	Use
Installation Instructions		1	This booklet	For installation works
Branch pipe	Gas side	1		For refrigerant pipe branching and collection
	Liquid side	1
Noise filter		2		For connection on the P.C. board

- REFRIGERANT PIPING

Tolerance of pipe length and pipe head

	Pipe Length (One Direction)			Height Difference			Remarks
Model (RAV-)	Full length L + a or L + b	Branch piping a, b	Difference of branch piping length b - a, or a - b	Outdoor Unit - Indoor Unit H		Between Indoor Units Dh
				Outdoor Unit Installed Above Indoor Unit	Outdoor Unit Installed Below Indoor Unit
1102AT 1402AT	Below 50m (actual length)	Below 15m (actual length)	Below 10m	Below 30m	Below 30m	Below 0.5m	Less than 10 bends

CAUTION

Ensure that the shortest pipe length complies with the following: L + b ≥ 5m a≥b

When planning a layout for Units A and B, comply with the following:

1. The lengths after branching ("a" and "b") should be equal if feasible. Install Units A and B so that the difference of the branching lengths becomes less than 10m if the lengths cannot be equal due to the branch pipe position.
2. Install Units A and B on the same level. If Units A and B cannot be installed on the same level, the difference in level should be limited to 0.5m or less.
   3.Be certain to install Units A and B in the same room. Units A and B cannot be operated independently each other.

Piping materials and sizes

Use copper tube of Copper and copper alloy seamless pipes and tubes, with 40mg / 10m or less in the amount of oil stuck on inner walls of pipe and 0.8mm in pipe wall thickness for diameters 6.4, 9.5 and 12.7mm and 1.0mm , for diameter 15.9mm . Never use pipes of thin wall thickness such as 0.7mm .

Model (RAV -)			1102AT	1402AT
Pipe side	Gas side	Main piping	Ø15.9 (1.0)
		Branch piping	Ø12.7 (0.8)	Ø15.9 (1.0)
	Liquid side	Main piping	Ø9.5 (0.8)
		Branch piping	Ø6.4 (0.8)	Ø9.5 (0.8)

In parentheses ( ) are wall thickness

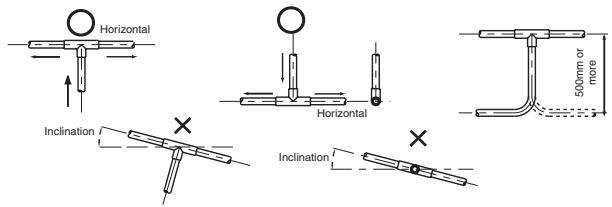

Branch pipe

Now the refrigerant pipe is installed using branch pipes supplied as accessories.

Bend and adjust the refrigerant piping so that the branch pipes and pipe after branching become horizontal.

Fix the branch pipes onto a wall in a ceiling or onto a column.

Provide a straight pipe longer than 500mm in length as the main piping of the branches.

Additional Refrigerant Amount

Do not remove the refrigerant even if the additional refrigerant amount becomes minus result as a result of calculations by the following formula and operate the air conditioner as it is.

Additional refrigerant amount (kg) = Main piping additional refrigerant amount (kg) + Branch piping additional refrigerant amount (kg) = A x (L - 18) + B x (a + b - 4)

A: Additional refrigerant amount per meter of actual main piping length (kg)
B: Additional refrigerant amount per meter of actual branch piping length (kg)
L: Actual length of main piping (m)
a, b: Actual length of branch piping (m)

	Standar d piping length		Additional refrigerant amount per Meter (kg/m)
	Main piping	Branch piping	A	B
1102AT	18m	2m	0.040	0.020
1402AT	18m	2m	0.040	0.040

CAUTION

1. Be certain to write the additional refrigerant amount, pipe length (actual length), head and other specification on the nameplate put on the outdoor unit for recording.
2. Seal the correct amount of additional refrigerant in the system.

Indoor Unit P.C electrical parts

This work is unnecessary for Hi-Wall Type.

This work is necessary for each indoor unit.

1. Disconnect the read wire between remote control terminal and CN41 (RC) connector on the P.C/board.

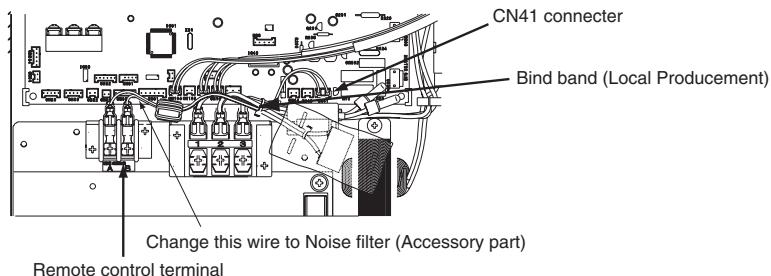

P.C board of Indoor Unit

1. Connect the Noise Filter between remote control terminal and CN41 (RC) connector on the P.C/board.
   3.Bind this wire and main terminal wire by bind band.

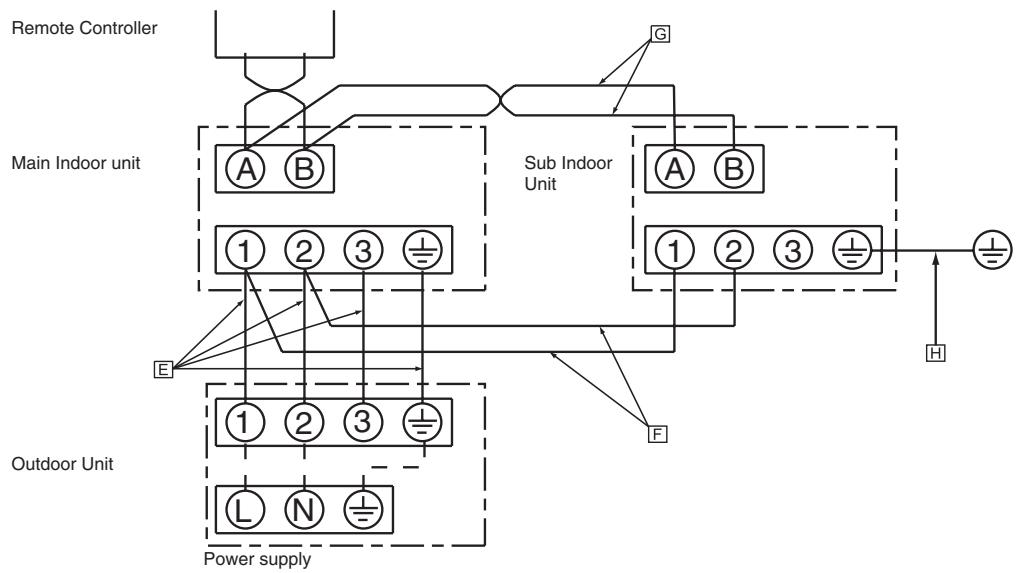

Wiring Diagram

Wiring Specification

Specification of Wires Between Units and Numbers of Wires.

Outdoor unit - indoor unit (main unit) E	No. of wires	4 (Include ground wire)
	Wire diameter	H07RN-F or 245IEC66 1.5mm² or more
Indoor unit - indoor unit (main unit) F	No. of wires	2
	Wire diameter	H07RN-F or 245IEC66 1.5mm² or more
Remote control wiring G	No. of wires	2
	Wire diameter	Between 0.5mm² and 2mm² (up to 200m)
Grounding wire of indoor sub unit H		H07RN-F or 245IEC66 1.5mm² or more

Procure necessary parts and perform all connection work locally.

Super Digital Inverter

Engineering Data Book

Sep. 2006 First Edition
