| Intitulé | Valeur / Description |
|---|---|
| Type de produit | Scooter à trois roues |
| Caractéristiques techniques principales | Moteur monocylindre, 4 temps, refroidi par air |
| Alimentation électrique | Allumage électronique, batterie 12V |
| Dimensions approximatives | Longueur : 2 100 mm, Largeur : 800 mm, Hauteur : 1 400 mm |
| Poids | Poids à vide : 180 kg |
| Capacité du réservoir | Réservoir de carburant de 10 litres |
| Type de moteur | Moteur 125 cc ou 180 cc selon le modèle |
| Puissance | Puissance maximale : 15 ch (11 kW) |
| Fonctions principales | Scooter urbain, adapté pour le transport de passagers et de marchandises |
| Entretien et nettoyage | Vérification régulière de l'huile, nettoyage du filtre à air, contrôle des freins |
| Pièces détachées et réparabilité | Disponibilité de pièces détachées chez les concessionnaires Piaggio |
| Sécurité | Équipements de sécurité : freins à disque avant et arrière, éclairage LED |
| Informations générales utiles | Conçu pour une conduite stable et sécurisée, idéal pour les débutants et les trajets quotidiens |
FOIRE AUX QUESTIONS - HEXAGON PIAGGIO
Comment démarrer mon PIAGGIO HEXAGON si la batterie est déchargée ?
Vous pouvez utiliser des câbles de démarrage pour relier la batterie de votre PIAGGIO HEXAGON à une autre batterie chargée. Assurez-vous de suivre les instructions de sécurité lors de cette opération.
Que faire si mon PIAGGIO HEXAGON ne démarre pas ?
Vérifiez d'abord la batterie, le niveau de carburant et les fusibles. Si tout semble en ordre, il pourrait y avoir un problème avec le démarreur ou le système d'allumage.
Comment vérifier la pression des pneus de mon PIAGGIO HEXAGON ?
Utilisez un manomètre pour vérifier la pression des pneus. Pour le PIAGGIO HEXAGON, la pression recommandée est généralement de 2,0 bars à l'avant et 2,2 bars à l'arrière.
Que faire si les freins de mon PIAGGIO HEXAGON sont bruyants ?
Un bruit de frein peut indiquer que les plaquettes sont usées ou que les disques de frein sont endommagés. Il est conseillé de faire vérifier le système de freinage par un professionnel.
Comment entretenir le moteur de mon PIAGGIO HEXAGON ?
Effectuez régulièrement des vidanges d'huile, remplacez le filtre à huile et vérifiez les niveaux de liquide de refroidissement. Suivez également le calendrier d'entretien recommandé dans le manuel du propriétaire.
Comment régler les phares de mon PIAGGIO HEXAGON ?
Pour régler les phares, stationnez votre scooter contre un mur à environ 5 mètres de distance. Ajustez les vis de réglage des phares jusqu'à ce que le faisceau de lumière soit aligné à la hauteur souhaitée.
Que faire si mon compteur kilométrique ne fonctionne pas ?
Vérifiez les connexions électriques et le câble du compteur. Si tout est en ordre, le problème pourrait provenir d'un défaut interne du compteur lui-même.
Comment nettoyer le filtre à air de mon PIAGGIO HEXAGON ?
Retirez le filtre à air et nettoyez-le délicatement avec de l'air comprimé ou de l'eau savonneuse. Assurez-vous qu'il soit complètement sec avant de le réinstaller.
Quel type d'huile moteur utiliser pour mon PIAGGIO HEXAGON ?
Utilisez une huile moteur de qualité 10W-40 ou selon les spécifications recommandées dans le manuel du propriétaire.
Comment savoir si mon PIAGGIO HEXAGON a besoin d'une nouvelle courroie ?
Des signes d'usure, tels que des bruits de glissement ou des vibrations excessives, peuvent indiquer que la courroie doit être remplacée. Un contrôle régulier est recommandé.
Questions des utilisateurs sur HEXAGON PIAGGIO
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Aucune question pour l'instant. Soyez le premier à en poser une.
Téléchargez la notice de votre Scooter au format PDF gratuitement ! Retrouvez votre notice HEXAGON - PIAGGIO et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil HEXAGON de la marque PIAGGIO.
MODE D'EMPLOI HEXAGON PIAGGIO
SPARE PARTS CATALOGUE

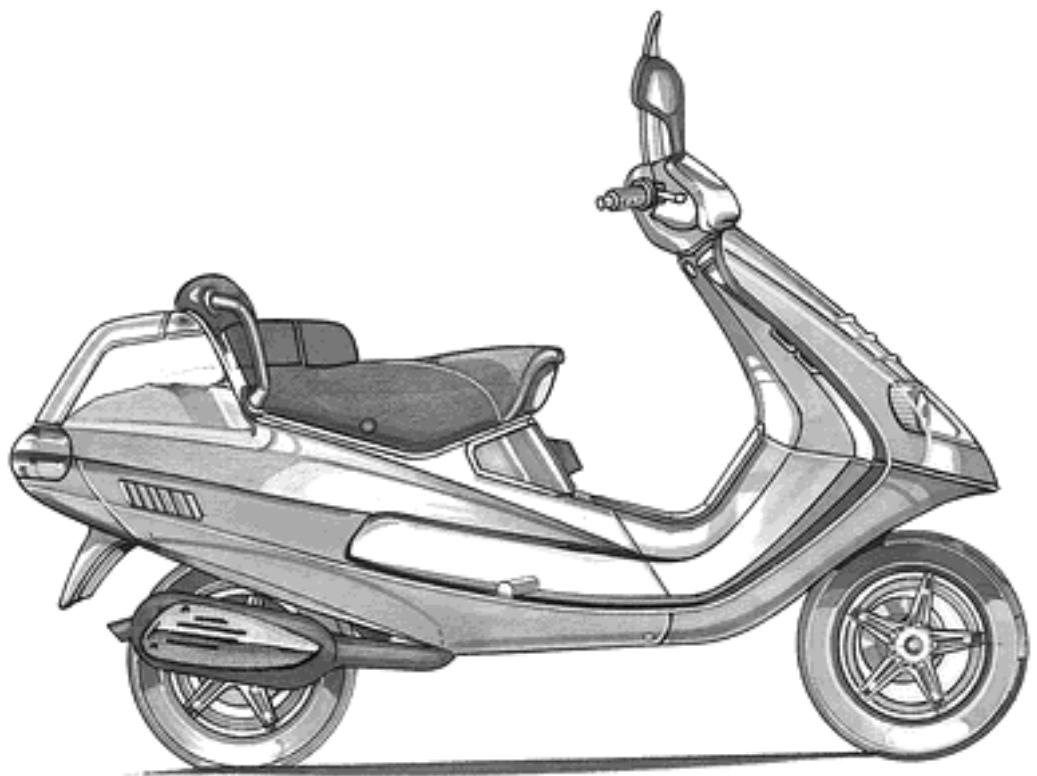

Hexagon 125
Chassis prefix: EXS1T 00010001
Engine prefix:
Index
Products. 4
Part reference. 5
Elektrische Anlage 11

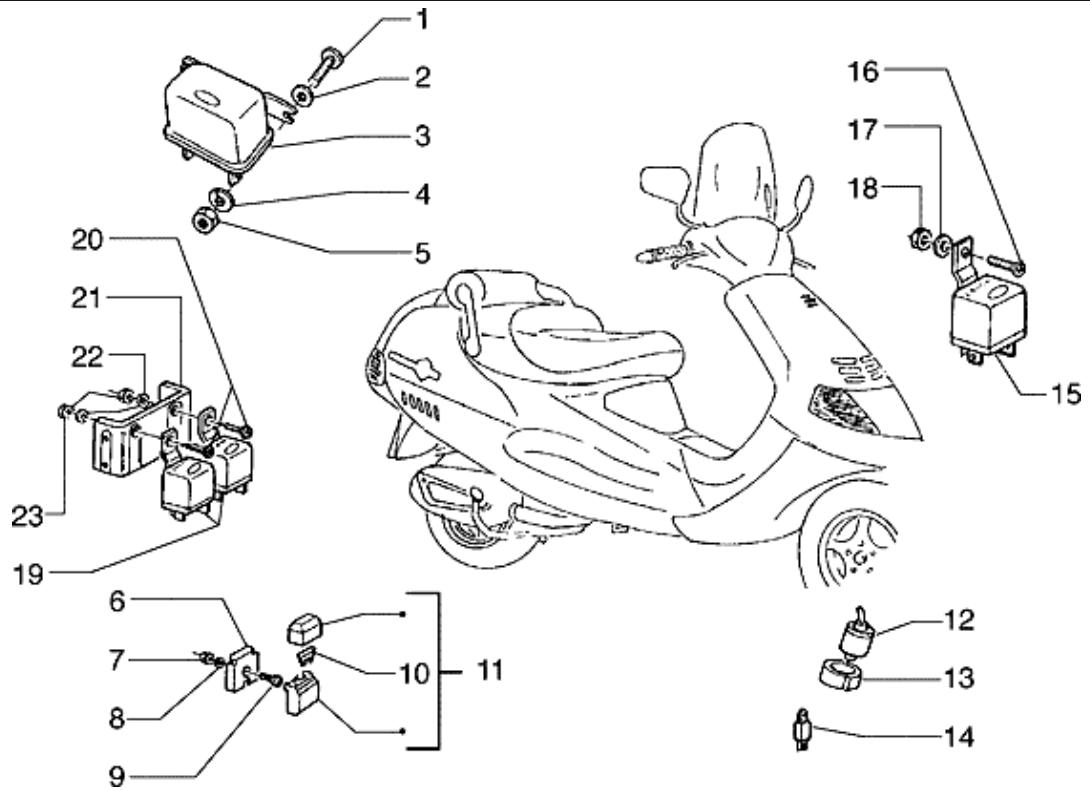

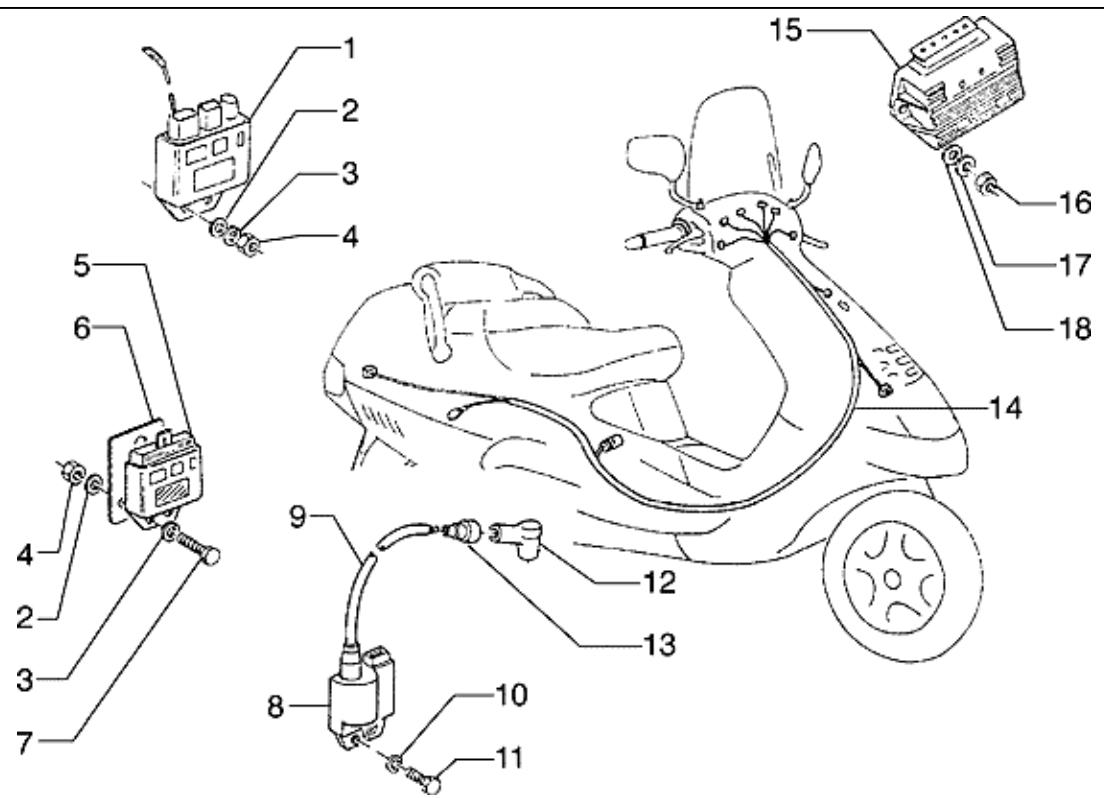

Drawing T59 - Elektrische Ausrüstung 11
Drawing T60 - Elektrische Ausrüstung 12
Drawing T61 - Elektrische Ausrüstung 13

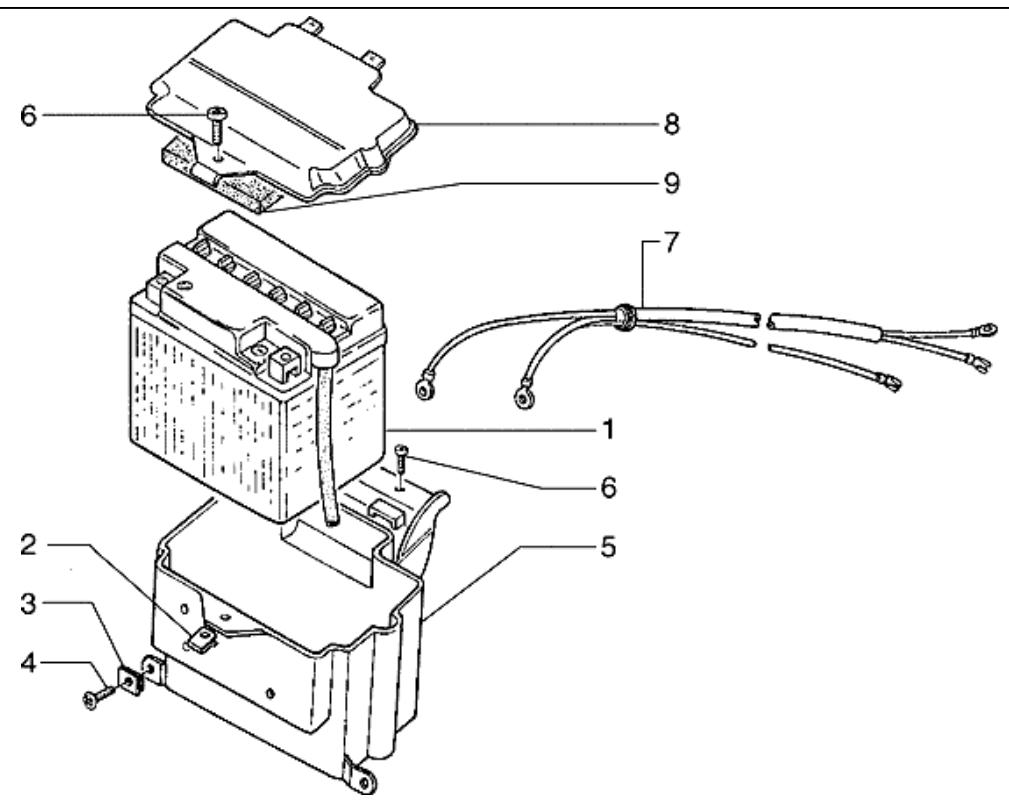

Drawing T62 - Batterie. 14
Drawing T63 - Scheinwerfer 15

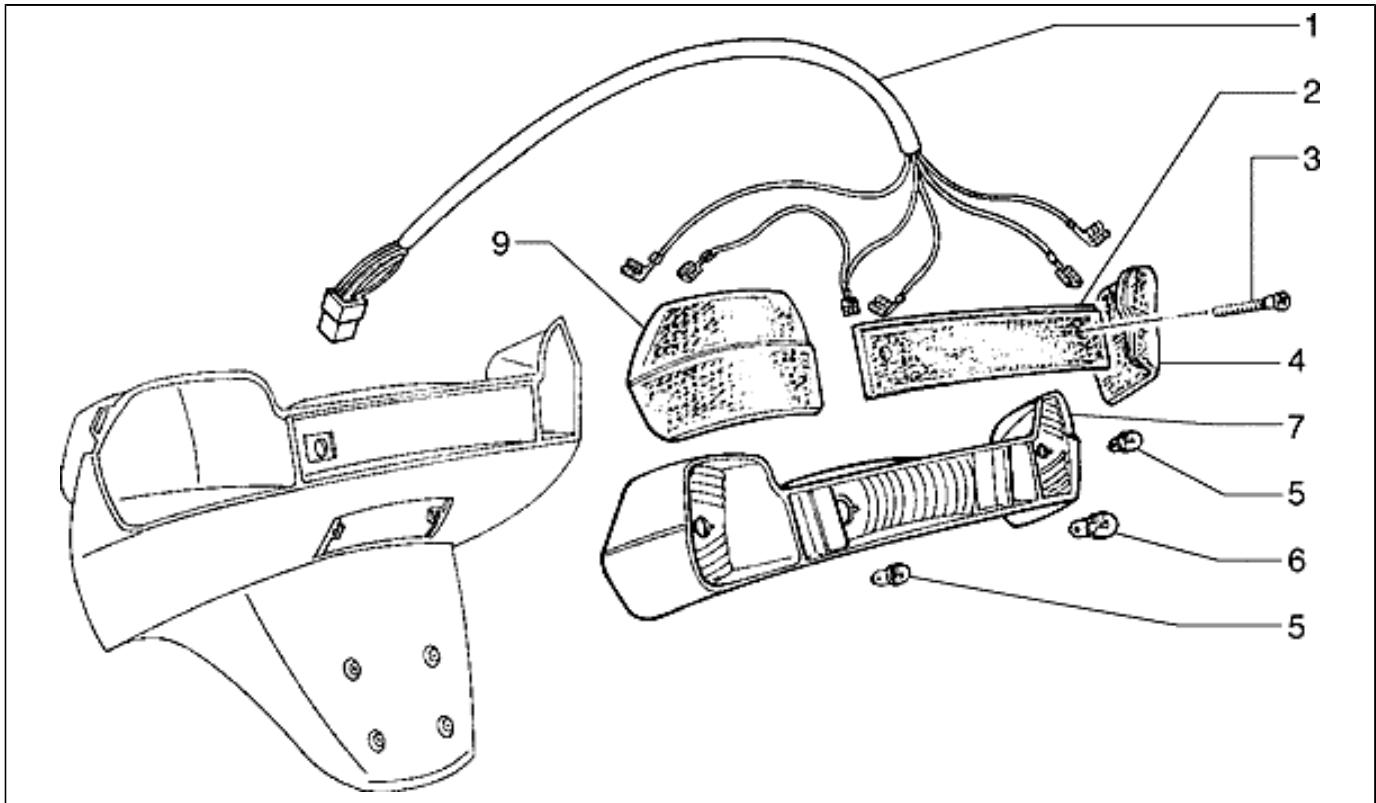

Drawing T64 - Rückleuchte 16

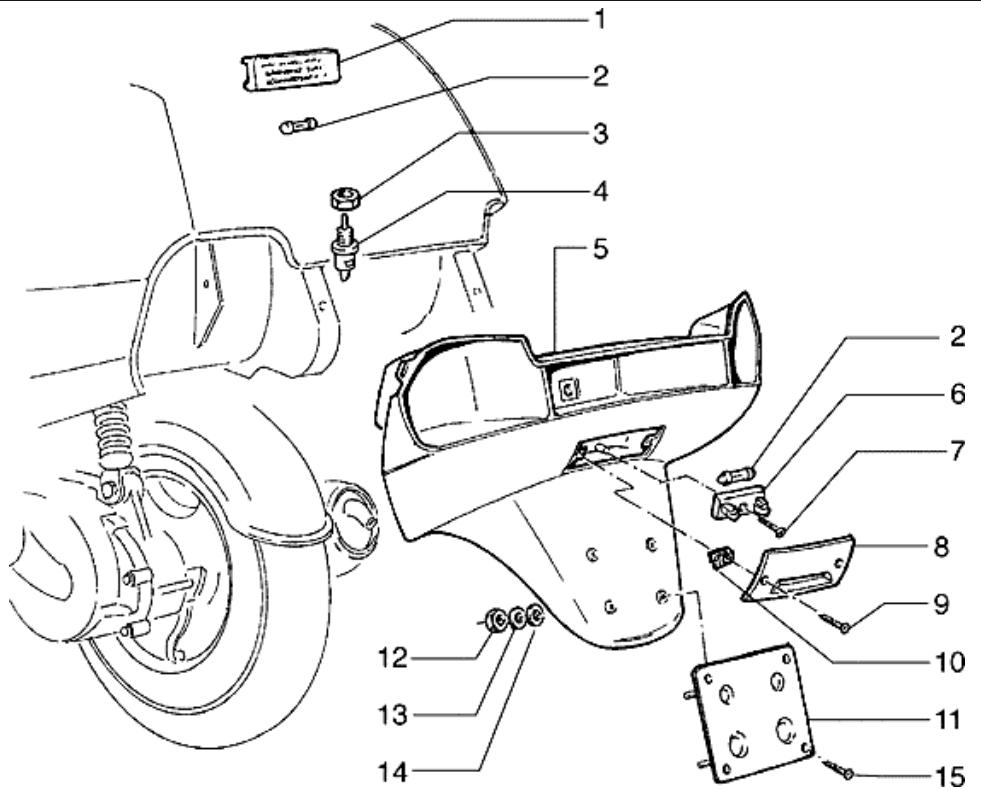

Drawing T65 - Nummerschildbefestigung und Handschuhfachbeleuchtung. 17
Motor 18

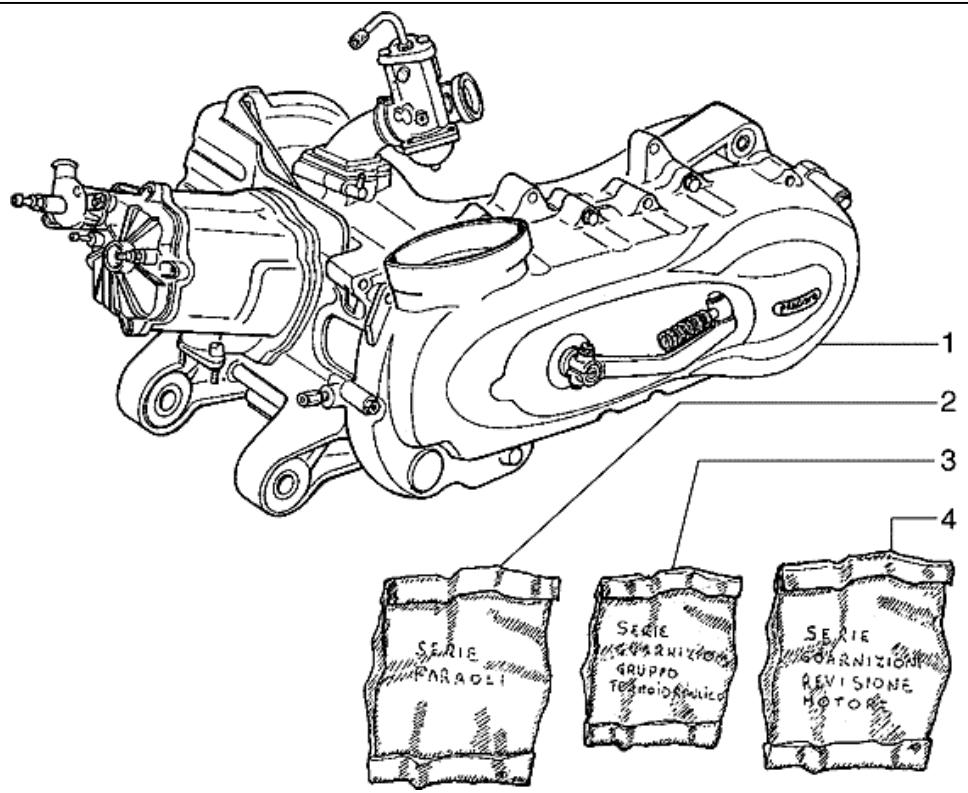

Drawing T1 - Motor 18

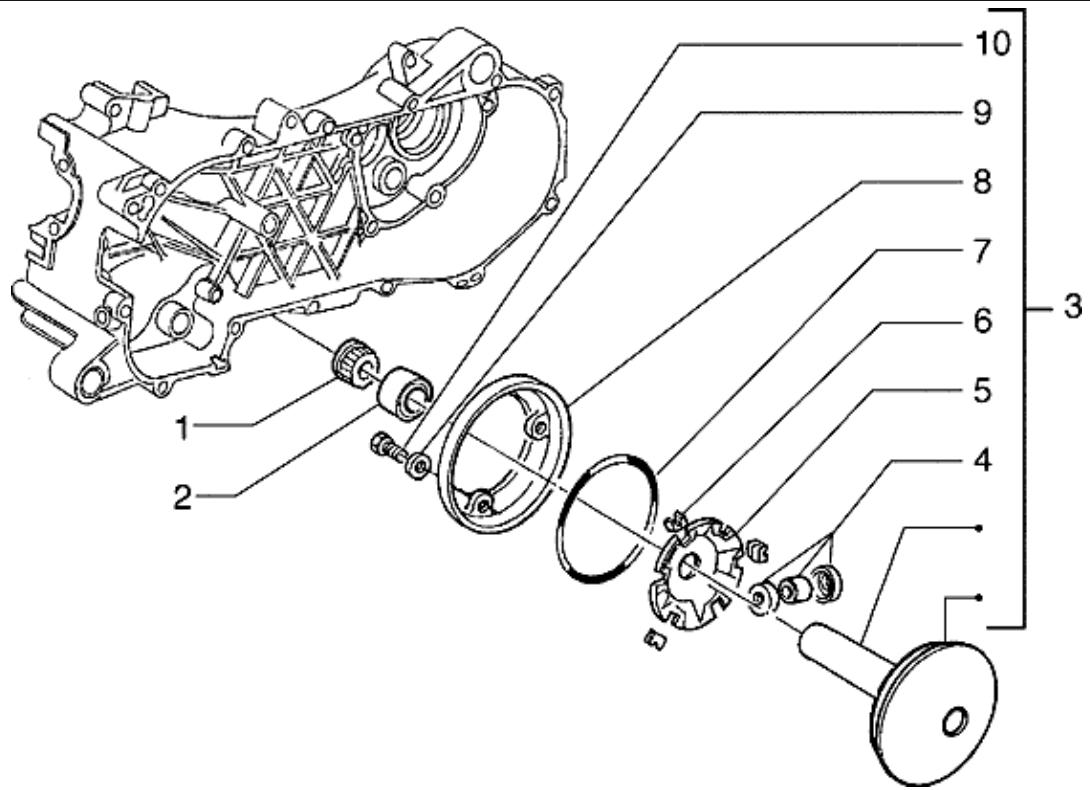

Drawing T10 - Treibende Riemenscheibe 19
Drawing T11 - Treibende Riemenscheibe 20
Drawing T12 - Hinterradachse-Getriebe 21

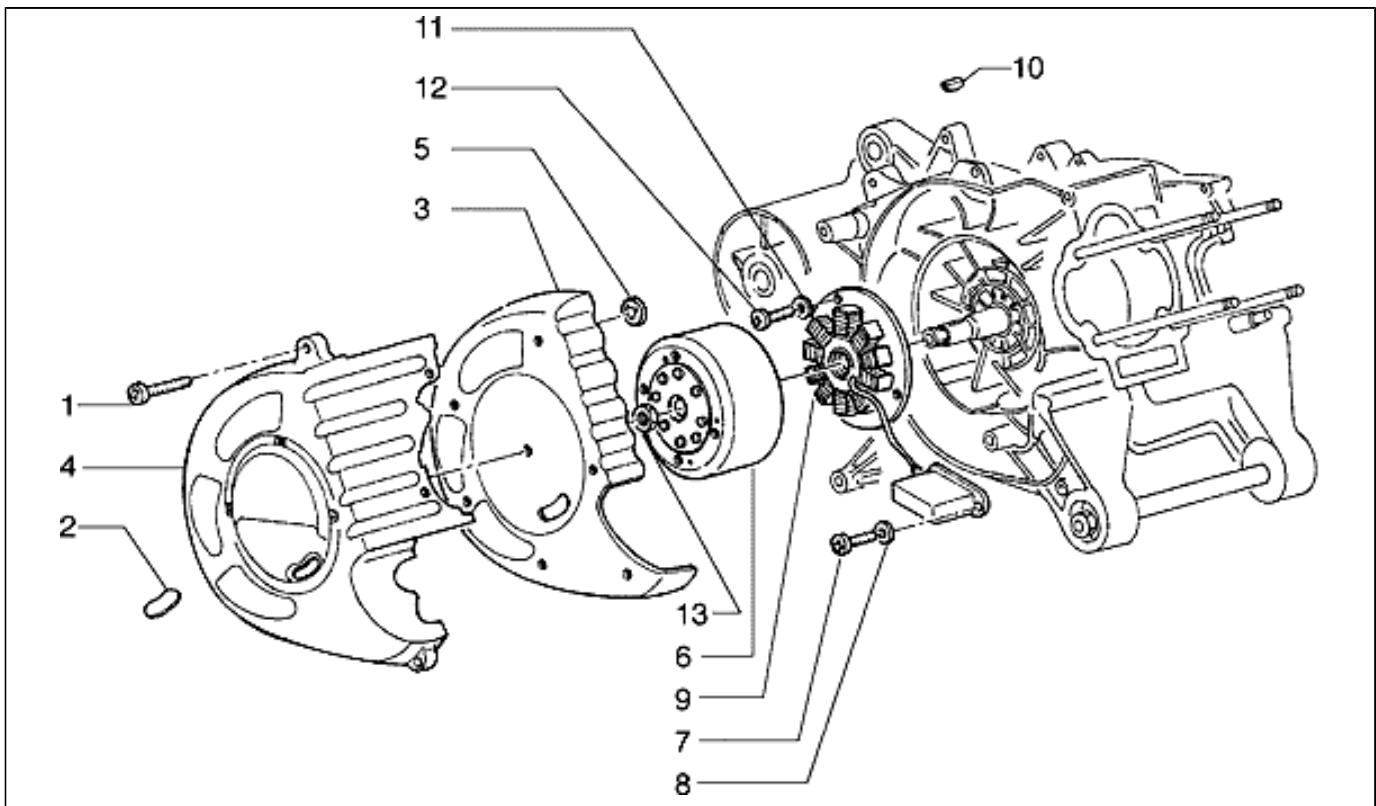

Drawing T13 - Lichtmaschine 22

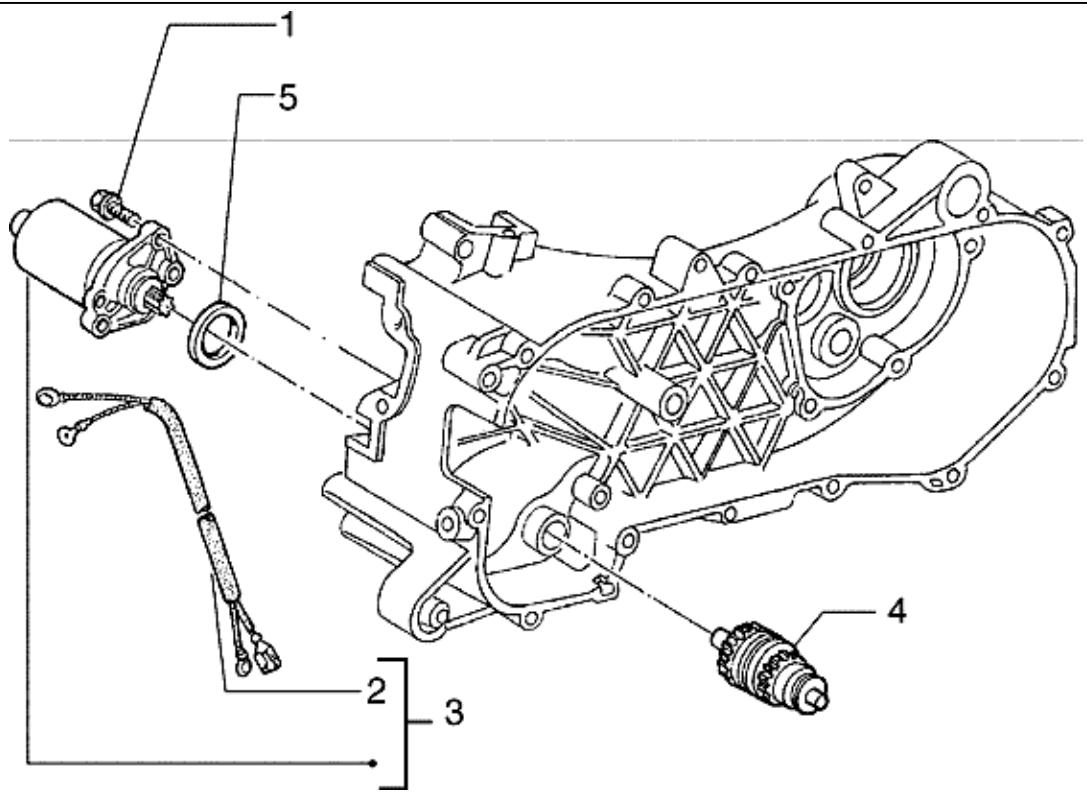

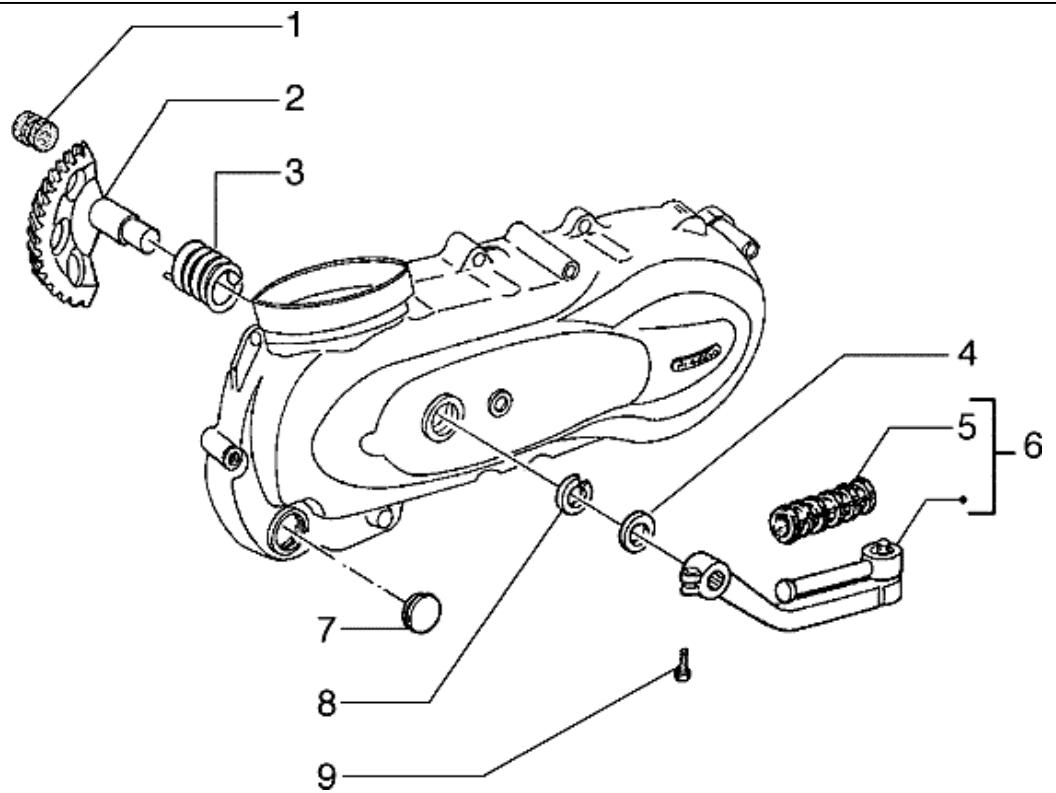

Drawing T14 - Anlassermotor 23
Drawing T15 - Kickstarter 24

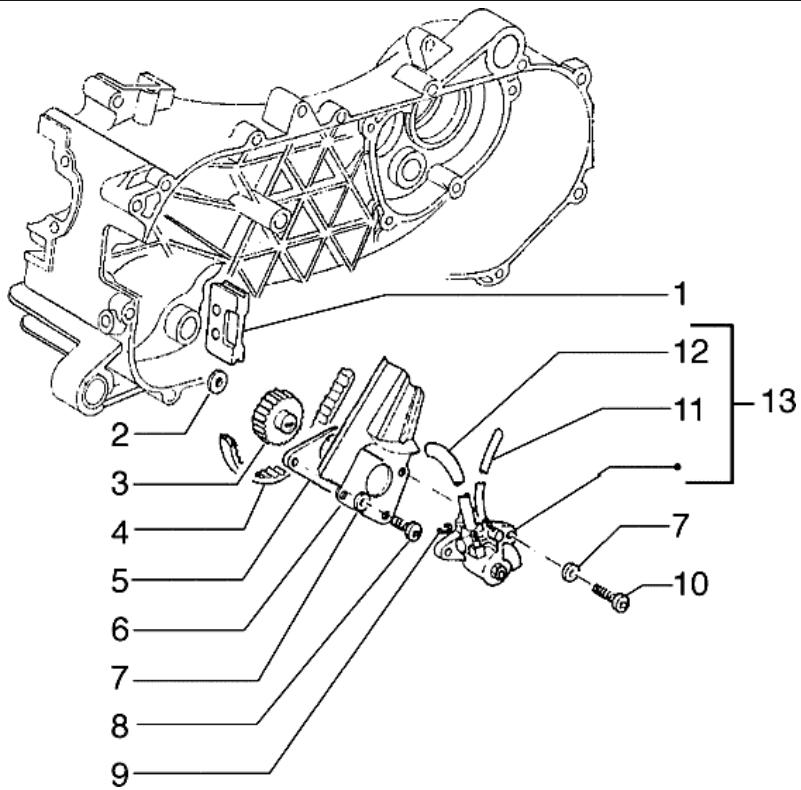

Drawing T16 - Ölpumpe 25

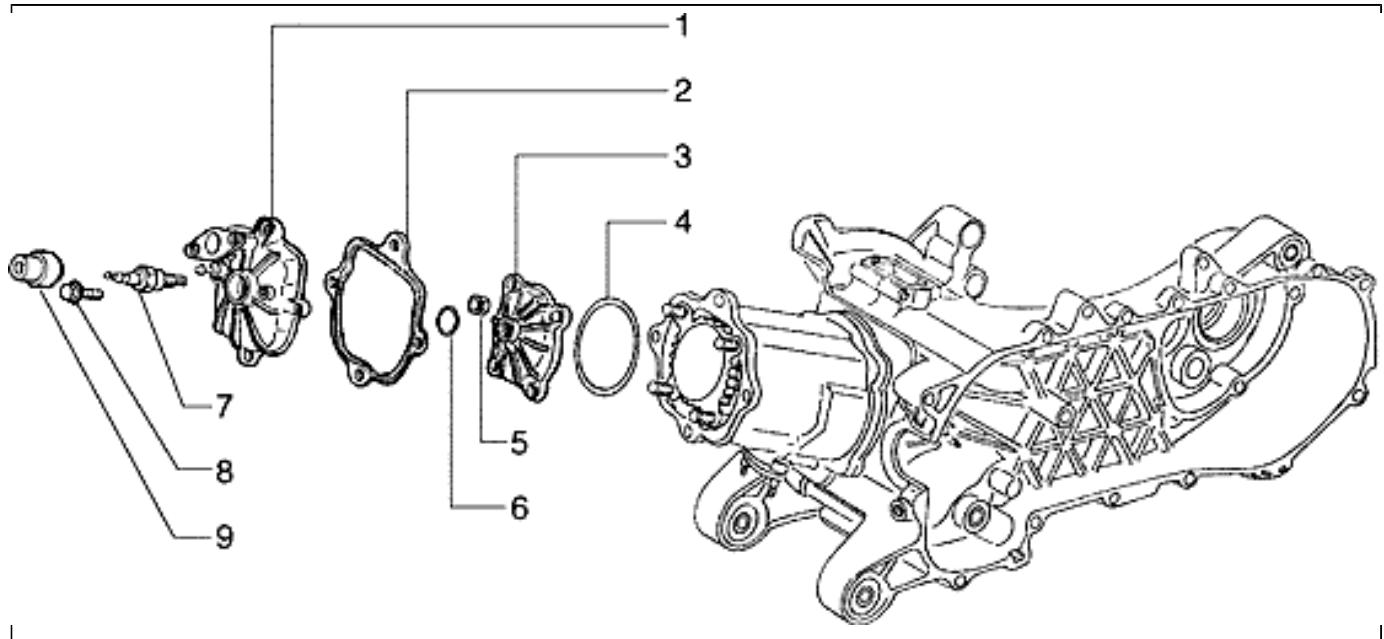

Drawing T17 - Wasserpumper 26

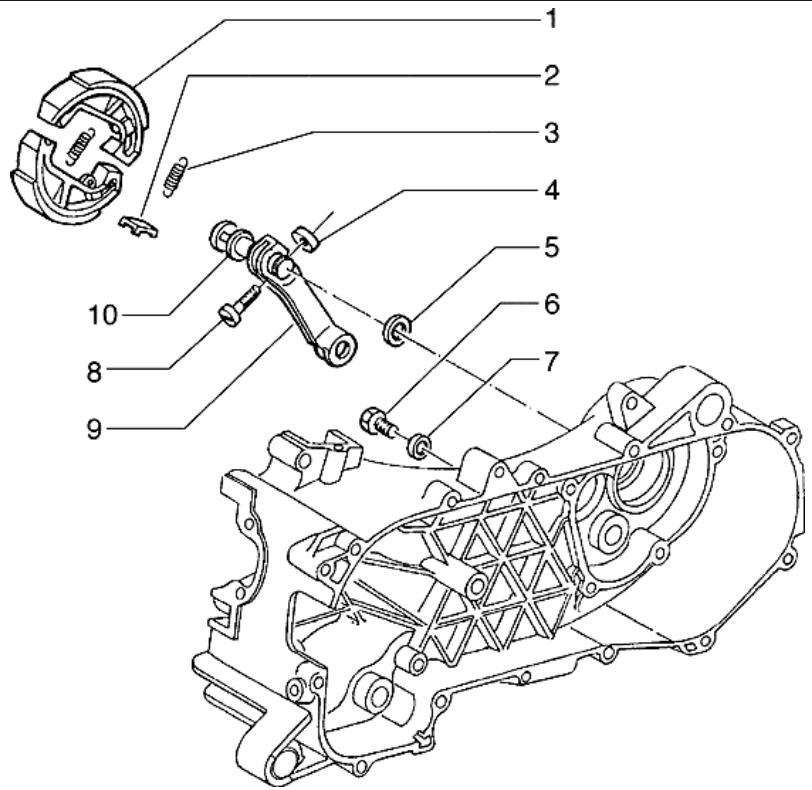

Drawing T18 - Hinterradbremse (Trommel) 27

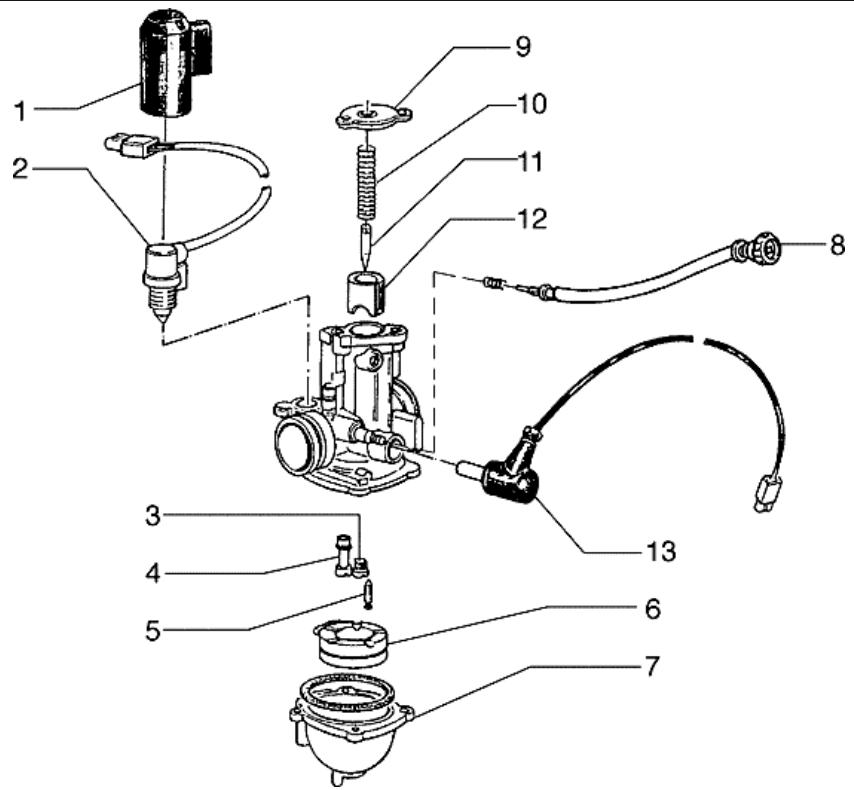

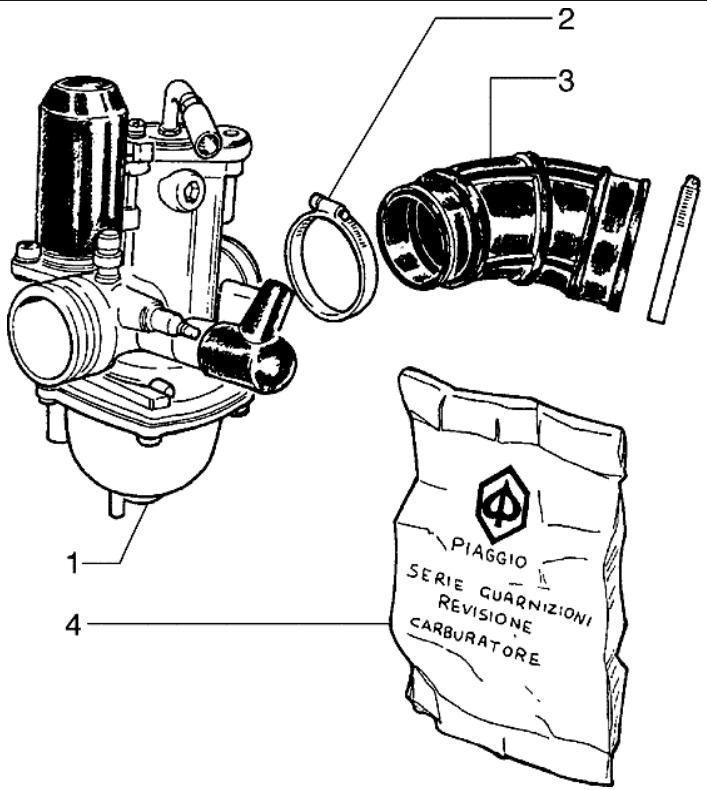

Drawing T19 - Vergaser 28

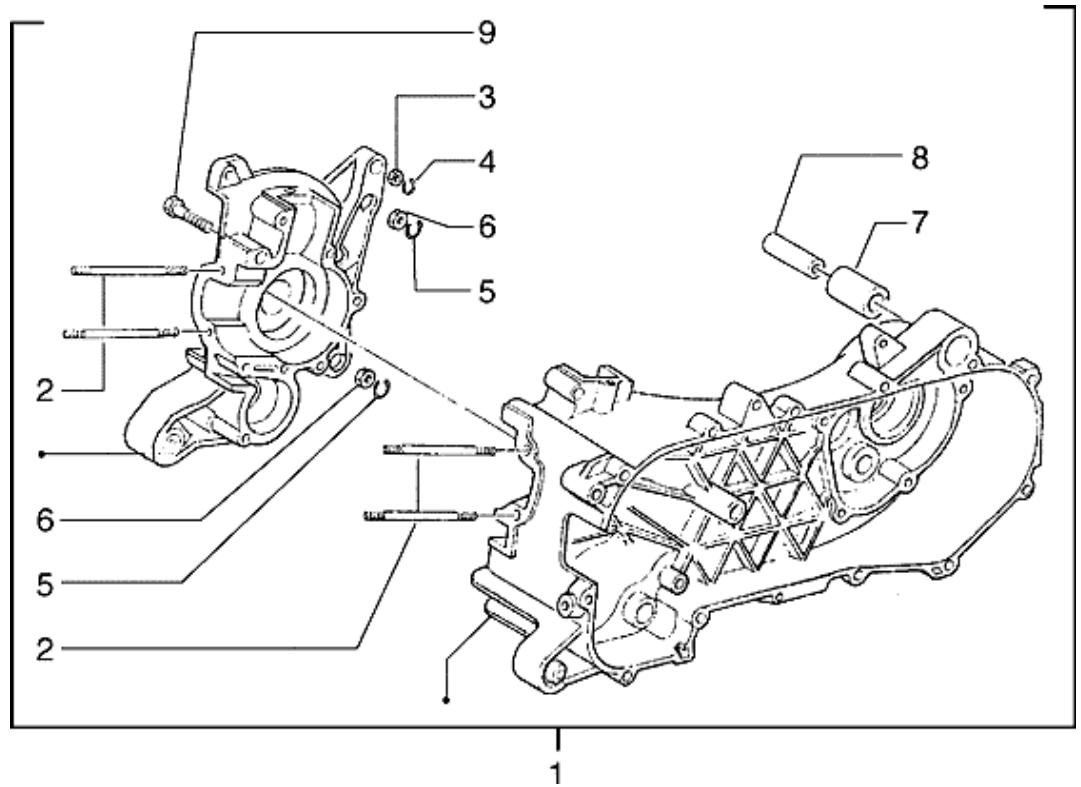

Drawing T2 - Kurbelwellengehause 29
Drawing T20 - Vergaser 30

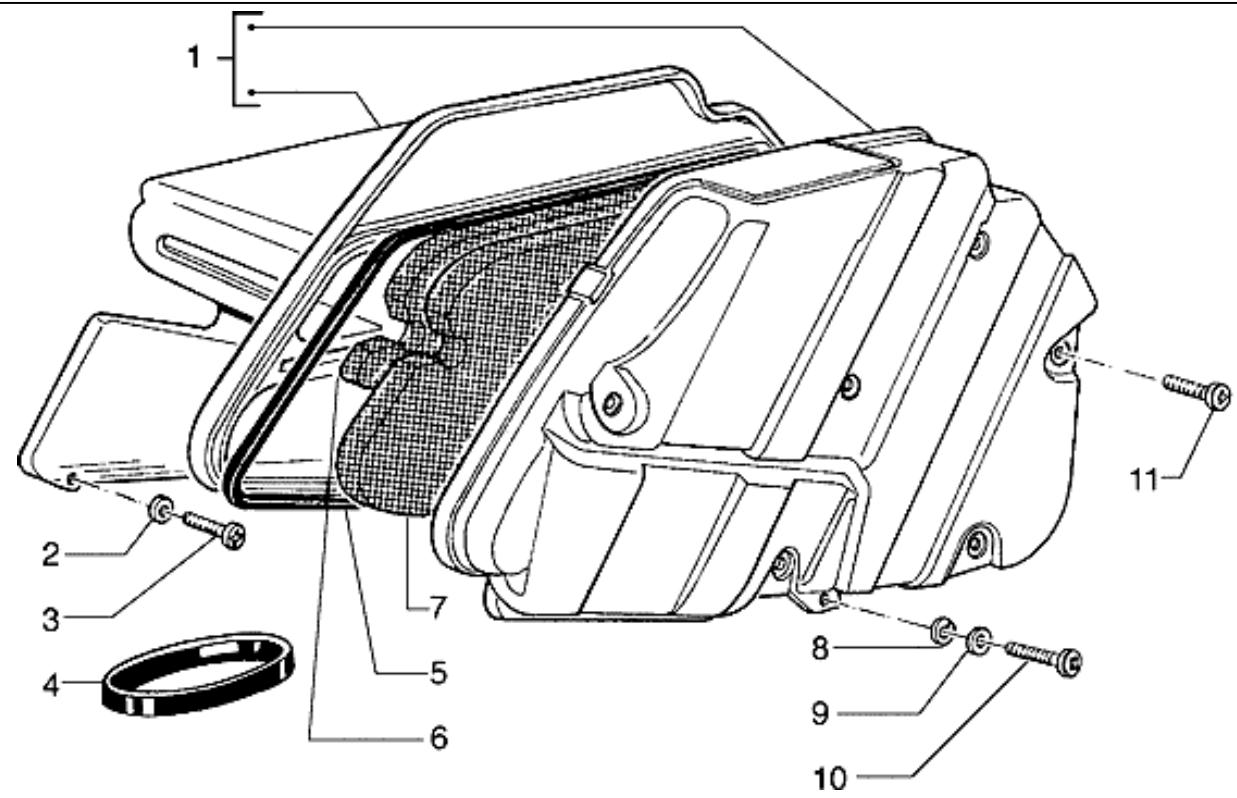

Drawing T21 - Luftfilter 31

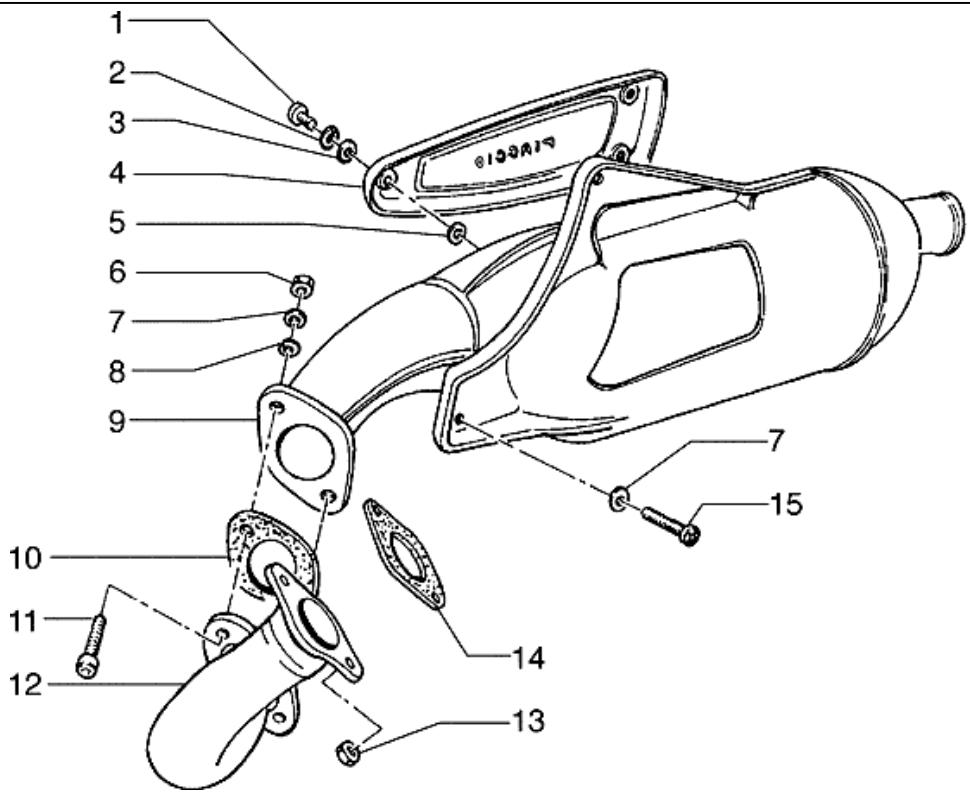

Drawing T22 - Auspufftopf. 32
Drawing T3 - Kurbelwelle 33

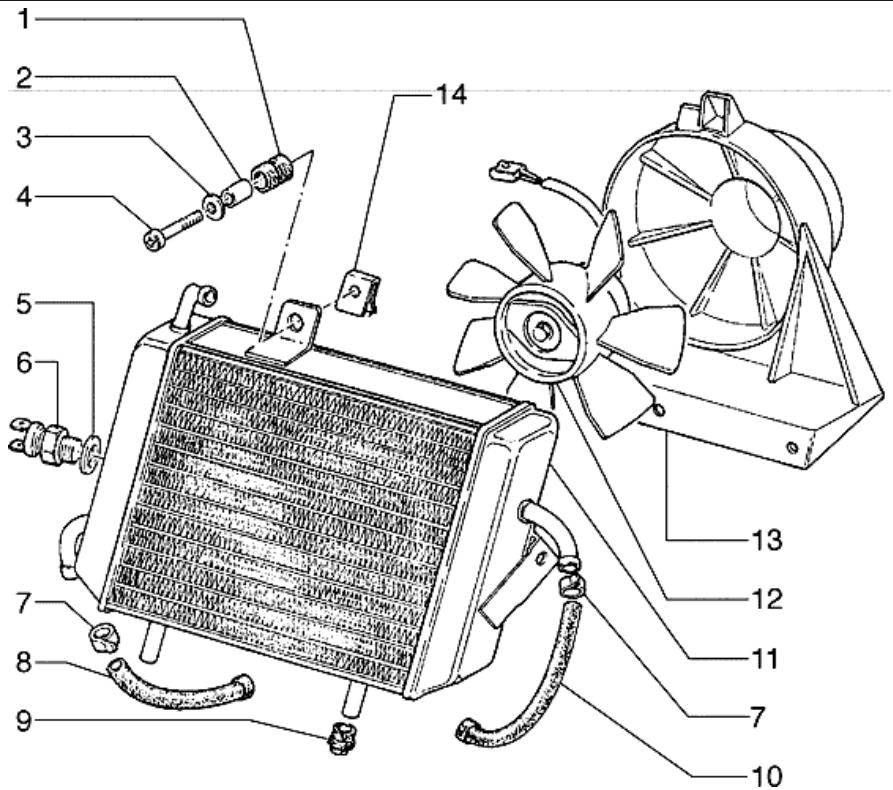

Drawing T35 - Kulher 34
Drawing T36 - Forderer 35

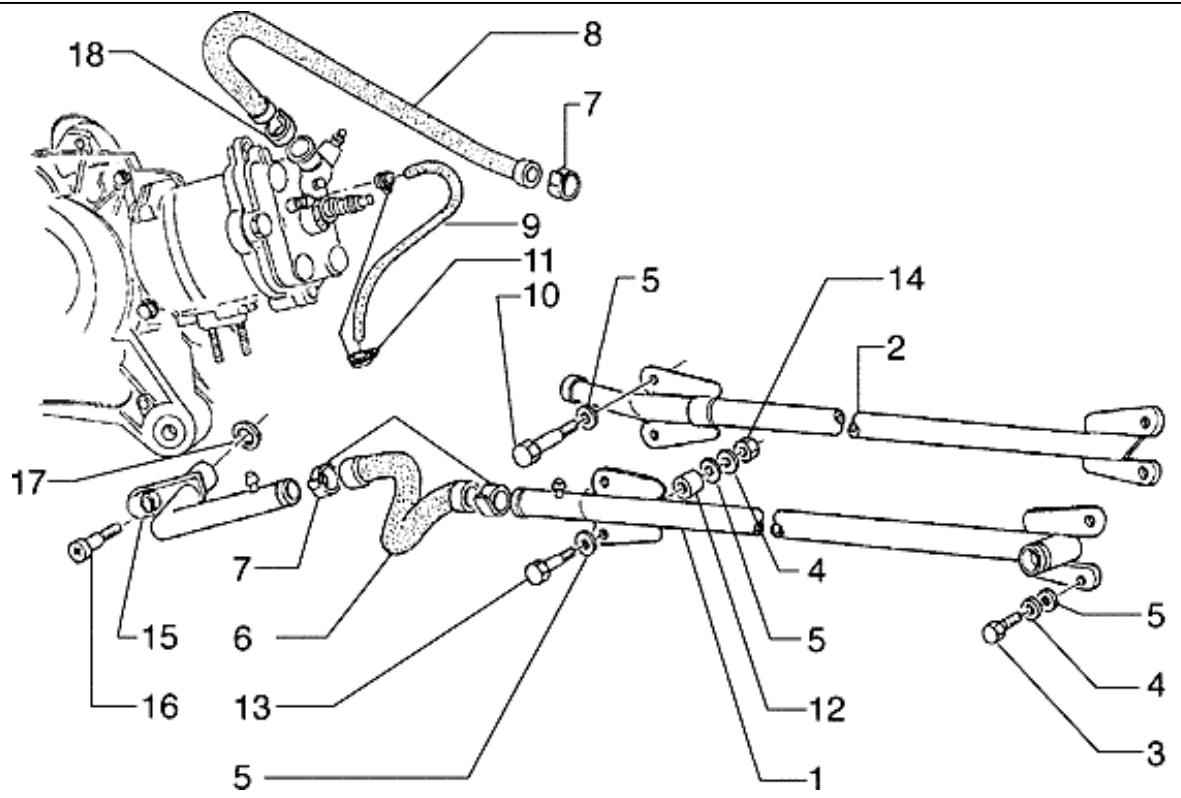

Drawing T37 - Kuhlleitungen 36

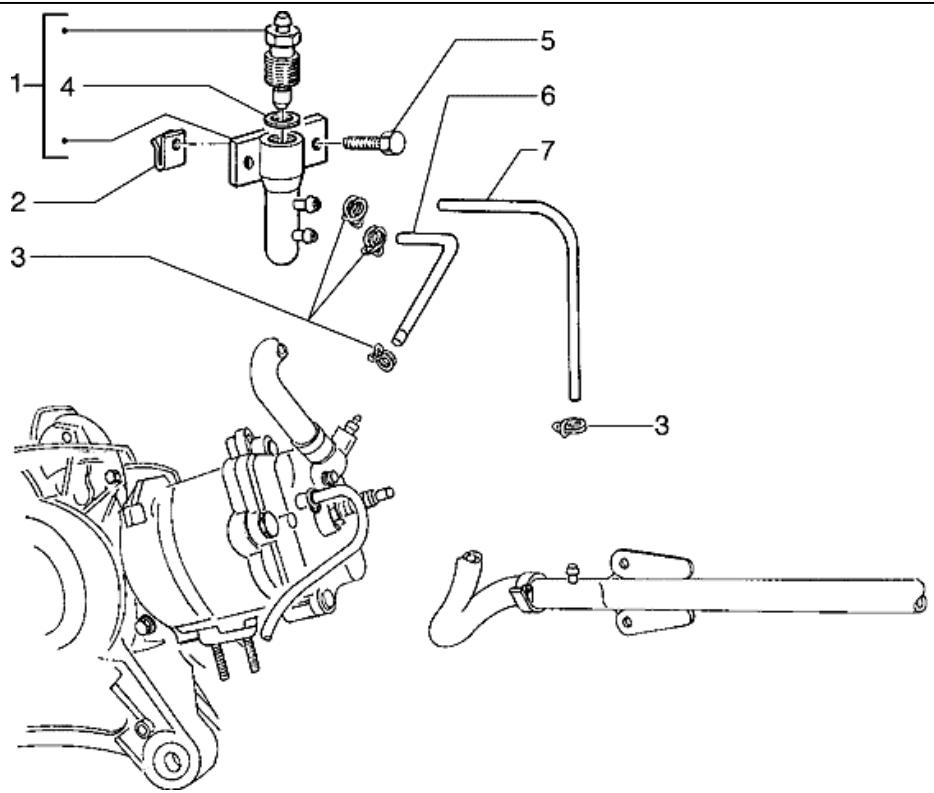

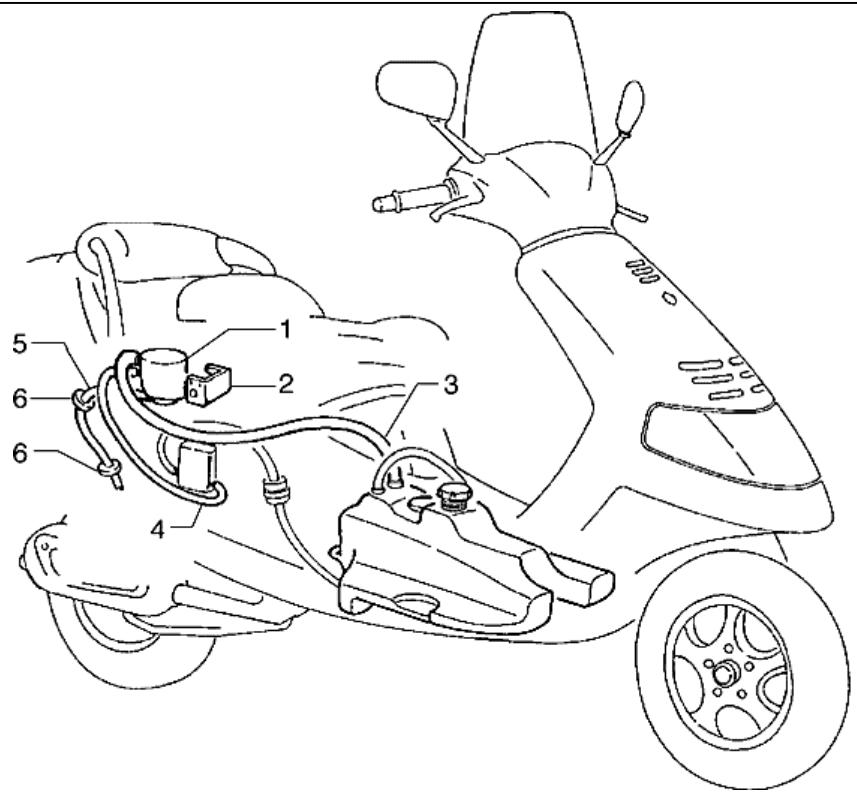

Drawing T38 - Entluftungsvorrichtung 37

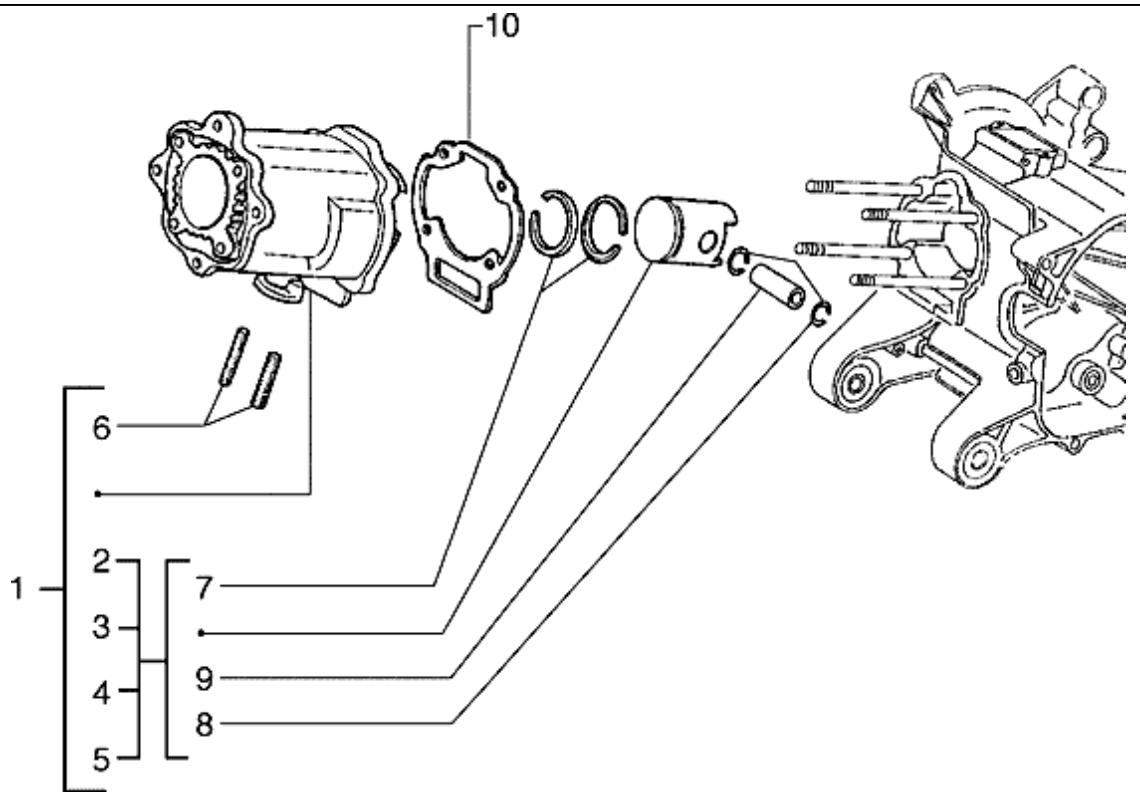

Drawing T4 - Gruppe zylinder-kolben-kolbenbolzen 38
Drawing T5 - Kopf. 39

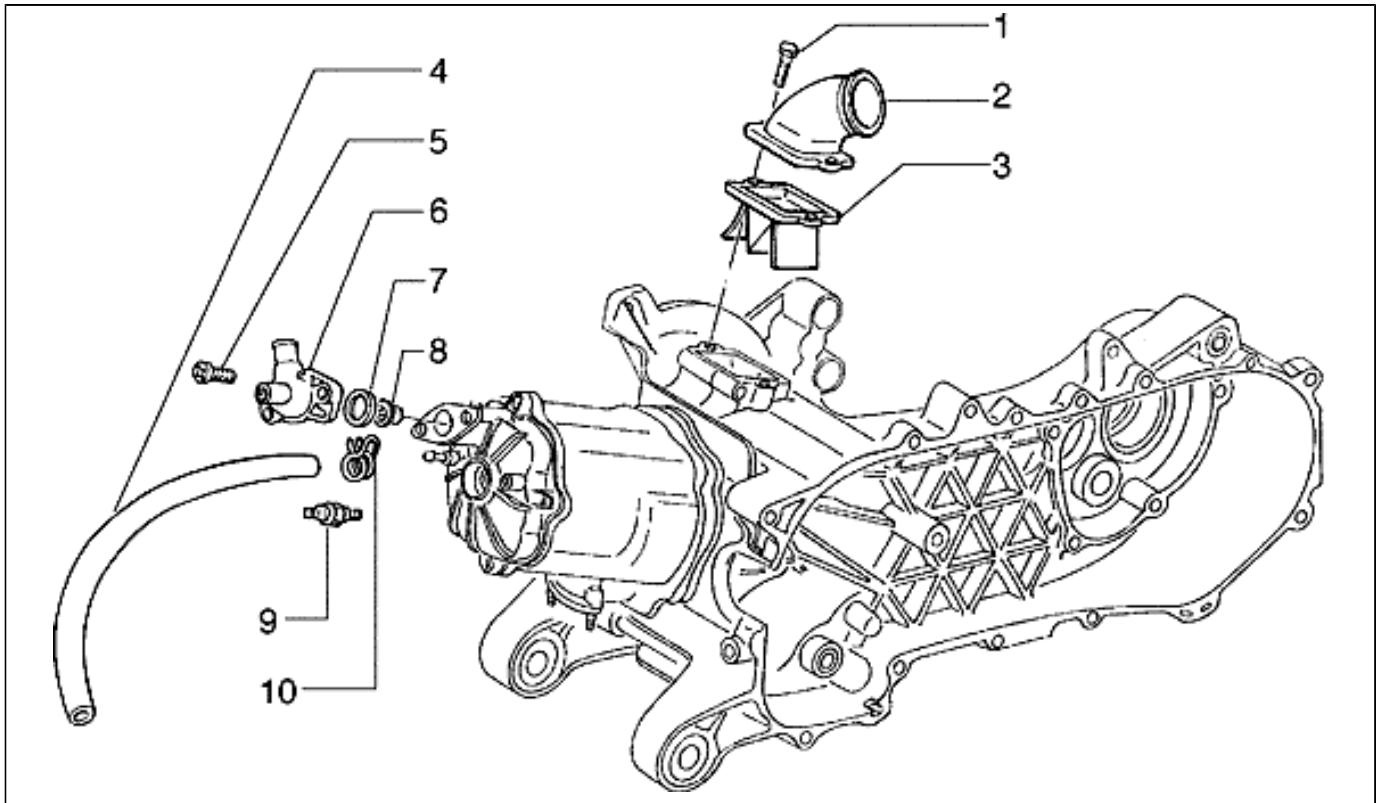

Drawing T6 - Zylinderkopf und Ansaugstutzen 40

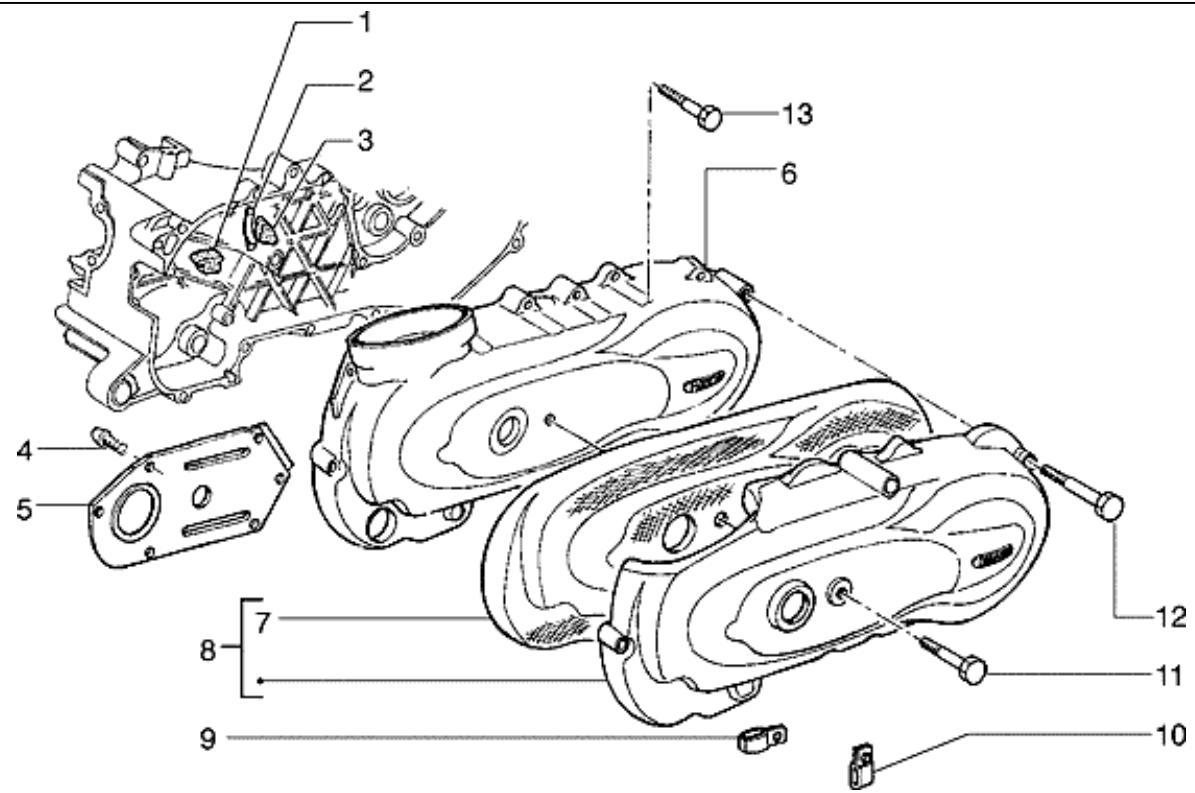

Drawing T7 - Abdeckung getriebegehause kupplungsseite 41

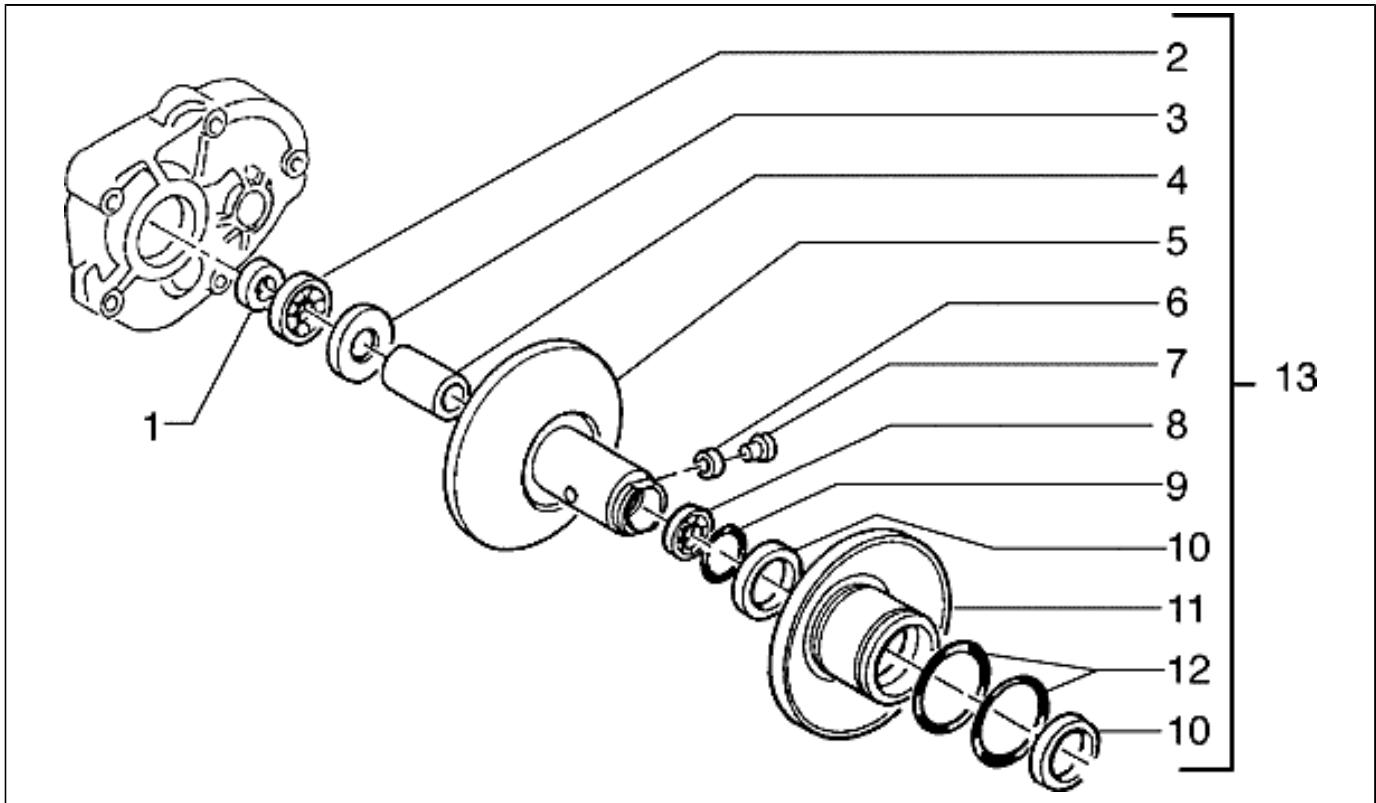

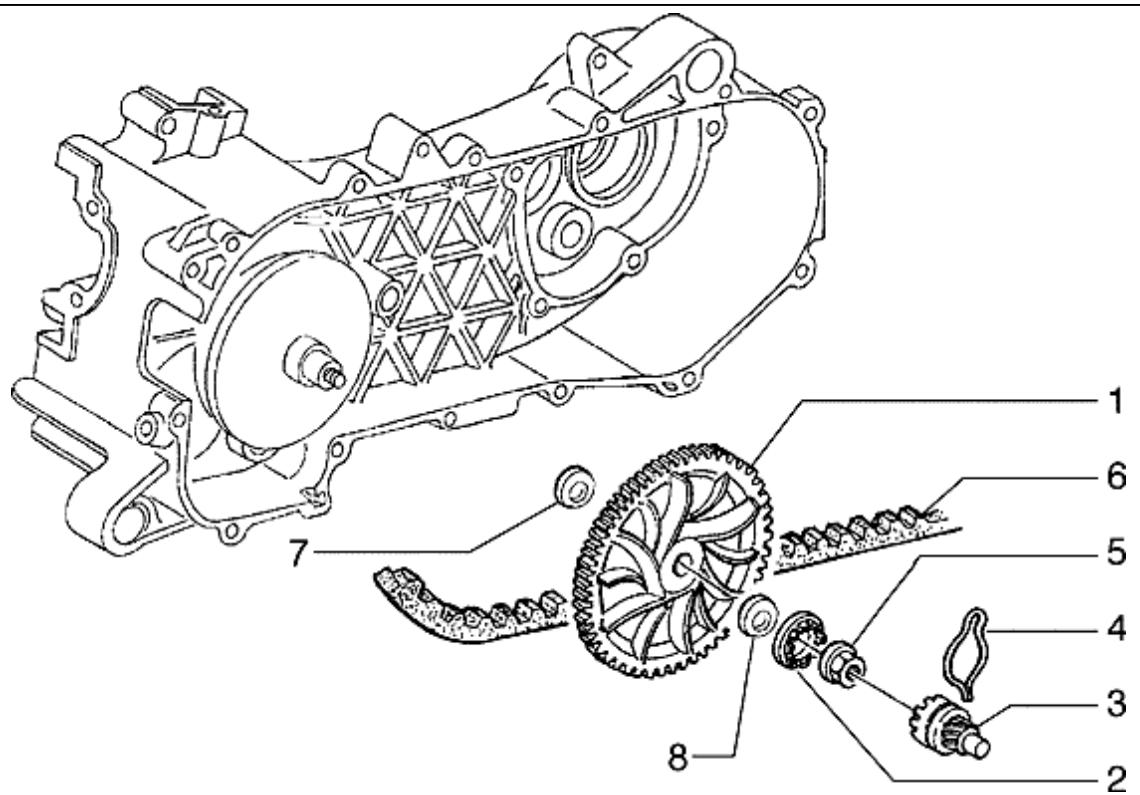

Drawing T8 - Getriebene Riemenscheiben 42

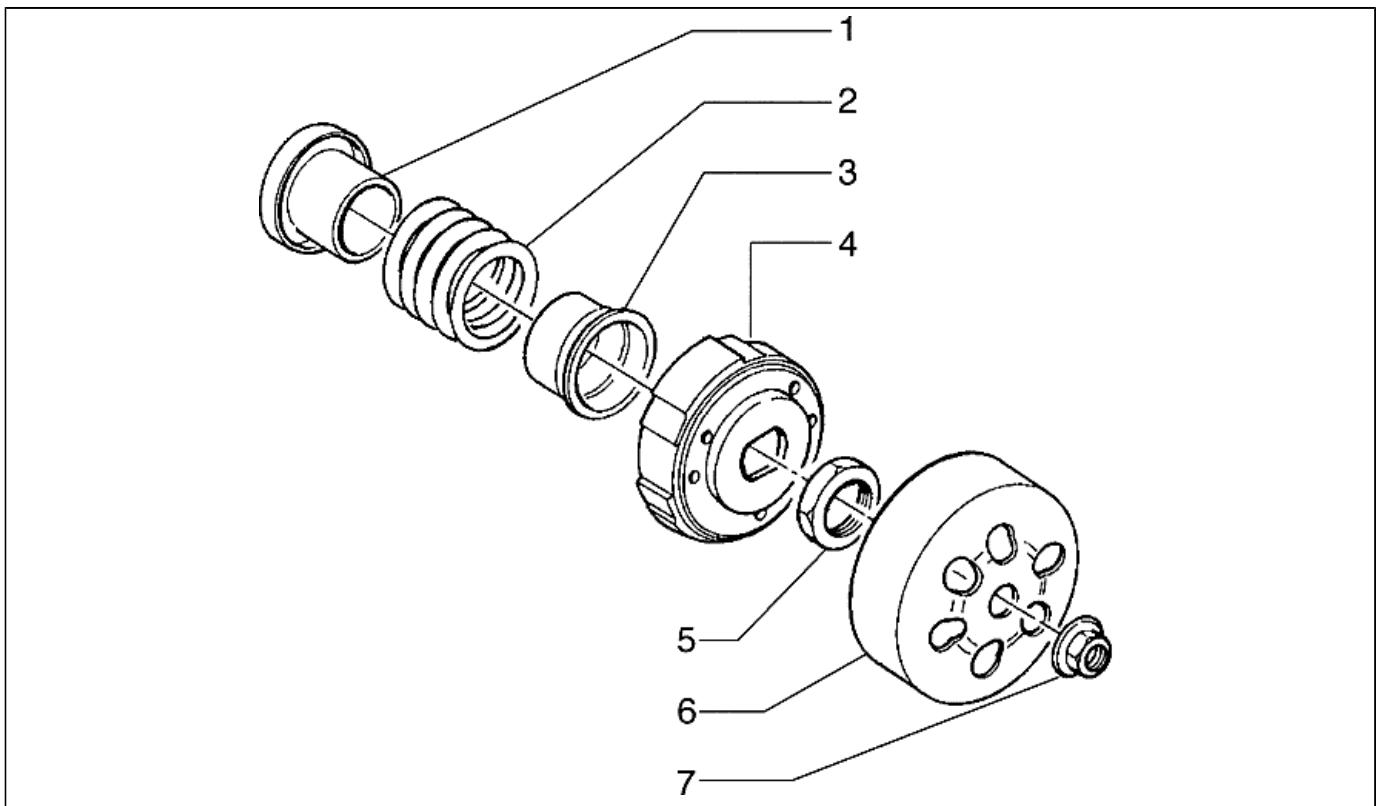

Drawing T9 - Getriebene Riemenscheiben 43
Lenker 44

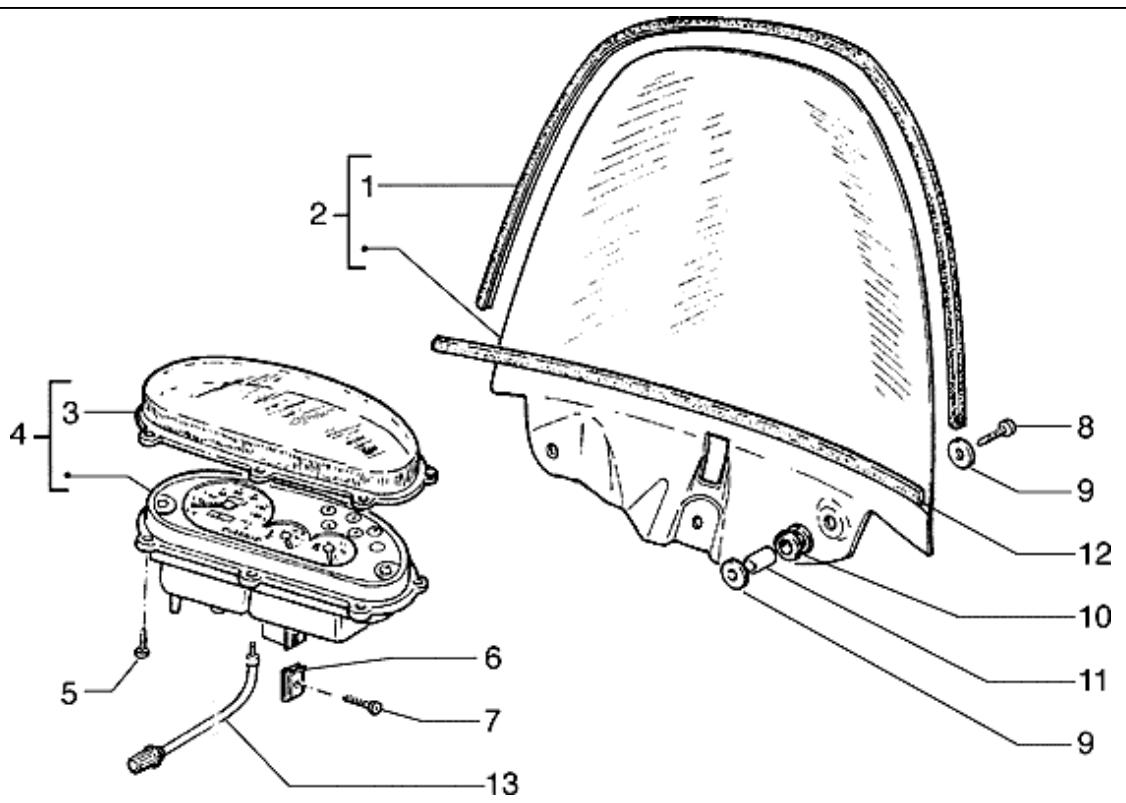

Drawing T53 - Kilometerzahler Windschutz 44

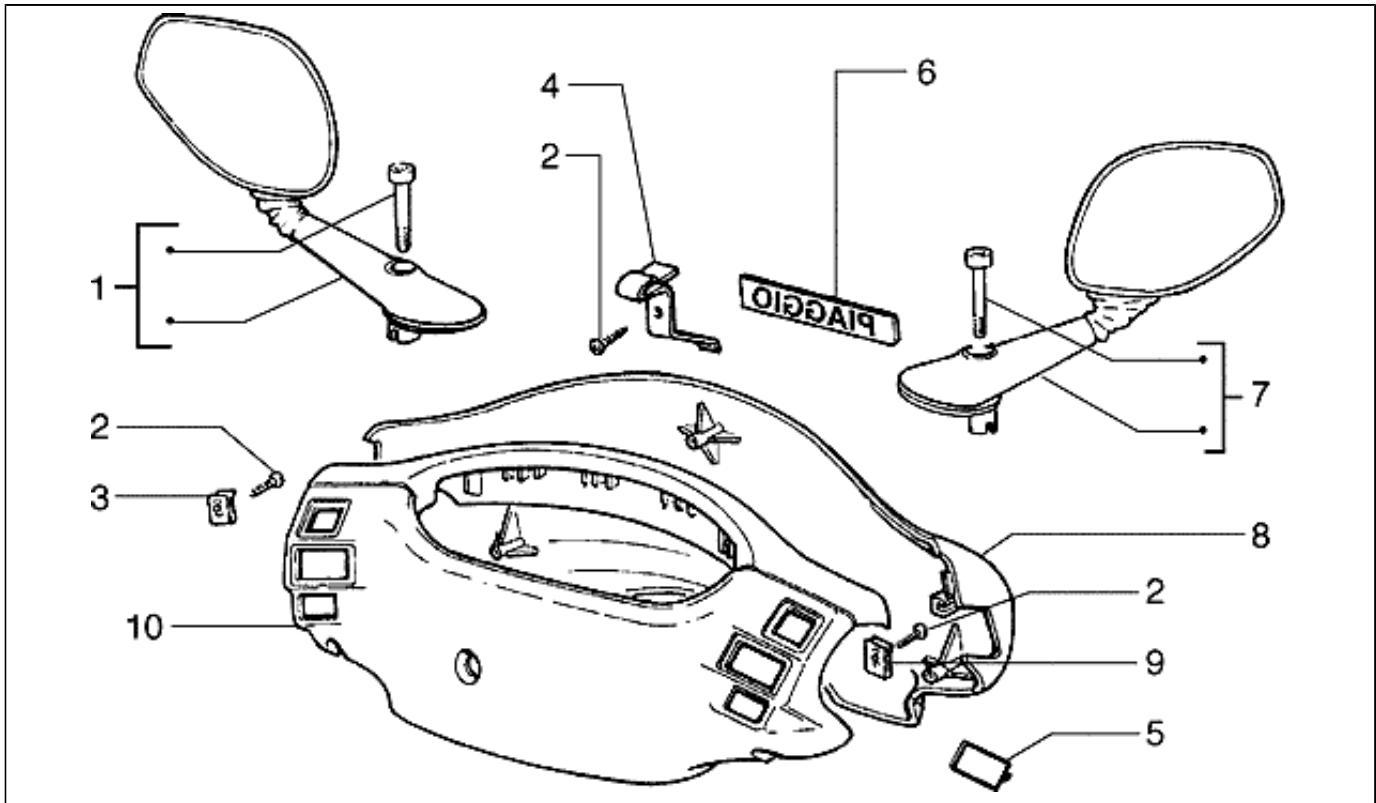

Drawing T54 - Lenkerabdeckung und Rucksiegel 45

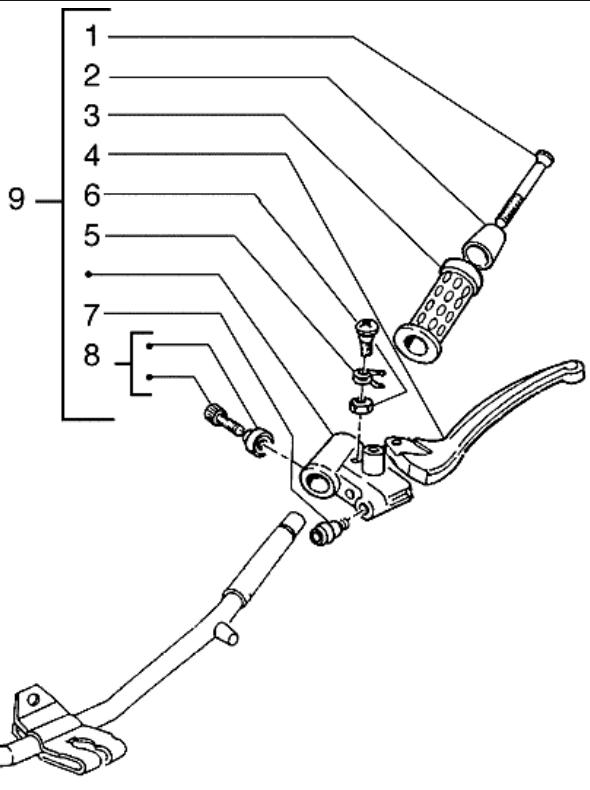

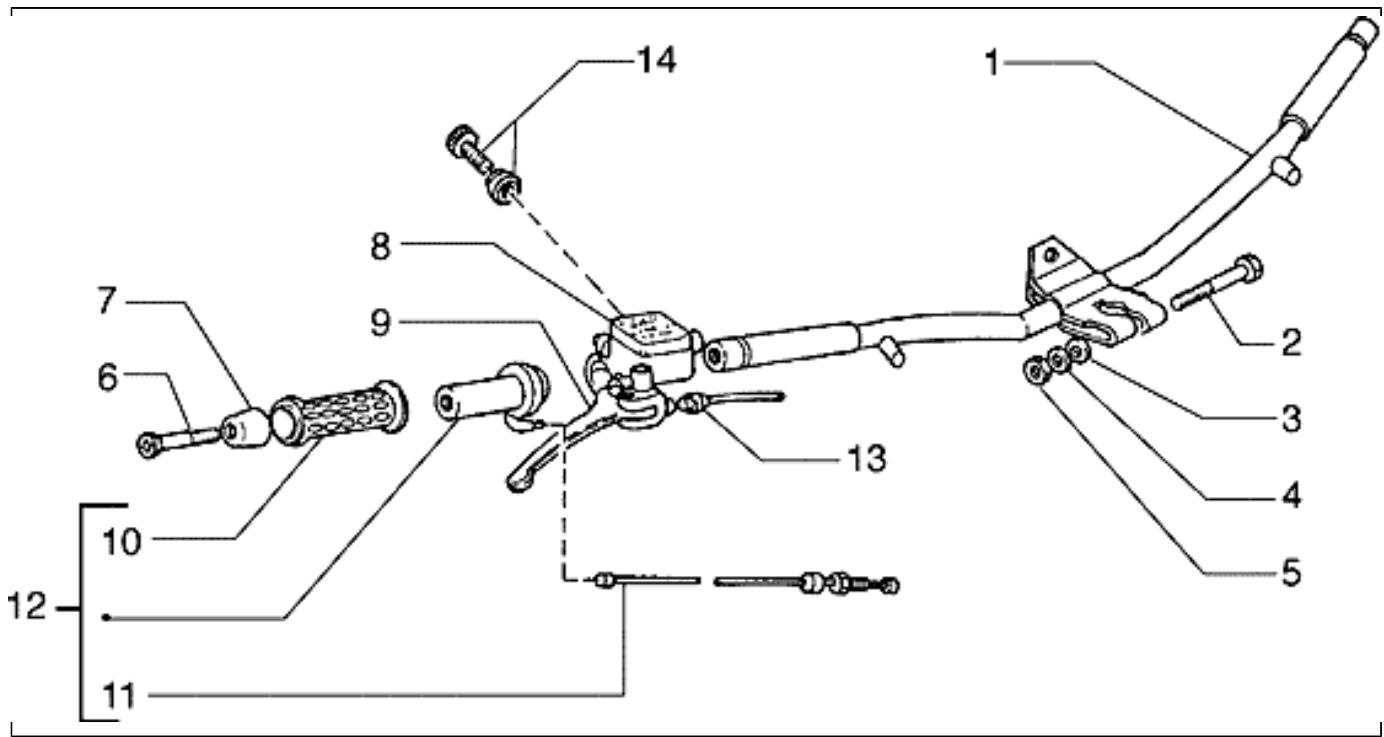

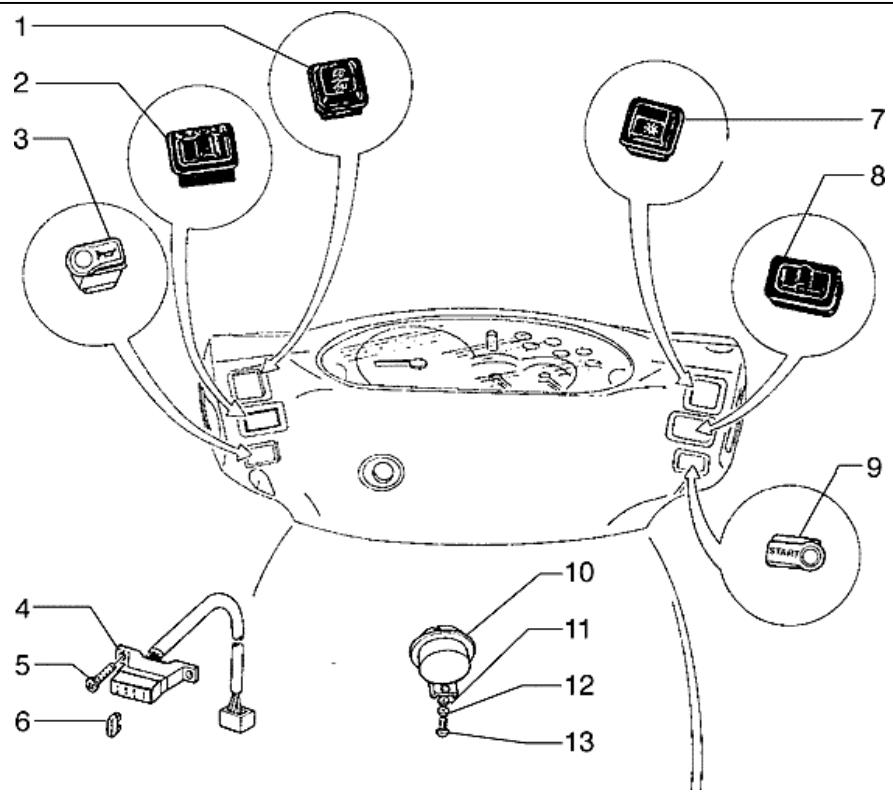

Drawing T55 - Lenker Bauteile 47
Drawing T56 - Lenker Bauteile 48
Bowdenzüge 49

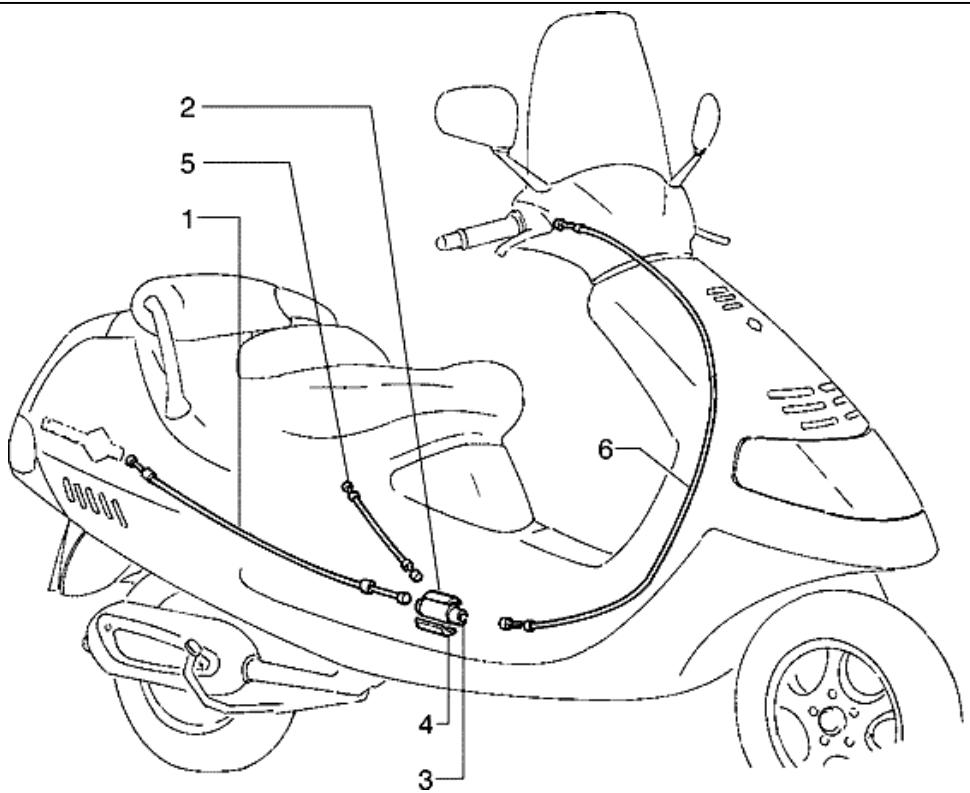

Drawing T57 - Bowdenzug 49

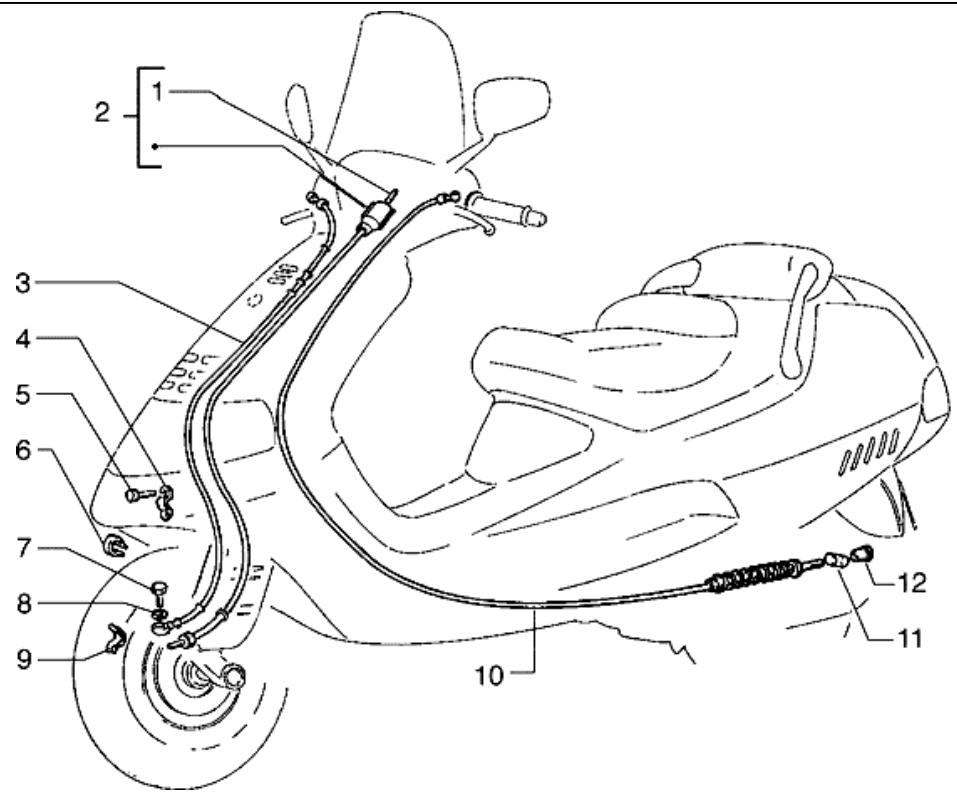

Drawing T58 - Bowdenzüge 50
Radaufhängungen 51

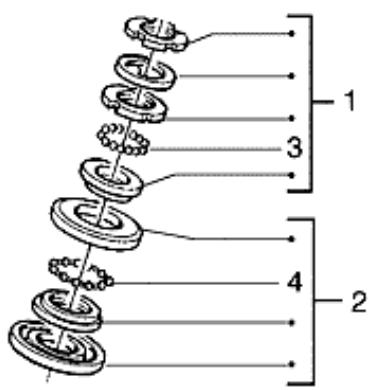

Drawing T44 - Lagerrungen Steuerrohr 51

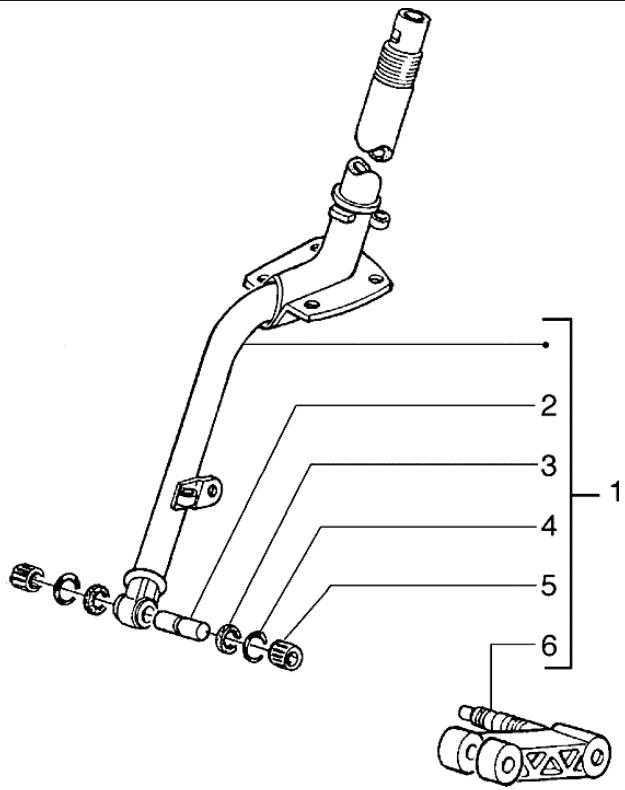

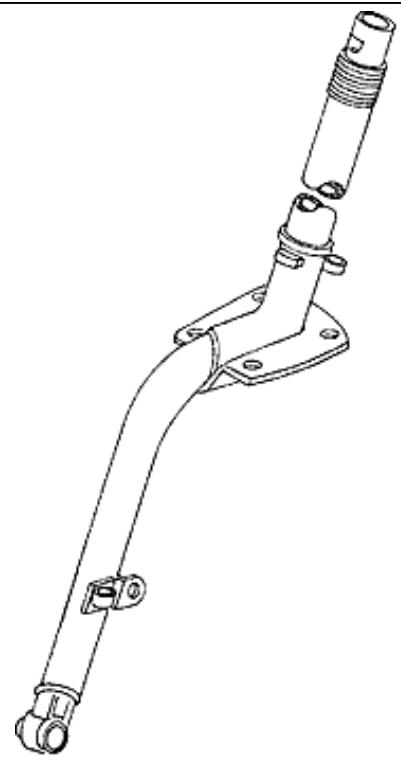

Drawing T45 - Steuerrohr 52

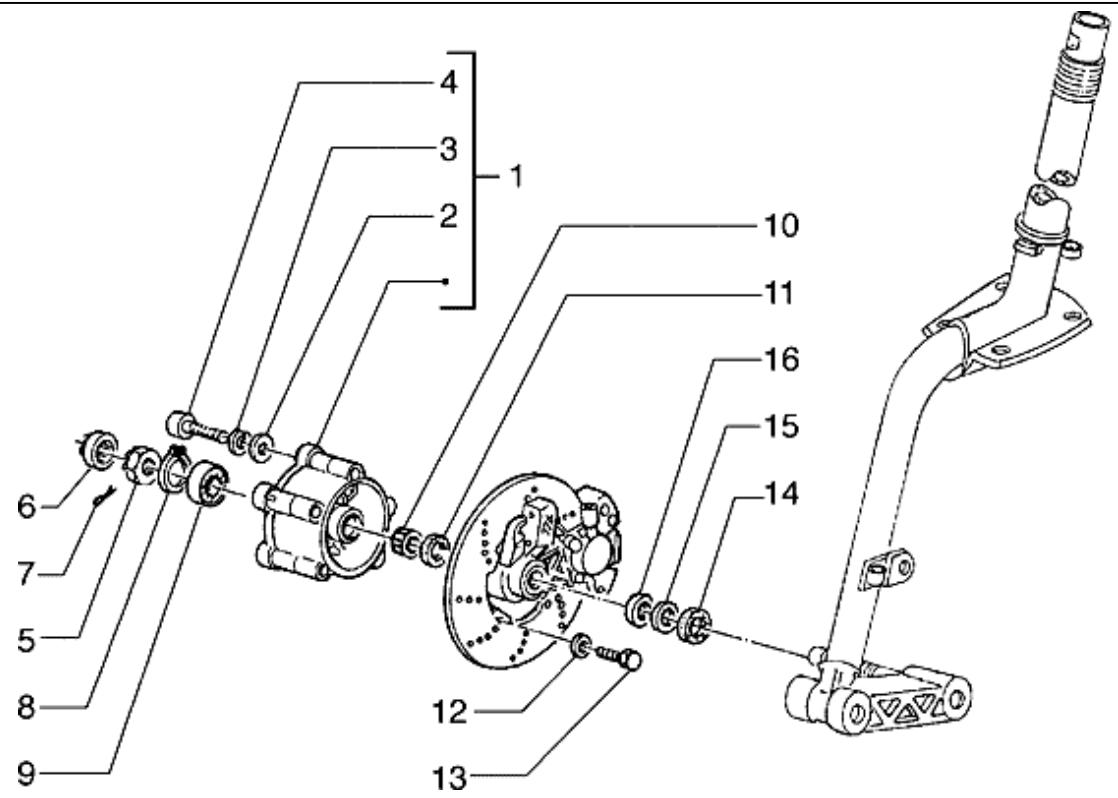

Drawing T46 - Scheibenbremse 53

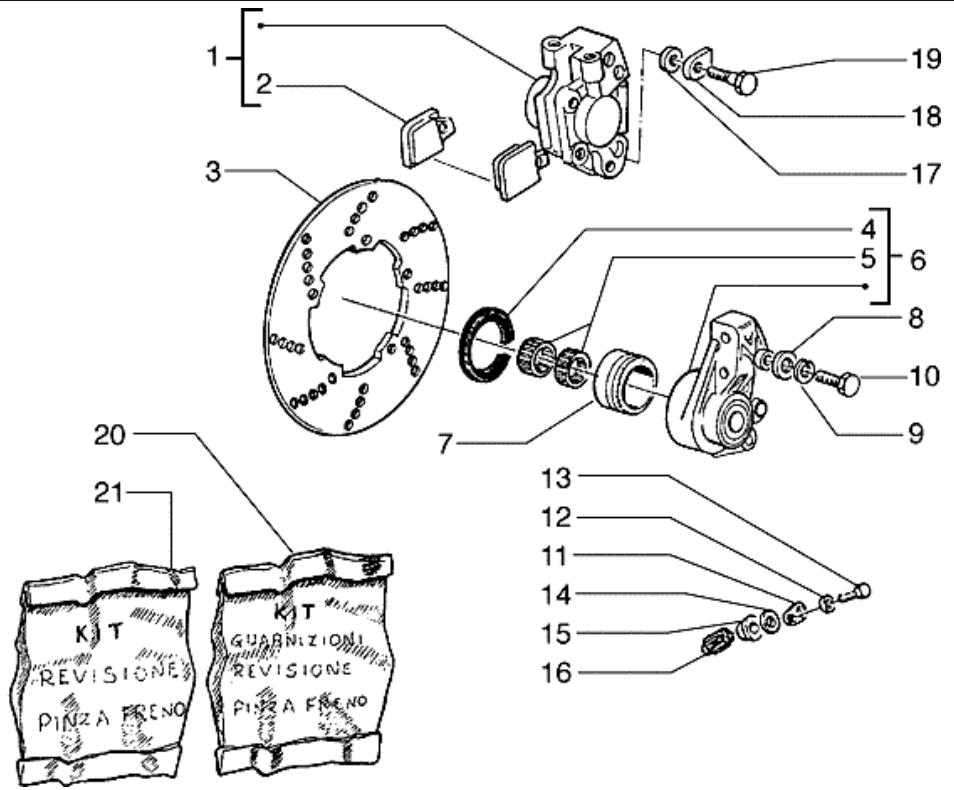

Drawing T47 - Bremszange-Bremscheibe 54

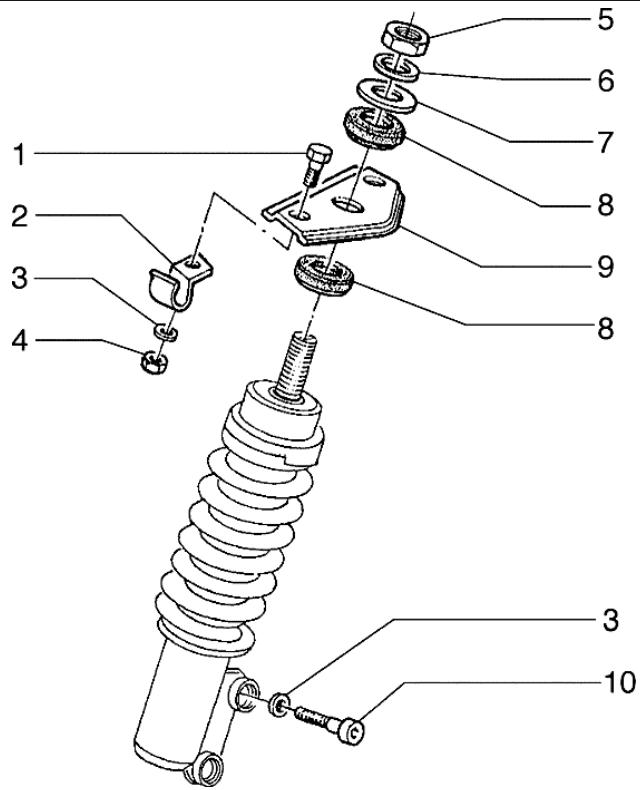

Drawing T48 - Vorderer Stoßdämpfer 55
Drawing T49 - Vorderer Stoßdämpfer 56

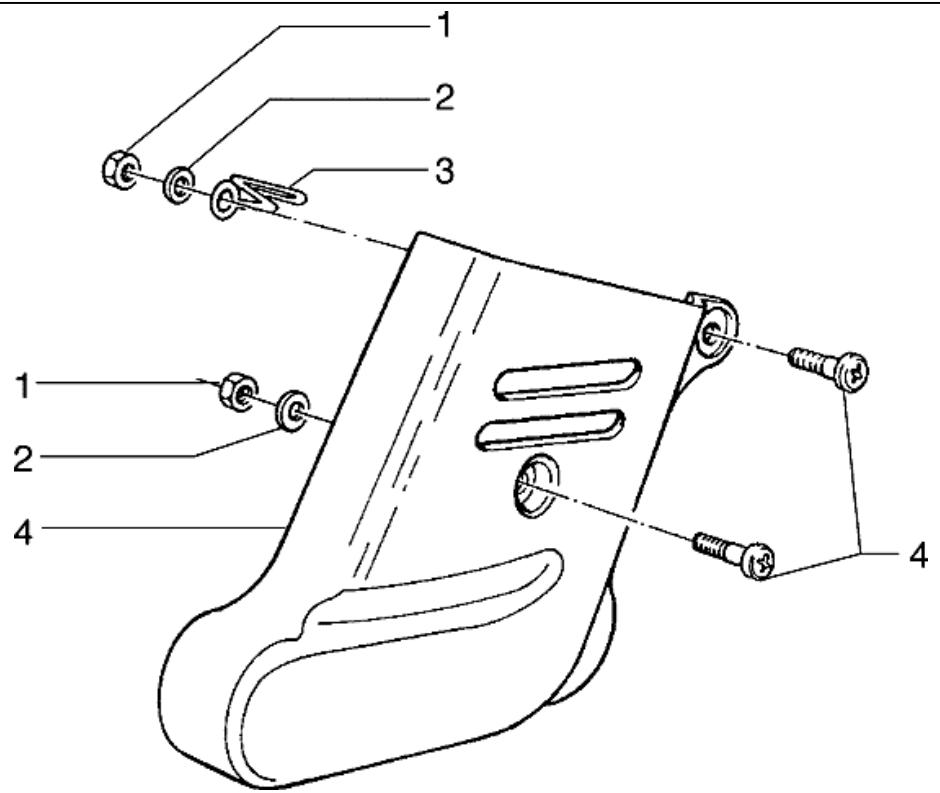

Drawing T50 - Vorderer Stoßdampferverkleidung 57

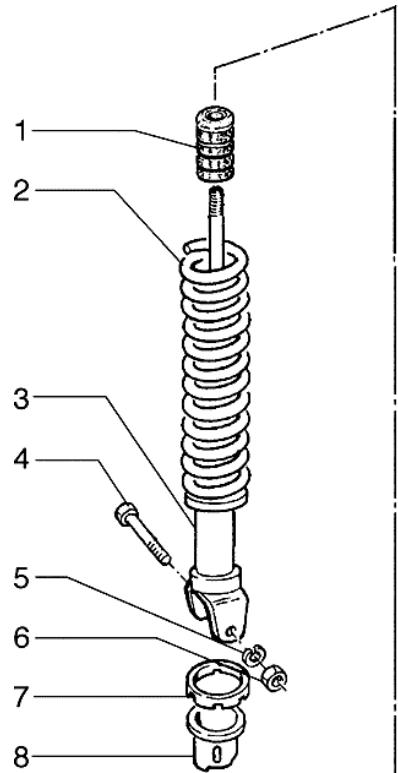

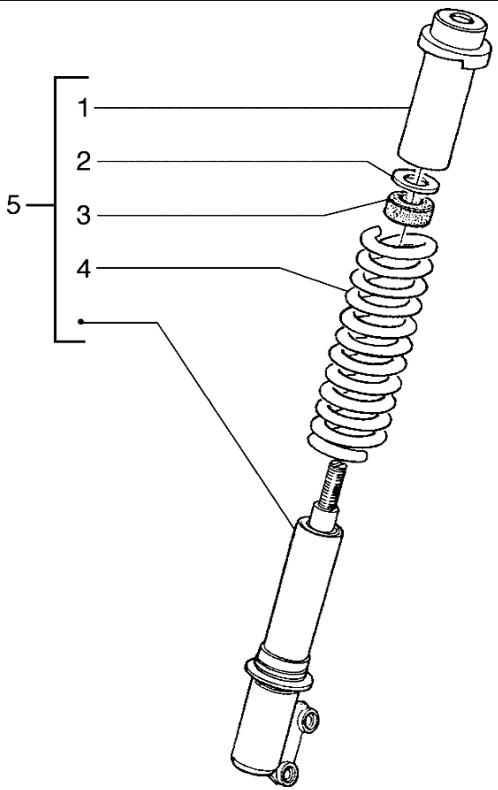

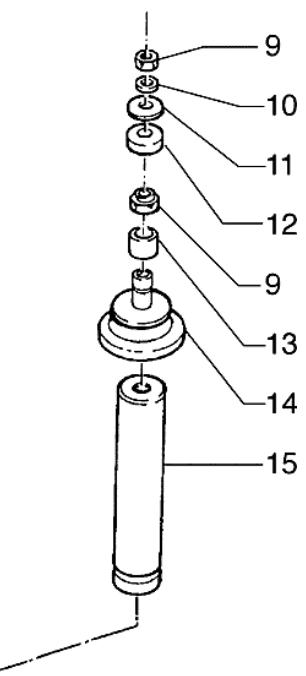

Drawing T51 - Hinterer Stoßdämpfer 58

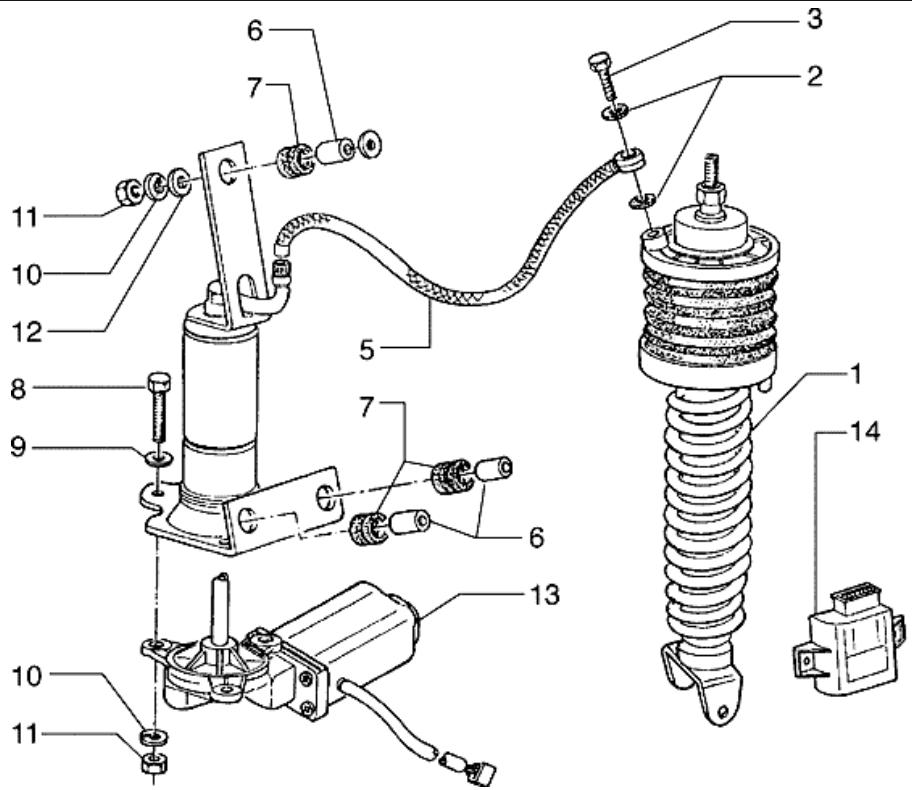

Drawing T52 - Hinterer Stoßdampfer mit autom. einstellung 59

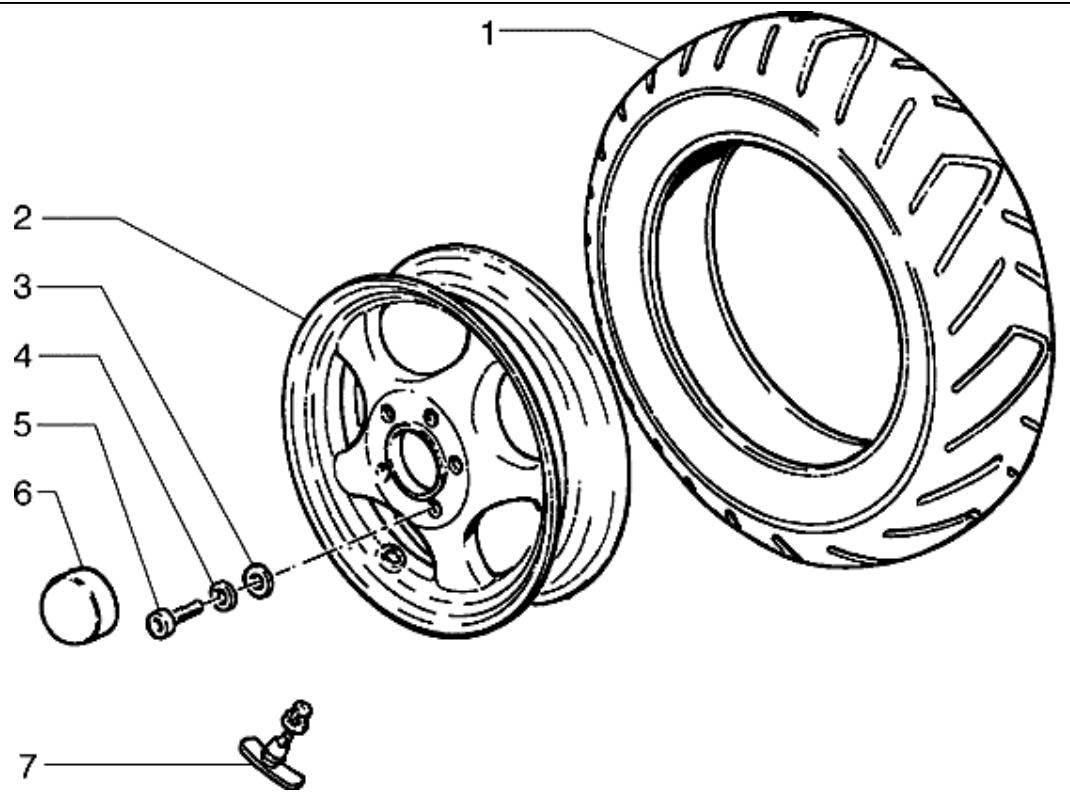

Drawing T67 - Vorderrad. 60

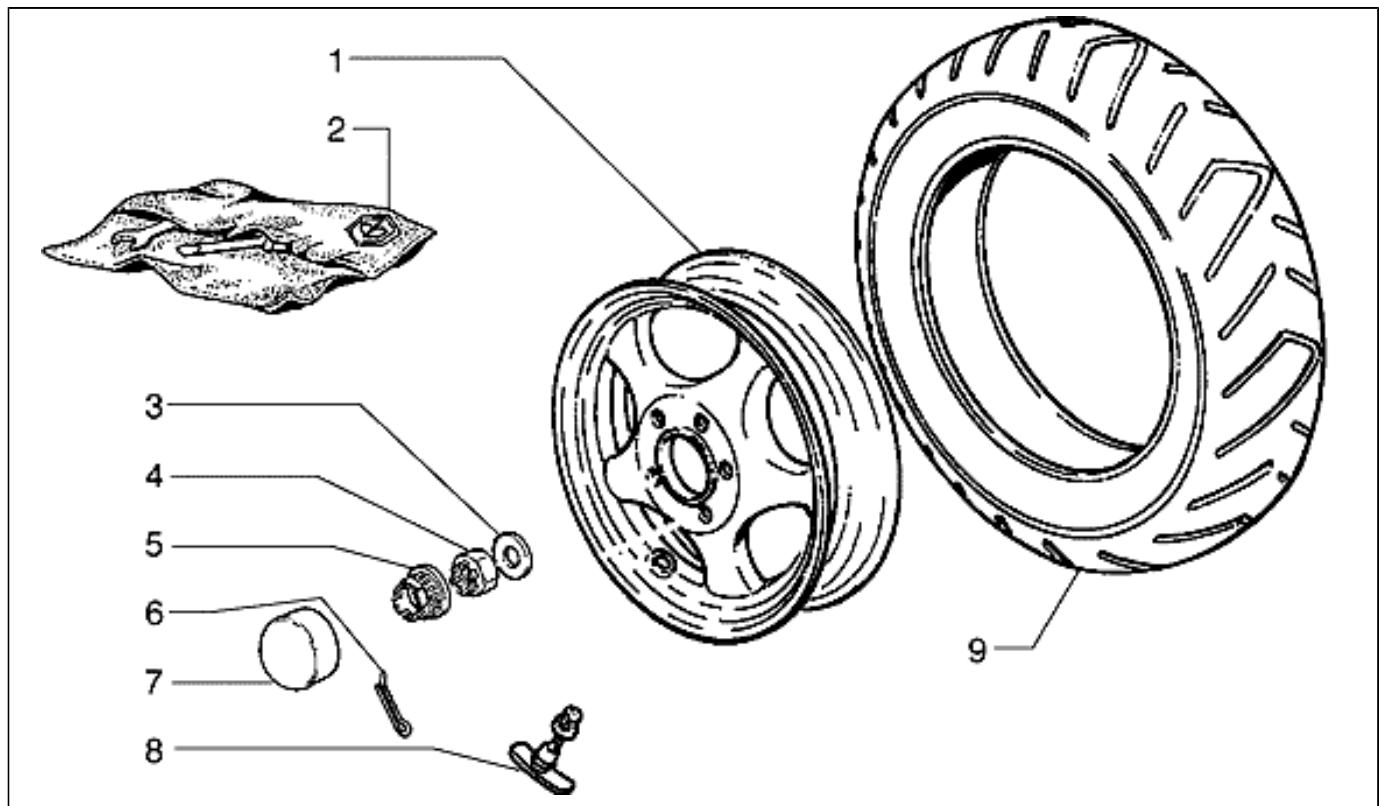

Drawing T68 - Hinterrad. 61
Fahrgestell 62

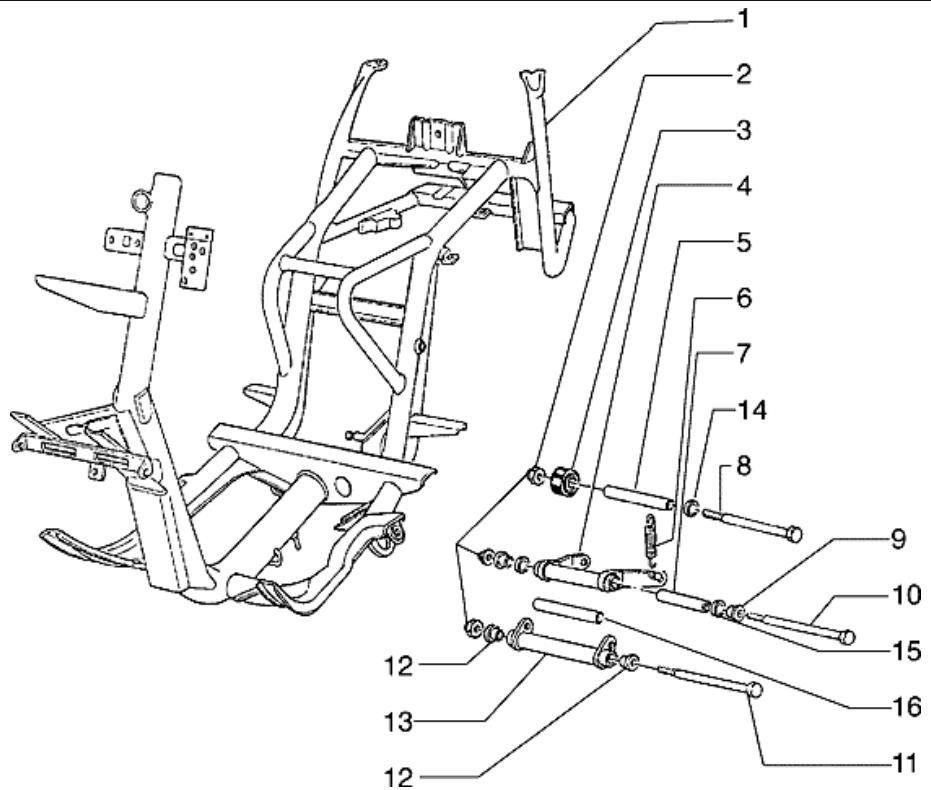

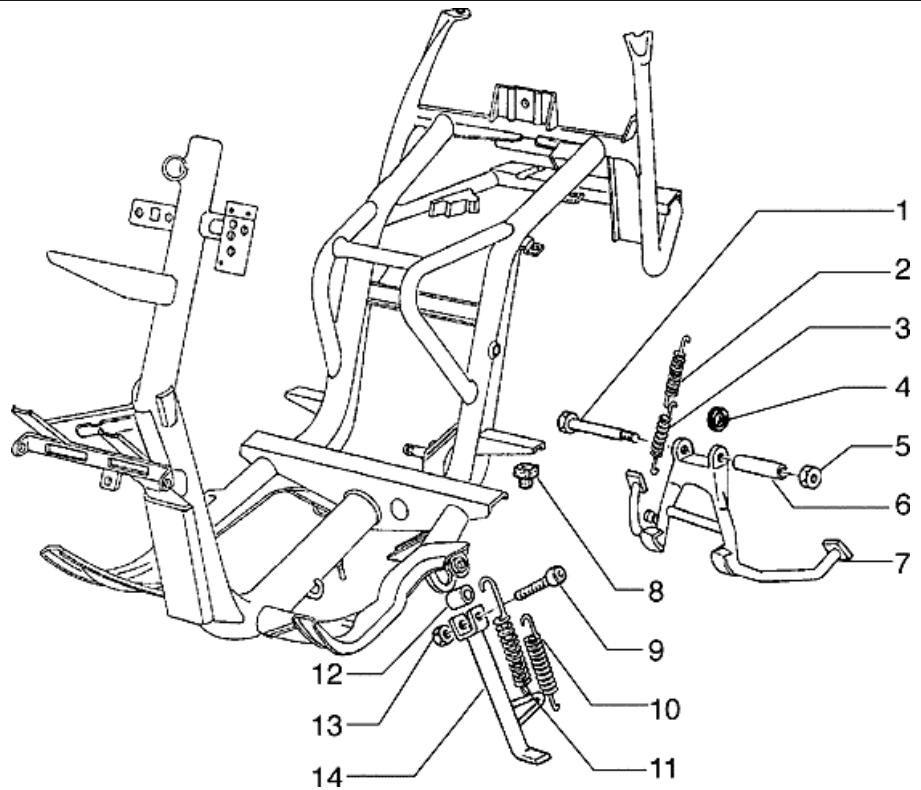

Drawing T23 - Rahmen-Aufhangung-Seitlicher stander 62

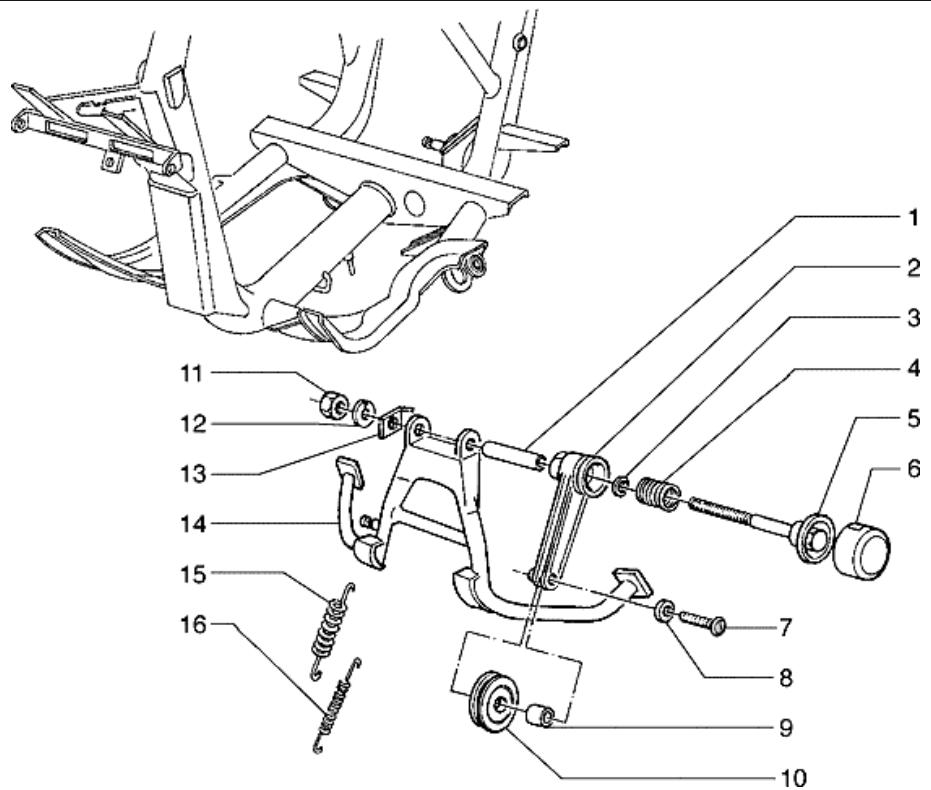

Drawing T24 - Mittelstander-Seitstander 63

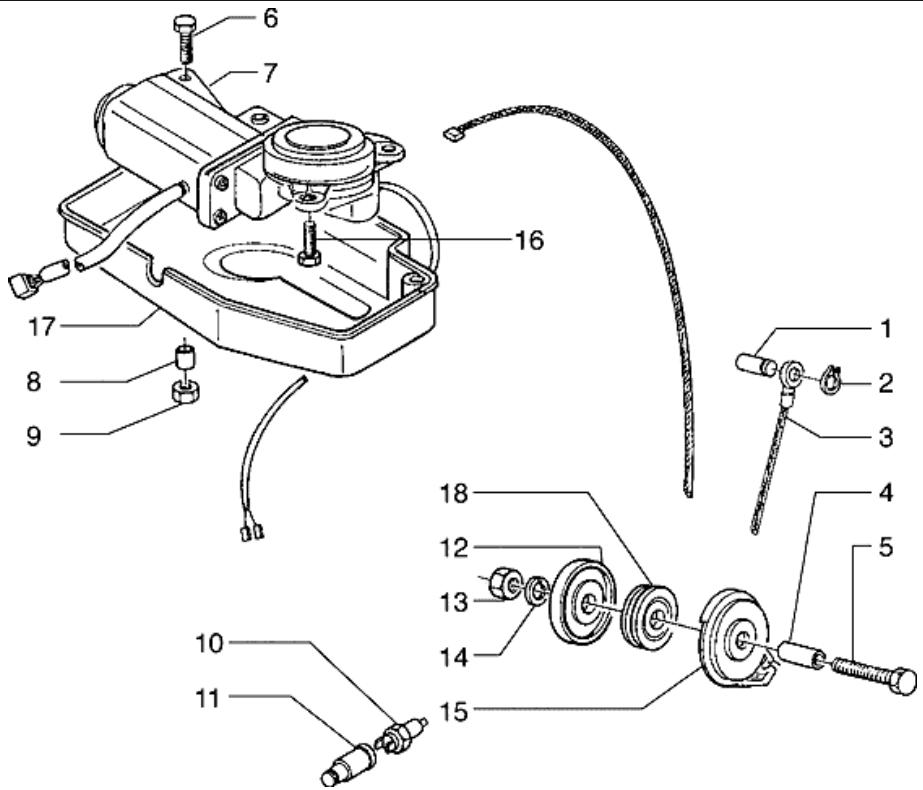

Drawing T25 - Elektrischer Stander 64
Drawing T26 - Elektrischer Stander 65
Drawing T27 - Schildern-Maske 66

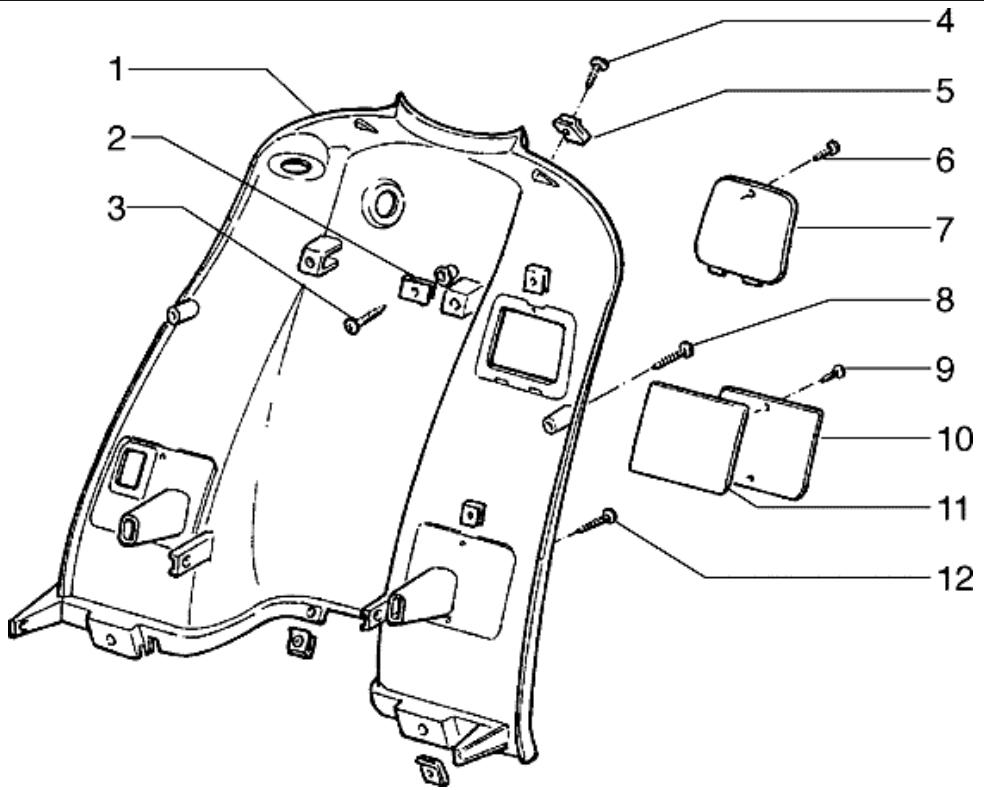

Drawing T28 - Hinteres Schutzschild 67

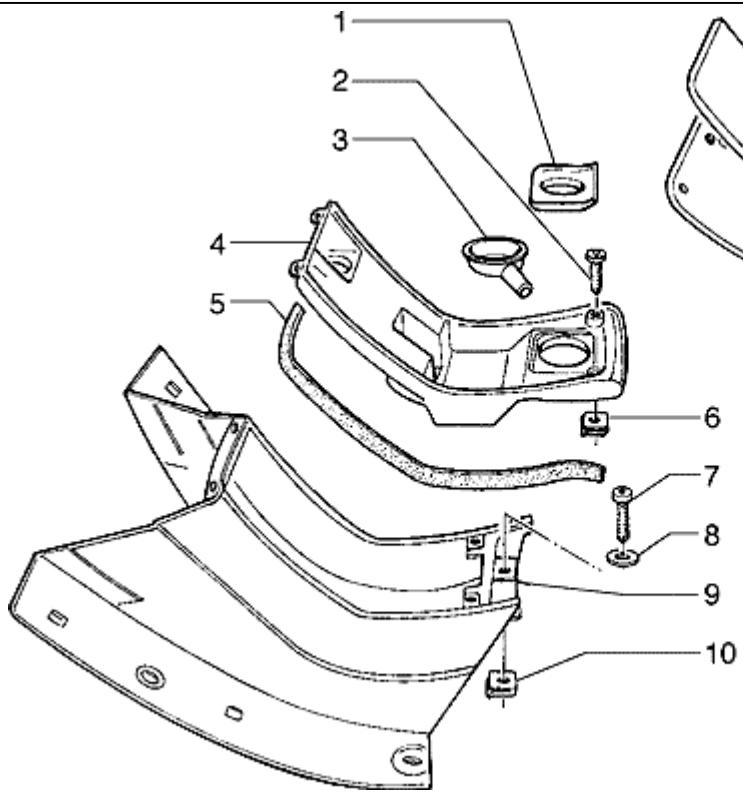

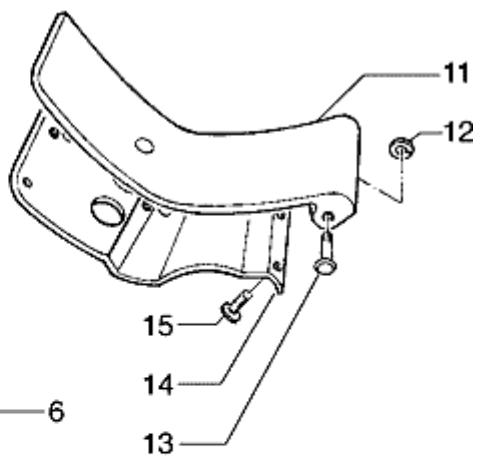

Drawing T29 - Trittbrett-Klappe tankverschluß 69

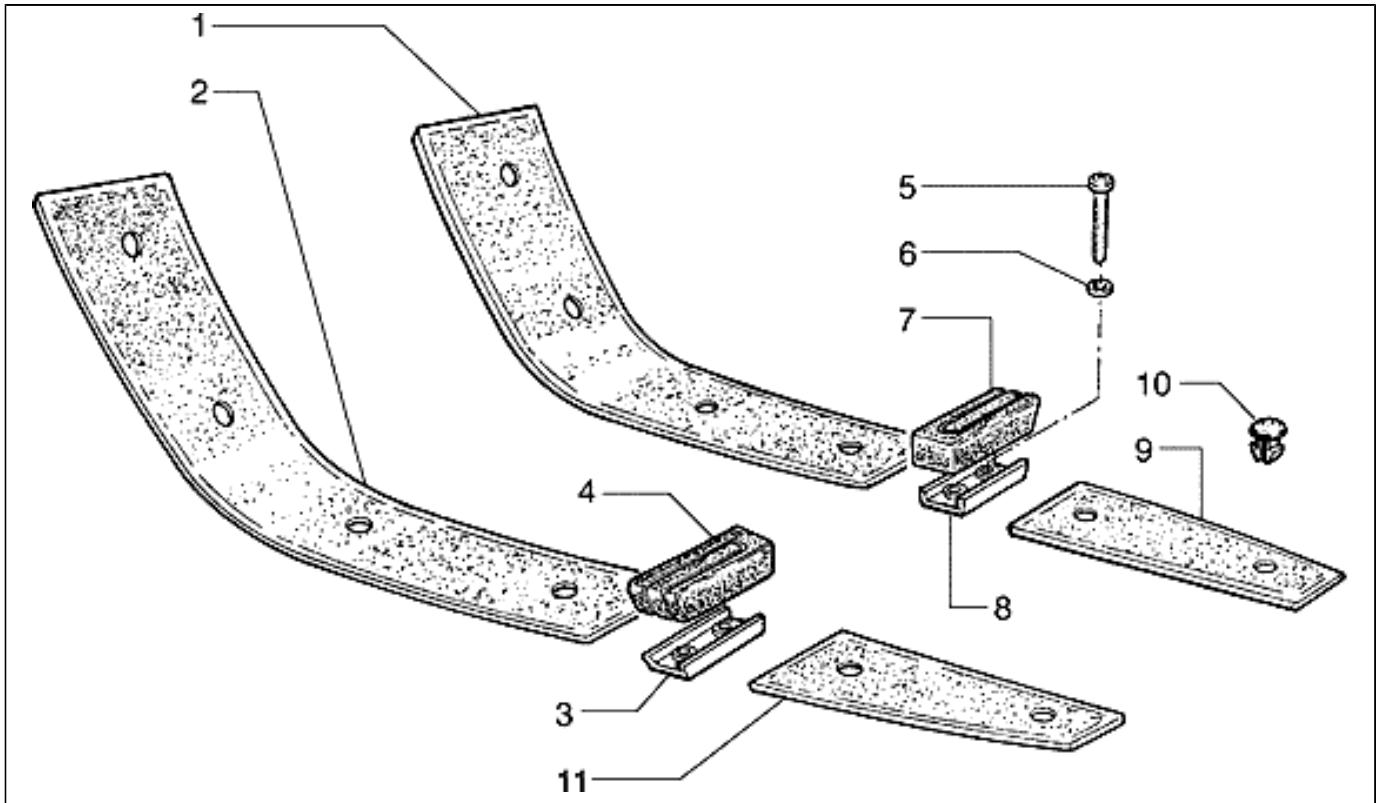

Drawing T30 - Teppiche 71

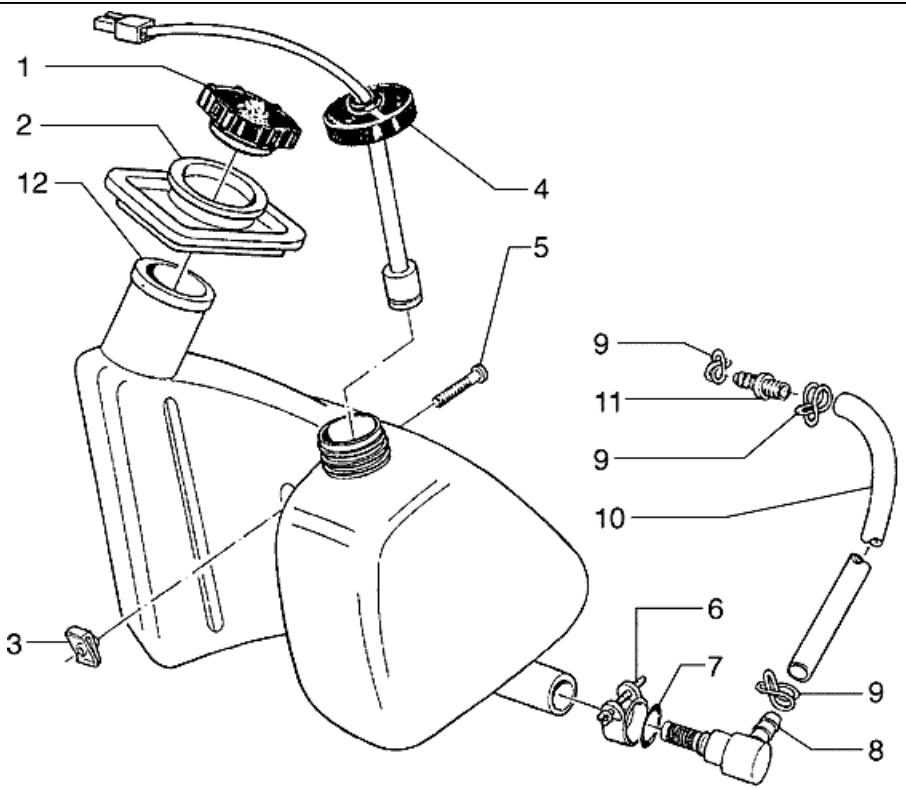

Drawing T31 - Öltank 72

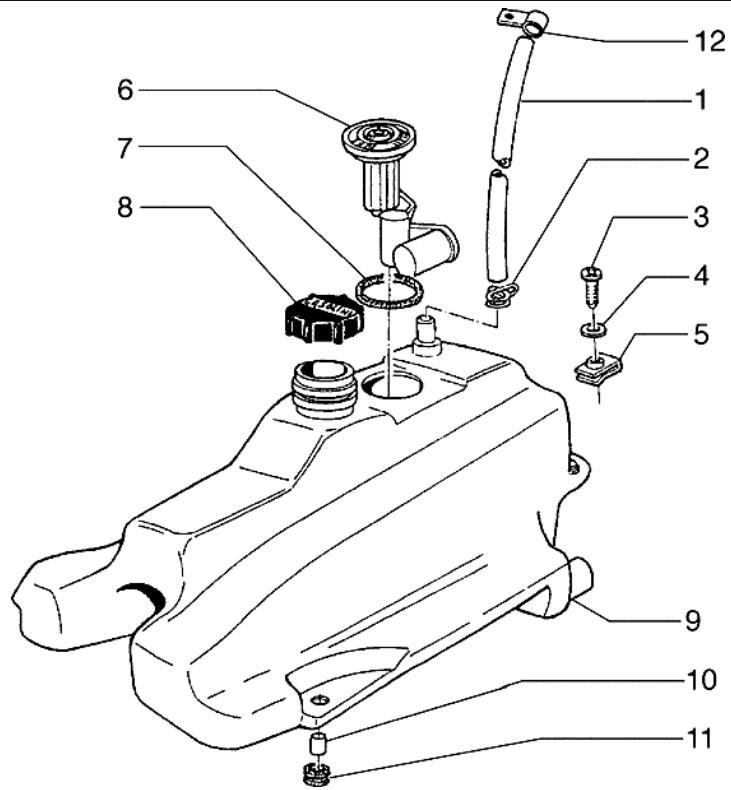

Drawing T32 - Benzintank 73
Drawing T32/A - Engaser. 74

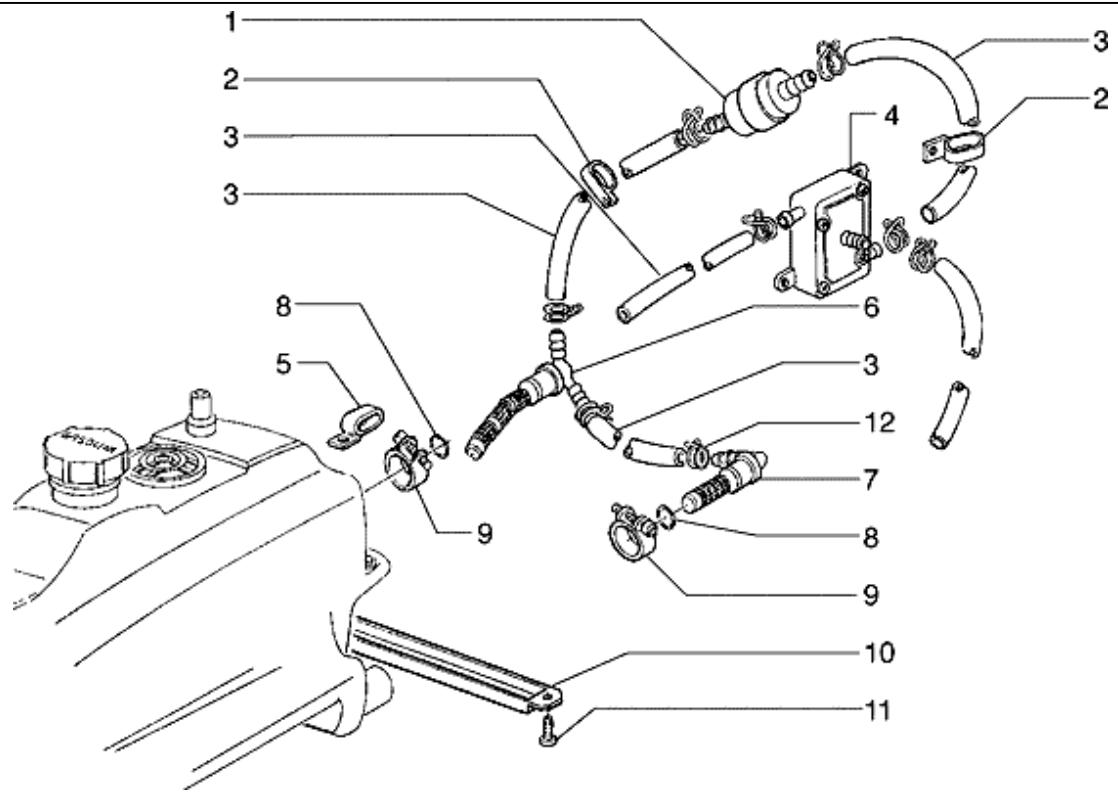

Drawing T33 - Benzinpumppe 75

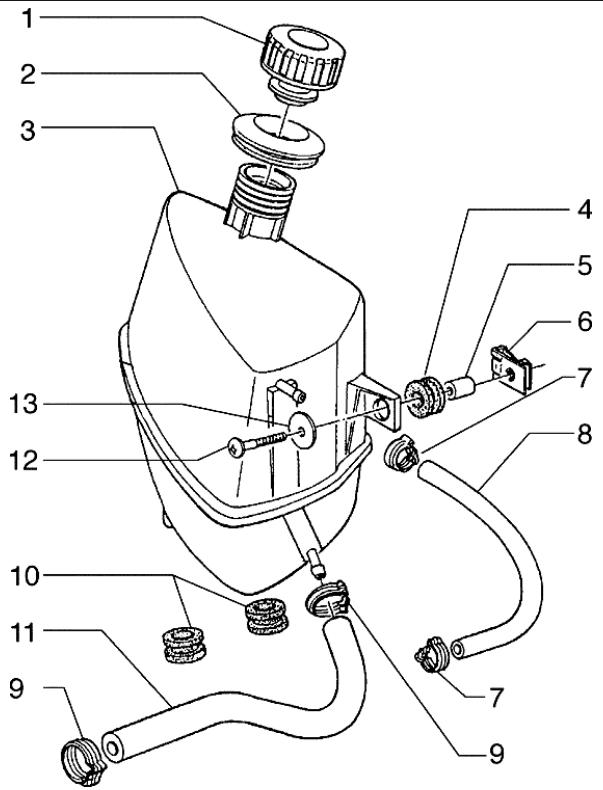

Drawing T34 - Ausdehnungsgefäß 76

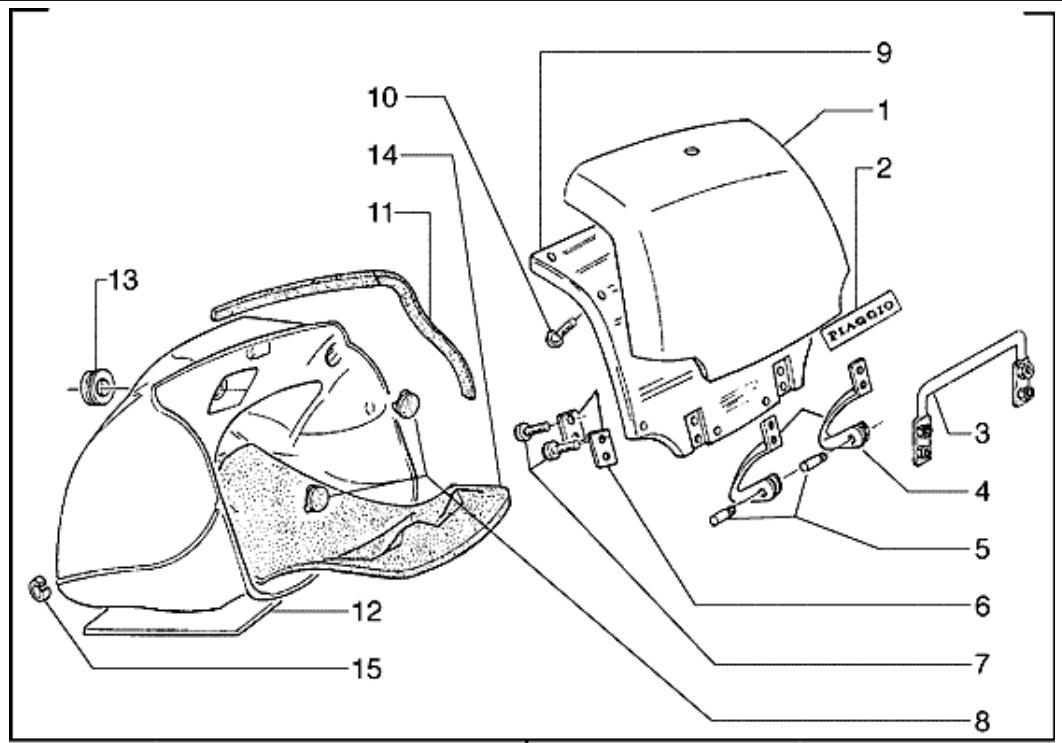

Drawing T39 -Gepackfach 77

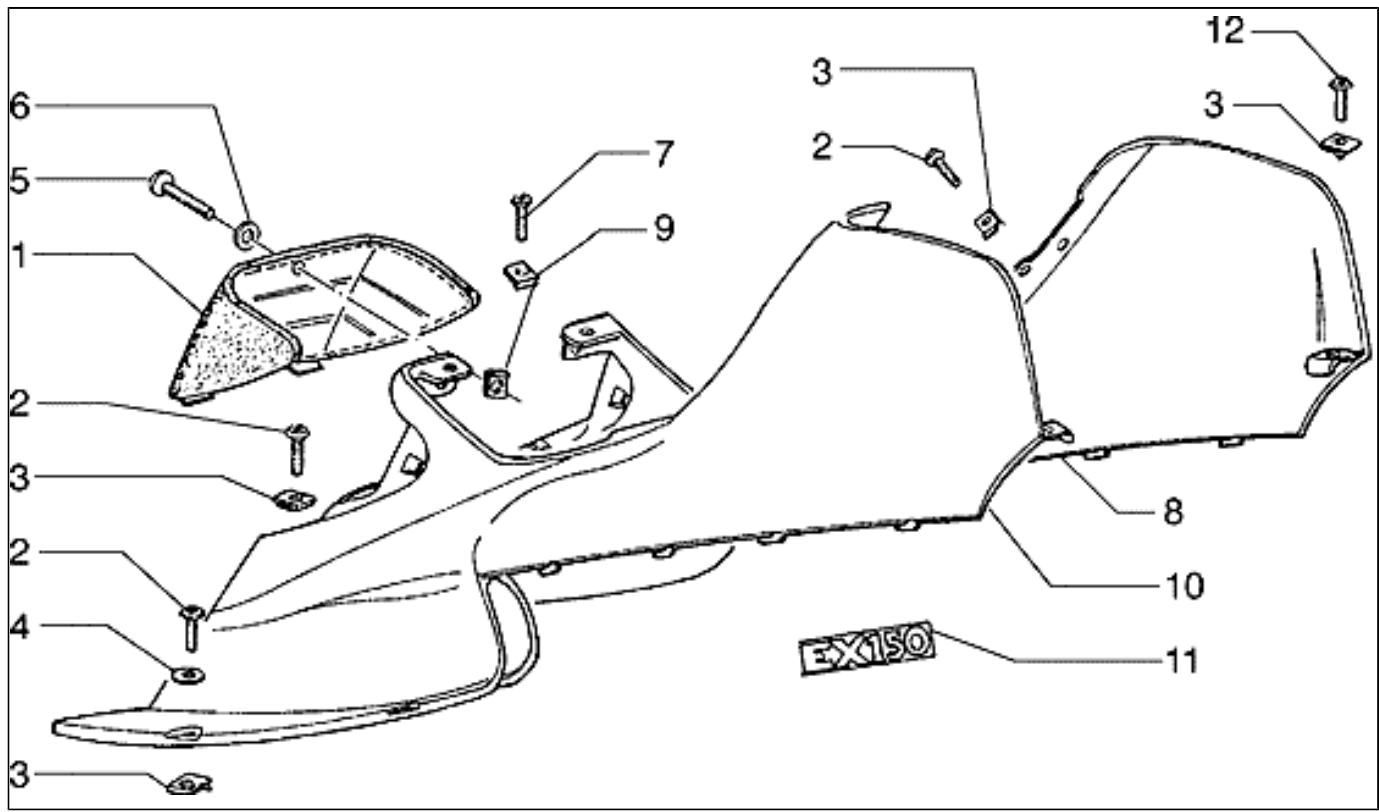

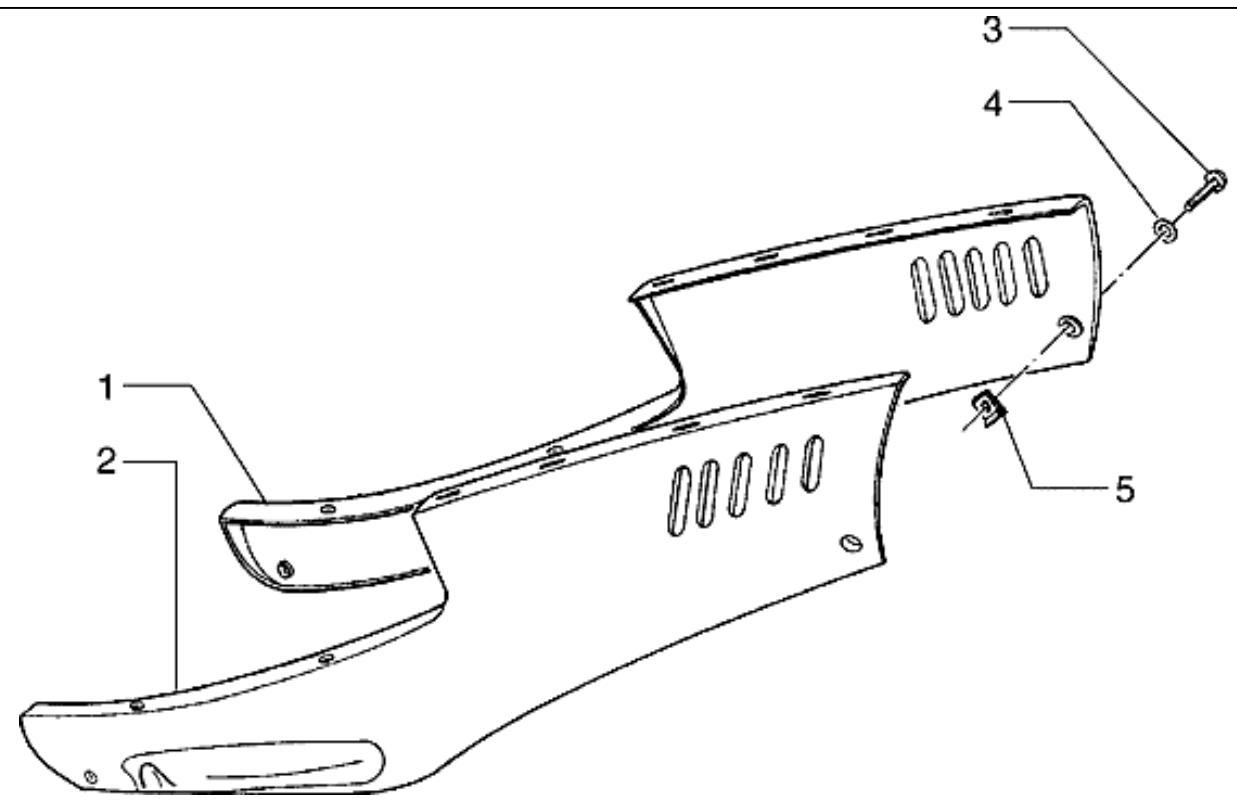

Drawing T40 - Untere Seitenverkleidung 79
Drawing T41 - Obere Seitenverkleidung 80

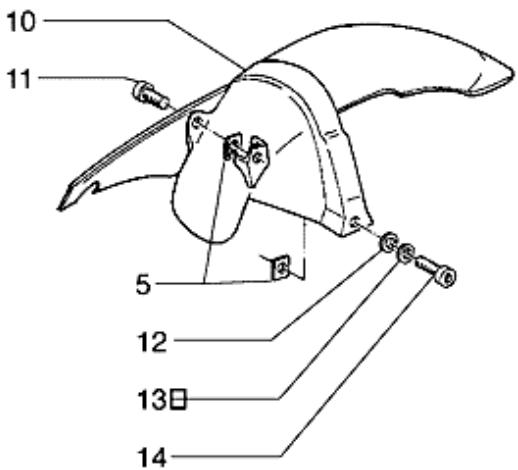

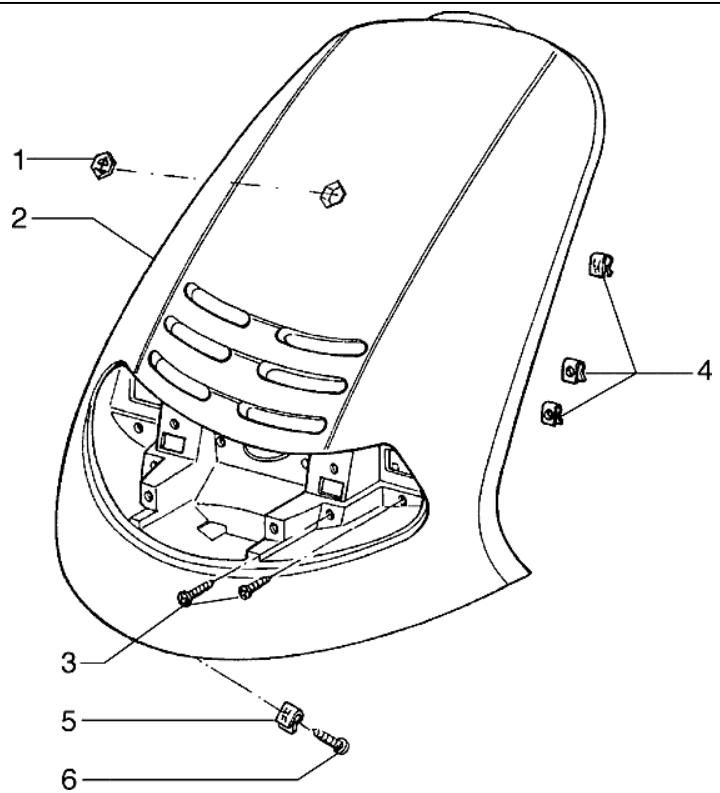

Drawing T42 - Vorderkotflugel-Hinterkotflugel 82

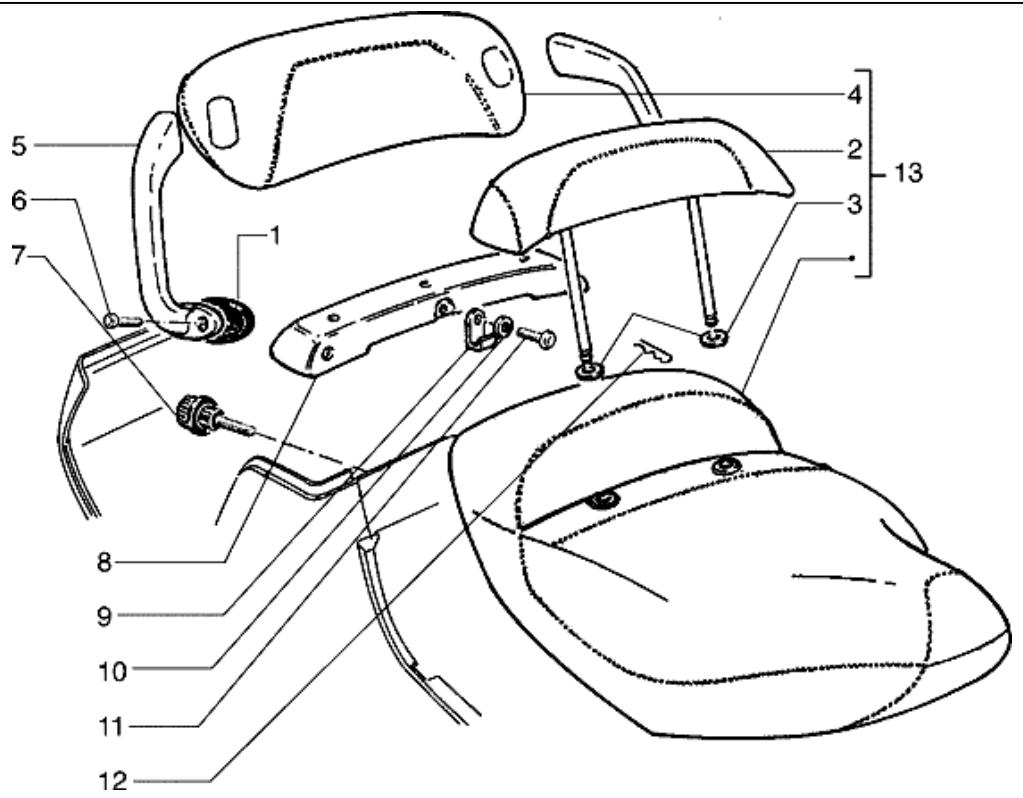

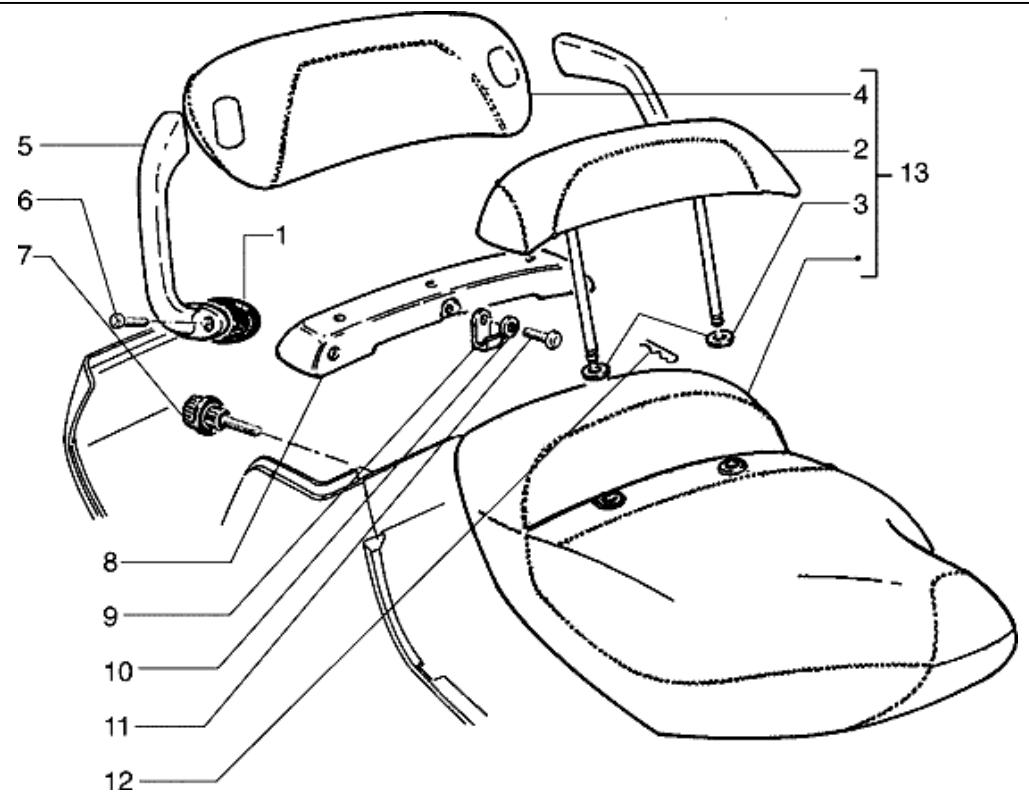

Drawing T43 - Sitzbank 83

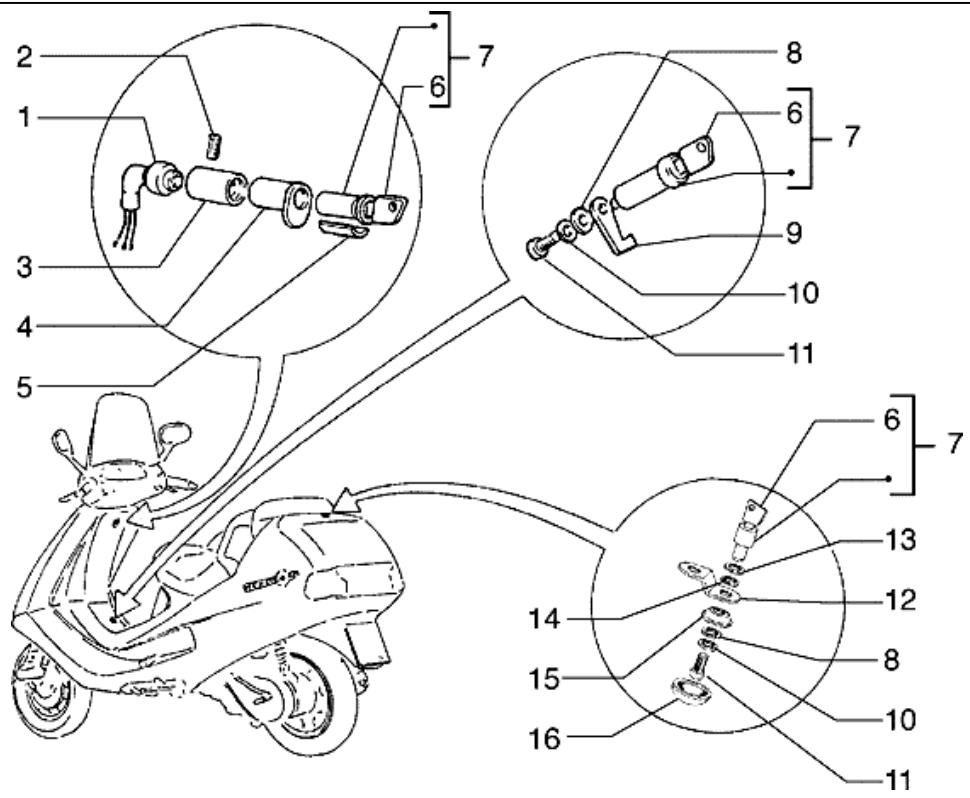

Drawing T66 - Schliebsvorrichtung 85
Products
Code
Validity
no products
| Code | Drawing Nr. | Pos. |
| 000267 | T13 | 10 |
| 000397 | T18 | 7 |
| 001564 | T22 | 6 |
| 003038 | T37 | 5 |
| 003055 | T22 | 3 |
| 003055 | T63 | 11 |
| 003056 | T60 | 18 |
| 003056 | T61 | 11 |
| 003058 | T47 | 8 |
| 004021 | T52 | 12 |
| 005955 | T43 | 3 |
| 005962 | T29 | 12 |
| 005965 | T26 | 2 |
| 006125 | T21 | 2 |
| 006416 | T15 | 8 |
| 006416 | T23 | 14 |
| 006419 | T12 | 11 |
| 006635 | T46 | 8 |
| 006647 | T12 | 14 |
| 006731 | T45 | 4 |
| 006963 | T59 | 8 |
| 006964 | T10 | 9 |
| 006966 | T46 | 12 |
| 006975 | T13 | 11 |
| 006975 | T13 | 8 |
| 006975 | T16 | 14 |
| 006975 | T16 | 7 |
| 008305 | T59 | 9 |
| 008370 | T66 | 11 |
| 008374 | T6 | 5 |
| 009000 | T59 | 24 |
| 012532 | T25 | 8 |
| 012533 | T21 | 8 |
| 012533 | T42 | 12 |
| 012535 | T48 | 6 |
| 012535 | T55 | 4 |
| 012789 | T46 | 7 |
| 012789 | T68 | 6 |
| 013092 | T34 | 13 |
| 013092 | T35 | 3 |
| 013092 | T36 | 6 |
| 013880 | T21 | 9 |
| 013880 | T42 | 13 |
| 013963 | T43 | 10 |
| 013963 | T65 | 14 |
| 013963 | T66 | 8 |
| 015341 | T22 | 13 |
| 015530 | T55 | 5 |
| 015585 | T13 | 7 |
| 015585 | T16 | 10 |
| 015585 | T37 | 16 |
| 015597 | T63 | 10 |
| 015715 | T13 | 12 |
| 015715 | T25 | 7 |
| 015792 | T22 | 11 |
| 015792 | T46 | 4 |
| 015792 | T67 | 5 |
| 015846 | T65 | 7 |
| 015856 | T13 | 1 |
| 015859 | T28 | 6 |
| 015859 | T28 | 9 |
| 015911 | T65 | 9 |
| 015947 | T10 | 10 |
| 016404 | T65 | 13 |
| 016404 | T66 | 10 |
| 016405 | T22 | 2 |
| 016405 | T26 | 14 |
| Code | Drawing Nr. | Pos. |
| 016405 | T47 | 12 |
| 016405 | T52 | 10 |
| 016405 | T59 | 22 |
| 016405 | T60 | 10 |
| 016405 | T60 | 3 |
| 016406 | T26 | 9 |
| 016406 | T30 | 6 |
| 016406 | T42 | 8 |
| 016406 | T50 | 2 |
| 016406 | T59 | 17 |
| 016406 | T59 | 4 |
| 016406 | T60 | 17 |
| 016406 | T61 | 12 |
| 016408 | T22 | 7 |
| 016408 | T37 | 4 |
| 016408 | T46 | 3 |
| 016408 | T47 | 9 |
| 016408 | T48 | 3 |
| 016408 | T51 | 10 |
| 016408 | T67 | 4 |
| 016410 | T25 | 12 |
| 016604 | T22 | 8 |
| 016626 | T51 | 5 |
| 016686 | T60 | 2 |
| 018515 | T66 | 2 |
| 018591 | T65 | 15 |
| 018640 | T21 | 10 |
| 020003 | T59 | 7 |
| 020006 | T2 | 3 |
| 020006 | T59 | 5 |
| 020008 | T2 | 6 |
| 020104 | T65 | 12 |
| 020105 | T26 | 13 |
| 020105 | T52 | 11 |
| 020105 | T59 | 23 |
| 020105 | T60 | 4 |
| 020106 | T42 | 9 |
| 020106 | T59 | 18 |
| 020106 | T60 | 16 |
| 020108 | T37 | 14 |
| 020108 | T48 | 4 |
| 020210 | T25 | 11 |
| 021108 | T51 | 9 |
| 021114 | T46 | 5 |
| 021210 | T48 | 5 |
| 030038 | T52 | 8 |
| 030054 | T42 | 14 |
| 030078 | T37 | 10 |
| 030113 | T24 | 1 |
| 030251 | T41 | 12 |
| 031056 | T59 | 20 |
| 031056 | T60 | 11 |
| 031058 | T47 | 13 |
| 031061 | T26 | 5 |
| 031061 | T60 | 7 |
| 031086 | T59 | 16 |
| 031086 | T61 | 13 |
| 031088 | T30 | 5 |
| 031091 | T26 | 16 |
| 031116 | T37 | 3 |
| 031119 | T48 | 1 |
| 031120 | T47 | 19 |
| 071633 | T65 | 2 |
| 077023 | T44 | 4 |
| 077024 | T44 | 3 |
| 078193 | T52 | 9 |
| 080341 | T60 | 9 |
| Code | Drawing Nr. | Pos. |
| 085508 | T13 | 5 |
| 102943 | T66 | 14 |
| 104296 | T37 | 11 |
| 104296 | T6 | 10 |
| 109960 | T19 | 2 |
| 113533 | T2 | 5 |
| 118656 | T26 | 1 |
| 119219 | T45 | 3 |
| 123394 | T55 | 14 |
| 123394 | T56 | 8 |
| 127927 | T52 | 2 |
| 127927 | T58 | 8 |
| 129953 | T64 | 6 |
| 137146 | T45 | 5 |
| 138345 | T18 | 6 |
| 149104 | T48 | 10 |
| 154834 | T32/A | 3 |
| 156205 | T63 | 1 |
| 163015 | T63 | 7 |
| 168077 | T35 | 5 |
| 1740844 | T49 | 2 |
| 174088 | T48 | 7 |
| 174874 | T48 | 8 |
| 177408 | T46 | 14 |
| 177436 | T47 | 5 |
| 177442 | T46 | 10 |
| 177443 | T46 | 11 |
| 177445 | T46 | 15 |
| 177451 | T45 | 2 |
| 177521 | T46 | 16 |
| 177609 | T46 | 6 |
| 177610 | T46 | 9 |
| 178150 | T51 | 12 |
| 178559 | T66 | 5 |
| 178562 | T66 | 3 |
| 178790 | T55 | 3 |
| 179575 | T29 | 8 |
| 179575 | T32 | 4 |
| 179575 | T40 | 4 |
| 179575 | T41 | 4 |
| 179575 | T42 | 6 |
| 179575 | T59 | 2 |
| 179640 | T58 | 11 |
| 181746 | T63 | 3 |
| 181746 | T64 | 5 |
| 182546 | T67 | 6 |
| 182546 | T68 | 7 |
| 184142 | T27 | 4 |
| 184142 | T27 | 5 |
| 184142 | T28 | 2 |
| 184142 | T29 | 6 |
| 184142 | T36 | 2 |
| 184142 | T38 | 2 |
| 184142 | T41 | 9 |
| 184142 | T42 | 2 |
| 184142 | T53 | 6 |
| 184142 | T62 | 2 |
| 184142 | T65 | 10 |
| 191002 | T58 | 9 |
| 194423 | T68 | 5 |
| 196750 | T65 | 3 |
| 196868 | T31 | 7 |
| 196868 | T33 | 10 |
| 214772 | T65 | 4 |
| 2188235 | T62 | 1 |
| 218824 | T59 | 3 |
| 219277 | T50 | 1 |
| 2239414 | T4 | 9 |
| 224962 | T14 | 5 |
| 229343 | T32 | 12 |
| 231370 | T24 | 13 |
| 231571 | T60 | 13 |
| 2315842 | T59 | 25 |
| 232108 | T23 | 2 |
| 232108 | T24 | 5 |
| 232108 | T51 | 6 |
| 244893 | T34 | 9 |
| 245816 | T16 | 8 |
| 250521 | T63 | 2 |
| 251420 | T63 | 14 |
| 252288 | T63 | 8 |
| 252945 | T61 | 6 |
| 253976 | T65 | 11 |
| 253977 | T65 | 11 |
| 2539795 | T65 | 11 |
| 254485 | T28 | 5 |
| 254485 | T29 | 10 |
| 254485 | T31 | 3 |
| 254485 | T32 | 5 |
| 254485 | T34 | 6 |
| 254485 | T35 | 14 |
| 254485 | T36 | 8 |
| 254485 | T40 | 5 |
| 254485 | T41 | 3 |
| 254485 | T42 | 5 |
| 254485 | T62 | 3 |
| 2559835 | T60 | 12 |
| 257301 | T32 | 11 |
| 257302 | T32 | 10 |
| 257404 | T28 | 4 |
| 257404 | T42 | 4 |
| 258146 | T21 | 11 |
| 258146 | T53 | 5 |
| 258146 | T61 | 5 |
| 258161 | T32 | 7 |
| 258249 | T29 | 2 |
| 258904 | T34 | 10 |
| 259166 | T21 | 3 |
| 259348 | T31 | 5 |
| 259348 | T50 | 4 |
| 259349 | T28 | 3 |
| 259349 | T36 | 3 |
| 259349 | T38 | 5 |
| 259349 | T42 | 1 |
| 259349 | T53 | 7 |
| 259372 | T27 | 3 |
| 259539 | T40 | 4 |
| 259539 | T42 | 4 |
| 259780 | T42 | 10 |
| 259829 | T31 | 1 |
| 259830 | T26 | 6 |
| 259830 | T29 | 7 |
| 259830 | T32 | 3 |
| 259830 | T33 | 15 |
| 259830 | T40 | 3 |
| 259830 | T41 | 2 |
| 259830 | T42 | 3 |
| 259830 | T53 | 8 |
| 259830 | T62 | 4 |
| 259832 | T32 | 8 |
| 265249 | T56 | 6 |
| 265451 | T52 | 3 |
| 265451 | T58 | 7 |
| 266625 | T2 | 8 |
| Code | Drawing Nr. | Pos. |
| 266724 | T18 | 2 |
| 266725 | T18 | 3 |
| 267038 | T51 | 11 |
| 267823 | T2 | 7 |
| 267948 | T56 | 5 |
| 268158 | T51 | 4 |
| 2694785 | T45 | 1 |
| 2694825 | T45 | 6 |
| 269502 | T49 | 1 |
| 269530 | T47 | 18 |
| 269568 | T67 | 2 |
| 269571 | T57 | 3 |
| 2700515 | T23 | 1 |
| 270084 | T31 | 12 |
| 270097 | T33 | 14 |
| 270109 | T41 | 1 |
| 270116 | T28 | 11 |
| 2701175 | T39 | 16 |
| 270122 | T30 | 7 |
| 270123 | T30 | 4 |
| 270124 | T30 | 10 |
| 270125 | T43 | 5 |
| 270126 | T43 | 5 |
| 270141 | T29 | 5 |
| 270142 | T66 | 9 |
| 270143 | T30 | 3 |
| 270146 | T39 | 15 |
| 270151 | T66 | 12 |
| 270153000A | T65 | 5 |
| 270154 | T65 | 8 |
| 270159 | T43 | 1 |
| 270160 | T43 | 1 |
| 270161 | T43 | 7 |
| 270162 | T39 | 13 |
| 270172 | T24 | 14 |
| 270188 | T24 | 12 |
| 270197 | T30 | 8 |
| 270199 | T31 | 2 |
| 270201 | T28 | 11 |
| 270215 | T26 | 8 |
| 270215 | T53 | 11 |
| 270216 | T53 | 9 |
| 270217 | T53 | 12 |
| 270238 | T35 | 13 |
| 270239 | T35 | 9 |
| 270246 | T35 | 11 |
| 270248 | T35 | 8 |
| 270249 | T34 | 11 |
| 270251 | T34 | 2 |
| 270310 | T58 | 12 |
| 270423 | T33 | 1 |
| 270432 | T51 | 7 |
| 270433 | T51 | 8 |
| 270439 | T51 | 15 |
| 270723 | T27 | 6 |
| 270723 | T28 | 8 |
| 270723 | T41 | 7 |
| 270723 | T62 | 6 |
| 270792 | T41 | 6 |
| 270793 | T54 | 2 |
| 270793 | T58 | 5 |
| 270795 | T41 | 5 |
| 270991 | T67 | 7 |
| 270991 | T68 | 8 |
| 271089 | T24 | 9 |
| 271089 | T43 | 6 |
| 2710915000 | T67 | 1 |
| Code | Drawing Nr. | Pos. |
| 271122 | T47 | 3 |
| 271147 | T46 | 13 |
| 271262 | T47 | 16 |
| 271265 | T47 | 15 |
| 271266 | T47 | 14 |
| 2712785 | T47 | 6 |
| 271279 | T47 | 4 |
| 271339 | T48 | 2 |
| 271343 | T50 | 3 |
| 271348 | T50 | 5 |
| 271395 | T23 | 5 |
| 271396 | T58 | 3 |
| 271433 | T55 | 7 |
| 271433 | T56 | 2 |
| 271434 | T55 | 6 |
| 271434 | T56 | 1 |
| 271450 | T56 | 4 |
| 271452 | T56 | 3 |
| 271453 | T55 | 10 |
| 271454 | T56 | 9 |
| 271461 | T55 | 12 |
| 271463 | T55 | 11 |
| 271463 | T57 | 6 |
| 271465 | T53 | 4 |
| 271477 | T33 | 5 |
| 271480 | T57 | 5 |
| 271481 | T57 | 1 |
| 271494 | T58 | 1 |
| 271760 | T28 | 12 |
| 271779 | T23 | 8 |
| 271807 | T23 | 10 |
| 271891 | T34 | 12 |
| 271891 | T35 | 4 |
| 271891 | T36 | 7 |
| 271976 | T57 | 4 |
| 271977 | T57 | 2 |
| 272223 | T24 | 6 |
| 272223 | T25 | 1 |
| 272242 | T25 | 2 |
| 272245 | T25 | 10 |
| 272245 | T26 | 18 |
| 272246 | T25 | 9 |
| 272249 | T25 | 6 |
| 272291 | T26 | 15 |
| 272292 | T26 | 12 |
| 272327 | T32 | 6 |
| 272329 | T23 | 6 |
| 272426 | T24 | 8 |
| 272497 | T25 | 3 |
| 272575 | T54 | 5 |
| 272734 | T58 | 4 |
| 272735 | T58 | 6 |
| 2727785 | T23 | 3 |
| 272836 | T59 | 1 |
| 272848 | T16 | 1 |
| 272849 | T51 | 13 |
| 272872 | T68 | 1 |
| 2728795 | T68 | 9 |
| 272909 | T52 | 1 |
| 272981 | T52 | 5 |
| 272982 | T52 | 4 |
| 272983 | T52 | 13 |
| 272992 | T49 | 3 |
| 273016 | T26 | 17 |
| 273065 | T26 | 3 |
| 273074 | T43 | 11 |
| 273099 | T68 | 3 |
| 273138 | T25 | 13 |
| 273139 | T25 | 4 |
| 273140 | T25 | 5 |
| 273203 | T24 | 2 |
| 273203 | T25 | 16 |
| 273274 | T37 | 12 |
| 273288 | T34 | 5 |
| 273288 | T35 | 2 |
| 273288 | T36 | 5 |
| 273294 | T37 | 1 |
| 273295 | T37 | 2 |
| 273338 | T51 | 1 |
| 273344 | T55 | 8 |
| 273346 | T52 | 16 |
| 273367 | T54 | 3 |
| 273368 | T54 | 9 |
| 273369 | T54 | 4 |
| 273370 | T52 | 6 |
| 273386 | T54 | 1 |
| 273387 | T54 | 7 |
| 273391 | T51 | 2 |
| 273407 | T46 | 1 |
| 273408 | T47 | 7 |
| 273419 | T18 | 5 |
| 273427 | T43 | 9 |
| 273463 | T23 | 4 |
| 2734794 | T51 | 14 |
| 273512 | T7 | 9 |
| 273611 | T53 | 1 |
| 273613 | T53 | 2 |
| 2736235 | T18 | 1 |
| 273693 | T48 | 9 |
| 273729 | T43 | 2 |
| 273730 | T43 | 4 |
| 273754 | T24 | 4 |
| 273765 | T23 | 7 |
| 273766 | T23 | 13 |
| 273773 | T23 | 12 |
| 273773 | T23 | 9 |
| 273774 | T23 | 15 |
| 273867 | T49 | 4 |
| 273884 | T7 | 1 |
| 274245 | T18 | 10 |
| 274245 | T18 | 9 |
| 274305 | T25 | 2 |
| 274318 | T26 | 17 |
| 274346 | T23 | 7 |
| 274346 | T24 | 7 |
| 274346 | T25 | 14 |
| 274511 | T26 | 18 |
| 274513 | T26 | 4 |
| 274643 | T58 | 2 |
| 274644 | T47 | 11 |
| 274646 | T26 | 7 |
| 274939 | T55 | 2 |
| 286163 | T16 | 5 |
| 286165 | T16 | 11 |
| 286206 | T7 | 2 |
| 286207 | T7 | 3 |
| 286217 | T15 | 5 |
| 287073 | T16 | 2 |
| 287223 | T2 | 4 |
| 289262 | T16 | 3 |
| 289495 | T15 | 3 |
| 289514 | T6 | 7 |
| 289553 | T17 | 2 |
| 289554 | T17 | 3 |
| Code | Drawing Nr. | Pos. |
| 290405 | T59 | 6 |
| 290688 | T61 | 7 |
| 290802 | T65 | 6 |
| 290944 | T64 | 3 |
| 290951 | T63 | 12 |
| 2910162 | T59 | 12 |
| 291017 | T59 | 13 |
| 291499 | T61 | 6 |
| 291570 | T59 | 10 |
| 291570 | T61 | 6 |
| 291954 | T61 | 1 |
| 292033 | T60 | 15 |
| 292169 | T53 | 4 |
| 292175 | T61 | 2 |
| 292186 | T52 | 14 |
| 292209 | T61 | 8 |
| 292234 | T66 | 1 |
| 292325 | T66 | 1 |
| 292332 | T59 | 19 |
| 292364 | T61 | 3 |
| 292507 | T61 | 6 |
| 292596 | T31 | 4 |
| 292723 | T63 | 4 |
| 293154 | T65 | 1 |
| 293169 | T62 | 7 |
| 293170 | T14 | 2 |
| 2931715 | T14 | 3 |
| 293198 | T64 | 1 |
| 293199 | T63 | 9 |
| 293218 | T60 | 5 |
| 293252 | T66 | 1 |
| 293254 | T26 | 10 |
| 293256 | T59 | 21 |
| 293262 | T26 | 11 |
| 293268 | T60 | 14 |
| 293280 | T61 | 3 |
| 293281 | T61 | 9 |
| 293301 | T35 | 6 |
| 293347 | T59 | 11 |
| 293349 | T61 | 4 |
| 2933525 | T60 | 1 |
| 293367 | T61 | 14 |
| 293376 | T26 | 7 |
| 293390 | T13 | 6 |
| 293391 | T13 | 9 |
| 293409 | T20 | 1 |
| 2934215 | T60 | 1 |
| 293431 | T60 | 14 |
| 293463 | T53 | 4 |
| 293529 | T60 | 6 |
| 294163 | T59 | 14 |
| 294191 | T61 | 7 |
| 294398 | T61 | 9 |
| 294829 | T61 | 10 |
| 295486 | T27 | 1 |
| 295788 | T24 | 11 |
| 295789 | T24 | 10 |
| 296170 | T39 | 7 |
| 296259 | T32 | 1 |
| 296575 | T31 | 11 |
| 296577 | T31 | 8 |
| 2966434 | T39 | 3 |
| 296786 | T41 | 11 |
| 296817 | T33 | 7 |
| 296817 | T33 | 9 |
| 296819 | T41 | 13 |
| 296837 | T39 | 12 |
| Code | Drawing Nr. | Pos. |
| 296852 | T37 | 8 |
| 296853 | T37 | 6 |
| 296854 | T66 | 6 |
| 296861 | T29 | 4 |
| 296877 | T29 | 11 |
| 296881 | T66 | 7 |
| 296883 | T29 | 1 |
| 296884 | T29 | 3 |
| 2968854 | T29 | 14 |
| 2969020005 | T54 | 6 |
| 2969020095 | T54 | 6 |
| 2969030005 | T39 | 2 |
| 2969030095 | T39 | 2 |
| 297027 | T38 | 4 |
| 297038 | T38 | 1 |
| 297079 | T38 | 6 |
| 297162 | T35 | 10 |
| 297378 | T32/A | 6 |
| 297446 | T62 | 9 |
| 297494 | T29 | 16 |
| 297495 | T29 | 13 |
| 297496 | T29 | 16 |
| 297498 | T29 | 15 |
| 297498 | T39 | 10 |
| 297500 | T66 | 13 |
| 297522 | T42 | 19 |
| 297523 | T42 | 19 |
| 297524 | T40 | 6 |
| 297525 | T40 | 6 |
| 297526 | T42 | 7 |
| 297596 | T66 | 16 |
| 297597 | T66 | 15 |
| 297777 | T66 | 4 |
| 297848 | T32/A | 2 |
| 297848 | T33 | 21 |
| 297859 | T32/A | 1 |
| 297859 | T33 | 19 |
| 298344 | T32 | 9 |
| 298372 | T33 | 22 |
| 298390 | T33 | 16 |
| 298390 | T33 | 6 |
| 2983935 | T30 | 12 |
| 298420 | T39 | 17 |
| 298500 | T32 | 9 |
| 299077 | T39 | 4 |
| 299078 | T39 | 6 |
| 299079 | T39 | 9 |
| 351782 | T34 | 4 |
| 351782 | T35 | 1 |
| 351782 | T36 | 4 |
| 351782 | T52 | 7 |
| 414835 | T7 | 12 |
| 414837 | T15 | 9 |
| 414837 | T18 | 8 |
| 414837 | T6 | 1 |
| 414837 | T7 | 11 |
| 414838 | T14 | 1 |
| 414838 | T7 | 13 |
| 430206 | T6 | 2 |
| 430228 | T12 | 16 |
| 430264 | T7 | 4 |
| 430391 | T12 | 3 |
| 430393 | T4 | 8 |
| 430585 | T8 | 12 |
| 431065 | T8 | 9 |
| 431067 | T8 | 3 |
| 431068 | T8 | 2 |
| 431069 | T8 | 8 |
| 431070 | T8 | 4 |
| 4310845 | T8 | 5 |
| 431089 | T8 | 10 |
| 431091 | T8 | 6 |
| 431092 | T8 | 7 |
| 4310935 | T9 | 1 |
| 431208 | T16 | 6 |
| 431256 | T12 | 1 |
| 431258 | T11 | 6 |
| 431275 | T10 | 7 |
| 431279 | T10 | 5 |
| 431280 | T10 | 6 |
| 431281 | T10 | 8 |
| 4312855 | T8 | 11 |
| 431321 | T14 | 4 |
| 431357 | T12 | 4 |
| 431370 | T16 | 4 |
| 4314595 | T12 | 7 |
| 431600 | T22 | 14 |
| 432120 | T22 | 12 |
| 432127 | T22 | 10 |
| 432307 | T8 | 1 |
| 4323215 | T7 | 6 |
| 432334 | T22 | 15 |
| 432491 | T11 | 3 |
| 432502 | T20 | 4 |
| 432505 | T20 | 11 |
| 432506 | T20 | 6 |
| 432507 | T20 | 12 |
| 432511 | T20 | 10 |
| 432512 | T20 | 9 |
| 432519 | T20 | 2 |
| 432542 | T21 | 1 |
| 432628 | T10 | 2 |
| 432906 | T6 | 3 |
| 432972 | T5 | 4 |
| 432975 | T5 | 2 |
| 433018 | T21 | 4 |
| 433084 | T33 | 2 |
| 433084 | T7 | 10 |
| 433232 | T9 | 5 |
| 433391 | T11 | 8 |
| 433427 | T12 | 10 |
| 433490 | T22 | 5 |
| 4335045 | T3 | 4 |
| 433524 | T22 | 9 |
| 4335935 | T17 | 1 |
| 433599 | T2 | 2 |
| 433603 | T15 | 1 |
| 433716 | T37 | 15 |
| 433800 | T22 | 1 |
| 433987 | T15 | 4 |
| 434015 | T12 | 9 |
| 434064 | T22 | 4 |
| 434078 | T5 | 5 |
| 434087 | T15 | 2 |
| 434101 | T19 | 1 |
| 434211 | T4 | 10 |
| 434214 | T4 | 10 |
| 4342365 | T1 | 1 |
| 4342375 | T2 | 1 |
| 434347 | T7 | 7 |
| 434359 | T5 | 8 |
| 434363 | T21 | 7 |
| 434364 | T21 | 6 |
| 434373 | T5 | 9 |
| Code | Drawing Nr. | Pos. |
| 434468 | T37 | 17 |
| 434576 | T22 | 9 |
| 4345825 | T3 | 2 |
| 4345825 | T3 | 6 |
| 434611 | T19 | 1 |
| 434664 | T13 | 4 |
| 434703 | T13 | 2 |
| 434735 | T12 | 15 |
| 434735 | T12 | 6 |
| 4347935 | T12 | 2 |
| 434795 | T4 | 10 |
| 434885 | T11 | 7 |
| 434887 | T11 | 1 |
| 435063 | T6 | 6 |
| 4352035 | T17 | 4 |
| 435219 | T20 | 8 |
| 435236 | T5 | 6 |
| 435328 | T21 | 5 |
| 4353355 | T37 | 9 |
| 4353355 | T6 | 4 |
| 4353665 | T12 | 5 |
| 4353895 | T10 | 4 |
| 4354555 | T3 | 5 |
| 4355120001 | T4 | 2 |
| 4355120002 | T4 | 2 |
| 4355120004 | T4 | 2 |
| 435513 | T4 | 3 |
| 435514 | T4 | 4 |
| 435515 | T4 | 5 |
| 436096 | T19 | 3 |
| 436598 | T22 | 4 |
| 436783 | T11 | 5 |
| 436783 | T13 | 13 |
| 436783 | T9 | 7 |
| 438025 | T5 | 7 |
| 478032 | T11 | 2 |
| 4781565 | T12 | 12 |
| 478498 | T12 | 13 |
| 478752 | T9 | 2 |
| 483395 | T6 | 8 |
| 483859 | T15 | 7 |
| 483859 | T39 | 8 |
| 483878 | T4 | 7 |
| 483970 | T3 | 1 |
| 483977 | T10 | 3 |
| 4844275 | T5 | 1 |
| 484706 | T4 | 6 |
| 484771 | T7 | 8 |
| 4854415 | T8 | 13 |
| 485442 | T9 | 4 |
| 486149 | T16 | 9 |
| 487167 | T17 | 5 |
| 487549 | T4 | 1 |
| 487775 | T4 | 10 |
| 487776 | T4 | 10 |
| 487777 | T4 | 10 |
| 487936 | T9 | 3 |
| 494517 | T47 | 21 |
| 494952 | T55 | 9 |
| 498413 | T19 | 4 |
| 498434 | T47 | 20 |
| 498443 | T47 | 21 |
| 498450 | T1 | 4 |
| 498451 | T1 | 2 |
| 498453 | T53 | 3 |
| 498454 | T47 | 2 |
| 498455 | T1 | 3 |
| Code | Drawing Nr. | Pos. |
| 498456 | T63 | 5 |
| 498457 | T63 | 15 |
| 498457 | T63 | 17 |
| 498458 | T63 | 6 |
| 498459 | T64 | 2 |
| 498460 | T64 | 4 |
| 498461 | T64 | 9 |
| 498462 | T64 | 7 |
| 498834 | T53 | 13 |
| 498837 | T63 | 6 |
| 498848 | T43 | 12 |
| 498857 | T52 | 15 |
| 498859 | T43 | 14 |
| 498860 | T63 | 16 |
| 498862 | T54 | 11 |
| 498863 | T54 | 11 |
| 500511 | T3 | 3 |
| 500512 | T3 | 3 |
| 500513 | T3 | 3 |
| 500514 | T3 | 3 |
| 56002R | T44 | 1 |
| 56003R | T44 | 2 |
| 560103 | T23 | 1 |
| 560423 | T47 | 1 |
| 561095 | T43 | 2 |
| 561096 | T43 | 4 |
| 561098 | T41 | 1 |
| 561164 | T24 | 3 |
| 561164 | T25 | 15 |
| 561449 | T39 | 11 |
| 561991 | T34 | 1 |
| 562432 | T49 | 5 |
| 562433 | T51 | 3 |
| 562516 | T36 | 1 |
| 5632904 | T68 | 2 |
| 563676 | T42 | 15 |
| 563728 | T68 | 4 |
| 563977 | T23 | 11 |
| 564107 | T58 | 10 |
| 566752 | T53 | 10 |
| 573320 | T31 | 10 |
| 574245 | T41 | 11 |
| 5743015004 | T28 | 1 |
| 5743015035 | T28 | 1 |
| 5743015056 | T28 | 1 |
| 5743015066 | T28 | 1 |
| 5743015067 | T28 | 1 |
| 5743015077 | T28 | 1 |
| 5743015086 | T28 | 1 |
| 5743015087 | T28 | 1 |
| 5743015088 | T28 | 1 |
| 5743015089 | T28 | 1 |
| 5743015090 | T28 | 1 |
| 5743015094 | T28 | 1 |
| 5743015095 | T28 | 1 |
| 574327 | T62 | 8 |
| 574659 | T62 | 5 |
| 574709000A | T40 | 1 |
| 574763000A | T40 | 2 |
| 5747905 | T43 | 8 |
| 5747905066 | T43 | 8 |
| 5747905087 | T43 | 8 |
| 5747905090 | T43 | 8 |
| 5747905094 | T43 | 8 |
| 5747905095 | T43 | 8 |
| 574998 | T39 | 14 |
| 575021 | T39 | 5 |
| 575249 | T42 | 11 |
| 575249 | T63 | 13 |
| 5753435089 | T28 | 7 |
| 575541 | T34 | 3 |
| 575736 | T41 | 14 |
| 575783000N | T43 | 13 |
| 575816 | T28 | 10 |
| 577039000D | T28 | 1 |
| 577053000A | T42 | 7 |
| 577557 | T31 | 6 |
| 577557 | T33 | 11 |
| 577557 | T35 | 7 |
| 577557 | T37 | 7 |
| 58002R | T59 | 15 |
| 580190 | T60 | 14 |
| 580953 | T55 | 13 |
| 580953 | T56 | 7 |
| 581098 | T35 | 12 |
| 5816065 | T55 | 1 |
| 583697 | T55 | 7 |
| 583697 | T56 | 2 |
| 584810 | T62 | 1 |
| 597150 | T47 | 10 |
| 597151 | T37 | 13 |
| 599754 | T47 | 1 |
| 620068 | T12 | 8 |
| 620068 | T2 | 9 |
| 620737 | T34 | 2 |
| 709041 | T18 | 4 |
| 709047 | T46 | 2 |
| 709047 | T47 | 17 |
| 709047 | T67 | 3 |
| 709116 | T54 | 12 |
| 82502R | T9 | 6 |
| 825065 | T20 | 13 |
| 82545R | T12 | 17 |
| 82592R | T33 | 4 |
| 82592R | T33 | 8 |
| 82608R | T16 | 13 |
| 826115 | T60 | 8 |
| 826185 | T20 | 7 |
| 826189 | T5 | 3 |
| 82622R | T6 | 9 |
| 827084 | T13 | 3 |
| 827632 | T15 | 6 |
| 828373 | T7 | 5 |
| 829180 | T10 | 1 |
| 830212 | T11 | 4 |
| 844483 | T22 | 15 |
| 9281005 | T39 | 1 |
| 9281045 | T39 | 1 |
| 9281565 | T39 | 1 |
| 9281665 | T39 | 1 |
| 9281675 | T39 | 1 |
| 9281765 | T39 | 1 |
| 9281775 | T39 | 1 |
| 9281785 | T39 | 1 |
| 9281865 | T39 | 1 |
| 9281875 | T39 | 1 |
| 9281885 | T39 | 1 |
| 9281895 | T39 | 1 |
| 9281905 | T39 | 1 |
| 9281935 | T39 | 1 |
| 9281945 | T39 | 1 |
| 9281955 | T39 | 1 |
| 9283005 | T29 | 9 |
| 9283045 | T29 | 9 |
| Code | Drawing Nr. | Pos. |
| 9283565 | T29 | 9 |
| 9283665 | T29 | 9 |
| 9283675 | T29 | 9 |
| 9283765 | T29 | 9 |
| 9283775 | T29 | 9 |
| 9283785 | T29 | 9 |
| 9283865 | T29 | 9 |
| 9283875 | T29 | 9 |
| 9283885 | T29 | 9 |
| 9283895 | T29 | 9 |
| 9283905 | T29 | 9 |
| 9283935 | T29 | 9 |
| 9283945 | T29 | 9 |
| 9283955 | T29 | 9 |
| 928400 | T28 | 1 |
| 9284765 | T28 | 1 |
| 9285005 | T41 | 10 |
| 9285045 | T41 | 10 |
| 9285565 | T41 | 10 |
| 9285665 | T41 | 10 |
| 9285675 | T41 | 10 |
| 9285765 | T41 | 10 |
| 9285775 | T41 | 10 |
| 9285785 | T41 | 10 |
| 9285865 | T41 | 10 |
| 9285875 | T41 | 10 |
| 9285885 | T41 | 10 |
| 9285895 | T41 | 10 |
| 9285905 | T41 | 10 |
| 9285935 | T41 | 10 |
| 9285945 | T41 | 10 |
| 9285955 | T41 | 10 |
| 9286005 | T41 | 8 |
| 9286045 | T41 | 8 |
| 9286565 | T41 | 8 |
| 9286665 | T41 | 8 |
| 9286675 | T41 | 8 |
| 9286765 | T41 | 8 |
| 9286775 | T41 | 8 |
| 9286785 | T41 | 8 |
| 9286865 | T41 | 8 |
| 9286875 | T41 | 8 |
| 9286885 | T41 | 8 |
| 9286895 | T41 | 8 |
| 9286905 | T41 | 8 |
| 9286935 | T41 | 8 |
| 9286945 | T41 | 8 |
| 9286955 | T41 | 8 |
| 9288005 | T27 | 2 |
| 9288045 | T27 | 2 |
| 9288565 | T27 | 2 |
| 9288665 | T27 | 2 |
| 9288675 | T27 | 2 |
| 9288765 | T27 | 2 |
| 9288775 | T27 | 2 |
| 9288785 | T27 | 2 |
| 9288865 | T27 | 2 |
| 9288875 | T27 | 2 |
| 9288885 | T27 | 2 |
| 9288895 | T27 | 2 |
| 9288905 | T27 | 2 |
| 9288935 | T27 | 2 |
| 9288945 | T27 | 2 |
| 9288955 | T27 | 2 |
| 9289005 | T28 | 7 |
| 9289005090 | T28 | 7 |
| 9289005093 | T28 | 7 |
| Code | Drawing Nr. | Pos. |
| 9289005095 | T28 | 7 |
| 9289045 | T28 | 7 |
| 9289355 | T28 | 7 |
| 9289565 | T28 | 7 |
| 9289665 | T28 | 7 |
| 9289675 | T28 | 7 |
| 9289765 | T28 | 7 |
| 9289775 | T28 | 7 |
| 928978 | T28 | 7 |
| 9289865 | T28 | 7 |
| 9289875 | T28 | 7 |
| 928988 | T28 | 7 |
| 9289945 | T28 | 7 |
| 9290005 | T54 | 8 |
| 9290045 | T54 | 8 |
| 9290565 | T54 | 8 |
| 9290665 | T54 | 8 |
| 9290675 | T54 | 8 |
| 9290765 | T54 | 8 |
| 9290775 | T54 | 8 |
| 9290785 | T54 | 8 |
| 9290865 | T54 | 8 |
| 9290875 | T54 | 8 |
| 9290885 | T54 | 8 |
| 9290895 | T54 | 8 |
| 9290905 | T54 | 8 |
| 9290935 | T54 | 8 |
| 9290945 | T54 | 8 |
| 9290955 | T54 | 8 |
| 9292005 | T54 | 10 |
| 9292045 | T54 | 10 |
| 9292565 | T54 | 10 |
| 9292665 | T54 | 10 |
| 9292675 | T54 | 10 |
| 9292765 | T54 | 10 |
| 9292775 | T54 | 10 |
| 9292785 | T54 | 10 |
| 9292865 | T54 | 10 |
| 9292875 | T54 | 10 |
| 9292885 | T54 | 10 |
| 9292895 | T54 | 10 |
| 9292905 | T54 | 10 |
| 9292935 | T54 | 10 |
| 9292945 | T54 | 10 |
| 9292955 | T54 | 10 |
| 9293045 | T43 | 8 |
| 9293355 | T43 | 8 |
| 9293565 | T43 | 8 |
| 9293675 | T43 | 8 |
| 9293765 | T43 | 8 |
| 9293775 | T43 | 8 |
| 9293785 | T43 | 8 |
| 9293865 | T43 | 8 |
| 9293885 | T43 | 8 |
| 9293895 | T43 | 8 |
| 9293935 | T43 | 8 |
| CM000706 | T38 | 7 |
| CM001903 | T34 | 7 |
| CM001907 | T37 | 18 |
| CM002902 | T38 | 3 |
| CM002904 | T32 | 2 |
| CM002904 | T33 | 12 |
| CM002904 | T33 | 18 |
| CM002907 | T31 | 9 |
| CM004118 | T32/A | 4 |
| CM004118 | T32/A | 5 |
| CM004118 | T33 | 20 |
| CM004118 | T33 | 3 |
| CM004126 | T32/A | 4 |
| CM004126 | T32/A | 5 |
| CM004126 | T33 | 20 |
| CM004126 | T33 | 3 |
| CM005302000D | T28 | 1 |
| CM007002 | T34 | 8 |
| CM011101 | T30 | 10 |
| CM017404 | T28 | 12 |
| CM067802 | T23 | 16 |
| CM101509 | T16 | 12 |
| CM101902 | T20 | 3 |
| CM102204 | T20 | 5 |
Assembly Elektrische Anlage
Code T59
Description Elektrische Ausrüstung
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 272836 | Schraube | 1 | |
| 2 | 179575 | Ausgleichscheibe | 2 | |
| 3 | 218824 | Fernschalter | 1 | |
| 4 | 016406 | Ausgleichscheibe | 2 | |
| 5 | 020006 | Mutter m6 | 2 | |
| 6 | 290405 | Halter | 1 | |
| 7 | 020003 | Ausgleichscheibe | 1 | |
| 8 | 006963 | Ausgleichscheibe | 1 | |
| 9 | 008305 | Schraube | 1 | |
| 10 | 291570 | Sicherung | 1 | |
| 11 | 293347 | Sicherungshalter | 1 | |
| 12 | 2910162 | Blinkgeber | 1 | |
| 13 | 291017 | Elastische Halterung | 1 | |
| 14 | 294163 | Diode | 1 | |
| 15 | 58002R | Zündrelais 12V-30A | 1 | |
| 16 | 031086 | Schraube m6x12 | 1 | |
| 17 | 016406 | Ausgleichscheibe | 1 | |
| 18 | 020106 | Mutter M6 | 1 | |
| 19 | 292332 | Fernrelais wechselschalter | 1 | |
| 20 | 031056 | Schraube | 1 | |
| 21 | 293256 | Lamellensicherung 5a | 1 | |
| 22 | 016405 | Federring | 1 | |
| 23 | 020105 | Mutter | 1 | |
| 24 | 009000 | Schraube | 2 | |
| 25 | 2315842 | Summer | 1 |
Assembly Elektrische Anlage
Code T60
Description Elektrische Ausrüstung
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 2933525 | Vorrichtung | 1 | |
| 1 | 2934215 | Vorrichtung | 1 | |
| 2 | 016686 | Ausgleichscheibe | 2 | |
| 3 | 016405 | Federring | 2 | |
| 4 | 020105 | Mutter | 2 | |
| 5 | 293218 | Vorrichtung | 1 | |
| 6 | 293529 | Halter | 1 | |
| 7 | 031061 | Schraube | 2 | |
| 8 | 826115 | Elektronische Steuereinheit | 1 | |
| 9 | 080341 | Zuendkabel | 1 | |
| 10 | 016405 | Federring | 2 | |
| 11 | 031056 | Schraube | 2 | |
| 12 | 2559835 | Zündkerzenstecker | 1 | |
| 13 | 231571 | Isolierhaube | 1 | |
| 14 | 293268 | Kabelbaum | 1 | |
| 14 | 293431 | Kabelbaum | 1 | |
| 14 | 580190 | Kabelbaum | 1 | |
| 15 | 292033 | Regler | 1 | |
| 16 | 020106 | Mutter M6 | 2 | |
| 17 | 016406 | Ausgleichscheibe | 2 | |
| 18 | 003056 | Ausgleichscheibe 6,4x12x1 | 2 |
Assembly Elektrische Anlage
Code T61
Description Elektrische Ausrüstung
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 291954 | Umschalter | 1 | |
| 2 | 292175 | Lichtschafter | 1 | |
| 3 | 292364 | Knopf | 1 | |
| 3 | 293280 | Knopf | 1 | |
| 4 | 293349 | Klemmbrett | 1 | |
| 5 | 258146 | Gew.schr. m3x20 | 2 | |
| 6 | 252945 | Sicherung 7,5A | 1 | |
| 6 | 291499 | Lamellensicherung 4a | 2 | |
| 6 | 291570 | Sicherung | 1 | |
| 6 | 292507 | Sicherung 10A | 1 | |
| 7 | 290688 | Lichtschafter | 1 | |
| 7 | 294191 | Lichtschafter | 1 | |
| 8 | 292209 | Umschalter | 1 | |
| 9 | 293281 | Knopf | 1 | |
| 9 | 294398 | Startknopf | 1 | |
| 10 | 294829 | Hupe 12v | 1 | |
| 11 | 003056 | Ausgleichscheibe 6,4x12x1 | 1 | |
| 12 | 016406 | Ausgleichscheibe | 1 | |
| 13 | 031086 | Schraube m6x12 | 1 | |
| 14 | 293367 | Summer-schalter | 1 |
Assembly Elektrische Anlage
Code T62
Description Batterie
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 2188235 | Batterie | 1 | |
| 1 | 584810 | Batterie 12V-9AH | 1 | |
| 2 | 184142 | Klammer | 1 | |
| 3 | 254485 | Klammer M6 | 2 | |
| 4 | 259830 | Schraube m6x22 | 2 | |
| 5 | 574659 | Häuse | 1 | |
| 6 | 270723 | Schraube | 3 | |
| 7 | 293169 | Kabelbaum | 1 | |
| 8 | 574327 | Deckel | 1 | |
| 9 | 297446 | Puffer | 1 |

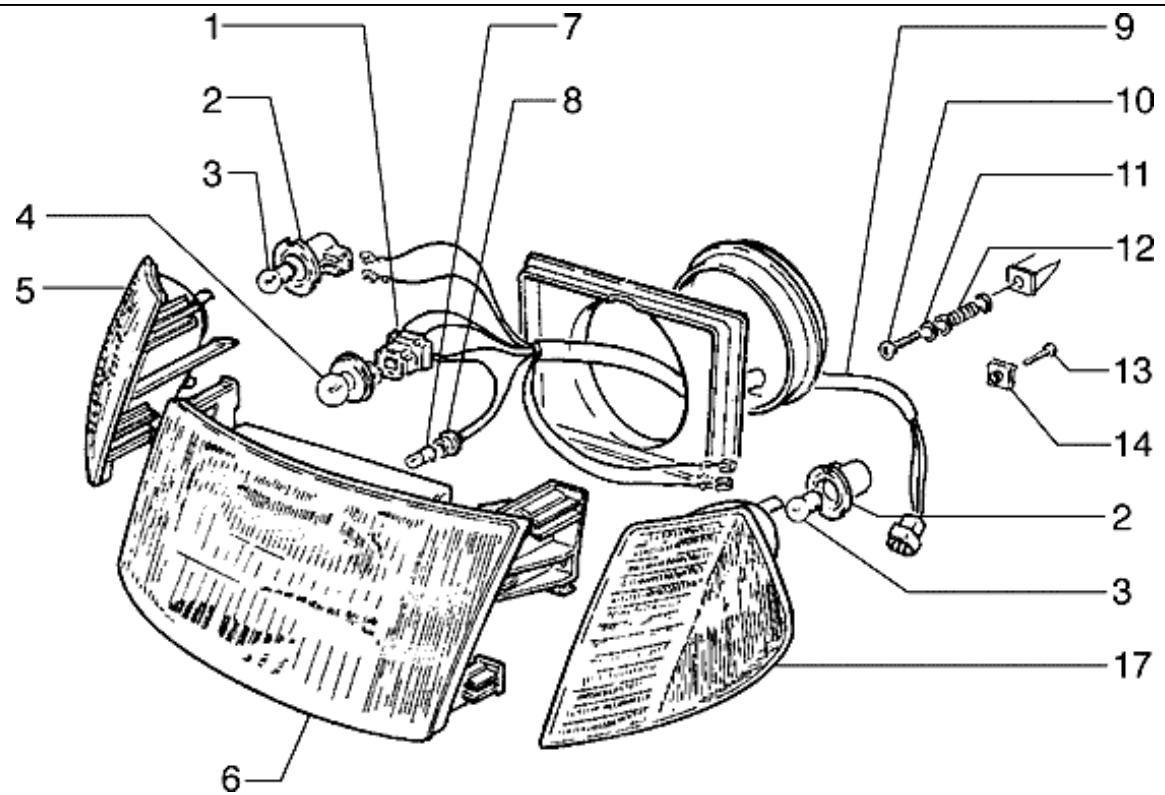

Assembly Elektrische Anlage
Code T63
Description Scheinwerfer
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 156205 | Verbinder | 1 | |
| 2 | 250521 | Lampenhalter | 2 | |
| 3 | 181746 | Lampen R10W 12v | 2 | |
| 4 | 292723 | Lampen H4 60/55W 12V | 1 | |
| 5 | 498456 | Blinkleuchte | 1 | |
| 6 | 498458 | Scheinwerfer | 1 | |
| 6 | 498837 | Scheinwerfer | 1 | |
| 7 | 163015 | Lampen 12V-4W | 1 | |
| 8 | 252288 | Lampenhalter | 1 | |
| 9 | 293199 | Kabelbaum | 1 | |
| 10 | 015597 | TBIC Schraube M5x25 | 1 | |
| 11 | 003055 | U.scheibe 5,4x10x0,8 | 1 | |
| 12 | 290951 | Feder | 1 | |
| 13 | 575249 | Schraube | 1 | |
| 14 | 251420 | Platte | 1 | |
| 15 | 498457 | Blinkleuchte | 1 | |
| 16 | 498860 | Ring | 1 | |
| 17 | 498457 | Blinkleuchte | 1 |
Assembly Elektrische Anlage
Code T64
Description Rückleuchte
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 293198 | Kabelbaum | 1 | |
| 2 | 498459 | Kappe | 1 | |
| 3 | 290944 | Schraube, blech | 2 | |
| 4 | 498460 | Kappe | 1 | |
| 5 | 181746 | Lampen R10W 12v | 2 | |
| 6 | 129953 | Lampen 12V-21/5W | 1 | |
| 7 | 498462 | Scheinwerfer | 1 | |
| 9 | 498461 | Kappe | 1 |

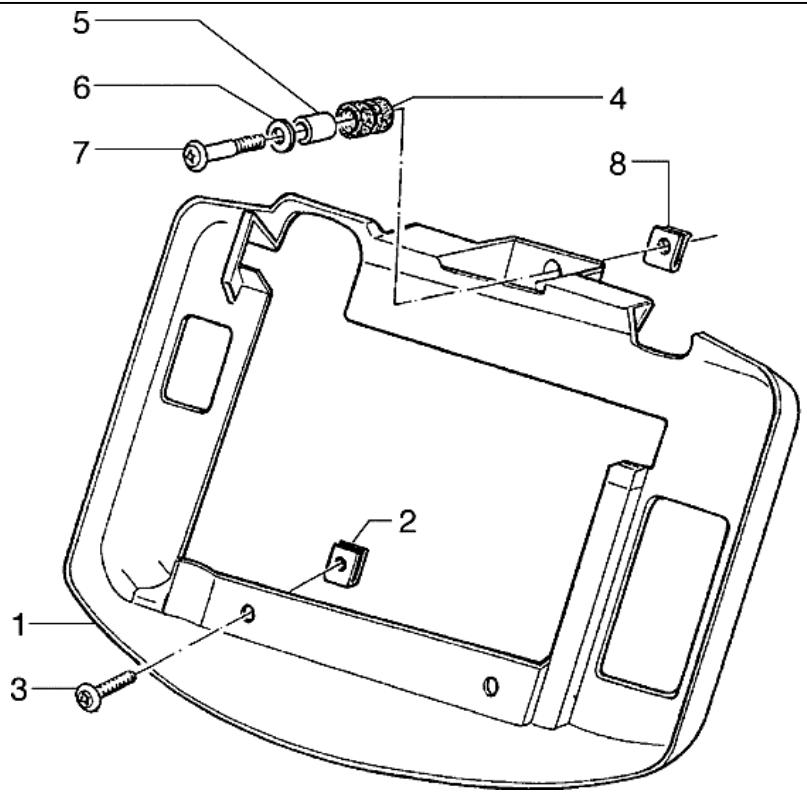

Assembly Elektrische Anlage
Code T65
Description Nummerschildbefestigung und Handschuhfachbeleuchtung
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 293154 | Deckenleuchte | 1 | |
| 2 | 071633 | Sofitte 12v-5w | 2 | |
| 3 | 196750 | Mutter | 1 | |
| 4 | 214772 | Schalter | 1 | |
| 5 | 270153000A | Halter | 1 | |
| 6 | 290802 | Halter | 1 | |
| 7 | 015846 | Schraube | 1 | |
| 8 | 270154 | Schloss | 1 | |
| 9 | 015911 | Schraube | 2 | |
| 10 | 184142 | Klammer | 2 | |
| 11 | 253976 | Kennzeichenplatte | 1 | |
| 11 | 253977 | Kennzeichenplatte | 1 | |
| 11 | 2539795 | Kennzeichenplatte | 1 | |
| 12 | 020104 | Mutter | 4 | |
| 13 | 016404 | Ausgleichscheibe | 4 | |
| 14 | 013963 | Ausgleichscheibe | 4 | |
| 15 | 018591 | Schraube | 4 |
Assembly Motor
Code T1
Description Motor
Revision 1
| Pos. | Code | Description | Qnty | Variants |
| 1 | 4342365 | Motor | 1 | |
| 2 | 498451 | Dichtringsatz | 1 | |
| 3 | 498455 | Dichtung set | 1 | |
| 4 | 498450 | Dichtung set | 1 |
Assembly Motor
Code T10
Description Treibende Riemenscheibe
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 829180 | Zahnriemenschaeibe | 1 | |
| 2 | 432628 | Distanzscheibe | 1 | |
| 3 | 483977 | Riemenscheibenhälfte | 1 | |
| 4 | 4353895 | Bausatz rollen | 6 | |
| 5 | 431279 | Klammer | 1 | |
| 6 | 431280 | Gleitbacke | 3 | |
| 7 | 431275 | Dichtung | 1 | |
| 8 | 431281 | Deckel | 1 | |
| 9 | 006964 | Federring | 3 | |
| 10 | 015947 | Schraube | 3 |
Assembly Motor
Code T11
Description Treibende Riemenscheibe
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 434887 | Riemenscheibenhälte | 1 | |
| 2 | 478032 | Buchse | 1 | |
| 3 | 432491 | Ritzel | 1 | |
| 4 | 830212 | Kleine Feder | 1 | |
| 5 | 436783 | Mutter kompl. | 1 | |
| 6 | 431258 | Riemen | 1 | |
| 7 | 434885 | Flachscheibe | 1 | |
| 8 | 433391 | Flachscheibe | 1 |

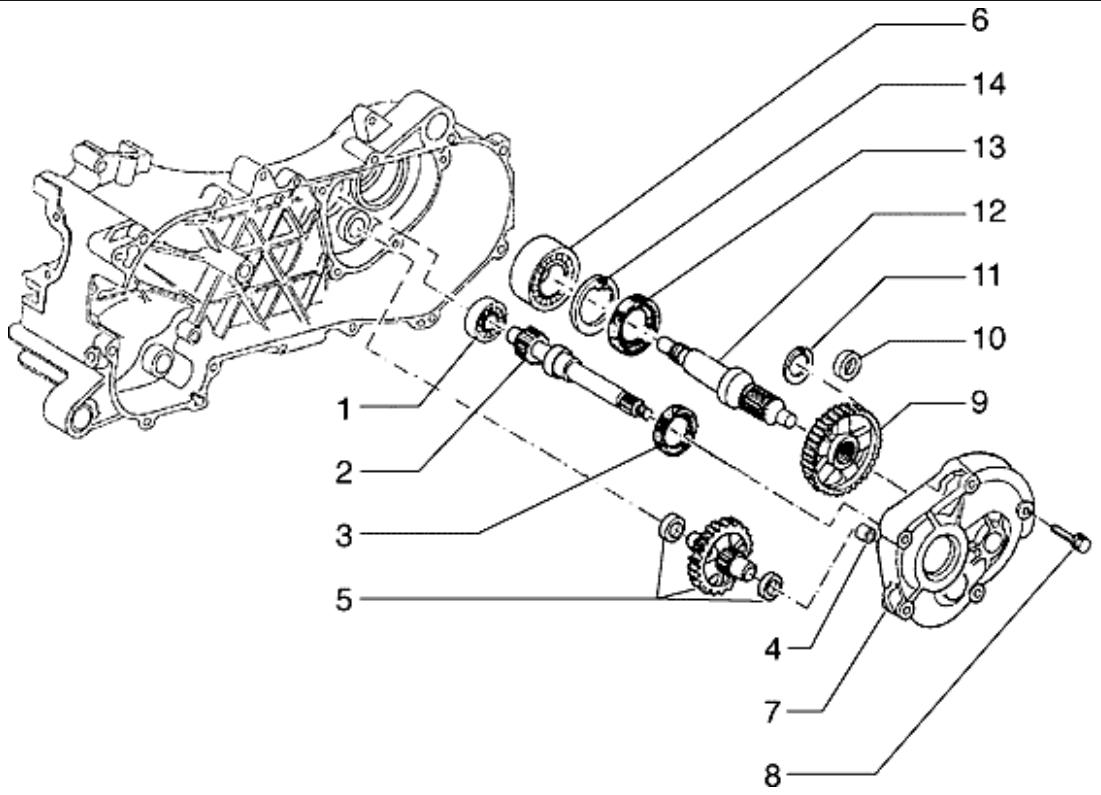

Assembly Motor
Code T12
Description Hinterradachse-Getriebe
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 431256 | Lager | 1 | |
| 2 | 4347935 | Scheibenwelle | 1 | |
| 3 | 430391 | Ring | 1 | |
| 4 | 431357 | Sprengring | 1 | |
| 5 | 4353665 | Umlenkwelle | 1 | |
| 6 | 434735 | Lager 20x47x14 | 1 | |
| 7 | 4314595 | Deckel | 1 | |
| 8 | 620068 | Schraube | 1 | |
| 9 | 434015 | Zahnrad | 1 | |
| 10 | 433427 | Distanzscheibe | 1 | |
| 11 | 006419 | Ring | 1 | |
| 12 | 4781565 | Radachse | 1 | |
| 13 | 478498 | Gasket ring | 1 | |
| 14 | 006647 | Seegerring | 1 | |
| 15 | 434735 | Lager 20x47x14 | 1 | |
| 16 | 430228 | Rollenlagerkafig | 2 | |
| 17 | 82545R | Kugellager | 1 |
Assembly Motor
Code T13
Description Lichtmaschine
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 015856 | Schraube m5x21 | 4 | |
| 2 | 434703 | Verschlußschraube | 1 | |
| 3 | 827084 | Schalldämpfer | 1 | |
| 4 | 434664 | Deckel | 1 | |
| 5 | 085508 | Platte | 7 | |
| 6 | 293390 | Rotor | 1 | |
| 7 | 015585 | Schraube m5x12 | 2 | |
| 8 | 006975 | Ausgleichscheibe 5,3x10x0,5 | 2 | |
| 9 | 293391 | Spulenhalterung | 1 | |
| 10 | 000267 | Keil | 1 | |
| 11 | 006975 | Ausgleichscheibe 5,3x10x0,5 | 3 | |
| 12 | 015715 | TBIC Schraube M5x12 | 3 | |
| 13 | 436783 | Mutter kompl. | 1 |
Assembly Motor
Code T14
Description Anlassermotor
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 414838 | Schraube m6X35 | 3 | |
| 2 | 293170 | Kabelbaum | 1 | |
| 3 | 2931715 | Startermotor | 1 | |
| 4 | 431321 | Umlenk.Anlasser | 1 | |
| 5 | 224962 | Dichtung | 1 |
Assembly Motor
Code T15
Description Kickstarter
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 433603 | Puffer | 1 | |
| 2 | 434087 | Kickersegment | 1 | |
| 3 | 289495 | Feder | 1 | |
| 4 | 433987 | Ausgleichscheibe 16,3x23,8 | 1 | |
| 5 | 286217 | Schutz | 1 | |
| 6 | 827632 | Kickstarterhebel | 1 | |
| 7 | 483859 | Verschlußschraube | 1 | |
| 8 | 006416 | Seegerring | 1 | |
| 9 | 414837 | TE Schr. m. Flansch | 1 |
Assembly Motor
Code T16
Description Ölpumpe
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 272848 | Kabeldurchgang | 1 | |
| 2 | 287073 | Ausgleichscheibe | 1 | |
| 3 | 289262 | Ölpumpen-Zahnr., kpl. | 1 | |
| 4 | 431370 | Riemen | 1 | |
| 5 | 286163 | Platte | 1 | |
| 6 | 431208 | Schutz | 1 | |
| 7 | 006975 | Ausgleichscheibe 5,3x10x0,5 | 1 | |
| 8 | 245816 | Schraube | 1 | |
| 9 | 486149 | Schelle | 1 | |
| 10 | 015585 | Schraube m5x12 | 1 | |
| 11 | 286165 | Ölschlauch | 1 | |
| 12 | CM101509 | Öleinlaufschlauch | 1 | |
| 13 | 82608R | Ölpumpe | 1 | |
| 14 | 006975 | Ausgleichscheibe 5,3x10x0,5 | 2 |

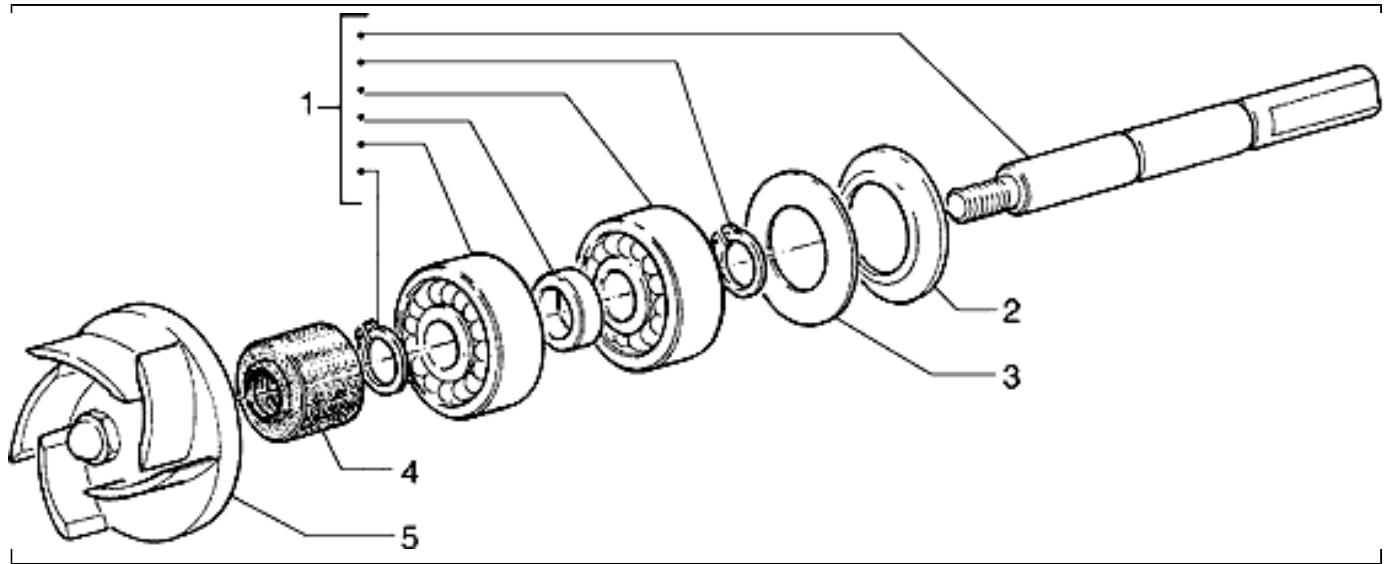

| Assembly | Motor |
| Code | T17 |
| Description | Wasserpumpe |
| Revision | 1 |
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 4335935 | Wasserpumpenritzel | 1 | |
| 2 | 289553 | Sperring | 1 | |
| 3 | 289554 | Paßscheibe | 1 | |
| 4 | 4352035 | Gasket ring | 1 | |
| 5 | 487167 | Wasserpumpenrad | 1 |
Assembly Motor
Code T18
Description Hinterradbremse (Trommel)
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 2736235 | Bremsbackensatz | 2 | |
| 2 | 266724 | Platte | 2 | |
| 3 | 266725 | Rückzugsfeder | 2 | |
| 4 | 709041 | Mutter | 1 | |
| 5 | 273419 | Gasket ring | 1 | |
| 6 | 138345 | Ölschraube | 2 | |
| 7 | 000397 | Dichtung | 2 | |
| 8 | 414837 | TE Schr. m. Flansch | 1 | |
| 9 | 274245 | Hinterradbremse Nocken | 1 | |
| 10 | 274245 | Hinterradbremse Nocken | 1 |
Assembly Motor
Code T19
Description Vergaser
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 434101 | Vergaser | 1 | |
| 1 | 434611 | Vergaser | 1 | |
| 2 | 109960 | Schelle | 2 | |
| 3 | 436096 | Leitung | 1 | |
| 4 | 498413 | Dichtungssatz | 1 |
Assembly Motor
Code T2
Description Kurbelwellengehause
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 4342375 | Gehäuse | 1 | |
| 2 | 433599 | Stiftschraube | 4 | |
| 3 | 020006 | Mutter m6 | 1 | |
| 4 | 287223 | Ring | 1 | |
| 5 | 113533 | Ring | 1 | |
| 6 | 020008 | Mutter | 1 | |
| 7 | 267823 | Stoßdämpfer Silent-Block | 1 | |
| 8 | 266625 | Distanzscheibe | 1 | |
| 9 | 620068 | Schraube | 7 |
Assembly Motor
Code T20
Description Vergaser
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 293409 | Zündkerzenstecker | 1 | |
| 2 | 432519 | Startervorrichtung. | 1 | |
| 3 | CM101902 | Maximaldüse | 1 | |
| 4 | 432502 | Leerlaufstrahl | 1 | |
| 5 | CM102204 | Sitz/schwimmernadelgr. | 1 | |
| 6 | 432506 | Schwimmer | 1 | |
| 7 | 826185 | Schwimmergehäuse | 1 | |
| 8 | 435219 | Kabel | 1 | |
| 9 | 432512 | Deckel | 1 | |
| 10 | 432511 | Feder | 1 | |
| 11 | 432505 | Kegelnadel | 1 | |
| 12 | 432507 | Gasventil | 1 | |
| 13 | 825065 | Widerstand | 1 |
Assembly Motor
Code T21
Description Luftfilter
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 432542 | Luftfiltergehöse | 1 | |
| 2 | 006125 | Ausgleichscheibe | 1 | |
| 3 | 259166 | Schraube | 1 | |
| 4 | 433018 | Dichtung | 1 | |
| 5 | 435328 | Dichtung | 1 | |
| 6 | 434364 | Luftfilter | 1 | |
| 7 | 434363 | Luftfilter | 1 | |
| 8 | 012533 | Ausgleichscheibe 6,6x11x0 | 1 | |
| 9 | 013880 | Ausgleichscheibe | 1 | |
| 10 | 018640 | Schraube | 1 | |
| 11 | 258146 | Gew.schr. m3x20 | 6 |
Assembly Motor
Code T22
Description Auspufftopf
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 433800 | Gewindeschraube | 3 | |
| 2 | 016405 | Federring | 3 | |
| 3 | 003055 | U.scheibe 5,4x10x0,8 | 3 | |
| 4 | 434064 | Schutz | 1 | |
| 4 | 436598 | Schutz | 1 | |
| 5 | 433490 | Ausgleichscheibe | 3 | |
| 6 | 001564 | Mutter | 2 | |
| 7 | 016408 | Sprengscheibe | 3 | |
| 8 | 016604 | Ausgleichscheibe | 2 | |
| 9 | 433524 | Auspuffrohr | 1 | |
| 9 | 434576 | Auspuffrohr | 1 | |
| 10 | 432127 | Dichtung | 1 | |
| 11 | 015792 | Schraube | 2 | |
| 12 | 432120 | Auspuffrohr | 1 | |
| 13 | 015341 | Geflanschte Mutter | 2 | |
| 14 | 431600 | Dichtung | 1 | |
| 15 | 432334 | Schraube m8x50 | 2 | |
| 15 | 844483 | Schraube m8x50 | 2 |
| Assembly | Motor |
| Code | T3 |
| Description | Kurbelwelle |
| Revision | 1 |
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 483970 | Lager | 2 | |
| 2 | 4345825 | Ring | 1 | |
| 3 | 500511 | Nadelkaefig | 1 | |
| 3 | 500512 | Nadelkaefig | 1 | |
| 3 | 500513 | Nadelkaefig | 1 | |
| 3 | 500514 | Nadelkaefig | 1 | |
| 4 | 4335045 | Pleuel | 1 | |
| 5 | 4354555 | Kurbelwelle | 1 | |
| 6 | 4345825 | Ring | 1 |
Assembly Motor
Code T35
Description Külher
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 351782 | Gummi oben | 1 | |
| 2 | 273288 | Distanzscheibe | 1 | |
| 3 | 013092 | U.scheibe d6,2x20x1 | 1 | |
| 4 | 271891 | Schraube m6x30 | 1 | |
| 5 | 168077 | Kupferdichtung | 1 | |
| 6 | 293301 | Thermoschalter | 1 | |
| 7 | 577557 | Schelle | 2 | |
| 8 | 270248 | Leitung | 1 | |
| 9 | 270239 | Puffer | 2 | |
| 10 | 297162 | Leitung | 1 | |
| 11 | 270246 | Kühler | 1 | |
| 12 | 581098 | Ventilator | 1 | |
| 13 | 270238 | Halter | 1 | |
| 14 | 254485 | Klammer M6 | 1 |
Assembly Motor
Code T36
Description Forderer
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 562516 | Leitblech | 1 | |
| 2 | 184142 | Klammer | 2 | |
| 3 | 259349 | Schraube | 2 | |
| 4 | 351782 | Gummiiben | 1 | |
| 5 | 273288 | Distanzscheibe | 1 | |
| 6 | 013092 | U.scheibe d6,2x20x1 | 1 | |
| 7 | 271891 | Schraube m6x30 | 1 | |
| 8 | 254485 | Klammer M6 | 1 |
Assembly Motor
Code T37
Description Kuhlleitungen
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 273294 | Leitung | 1 | |
| 2 | 273295 | Leitung | 1 | |
| 3 | 031116 | Sk-Schraube | 4 | |
| 4 | 016408 | Sprengscheibe | 4 | |
| 5 | 003038 | Flachring 8,4x18x2 | 10 | |
| 6 | 296853 | Leitung | 1 | |
| 7 | 577557 | Schelle | 3 | |
| 8 | 296852 | Leitung | 1 | |
| 9 | 4353355 | Leitung | 1 | |
| 10 | 030078 | Schraube | 2 | |
| 11 | 104296 | Federklammer | 2 | |
| 12 | 273274 | Distanzscheibe | 1 | |
| 13 | 597151 | Schraube m8x30 | 1 | |
| 14 | 020108 | Mutter M8x6,5 | 2 | |
| 15 | 433716 | Leitung | 1 | |
| 16 | 015585 | Schraube m5x12 | 1 | |
| 17 | 434468 | Dichtring | 1 | |
| 18 | CM001907 | Schlauchscheile | 1 |
Assembly Motor
Code T38
Description Entluftungsvorrichtung
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 297038 | Anschluß | 1 | |
| 2 | 184142 | Klammer | 2 | |
| 3 | CM002902 | Schlauchselle | 4 | |
| 4 | 297027 | Dichtung | 1 | |
| 5 | 259349 | Schraube | 2 | |
| 6 | 297079 | Entlüfungsschlauch Kühler | 1 | |
| 7 | CM000706 | Leitung | 1 |
Assembly Motor
Code T4
Description Gruppe zylinder-kolben-kolbenbolzen
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 487549 | Gruppe zylinder | 1 | |
| 2 | 4355120001 | Kolben kpl. | 1 | |
| 2 | 4355120002 | Kolben kpl. | 1 | |
| 2 | 4355120004 | Kolben kpl. | 1 | |
| 3 | 435513 | Kolben kpl. | 1 | |
| 4 | 435514 | Kolben kpl. | 1 | |
| 5 | 435515 | Kolben kpl. | 1 | |
| 6 | 484706 | Stiftschraube | 2 | |
| 7 | 483878 | Dichtring | 2 | |
| 8 | 430393 | Ring | 2 | |
| 9 | 2239414 | Bolzen | 1 | |
| 10 | 434211 | Dichtung | 1 | |
| 10 | 434214 | Dichtung | 1 | |
| 10 | 434795 | Dichtung | 1 | |
| 10 | 487775 | Dichtung | 1 | |
| 10 | 487776 | Dichtung | 1 | |
| 10 | 487777 | Dichtung | 1 |
| Assembly | Motor |
| Code | T5 |
| Description | Kopf |
| Revision | 1 |
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 4844275 | Deckel | 1 | |
| 2 | 432975 | Dichtung | 1 | |
| 3 | 826189 | Zylinderkopf | 1 | |
| 4 | 432972 | Dichtung | 1 | |
| 5 | 434078 | Mutter | 4 | |
| 6 | 435236 | Dichtring | 1 | |
| 7 | 438025 | Zündkerze | 1 | |
| 8 | 434359 | Schraube | 4 | |
| 9 | 434373 | Haube | 1 |
Assembly Motor
Code T6
Description Zylinderkopf und Ansaugstutzen
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 414837 | TE Schr. m. Flansch | 2 | |
| 2 | 430206 | Anschluß | 1 | |
| 3 | 432906 | Halter | 1 | |
| 4 | 4353355 | Leitung | 1 | |
| 5 | 008374 | Schraube | 2 | |
| 6 | 435063 | Anschluß | 1 | |
| 7 | 289514 | O-Ring | 1 | |
| 8 | 483395 | Thermostat | 1 | |
| 9 | 82622R | Thermistor | 1 | |
| 10 | 104296 | Federklammer | 1 |
Assembly Motor
Code T7
Description Abdeckung getriebegehausekupplungsseite
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 273884 | Puffer | 1 | |
| 2 | 286206 | Platte | 1 | |
| 3 | 286207 | Puffer | 1 | |
| 4 | 430264 | Linsenschraube m5x10 | 6 | |
| 5 | 828373 | Umschalter | 1 | |
| 6 | 4323215 | Deckel | 1 | |
| 7 | 434347 | Schalldämpfer | 1 | |
| 8 | 484771 | Deckel | 1 | |
| 9 | 273512 | Kleine Feder | 1 | |
| 10 | 433084 | Kleine Feder | 1 | |
| 11 | 414837 | TE Schr. m. Flansch | 1 | |
| 12 | 414835 | Schraube M6X45 | 2 | |
| 13 | 414838 | Schraube m6X35 | 11 |
Assembly Motor
Code T8
Description Getriebene Riemenscheiben
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 432307 | Distanzscheibe | 1 | |
| 2 | 431068 | Lager | 1 | |
| 3 | 431067 | Becher | 1 | |
| 4 | 431070 | Distanzscheibe | 1 | |
| 5 | 4310845 | Riemenscheibenhäfte | 1 | |
| 6 | 431091 | Rolle | 3 | |
| 7 | 431092 | Bolzen | 3 | |
| 8 | 431069 | Lager | 1 | |
| 9 | 431065 | Dichtung | 1 | |
| 10 | 431089 | Gasket ring | 2 | |
| 11 | 4312855 | Riemenscheibenhäfte | 1 | |
| 12 | 430585 | Dichtung | 2 | |
| 13 | 4854415 | Riemenscheibe | 1 |
| Assembly | Motor |
| Code | T9 |
| Description | Getriebene Riemenschiben |
| Revision | 1 |
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 4310935 | Becher | 1 | |
| 2 | 478752 | Feder | 1 | |
| 3 | 487936 | Becher | 1 | |
| 4 | 485442 | Kupplungbacken | 1 | |
| 5 | 433232 | Nutmutter | 1 | |
| 6 | 82502R | Kupplungstr.-komp. | 1 | |
| 7 | 436783 | Mutter kompl. | 1 |
Assembly Lenker
Code T53
Description Kilometerzahler Windschutz
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 273611 | Dichtung | 1 | |
| 2 | 273613 | Windschutzscheibe | 1 | |
| 3 | 498453 | Tachoglas | 1 | |
| 4 | 271465 | Cockpitinstrumente | 1 | |
| 4 | 292169 | Cockpitinstrumente | 1 | |
| 4 | 293463 | Cockpitinstrumente | 1 | |
| 5 | 258146 | Gew.schr. m3x20 | 1 | |
| 6 | 184142 | Klammer | 1 | |
| 7 | 259349 | Schraube | 1 | |
| 8 | 259830 | Schraube m6x22 | 1 | |
| 9 | 270216 | Flachring | 2 | |
| 10 | 566752 | Dichtung | 1 | |
| 11 | 270215 | Distanzscheibe | 1 | |
| 12 | 270217 | Dichtung | 1 | |
| 13 | 498834 | Nullstellungkabel | 1 |
Assembly Lenker
Code T54
Description | Lenkerabdeckung und Ruckspiegel
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 273386 | Rückspiegel | 1 | |
| 2 | 270793 | Schraube | 3 | |
| 3 | 273367 | Platte | 1 | |
| 4 | 273369 | Kleine Feder | 1 | |
| 5 | 272575 | Verschlußschaube | 1 | |
| 6 | 2969020005 | Schild | 1 | |
| 6 | 2969020095 | Schild | 1 | |
| 7 | 273387 | Rückspiegel | 1 | |
| 8 | 9290005 | Lenkstangenabdeckung | 1 | |
| 8 | 9290045 | Lenkstangenabdeckung | 1 | |
| 8 | 9290565 | Lenkstangenabdeckung | 1 | |
| 8 | 9290665 | Lenkstangenabdeckung | 1 | |
| 8 | 9290675 | Lenkstangenabdeckung | 1 | |
| 8 | 9290765 | Lenkstangenabdeckung | 1 | |
| 8 | 9290775 | Lenkstangenabdeckung | 1 | |
| 8 | 9290785 | Lenkstangenabdeckung | 1 | |
| 8 | 9290865 | Lenkstangenabdeckung | 1 | |
| 8 | 9290875 | Lenkstangenabdeckung | 1 | |
| 8 | 9290885 | Lenkstangenabdeckung | 1 | |
| 8 | 9290895 | Lenkstangenabdeckung | 1 | |
| 8 | 9290905 | Lenkstangenabdeckung | 1 | |
| 8 | 9290935 | Lenkstangenabdeckung | 1 | |
| 8 | 9290945 | Lenkstangenabdeckung | 1 | |
| 8 | 9290955 | Lenkstangenabdeckung | 1 | |
| 9 | 273368 | Platte | 1 | |
| 10 | 9292005 | Lenkstangenabdeckung | 1 | |
| 10 | 9292045 | Lenkstangenabdeckung | 1 | |
| 10 | 9292565 | Lenkstangenabdeckung | 1 |
Assembly Lenker
Code T54
Description | Lenkerabdeckung und Ruckspiegel
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 10 | 9292665 | Lenkstangenabdeckung | 1 | |
| 10 | 9292675 | Lenkstangenabdeckung | 1 | |
| 10 | 9292765 | Lenkstangenabdeckung | 1 | |
| 10 | 9292775 | Lenkstangenabdeckung | 1 | |
| 10 | 9292785 | Lenkstangenabdeckung | 1 | |
| 10 | 9292865 | Lenkstangenabdeckung | 1 | |
| 10 | 9292875 | Lenkstangenabdeckung | 1 | |
| 10 | 9292885 | Lenkstangenabdeckung | 1 | |
| 10 | 9292895 | Lenkstangenabdeckung | 1 | |
| 10 | 9292905 | Lenkstangenabdeckung | 1 | |
| 10 | 9292935 | Lenkstangenabdeckung | 1 | |
| 10 | 9292945 | Lenkstangenabdeckung | 1 | |
| 10 | 9292955 | Lenkstangenabdeckung | 1 | |
| 11 | 498862 | Dichtung | 1 | |
| 11 | 498863 | Dichtung | 1 | |
| 12 | 709116 | Mutter | 1 |
| Assembly | Lenker |
| Code | T55 |
| Description | Lenker Bauteile |
| Revision | 1 |
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 5816065 | Lenkstange | 1 | |
| 2 | 274939 | Mutterschraube | 1 | |
| 3 | 178790 | Flachring | 1 | |
| 4 | 012535 | Ausgleichscheibe | 1 | |
| 5 | 015530 | Mutter | 1 | |
| 6 | 271434 | Schraube m6x55 | 1 | |
| 7 | 271433 | Terminale di estremità | 1 | |
| 7 | 583697 | Endkopf | 2 | |
| 8 | 273344 | Pumpe | 1 | |
| 9 | 494952 | Bremshebel | 1 | |
| 10 | 271453 | Handgriff rechts | 1 | |
| 11 | 271463 | Getriebe | 1 | |
| 12 | 271461 | Hülse | 1 | |
| 13 | 580953 | Knopf | 1 | |
| 14 | 123394 | Schraube | 1 |
Assembly Lenker
Code T56
Description Lenker Bauteile
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 271434 | Schraube m6x55 | 1 | |
| 2 | 271433 | Terminale di estremità | 1 | |
| 2 | 583697 | Endkopf | 2 | |
| 3 | 271452 | Handgriff links | 1 | |
| 4 | 271450 | Bremshebel | 1 | |
| 5 | 267948 | Feder | 1 | |
| 6 | 265249 | Schraube kplt. | 1 | |
| 7 | 580953 | Knopf | 1 | |
| 8 | 123394 | Schraube | 1 | |
| 9 | 271454 | Hülse | 1 |
Assembly Bowdenzüge
Code T57
Description Bowdenzug
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 271481 | Getriebe | 1 | |
| 2 | 271977 | Oben schutz | 1 | |
| 3 | 269571 | Verdoppler | 1 | |
| 4 | 271976 | Unterer Schutz | 1 | |
| 5 | 271480 | Getriebe | 1 | |
| 6 | 271463 | Getriebe | 1 |
Assembly Bowdenzüge
Code T58
Description Bowdenzuge
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 271494 | Bowdenzugseil | 1 | |
| 2 | 274643 | Getriebe | 1 | |
| 3 | 271396 | Schlauch | 1 | |
| 4 | 272734 | Platte | 1 | |
| 5 | 270793 | Schraube | 1 | |
| 6 | 272735 | Schelle | 1 | |
| 7 | 265451 | Fixierschraube Ölschlauch | 1 | |
| 8 | 127927 | Ausgleichscheibe | 1 | |
| 9 | 191002 | Kleine Feder | 1 | |
| 10 | 564107 | Bremsseil | 1 | |
| 11 | 179640 | Bolzen | 1 | |
| 12 | 270310 | Screw rear brake | 1 |
Assembly Radaufhängungen
Code T44
Description | Lagerrungen Steuerrohr
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 56002R | Steuersatz | 1 | |
| 2 | 56003R | Steuersatz | 1 | |
| 3 | 077024 | Ball cage | 1 | |
| 4 | 077023 | Ball cage | 1 |
Assembly Radaufhängungen
Code T45
Description Steuerrohr
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 2694785 | Lenkerleitung | 1 | |
| 2 | 177451 | Bolzen | 1 | |
| 3 | 119219 | Dichtrang | 1 | |
| 4 | 006731 | Dichtung | 1 | |
| 5 | 137146 | Büchse | 1 | |
| 6 | 2694825 | Arm | 1 |
Assembly Radaufhängungen
Code T46
Description Scheibenbremse
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 273407 | Nabe | 1 | |
| 2 | 709047 | Ausgleichscheibe | 5 | |
| 3 | 016408 | Sprengscheibe | 5 | |
| 4 | 015792 | Schraube | 5 | |
| 5 | 021114 | Mutter | 1 | |
| 6 | 177609 | Kappe | 1 | |
| 7 | 012789 | Splint | 1 | |
| 8 | 006635 | Sprengring | 1 | |
| 9 | 177610 | Lager | 1 | |
| 10 | 177442 | Büchse | 1 | |
| 11 | 177443 | Ring | 1 | |
| 12 | 006966 | Federring 6,4x11x0,5 | 1 | |
| 13 | 271147 | Schraube | 5 | |
| 14 | 177408 | Ring | 1 | |
| 15 | 177445 | Ausgleichscheibe | 1 | |
| 16 | 177521 | Ring | 1 |
Assembly Radaufhängungen
Code T47
Description Bremszange-Bremscheibe
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 560423 | Bremszange (Brembo) | 1 | |
| 1 | 599754 | Bremszange (Heng Tong) | 1 | |
| 2 | 498454 | Bremsklötze | 1 | |
| 3 | 271122 | Bremssscheibe | 1 | |
| 4 | 271279 | Dichtring | 1 | |
| 5 | 177436 | Büchse | 1 | |
| 6 | 2712785 | Halter | 1 | |
| 7 | 273408 | Zahnkranz | 1 | |
| 8 | 003058 | Ausgleichscheibe | 2 | |
| 9 | 016408 | Sprengscheibe | 2 | |
| 10 | 597150 | Schraube | 2 | |
| 11 | 274644 | Platte | 1 | |
| 12 | 016405 | Federring | 1 | |
| 13 | 031058 | Bolzen | 1 | |
| 14 | 271266 | Puffer | 1 | |
| 15 | 271265 | Halter | 1 | |
| 16 | 271262 | Ritzel | 1 | |
| 17 | 709047 | Ausgleichscheibe | 2 | |
| 18 | 269530 | Platte | 2 | |
| 19 | 031120 | Schraube | 2 | |
| 20 | 498434 | Reparatsatz bremszange | 1 | |
| 21 | 494517 | Reparatsatz bremszange | 1 | |
| 21 | 498443 | Reparatsatz bremszange | 1 |
Assembly Radaufhängungen
Code T48
Description Vorderer Stoßdampfer
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 031119 | Schaube | 2 | |
| 2 | 271339 | Schelle | 1 | |
| 3 | 016408 | Sprengscheibe | 4 | |
| 4 | 020108 | Mutter M8x6,5 | 2 | |
| 5 | 021210 | Mutter | 1 | |
| 6 | 012535 | Ausgleichscheibe | 1 | |
| 7 | 174088 | Ausgleichscheibe | 1 | |
| 8 | 174874 | Puffer | 2 | |
| 9 | 273693 | Halter | 1 | |
| 10 | 149104 | Schaube m8x40 | 2 |
Assembly Radaufhängungen
Code T49
Description Vorderer Stoßdämpfer
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 269502 | Hülse | 1 | |
| 2 | 1740844 | Scheibe | 1 | |
| 3 | 272992 | Puffer | 1 | |
| 4 | 273867 | Feder | 1 | |
| 5 | 562432 | Stoßdämpfer | 1 |
Assembly Radaufhängungen
Code T50
Description Vorderer Stoßdampferverkleidung
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 219277 | Mutter | 2 | |
| 2 | 016406 | Ausgleichscheibe | 2 | |
| 3 | 271343 | Schelle | 1 | |
| 4 | 259348 | Schraube | 1 | |
| 5 | 271348 | Reifen | 1 |
Assembly Radaufhängungen
Code T51
Description Hinterer Stoßdampfer
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 273338 | Puffer | 1 | |
| 2 | 273391 | Feder | 1 | |
| 3 | 562433 | Hinten Stoßdämpfer | 1 | |
| 4 | 268158 | Schraube | 1 | |
| 5 | 016626 | U.scheibe 10,4x18x2 | 1 | |
| 6 | 232108 | Mutter | 1 | |
| 7 | 270432 | Scheibe | 1 | |
| 8 | 270433 | Scheibe | 1 | |
| 9 | 021108 | Mutter | 2 | |
| 10 | 016408 | Sprengscheibe | 1 | |
| 11 | 267038 | Flachring | 1 | |
| 12 | 178150 | Puffer o. | 1 | |
| 13 | 272849 | Puffer | 1 | |
| 14 | 2734794 | Scheibe | 1 | |
| 15 | 270439 | Hülse | 1 |
Assembly Radaufhängungen
Code T52
Description Hinterer Stoßdampfer mit autom. einstellung
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 272909 | Stoßdämpfer | 1 | |
| 2 | 127927 | Ausgleichscheibe | 2 | |
| 3 | 265451 | Fixierschraube Ölschlauch | 1 | |
| 4 | 272982 | Tank | 1 | |
| 5 | 272981 | Schlauch | 1 | |
| 6 | 273370 | Distanzscheibe | 2 | |
| 7 | 351782 | Gummiiben | 2 | |
| 8 | 030038 | Scheibe | 3 | |
| 9 | 078193 | Ausgleichscheibe | 3 | |
| 10 | 016405 | Federring | 6 | |
| 11 | 020105 | Mutter | 6 | |
| 12 | 004021 | Ausgleichscheibe | 6 | |
| 13 | 272983 | Elektromotor | 1 | |
| 14 | 292186 | Benzinstandgeber | 1 | |
| 15 | 498857 | Kit. rev.ammort. | 1 | |
| 16 | 273346 | Moltiplicatore | 1 |
Assembly Radaufhängungen
Code T67
Description Vorderrad
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 2710915000 | Reifen | 1 | |
| 2 | 269568 | Vorderrad | 1 | |
| 3 | 709047 | Ausgleichscheibe | 5 | |
| 4 | 016408 | Sprengscheibe | 5 | |
| 5 | 015792 | Schraube | 5 | |
| 6 | 182546 | Verschlußschraube | 1 | |
| 7 | 270991 | Schlauchloses Reifenventil | 1 |
Assembly Radaufhängungen
Code T68
Description Hinterrad
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 272872 | Hinterrad | 1 | |
| 2 | 5632904 | Werkzeugtasche | 1 | |
| 3 | 273099 | Flachscheibe | 1 | |
| 4 | 563728 | Mutter M16x13 | 1 | |
| 5 | 194423 | Kappe | 1 | |
| 6 | 012789 | Splint | 1 | |
| 7 | 182546 | Verschlußschraube | 1 | |
| 8 | 270991 | Schlauchloses Reifenventil | 1 | |
| 9 | 2728795 | Reifen | 1 |
Assembly Fahrgestell
Code T23
Description | Rahmen-Aufhangung-Seitlicher stander
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 2700515 | Rahmen | 1 | |
| 1 | 560103 | Rahmen | 1 | |
| 2 | 232108 | Mutter | 1 | |
| 3 | 2727785 | Puffer | 1 | |
| 4 | 273463 | Schwingarm | 1 | |
| 5 | 271395 | Distanzscheibe | 1 | |
| 6 | 272329 | Feder | 1 | |
| 7 | 273765 | Distanzscheibe | 1 | |
| 7 | 274346 | Hauptstünder | 1 | |
| 8 | 271779 | Schraube M10x202 | 1 | |
| 9 | 273773 | Buchse | 2 | |
| 10 | 271807 | Schraube m10x202 | 1 | |
| 11 | 563977 | Schraube M10x240 | 1 | |
| 12 | 273773 | Buchse | 2 | |
| 13 | 273766 | Schwingarm | 1 | |
| 14 | 006416 | Seegerring | 1 | |
| 15 | 273774 | Dichtring | 2 | |
| 16 | CM067802 | Distanzscheibe | 1 |
Assembly Fahrgestell
Code T24
Description Mittelstander-Seitsstander
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 030113 | Schraube | 1 | |
| 2 | 273203 | Feder | 1 | |
| 3 | 561164 | Feder | 1 | |
| 4 | 273754 | O-Ring | 2 | |
| 5 | 232108 | Mutter | 1 | |
| 6 | 272223 | Distanzscheibe | 1 | |
| 7 | 274346 | Hauptstänger | 1 | |
| 8 | 272426 | Puffer | 1 | |
| 9 | 271089 | Schraube | 1 | |
| 10 | 295789 | Feder | 1 | |
| 11 | 295788 | Feder | 1 | |
| 12 | 270188 | Distanzscheibe | 1 | |
| 13 | 231370 | Mutter, selbstsichernd | 1 | |
| 14 | 270172 | Seitenständner | 1 |
Assembly Fahrgestell
Code T25
Description Elektrischer Stander
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 272223 | Distanzscheibe | 1 | |
| 2 | 272242 | Hebel | 1 | |
| 2 | 274305 | Hebel | 1 | |
| 3 | 272497 | Dichstring | 1 | |
| 4 | 273139 | Feder | 1 | |
| 5 | 273140 | Schraube | 1 | |
| 6 | 272249 | Schutz | 1 | |
| 7 | 015715 | TBIC Schraube M5x12 | 1 | |
| 8 | 012532 | U.scheibe 5,3x10x0 | 1 | |
| 9 | 272246 | Distanzscheibe | 1 | |
| 10 | 272245 | Riemenschibe | 1 | |
| 11 | 020210 | Mutter | 1 | |
| 12 | 016410 | Ausgleichscheibe | 1 | |
| 13 | 273138 | Platte | 1 | |
| 14 | 274346 | Hauptständer | 1 | |
| 15 | 561164 | Feder | 1 | |
| 16 | 273203 | Feder | 1 |
Assembly Fahrgestell
Code T26
Description Elektrischer Stander
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 118656 | Bolzen | 1 | |
| 2 | 005965 | Ring | 1 | |
| 3 | 273065 | Getriebe | 1 | |
| 4 | 274513 | Distanzscheibe | 1 | |
| 5 | 031061 | Schraube | 1 | |
| 6 | 259830 | Schraube m6x22 | 3 | |
| 7 | 274646 | Motoriduttore | 1 | |
| 7 | 293376 | Anlassermotor | 1 | |
| 8 | 270215 | Distanzscheibe | 3 | |
| 9 | 016406 | Ausgleichscheibe | 3 | |
| 10 | 293254 | Knopf | 1 | |
| 11 | 293262 | Haube | 1 | |
| 12 | 272292 | Deckel | 1 | |
| 13 | 020105 | Mutter | 1 | |
| 14 | 016405 | Federring | 1 | |
| 15 | 272291 | Schutz | 1 | |
| 16 | 031091 | Schraube | 2 | |
| 17 | 273016 | Schutz | 1 | |
| 17 | 274318 | Schutz | 1 | |
| 18 | 272245 | Riemenscheibe | 1 | |
| 18 | 274511 | Riemenscheibe | 1 |
Assembly Fahrgestell
Code T27
Description Schildern-Maske
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 295486 | Schild "Piaggio" | 1 | |
| 2 | 9288005 | Frontschild, vorne | 1 | |
| 2 | 9288045 | Frontschild, vorne | 1 | |
| 2 | 9288565 | Frontschild, vorne | 1 | |
| 2 | 9288665 | Frontschild, vorne | 1 | |
| 2 | 9288675 | Frontschild, vorne | 1 | |
| 2 | 9288765 | Frontschild, vorne | 1 | |
| 2 | 9288775 | Frontschild, vorne | 1 | |
| 2 | 9288785 | Frontschild, vorne | 1 | |
| 2 | 9288865 | Frontschild, vorne | 1 | |
| 2 | 9288875 | Frontschild, vorne | 1 | |
| 2 | 9288885 | Frontschild, vorne | 1 | |
| 2 | 9288895 | Frontschild, vorne | 1 | |
| 2 | 9288905 | Frontschild, vorne | 1 | |
| 2 | 9288935 | Frontschild, vorne | 1 | |
| 2 | 9288945 | Frontschild, vorne | 1 | |
| 2 | 9288955 | Frontschild, vorne | 1 | |
| 3 | 259372 | Schraube | 1 | |
| 4 | 184142 | Klammer | 1 | |
| 5 | 184142 | Klammer | 1 | |
| 6 | 270723 | Schraube | 1 |
Assembly Fahrgestell
Code T28
Description Hinteres Schutzschild
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 5743015004 | Frontschild, innen | 1 | |
| 1 | 5743015035 | Frontschild, innen | 1 | |
| 1 | 5743015056 | Frontschild, innen | 1 | |
| 1 | 5743015066 | Frontschild, innen | 1 | |
| 1 | 5743015067 | Frontschild, innen | 1 | |
| 1 | 5743015077 | Frontschild, innen | 1 | |
| 1 | 5743015086 | Frontschild, innen | 1 | |
| 1 | 5743015087 | Frontschild, innen | 1 | |
| 1 | 5743015088 | Frontschild, innen | 1 | |
| 1 | 5743015089 | Frontschild, innen | 1 | |
| 1 | 5743015090 | Frontschild, innen | 1 | |
| 1 | 5743015094 | Frontschild, innen | 1 | |
| 1 | 5743015095 | Frontschild, innen | 1 | |
| 1 | 577039000D | Frontschild, innen | 1 | |
| 1 | 928400 | Frontschild, innen | 1 | |
| 1 | 9284765 | Frontschild, innen | 1 | |
| 1 | CM005302000D | Frontschild, innen | 1 | |
| 2 | 184142 | Klammer | 1 | |
| 3 | 259349 | Schraube | 1 | |
| 4 | 257404 | Schraube | 2 | |
| 5 | 254485 | Klammer M6 | 2 | |
| 6 | 015859 | Schraube | 1 | |
| 7 | 5753435089 | Deckel | 1 | |
| 7 | 9289005 | Deckel | 1 | |
| 7 | 9289005090 | Klappe | 1 | |
| 7 | 9289005093 | Deckel | 1 | |
| 7 | 9289005095 | Deckel | 1 | |
| 7 | 9289045 | Deckel | 1 |
Assembly Fahrgestell
Code T28
Description Hinteres Schutzschild
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 7 | 9289355 | Deckel | 1 | |
| 7 | 9289565 | Deckel | 1 | |
| 7 | 9289665 | Deckel | 1 | |
| 7 | 9289675 | Deckel | 1 | |
| 7 | 9289765 | Deckel | 1 | |
| 7 | 9289775 | Deckel | 1 | |
| 7 | 928978 | Deckel | 1 | |
| 7 | 9289865 | Deckel | 1 | |
| 7 | 9289875 | Deckel | 1 | |
| 7 | 928988 | Deckel | 1 | |
| 7 | 9289945 | Deckel | 1 | |
| 8 | 270723 | Schraube | 1 | |
| 9 | 015859 | Schraube | 5 | |
| 10 | 575816 | Kraftfahrzeugsteuerträger | 2 | |
| 11 | 270116 | Halter | 1 | |
| 11 | 270201 | Halter | 1 | |
| 12 | 271760 | Platte | 5 | |
| 12 | CM017404 | Platte | 1 |
Assembly Fahrgestell
Code T29
Description Trittbrett-Klappe tankverschluß
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 296883 | Schwimmergehäuse | 1 | |
| 2 | 258249 | Schraube | 6 | |
| 3 | 296884 | Imbuto | 1 | |
| 4 | 296861 | Kranzgesims | 1 | |
| 5 | 270141 | Dichtung | 1 | |
| 6 | 184142 | Klammer | 6 | |
| 7 | 259830 | Schraube m6x22 | 4 | |
| 8 | 179575 | Ausgleichscheibe | 4 | |
| 9 | 9283005 | Fußraste | 1 | |
| 9 | 9283045 | Fußraste | 1 | |
| 9 | 9283565 | Fußraste | 1 | |
| 9 | 9283665 | Fußraste | 1 | |
| 9 | 9283675 | Fußraste | 1 | |
| 9 | 9283765 | Fußraste | 1 | |
| 9 | 9283775 | Fußraste | 1 | |
| 9 | 9283785 | Fußraste | 1 | |
| 9 | 9283865 | Fußraste | 1 | |
| 9 | 9283875 | Fußraste | 1 | |
| 9 | 9283885 | Fußraste | 1 | |
| 9 | 9283895 | Fußraste | 1 | |
| 9 | 9283905 | Fußraste | 1 | |
| 9 | 9283935 | Fußraste | 1 | |
| 9 | 9283945 | Fußraste | 1 | |
| 9 | 9283955 | Fußraste | 1 | |
| 10 | 254485 | Klammer M6 | 4 | |
| 11 | 296877 | Klappe | 1 | |
| 12 | 005962 | Sprengring | 2 | |
| 13 | 297495 | Bolzen | 2 |
Assembly Fahrgestell
Code T29
Description Trittbrett-Klappe tankverschluß
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 14 | 2968854 | Stütze | 1 | |
| 15 | 297498 | Schraube | 6 | |
| 16 | 297494 | Feder | 1 | |
| 16 | 297496 | Feder | 1 |
Assembly Fahrgestell
Code T30
Description Teppiche
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 3 | 270143 | Halter | 1 | |
| 4 | 270123 | Fussrasten | 1 | |
| 5 | 031088 | Vite M6x16 | 4 | |
| 6 | 016406 | Ausgleichscheibe | 4 | |
| 7 | 270122 | Fussrasten | 1 | |
| 8 | 270197 | Halter | 1 | |
| 10 | 270124 | Knopf | 12 | |
| 10 | CM011101 | Knopf | 12 | |
| 12 | 2983935 | Fußmatte | 1 |
Assembly Fahrgestell
Code T31
Description Öltank
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 259829 | Tankverschluss | 1 | |
| 2 | 270199 | Schwimmergehäuse | 1 | |
| 3 | 254485 | Klammer M6 | 1 | |
| 4 | 292596 | Reserveanzeige | 1 | |
| 5 | 259348 | Schraube | 1 | |
| 6 | 577557 | Schelle | 1 | |
| 7 | 196868 | Dichtung | 1 | |
| 8 | 296577 | Anschluß | 1 | |
| 9 | CM002907 | Schelle | 3 | |
| 10 | 573320 | Schlauch | 1 | |
| 11 | 296575 | Anschluß | 1 | |
| 12 | 270084 | Tank | 1 |
Assembly Fahrgestell
Code T32
Description Benzintank
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 296259 | Leitung | 1 | |
| 2 | CM002904 | Schlauchselle | 1 | |
| 3 | 259830 | Schraube m6x22 | 4 | |
| 4 | 179575 | Ausgleichscheibe | 4 | |
| 5 | 254485 | Klammer M6 | 4 | |
| 6 | 272327 | Kraftstoffanzeige | 1 | |
| 7 | 258161 | Dichtung | 1 | |
| 8 | 259832 | Tankverschluß | 1 | |
| 9 | 298344 | Tank | 1 | |
| 9 | 298500 | Tank | 1 | |
| 10 | 257302 | Distanzscheibe | 4 | |
| 11 | 257301 | Puffer | 4 | |
| 12 | 229343 | Schelle | 1 |
Assembly Fahrgestell
Code T3
Engaser
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 297859 | Engaser | 1 | |
| 2 | 297848 | Bügel | 1 | |
| 3 | 154834 | Leitung | 1 | |
| 4 | CM004118 | Brannstoffleitung | 1 | |
| 4 | CM004126 | Kraftstoffleitung 5,5x10 | 1 | |
| 5 | CM004118 | Brannstoffleitung | 1 | |
| 5 | CM004126 | Kraftstoffleitung 5,5x10 | 1 | |
| 6 | 297378 | Ring | 2 |
Assembly Fahrgestell
Code T33
Description Benzinpumpe
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 270423 | Not available | 1 | |
| 2 | 433084 | Kleine Feder | 2 | |
| 3 | CM004118 | Brannstoffleitung | 4 | |
| 3 | CM004126 | Kraftstoffleitung 5,5x10 | 1 | |
| 4 | 82592R | Pumpe | 1 | |
| 5 | 271477 | Schelle | 1 | |
| 6 | 298390 | Anschluß | 1 | |
| 7 | 296817 | Anschluß | 1 | |
| 8 | 82592R | Pumpe | 1 | |
| 9 | 296817 | Anschluß | 1 | |
| 10 | 196868 | Dichtung | 1 | |
| 11 | 577557 | Schelle | 1 | |
| 12 | CM002904 | Schlauchselle | 7 | |
| 14 | 270097 | Bügel | 1 | |
| 15 | 259830 | Schraube m6x22 | 1 | |
| 16 | 298390 | Anschluß | 1 | |
| 18 | CM002904 | Schlauchselle | 1 | |
| 19 | 297859 | Engaser | 1 | |
| 20 | CM004118 | Brannstoffleitung | 1 | |
| 20 | CM004126 | Kraftstoffleitung 5,5x10 | 1 | |
| 21 | 297848 | Bügel | 1 | |
| 22 | 298372 | Schelle | 6 |
Assembly Fahrgestell
Code T34
Description Ausdehnungsgefaß
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 561991 | Verschlußschaube | 1 | |
| 2 | 270251 | Tankdichtung | 1 | |
| 2 | 620737 | Gummi Tankstutzen | 1 | |
| 3 | 575541 | Kühlflüssigkeitsbehälter | 1 | |
| 4 | 351782 | Gummi oben | 1 | |
| 5 | 273288 | Distanzscheibe | 1 | |
| 6 | 254485 | Klammer M6 | 1 | |
| 7 | CM001903 | Schelle | 2 | |
| 8 | CM007002 | Entlüfungsschlauch | 1 | |
| 9 | 244893 | Schelle | 2 | |
| 10 | 258904 | Gummi weitere | 1 | |
| 11 | 270249 | Auspuffrohr | 1 | |
| 12 | 271891 | Schraube m6x30 | 1 | |
| 13 | 013092 | U.scheibe d6,2x20x1 | 1 |
Assembly Fahrgestell
Code T39
DescriptionGepackfach
Revision 1
16
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 9281005 | Klappe | 1 | |
| 1 | 9281045 | Klappe | 1 | |
| 1 | 9281565 | Klappe | 1 | |
| 1 | 9281665 | Klappe | 1 | |
| 1 | 9281675 | Klappe | 1 | |
| 1 | 9281765 | Klappe | 1 | |
| 1 | 9281775 | Klappe | 1 | |
| 1 | 9281785 | Klappe | 1 | |
| 1 | 9281865 | Klappe | 1 | |
| 1 | 9281875 | Klappe | 1 | |
| 1 | 9281885 | Klappe | 1 | |
| 1 | 9281895 | Klappe | 1 | |
| 1 | 9281905 | Klappe | 1 | |
| 1 | 9281935 | Klappe | 1 | |
| 1 | 9281945 | Klappe | 1 | |
| 1 | 9281955 | Klappe | 1 | |
| 2 | 2969030005 | Schild | 1 | |
| 2 | 2969030095 | Schild | 1 | |
| 3 | 2966434 | Stütze | 1 | |
| 4 | 299077 | Gelenk | 2 | |
| 5 | 575021 | Bolzen | 2 | |
| 6 | 299078 | Gelenk | 2 | |
| 7 | 296170 | Schraube | 4 | |
| 8 | 483859 | Verschlußschraube | 2 | |
| 9 | 299079 | Klappe | 1 | |
| 10 | 297498 | Schraube | 9 | |
| 11 | 561449 | Dichtung | 1 | |
| 12 | 296837 | Schutz | 1 |
Assembly Fahrgestell
Code T39
DescriptionGepackfach
Revision 1
16
| Pos. | Code | Description | Q:ty | Variants |
| 13 | 270162 | Kabeldurchgang | 1 | |
| 14 | 574998 | Fußmatte | 1 | |
| 15 | 270146 | Kleine Feder | 8 | |
| 16 | 2701175 | Staukoffer | 1 | |
| 17 | 298420 | Dichtung | 1 |
Assembly Fahrgestell
Code T40
Description Untere Seitenverkleidung
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 574709000A | Seitenverkleidung rechts | 1 | |
| 2 | 574763000A | Seitenverkleidung links | 1 | |
| 3 | 259830 | Schraube m6x22 | 8 | |
| 4 | 179575 | Ausgleichscheibe | 8 | |
| 4 | 259539 | Platte | 1 | |
| 5 | 254485 | Klammer M6 | 8 | |
| 6 | 297524 | Rückstrahler | 1 | |
| 6 | 297525 | Rückstrahler | 1 |
| Assembly | Fahrgestell |
| Code | T41 |
| Description | Obere Seitenverkleidung |
| Revision | 1 |
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 270109 | Klappe | 1 | |
| 1 | 561098 | Klappe | 1 | |
| 2 | 259830 | Schraube m6x22 | 9 | |
| 3 | 254485 | Klammer M6 | 11 | |
| 4 | 179575 | Ausgleichscheibe | 4 | |
| 5 | 270795 | Gew.schr. | 1 | |
| 6 | 270792 | Ausgleichscheibe | 1 | |
| 7 | 270723 | Schraube | 1 | |
| 8 | 9286005 | Seitenverkleidung | 1 | |
| 8 | 9286045 | Seitenverkleidung | 1 | |
| 8 | 9286565 | Seitenverkleidung | 1 | |
| 8 | 9286665 | Seitenverkleidung | 1 | |
| 8 | 9286675 | Seitenverkleidung | 1 | |
| 8 | 9286765 | Seitenverkleidung | 1 | |
| 8 | 9286775 | Seitenverkleidung | 1 | |
| 8 | 9286785 | Seitenverkleidung | 1 | |
| 8 | 9286865 | Seitenverkleidung | 1 | |
| 8 | 9286875 | Seitenverkleidung | 1 | |
| 8 | 9286885 | Seitenverkleidung | 1 | |
| 8 | 9286895 | Seitenverkleidung | 1 | |
| 8 | 9286905 | Seitenverkleidung | 1 | |
| 8 | 9286935 | Seitenverkleidung | 1 | |
| 8 | 9286945 | Seitenverkleidung | 1 | |
| 8 | 9286955 | Seitenverkleidung | 1 | |
| 9 | 184142 | Klammer | 2 | |
| 10 | 9285005 | Seitenverkleidung | 1 | |
| 10 | 9285045 | Seitenverkleidung | 1 | |
| 10 | 9285565 | Seitenverkleidung | 1 |
| Assembly | Fahrgestell |
| Code | T41 |
| Description | Obere Seitenverkleidung |
| Revision | 1 |
| Pos. | Code | Description | Q:ty | Variants |
| 10 | 9285665 | Seitenverkleidung | 1 | |
| 10 | 9285675 | Seitenverkleidung | 1 | |
| 10 | 9285765 | Seitenverkleidung | 1 | |
| 10 | 9285775 | Seitenverkleidung | 1 | |
| 10 | 9285785 | Seitenverkleidung | 1 | |
| 10 | 9285865 | Seitenverkleidung | 1 | |
| 10 | 9285875 | Seitenverkleidung | 1 | |
| 10 | 9285885 | Seitenverkleidung | 1 | |
| 10 | 9285895 | Seitenverkleidung | 1 | |
| 10 | 9285905 | Seitenverkleidung | 1 | |
| 10 | 9285935 | Seitenverkleidung | 1 | |
| 10 | 9285945 | Seitenverkleidung | 1 | |
| 10 | 9285955 | Seitenverkleidung | 1 | |
| 11 | 296786 | Schild | 2 | |
| 11 | 574245 | Schild | 2 | |
| 12 | 030251 | Schraube | 2 | |
| 13 | 296819 | Schild | 1 | |
| 14 | 575736 | "kat" plakette | 1 |

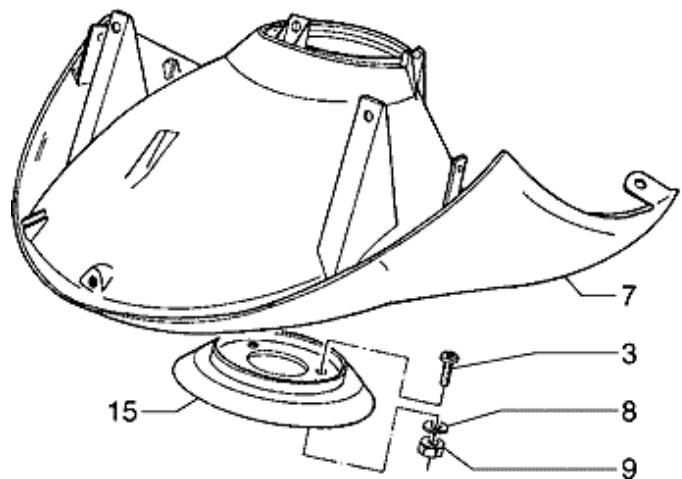

Assembly Fahrgestell
Code T42
Description Vorderkotflugel-Hinterkotflugel
Revision 1
| Pos. | Code | Description | Q.ty | Variants |
| 1 | 259349 | Schraube | 4 | |
| 2 | 184142 | Klammer | 4 | |
| 3 | 259830 | Schraube m6x22 | 3 | |
| 4 | 257404 | Schraube | 1 | |
| 4 | 259539 | Platte | 1 | |
| 5 | 254485 | Klammer M6 | 4 | |
| 6 | 179575 | Ausgleichscheibe | 2 | |
| 7 | 297526 | Frontschild, vorne | 1 | |
| 7 | 577053000A | Schutzschild, unten | 1 | |
| 8 | 016406 | Ausgleichscheibe | 1 | |
| 9 | 020106 | Mutter M6 | 1 | |
| 10 | 259780 | Vorderes Schutzblech | 1 | |
| 11 | 575249 | Schraube | 1 | |
| 12 | 012533 | Ausgleichscheibe 6,6x11x0 | 1 | |
| 13 | 013880 | Ausgleichscheibe | 1 | |
| 14 | 030054 | Schraube | 1 | |
| 15 | 563676 | Scheibe | 1 | |
| 19 | 297522 | Rückstrahler | 1 | |
| 19 | 297523 | Rückstrahler | 1 |
Assembly Fahrgestell
Code T43
Description Sitzbank
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 270159 | Dichtung | 1 | |
| 1 | 270160 | Dichtung | 1 | |
| 2 | 273729 | R3ckenlehne | 1 | |
| 2 | 561095 | R3ckenlehne | 1 | |
| 3 | 005955 | Ring | 1 | |
| 4 | 273730 | R3ckenlehne | 1 | |
| 4 | 561096 | R3ckenlehne | 1 | |
| 5 | 270125 | Griff | 1 | |
| 5 | 270126 | Griff | 1 | |
| 6 | 271089 | Schraube | 2 | |
| 7 | 270161 | Griff | 1 | |
| 8 | 5747905 | 3berbr3ckung | 1 | |
| 8 | 5747905066 | Element | 1 | |
| 8 | 5747905087 | 3berbr3ckung | 1 | |
| 8 | 5747905090 | 3berbr3ckung | 1 | |
| 8 | 5747905094 | Element | 1 | |
| 8 | 5747905095 | 3berbr3ckung | 1 | |
| 8 | 9293045 | Element | 1 | |
| 8 | 9293355 | Element | 1 | |
| 8 | 9293565 | Element | 1 | |
| 8 | 9293675 | Element | 1 | |
| 8 | 9293765 | Element | 1 | |
| 8 | 9293775 | Element | 1 | |
| 8 | 9293785 | Element | 1 | |
| 8 | 9293865 | Element | 1 | |
| 8 | 9293885 | Element | 1 | |
| 8 | 9293895 | Element | 1 | |
| 8 | 9293935 | Element | 1 |
Assembly Fahrgestell
Code T43
Description Sitzbank
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 9 | 273427 | Platte | 1 | |
| 10 | 013963 | Ausgleichscheibe | 1 | |
| 11 | 273074 | Kunststoffniet | 1 | |
| 12 | 498848 | Kleine Feder | 2 | |
| 13 | 575783000N | Sitz | 1 | |
| 14 | 498859 | Bausatz sattelscharnier | 1 |
Assembly Fahrgestell
Code T66
Description SchlieBvorrichtung
Revision 1
| Pos. | Code | Description | Q:ty | Variants |
| 1 | 292234 | Lichtschalter | 1 | |
| 1 | 292325 | Lichtschalter | 1 | |
| 1 | 293252 | Lichtschalter | 1 | |
| 2 | 018515 | Feststellschraube | 1 | |
| 3 | 178562 | Steckverbindung | 1 | |
| 4 | 297777 | Schlosszylinder | 1 | |
| 5 | 178559 | Platte | 1 | |
| 6 | 296854 | Schl3sselrohling | 3 | |
| 7 | 296881 | Schloßsatz | 3 | |
| 8 | 013963 | Ausgleichscheibe | 2 | |
| 9 | 270142 | Riegel | 1 | |
| 10 | 016404 | Ausgleichscheibe | 2 | |
| 11 | 008370 | Schraube | 2 | |
| 12 | 270151 | Riegel | 1 | |
| 13 | 297500 | Ausgleichscheibe | 1 | |
| 14 | 102943 | Ausgleichscheibe | 1 | |
| 15 | 297597 | Becher | 1 | |
| 16 | 297596 | Haken | 1 |
