BRUKSANVISNING XTP-RXS Smart-AVI

Technical Specifications

XP-AV SPECIFICATIONS

VGA Data
Format RGBHV, RGsB, YUV, Y/C, CVBS
Resolution	Up to 1900 x 1200 VGA, SVGA, XGA, SXGA)
Connector type HD	15 socket
Audio
Signal Type Stereo	unbalanced
Connector 3.5mm	jack socket
Power
Requirements 5VDC @.5A
Connector 2.1mm	DC jack (center +ve)
Physical
Dimensions 135 x 90 x 23mm (26 with pegs)
Weight .8 lbs or .36 kg

© Copyright 2011 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or translated into another language without prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.

Rack Mountable Option

Exterior view of a black server rack unit with attached panel connectors (no visible text or symbols)

Our SmartRack is the perfect solution to allow virtually all SmartAVI devices to be custom mounted in a standard 19" server rack. The SmartRack is fully adjustable and can secure/organize several devices.

SmartAVI, Inc. / Twitter: smartavi 11651 Vanowen St. North Hollywood, CA 91605 Tel: [phone] Fax: [phone] http://www.SmartAVI.com

User Manual

XT-AV

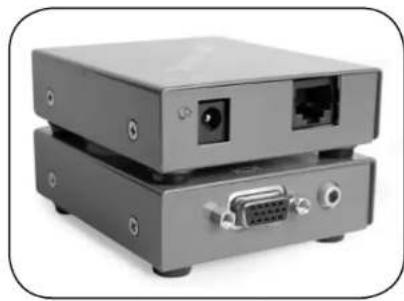

Two stacked electronic devices with ports and connectors, no visible text or symbols

Use a single CAT5 to broadcast high resolution SXGA and Stereo Audio up to 1000ft away.

www.smartavi.com

Introduction

The XT-av range of products allows the extension of a wide range of video and audio formats via a single Category 5 Unshielded Twisted Pair (UTP) cable.

Features

■ Uses easy to install, inexpensive CAT-5/5e/6/7/8.
■ Output reaches up to 1,000 feet (300 m).
■ Resolutions up to 1900x1200.
■ 300 MHz Bandwidth.
■ Sends high-resolution UXGA, Stereo Audio and
■ Compatible with VGA, XGA, Sun, MAC and SGI
■ Sync Format / Polarity Preservation.
■ Compatible with Line Level Stereo Audio Signals.
■ High ground loop immunity.
■ Built-in lightning, power surge and transient protection.
■ Designated trimmer in the remote unit to compensate for cable length.
■ Compact Metal Case Enclosure.

What's in the box?

XT-AV

Please check the contents of the package before beginning installation.

XT-AV Package Content
Qty	Items	Part No.
1	XT-AV Transmitter unit	XTAV-TX
1	XT-AV Receiver unit	XTAV-RX
2	5 volt dc power supply	PS-5D1A-US
1	HDD 15 male to male VGA cable [6ft]	CC-VGAMM-06

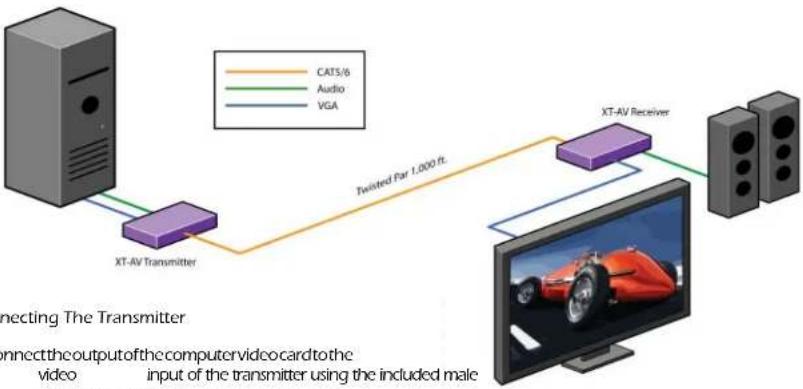

Installation Diagram
        A
        B
        C
    end
    subgraph Audio
        A
        B
        C
    end
    subgraph VGA
        A
        B
        C
    end

Connecting The Transmitter

1. Connect the output of the computer video card to the video input of the transmitter using the included male to male video cable.

2. Connect the output of the computer audio card to the audio input of the transmitter using 3.5mm audio male to male audio cable.

3. Connectexternalspeakerstothetransmitter'saudio out (Standard 3.5mm stereo miniplug).
4. In the back of the unit connect the CAT5 cable that will connect to the receiver (XTAV-RX).

Connecting The Receiver

1. Connect CAT5 cable (coming from the transmitter) to the back of the receiver.
2. Connect display monitors to the VGA out connector on the front of the receiver.
3. Connect external speakers to the audio output connections on the front of the unit. (Standard 3.5mm stereo Miniplug)

Preparing & Connecting System CAT5 Cable

Following is the wiring standard for terminating CAT 5 cable using RJ-45 connector:

Pair 1 Pins 1 & 2
Pair 2 Pins 3 & 6
Pair 3 Pins 4 & 5
Pair 4 Pins 7 & 8

Connectors:

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

RJ45

Pair

Adjusting and Tuning the Signal

In order to fine tune the signal, adjust the individual dials one at a time starting with GREEN, then BLUE, and lastly RED. As you turn the dials you will notice the colors slightly change as you increase or decrease the strength. All dials should be around the same distance.
