2-DIN 12.301232-01/
12.301232-18
Installation manual for:
Opel various models


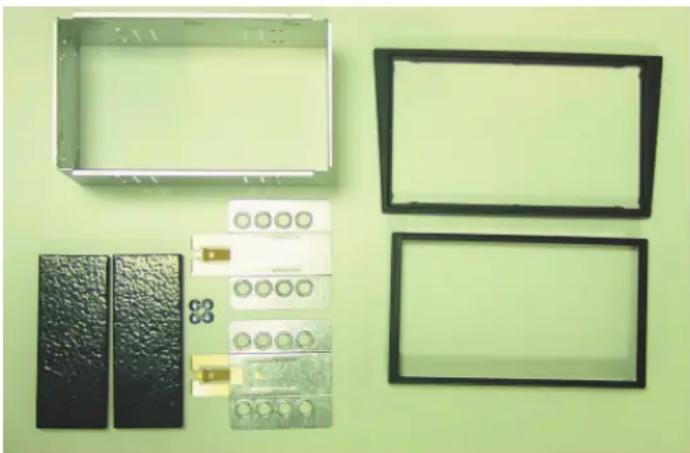

Exterior view of a plastic enclosure with metal components and two empty rectangular enclosures on a green background (no text or symbols)Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Replacement frame
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Cushion


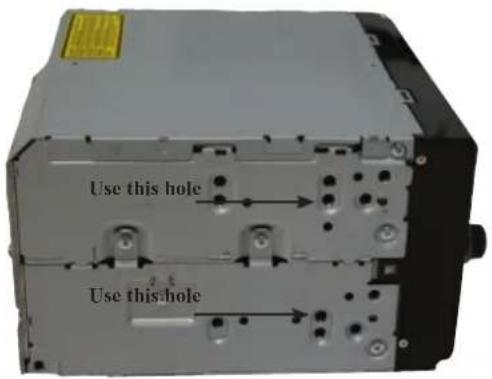

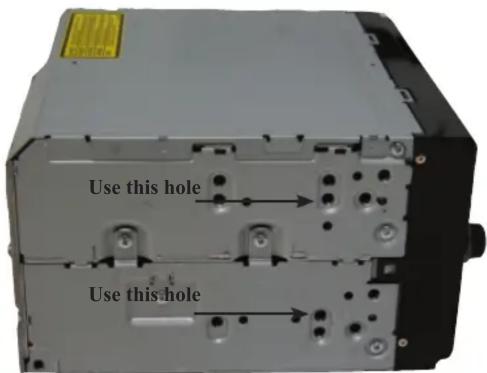

Use this hole Use this hole
Pioneer HD1BT

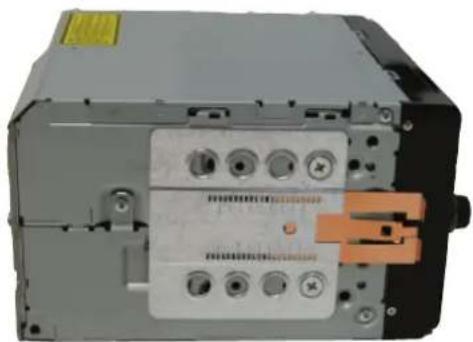

We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 12 & 14 marked with an arrow.
Measured from left to right.
Pioneer Avic D3

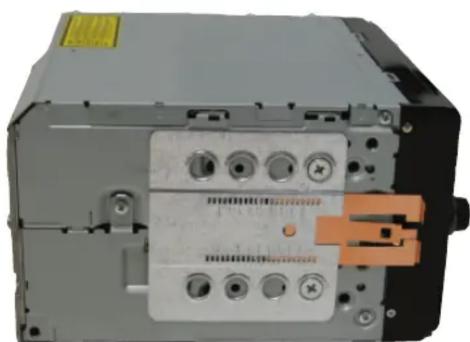

We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 10 & 12 marked with an arrow
Measured from left to right.
Pioneer sound. vision. soul
1


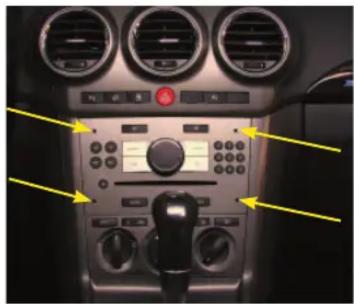

Interior view of a car dashboard with air filters and control knobs (no visible text or symbols)Remove the original radio unit using Philips radio keys at the location of the arrows.
2-DIN 12.301232-01/12.301232-18
2


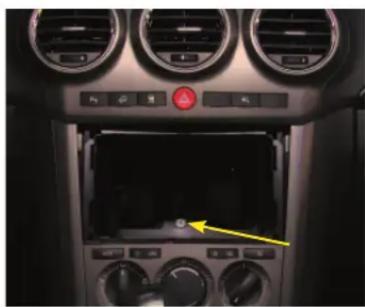

Interior view of a car dashboard with air filters and a central touchscreen display (no visible text or symbols)Remove the original radio bracket. This is tighten by a screw at the location of the arrow. (The screw might be at a other location in other models)
3
4


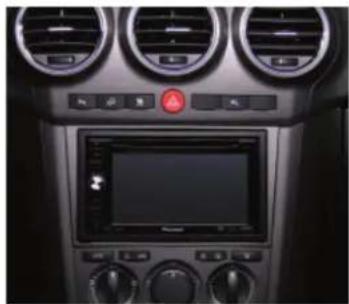

Interior view of a car dashboard with air conditioners, a central touchscreen display, and control buttons (no visible text or symbols)Place the head unit and radio trim.
Opel Agila 2004 --> Black 12.301232-13
Opel Agila/ Corsa /Astra--> 2004 Black 12.301232-01
Opel Antara 2007 --> Black 12.301232-18
Opel Astra 2004 -->
Opel Astra 2004 --> Black 12.301232-06
Opel Astra 2004 --> Silver 12.301232-04
Opel Astra 2006 --> Beige 12.301232-17
Opel Corsa 2006 --> Beige 12.301232-14
Opel Corsa 2006 --> Silver 12.301232-15
Opel Corsa 2006 --> Black 12.301232-16
Opel Corsa C/Corsa C Combi 2003 --> Silver 12.301232-03
Opel Meriva/ Tigra 2003 --> Silver 12.301232-03
Opel Vectra C+CW/ Signum 2005 --> Silver 12.301232-07
Opel Vectra C+CW/ Signum 2005 --> Antracite 12.301232-08
Opel Vectra C+CW/ Signum 2005 --> Black 12.301232-09
Opel Vectra/ Signum 2003 --> 2005 Antracite12.301232-02
Opel Vivaro/ Vectra --> 2003 Black 12.301232-01
Opel Zafira 2005 --> Silver 12.301232-10
Opel Zafira 2005 --> Antracite 12.301232-11
Opel Zafira 2005 --> Black 12.301232-12
Antracite 12.301232-05
