KORISNIČKI PRIRUČNIK FT48D FOSTEX
FT48D
Features
♦Dome Tweeter
♦8 ohm impedance
◆800Hz to 30kHz frequency response
◆93dB sensitivity at 1W/1m (3.3ft)
◆0.978kg (2.15 lb) net weight


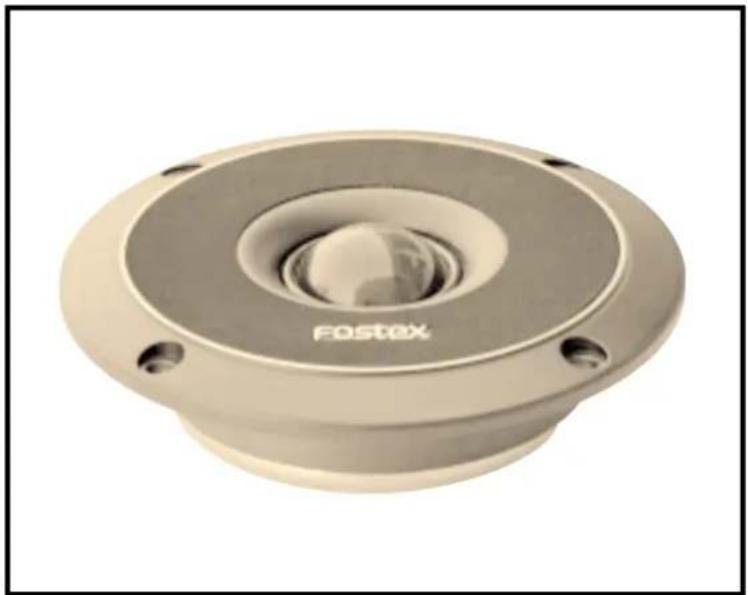

Close-up of a beige Fastex-branded mechanical component with mounting holes and central bore (no text or symbols visible on the component itself)Specifications
| Impedance : 8 ohm |
| Reproduction Frequency Response: 800Hz - 30kHz |
| S.P.L. : 93dB/W (m) |
| Music Power : 50W |
| Recommended Cross-over Frequency: more than 900Hz |
| Magnet Weight : 300g (0.66 lb) |
| Net Weight : 978g (2.16 lb) |

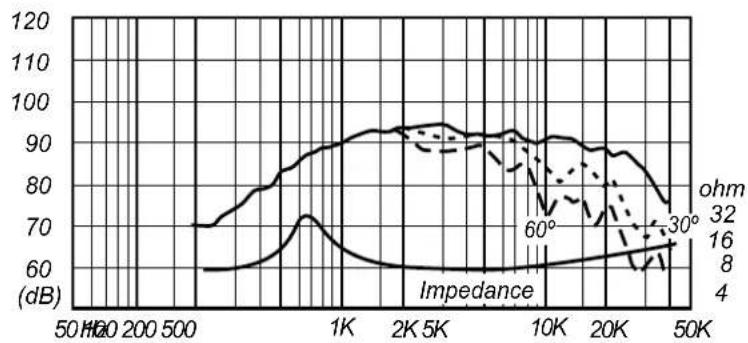

Frequency Response / Impedance
line
| Frequency | Impedance (dB) | | --------- | -------------- | | 500 | 70 | | 1K | 70 | | 2K | 90 | | 5K | 90 | | 10K | 60 | | 20K | 60 | | 50K | 60 |Configuration Example

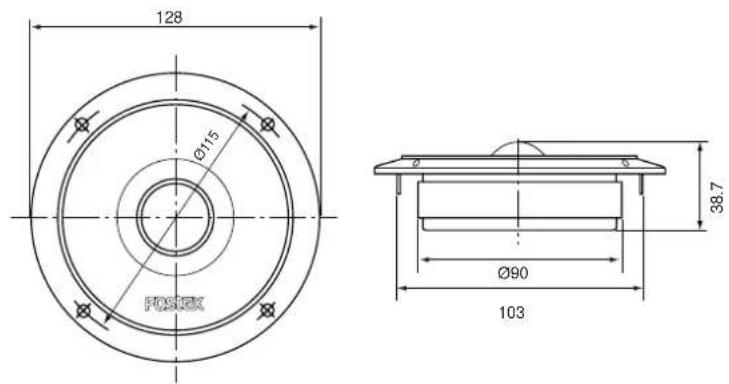

Dimensions & Mounting Information
