KORISNIČKI PRIRUČNIK FW168N FOSTEX
FW168N
Features
◆160mm (6.5 in) cone type full range
♦8 ohm impedance
♦fo to 9kHz frequency response
◆89dB sensitivity at 1W/1m (3.3ft)
◆3.875kg (8.543 lb) net weight


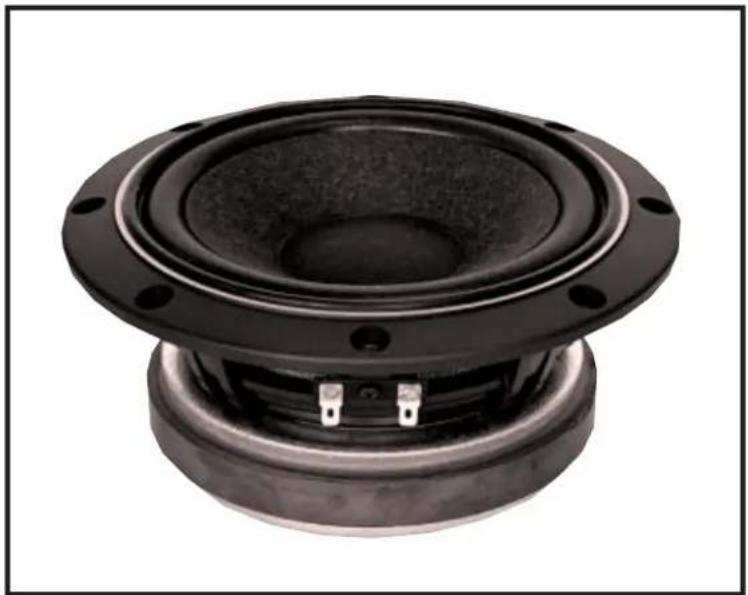

Close-up of a black speaker with exposed metal components and mounting holes (no text or symbols visible)& Thiele/Small Parameters
| Impedance : 8 ohm | |
| Minimum Frequency Response: 40Hz | |
| Reproduction Frequency Response: fo - 9kHz | |
| S.P.L. : 89dB/W (m) | |
| Rated Input : 34W | |
| Music Power : 100W | |
| Equivalent Diagram Radius: 65mm (2.56 in) | |
| Equivalent Mass : 28g (0.062 lb) | |
| Magnet Weight : 1090g (2.403 lb) | |
| Net Weight : 3.9kg (8.543 lb) | |
| Fs : 40Hz | |
| Re : 5.9 ohm | |
| Qts : 0.16 | |
| Qms : 15.67 | |
| Qes : 0.17 | |
| Vas : 14.25 L | |
| Xmax : 0.5mm (0.020 in) | |
| no : 0.517% |

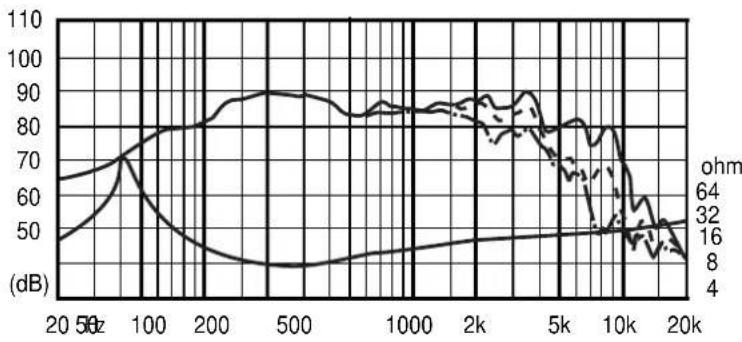

Frequency Response / ImpedanceSpecifications
line

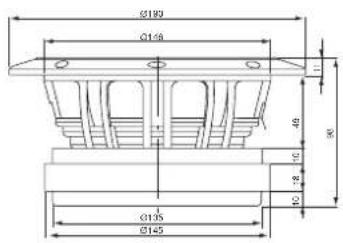

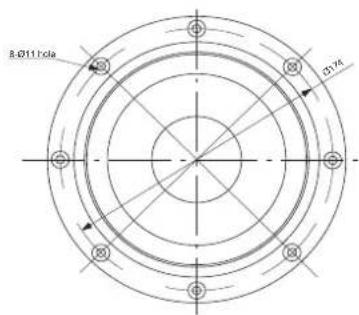

| Frequency (Hz) | Amplitude (dB) | | -------------- | -------------- | | 20 | 64 | | 50 | 32 | | 100 | 16 | | 200 | 8 | | 500 | 64 | | 1000 | 32 | | 2k | 16 | | 5k | 8 | | 10k | 4 | | 20k | 4 |Dimensions & Mounting Information
