KORISNIČKI PRIRUČNIK FW108N FOSTEX
FW108N
Features
◆100mm (4 in) cone type full range
♦8 ohm impedance
♦fo to 10kHz frequency response
♦86dB sensitivity at 1W/1m (3.3ft)
◆1.695kg (3.7373 lb) net weight


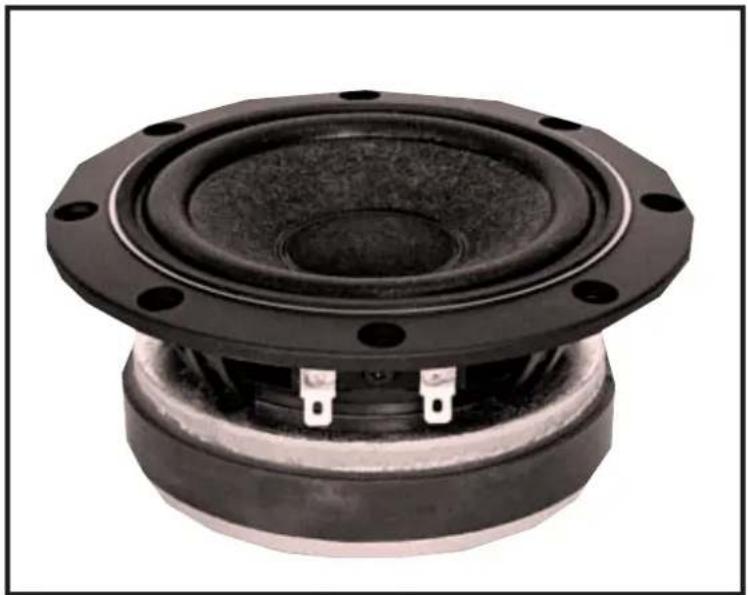

Close-up of a black speaker with visible sound waves and two metallic terminals (no text or symbols)& Thiele/Small Parameters
| Impedance : 8 ohm | |
| Minimum Frequency Response: 55Hz | |
| Reproduction Frequency Response: fo - 10kHz | |
| S.P.L. : 86dB/W (m) | |
| Rated Input : 17W | |
| Music Power : 50W | |
| Equivalent Diagram Radius: 40mm (1.6 in) | |
| Equivalent Mass : 6.9g (0.015 lb) | |
| Magnet Weight : 500g (1.102 lb) | |
| Net Weight : 1.7kg (3.74 lb) | |
| Fs : 55Hz | |
| Re : 6.3 ohm | |
| Qts : 0.26 | |
| Qms : 8.8 | |
| Qes : 0.27 | |
| Vas : 4.09 L | |
| Xmax : 1.9mm (0.075 in) | |
| no : 0.237% |

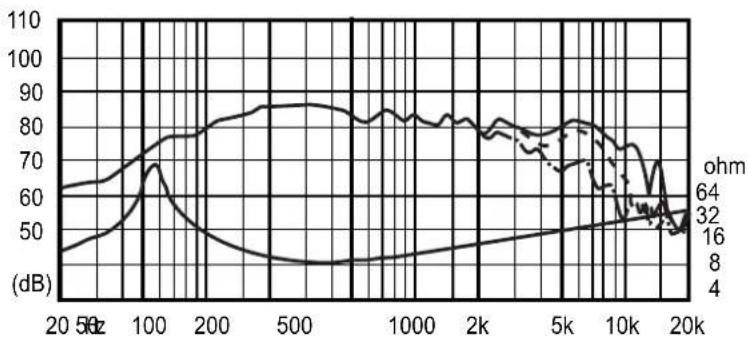

Frequency Response / ImpedanceSpecifications
line
| Frequency | ohm | | --------- | --- | | 20 | 4 | | 50 | 8 | | 100 | 32 | | 200 | 64 | | 500 | 8 | | 1000 | 32 | | 2k | 64 | | 5k | 8 | | 10k | 32 | | 20k | 64 |Dimensions & Mounting Information
