ASSEMBLY PLAN / PLAN D'ASSEMBLAGE
SHAPE
MADE IN CANADA

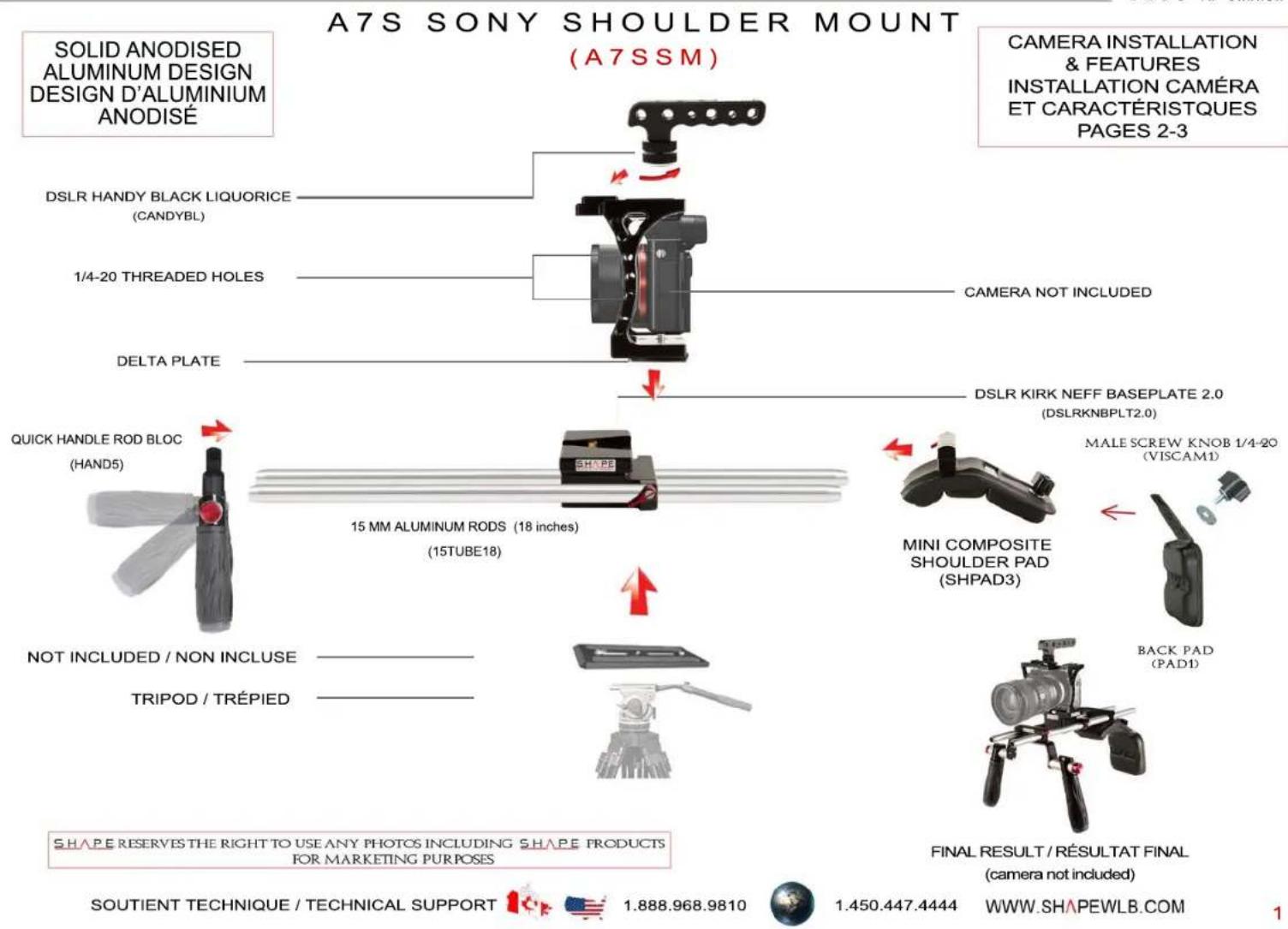

ASSEMBLY PLAN / PLAN D'ASSEMBLAGE
A7S SONY SHOULDER MOUNT
SHAPE
MADE IN CANADA
(A7SSM)
CAMERA INSTALLATION
INSTALLATION DE LA CAMÉRA
STEP 1

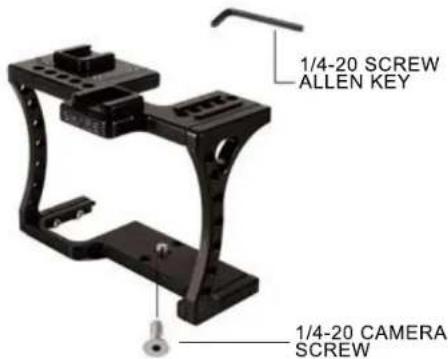

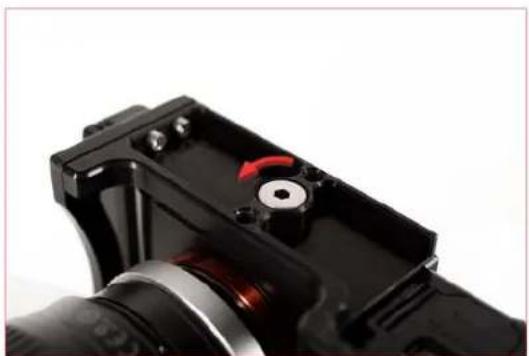

USING AN ALLEN KEY, UNSCREW THE 1/4-20 CAMERA
SCREW AND INSERT THE CAMERA IN THE CAGE.
SCREW IT BACK INTO PLACE TIGHTLY
À L'AIDE D'UNE CLÉ ALLEN, DÉVISSEZ LA VIS CAMÉRA
AFIN DE PERMETTRE D'INSÉRER LA CAMÉRA DANS LA
CAGE. REVISSEZ LE TOUT SOLIDEMENT PAR LA SUITE.
STEP 2

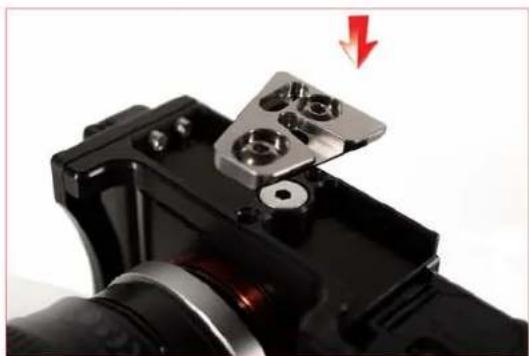

USING THE SAME ALLEN KEY, PLACE THE DELTA PLATE ON TOP OF THE CAMERA SCREW USING THE OTHER 2 THREADED HOLES AND SECURE IT IN PLACE
AVEC LA MEME CLÉ ALLEN, PLACEZ LA PLAQUE DELTA PAR-DESSUS LA VIS CAMERA DANS LES 2 TROUS FILETES. SECURISEZ LA PLAQUE EN PLACE.
ASSEMBLY PLAN / PLAN D'ASSEMBLAGE
A7S SONY SHOULDER MOUNT
SHAPE
MADE IN CANADA
(A7SSM)
FEATURES
CARACTÉRISTIQUES

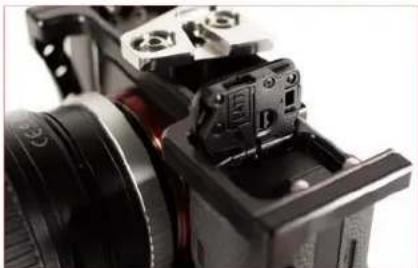

THE CAGE WAS SPECIALLY DESIGNED TO ALLOW
THE BATTERY DOOR TO OPEN EASILY


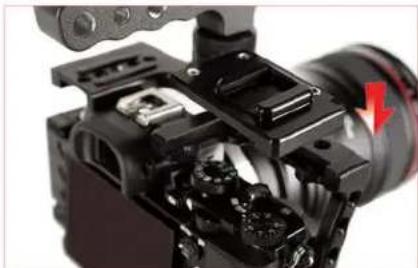

THREE M3 SCREWS HOLD A REMOVABLE TOP PLATE TO ACCESS THE FUNCTIONS ON THE CAMERA. AN ALLEN KEY IS SUPPLIED WITH THE KIT.


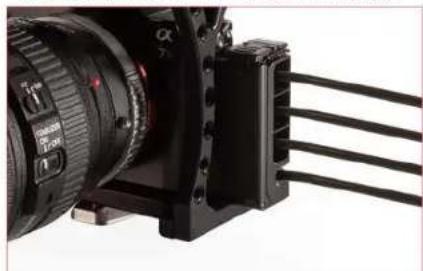

DUE TO SONY'S CABLE PROTECTOR DESIGN,
IT NEEDS TO BE INSTALLED ALONG WITH THE CABLES
BEFORE INSTALLING THE CAMERA IN THE CAGE


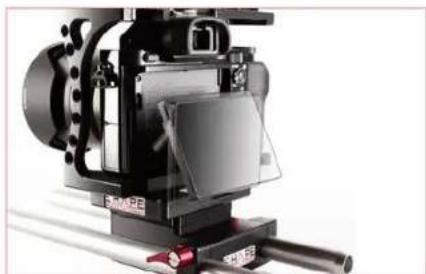

THE CAGE ALLOWS AN EASY USE OF THE CAMERA'S
MONITOR
WHAT'S IN THE BOX
SHAPE
MADE IN CANADA
A7S SONY SHOULDER MOUNT
A7SSM
SKU | A7SCAGE (x1)
SKU | DSLRKNBPLT2.0 (x1)
SKU | CANDYBL (x1)
SKU | A7SSM
SKU | PAD1 (x1)
