KORISNIČKI PRIRUČNIK FS7LW Shape
ASSEMBLY PLAN / PLAN D'ASSEMBLAGE
SHAPE
MADE IN CANADA
SONY FS7 LIGHTWEIGHT PLATE
(F S 7 L W)
SOLID ANODISED ALUMINUM DESIGN DESIGN D'ALUMINIUM ANODISÉ
GAMERA NOT INCLUDED
1/4-20 & 3/8-16 CAMERA SCREWS
15 MM ALUMINUM RODS (8 inches) (15TUBE8)
DELTA PLATE
SHAPE VCT TRIPOD PLATE (NOT INCLUDED / NON INCLUSE)
TRIPOD / TRÉPIED


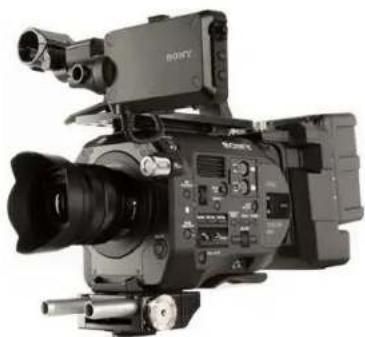

Black Sony 3 video camera with external lens and control panel (no visible text or symbols)FINAL RESULT / RÉSULTAT FINAL (camera not included)
S.H.A.P.E RESERVES THE RIGHT TO USE ANY PHOTOS INCLUDING S.H.A.P.E PRODUCTS FOR MARKETING PURPOSES
SOUTIENT TECHNIQUE / TECHNICAL SUPPORT
1.888.968.9810
1.450.447.4444
WWW.SHAPEWLB.COM
ASSEMBLY PLAN / PLAN D'ASSEMBLAGE
SONY FS7 LIGHTWEIGHT PLATE
SHAPE
MADE IN CANADA
CAMERA INSTALLATION & FEATURES

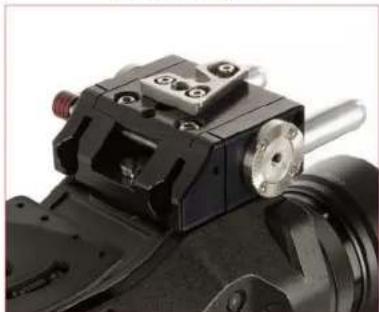

OPEN THE DOOR TO ACCESS THE CAMERA SCREWS (1/4-20 & 3/8-16)
THE ARRI STANDARD ROSETTES ALLOW
THE USER TO ADD OUR TELESCOPIC DOUBLE
HANDLES AND SONY'S RIGHT HANDLE
CLOSE BACK THE DOOR & SCREW
IT INTO PLACE
THE PLATE WAS DESIGNED TO FOLLOW
THE CAMERA'S SHOULDER PAD SHAPE


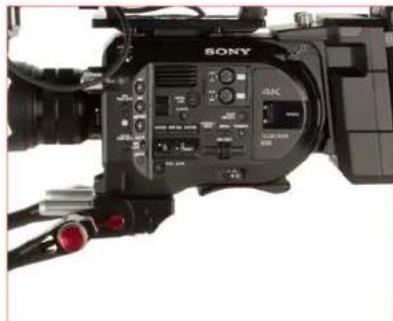

SECURE THE RODS USING
THE RATCHET KNOB


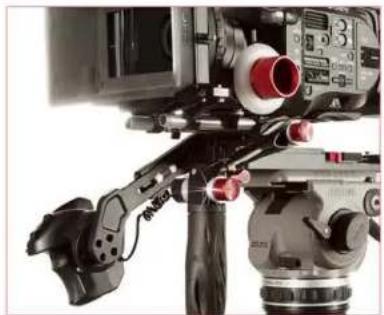

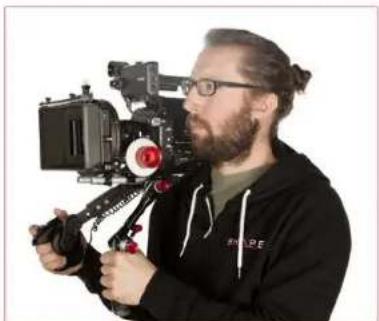

COMBINED WITH OUR TELESCOPIC DOUBLE HANDLES, IT OFFERS A WELL BALANCED POSITION
WHAT'S IN THE BOX
SHAPE
MADE IN CANADA
SONY FS7 LIGHTWEIGHT PLATE

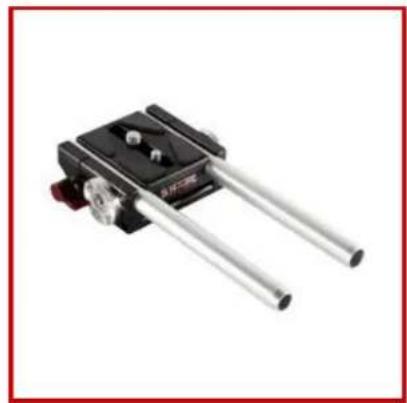

FS7LW
CAMERA SCREWS
1/4-20 & 3/8-16 (X2)
SKU | FS7LW (X1)
SKU | 15TUBE8 (1 PAIR)
ALLEN KEYS (x2)
M4 SCREWS (x3)
DELTA PLATE (x1)
SCREWS
1/4-20 X 3/8-16 (X2)
SKU | FS7LW
