KORISNIČKI PRIRUČNIK BP8000 Shape

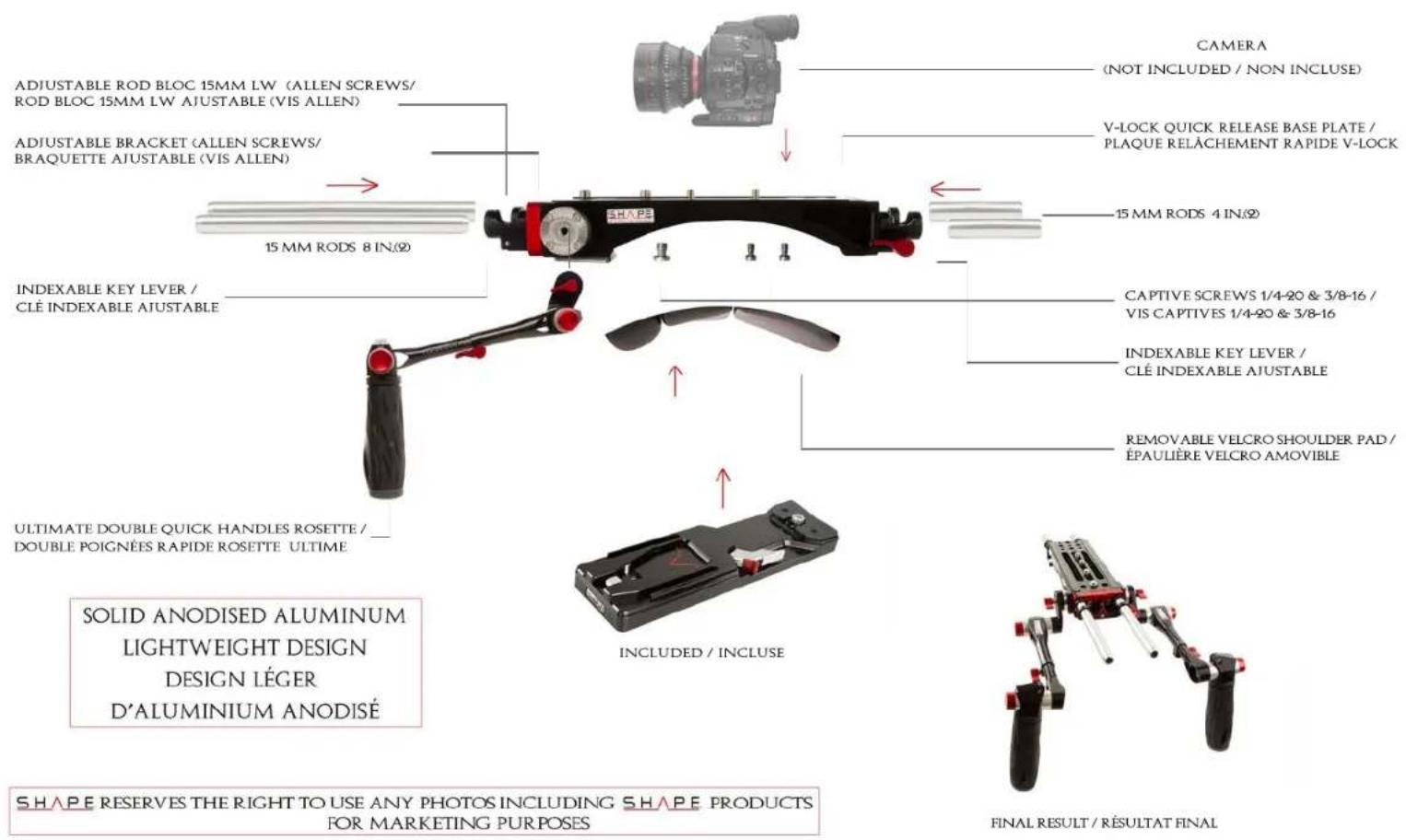

ASSEMBLY PLAN / PLAN D'ASSEMBLAGE

8000 V-LOCK QUICK RELEASE BASE PLATE (BP8000)

SHAPE

MADE IN CANADA

CAMERA (NOT INCLUDED / NON INCLUSE) ADJUSTABLE ROD BLOC 15MM LW (ALLEN SCREWS/ ROD BLOC 15MM LW AJUSTABLE (VIS ALLEN) ADJUSTABLE BRACKET (ALLEN SCREWS/ BRAQUETTE AJUSTABLE (VIS ALLEN) 15 MM RODS 8 IN.(2) INDEXABLE KEY LEVER / CLÉ INDEXABLE AJUSTABLE CAPTIVE SCREWS 1/4-20 & 3/8-16 / VIS CAPTIVES 1/4-20 & 3/8-16 INDEXABLE KEY LEVER / CLÉ INDEXABLE AJUSTABLE REMovable VELCRO SHOULDER PAD / ÉPAULIÈRE VELCRO AMOVIBLE ULTIMATE DOUBLE QUICK HANDLES ROSETTE / DOUBLE POIGNÉES RAPIDE ROSETTE ULTIME INCLUDED / INCLUSE FINAL RESULT / RÉSULTAT FINAL SOLID ANODISED ALUMINUM LIGHTWEIGHT DESIGN DESIGN LÉGER D'ALUMINIUM ANODISÉ SHAPE RESERVES THE RIGHT TO USE ANY PHOTOS INCLUDING SHAPE PRODUCTS FOR MARKETING PURPOSES

ASSEMBLY PLAN / PLAN D'ASSEMBLAGE

8000 V-LOCK QUICK RELEASE BASE PLATE (BP8000)

SHAPE

MADE IN CANADA

ADJUSTABLE FEATURES

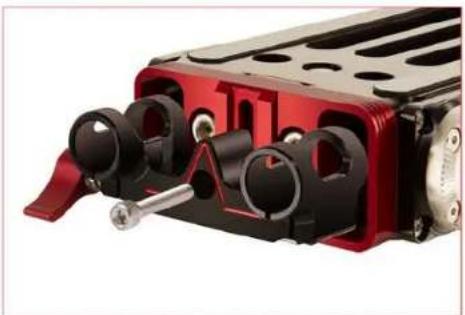

INTERCHANGEABLE ROD BLOCK (15MM LW, 15MM STUDIO, 19MM)
Shape BP8000 - ADJUSTABLE FEATURES - 1

natural_image Close-up of a red and black mechanical device with multiple ports and mounting holes (no visible text or symbols)

ROD BLOC INTERCHANGEABLE (15MM LW, 15MM STUDIO, 19MM)

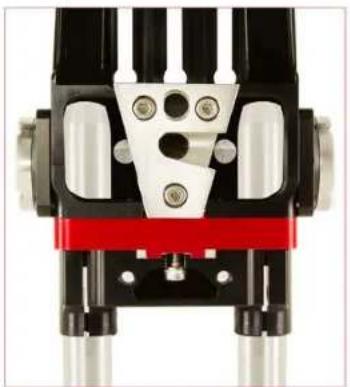

FRONTAL V-MOUNT TO ATTACH IN QUICK RELEASE PLATE LOCK
Shape BP8000 - ADJUSTABLE FEATURES - 2

natural_image Close-up of a mechanical device with black and white components, no visible text or symbols

V-MOUNT FRONTAL POUR ATTACHER DANS LA PARTIE AVANT DE LA PLAQUE

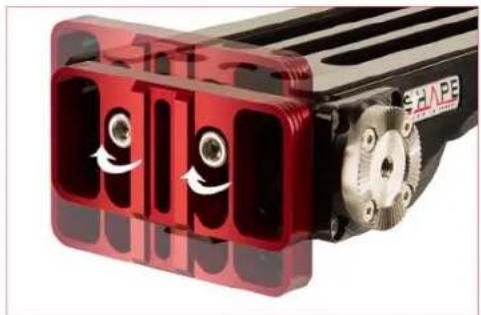

AJUSTABLE FRONT BRACKET WITH ALLAN SCREWS
Shape BP8000 - ADJUSTABLE FEATURES - 3

natural_image Close-up of a red mechanical component with gear and circular ports, no visible text or symbols

BRAQUETTE FRONTALE AJUSTABLE AVEC VIS ALLAN

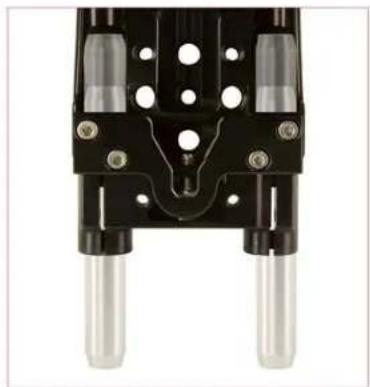

REAR LATCH TO ATTACH IN QUICK RELEASE PLATE BACK PIN
Shape BP8000 - ADJUSTABLE FEATURES - 4

natural_image Close-up of a mechanical component with two vertical cylindrical pins and mounting holes (no text or symbols visible)

LOQUET ARRIÈRE POUR ATTACHER SUR LA VIS ARRIÈRE DE LA PLAQUE

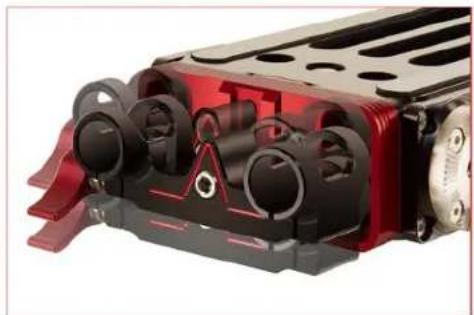

AJUSTABLE 15 MM LIGHTWEIGHT BRACKET WITH ALLAN KEY (1/4-20)
Shape BP8000 - ADJUSTABLE FEATURES - 5

natural_image Close-up of a red and black mechanical device with multiple ports and mounting holes (no visible text or symbols)

BRAQUETTE 15MM LÉGER AVEC CLÉ ALLAN (1/4-20)

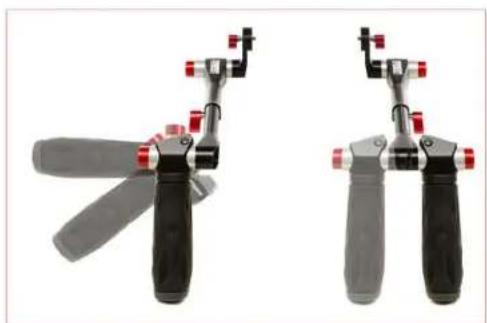

MULTIPLE POSITIONS FOR THE DOUBLE QUICK HANDLES ROSETTE (HAND12)
Shape BP8000 - ADJUSTABLE FEATURES - 6

natural_image Two identical mechanical tool holders with black and gray handles, no visible text or symbols.

POSITIONS VARIABLES POUR LES POIGNÉES DOUBLE ROSETTE (HAND12)

ASSEMBLY PLAN / PLAN D'ASSEMBLAGE

8000 V-LOCK QUICK RELEASE BASEPLATE (BP8000)

SHAPE MADE IN CANADA

SETUP SOLUTIONS

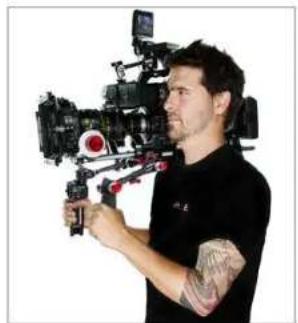

CANON C300
Shape BP8000 - ASSEMBLY PLAN / PLAN D'ASSEMBLAGE - 1

natural_image Man holding a professional video camera with multiple cameras and a red laser beam (no visible text or symbols)

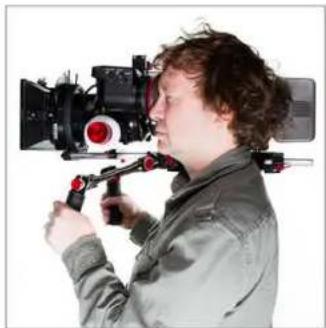

SONY F5/F55
Shape BP8000 - ASSEMBLY PLAN / PLAN D'ASSEMBLAGE - 2

natural_image Person using a professional video camera setup with lens and frame (no visible text or symbols)

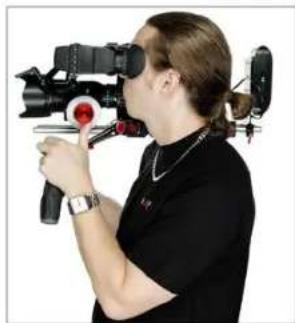

SONY FS700
Shape BP8000 - ASSEMBLY PLAN / PLAN D'ASSEMBLAGE - 3

natural_image Woman using a professional video camera with head-mounted lens (no visible text or symbols)

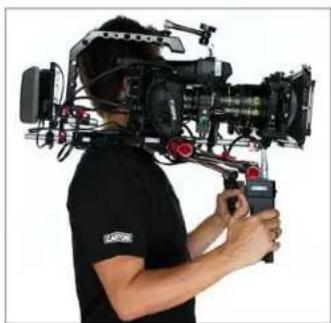

Shape BP8000 - ASSEMBLY PLAN / PLAN D'ASSEMBLAGE - 4

natural_image Person operating a large video camera with attached electronic equipment (no visible text or symbols)

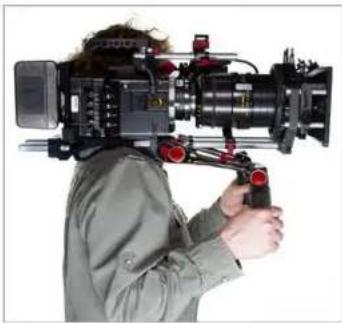

Shape BP8000 - ASSEMBLY PLAN / PLAN D'ASSEMBLAGE - 5

natural_image Person operating a professional video camera with extended lens and control lever (no visible text or symbols)

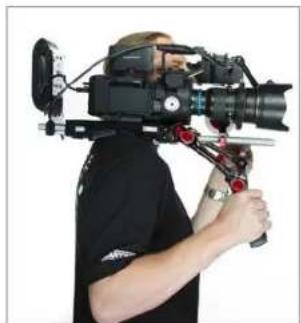

Shape BP8000 - ASSEMBLY PLAN / PLAN D'ASSEMBLAGE - 6

natural_image Person holding a professional video camera with mounted lens and tripod (no visible text or symbols)

NOTE: THESE ARE SUGGESTED SETUP SOLUTIONS WITH ADDED ACCESSORIES, FOR MORE INFORMATION, PLEASE CONSULT OUR WEBSITE OR CONTACT US FOR TECHNICAL SUPPORT.

WHAT'S IN THE BOX

SHAPE MADE IN CANADA

8000 V-LOCK QUICK RELEASE BASE PLATE BP8000

A B A

A - CLÉS RATCHET

B - VIS CAPTIVES (1/4-20 & 3/8-16) SKU | BP0008 (X1)

Shape BP8000 - V-LOCK QUICK RELEASE BASE PLATE BP8000 - 2

SKU | BP0050 (X1)

Shape BP8000 - V-LOCK QUICK RELEASE BASE PLATE BP8000 - 3

natural_image Two identical mechanical clamp holders with black handles and red connectors, shown from different angles (no text or symbols visible)

SKU | HAND12 (X2)

Shape BP8000 - V-LOCK QUICK RELEASE BASE PLATE BP8000 - 4

SKU | 15TUBE8 (X2)

Shape BP8000 - V-LOCK QUICK RELEASE BASE PLATE BP8000 - 5

SKU | 15TUBE4 (X2)

Shape BP8000 - V-LOCK QUICK RELEASE BASE PLATE BP8000 - 6

natural_image Black electronic device with red indicator lights and a small black component (no visible text or symbols)

SKU | VCTSH (X1)

SKU | BP8000
Shape BP8000 - V-LOCK QUICK RELEASE BASE PLATE BP8000 - 7

natural_image Mechanical tripod device with black frame and red handle (no visible text or symbols)
