INSTALLATION INSTRUCTIONS
SSB-143, SSM-143, SLB-143 and SLM-143 Interface Brackets
SSB-143, SSM-143, SLB-143 and SLM-143 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
(1) Interface Bracket (3) Screw, Phillips Flat Head, Machine, M4 x 20mm ****
(4) 10-24 Thumb Nuts ** (3) 1/2" x .194" x 1/2" Round Spacer ****
(1) All-Points Security Kit
SLB-143 SLM-143

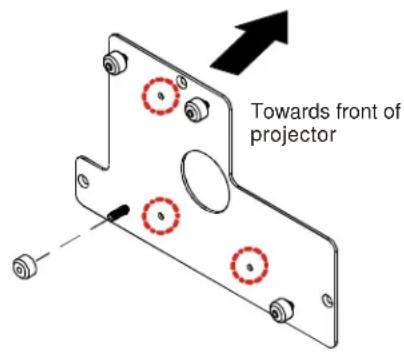

(Note: SSB-style interface bracket connections are encircled)

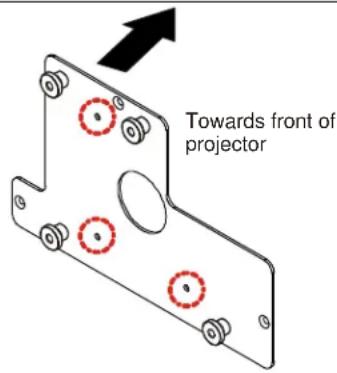

(Note: SSM-style interface bracket connections are encircled)
**Only used when installing SLB/SSB interface brackets. ****Used when mounting surface of projector is recessed.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface bracket.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
- Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
- Turn projector upside down on a flat surface.
- Place the 1/2" nylon spacers over the threaded inserts in the bottom of the projector.
- Place the interface bracket onto the nylon spacers on the bottom of the projector and align the mounting holes in the bracket with the nylon spacers.
- Using the M4 x 20mm screws, position screws into the threaded inserts. Tighten all fasteners at this time, securing the bracket to the projector.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the All-Points Security Kit.
