INSTALLATION INSTRUCTIONS
SSB-059, SSM-059, SLB-059 and SLM-059 Interface Brackets
SSB-059, SSM-059, SLB-059 and SLM-059 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions provided with the mount for additional installation information. Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
(1) Interface Bracket (3) Screw, Phillips Pan Head, Machine, M4 x 20mm ****
(4) 10-24 Thumb Nuts ** (3) Washer, Flat, M4
(1) All-Points Security Kit (3) 1/2" x .194 x 3/8" Nylon Spacers ****

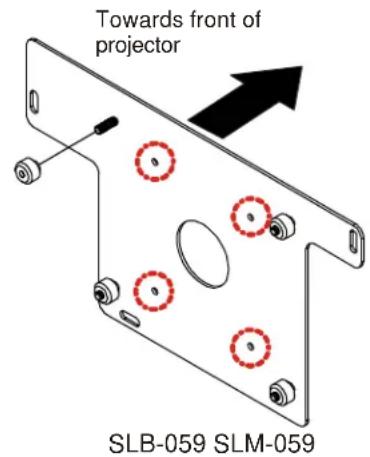

(Note: SSB-style interface bracket connections are encircled)

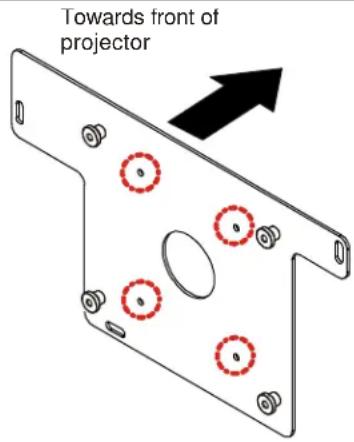

(Note: SSM-style interface bracket connections are encircled)
**Only used when installing SLB/SSB interface brackets. ****Used when mounting surface of projector is recessed.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing Interface bracket.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
- Screw thumb screws onto the 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
- Turn projector upside down on a flat surface.
- Place 3/8" spacers over threaded inserts on bottom of projector.
- Place Interface bracket onto projector bottom and align mounting holes in bracket with threaded inserts in projector.
- Using M4 x 20mm Phillips pan head screws and flat washers, secure interface bracket to projector and tighten all fasteners at this time.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the All-Points Security Kit.
