KASUTUSJUHEND SSB470 Chief
INSTALLATION INSTRUCTIONS
SSB-180, SSM-180, SLB-180 and SLM-180 Interface Brackets
SSB-180, SSM-180, SLB-180 and SLM-180 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
(1) Interface Bracket (3) M4 Flat washer
(3) 10 - 24 Thumb Nuts** (1) M4 -6mm Phillips Pan Screws
(1) All-Points Security Kit (2) M4 -8mm Phillips Pan Screws

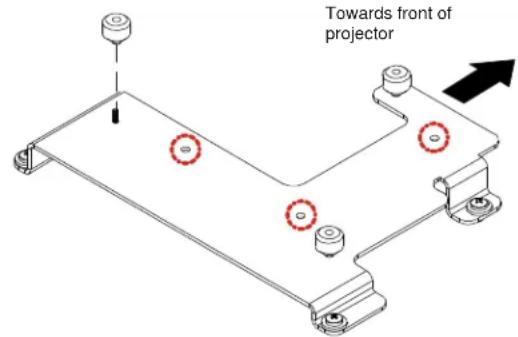

SLB-180
(Note: SSB-style interface bracket connections are encircled)


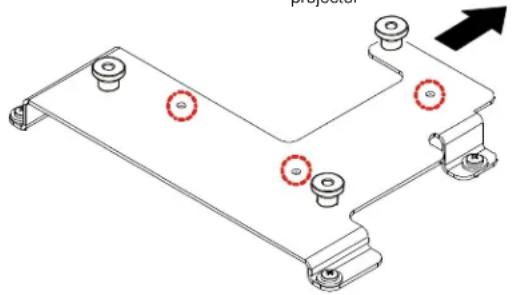

Technical line drawing of a mechanical bracket with mounting holes and a directional arrow (no text or symbols)SLM-180
(Note: SSM-style interface bracket connections are encircled)
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface bracket.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
- Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
- Turn projector upside down.
- Remove the two rear feet of the projector.
- Place the interface bracket onto the bottom of the projector and align the three mounting holes in the bracket with the three thread inserts in the bottom of the projector.
- Using M4 x 6mm and M4 x 8mm screws with M4 flat washers, secure interface bracket to projector and tighten all fasteners at this time.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the All-Points Security Kit.
