Product Type	Sports Watch / Fitness Tracker
Model	PHRM28
Brand	Pyle
Display Type	LCD Digital Display
Dimensions	Approx. 4.5 x 2.0 x 1.0 inches (stainless steel case)
Weight	Approx. 50 g (with band)
Band Material	Silicone / Rubber (adjustable)
Water Resistance	IP67 (splash proof, not for swimming)
Power Source	Built-in rechargeable lithium-ion battery
Charging Method	USB charging cable (included)
Battery Life	Up to 7 days on a full charge (typical use)
Sensors	Heart rate monitor, 3-axis accelerometer
Main Functions	Heart rate tracking, step counter, distance tracking, calorie burn, sleep monitor, stopwatch, alarm clock, date/time display
Connectivity	Bluetooth 4.0+ (for sync with smartphone app)
Compatible OS	iOS 9.0+ / Android 5.0+
App Support	Pyle Fit Pro (or similar) for data sync and analysis
Cleaning & Care	Wipe with a soft, dry cloth. Avoid harsh chemicals. Remove band for cleaning.
Safety	Not a medical device. Consult physician before exercise. Do not use in sauna or hot shower.
Spare Parts & Repairability	Replacement bands available; battery not user-replaceable. Contact Pyle support for service.
General Information	Ideal for daily fitness tracking; lightweight and comfortable for all-day wear.

Frequently Asked Questions - PHRM28 Pyle

How do I pair the PHRM28 with my smartphone?

Download the Pyle Fit Pro app from the App Store or Google Play. Enable Bluetooth on your phone, open the app, and follow the on-screen instructions to pair your watch. Ensure the watch is charged and near your phone.

Is the PHRM28 waterproof?

The watch has an IP67 rating, meaning it is splash proof and can withstand brief immersion in water up to 1 meter for 30 minutes. However, it is not suitable for swimming or showering with hot water.

How do I charge the watch?

Connect the included USB charging cable to the charging port on the back of the watch. Plug the USB end into a computer or USB wall adapter. A full charge takes about 2 hours.

How accurate is the heart rate monitor?

The heart rate sensor uses optical technology. For best accuracy, wear the watch snugly above your wrist bone and avoid excessive movement. It is not a medical device and may vary from professional equipment.

Can I replace the battery?

The battery is built-in and not user-replaceable. If the battery no longer holds a charge, contact Pyle customer support for repair options.

How do I reset the watch?

To perform a factory reset, go to the settings menu on the watch (if available) or press and hold the button for 10 seconds until the screen turns off and on again. Check the manual for specific instructions.

Does it track sleep automatically?

Yes, the watch automatically detects sleep when you wear it to bed. It tracks total sleep time, light sleep, deep sleep, and wake periods. Sync with the app to view detailed data.

What do the icons on the screen mean?

Common icons include a heart (heart rate), person (step count), moon (sleep mode), stopwatch (timer), and bell (alarm). Refer to the user manual for a full list.

How do I set the time and date?

The watch automatically syncs time and date with your smartphone after pairing. Alternatively, you can manually set them via the watch settings menu using the button.

The watch won't turn on. What should I do?

Make sure the watch is charged. Connect it to the charger and wait a few minutes. If still not responding, try a reset (press and hold button for 10 seconds). If issues persist, contact Pyle support.

USER MANUAL PHRM28 Pyle

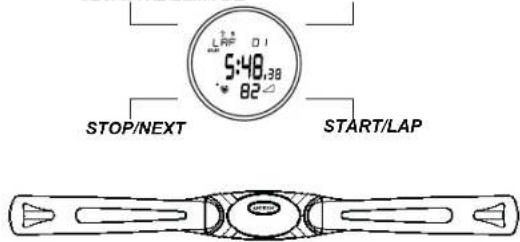

KEYS AND THEIR FUNCTIONS

SET/SAVE/ELMODE

HEART RATE BELT

Operated by 4 keys.

SET/SAVE/EL

STOP/NEXT

MODE

START/LAP

Thank you for choosing the Pulse Sonic – Heart Rate monitor Watch as your personal trainer. In order to be able to make the best use of this device, please read the instruction manual carefully. Do not discard keep the manual for future reference Wear the Heart Rate Belt on your chest with the sensor over your heart for detection of the heart rate.

You will notice that there are two noticeably different patches on the inside of the Heart Rate Belt. These are the sensors for detecting your Heart Rate. Before you put the Heart Rate Belt, wet these two patches lightly so that the sensors can detect your heart rate more easily, faster and more accurately.

Important: Please note that the Heart Rate Monitor is NOT a medical device and is not to be used as such.

FEATURES

Time Function

Daily Alarm Function

Energy Saving Function

■Chronograph & Timer Function

■User Setting and Zone Setting.

■Data Function

■Auto Return Function

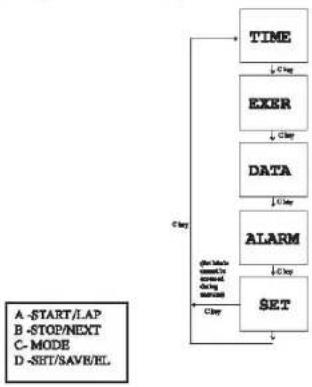

MODE FLOW CHART

Press the MODE key to change between the following modes.

A. TIME MODE

-Date-Time display: Day of week, Day, Hour, Minute, Second.

(No Heart rate pulse is detected)

(Heart rate pulse is detected)

- shows the instantaneous heart rate.

-Press STOP/NEXT to start heart rate measurement.

-Press and hold SET/SAVE/EL until the hour digits flash to enter the Time Setting mode.

-Press START/LAP to increment the setting item.

-Press STOP/NEXT to decrement the setting item. -Press MODE to select the setting item in the following sequence:

Hour → Minute → Second → Month → Day → Year → 12/24 Hr

-Press SET/SAVE/EL to exit the Real Time setting.

B. EXERCISE MODE

1. Initial Display:

Count Up Timer (Chronograph)

Count Down Timer

- Press START/LAP key to start counting. If the Chronograph is selected and is running, press START/LAP key to take up. - Press STOP/NEXT key to stop counting. Press and hold STOP/NEXT key will enable/disable the zone alarm beep and icon. - Press MODE key any time can exit the Exercise mode to the Data Mode. - Press and hold SET/SAVE/EL key to Save or Clear the displayed EXERCISE if it is in stop state. - If the Exercise mode is in reset state, press and hold SET/SAVE/EL key to enter exercise setting mode. - Different type of exercise can be selected: - AEROBIC, EX BIKE, STEPPER, TREADM., JOG, WALK, BIKE, OTHER. - Press and hold SET/SAVE/EL for 2 second change the exercise type by pressing START/LAP or STOP/NEXT Press MODE accordingly to confirm exercise type, count up and count down timer and high / low zone Press SET/SAVE/EL to confirm the data and finally press START/LAP to start the exercise - Target zone selection. - Press START/LAP or STOP/NEXT to select zone - Press MODE to choose Count Up / Count Down timer to record exercise. - Count Up (Chronograph) or Count Down timer can be selected. Count Down Timer time can be set up to 24 hours (if the time is set to 9:00'00). Count Up (Chronograph) counts up to 24:00'00 and stops automatic

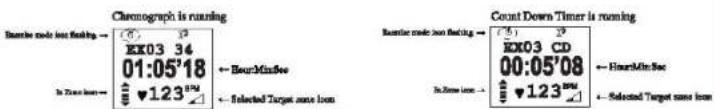

1. Chronograph/Count Down Timer

-Record exercise time in Hour, Minute, Second, average / maximum / minimum / ending heart rate, Below/In/Above zonetime and percentage, calorie and fat consumption.

-Selected Target zone icon: User can select among 3 target zones to check the instantaneous heart rate is in the target zone or not.

If low / mid / hi target zone is selected and zone alarm is enabled, zone alarm beep will be given if instantaneous heart rate is out of

-In zone icon: Only displayed if low / mid/ hi target zone is selected. It shows the instantaneous heart rate is in the target zone or not.

-The Below/In/Above zonetime and percentage will be recorded to reflect the efficiency of training.

-In case no heart rate pulse is detected (for a time out of about 10 seconds after the last heart pulse), the heart rate reading will show "—"

-In case no heart rate pulse is detected (for a time out of about 60 seconds after the last heart pulse), the heart rate reading will be blank. No in zone icon will be shown. User needs to press SET/SAVE/EL key to turn on the receiver to start heart rate

measurement again.

- During the exercise running, heart rate is kept on measuring. If heart rate is out of the target zone, zone alarm beep will be given out. Zone alarm beep:

Above zone alarm: beep .. beep .. beep (every 4 seconds)

Below zone alarm: been — (every 4 seconds).

-During the exercise running, the display will cycle exercise time, average heart rate, calorie and fat consumption. Average heart rate will only be shown if heart rate pulse is measured. Calorie and fat consumption will only be shown if calorie measurement is selected to be on.

-The In Zone icon will flash the corresponding point to indicate the heart rate is in or out zone. If either the or is flashing user should adjust his exercise intensity to let the heart rate fall back to the range.

-Taking Laps:

-If Chronograph is running, press START/LAP key to take lap. The display will freeze to show the split time for 5 seconds.

-Manual Step

-Press STOP/NEXT Key when the exercise is running to stop. Press START/LAP key in stop state can start again. Even the exercise has stopped, the display will cycle the exercise time, average heart rate, calorie and fat consumption in sequence.

-Enable/Disable of Zone alarm:

-Press and hold STOP/NEXT key will toggle the zone alarm beep and icon.

-Store Up / Reset a Exercise:

-Press and hold SET/SAVE/EL key until beep when the exercise is in stop state to close the current EXERCISE and start a new exercise. User can select to save or clear (not save).

-Counting finish

-If Count Down timer time counts to 0:00'00, 5 seconds beep will sound. The timer cannot start again. Press START/LAP key

will display "FINISH!"

-If Count Up (Chronograph) counts to 24:00'00, it will stop automatically and cannot start again. Press START/LAP key will

display "FINISH".

-Data Memory full

Maximum 40 Exercise data records can be stored. Press and hold the SET/SAVE/EL key if the 41st records is stop, only "CLEAR?"

can be selected.

C. DATA MODE

Reviews the records taken in Exercise mode. Max. 40 exercise records can be stored.

For Total Data

-Go to MODE and choose Data as to show the total data.

-Press START/LAP to show the data total calorie and total fat.

-Hold SET/SAVE/EL to clear the total data for 2 second data is cleared to zero.

-Skip Above Zone / In Zone / Below Zone / Zone Limit display if "no zone" is selected.

-Press and hold SET/SAVE/EL key to erase the displaying exercise (only under EX-## is displaying). Only a closed exercise can

be erased. Keep on pressing SET/SAVE/EL key to erase all the data records.

-Press and hold SET/SAVE/EL key when displaying total time or calorie/fat to erase the total.

-Press MODE key to exit DATA mode to enter Daily Alarm mode.

D. DAILY ALARM MODE

-Press START/LAP key to enable/disable the daily alarm.

-Press STOP/NEXT key to select chime and key tone function.

-Alarm beeps output for 30s or stopped by any key pressing when alarm time reached.

-Hourly chime will be given if chime is enabled.

-Display:

-Setting Daily Alarm time:

Press and hold SET/SAVE/EL key D to enter Daily Alarm Setting. Press START/LAP key to increment to item.

Press STOP/NEXT key to decrement the item. Press MODE key to select different setting item in the following sequence:

Press SET/SAVE/EL key to confirm the setting.

E. USER SETTING MODE

1 Zone Setting

-Zone 1 (low) default: 50\~60% of MHR.

-Zone 2 (mid) default: 60\~70% of MHR

-Zone 3 (high) default: 70-85% of MHR.

Press A/B Key to

increment/decrement of

the zone digit

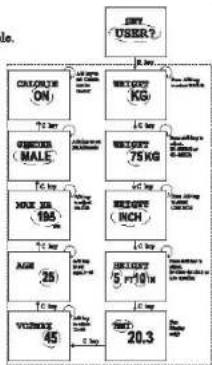

2.User Setting (Personal Data)

-Body weight unit selection (KG/LB selectable).

-Body weight setting (20-200KG, 40-400LB).

-Body height unit selection (cm/ft-in selectable).

-Body height setting (100\~250cm, 3ft 0in \~ 8ft 0in).

-BMI. Body mass index for display only.

-V02max strina (10\~95)

-MHR (default): 220 - age = MHR

-Age setting (5\~99).

-Male/Female selection.

-Calorie / Fat burnt calculation on/off selectable.

A -START/LAP
B -STOP/NEXT
C-MODE
D-SET/SAVE/EL

F. AUTO RETURN FUNCTION

In any setting mode, if no keys are pressed in 3 to 4 minutes, it will return to the previous mode before setting.

Q. ENERGY SAVE FUNCTION - DISPLAY OFF

-If the chronograph / timer is in stop state, in any non-setting mode, press and hold Key MODE key for 3 seconds will enter Display Off mode. Press MODE key to turn on display and enter Time mode.

H. ENERGY SAVE FUNCTION - AUTO DISPLAY OFF

-If the chronograph / timer is in stop state, in any non setting mode, the time reaches 12:00am will enter Display Off mode. Press MODE key to turn on display and enter Time mode.

I. RESET THE WATCH

-Press and hold 4 keys simultaneously for about 6 seconds will reset the unit.

J. SPECIFICATION

- Operation Mode :Time Mode, Exercise Mode, Data Mode, Communication Mode, Daily Alarm Mode, User Setting Mode

• Real Time Clock :De of week Da , Hour, Minute & Second display
• Chronograph :Max 24:00:00
• Countdown Timer :To 23:59:59
• Weight :40lb - 400lb
  20kg-200kg
  -Height :100cm-250cm
  3ft0in-8ft0in
  -VO2MAX :10-95
  -Age :5-99
  -Sex :Male / Female
  -Pulse Range :40-220 BPM
  -Zone Range :30-220 RPM

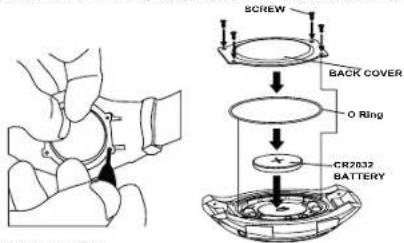

K. INSTALLING THE BATTERY

The Heart Rate Monitor uses 2 x lithium batteries. Use only the recommended batteries.

Heart Rate Watch

1. The battery compartments located at the back of the watch.
2. To install/replace the battery, unscrew the battery compartment with the screw driver
   and simply slide out afterwards.
3. Take out the old battery and dispose of properly.
4. Gently place a new battery into the battery slot of the battery compartment, making
   sure that the poles are correctly placed.
5. Screw back the battery compartment, when finished as in the diagram below

Heart Rate Belt

1. Hold the Heart Rate Belt firmly. Insert a coin into the slit of the compartment lid and turn it clockwise. The lid should come off easily.
   (Remove used battery CR2032)(Diagram 2)
2. Gently place the battery into the battery slot of the battery compartment.(Diagram 3)
3. Put the compartment lid back into place and tighten it firmly by turning it
   anti-clockwise with the help of coin.

Diagram 2

Diagram 3

IMPORTANT BATTERY INFORMATION

●Battery installation and removal should be performed by an adult

● Use only batteries recommended in this instruction sheet

- Be sure to install the batteries with the correct polarity, as indicated

- Remove all batteries when replacing

● Only batteries of the same and equivalent type as recommended are to be used

● Do not short-circuit the supply terminals

●Exhausted batteries should be removed from the product

● Non-rechargeable batteries are not to be recharged

●Rechargeable batteries are to be removed from the product before being charged

●Rechargeable batteries are only to be charged under adult supervision.

● Different types of batteries or new and used batteries are not to be mixed.

Noted:

It allows few seconds for changing battery; however data will be lost and need to reset the data. CAUTION

Should you encounter any problems with the Pulse Sonic (e.g. malfunctioning of a parameter, static electricity, interferences within the product or the need to re-set the device), please reset the watch. All data previously input into the device would be deleted and you can then/will need to re-set the Pulse Sonic all over again. If the Pulse sonic should on the rare occasion fail to function, press and hold the "Set" button in order to clear all data, after which you can input all necessary data again. Should this fail to correct the situation, remove the batteries and then put them back into the battery compartment. Turn on the device by pressing the "Mode" button, and then follow all the steps mentioned above in order to input the necessary data once more. The content of this manual is subject to change without further notice. Due to printing limitation, the displays shown in this manual may differ from the actual display. The manufacturer and its suppliers hold no responsibility to you or any other person for any damage expenses, lost-profits, or any other claim arose by using this product. The contents of this manual may not be reproduced without permission of the manufacturer.
