USER MANUAL H-CSK502 HYUNDAI

Two Hyundai speakers with yellow acoustic foam covers, one black and one white (no text or symbols visible)

Two glossy spheres with reflections, no text or symbols present

13 cm 2-WAY COAXIAL ACOUSTIC SYSTEM

13 см 2-Х ПОЛОСНАЯ

КОАКСИАЛЬНАЯ

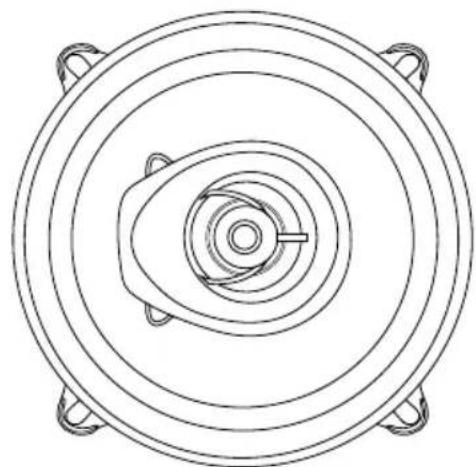

Dimensions Accessories

Technical drawing of a circular mechanical component with concentric rings and mounting flanges, dimension标注 135 (no text or symbols beyond measurement)

Top-down line drawing of a circular mechanical component with concentric rings and mounting feet (no text or symbols)

Speaker (2 pcs), Metal grill (2 pcs)

Illustration of a cord tied with a screw and a separate screw (no text or symbols)

Speaker wire (2 m x 2 pcs) Screw (8 pcs)

Simple line drawing of a folded paper or sheet with a central hole (no text or symbols)

Clip (8 pcs)

Important safeguards

• The instruction manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual.
• Do not install the speakers where they may be subjected to excessive heat moisture,

dust or where they will be kicked repeatedly, brushed or bumped.

• Before mounting and connecting the wires be sure that wire of the negative pole terminal is disconnected from accumulator. Non-observance of this demand may cause a short circuit or fire.
  • To prevent short circuit never put or leave

any metal objects (e.g. coins or metal tools) inside the acoustic system.

- Make absolutely sure that the terminals for the speakers are connected to the proper outputs from the music source.

- Never run the wiring on the outside of the vehicle or under it where it can be damaged by road hazards or the moving parts of the vehicle. Use existing wire channels, sills, panels and molding strips inside the vehicle to hide the wiring for safety and a neat appliance.

- Make sure the wire of the negative pole terminal is disconnected from accumulator while connecting the speaker terminals. Turn on the various components and slowly advance the volume. Remember to check and recheck all connections to insure proper installation and use.

• Do not continuously use the speaker system beyond the nominal power handling capacity.
• Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.
• If you cannot find the appropriate mounting location, consult your car dealer or your nearest dealer before mounting.

Take extreme caution when working near the gas tank, gas lines, brake or hydraulic lines and electrical wiring.

Mounting the speakers

Installation kits are available from your dealer or local stereo shop to help make your installation easy. These kits also give your installation a clean, custom appearance. Questions about installations methods please consult a professional auto sound dealer/installer for assistance.

- Choose the place of installation for acoustic system. For most acoustic system stipulated regular places in the automobile approach. In this case you need to know only assembly depth. Before installation acoustic system check up their assembly depth.

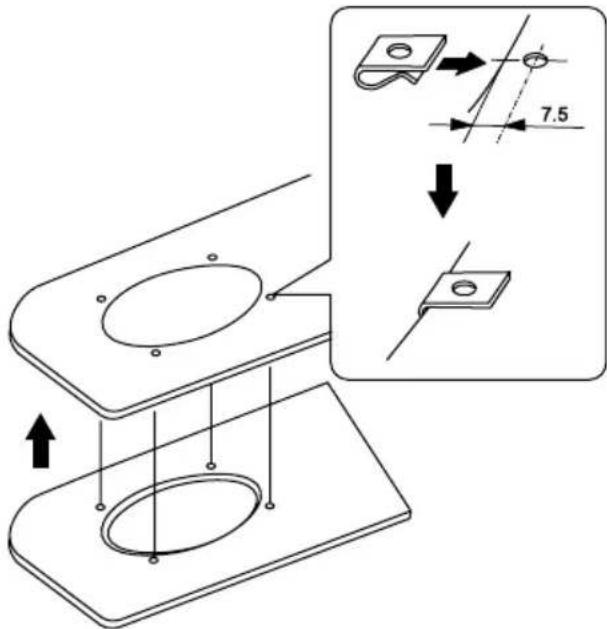

- When chosen a non-standard arrangement of speakers making necessary to cut them into panels of the automobile, use a mould (not included). For a prefect arrangement of the acoustic system keep up geometry of a mould, as it is very important for correct installation of your system (A=B=114 mm, ∅C=5 mm).

- If it is necessary to cut steel, reinstall the cosmetic panel in place and use the hole you have previously cut as a template. This will help to insure proper cutting and a good

Instruction manual

fit. Now, mark the locations for the speakers mounting screws, remove the panel and drill the screw holes. When finished you may replace the panel.

• After cutting and drilling all holes, inspect the mounting areas for any metal burrs or rough edges. File any area that may interfere with the mounting of the speaker.

- Clean any metal shavings from the mounting area and check for areas in which water may enter the speaker cavity. Treat the area for water protection when necessary.

Securing the speakers

• Position the speaker into the mounting hole and reconfirm the correct mounting location and hole placement.
• Screw clips are provided to ensure a snug fit. These should be placed over the metal surface and line up the hole you have previously drilled with the screw clip. Place the speaker into the hole, align the holes and proceed to insert the screws. Be sure to tighten the screws evenly so that it will not warp the speaker frame.

• Turn your system back on and confirm the speakers operation first at a low volume and then you may increase the volume as you desire.
  • After installation acoustic system and having tested it the speaker grill will have to be inserted. Turn on you system and follow these steps carefully:

• locate the speaker grill;

• now carefully inspect the place where the speaker grill will be mounted – there should be no blowholes;
• fix the speaker grill by screws.

Troubleshooting guide

Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair.

Symptom	Possible cause Solution
No sound	The volume control regulator set in the minimal position	Adjust sound level
	Bad power connections Check to see that	all the power and speaker leads are securely connected
	The audio cassette receiver is damaged	Take your unit to the local dealer for repair
Unnatural sound	Acoustic system cables are connected without observance of polarity (+ or -)	Check to see that all the power and speaker leads are securely connected
	Damaged speaker wire or speaker Replace the speaker or speaker wires
	The audio cassette receiver is damaged	Take your unit to the local dealer for repair

Good ground connections eliminate most electrical noise problems and require tight contact with the metal vehicle chassis.

Specification

Loudspeaker cone woofer: 13 cm (5")	carbon compound kevlar woven midrange: 3 cm (1.2") TI-plated mylar
Magnet 13 Oz
Peak output power 140 W
Rated output power 70 W
Impedance 4 Ohm
Sensitivity 91 dB
Frequency response 60 – 20000 Hz
Dimensions 160 x 83 mm
Net/Gross weight 1.6 kg/1.7 kg
Gift box dimension (L x H x W) 308 mm x 173 mm x 96 mm

Technical drawing of a circular mechanical component with concentric rings and mounting flanges, dimension标注 135 (no text or symbols beyond measurement)

ВКИ

Top-down schematic of a circular fan or speaker with concentric rings and mounting feet (no text or symbols)

Simple line drawings of a bundle of cable and a single screw (no text or symbols)

Simple line drawing of a folded or layered object with a central hole (no text or symbols)

Хомут (8 шт)
