Product Type	Portable Top-Load Washing Machine
Brand	Avanti
Model	W892F
Dimensions (W x D x H)	19.5 x 18 x 33 inches
Weight	88 lbs
Capacity	2.0 cu ft
Power Supply	120 V, 60 Hz, 10 A
Energy Consumption	0.5 kWh per cycle (estimated)
Water Consumption	15 gallons per cycle (estimated)
Spin Speed	1000 RPM (max)
Number of Programs	6 (Normal, Delicate, Heavy, Quick, Bulky, Rinse & Spin)
Key Features	Stainless steel drum, electronic controls, auto shut-off, lid lock, unbalanced load detection
Safety Features	Child lock, lid lock, water inlet valve safety, anti-siphon
Installation	Portable, attaches to kitchen or bathroom faucet, no permanent plumbing needed
Maintenance	Clean lint filter after each use, drain pump filter monthly, check leveling legs
Repair & Spare Parts	User manual included, replacement parts available via Avanti or authorized dealers
Warranty	1 year limited warranty (parts and labor)

Frequently Asked Questions - W892F Avanti

How do I install the Avanti W892F washing machine?

The W892F is a portable washing machine designed to connect to a kitchen or bathroom faucet. Simply attach the provided hose to the faucet using the quick-connect adapter, plug the power cord into a standard 120V outlet, and level the machine using the adjustable legs. No permanent plumbing is required.

What is the capacity of the W892F?

The Avanti W892F has a 2.0 cubic foot capacity, suitable for small loads such as delicates, single outfits, or small household items. It is ideal for apartments, dorms, or RVs.

How do I clean the lint filter?

The lint filter is located inside the wash drum. To clean it, unplug the unit, open the lid, locate the filter near the top of the drum, remove it, and rinse under running water. Reinstall securely before use.

Why is my washing machine not draining?

Common causes: clogged drain pump filter or kinked drain hose. First, check the drain hose for obstructions. If clear, clean the drain pump filter: locate the filter cover at the bottom front, open it, remove debris, and replace. Ensure the machine is unplugged before servicing.

Can I use regular detergent?

Yes, you can use high-efficiency (HE) detergent is recommended for optimal performance and to avoid oversudsing. Use about 1-2 teaspoons per load. Do not use regular detergent in excess as it may cause excessive foam.

How do I set the delay start timer?

The W892F features a delay start function. After selecting a cycle, press the Delay button to set a delay of up to 12 hours. The remaining time will display, and the machine will start automatically at the set time.

What should I do if the machine shakes excessively?

Excessive shaking usually indicates unbalanced load or uneven floor. Pause the cycle, redistribute the laundry evenly, and ensure the machine is level. Adjust the leveling legs if needed. Avoid washing bulky items like comforters alone.

Is the W892F energy efficient?

The W892F is designed for low energy consumption, estimated at 0.5 kWh per cycle. It uses less water than full-size machines, making it an eco-friendly choice for small loads.

How do I activate the child lock?

To activate the child lock, press and hold the ''Child Lock'' button for 3 seconds until the indicator light turns on. The lock prevents accidental button presses during operation. Repeat the process to deactivate.

Where can I find replacement parts?

Replacement parts for the Avanti W892F can be ordered through Avanti's official website or authorized service centers. Common parts like hoses, filters, belts, and control boards are available. Always quote the model number W892F when ordering.

USER MANUAL W892F Avanti

Line drawing of a front-loading washing machine with control panel and circular vent (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of the Mackle Co., Inc.

P.O. Box 520604- Miami, Florida 33152

www.avantiproducts.com

REGISTRATION INFORMATION

Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100 days of purchase and receive these important benefits to the following address:

Avanti Products, A Division of the Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152 USA

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name

Model #

Serial #

Address

Date Purchased

Store/Dealer Name

City

State

Zip

Area Code

Phone Number

Occupation

As Your Primary Residence, Do You:

Own

Rent

Did You Purchase An Additional Warranty:

Extended

None

Reason For Choosing This Avanti Product:

Please indicate the most important factors that influenced your decision to purchase this product.

Price
Product Features
Avanti Reputation
Product Quality
Salesperson Recommendation
Friend/Relative Recommendation
Warranty
= Other

Your Age:

under 18

18-25

26-30

31-35

36-50

over 50

Marital Status:

→ Married

Single

Is This Product Used In The:

Home

Business

How Did You Learn About This Product:

Advertising

In Store Demo

Personal Demo

Other

Comments

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new washing machine properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the washing machine.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your washing machine.

If you received a damaged washing machine, immediately contact the dealer (or builder) that sold you the washing machine.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your washing machine. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

TABLE OF CONTENTS

REGISTRATION INFORMATION 2

HELP US HELP YOU... 4

PARTS & FEATURES 6

IMPORTANT SAFETY INSTRUCTIONS 7

INSTALLATION INSTRUCTIONS 7

BEFORE USING YOUR APPLIANCE 7

SELECTING A LOCATION 8

ADJUSTING THE LEVELING LEGS 8

REMOVING THE SHIPPING BOLTS 8

CONNECTING THE WATER SUPPLY HOSE 8

WATER CONNECTION 9

POSITIONING THE DRAIN HOSE 10

ELECTRICAL CONNECTION 10

OPERATING YOUR APPLIANCE 11

CONTROL PANEL 11

PREPARATION 12

OPERATINGINSTRUCTIONS 13

DELAY START SETTING 14

WASHING TIPS AND HINTS 15

CARE AND MAINTENANCE 16

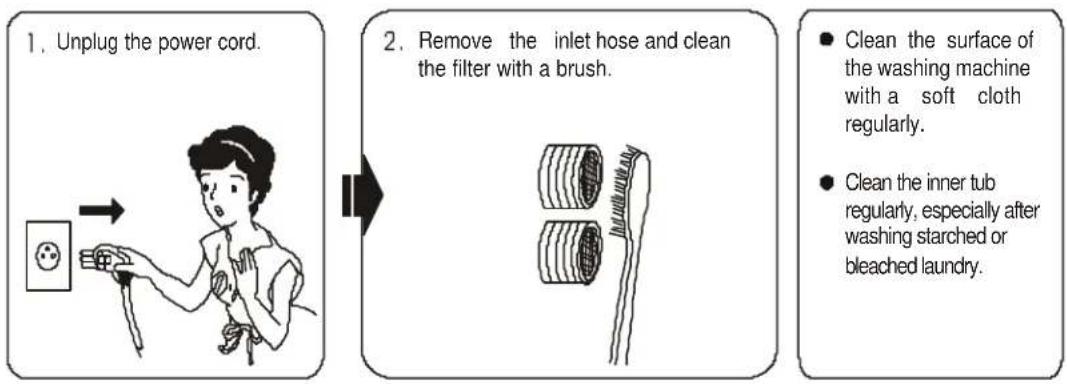

CLEANING YOUR APPLIANCE 16

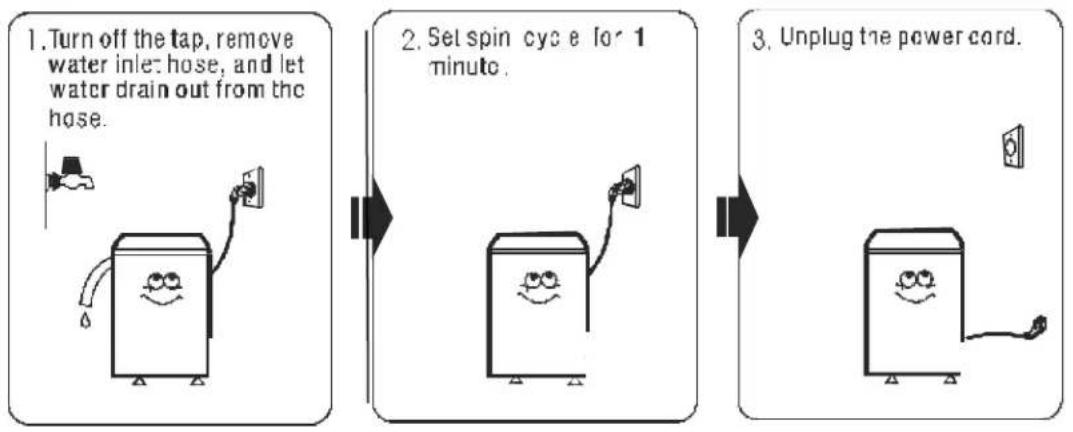

VACATION TIME 17

TROUBLESHOOTING GUIDE 17

SERVICE FOR YOUR APPLIANCE 18

YOUR AVANTI PRODUCTS WARRANTY 19

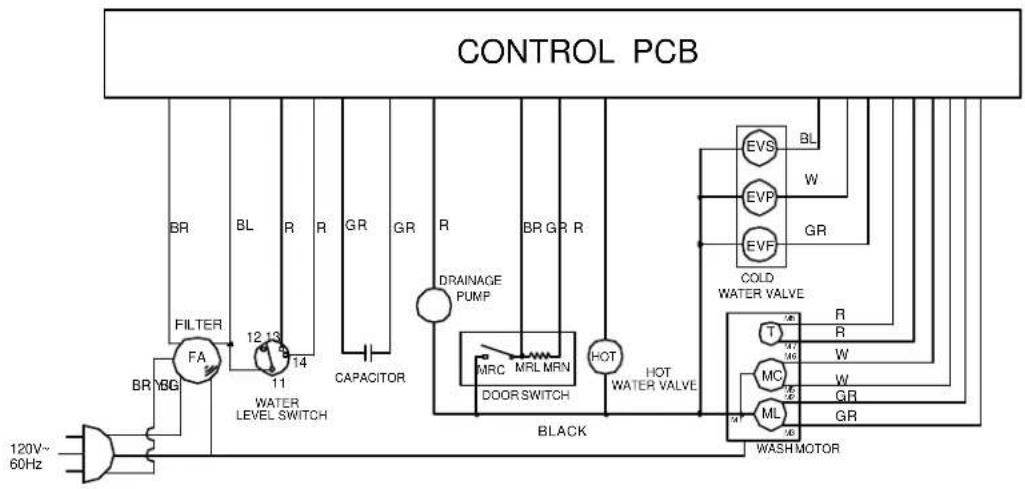

WIRING DIAGRAM 20

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your portable washer, follow these basic precautions:

? Read all instructions before using the appliance.
Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
? Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapours that could ignite or explode.
? Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
? DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days.”
? Before you throw away your old portable washer: Take off the lid.
? Never allow children to operate, play with, or crawl inside the portable washer. Close supervision of children is necessary when the washer is used near children.
? Do not reach into the washer if the agitator or tub is moving.
? Do not install or store this appliance where it will be exposed to the weather.
? Do not tamper with controls.
Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in the user -maintenance instructions or in published user -repair instructions that you understand and have the skills to carry out.
? Never clean portable washer parts with flammable fluids. The fumes can create a fire hazard or explosion.
Do not place the washer in steamy rooms or where the washer is directly exposed to rain. Moisture may destroy the electrical insulation causing an electrical shock hazard.
? Do not store, use gasoline, or any other flammable vapors and liquids in the vicinity of this or any other portable washer. The fumes can create a fire hazard or explosion.
? If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

-Save these instructions-

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR APPLIANCE

? Remove the exterior and interior packing.

? You will need the following tools:

? Wrench

? Pliers

? Phillips Head Screwdriver

? Check to be sure you have all of the following parts:

? 2 Inlet Hoses

? 2 Faucet Adapters

? 4 Plastic Covers

? 1 Instruction Manual

? Clean the interior surface with lukewarm water using a soft cloth.

? Allow 2 inches of space between the back and sides of the appliance.

? Put your laundry into the washer evenly. Uneven laundry may cause noise or vibration.
? Don't use excessively hot water (50°C or more). Plastic parts may be deformed or damaged. Also, clothing may be deformed or bleached.
? Before washing, check all pockets. If nails or pins remain in pockets, they may damage the washer or clothes.
? Never splash water on the control panel.
? Plug the washer into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.

SELECTING A LOCATION

Before you install the washing machine, select a location with the following characteristics:

? A hard level surface (if the surface is uneven, see Adjusting The Leveling Legs).
? Away from direct sunlight. Direct sunlight may affect the acrylic coating, plastic and electrical components.

? Adequate ventilation.

? Room temperature that will not fall below 0? .

? Away from sources of heat such as coal or gas. Make sure that the washing machine does not stand on its power cord. Ventilation openings must not be obstructed by carpeting when the portable washer is installed on a carpeted floor.

ADJUSTING THE LEVELING LEGS

If the floor is uneven adjust the legs (do not insert pieces of wood, or any other objects under the feet) as following:

? Loosen the leg bolt by turning it with your hand until it is at the desired height.

? Tighten the locking nut by turning it in the reverse direction with the wrench.

Place the washer on a sturdy flat surface.

If the washer is placed on an uneven or weak surface, noise or vibration occurs (Allowable is 1^ ).

Line drawing of a hand holding a tool near a window (no text or symbols)

REMOVING THE SHIPPING BOLTS

For transportation reason, the suspended part located inside the washing machine is locked by four shipping bolts and screws. Before using the washing machine, remove the four shipping bolts as following:

? Loosen all bolts with the wrench before removing them.
? Take each bolt head and pull it out. Repeat for each bolt.
? Fill the holes with the supplied plastic covers.
? Keep the shipping bolts for future use.

Simple 3D diagram of a cube with arrows indicating rotational motion (no text or symbols)

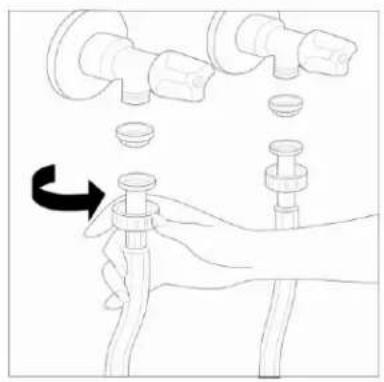

CONNECTING THE WATER SUPPLY HOSE

The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the water faucet, replace the hose with a longer, high-pressure hose.

Select appropriate faucet as shown in the figures below. If none of these faucets are available, use the faucet adapter provided.

The end of faucet spout should be longer than 10mm (0.4"), or the connector cannot be fixed properly. Water leakage could develop.

? Connect the water inlet hoses to the connectors in water inlet valves by turning the connecting nuts.
? Connect the other ends of water inlet hoses to the faucets by turning the connecting nuts.
? If you have both cold and hot water supplied, please make sure to connect the inlet hoses by cold to cold and hot to hot.

Illustration of a hand holding a pipe fitting with multiple connectors and a curved arrow indicating rotation (no text or symbols)

NOTE: Be sure the rubber rings are inside the connecting nuts.

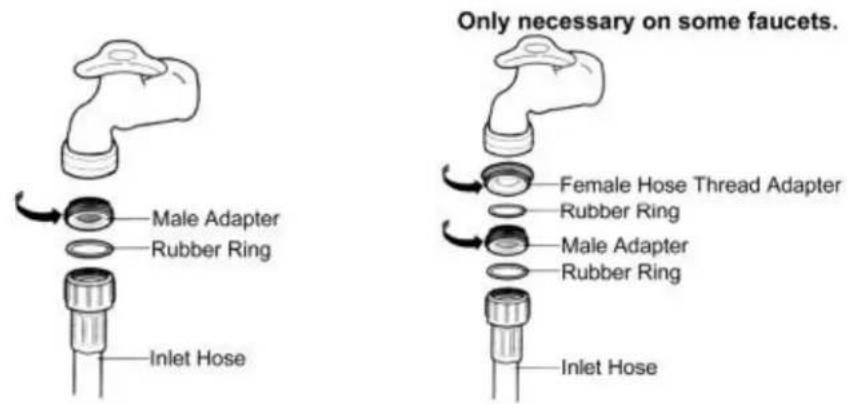

WATER CONNECTION

For normal kitchen-sink tap only use the inlet hose with cold water inlet.

Connect the inlet hose to the male hose thread adapter by turning it clockwise to be fixed tightly.

Make sure to insert the rubber ring enclosed. Then connect tightly to your sink.

Note: Some faucets may require you to also use the female hose thread adapter between the male adapter and your sink faucet as shown below. Make sure the rubber ring is inserted and connect to your sink.

If water leaks from faucet connection or washer connection, turn off water and tighten fully using a wrench. Be careful not to over tighten and damage water connection. Turn on water supply and make sure no leaks are present.

POSITIONING THE DRAIN HOSE

The end of the drain hose may be positioned as following two ways:

? Over the edge of a sink

The drain hose must be placed at a height of between 0.6 \~ 0.9 m. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the

faucet with a piece of string to prevent the drain hose from moving.

? In a drain pipe

We recommend you use a vertical pipe with height between 0.6 \~ 0.9 m. The inside diameter of the drain pipe must be larger than the outside diameter of the drain hose.

NOTE: The outlet of the drain hose must be in the height of 0.6 \~ 0.9 m above floor level, otherwise, the washing machine cannot work normally.

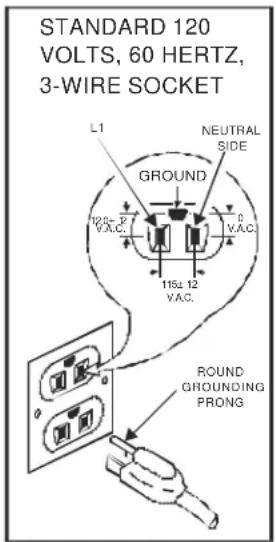

ELECTRICAL CONNECTION

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This portable washer should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

This appliance requires a standard 110-120 Volts\~A.C./60Hz electrical outlet with three-prong ground.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

OPERATING YOUR APPLIANCE

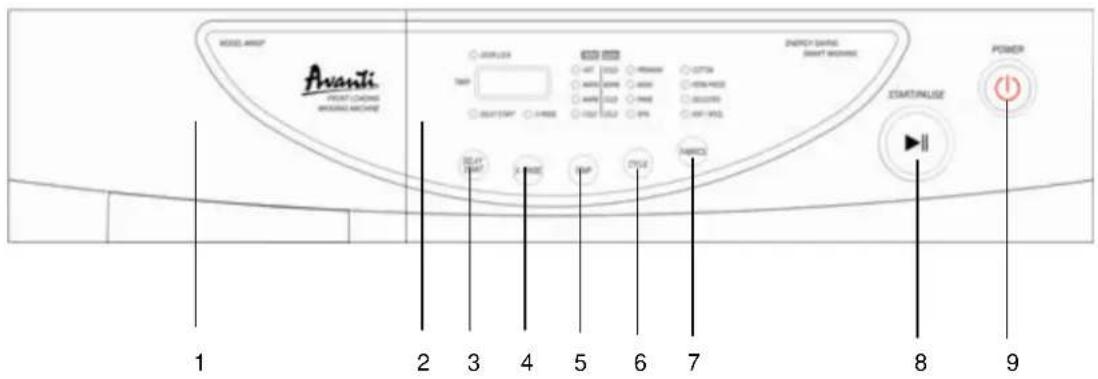

CONTROL PANEL

1. Detergent Dispenser
2. Display Panel
3. Delay Start Selection Button
4. Extra Rinse Selection Button

5. Water Temperature Selection Button

6. Cycle Selection Button

7. Fabrics Selection Button
8. Start/Pause Selection Button
9. Power Selection Button

1. Connect the water inlet hose to the water faucet. Don't switch on the power if the water pressure is lower than 0.05MPa and higher than 0.5MPa.2. Open the water faucet.	3. Insert the plug into the socket. For safety the plug should have ground connection.	4. Place the drain hose in the correct position.5. Open the door and put the wash load into the tub evenly. Then close the door.
6. Pull out the detergent drawer and add the wash detergent and softener to the corresponding position as following:? For pre-wash detergent? For wash detergent? For softenerWhen using the liquid detergent (recommended for programs without pre-wash process), insert the detergent cup and follow the instructions on the package.When using the soap powder, remember to remove the liquid detergent cup.NOTE: DO NOT overflow the detergent and softener compartment.		7. Push back the detergent drawer.WARNING:DO NOT pull out the detergent drawer while the appliance is in operation because this may cause water to spill out.[IMAGE]

Warning

When using liquid chlorine bleach you must follow these steps. Failure to follow these directions may result in damaged clothes.

1. Insert the load to be washed into the unit
2. Turn on the unit to your desired mode.
3. Add detergent or liquid soap (see page 12 for details).
4. Wait for 3 minutes after the washing cycle starts. Then measure the correct amount of liquid chlorine bleach (do not exceed 1/3 cup) otherwise you will damage the clothes.

5. Open the drawer and pour the liquid chlorine bleach into center section 2 of drawer

6. Do not pour undiluted liquid bleach directly into the load or drum.

OPERATING INSTRUCTIONS

PRESS DOWN POWER BUTTON.

Press once to turn the washing machine ON, press again to turn the washing machine OFF.

After the washing program has been finished, the power will automatically turn off.

NOTE: If the power is left ON for longer than 10 minutes without any buttons being touched, the power will turn off automatically.

PRESS DOWN FABRICS BUTTON.

Choose the right available program according to wash load as following:

COTTON→PERM PRESS→DELICATES→KNIT/WOOL

The default Fabrics is Perm Press.

For different FABRICS program, there are different default water temperature and cycle process as following:

FABRICS WATER		CYCLE
	TEMPERATURE
COTTON	HOT/COLD	WASH+RINSE+SPIN
PERM PRESS	WARM/COLD	WASH+RINSE+SPIN
DELICATES	WARM/COLD	WASH+RINSE+SPIN
KNIT/WOOL	COLD/COLD	WASH+RINSE+SPIN

PRESS DOWN CYCLE BUTTON.

Press the button repeatedly to select the available wash process as following:

WASH+RINSE+SPIN→PREWASH+WASH+RINSE+SPIN→SPIN→RINSE+SPIN →WASH+RINSE

The default cycle is WASH+RINSE+SPIN.

NOTE: Prewash is only available when washing COTTON and PERM PRESS.

PRESS DOWN WASH/RINSE WATER TEMPERATURE BUTTON.

Press down the water temperature selection button, you can choose to inlet cold water or hot water for the wash and rinse process as following:

HOT/COLD→WARM/WARM→WARM/COLD→COLD/COLD

The default water temperature is WARM/COLD.

NOTE: HOT/COLD is only available when washing COTTON and PERM PRESS.

IMPORTANT: A single cold hose system does not allow the washing machine to automatically regulate incoming water temperatures to match those listed on the control panel. Only COLD/COLD can be available.

PRESS DOWN EXTRA RINSE SELECTION BUTTON.

Press down the button when Extra Rinse is needed.

When you choose Extra Rinse, you will see the indicator lights up on the control panel.

NOTE: Extra Rinse is not available for Spin only process.

PRESS DOWN DELAY START SELECT BUTTON.

Press this button repeatedly to choose the delayed start time (From 1 to 24 hours in one hour increment).

After the Delay Start has been chosen, the Delay Start indicator flashes and the LED displays the remaining delay time.

To cancel the Delay Start, press down the power button or press down the Delay Start repeatedly to

choose zero delay start time and press down the Start/Pause button.

PRESS DOWN START/PAUSEBUTTON ONCE AND THE MACHINE WILL BEGIN OPERATION.

Press to start and pause the washing programs.

During operation, time countdown can be seen in LED display.

When the program is finished, open the door and remove the laundry.

NOTE: The door will not open until 3 minutes after the appliance stops or the power turns off. The Door Locked indicator lights whenever the door is locked and unable to open.

NOTE:

? Clothes easily discolored should be washed separately so as to prevent inter-dyeing.
? If you want to change a selected program, please press the START/PAUSE button first, then press the corresponding buttons to set the program before pushing START/PAUSE button.
? When SPIN and RINSE+SPIN cycles are ON, do not use detergent.
? If you want to drain water during washing, press the START/PAUSE button, then select SPIN cycle. Press START/PAUSE button again to restart.

DELAY START SETTING

Select this course when you have to go out or do something else.

? Press down the power button.
? Load the washing machine and select the appropriate wash program.
? Press Delay Start button continuously to select the delay start time. (From 1 hour to 24 hours)
? Press START/PAUSE button to start the course.

WASHING TIPS AND HINTS

Sort your laundry according to the following characteristics:

? Types of fabric care label symbol: Sort laundry into cottons, mixed fibers, synthetics, silks, wools and rayon.
? Color: Divide whites and colors. Wash new, colored items separately.
? Size: Placing items of different sizes in the same load will improve the washing action.
? Sensitivity: Wash delicate items separately, using the delicate wash program for pure new wool, curtains, and silk articles. Check the labels on the items you are washing or refer to the fabric care chart.

EMPTY POCKETS

Coins, safety pins and similar items can damage linen, the washing machine drum, and the water tank.

SECURING FASTENERS

Close zippers and fasten buttons or hooks; Loose belts or ribbons should be tied together.

PREWASHING COTTON

Cotton and Perm Press are not normally necessary. You new washing machine, combined with modern detergents, will give perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is particularly dirty, use a prewash with a protein-based detergent.

DETERMINING LOAD CAPACITY

Do not overload the washing machine or your laundry may not wash properly.

DETERGENT TIPS

The type of detergent you use is based on the type of fabric (cotton, Perm Press, delicates and wool), color, wash temperature, degree and type of soiling. Always use "low suds" laundry soap, which is designed for automatic washing machine.

Follow the detergent manufacturer's recommendations based upon the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you don't know how hard your water is, ask your water authority.

NOTE: Keep detergents and additives in a safe dry place out of the reach of children.

Fabric Care Chart

	Resistant material
	Delicate fabric
	Item may be washed at 95?
	Item may be washed at 60?
	Item may be washed at 40?
	Item may be washed at 30?
	Item may be hand washed
	Dry clean only
	Can be bleached in cold water
	Do not bleach
	Can be ironed at 200 ? max
	Can be ironed at 150 ? max

	Can be ironed at 100? max
	Do not iron
	Can be dry cleaned using any solvent
	Dry clean with perchloride, lighter fuel,pure alcohol or R113 only
	Dry clean with aviation fuel, pure alcoholor R113 only
	Do not dry clean
	Dry flat
	Can be hung to day
	Dry on clothes hanger
	Tumble dry, normal heat
	Tumble dry, reduced heat
	Do not tumble dry

CARE AND MAINTENANCE

CLEANING YOUR APPLIANCE

? Clean the surface of your washer regularly with soft fabric.
? Clean the inner tub regularly, especially immediately after starch or bleach operation.
? Clean the filter in the inlet valve or inlet hose regularly in order to prevent it from clogging.

? Clean the detergent drawer.

Pull out the detergent drawer from its housing, clean and rinse it thoroughly. Then dry it and insert back to the correct position.

Simple line drawing of a bed with a shelf and an arrow pointing to the side (no text or symbols)

? Clean the pump filter.

Clean the debris filter 2 or 3 times a year.

1. Remove the filter cover from the front of the washing machine. And ensure that there is no water in the tub and the electricity supply is disconnected.
2. Place a pan or cloth under the filter cover to prevent water from spilling on your floor.
3. Remove the filter by rotating it half a cycle in the counterclockwise direction and pulling it out.
4. Clean the filter and replace it in its housing reversely.
5. Replace the base cover.

Diagram showing a mechanical device with rotating arrows and a circular component, no text or symbols present.

Simple line drawing of a mechanical device with a circular component and a pointer, no text or symbols present

Simple line drawing of a mechanical device with arrows indicating motion or rotation (no text or symbols)

VACATION TIME

PROBLEMS WITH YOUR APPLIANCE?

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE CAUSE

Washer does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.The POWER button is not turned on.The door is not closed.Make sure the water source is turned on.
No water or insufficient water supply.	The water source faucet is not turned on.The water source hose is frozen.The water intake hose is bent.The filter on the water intake hose is clogged.
Water supplies and drains continuously	The drain hose is not positioned at the correct height (0.6 ~ 0.9 m).
The washing machine does not drain.	The drain hose is squashed or bent.The water hose mesh filter is clogged.
Detergent remains in the detergent drawer after the wash program is complete.	The washing machine is running without sufficient water pressure.
Washing machine vibrates or is too noisy.	Check to assure that the washer is level.The shipping bolts were not removed.The washing machine is touching another object.The laundry load is not balanced.

SERVICE FOR YOUR APPLIANCE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti portable washers. With the purchase of your Avanti portable washer, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your portable washer inside and out.

YOUR AVANTI PRODUCTS WARRANTY

Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED

LIMITED ONE-YEAR

WARRANTY

For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the appliance that proves to be defective in material or workmanship under normal use. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the appliance has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days.

LIMITED 5 YEAR WARRANTY ON PLASTIC TUB

After one year and until five years from date of purchase, Avanti will furnish a replacement plastic tub, for one which is defective in material or workmanship. You will be responsible for labor.

LIMITED 7 YEAR WARRANTY ON STAINLESS STEEL TUB

After one year and until seven years from date of purchase, Avanti will furnish a replacement stainless steel tub, for one which is defective in material or workmanship. You will be responsible for labor.

WHAT IS NOT COVERED

? Incidental or consequential damages.
? Service calls to:
? Correct the installation of your washer.
? Instruction on how to use your washer.
? Replace house fuses or incorrect house wiring or plumbing.
? Repairs performed by unauthorized servicers.
? Repairs when your washer is used in other than normal, single-family household use.

? Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
? Failure of the product if it is used for other than its intended purpose.
? Pickup and delivery.
? Repairs caused by unauthorized modifications made to the appliance.
? This warranty does not apply outside the Continental U.S.A.

WIRING DIAGRAM

Llave inglesa (wrench)

Alicate / Pinzas (pliers)

Destornillador (screwdriver)

PROBLEMA CAUSA POSIBLE

La lavadora no funciona. No está enchufada.
