TLW16W - Washing machine Avanti - Free user manual and instructions

Product Type	Freestanding Washing Machine
Brand	Avanti
Model	TLW16W
Dimensions (H x W x D)	85 x 60 x 50 cm
Weight	60 kg
Power Supply	220-240 V, 50 Hz
Capacity	6 kg
Maximum Spin Speed	1200 rpm
Energy Class	A++
Water Consumption per Cycle	45 L
Noise Level (Wash/Spin)	58 / 75 dB(A)
Number of Programs	15
Wash Programs	Cotton, Synthetics, Delicates, Wool, Quick Wash, Rinse & Spin, Drum Clean
Additional Functions	Delay Start, Child Lock, Half Load Detection
Display Type	LED
Drum Volume	45 L
Material (Drum / Tub)	Stainless Steel / Plastic
Door Opening	Side hinge, 180° opening
Water Connection	Cold water only
Power Consumption (Wash/Standby)	2000 W / 0.5 W
Spare Parts Availability	7 years
Repairability Index	8.3 / 10
Maintenance	Clean filter and detergent drawer regularly
Safety Features	Child Lock, Overheat Protection, Unbalanced Load Detection
Certifications	CE, IEC

Frequently Asked Questions - TLW16W Avanti

How do I install the washing machine?

Place the machine on a flat, stable surface. Remove transit bolts. Connect water inlet hose to cold water tap. Insert drain hose into standpipe or sink. Plug into a grounded outlet. Level the machine by adjusting feet.

How do I clean the filter?

Turn off and unplug the machine. Open the filter cover at the bottom front. Place a towel underneath. Unscrew the filter counterclockwise. Remove debris and rinse. Reinsert and tighten. Close cover.

What do I do if the machine displays an error code?

Refer to the manual's troubleshooting section. Common codes: E01 (door lock), E02 (water supply), E03 (drainage). Reset by unplugging for 1 minute. If persists, contact support.

How often should I run a drum clean cycle?

Every 2-3 months. Use a drum cleaner or run a hot water cycle (90°C) with empty drum. This removes detergent residue and prevents odors.

Can I use detergent directly in the drum?

For best results, use the detergent drawer. If using a tablet, place it directly in the drum only if the program allows. Check your detergent's instructions.

Why is my machine vibrating excessively?

Ensure transit bolts were removed. Check that the machine is level. Large items may cause imbalance; redistribute the load. Place on a non-slip mat if floor is slippery.

What is the maximum load for a quick wash?

For quick wash (30 min), load up to 2 kg. Overloading reduces cleaning performance and may cause imbalance.

How do I enable child lock?

Press and hold the Child Lock button for 3 seconds until a lock icon appears on the display. To disable, repeat the same step.

Can I delay the start of a cycle?

Yes. Select your program, then press Delay Start to set a delay up to 24 hours. The machine will start after the set time.

Where can I buy spare parts like a door seal?

Parts are available from authorized Avanti service centers or online retailers. The model number TLW16W is required for compatibility.

USER MANUAL TLW16W Avanti

Line drawing of a washing machine (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products LLC

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Appliance Safety	3
Important Safeguides	4
Help Us Help You / If You Need Service	5
Parts, Features, and Accessories	6
Important Safety Instructions 7
Installation Instructions 8
Before Using Your Portable Washer	8
Selecting a Location 8
Installing the Noise Damper Plate	9
Connecting the Water Supply Hoses / Sink Faucet Connection	9 – 10
Disconnecting the Water Supply Hoses / Positioning the Drain Hose	10
Electrical Connection / Extension Cords	11

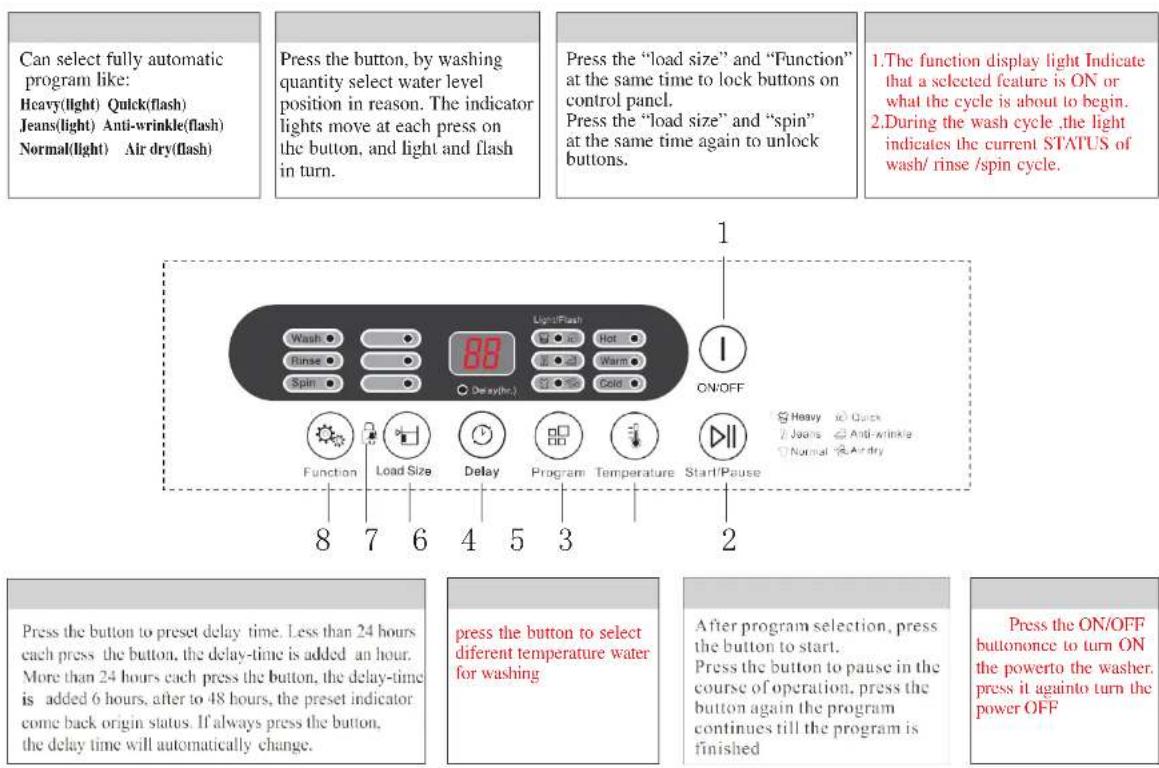

Control Panel / Functions Description	12
Operating Your Portable Washer	13
Preparation / Before Washing	13 – 14
Operating Instructions	15
Manual Function (Custom Washing Cycle) /Automatic Wash Program	15 – 16
Delayed Start (Preset) Setting / Child-Proof Setting	17
Care and Maintenance	18 – 19
Problems with Your Portable Washer	20
Troubleshooting Guide / Service for Your Portable Washer	20
Your Avanti Products Warranty / What is not Covered	21
Instrucciones en Español	22 – 28
Registration Information and Registration Card	31

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words "DANGER", "WARNING" or "CAUTION".

! DANGER !

Danger means that failure to heed this safety statement may result in severe personal injury or death.

WARNING

Warning means that failure to heed this

safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.

All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• Replace all panels before operating.
• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.

WARNING

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install appliance. Failure to do so can result in back or other injury.
• To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ F ( 16^ C) and below 90^ F ( 32^ C). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
  • The appliance should not be located next to ovens, grills or other sources of high heat.
• The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Do not kink or pinch the power supply cord of appliance.
  • The fuse (or circuit breaker) size should be 15 amperes.
• It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.
• Never allow children to operate, play with or crawl inside the appliance.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new portable washer properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the portable washer.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your portable washer.

If you received a damaged portable washer, immediately contact the dealer (or builder) that sold you the portable washer.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your portable washer. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

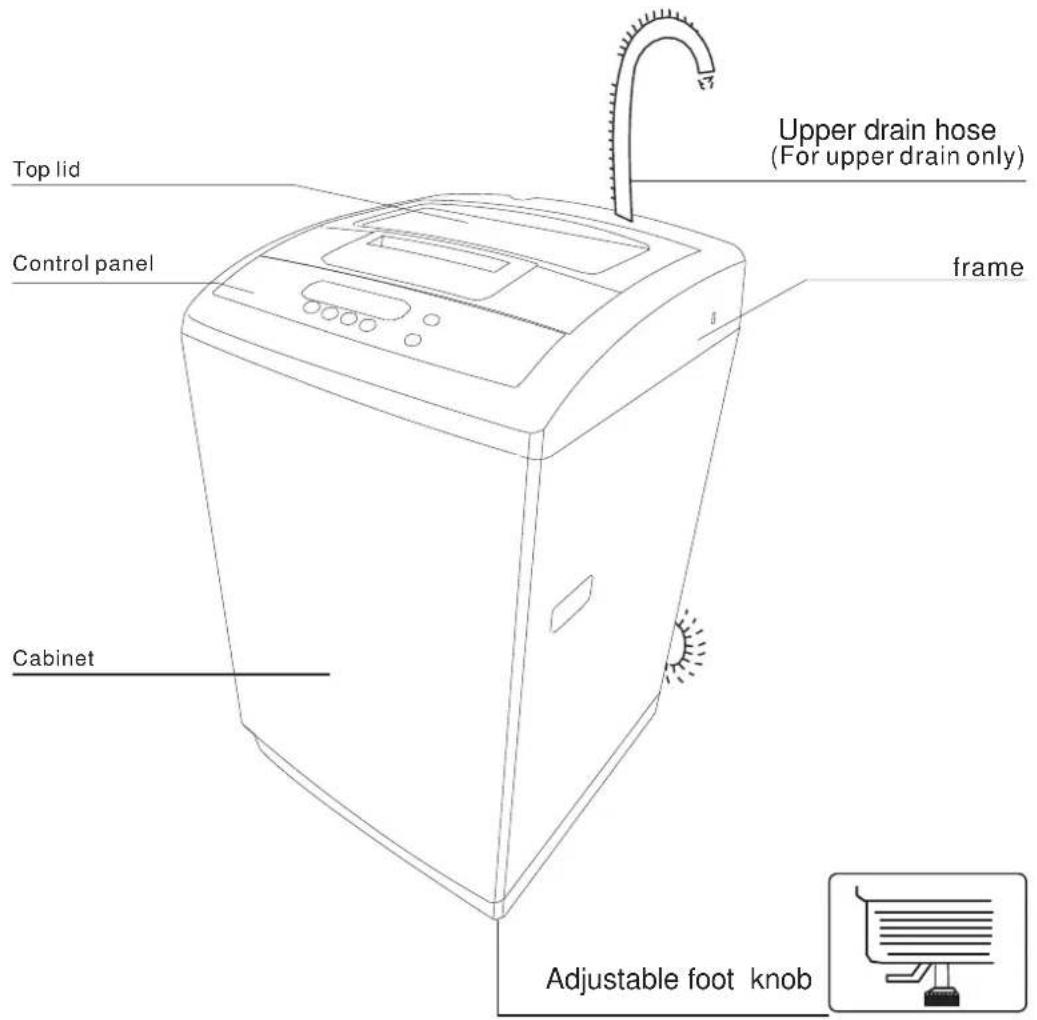

PARTS & FEATURES

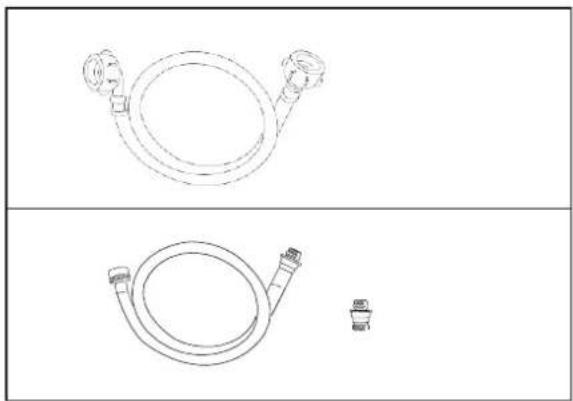

Accessories

Technical line drawing of two hoses with connectors, one above and one below, both without any text or symbols.

Please refer to the real material as the attachment

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your portable washer, follow these basic precautions:

Read all instructions before using the portable washer.Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapours that could ignite or explode.Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.DANGER or WARNING: Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days.”Before you throw away your old portable washer: Take off the lid.Never allow children to operate, play with, or crawl inside the portable washer. Close supervision of children is necessary when the washer is used near children.Do not reach into the washer if the agitator or inner tub is moving.Do not tamper with controls.Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions.Never clean portable washer parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not place the washer in steamy rooms or where the washer is directly exposed to rain.Moisture may destroy the electrical insulation causing an electrical shock hazard.Do not store, use gasoline, or any other flammable vapors and liquids in the vicinity of this or any other portable washer. The fumes can create a fire hazard or explosion.If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.-Save these instructions-

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities.

This appliance should not be operated by those with a lack of experience or knowledge of its use or operation, unless they have been given instructions concerning and/or are supervised during the use of the appliance by a person responsible for their safety.

This appliance is not intended for use by children. To avoid any possible type of injury or damage to the unit and or personal property all children should be supervised to ensure they do not play with the appliance.

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR PORTABLE WASHER

• Remove the exterior and interior packing.
  • You will need the following tools:

• Wrench

• Pliers
• Screwdriver

- Check to be sure you have all of the following parts:

• 2 Inlet Hoses
  • 1 Faucet Adapter
  • 1 Noise Proof Plate With Screws
  • 1 Drain Hose Assembly
  • 1 Water Inlet Plug

• Remove shipping brace. Note - It should be saved and used (to prevent damage to washer components) whenever washer is moved or transported to a new location.

• Clean the interior surface with lukewarm water using a soft cloth.
• Allow 2 inches of space between the back and sides of the appliance.
• Put your laundry into the washer evenly. Uneven laundry may cause noise or vibration.
• DO NOT use excessively hot water (122°F / 50°C or more). Plastic parts may be deformed or damaged. Also, clothing may be deformed or bleached.
• Before washing, check all pockets. If nails or pins remain in pockets, they may damage the washer or clothes.
  • Never splash water on the control panel.
• Plug the washer into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an Authorized Avanti Products service center.

SELECTING A LOCATION

Before you install the portable washer, select a location with the following characteristics:

• A hard level surface (if the surface is uneven, see Adjusting The Adjustable Foot section on the next page).
• Away from direct sunlight. Direct sunlight may affect the acrylic coating, plastic and electrical components.
• Adequate ventilation.
• Away from sources of heat such as coal or gas. Make sure that the washing machine does not stand on its power cord.
• Ventilation openings must not be obstructed by carpeting when the portable washer is installed on a carpeted floor. It is recommended that you place your portable washer on a hard material floor such as tile, concrete, linoleum and to avoid if at all possible placement on wooden floors or carpeted areas.

INSTALLING THE NOISE DAMPER PLATE

Take the noise proof plate out of the package	The opening of the noise proof plate is at the bottom of the machine	Lay down the machine and insert the noise proof plate into the washing machine base

Affix the noise proof plate by using the screws provided (TLW16W - 1 Screw / TLW21PS- 2 Screws).

CONNECTING THE WATER SUPPLY HOSES

The water supply hose must be connected to the washing machine at one end and to the water faucet at the other. Do not stretch the water supply hose. If the hose is too short and you do not wish to move the water faucet, replace the hose with a longer, high-pressure hose.

Select appropriate faucet as shown in the figures below. If none of these faucets are available, use the faucet adapter provided.

The end of faucet spout should be longer than 10mm (0.4"), or the connector cannot be fixed properly. Water leakage could develop.

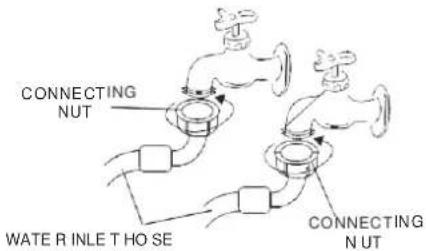

1. Connect the water inlet hose to the faucet by turning the connecting nut.

Be sure a rubber ring is inside the connecting nut.

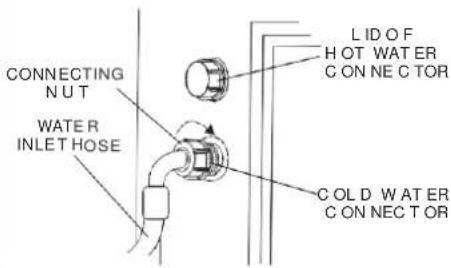

1. Then connect the other end of water inlet hose to the cold connector in water mixing valve by turning the connecting nut.

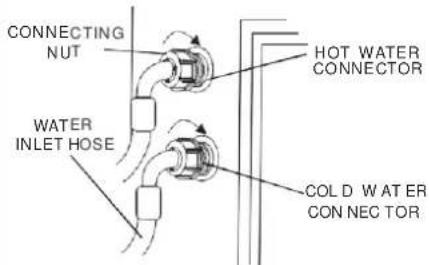

If you have both cold and hot water supplied, connect the inlet hoses by matching cold to cold and hot to hot.

1. Connect the water inlet hoses to the faucets by turning the connecting nuts.

Be sure the rubber rings are inside the connecting nuts.

1. Unscrew the lid of hot water connector in water mixing valve, and then connect the other end of water inlet hoses to the connectors in water mixing valve by turning the connecting nuts.

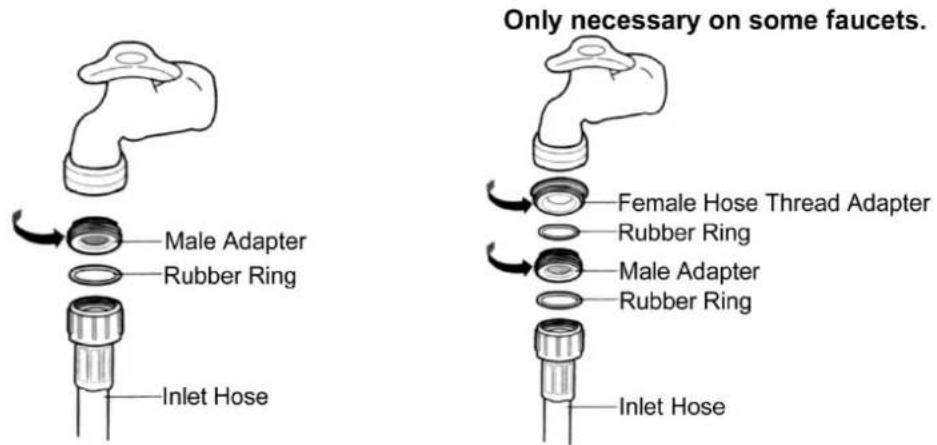

SINK FAUCET CONNECTION

For normal kitchen-sink tap only use the inlet hose with cold water inlet.

Connect the inlet hose to the male hose thread adapter by turning it clockwise to be fixed tightly.

Make sure to insert the rubber ring enclosed. Then connect tightly to your sink.

Note: Some faucets may require you to also use the female hose thread adapter between the male adapter and your sink faucet as shown below. Make sure the rubber ring is inserted and connect to your sink.

If water leaks from faucet connection or washer connection, turn off water and tighten fully using a wrench. Be careful not to over tighten and damage water connection. Turn on water supply and make sure no leaks are present.

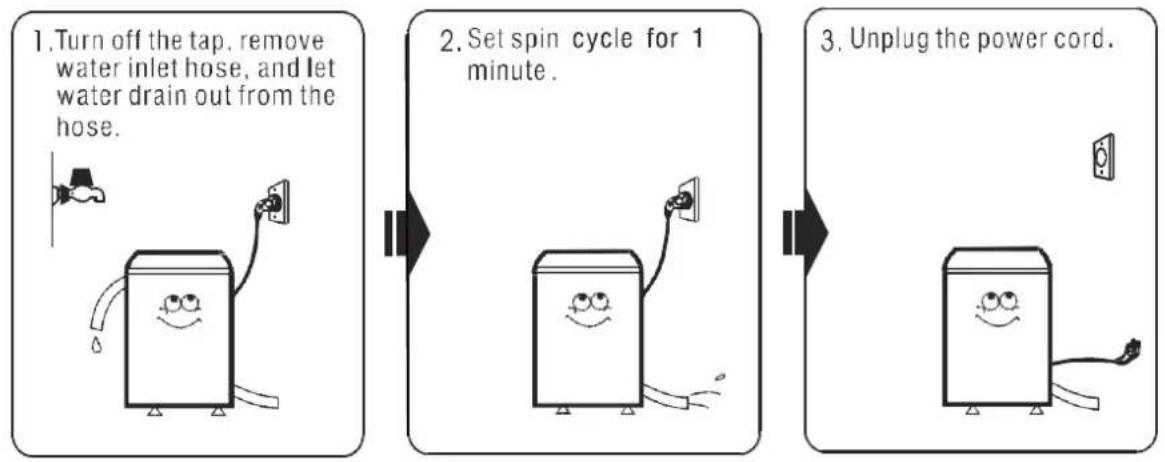

DISCONNECTING THE WATER SUPPLY HOSES

Dismantling the hose directly may cause water to splash due to the possible high water pressure in the hose, even after the faucet has been turned off. Please take off the hose as per following steps, even if the faucet is closed:

• Turn off the faucet.
• Turn on the power and let the machine run for about 5 seconds then turn it off.
• Remove the connecting nuts from the faucet and washing machine.

Note: If the washing machine is frequently used, it is not necessary to dismantle the inlet hose to avoid possible damage to the screws.

POSITIONING THE DRAIN HOSE

Since only up drainage is available, drain hose can be hung in the basin or bathtub.

NOTE: The highest point of the drain hose must be in the height of 2.25 – 4 feet above floor level, otherwise, the washer cannot work normally.

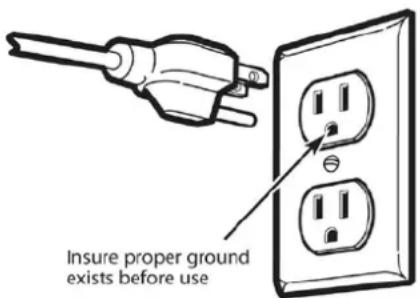

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC \~/60Hz

electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

* If the drawing is changed, no information anymore.

1. Connect the water inlet hose to the water faucet. Don't switch on the power if the water pressure is lower than 0.05MPa and higher than 0.5MPa.2. Ensure the drain hose has been installed properly.	3. Insert the plug into the socket. For safety the plug should have ground connection.	4. Insert the end of drain hose into the hook shelf, and hang the drain hose over a drain outlet.5. Open the water faucet.
6. Put the wash load into the tub evenly.	7. Add the suitable quantity detergent into the detergent case.	8. Close the lid. Otherwise the washer will not wash or spin, and alarm will sound.

BEFORE WASHING

Prepare the wash load. Mix large and small articles in a load to get the best washing results. Drop articles loosely into the inner tub. Do not pack articles in or wrap them. Articles should move freely through the wash water for best cleaning results. Articles should rollover, sink and then reappear.

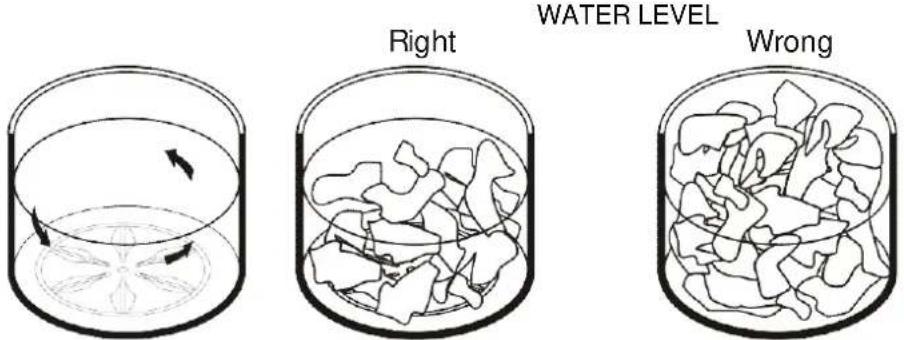

When washing very large articles, do not fill inner tub as full as with other loads. The water level in your washer should fit the size of your wash load. Small load will use lower water levels. There must be enough water in the inner tub to allow articles to move and turn over freely. Overloading the inner tub can result in poor washing and rinsing. Overloading may also cause wrinkling and tearing of articles.

Make sure that you follow all manufacturer instructions for washing:

GUIDE TO APPAREL/TEXTILE CARE SYMBOLS

Wash	Machine Wash Cycles
		Normal	Permanent Press	Delicate/Gentle					Hand Wash
	Water Temperatures	(Maximum)	(200F)	(160F)	(140F)	(120F)	(105F)	(65F-85F)
		Symbol(s)	95C	70C	60C	50C	40C	30C
Bleach
	Any Bleach When Needed			Only Non-Chlorine Bleach When Needed
Dry	Tumble Dry Cycles								Line Dry / Hang to Dry
		Normal	Permanent Press	Delicate/Gentle
	Tumble Heat Settings	(AWDT)			[OAT6]	[W350]			Drip Dry
		Any Heat	High	Medium	Low	No Heat/Air			Dry Flat
Iron	Iron-Dry or Steam
	Maximum Temperatures	200C (390F) High		150C (300F) Medium		110C (230F) Low
Dryclean	Dryclean - Normal Cycle					Dryclean - Additional Instructions
									[224C]

ryclean - Normal Cycle
Dryclean - Additional Instructions
Dryclean

OPERATING INSTRUCTIONS

PRESS THE POWER BUTTON.

PRESS THE WATER LEVEL BUTTON.

Choose appropriate water level according to wash load quantity.

WATER TEMPERATURE CHOICE.

Press the water temperature selection button, you can choose from cold, warm, and/or hot water.

NOTE: The washer will provide a cold rinse in all TEMPERATURE settings.

Indicator Light Shown	Description
COLD	When the “COLD” indicator light is ON, it means the washing machine will only use water supplied by the cold water inlet.
HOT	When the “HOT” indicator light is ON, it means the washing machine will only use water supplied by the hot water inlet
WARM	When the “WARM” indicator light is ON, it means the washing machine will use water supplied by both the cold and hot water inlets

IMPORTANT: A single cold hose system does not allow the washing machine to automatically (select) regulate incoming water temperatures to match those listed on the control panel such as WARM or HOT.

PRESS THE FUNCTIONS SELECTION BUTTON.

Choose the desired function and then the corresponding indicator blink.

PRESS DOWN START/PAUSE BUTTON ONCE AND THE MACHINE WILL BEGIN OPERATION.

Please press this button to stop the normal operation, if it continues to work, press it again.

Water level can be reset during the normal operation. If the higher water level is selected, the machine will operate after refilling the water level selected.

MANUAL FUNCTIONS SELECTION (CUSTOM WASHING CYCLE)

WASH ONLY (Approximately 14 minutes)

• Press down the power button.
• Press the cycle button until only the WASH indicator is ON.
• Press the water temp button to select the water temperature.
• Press the water level button to select the appropriate water level setting.
• Press the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course.

WASH AND RINSE (Approximately 34 minutes)

• Press down the power button.
• Press the cycle button until the WASH & RINSE indicators are ON.
• Press the water temp button to select the water temperature.
• Press the water level button to select the appropriate water level setting.
• Press the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course.

RINSE AND SPIN (Approximately 28 minutes)

• Press down the POWER button.
• Press the cycle button until the RINSE & SPIN indicators are ON.
• Press the water level button to select the appropriate water level setting.
• Press the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course.

SPIN ONLY

(Approximately 8 minutes).

xPress down the power button.
xPress the cycle button to select the SPIN function until only SPIN indicator is ON.
xPress the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course.

AUTOMATIC WASH PROGRAMS

Wash Program	Water Level		Wash Time (Min / Sec)	Rinse Time (Minutes)	Spin Time (Minutes)	Total Time (Full Cycle) (Minutes)
	Selection Range	Default
Heavy	1 – 6	4	12 Min	2	5	42
QUICK 1 –	3 3		2 Min30 Sec	1 30 Sec	10
Normal	1 – 6	4	Wash 4Min+Soak 13Min	1 7 39
Jeans	1 – 6	4	Wash 3Min40 Sec +Soak13 Min	2	1 Min10 Sec	42
Anti-wrikle	1 – 6	4	11 Minutes30 Seconds	2	00	34
Air dry	1 – 6	4	0	0	57	60

NOTE: All automatic wash programs include soak time.

To select one of the pre-programmed automatic wash cycles follow the instructions as shown below:

Press the power button.

Press the program button to select the appropriate program until the indicator light is ON. (NORMAL is the default program)

Press the water temp button to select the water temperature. (The default setting is cold water).

Press the water level button to select the appropriate water level setting. (The default water level is 4 water level)

Press the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course.

Close the lid, or the washing machine will buzz during wash and spin cycle.

In the event the clothing loaded becomes unbalanced, the safety switch will be triggered causing the washing machine to automatically refill with water to adjust the imbalance.

Note:

Clothes easily discolored should be washed separately so as to prevent interdyeing.

If you want to change a selected program, press the POWER button first to turn the unit off, then press the POWER button again to turn the unit back on, then press the Program button to select the new cycle before pushing START/PAUSE button.

When the Rinse and Spin functions are ON, do not use detergent.

If you want to drain the water during washing, press the POWER button first to turn the unit off, then press the POWER button again to turn the unit back on, then select the SPIN function. Press START/PAUSE button again to restart.

SPIN ONLY

(Approximately 8 minutes).

xPress down the power button.
xPress the cycle button to select the SPIN function until only SPIN indicator is ON.
xPress the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course.

AUTOMATIC WASH PROGRAMS

Wash Program	Water Level		Wash Time (Min / Sec)	Rinse Time (Minutes)	Spin Time (Minutes)	Total Time (Full Cycle) (Minutes)
	Selection Range	Default
Heavy	1 – 6	4	12 Min	2	5	42
QUICK 1 –	3 3		2 Min30 Sec	1 30 Sec	10
Normal	1 – 6	4	Wash 4Min+Soak 13Min	1 7 39
Jeans	1 – 6	4	Wash 3Min40 Sec +Soak13 Min	2	1 Min10 Sec	42
Anti-wrikle	1 – 6	4	11 Minutes30 Seconds	2	00	34
Air dry	1 – 6	4	0	0	57	60

NOTE: All automatic wash programs include soak time.

To select one of the pre-programmed automatic wash cycles follow the instructions as shown below:

xPress the power button.
xPress the program button to select the appropriate program until the indicator light is ON. (NORMAL is the default program)
xPress the water temp button to select the water temperature. (The default setting is cold water).
xPress the water level button to select the appropriate water level setting. (The default water level is 4 water level)
xPress the START/PAUSE to start the course. And the LED display will show the remaining time of the entire course.

Close the lid, or the washing machine will buzz during wash and spin cycle.

In the event the clothing loaded becomes unbalanced, the safety switch will be triggered causing the washing machine to automatically refill with water to adjust the imbalance.

Note:

xClothes easily discolored should be washed separately so as to prevent interdyeing.

✗ if you want to change a selected program, press the POWER button first to turn the unit off, then press the POWER button again to turn the unit back on, then press the Program button to select the new cycle before pushing START/PAUSE button.
When the Rinse and Spin functions are ON, do not use detergent.
✗ if you want to drain the water during washing, press the POWER button first to turn the unit off, then press the POWER button again to turn the unit back on, then select the SPIN function. Press START/PAUSE button again to restart.

CARE AND MAINTENANCE

CLEANING YOUR PORTABLE WASHER

• Clean the surface of your portable washer regularly with soft fabric.
• Clean the inner tub regularly, especially immediately after starch or bleach operation.
• Clean the filter in the inlet valve or inlet hose regularly in order to prevent it from clogging.

CLEANING THE LINT FILTER IN THE DRAIN PUMP
	1. Place a dish or bowl below the pump filter assembly to collect the water.2. Drain the water from the pump.		3. Slowly turn the filter assembly counter-clockwise to open and drain the water.		4. Pull the filter assembly outward and remove.
	5. Clean the filter		6. Once clean align the filter assembly to its original position and re-install.		7. Tighten the filter assembly by turning clockwise. Be sure the filter is installed correctly and tightly sealed before using the washer.

NOTICE:

If the drain filter is not cleaned frequently (approximately after every 10 uses). Drain problems may arise.

- Vacation time

1. Turn off the tap, remove water inlet hose, and let water drain out from the hose.

2. Set spin cycle for 1 minute.

3. Unplug the power cord.

PROBLEMS WITH YOUR PORTABLE WASHER?

You can solve many common portable washer problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Washer does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.The lid is not closed.Make sure the water source is turned on.
No water or insufficient water supply.	The water source faucet is not turned on.The water source hose is frozen.The water intake hose is bent.The filter on the water intake hose is clogged.
The washing machine does not drain.	The drain hose is squashed or bent.
Washing machine vibrates or is too noisy.	Check to assure that the washer is level.The washing machine is touching another object.The laundry load is not balanced.
Washing machine does not spin.	The lid is not closed.The washer is not on a level surface.
Display shows Error Code “E 1”Description: Malfunction in the Water Supply Valve	No water,Water supply valve time-out,Water valve is clogged.
Display shows Error Code “E 3”Description: Unit is unbalanced.	Unit becomes unbalanced during operation.Stop the unit, shift the load evenly, restart.
Display shows Error Code “E 4”Description: Malfunction of the Water Drain pump.	Water drain pump malfunctioned.
Display shows Error Code “E 2”Description: Top Cover is Open	During operation the top is open.Close the top.

SERVICE FOR YOUR PORTABLE WASHER

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti portable washers. With the purchase of your Avanti portable washer, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service Team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your portable washer inside and out.
YOUR AVANTI PRODUCTSWARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED – LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service center for repair.
LIMITED FIVE YEAR WARRANTY ON PLASTIC TUBAfter one year and until five years from the date of purchase, Avanti Products will furnish a replacement plastic tub, for one which is defective in material or workmanship. All labor and transportation charges are the responsibility of the consumer.LIMITED SEVEN YEAR WARRANTY ON STAINLESS STEEL TUBAfter one year and until seven years from the date of purchase, Avanti Products will furnish a replacement plastic tub, for one which is defective in material or workmanship. All labor and transportation charges are the responsibility of the consumer.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
Shipping and handling costs associated with the replacement of the unit.Repairs performed by unauthorized servicers.Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.	Failure of the product if it is used for other than it intended purpose.The warranty does not apply outside the Continental USA.Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCTAvanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.Warranty – Washing Machines

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products LLC

P.O.Box 520604 - Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name Model # Serial #
Address	Date Purchased Store / Dealer Name
City State Zip E-mail Address
Area Code Phone Number	Occupation
Did You Purchase An Additional Warranty	As your Primary Residence, Do You:
■ Extended■ None	□ Own □ Rent
Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:	Your Age:□ under 18 □ 18-25 □ 26-30□ 31-35 □ 36-50 □ over 50Marital Status:■ Married □ Single
■ Price■ Product Features■ Avanti Reputation■ Product Quality■ Salesperson Recommendation■ Other:____■ Friend / Relative Recommendation■ Warranty■ Other:____	Is This Product Used In The:■ Home □ BusinessHow Did You Learn About This Product:■ Advertising■ In-Store Demo■ Personal Demo

Comments:

TLW16/21/30 - V1.0 - 05082014

PRINTED IN CHINA
