UT-KLOT800SS - Blender Ursus Trotter - Free user manual and instructions

Product Type	Hand Blender with Multi-Attachments
Brand	Ursus Trotter
Model	UT-KLOT800SS
Power	800W
Voltage / Frequency	220–240V ~50/60Hz
Maximum Operating Time (Blending)	1 minute
Maximum Operating Time (Whisk)	2 minutes
Maximum Operating Time (Chopping Hard Food)	10 seconds
Main Functions	Blending, whisking, chopping, slicing, grating, beating
Attachments Included	Blending shaft, whisk, whisk holder, double beaters, chopper bowls (500ml & 1250ml), S blade, slicing blade, grating blade, knife bracket, bowl cover, lid, anti-slip base
Material	Plastic body, stainless steel blades
Safety Features	Locking mechanisms, anti-slip base, short-time operation warnings, sharp blade caution
Cleaning	Motor unit: wipe with damp cloth only; other parts: dishwasher safe (max 65°C), rinse immediately after salty foods
Blade Care	Handle carefully, blades are very sharp
Not Suitable For	Extremely hard foods (ice cubes, nutmeg, coffee beans, grains), hot ingredients, outdoor use
Certifications	Not specified
Included Accessories	Measuring beaker (not specified volume), user manual
Warranty	Refer to warranty card in manual

Frequently Asked Questions - UT-KLOT800SS Ursus Trotter

What is the maximum operating time for the hand blender?

Use the hand blender for no longer than 1 minute continuously to prevent overheating.

Can I chop ice cubes or coffee beans with this blender?

No, do not chop extremely hard foods like ice cubes, nutmeg, coffee beans, or grains. It may damage the blades.

How do I clean the motor unit?

Wipe the motor unit with a damp cloth only. Do not immerse it in water or other liquids.

Are the attachments dishwasher safe?

Yes, all parts except the motor unit and chopping bowl lid are dishwasher safe. After processing salty foods, rinse blades immediately.

How do I attach the whisk?

Insert the whisk into the whisk holder, then turn the gear box on the motor unit until it locks into place.

Can I use the blender for hot liquids?

No, do not place the appliance in hot ingredients. Let them cool before blending.

What is the capacity of the chopper bowls?

The set includes a 500ml and a 1250ml chopper bowl. Do not fill above the maximum mark.

How should I handle the blades?

Always hold the blade by its upper plastic part and handle with care – blades are very sharp.

What is the purpose of the 'S' blade?

The 'S' blade is used for chopping hard foods like meat, cheese, onions, herbs, carrots, and nuts.

Is the blender suitable for making mayonnaise?

Yes, use the hand blender with oil, egg, and vinegar according to the recommended quantities in the manual.

USER MANUAL UT-KLOT800SS Ursus Trotter

German Engineering & Design

HANDMIXER

MANUAL DE USUARIO Y LETRA DE GARANTÍA

HANDMIXER

UT-KLOT800S

220-240V\~50/60HZ 800W

Descripción

1. Switch de Encendido Gradual 1-5

2. Switch de Encendido I

3. Switch de Encendido II

4. Motor

5. Varilla Batidora

6. Soporte del Batidor

7. Batidor

8. Picador

9. Tapa del Recipiente para Picar

10. Aspa "S"

11. Recipiente para Picar de 500ml
12. Base
13. Recipiente
14. Base
15. Tapa del Recipiente para Picar
16. Aspa "S"
17. Recipiente para Picar de 1250ml

Rebanador

1. Tapa del Recipiente
2. Aspa para Picar
3. Aspa para Rebanar
4. Cuchillas
5. Aspa "S"
6. Recipiente Grande
7. Base de Goma
8. Soporte del Batidor
9. Batidoras Dobles

Important safeguards

When using electrical appliances especially when children are present, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.

2. To protect against electrical shock, do not submerge the mixer or allow AC cord to come in contact with water or other liquids.

3. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.

4. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or has been dropped or damaged in any matter. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

5. Do not use outdoors.

6. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.

7. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

8. Blades are sharp. Handle carefully.

9. Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.

10. Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.

11. Don't allow children to use the blender without supervision.

12. Don't let the motor unit, cord, or plug get wet.

13. Don't place the appliance in the hot ingredients.

14. The appliance is constructed to process normal household quantities.

15. Short-time operating. Use the appliance for no longer than 1 minute, and don't operate hard food for no longer than 10 seconds.

16. If you press switch, you can run the inching switch to meet your request.

17. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.

18. It shall warn of potential injury from misuse

19. They shall state that care shall be take when handling the sharp cutting blades, emptying the bowl and during cleaning.

20. Switch off the appliance and disconnected from supply before changing accessories or approaching parts which move in use.

21. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

22. Children shall not play with the appliance.

23. Keep hands and utensils out of the container while blending / away from the cutting blade while chopping food to prevent the possibility of severe injury to persons or damage to the unit. A scraper may be used but must be used only when the unit is not running.
24. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
25. Do not allow children to use the blender without supervision.
26. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.
27. Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
28. Do not misuse the product. It may cause injury if misuse.
29. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
30. The blades are very sharp! Handle with care when emptying the bowl and during cleaning.

Description

1. Inching switch 1-5
2. Switch I
3. Switch II
4. Motor unit
5. Blend stick
6. Whisk holder
7. Whisk
8. Grinding device
9. Chopping bowl lid
10. "S" blade
11. 500ml chopping bowl

12. Cover

13. Vessel

14. Cover for vessel

15. Chopping bowl lid

16. "S" blade

17. 1250ml chopping bowl

Slicing attachment

1. Bowl cover

2. Grating blade

3. Slicing blade

4. Knife Bracket

5. "S" blade

6. Big bowl

7. Rubber pillow

8. Beater holder

9. Double beater

How to use the hand blender

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

1. Turn the blender stick on the motor unit until it locks.
2. Introduce the hand blender in the vessel, and then you can press the switch II to operate it.
3. Use the hand blender for no longer than 1 minute.
4. Caution: the blade is very sharp!
5. Caution: Don't operate food without water!

How to use the whisk

Use the whisk only for whipping cream and egg whites.

1. Inset the whisk into the whisk holder, and then turn the gear box on the motor unit until it locks.
2. Place the whisk in a vessel and then you can press the switch II to operate it.
3. Use the whisk for no longer than 2 minute.
4. Turn the gear box off the motor unit after use. Then pull the whisk out of the gear box.

How to use the chopper

1. Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.
2. Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

Before chopping...

1. Carefully remove the plastic cover from the blade. Caution: the blade is very sharp! Always hold it by the upper plastic part.
2. Place the blade on the center pin of the chopper bowl. Press down the blade and lock bowl. Always place the chopper bowl on the anti-slip base.
3. Place the food in the chopper bowl.
4. Place the chopping bowl lid on the chopper bowl.
5. Turn the motor unit on the chopping bowl lid until it locks.
6. Then press switch II to operate the chopper. During processing, hold the motor unit with on hand and the chopper bowl the other.
7. After use, turn the motor unit off the chopping bowl lid.
8. Then remove the chopping bowl lid. Carefully take out the blade.
9. Carefully take out the blade.
10. Remove the processed food from the chopper bowl.
11. Don't operate hard food for no longer than 10 seconds.

How to use the grinding device

The attachment is perfectly suited for grinding Boiled potatoes, carrots

1. Turn the attachment on the motor unit until it locks.
2. Introduce the hand blender in the vessel. Then press the switchII to operate it.
3. Turn the attachment off the motor unit after use.
   You can use the hand blender in the measuring beaker and just as well in any other vessel.
4. Use it for no longer than 1 minute
5. Caution: the blade is very sharp!

How to use the double beater accessories

Use the double beater accessories you can easily make the preparations such as omelet, mayonnaise, mixing whipping cream, sponge cakes, beating egg whites and ready-mix desserts.

1. Mount the beater accessories firstly by pushing until it fits well in its place in order to use the beater accessories.

2. Turn the beater adapter to the motor block to mount without tightening too much.

3. Place the double beaters in a vessel and only then choose speed "1"- "5" and press the switch or switch to operate it.

4. Use the double beater accessories for no longer than 2 minute.

5. Turn the gear box off the motor unit after use. Then pull the double beaters out of the gear box.

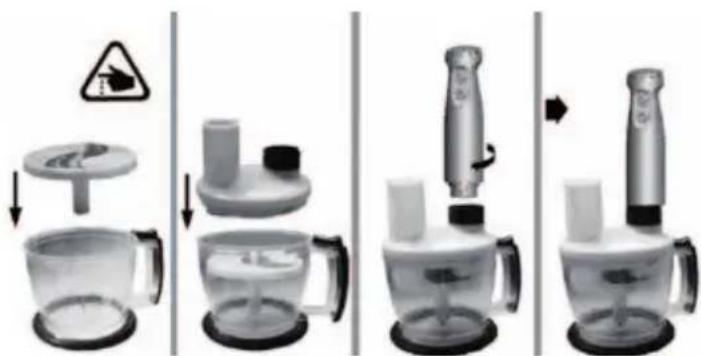

How to use the slicing/Grating

For preparing a maximum of 500g food stuffs at once. Blade Slicing: potatoes for gratins dauphinois, carrots, cucumbers, etc

Blade Grating: grated carrots, celery.

1. Put the blade into the Knife Bracket -holder disc. Place the spindle drive onto the spindle in the middle of the bowl, then the blade -holder disc onto the spindle drive, and then put the blender lid adaptor on the lid.
2. Position and lock the lid.
3. Put the motor unit in place on the adaptor then start the appliance.
4. Put the foodstuffs into the feeder tube and guide them using the pusher, never your fingers, or a utensil.

How to use the "S" blade

Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.

Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

Before chopping...

1. Carefully place the blade onto the central spindle in the bowl, holding it by the plastic part. Caution: the blade is very sharp! Always hold it by the upper plastic part.
2. Put the foodstuffs into the bowl .never fill the bowl above the maximum limit indicated.
3. Place the blade on the center pin of the chopper bowl. Press down the blade and lock bowl. Always place the chopper bowl on the anti-slip base. (Operation of the direction, please see the figure as show).
4. Place the food in the chopper bowl.

5. Place the chopping bowl lid on the chopper bowl.

6. Turn the motor unit on the chopping bowl lid until it locks.

7. Choose switch □ to operate the chopper. During processing, hold the motor unit with on hand and the chopper bowl the other.
8. After use, turn the motor unit off the chopping bowl lid.

Cleaning

Cleaning the motor unit and chopping bowl lid only with a damp cloth only. Do not immerse the motor unit in water!

1. All other parts can be cleaned in the dish washer. However, after processing very salty food, you should rinse the blades right away.

2. Also, be careful not to use an overdose of cleaner or decalcified in your dishwasher.

3. When processing food with color, the plastic parts of the appliance may become discolored wipe these parts with vegetable oil before placing them in the dishwasher.

4. The blades are very sharp, please attention.
5. Unplug the appliance before cleaning.

Ingredients Maximum Operation times Preparation Speed
Processor bowl (for "S" blade)

meat 500g 20-30 sec 1~2cm llnuts, almonds 300g 10-15sec / licheese 200g 10sec		1~2cm II
bread	160g	10sec		1~2cm	II
onions	300g	10sec		1~2cm	II
Slicing/ Shredding discs
Shredding disc	Potatoes	500g	20sec	Fresh	II
	Carrots	500g	20sec	Fresh	II
Slicing disc	Potatoes	500g	20sec	Fresh	II
	Cucumber	500g	20sec	Fresh	II
	Carrots	500g	20sec	Fresh	II
Potato strip disc	Peeled potatoes	500g	20sec	Fresh	II
Mill mashed potato	Peeled potatoes	500g	20sec	Fresh	II
Whisk
Egg white	2 eggs	2 minutes		/	II
Cream(37% fat)	250ml	2 minutes		/	II
Hand Blender
Vegetables soup	potatoes	100g	1 minute	2cm	II
	onion	100g		2cm	II
	carrots	100g		2cm	II
	Water 450g		/ II
Mayonnaise	Vegetable oil	150g	30sec	/	II
	egg	1		/	II
	vinegar	14g		/ II
Carrot juice	Carrot	300g	1 minute	2cm	II
	sugar	20g		/	II
	water	480g		/	II
