UT-KLEIN700 - Blender Ursus Trotter - Free user manual and instructions

Type of Product	Stand Mixer (Blender)
Model	UT-KLEIN700
Brand	Ursus Trotter
Power Consumption	700 W
Rated Voltage	220-240 V, 50/60 Hz
Protection Class	II
Mixing Action	Planetary mixing for efficient and thorough blending
Bowl Capacity	4.5 L (suitable for up to 1000 g bread flour)
Speed Settings	Stepless variable speed control
Accessories Included	K stirrer beater, whisk, kneading hook, bowl lid
Construction Material	Die-cast metal housing and plastic components
Dimensions (approx.)	35 x 20 x 35 cm (13.8 x 7.9 x 13.8 in)
Weight (approx.)	5 kg (11 lbs)
Cord Length	1 m (39 in)
Noise Level	80-88 dB(A) – ear protection recommended
Safety Features	Safety lock on arm, non-slip suction feet, automatic shut-off when unattended
Cleaning	Housing wipe with damp cloth; detachable parts dishwasher safe or hand wash
Repairability	Use only original spare parts; replace by qualified technician
Warranty	Standard manufacturer warranty (check included poliza)

Frequently Asked Questions - UT-KLEIN700 Ursus Trotter

Can I use the stand mixer for kneading heavy bread dough?

Yes, the UT-KLEIN700 is designed for heavy mixtures. It can handle up to 1000 g of strong white bread flour with 700 ml water using the kneading hook. Start at low speed for 15 seconds, then increase to maximum for about 10 minutes.

How do I lock the arm properly?

Press the locking knob down while simultaneously pressing the arm down until it clicks into place. Ensure the bowl is locked before operation.

What is the maximum capacity for the whisk attachment?

For whisking, use up to 6 egg whites. Start at low speed and increase to full speed for about 16 minutes.

Can I immerse the motor housing in water?

No, never immerse the motor unit in water or any liquid. Clean the housing only with a damp cloth. Detachable parts like the bowl and accessories can be washed in soapy water.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the appliance until repaired.

Is the stand mixer noisy?

The product has a working noise level between 80 and 88 dB(A). We suggest wearing ear protection while operating.

How do I change speeds during operation?

Turn the speeds selector knob to the desired position. The mixer has stepless variable speed control, so you can gradually increase or decrease speed. Refer to the suggested speed guide for each accessory.

Can I use the mixer without the bowl lid?

Yes, the bowl lid is optional but recommended to prevent splashing. For easier ingredient addition, you may remove it; however, always keep hands and utensils away from moving parts.

What is the warranty period for this product?

The warranty is provided by Ursus Trotter as per the included 'Poliza de Garantia'. Typically it covers manufacturing defects for a standard period (e.g., 2 years). Check the document for details.

How do I clean the accessories?

The bowl, stirrer, whisk, and kneading hook can be washed in warm soapy water or placed in the dishwasher. Rinse and dry thoroughly before storing or reassembling.

USER MANUAL UT-KLEIN700 Ursus Trotter

German Engineering & Design

KÜCHENMASCHINE

Batidora de pedestal

White Ursus Trotter mixing bowl with control knob and brand logo (no visible text or symbols on main body)

This heavy duty Stand Mixer has the power, capacity, precision and planetary mixing action ensure efficient mixing and beating, not only can knead even the toughest whole grain bread, also has a sufficient wide range usage. Different speed is engineered for whipping custards, cream, meringues and so on. In words, with this heavy duty stand mixer you could incorporate maximum air and prepare the meals, snack, and dessert wonderful and enjoyable.

Rated voltage: 220-240V, 50/60Hz

Power consumption: 700W

Protection class: II

GENERAL SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference.

- This appliance is for household use only.

- Never dip machine into any liquid and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

- Always disconnect the product from the supply if it is left unattended and before assembling, disassembling or cleaning.

- Avoid children or other people who do not know the operation of this machine to use it, unless they are under proper instruction. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- If the supply cord is damaged, it must be replaced by the manufacture of its service agent or a similar qualified person in order to avoid a hazard.

- Keep your finger away from moving parts and fitted tools. Never put your fingers etc in hinge mechanism.

- Use only original spare parts.

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

- Do not interfere with any safety switches.

- Do not insert anything into the rotating hooks while the machine is working.

- Place the machine on a smooth, flat and stable working surface.

- Take care when rise up the arm of this appliance in case any strikes.

BEFORE CONNECTING TO POWER

- Before connecting to the power, please check whether the type of supply and the mains voltage

match with the details given on the rating label on the appliance.

- Using for the first time, rip off all wrapping paper and plastic bags. Clean the fittings.

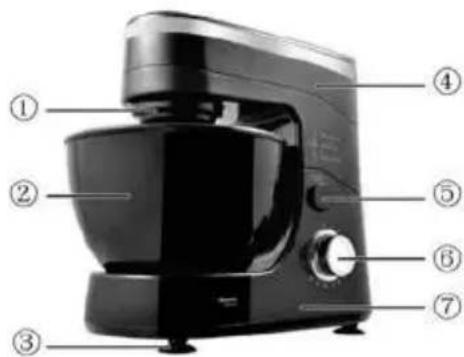

KNOW YOUR KITCHEN MACHINE

8

⑨

⑩

Simple line drawing of two overlapping circular shapes, one cut open and one filled (no text or symbols)

⑪

	Outlet for accessories		The housing
	Mixing bowl		Accessory - "K" Stirrer beater
	Sucker		Accessory - Whisk
	Motor Unit		Accessory - Kneading hook
	Locking knob		Accessory - Bowl Lid
	Speeds Selector

USING THE MIXING BOWL

1. Place □ the mixing bowl into the housing and turn the bowl until it locks into place.

2. In order to lift the arm, press the button □ Locking knob down. The arm will move upwards.

3. Inserting □ or □ or □ accessories into □ outlet. Sure the Accessory is into the end of outlet.

4. Now fill in your ingredients.

5. Press the button □ Locking knob down again and in the same time press down the arm for lock.

6. For Insert the □ mixing bowl lid and then insert the plug into power socket.

7. Turn □ Speeds Selector to start the machine and set the right speed.

8. After operation, turn the □ Speeds Selector back to the beginning position to stop machine. Then

remove the mains plug.

1. Press the button □ Locking knob down. The arm will move upwards.
2. □ The mixing bowl can now be removed.
3. The mixture can now be released with the help of a spatula and removed from the □ the mixing bowl.
4. Clean the parts as described under "Cleaning".

Suggestion Speeds for the □ □ □ or accessories

Levels	Use	Type of Mixture
	Kneeding hook	Heavy mixtures (e.g. broad or short pastry)BASE RECIPES TIPS:*** Ingredients:Max 1000g strong white bread flour; 700ml water(four weight : water weight: 1 : 0.7)*** Operation:** Put the strong white bread flour and then the remaining ingredients to the mixing bowl,*** Start the stimer for 15 seconds at slow speed [D4ST]** Take away bowl lid for a more easy operation.** Approximately 10 minutes on a faster till to max speed
Foreside 1/3 of full stepless speed
Full stepless speed	Whisk	Light mixtures(e.g. cream, egg white, blanomange)BASE RECIPES TIPS:*** Ingredients:6 egg whites*** Operation:** Put the eggs white to the mixing bowl,** Start the while approximately 16minutes on the fastest speed.
Foreside 1/3 of full stepless speed	Stimer beater	Heavy mixtures (e.g. broad or short pastry)*** Ingredients:Max 1400g strong white bread flour; 1000ml water*** Operation:** Put the strong white bread flour and then the remaining ingredients to the mixing bowl,*** Start the stimer for 15 seconds at slow speed ** Take away bowl lid for a more easy operation.** Approximately 3 minutes on a faster till to max speed
Foreside 2/3 of full stepless speed		Medium-heavy mixtures(e.g. crepes or sponge mixture)GENERAL OPERATION:** Start the stimer for 30 seconds at slow speed** Approximately 10 minutes on a faster till to max speed

CLEANING

• Before cleaning remove the power cord from the socket.
• Never immerse the housing with motor in water! - Do not use any sharp or abrasive detergents.
• Only a damp rinsing cloth should be used to clean the outside of the housing.
• Components that have come into contact with food can be cleaned in soapy water.
• Allow the parts to dry thoroughly before reassembling the device.
• We hereby declared that our product have a working noise level more than 80dB(A) but less than 88dB(A). We suggest wearing ear protection while operating the appliance.

NOISE

We hereby declared that our product have a working noise level more than 80dB(A) but less than 88dB(A). We suggest wearing ear protection while operating the appliance.

WEEE

This product contains recyclable materials.

Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

POLIZA DE GARANTIA

Stylized emblem featuring a central eagle with a shield and wings, enclosed in a laurel wreath (no text or symbols)

Ursus Trotter
