USER MANUAL P-208II CANON

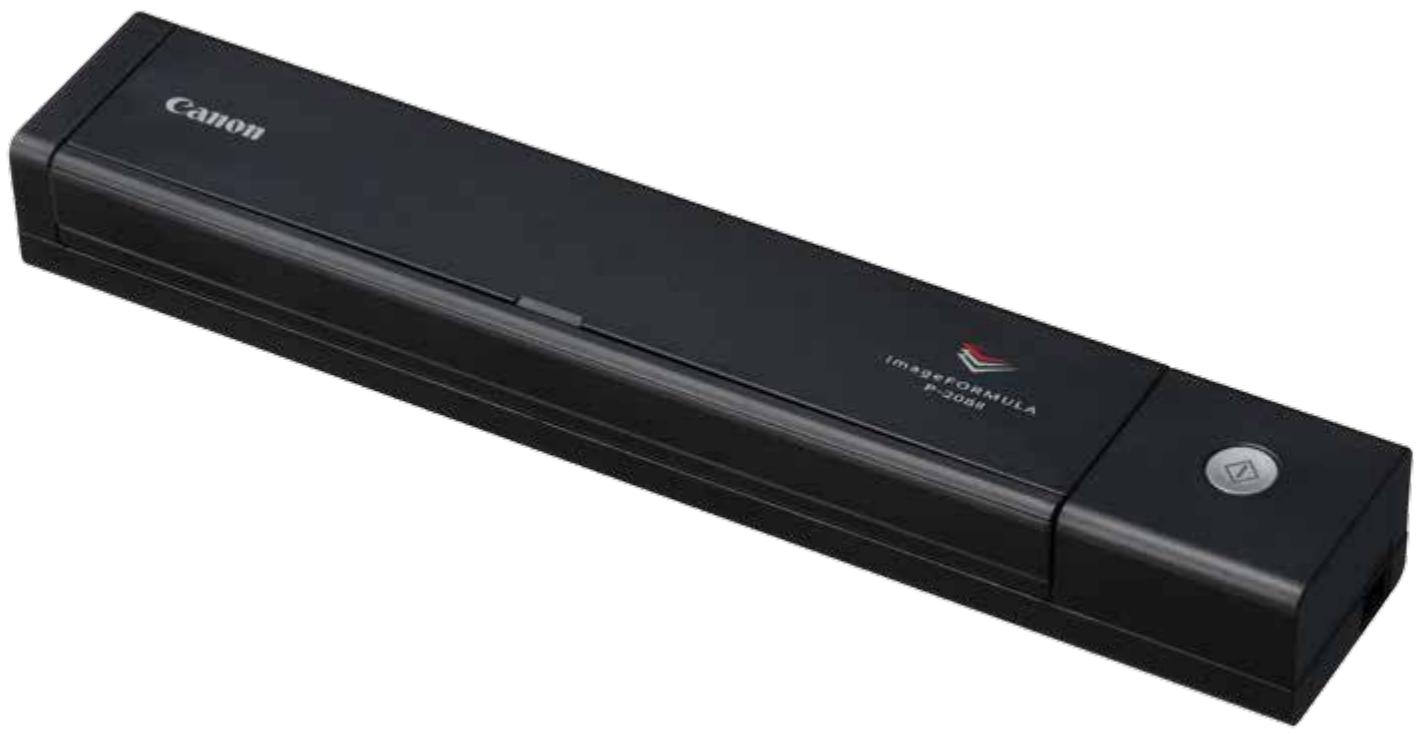

Fast, ultra-slim scanner for mobile executives and home users
P-208II
Portable document scanner
(with optional WU10 Wi-Fi unit)
you can
With its 10-sheet ADF, high speed duplex scanning capability and optional Wi-Fi connectivity,
this is the ideal scanner to maximise your productivity wherever work takes you.
The lightweight and ultra-portable P- 208II scanner's footprint is barely larger than a standard ruler. So it's the perfect choice for mobile executives and home users.
B&W SPEED
8ppm/16ipm
COLOUR SPEED
8ppm/16ipm
DAILY DUTY CYCLE
100 scans/day
AUTOMATIC DOCUMENT FEEDER
10 sheets
No-compromise mobile scanning
The imageFORMULA P-208II provides travelling executives or office users with impressively fast double-sided colour scanning of up to 16ipm at 200dpi. Maintain productivity on the move with the integrated 10-sheet ADF, which enables easy batch scanning of multiple documents like contracts in a single operation. Weighing just 600g, and little longer or wider than a standard ruler, the P-208II is small and light enough to take anywhere. For maximum flexibility, the P-208II is compatible with Mac and PC computers, as well as Apple iOS and Android mobile devices.*
- When connected to the WU10 accessory.

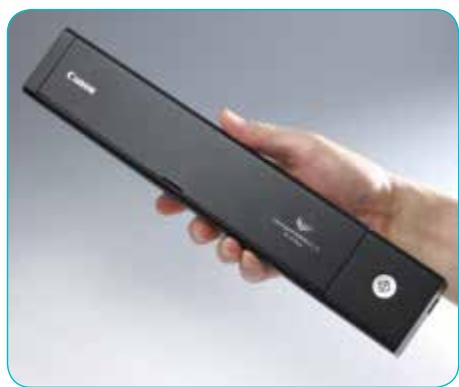

Ultra-slim and lightweight
Plug-and-scan convenience with CaptureOnTouch Lite
By using the selectable ‘auto-start’ feature – just connect with a USB cable and start scanning! CaptureOnTouch Lite software is built into the P- 208II so there is no need to download additional drivers or software, it’s simply plug-and-scan.
Intuitive image processing
A rich selection of built-in image processing features help you achieve high quality results. The P-208II offers auto colour detection, text orientation recognition and text enhancement to optimise your scanned images; the full auto mode feature automatically applies the ideal settings for your documents while delivering super-fast results.

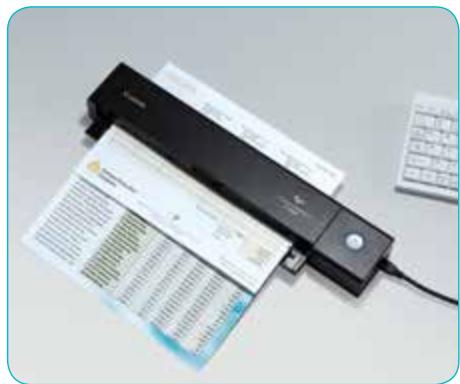

Scan all types of document
The P-208II is the perfect accessory for both home and business use because it's capable of scanning such a wide range of media. Business users can capture regular A4 sized documents like contracts or irregular-sized media like business/embossed cards when they're out of the office.
Home users will also enjoy using the P-208II, because it's perfect for scanning household bills; while the picture mode feature is ideal for accurately scanning old photographs.
10 sheet document feeder, with double-sided scanning

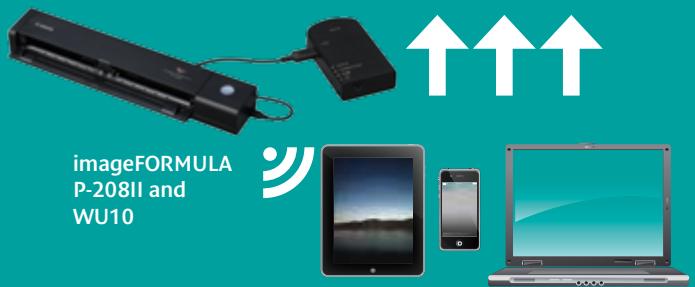

Scan wirelessly to smart devices with the optional Wi-Fi unit WU10 - it's the perfect companion for the P-208II for scanning directly to mobile, tablet and PC devices.
CERTIFIED
Share to cloud-based applications/workflows
Scan directly to PC/Mobile devices
Optional Wi-Fi unit WU10
The Wi-Fi unit WU10 enables wireless scanning to mobile devices without the need to connect via cable to a network point. Businesses can also set-up wireless scanning to desktop PCs with the Wireless Connection Setup Tool and Network Monitor software. The WU10 comes with a rechargeable Lithium-ion battery and when fully charged you can scan up to 400 images. Simply connect via USB to your Canon mobile scanning device and enjoy fast mobile scanning anytime, anywhere.
CaptureOnTouch Mobile App
Scan direct to your iPhone®, iPad® and Android device with the free CaptureOnTouch Mobile App. It comes with advanced image processing tools such as automatic size detection, deskew and skip blank page – giving consistently superior image quality results.
Download the free CaptureOnTouch Mobile App from Google Play (Android user) or the Apple App Store (iOS user).
Powerful, intuitive software that enhances your productivity
The P-208II is the perfect partner for both Mac and Windows devices.
A superb range of desktop software helps you gain maximum productivity from your scanner.

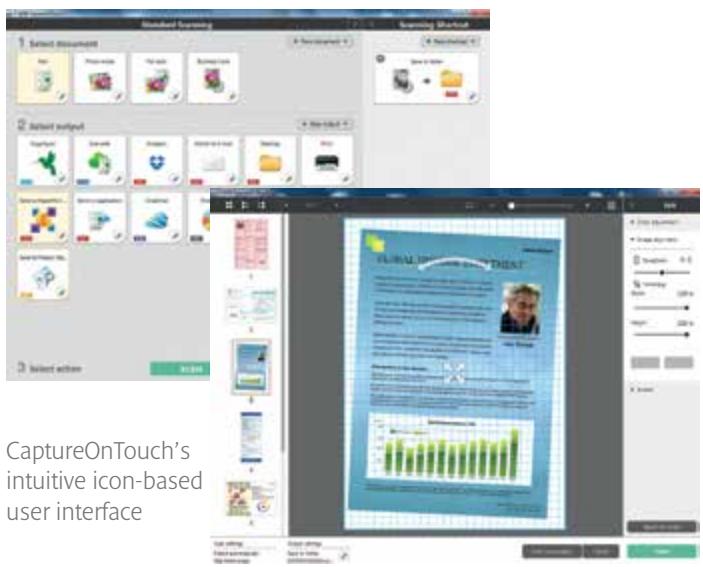

Capture OnTouch
Intuitive capture software that makes it quick and simple to achieve premium quality results. CaptureOnTouch incorporates an icon-based user interface with scanning to multiple file formats including PDF, PDF-A, TIFF, JPEG, BMP, PPTX and PNG. CaptureOnTouch can also send captured information directly to data management systems (compatible with both Windows and Mac).
Capture OnTouch
Offers unique portability and convenience on the move. The software is built into the P-208II allowing for fast and effortless connectivity without the need to install any drivers or application software (compatible with both Windows and Mac).
Presio BizCard
Scan business cards to convert and organise important information into a searchable database (compatible with both Windows and Mac).
Cloud service plug-ins
The CaptureOnTouch and CaptureOnTouch Lite software includes plug-ins for connecting to cloud and ECM services such as Evernote, Google Drive™, Microsoft SharePoint®, SugarSync, OneDrive (Windows only) and Dropbox.
Enhanced cloud connectivity
| Type Document Reading Sensor Optical Resolution Light Source Reading Side Interface Dimensions Weight Power Requirements Power Consumption Operating Environment Environmental Compliance | Desktop Type Sheet Fed Scanner CMOS CIS 2 Line Sensor 600dpi RGB LED Front / Back / Duplex High Speed USB 2.0 Tray Closed: 312.5 (W) x 56.5 (D) x 40 (H)mm Tray Opened: 312.5 (W) x 89.5 (D) x 40 (H)mm Approx. 600g Supply from USB (500mA) Scanning: 2.5W, Sleep Mode: 1.5W, Power Turned Off: 0.5W 10 - 32.5°C (50 - 90.5°F), Humidity: 25 - 80% RH RoHS and ENERGY STAR | ||
| READING SPEED¹ (A4, Portrait) B&W / Greyscale Colour | P-208II | ||
| Simplex | Duplex | ||
| 200dpi / 300dpi 200dpi 300dpi | 8ppm 8ppm 6ppm | 16ipm 16ipm 12ipm | |
| DOCUMENT SPECIFICATIONS Width Length Thickness Card Scanning Paper Separation Feeder Capacity | 50.8 - 216mm 70 - 356mm 52 - 209g/m² (0.06 - 0.22mm) 54 x 86 x 1.4mm (Embossed card scanning is supported) Separation Pad Method 10 sheets (64g/m²) | ||
| OUTPUT Resolution Mode | 150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi Black & White, Advanced Text Enhancement II, 8-Bit Greyscale: (256-Level), 24-Bit Colour | ||
| SPECIAL FEATURES | Automatic Page Size Detection, Deskew, 3-Dimensional Colour Correction, Auto Colour Detection, Shading Correction, Text Enhancement, Preset Gamma Curve, Scan Panel, Prescan, Image Rotation, Skip Blank Page, Select Scanning Document Side, Scan Area Setting, Text Orientation Recognition, Continuous Scanning, Edge Enhancement, Moire Reduction, Prevent Bleed Through / Remove Background, Contrast Arrangement, Background Smoothing, Shadow Cropping (on / off switchable), Trimming, Apply Corrections Suitable For Photographs, Double Feed Detection (By Length) |
| BUNDLED SOFTWARE For Windows OS | ISIS / TWAIN Driver (Windows XP Pro / XP Home / VISTA / 7 / 8) CaptureOnTouch2 CaptureOnTouch Lite2 Presto! BizCard Reader Plug-in: Evernote, Google DriveTM, Microsoft SharePoint® SugarSync, OneDrive and Dropbox |
| For Mac OS | TWAIN Driver CaptureOnTouch2 CaptureOnTouch Lite2 Presto! BizCard Reader Plug-in: Evernote, Google DriveTM, Microsoft SharePoint®, SugarSync, Dropbox |
| Options | Canon Wi-Fi Unit WU10 Silex C-6600GB Scan-and-Print Server Carry Case |
| Consumables Suggested Daily Duty Cycle | Separation Pad 100 scans/day |
| 1Scanning speeds may vary depending on the specification of the PC / Mac and the setting of functions.2Software Developer Kits are available through the Canon Business Solutions Developer Programme - www.canon.europe.com/bsdp Some images are simulated for clarity of reproduction. All data is based on Canon's standard testing methods. This leaflet and the specifications of the product have been developed prior to the date of product launch. Final specifications are subject to change without notice. ™ and ©, all company and / or product names are trademarks and / or registered trademarks of their respective manufacturers in their markets and / or countries. | |
Specifications for Optional Wi-Fi Unit WU10
| TypeDimensions: (W x D x H)WeightInterface | Optional Wi-Fi and power supply unit125 x 71 x 31.7mmMain unit: 125g / Battery: 44.5gUSB host for scanner connectionIEEE802.11b/g/n |
| POWER SUPPLYScans per Charge:(A4, 200dpi, Colour)Power consumption | AC Adaptor or Lithium-ion battery400 images (at full charge)Maximum power: 13.2W / Power off mode: 0.5W |
| WI-FI SPECIFICATIONS Operation Mode Data Rate: (Theoretical Values) Frequency Wi-Fi Security | Access point mode / Station mode IEEE802.11b: Max 11Mbps IEEE802.11g: 54Mbps IEEE802.11n: 300Mbps 2.4GHz WPA-PSK (TKIP / AES) WPA2-PSK (TKIP / AES) WEP (64 / 128bit) WPS (Wi-Fi Protected set-up) Supported |
| BUNDLED SOFTWARE For Mac and Windows Mobile OS Support Consumable | Canon Wireless Connection Setup Tool, Network Monitor Mobile apps available for Android and Apple iOS Lithium-ion Battery Pack LP-E10 |
