USER MANUAL IMAGERUNNER C1325IF/C1335IF CANON

Compact and productive colour multifunctionals

These feature rich A4 multifunctional devices are designed for cost conscious businesses that require productive high quality colour communication for small workgroups. A compact design means they fit perfectly into small office environments.

Productivity:

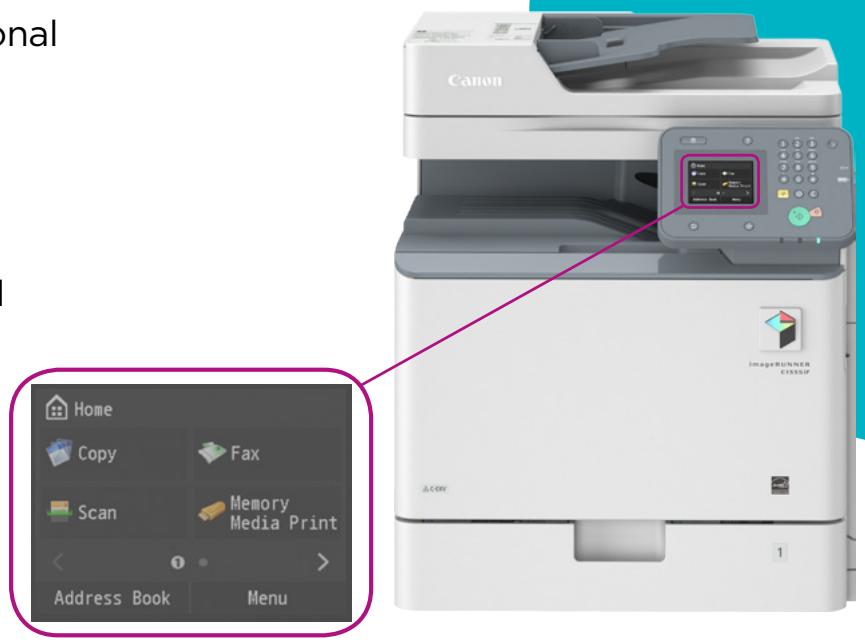

• Simple operation with a 8.9 cm colour touch and swipe user interface
• A range of flexible mobile printing and scanning capabilities, such as Apple AirPrint™, Mopria printing and Canon's optional uniFLOW solution, support mobile worker efficiency
• Up to 2,300 sheet paper capacity for busy workgroups and departments in any size organisation
• Enhanced productivity and paper saving with auto duplex functionality
• Easily scan and send documents directly to a variety of destinations including email and shared folder
• Easy maintenance design for less downtime
• Canon's V^2 colour (Vivid and Vibrant) imaging technology ensures documents impress and stand out from the rest

Security and cost control:

• Efficient, high quality colour printing thanks to separate toner and drum technology
• The functionality of many devices in one compact multifunctional device
• Documents remain secure with features such as secure print, pin release and optional PDF password protection
• Greater cost control and security with embedded support for Canon's optional uniFLOW software
• Canon's longer life drum technology reduces the need to replace consumables frequently

Integration and management:

• With their compact design, these devices fit into various office environments where space is a premium either as a desktop or floor standing
• Seamlessly integrate these devices into IT environments, supporting industry standards such as PCL and Genuine Adobe PS
• Reduce fleet management and administration burden with automated meter collection, consumables management, remote updating and diagnostics

Energy efficient:

Class-leading Typical Electricity Consumption (TEC) ratings
Consumes as little as 1 W in sleep mode
Rapid recovery from sleep mode
- ENERGY STAR® qualified
- Qualifies for the stringent Blue Angel Award*

Typical Energy Consumptions as defined by ENERGY STAR http://www.eu-energystar.org
*imageRUNNER C1325iF only

AirPrint™ and the AirPrint logo are trademarks of Apple Inc.

Machine type

Available core functions

Printer Specifications

Print speed (BW/Colour)

Printing method

Print resolution

Double sided printing

Direct print

Printing from mobiles or internet-connected devices and cloud-based services

Paper input (Standard)

Paper input (Option)

Maximum paper input capacity

Paper output capacity

Finishing capabilities

Supported media types

Supported media sizes

Supported media weights

Page Description

Language(s)

Fonts

Operating System compatibility

Copy Specifications

Copy speed (BW/Colour)

First Copy Output Time

(FCOT)

(BW/Colour)

Copy resolution

Multiple copy

Reduction/Enlargement

Scan Specifications

Optional/Standard

Supported media size/s

Colour A4 Laser Multifunctional (Reader / Printer standard)

Print, Copy, Scan, Send and Fax standard

C1335iF: 35/35ppm (A4 Single-sided), 26/26ppm

(A5 Single-sided), 35/35ppm (A4 Double-sided)

26/26ppm (A5 Double-sided)

C1325iF: 25/25ppm (A4 Single-sided), 26/26ppm

(A5 Single-sided), 25/25ppm (A4 Double-sided),

26/26ppm (A5 Double-sided)

Colour Laser Beam Printing

2400 dpi equivalent x 600 dpi, 600 dpi x 600 dpi

Automatic (Standard)

Direct printing available from USB memory key

Supported file types: JPEG, TIFF, PDF

A range of software is available to provide printing from mobile

or internet-connected devices. Please contact your sales

representative for further information.

1 x 550-sheet (80 gsm) cassette,

100-sheet (80 gsm) multi-purpose tray

1 x 550-sheet cassette (80 gsm) (Cassette Feeding Unit-AJ1)

3 x 550-sheet cassette (80 gsm) (Cassette Feeding Unit-AK1)

2300 sheets (80 gsm)

250 sheets (80 gsm)

Standard: Collate, Group

Cassette/s:

Thin paper, Plain paper, Recycled paper, Colour paper, Heavy

paper, Pre-punched paper, Envelopes* 1Evaluations support standard assets

Envelope support via mail Multi-purpose tray:

Thin paper, Plain paper, Recycled paper, Colour paper, Heavy paper, Pre-punched paper, Transparency, Labels, Envelopes (No.10 (COM10), Monarch, ISO-C5, DL)

Paper cassette 1:

Standard size: A4, A5, B5, Legal, Letter, Executive, Statement

Envelopes (No.10 (COMIO), Monarch, DL)

Custom size (98.4 mm to 216 mm X 190.5 mm to 355.6 mm)

Paper cassettes 2, 3 and 4

Standard size: A4, A5, B5, Legal, Letter, Executive, Statement

Custom size (98.4 mm to 216 mm X 190.5 mm to 355.6 mm)

Multi-purpose tray:

Standard size: A4, A5, B5, Legal, Letter, Executive, Statement

Custom size (98.4 mm to 216 mm x 148 mm to 355.6 mm)
Elastics (No.10 GCM10, Monash, ISO-CE PL)

Envelopes (No.10 COH)

Cassette/s : 60 to 185 gsmMulti - lattener / 200 x 200

Duplex: 60 to 163 gsm

UFRII, PCL5c/6, Adobe PostScript Level 3 (Standard on

all models)

PCL fonts: 93 Roman, 10 Bitmap, 2 OCR fonts

PS fonts: 136 Roman fonts

UFRII: Windows XP / Server 2003 / Vista / Server 2008 /

Windows 7 / Server 2008R2 / Windows 8 / Windows 8.1/

Server 2012 / Server 2012R2, MAC OS X (10.5.8 or later)

PCL: Windows XP / Server 2003 / Vista / Server 2008 /Windows 7 / Windows 2008 P2 (Windows 2) / Windows 2

Windows 7 / Server 2008 R2 / Windows 8 / Windows 8.1/Server 2012 / Server 2012R2

PS: Windows XP / Server 2003 / Vista / Server 2008 /

Windows 7 / Server 2008 R2 / Windows 8 / Windows 8.1 /

Server 2012/Server 2012R2, MAC OS X (10.5.8 or later)

PPD: MAC OS 9.1 or later, MAC OS x (10.5.9 or later)Windows XR / Windows Vista / Windows 7 / Windows

Windows 8.1

Please refer to http://software.canon-europe.com/ for

availability of print solutions for other operating systems and environments including AS/400, UNIX, Linux and Citrix. Some of these solutions are chargeable.

SAP Device Types are available via the SAP Market Place.

Please refer to the quoted print speeds

C1335iF: 5.9 sec / 7.4 sec

C1325iF: 8.4 sec / 10.5 sec

Reading: 600 dpi x 600 dpi

Printing: 600 dpi x 600 dpi

Up to 999 copies

Zoom: 25 - 400 % in 1% increments

Fixed Zoom Ratio: 25% 50% 70% 100% 141% 200% 400%

Standard on all models (DADF 50 sheets)

A4, A5, B5, Custom sizes: 140 mm to 216 mm x 128 mm to

356 mm (when fed through the DADF)

Supported media weight/s

Scan resolution

Double sided scanning

Scan speed

Scan methods

Pull scan specifications

Send Specifications

Optional/Standard

Send resolution

Destinations

Address Book/Speed dials

File formats

Optional Universal Send

Feature Sets

Fax Specifications

Optional/Standard

Modem speed

Fax resolution

FAX memory

Speed dials

Group dials/destinations

Sequential broadcast

Memory backup

Other features

General Specifications

Warm-up time

Recovery from sleep mode

Interface type

Network protocols

Memory

Control panel

Dimensions (W× D× H)

Single-sided scanning: 50 to 105 gsm (DADF)

Double-sided scanning: 64 to 105 gsm (DADF)

BW Scan: 100 dpi, 150 dpi, 200 dpi x 100 dpi, 200 dpi, 300 dpi

200 dpi x 400 dpi, 400 dpi, 600 dp

CL Scan: 100 dpi, 150 dpi, 200 dpi x 100 dpi, 200 dpi, 300 dpi

2-sided to 2-sided (Automatic)

C1335iF

BW single-sided: 35 ipm (A4, 300 dpi X 300 dpi),

BW double-sided: 11 ipm (A4, 300 dpi × 300 dpi)

CL single-sided: 35 ipm (A4, 300 dpi X 300 dpi)

CL double-sided: 11 bpm (A4, 300 dpi x 300 dpi)

CI325IF

BW single-sided: 25 ipm (A4, 300 dpi × 300 dpi),

BW double-sided: 9 ipm (A4, 300 dpi x 300 dpi)

CL single-sided: 25 bpm (A4, 300 dpi × 300 dpi) Glu double-sided: 9 bpm (A4, 300 dpi × 300 dpi)

CE double sided: 3.4ppm (A4, 500 dpi x 500 dpi)

Push Scan: Colour Send functionality is standard

Pull Scan: T WAIN / WIA Pull scanning available on all models.

Scan to USB Memory Key: Available on all models See to mobile internet connected devices: A re

Scanning to mobiles, Internet-connected devices. A range of solutions is available to provide scanning to mobile devices.

internet-connected devices depending on your requirements

Please contact your sales representative for further information.

TWAIN/WIA Pull scanning

Windows XP

Windows Vista/Windows 7/Windows 8/Window8.1

Mac Scan (TWAIN only)

Mac OS X 10.5.8 or later

*The drivers are available via http://software.canon-europe.com.

Standard on all models

100 dpi, 150 dpi, 200 dpi x 100 dpi, 200 dpi, 300 dpi

200 dpi x 400 dpi, 400 dpi, 600 dpi

E-Mail, Fax, PC (SMB, FTP)

LDAP (Max. 50 searchable). Local (Max. 300 including 281 Speed

dials)

SMB:JPEG,TIFF,PDF,Compact PDF,Searchable PDF

E-mail : PDF, Compact PDF, Searchable PDF

Send PDF Security Feature Set-E1@E: Send encrypted PDF and

add digital device signature to PDF files.

Standard on all models

Super G3 33.6 kbps (Up to 3 seconds per page')

Standard: 200 x 100 dpi

Fine: 200 x 200 dpi

Super fine: 200 × 400 dpi

Ultra fine: 400 x 400 dpi

Up to 512 pages

Max. 281

Max. 199 dials

Max. 310 addresses

Yes

Fax Forwarding, Dual Access, PC Fax (TX only)

Approx. 34 seconds from power ON

10 seconds or less

USB 2.0 Hi-Speed, 1000BaseT / 100Base-TX / 10Base-T, 1x USB

Host (Front), 1 x USB Host (Rear), 1 x USB device

Recommended third party wireless solution is Silex SX-BR-4600

WAN For more details please refer to www.silex-europe.com

TCP/IP* (LPD / Port 9100/WSD/IPP/IPPS/SMB/FTP),

IPX/SPX (NDS, Bindery)

*IPv4 / IPv6 support

1.0 GB

QVGA Color LCD 8.9 cm (3.5 inch) touch / swipe supported display

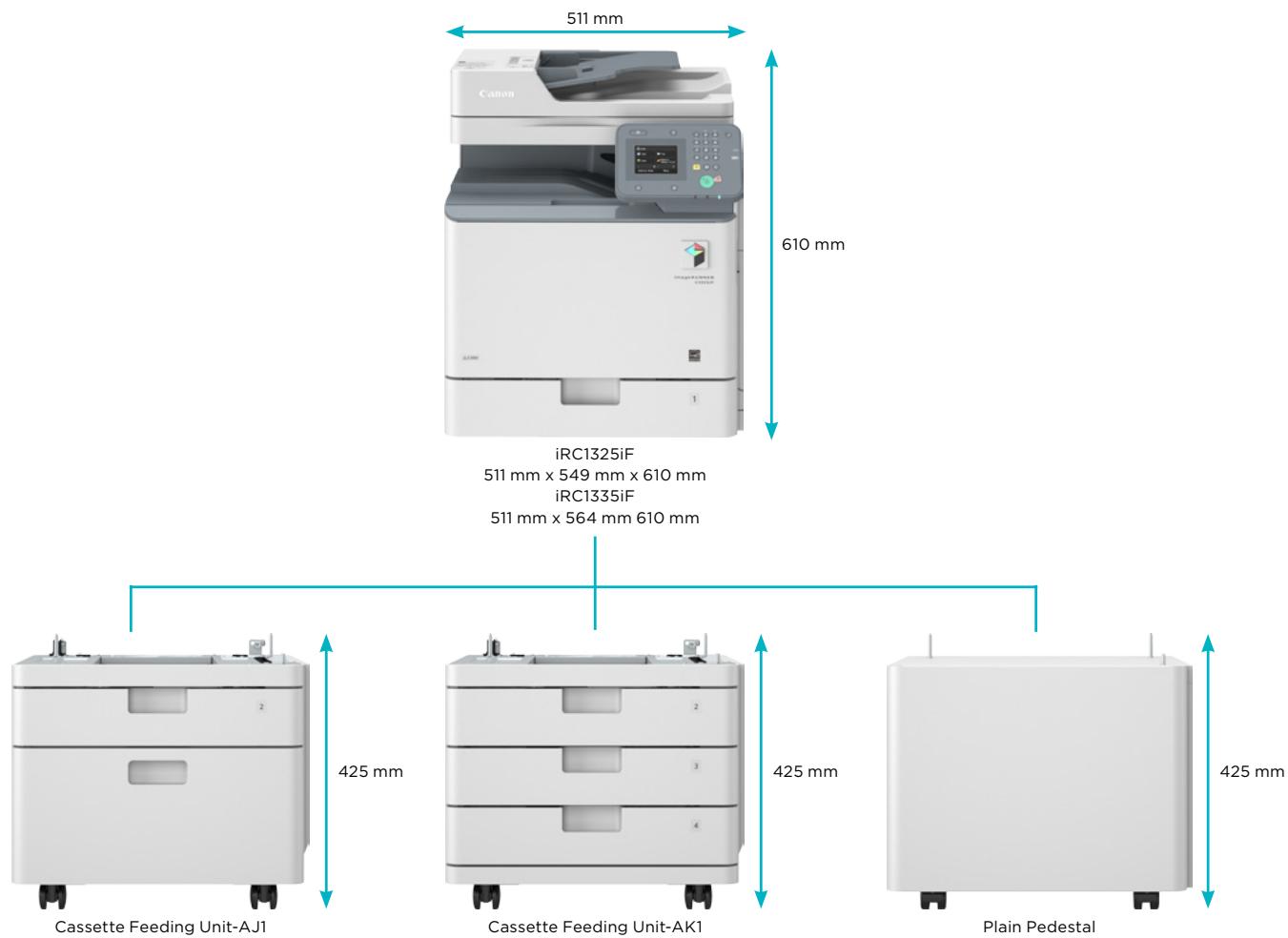

Standard:

C1325iF 511 mm x 549 mm x 610 mm

C1335iF 511 mm x 564 mm x 610 mm

Optional:

C1325iF With Cassette Feeding Unit-AJ1:

511 mm x 549 mm x 1035 mm

C1325iF With Cassette Feeding Unit-AK1:

511 mm x 549 mm x 1035 mm

C1325iF With Plain Pedestal Type-F1:

511 mm x 549 mm x 1035 mm

C1335iF With Cassette Feeding Unit-AJ1:

511 mm x 564 mm x 1035 mm

C1335iF With Cassette Feeding Unit-AK1:

511 mm x 564 mm x 1035 mm

C1335iF With Plain Pedestal Type-F1:

511 mm × 564 mm × 1035 mm

Installation space (W x D)

C1325iF:852mm×843mm

(Main unit + Multi-purpose tray open + Cassette drawers open)

C1335iF:852 mm x 858 mm

(Main unit + Multi-purpose tray open + Cassette drawers open)

Weight

Operating environment

Power source

Power consumption

Noise levels

Sound Pressure

(reference data, LpAm,

Bystander's position)

Software and printer management

Security features

Consumables

Toner bottle

Approx. 43kg excluding toner

Temperature: 10 to 30^ (50 to 86^ )

Humidity: 20 to 80% RH (no condensation)

220 - 240 V (±10 %), 50 / 60 Hz (±2 Hz), 3.7 AMP

Maximum: Approx. 1.5 KW

Standby: Approx. 30 W

Sleep mode: Approx. 1.0 W or less

Time to put the device to sleep mode: 60 sec

Typical Electricity Consumption (TEC) rating:

1.2 kWh (C1335iF) / 0.8 kWh (C1225iF)

Sound Pressure Noise Levels:

C1325iF

Active: 50 dB

Standby: Inaudible (Less than 30dB)

C1335IF

Active: 51 dB

Standby: Inaudible (Less than 30dB)

iW Management Console: Server-based software for centralised

management of a fleet of devices

eMaintenance: embedded RDS allows remote eMaintenance

services such as meter capture, automatic consumables

management and remote diagnostics.

Remote Firmware System (GDLS): Allows the remote

distribution of firmware,

Remote User Interface (RUI): Web-based interface to each

device that helps to provide remote device management

and control.

Canon Driver Configuration Tool: A utility for changi

factory default settings of Canon print drivers

Standard:

IP / Mac Address Filtering, IPSEC, SNMP V3.0, IEEE 802.1X.

Secured Print, Department ID

Optional:

Send PDF Security Feature Set-E1@E

The following items require uniFLOW: My Print Anywhere secure

print, Data Loss Prevention.

C-EXV 48 Black/Cyan/Magenta/Yellow Toner (Yield: BK 16,500

/CMY11,500 pages)

Specifications for options

Cassette feeding unit

Hardware accessories 1

Hardware accessories 2

Print controller accessories

System accessories

Document security

accessories

Accessibility accessories

Name: Cassette Feeding Unit-AJ1

Description: Optional cassette feeding unit with 1 x 550 sheets

paper capacity. Takes the cassette paper capacity up to

1,200 sheets.

Dimensions (W x D x H): 511 mm x 508 mm x 425 mm

Weight: Approx. 15 kg

Name: Cassette Feeding Unit-AK1

Description: Optional cassette feeding unit with 3 x 550 sheets

paper capacity. Takes the cassette paper capacity up to

2,300 sheets

Dimensions (W x D x H): 511 mm x 508 mm x 425 mm

Weight: Approx. 19 kg

Plain Pedestal Type-F1: The pedestal can be placed under the

standard cassette module to raise the device when

free-standing. (Height of Pedestal: 426 mm)

Copy Card Reader Attachment-H1:

BARCODE PRINTING KIT-D1@E: Enables barcode printing via jet

caps technology.

Copy Control Interface Kit-C1: Allows connection (CCVI I / F)

between 3rd party copy control terminal and Canon's iR-ADV

range for cost recovery use.

Send PDF Security Feature Set-E1@E: Send encrypted PDF and

add digital device signature to PDF files.

ADF ACCESS HANDLE-A1: Attaches to the document feeder,

making access easier for seated users.

Footnotes

Based on ITU-T Standard Chart No.1

^2 1 watt sleep mode may not be possible in all circumstances. Certain network configurations and

options may prevent the device from entering deep sleep mode. Please refer to the user guide for more information

Typical Electricity Consumption (TEC) rating represents the typical electricity consumed by a

product during 1 week, measured in kilowatt-hours (kWh). The test methodology is defined by

Energy Star (http://www.eu-energystar.org).

4 Declared noise emission in accordance with ISO 7779

^5 Based on 5% coverage (A4)

All specifications subject to change without notice

SUPER

G3

C132SiF only.

Printer Vendor Solution

COLOR ON DEMAND

Canon Inc.

canonical.com

Canon Europe

canon-europe.com

English edition

© Canon Europa N.V.,2014

Canon (UK) Ltd

Woodhatch

Reigate

Surrey RH2 8BF

Telephone no 01737 220000

Facsimile 01737 220022

canon.co.uk

Canon Ireland

3006 Lake Drive

Citywest, Saggart

Co.Dublin, Ireland

Telephone No: 01 2052400

Facsimile No: 012052525

canon.ie
