Productive and cost effective A4 colour multifunctional

The imageRUNNER C1225iF is a feature rich A4 colour multifunctional device, providing fast and efficient document handling 'out of the box' so you can focus on your business priorities.

• Powerful A4 colour multifunctional with print, copy, colour scan, send and fax functionality, ideal for demanding small businesses

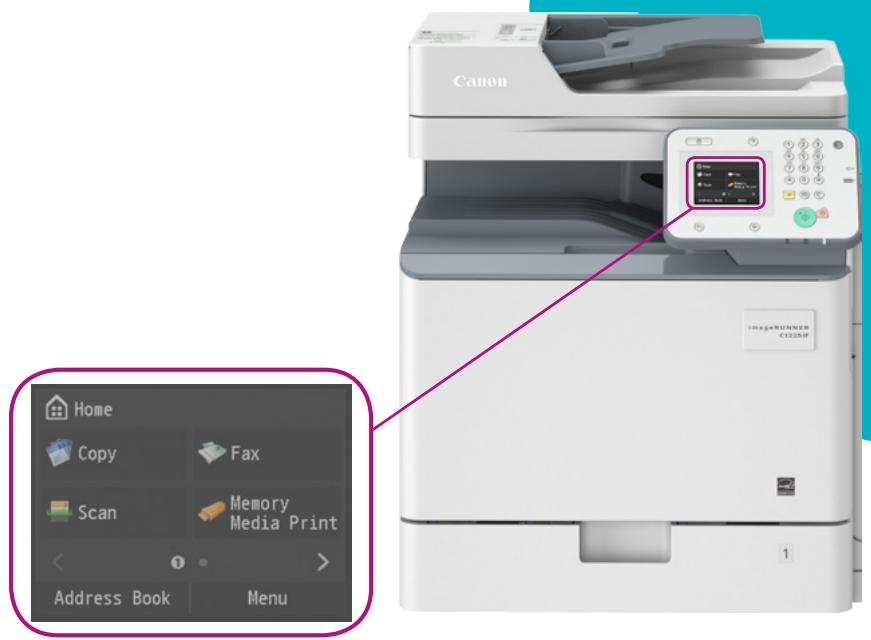

• Simple and user friendly operation with the 8.9 cm colour touch and swipe LCD display
• Canon's V^2 colour (Vivid and Vibrant) imaging technology ensures documents impress and stand out from the rest
• Seamlessly fits into your office environment with network connectivity and supporting IT standards such as PCL and Genuine Adobe PS
• Increase productivity with up to 1,100 sheet capacity and a Duplex Automatic Document Feeder (DADF)

• Scan and Send documents directly to a variety of destinations including email and shared folder

• Flexible mobile printing and scanning capabilities such as Apple AirPrint™, Mopria printing as well as mobile printing and scanning apps, support mobile worker efficiency

• Out of the box easy install; users can access the set-up guide via the user interface
• Consumables can be changed easily reducing down-time
• Standard toner included in the box giving up to 12 months colour printing¹
• Giving you peace of mind with Canon's standard warranty
• Energy consumption as little as 1 watt in sleep mode
• Compact and efficient space saving design

PRINT

COPY

FAX

SCAN

Machine type

Available core functions

Printer Specifications

Print speed (BW/Colour)

Printing method

Print resolution

Double sided printing

Direct print

Printing from mobiles or

internet-connected devices

and cloud-based services

Paper input (Standard)

Paper input (Option)

Maximum paper input

capacity

Paper output capacity

Finishing capabilities

Supported media types

Supported media sizes

Supported media weights

Page Description

Language(s)

Fonts

Operating System

compatibility

Copy Specifications

Copy speed (BW/Colour)

First Copy Output Time

(FCOT) (BW/Colour)

Copy resolution

Multiple copy

Reduction/Enlargement

Scan Specifications

Optional/Standard

Supported media size/s

Supported media weight/s

Colour A4 Laser Multifunctional (Reader / Printer standard)

Print, Copy, Scan, Send and Fax standard for C1225iF

25/25ppm (A4 Single-sided), 26/26ppm (A5 Single-sided),

25/25ppm (A4 Double-sided), 26/26ppm (A5 Double-sided)

Colour Laser Beam Printing

2400 dpi equivalent x 600 dpi, 600 dpi x 600 dpi

Automatic (Standard)

Direct printing available from USB memory key

Supported file types: JPEG,TIFF,PDF

A range of software is available to provide printing from mobile

or internet-connected devices. Please contact your sales

representative for further information.

1 x 550-sheet (80 gsm) cassette, 100-sheet (80 gsm)

multi-purpose tray

1 x 550-sheet cassette (80 gsm) (Cassette Feeding Unit-AJ1)

1200 sheets (80 gsm)

250 sheets (80 gsm)

Standard: Collate, Group

Cassette/s:

Thin paper, Plain paper, Recycled paper, Colour paper, Heavy

paper, Pre-punched paper, Envelopes*

*Envelope support via standard cassette 1 only.

Multi-purpose tray:

Thin paper, Plain paper, Recycled paper, Colour paper, Heavy

paper, Pre-punched paper, Transparency, Labels, Envelopes (10-13) (26-18), M-reading (29-35 P/L).

No.10 (COMIO), Monarch, ISO-C5, DL)

Paper cassette 1:

Standard size: A4, A5, B5 Legal, Letter, Executive, Statement, Enlarged (A1, A2, B3, C3, D3)

Envelopes (No.IO (COMIO), Monarch, DL)

Custom size (98.4 mm to 216 mm X 190.5 mm to 355.6 mm)

Paper cassettes 2:

Standard size: A4, A5, B5, Legal, Letter, Executive, Statement

Custom size (98.4 mm to 216 mm X 190.5 mm to 355.6 mm)

Multi-purpose tray:

Standard size: A4, A5, B5, Legal, Letter, Executive, Statement

Custom size (98.4 mm to 216 mm x 148 mm to 355.6 mm),

Envelopes (No.10 (COM10), Monarch, ISO-C5,DL)

Cassette/s:60 to 163 gsm

Multi-purpose tray: 60 to 220 gsm

Duplex: 60 to 163 gsm

UFRII, PCL5c/6, Adobe PostScript Level 3

(Standard for C1225iF)

PCL fonts: 93 Roman, 10 Bitmap, 2 OCR fonts

PS fonts: 136 Roman fonts

UFRII: Windows XP / Server 2003 / Vista / Server 2008 /

Windows 7 / Server 2008R2 / Windows 8 / Windows 8.1 / Server

2012/Server 2012R2, MAC OS X (10.5.8 or later)

PCL: Windows XP / Server 2003 / Vista / Server 2008 /

Windows 7 / Server 2008 R2 / Windows 8 / Windows 8.1/Server 2012 / Server 2012R2

PS: Windows XP / Server 2003 / Vista / Server 2008 / Windows

7 / Server 2008 R2 / Windows8/Windows 8.1 / Server 2012 /

Server 2012R2, MAC OS X (10.5.8 or later)

PPD: MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows

XP / Windows Vista / Windows 7 / Windows 8/ Windows 8.1

Please refer to http://software.canon-europe.com/ for

availability of print solutions for other operating systems and

environments including AS/400, UNIX, Linux and Citrix. Some of

these solutions are chargeable. SAP Device Types are available via the SAP Market Place

---

Please refer to the quoted print speeds.

8.4 sec / 10.5 sec

Reading: 600 dpi x 600 dpi

1 Printing: 600 dpi x 600 dpi

Up to 999 copies

Zoom: 25 - 400 % in 1% increments

Fixed Zoom Ratio: 25%, 50%, 70%, 100%, 141%, 200v%, 400%

Standard on all models (DADF 50 sheets)

A4, A5, B5, Custom sizes: 140mm to 216mm× 128mm to

356 mm (when fed through the DADF)

Single-sided scanning: 50 to 105 gsm (DADF)

Double-sided scanning: 64 to 105 gsm (DADF)

Scan resolution

Double sided scanning

Scan speed

Scan methods

Pull scan specifications

Windows Vista/Windows 7/Windows 8/Window8.1

Mac Scan (TWAIN only)

Mac OS X 10.5.8 or later

*The drivers are available via http://software.canon-europe.com.

Send Specifications

Optional/Standard

Send resolution

Destinations

Address Book/Speed dials

File formats

Optional Universal Send Feature Sets

Fax Specifications

Optional/Standard

Modem speed

Fax resolution

Fax memory

Speed dials

Group dials / destinations

Sequential broadcast

Memory backup

Other features

General Specifications

Warm-up time

Recovery from sleep mode

Interface type

Network protocols

Memory

Control panel

Dimensions (W× D× H)

Installation space (W x D)

Weight

Operating environment

Power source

Power consumption

BW Scan: 100 dpi, 150 dpi, 200 dpi × 100 dpi, 200 dpi, 300 dpi,

200 dpi x 400 dpi, 400 dpi, 600 dpi

CL Scan: 100 dpi, 150 dpi, 200 dpi x 100 dpi, 200 dpi, 300 dpi

2-sided to 2-sided (Automatic)

BW single-sided: 25 ipm (A4, 300 dpi X 300 dpi),

BW double-sided: 9 ipm (A4, 300 dpi X 300 dpi)

CL single-sided: 25 ipm (A4, 300 dpi x 300 dpi)
RL single-sided: 12 dpi (A1, 700 dpi x 700 dpi)

CE double sided: 5 ipm (A4, 306 dpi x 306 dpi)

Push Scan: Colour Send functionality is standard

Pull Scan: I WAIN/WIA Pull scanning available on all models.

Scan to USB Memory Key: Available on all models

scan to mobile , internet-connected devices . A range ofsolutions is available to provide coping to mobile

solutions is available to provide scanning to mobile devices, internet connected devices depending on your requirement

Please contact your sales representative for further information.

TWAIN/WIA Pull scanning

Windows XP

Windows Vista/Windows 7/Windows 8/Window8.1

Mac Scan (TWAIN only)

Mac OS X 10.5.8 or later

*The drivers are available via http://software.canon-europe.com.

Standard on all models

100 dpi, 150 dpi, 200 dpi × 100 dpi, 200 dpi, 300 dpi

200 dpi x 400 dpi, 400 dpi, 600 dpi

E-Mail, Fax (not available for C1225), PC (SMB, FTP)

LDAP (Max. 50 searchable).

Local (Max. 300 including 281 Speed dials)

SMB:JPEG,TIFF,PDF,Compact PDF,Searchable PDF

E-mail : PDF, Compact PDF, Searchable PDF

Send PDF Security Feature Set-E1@E: Send encrypted PDF and add digital device signature to PDF files.

Standard for C1225iF

Super G3 33.6 kbps (Up to 3 seconds per page!)

Standard: 200 x 100 dpi

Fine: 200 x 200 dpi

Super fine: 200 × 400 dpi

Ultra fine: 400 x 400 dpi

Up to 512 pages

Max. 281

Max. 199 dials

Max. 310 addresses

Yes

Fax Forwarding, Dual Access, PC Fax (TX only)

Approx. 34 seconds from power ON

10 seconds or less

USB 2.0 Hi-Speed,1000BaseT / 100Base-TX / 10Base-T, 1x USB

Host (Front), 1 x USB Host (Rear), 1 x USB device

Recommended third party wireless solution is Silex SX-BR-4600

WAN. For more details please refer to www.silex-europe.com

TCP/IP* (LPD / Port 9100 / WSD / IPP / IPPS / SMB / FTP),

IPX/SPX (NDS, Bindery)

*IPv4/IPv6 support

1.0 GB

QVGA Color LCD 8.9 cm (3.5 inch) touch / swipe

supported display

standard: 511 mm x 5

Option:

With Cassette Feeding Unit-A.J1: 511 mm x 549 mm x 1035 mm

852mm×843mm

(Main unit + Multi-purpose tray open + Cassette drawers open)

Approx. 44kg including toner

Temperature: 10 to 30^ (50 to 86^ )

Humidity: 20 to 80% RH (no condensation)

220 - 240 V (±10 %), 50/60 Hz (±2 Hz), 3.7 Amp

Maximum: Approx. 1.5 KW

Standby: Approx. 30 W

Sleep mode: Approx. 1.0 W or less

Time to put the device to sleep mode : 60 sec

Typical Electricity Consumption (TEC) rating ^3 : 0.8 kWh

Only for C1225 (non Fax model)

Plugin-off: 0.5W or less (Normal mode)

Time to put the device to plugin-off: 4 hours

Noise levels

Sound Pressure

(reference data, LpAm,

Bystander's position

Software and printer

management

Security features

Consumables

Toner bottle

Sound Pressure Noise Levels:

Active: 50 dB

Standby: Inaudible (Less than 30dB)

eMaintenance: embedded RDS allows remote eMaintenance

services such as meter capture, automatic consumables

management and remote diagnostics.

Remote Firmware System (GDLS):

Allows the remote distribution of firmware.

Remote User Interface (RUI): Web-based interface to each

device that helps to provide remote device management and control.

Canon Driver Configuration Tool: A utility for changing the

factory default settings of Canon print drivers

Standard:

IP/Mac Address Filtering, IPSEC, SNMP V3.0, IEEE 802.1X

Secured Print, Department ID

Optional: Send PDF Security Feature Set-E1@E

Toner 34 Black / Cyan / Magenta / Yellow Toner

(Yield: BK 12,000 / CMY 7,300 pages)

Specifications for options

Cassette feeding unit

Hardware accessories 1

Print controller accessories

Document security

accessories

Other options

Footnotes

Based on ITU-T Standard Chart No.1

^2 I watt sleep mode may not be possible in all circumstances. Certain network configurations and options may prevent the device from entering deep sleep mode. Please refer to the user guide for more information

3 Typical Electricity Consumption (TEC) rating represents the typical electricity consumed by a product during 1 week, measured in kilowatt-hours (kWh). The test methodology is defined by Energy Star (http://www.eu-energystar.org).

4 Declared noise emission in accordance with ISO 7779

^5 Based on 5% coverage (A4)

All specifications subject to change without notice

Name: Cassette Feeding Unit-AJ1

Description: Optional cassette feeding unit with 1 x 550 sheets paper capacity. Takes the cassette paper capacity up to 1,200 sheets.

Dimensions (W× D× H) : 511 mm x 508 mm x 425 mm

Weight: Approx. 15 kg

BARCODE PRINTING KIT-D1@E: Enables barcode printing via jet caps technology.

Send PDF Security Feature Set-E1@E: Send encrypted PDF and add digital device signature to PDF files.

DrumUnit034(BK/C/M/Y)

Waste Toner Box WT-A3:

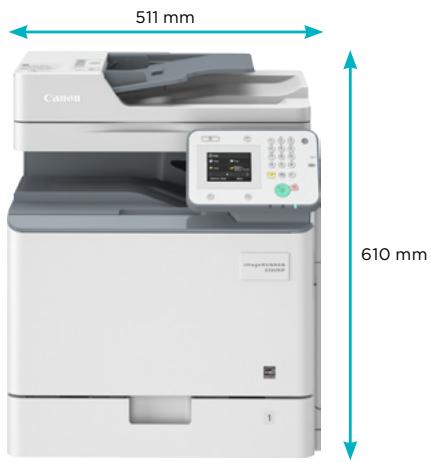

IRC1225IF

511 mm × 549 mm × 610 mm
Cassette Feeding Unit-AJ1

425mm

ance with ISO 7779.
