IOPEXTKBOARD564BTR - Keyboard IOPLEE - Free user manual and instructions

Product Type	Bluetooth Keyboard
Brand	IOPLEE
Model	IOPEXTKBOARD564BTR
Connectivity	Bluetooth
Dimensions (Approx.)	30.0 x 12.0 x 2.0 cm
Weight (Approx.)	500 g
Power Source	Rechargeable Lithium Battery
Battery Life (Approx.)	Up to 30 days of typical use
Compatible Devices	Tablets, Smartphones, Laptops with Bluetooth
Layout	Full QWERTY with Number Row
Special Keys	Multimedia Keys, Volume Control, Lock Keys
Operating Range	Up to 10 meters
Charging Time	3-4 hours
Charging Port	Micro USB
Included Accessories	USB Charging Cable
Care & Cleaning	Wipe with a soft, dry cloth. Avoid liquids.
Safety Warning	Keep away from water and extreme heat.
Spare Parts	Not available separately
Repairability	Not user-serviceable. Contact support.
Certifications	CE, FCC

Frequently Asked Questions - IOPEXTKBOARD564BTR IOPLEE

How do I pair the IOPLEE IOPEXTKBOARD564BTR keyboard with my device?

Turn on the keyboard using the power switch. Press and hold the Bluetooth pairing button (usually Fn + Bluetooth key) until the LED indicator blinks. On your device, search for Bluetooth devices and select 'IOPEXTKBOARD564BTR'. Follow any prompts to complete pairing.

What is the battery life of this keyboard?

The keyboard has a rechargeable lithium battery that lasts approximately 30 days with typical use (8 hours/day). Actual battery life may vary depending on usage patterns.

How do I charge the keyboard?

Use the included Micro USB cable to connect the keyboard to a USB power source (computer, wall adapter). The charging LED will indicate when charging is complete. A full charge takes about 3–4 hours.

My keyboard is not connecting. What should I do?

Ensure the keyboard is turned on and within 10 meters of your device. Try resetting the keyboard by turning it off and on again. If the issue persists, delete the device from your Bluetooth list and re-pair it.

Can I use this keyboard with my iPad or iPhone?

Yes, the IOPEXTKBOARD564BTR is compatible with iOS devices that support Bluetooth keyboards. The multimedia keys may also work for controlling music and volume.

How do I clean the keyboard?

Use a soft, dry cloth to gently wipe the keys and surface. Do not use liquids or abrasive cleaners. For stubborn dirt, slightly dampen the cloth with water and wring it out completely before cleaning.

The keyboard is not charging. What could be the problem?

Check that the Micro USB cable is firmly connected to both the keyboard and a working USB port. Try a different cable or power source. If the LED does not light up, the battery may be deeply discharged—leave it charging for 30 minutes and try again.

Is the keyboard spill-resistant?

The keyboard is not waterproof or spill-resistant. Keep liquids away from the keyboard to avoid damage. If liquid is spilled, disconnect the keyboard immediately, turn it off, and let it dry completely before use.

Can I replace the battery?

The battery is built-in and not user-replaceable. If the battery fails to hold a charge, please contact IOPLEE support for assistance. Do not attempt to open the keyboard.

What should I do if a key is stuck or unresponsive?

First, gently clean around the key with compressed air or a soft brush. If it remains stuck, try resetting the keyboard by turning it off and on. If the problem persists, the key may be defective. Contact IOPLEE support for warranty service.

USER MANUAL IOPEXTKBOARD564BTR IOPLEE

Thank you very much for purchasing one of our products. We kindly ask you to read this instruction manual carefully and to keep it, as it provides valuable information regarding safe use and maintenance.

INDEX

1 Safety Warnings
2 Description of the Appliance
3 Before first use
4 Operation
5 Cleaning and maintenance
6 Technical Specification
7 Disposal
8 Warranty and Compliance

1 Safety Warnings

• If any liquid enters the product accidentally. Please unplug the USB cable connecting the keyboard from the computer immediately.
• The keyboard should be placed on a stable desktop to avoid falling and damaging the keyboard.
• When cleaning the keyboard, do not rinse it directly with water
• Washing hands before using the keyboard can prevent sweat and bacteria from contaminating the keyboard. Washing hands after use can prevent contamination by bacteria on the keyboard.

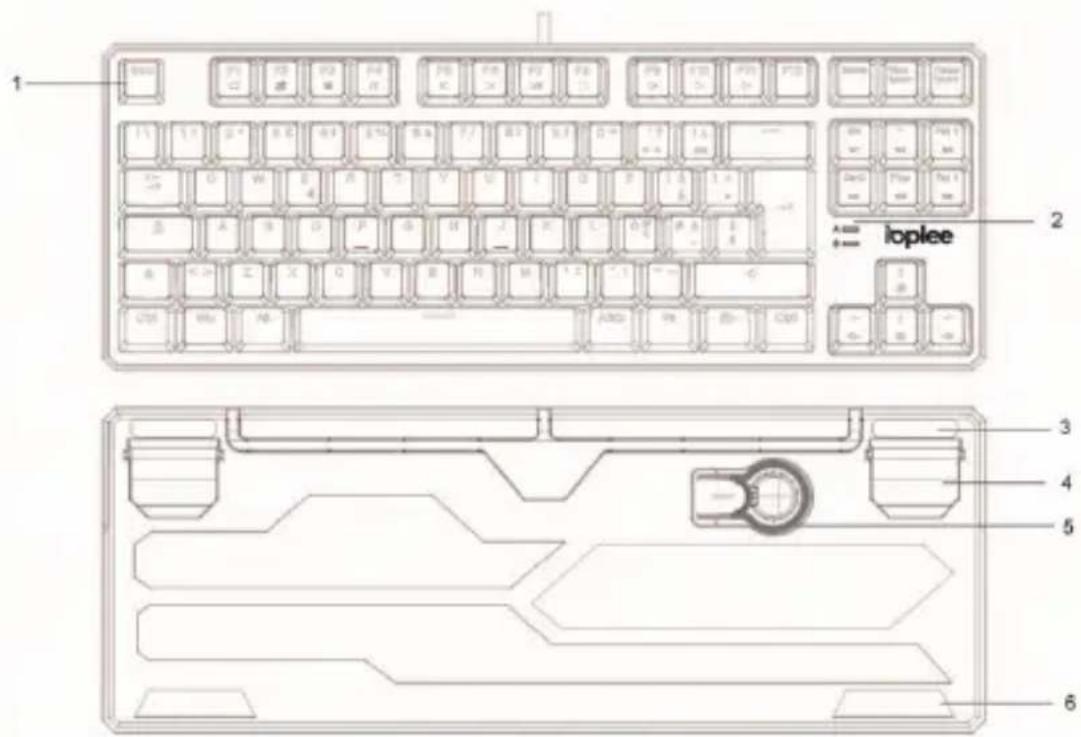

2 Description of the Appliancear

1. Keycaps

2. Indicator LED*2

3.Non-slip mat*2

1. Keyboard stand*2

2. Keycap puller

6.Non-slip mat*2

3 Before first use

Before using the keyboard, be sure to carefully review the keyboard manual and operate according to the requirements and specifications in the manual.

4 Operation

- Insert the USB interface of the mechanical keyboard into the USB port of the computer.

- Once inserted, the computer will recognize the keyboard automatically and you can start using it immediately.

RGB backlight setting: total 18 LED effects.

FN + Ins (M1): press 3 times and 3 LED effects will be showed.

FN + ↘ (M2): press 3 times and 3 LED effects will be showed.

FN + Pag ↑ (M3): press 3 times and 3 LED effects will be showed.

FN + Canc (M4): press 3 times and 3 LED effects will be showed.

FN + Fine (M5): press 3 times and 3 LED effects will be showed.

FN + Pag ↓ (M6): press 3 times and 3 LED effects will be showed.

Shortcut key Function:

1.FN + I: switch to the self-defined LED
2.FN + RGB: change the LED color
3.FN + I: save the self-defined mode
4.FN + ↑: increase LED brightness
5.FN + ↓: decrease LED brightness
6.FN + ←: decrease LED changing speed
7.FN + →: increase LED changing speed
8.FN + ?: LED direction change
9.FN + W: exchange WASD and ↑ ↓ ←→
10.FN + Win: windows lock function and press again to unlock
11.FN + ESC, then press F1, F3, F5 in order and switch to restore factory setting

Multimedia function:

FN + F1= Computer	FN + F7= Play/Pause
FN + F2= Homepage	FN + F8= CD Stop
FN + F3= Calculator	FN + F9= Mute
FN + F4= CD	FN + F10= Volume-
FN + F5= Prev Track	FN + F11= Volume+
FN + F6= Next Track

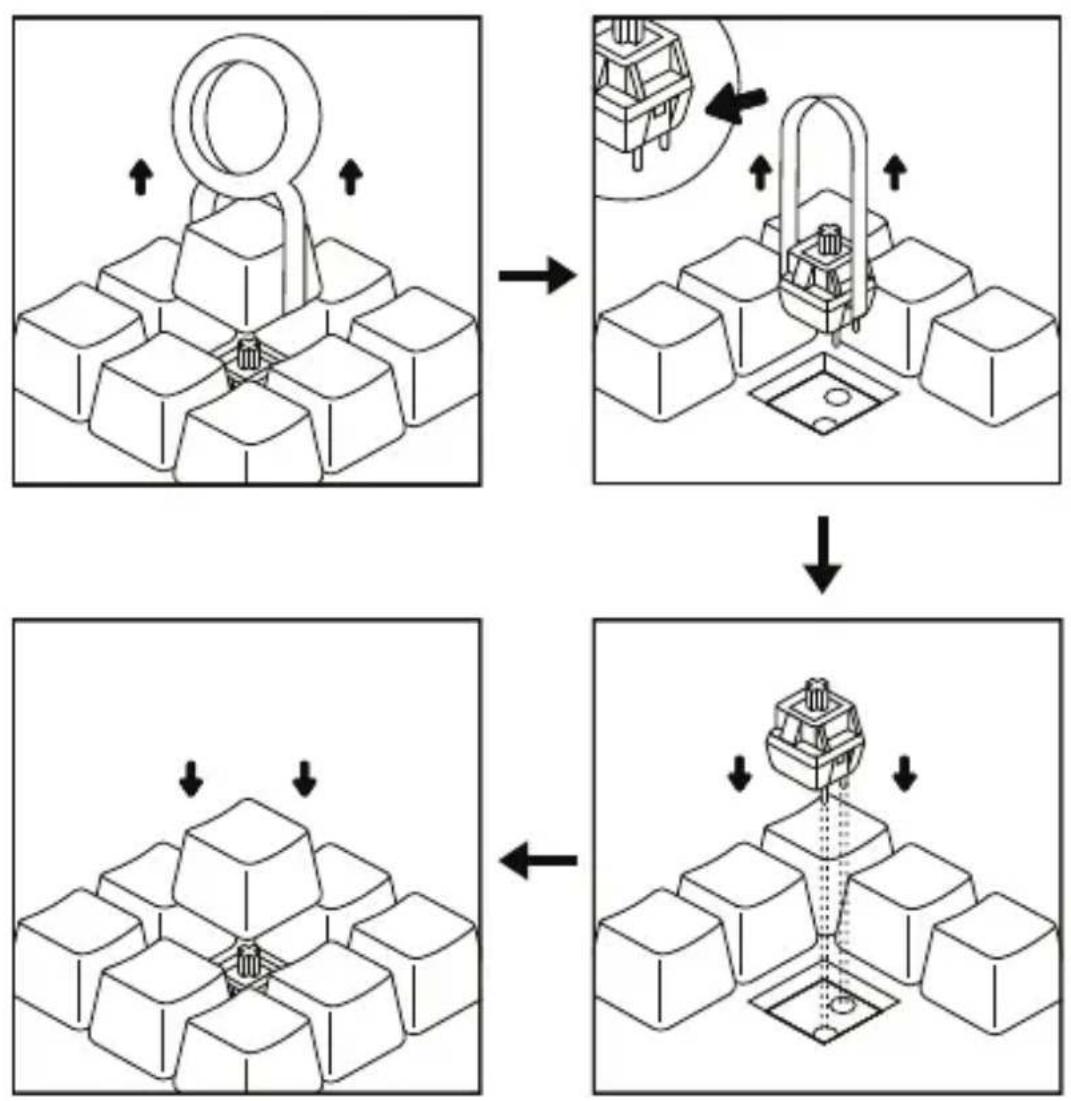

Replaceable switch:

When the key cannot work well, you can change it yourself based on the following process.

1. Remove keycap:

Use the keycap puller tool to clamp on a keycap and pull upwards to detach keycap with switch.

Sometimes the switch may come out as well if the keycap is secured tightly on switch, which is normal.

For longer keys, such as: the space key, always clamp and remove from the middle of the keycap.

2. Remove switch:

Use the switch puller to push in 2 tabs located on top and bottom side. Once they are pushed in, pull upwards to remove switch from keyboard case.

Warning: it is very easy to scratch your keyboard case with this tool, so take caution when removing switches.

3. Insert switch:

Align switch to holes on the keyboard and insert

straight down. There should be minimal resistance and the switch should pop into the frame of keyboard.

It is recommended at this time to have a text-editor on you PC open to make sure the switch works well when you press it.

4. Insert keycap

Once you have confirmed the switch is properly inserted, snap back in in the appropriate keycap.

Warning: don't mix the keycap and please replace it one by one.

straight down. There should be minimal resistance and the switch should pop into the frame of keyboard.

It is recommended at this time to have a text-editor on you PC open to make sure the switch works well when you press it.

4. Insert keycap

Once you have confirmed the switch is properly inserted, snap back in in the appropriate keycap.

Warning: don't mix the keycap and please replace it one by one.

5 Cleaning and Maintenance

• Remove the keyboard from the device.
• Lift the keyboard and turn it upside down to let paper scraps, dust, snack crumbs, etc. come out from the inside of the keycap.
• Clean the keycap and the top surface by using microfiber cloth.

6 Technical Specification

Model number	IOPEXTKBOARD564BTR
LED	RGB LED
Keys	88
Connection Type	USB
Material	ABS
Cable length (mm)	1800
Product Size LxWxH(mm)	361.5*133.5*22.5
Weight	950g

7 Disposal

Processing of electric and electronic equipment at the end of their service life (applicable in member countries of the European Union and other European countries operating a selective waste collection system).

This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By ensuring the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources. For further information regarding the recycling of this product, please contact your municipality, local waste disposal centre or the store where the product was purchased.

In accordance with Legislative Decree of March 14, 2014, No. 49,

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)"the crossed-out wheeled bin symbol on the appliance or its packaging indicates that the product must be collected separately from other waste at the end of its life. Therefore, the user should dispose of the end-of-life appliance at the appropriate collection points for electronic and electrical waste or return it to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Proper separate collection for the subsequent disposal, treatment, and environmentally friendly disposal of the discarded appliance helps to prevent potential negative effects on the environment and health and promotes the recycling of the materials the appliance is composed of. Unauthorized disposal of the product by the user may result in the application of administrative sanctions provided by current regulations.

8 Warranty and Compliance

This IOPLEE Warranty applies only to IOPLEE products purchased for personal use and not those intended for resale.

Your IOPLEE product is warranted in accordance with the terms and conditions of this warranty against defects in workmanship and conformity for a period of a 2 years, and that period begins upon delivery of the item, if purchased from an official dealer.

The warranty will not be valid if the product has been opened, in the presence of physical damage, damage resulting from incorrect use, modifications, repairs by unauthorized persons, negligence and in the event that the product has been used for purposes other than those for which it was intended; furthermore, the legal guarantee will not apply if the purchase methods or other circumstances demonstrate, with reasonable certainty, that the

purchase itself is not exclusively aimed at private consumption .

In the event that the product is defective, it can be returned to the retailer along with a description of the type of malfunction, proof of purchase, and any accessories.

If the product is still under warranty, you will receive a replacement product (if available) from the dealer.

These are not covered by the warranty:

- Accidental damage or damage resulting from incorrect or improper use, contact with liquids; damage caused by accidents or force majeure events such as fire, earthquake, flood, vandalism, theft or other external cause.

• Cosmetic damage such as scratches, dents, or other breakage of plastic parts, caused by handling errors.

• Defects resulting from normal product wear and tear (product aging).

- Incompatibility with other hardware/software products not listed in the minimum system

requirements.

- Consumable accessories such as batteries, protective covers, and fuses, which normally wear out over time. Problems due to noncompliance related to labour or materials are excluded.

In no event shall the manufacturer be liable for incidental or consequential damages, including any loss of business profits or other commercial damages resulting from the use of the product.

Due to the rapidly evolving nature of our products, the content of this manual may be subject to change without prior notice.

Made in China

ioplee

Manufactured and imported by Exertis Supply Chain Services Limited. Unit 21 Fonthill Business Park, Clondalkin. Dublin 22, D22 FR82, Dublin, Ireland
