Product Type	Wireless Keyboard and Vertical Mouse Bundle
Model	IOPEXTBUNDLE315BTR
Keyboard Layout	106 keys with FN combination keys and 4 multimedia keys
Mouse Buttons	6 buttons (left, right, wheel, forward, back, DPI)
Wireless Technology	2.4 GHz with USB receiver
Working Distance	8-10 meters
Mouse DPI	800 / 1200 / 1600 (switchable)
Battery Type (Keyboard)	2 x AAA dry batteries (included)
Battery Type (Mouse)	2 x AAA dry batteries (included)
Material	ABS
On/Off Switch	Yes (both keyboard and mouse)
Keyboard Weight	598 ± 20 g
Mouse Weight	85 g
Compatible Operating Systems	Windows, Mac, Chrome OS
Ergonomic Features	Vertical mouse, keyboard with palm rest
FN Key Functions	Media control, volume, brightness, search, keyboard lock
Cleaning	Wipe with damp microfiber cloth; avoid alcohol or harsh chemicals
Safety Warnings	Do not short-circuit, avoid moisture and UV, replace batteries properly
Warranty	2 years against defects in workmanship and conformity
Disposal	Separate collection for WEEE; do not dispose with household waste

Frequently Asked Questions - IOPEXTBUNDLE315BTR IOPLEE

How do I pair the keyboard and mouse with the USB receiver?

Insert the USB receiver into your PC/Laptop. Remove the battery cover, insert 2 AAA batteries into each device (aligned with +/-), and turn the power switch to ON. Wait 5-10 seconds for automatic pairing.

What is the working range of the wireless connection?

The wireless range is 8-10 meters (open space). Walls or obstacles may reduce the range.

How do I adjust the mouse DPI?

Press the DPI button (above the scroll wheel) to cycle through three settings: 800, 1200, and 1600 DPI.

What batteries does the keyboard and mouse require?

Both devices require two AAA dry batteries each. They are included in the package. Insert them according to the polarity marks.

Can I use this bundle with a Mac or Chrome OS?

Yes, the keyboard and mouse are compatible with Windows, Mac, and Chrome OS. No special drivers are needed.

How do I use the FN keys on the keyboard?

Press and hold the FN key, then press the corresponding F1-F12 key to activate secondary functions like media control, volume, brightness, search, or keyboard lock.

What should I do if the keyboard or mouse stops working?

Check the batteries, ensure the power switch is ON, and reconnect the USB receiver. Try a different USB port. If the problem persists, replace the batteries or contact support.

How do I clean the keyboard and mouse?

Turn off the devices. Use a damp microfiber cloth and cotton swab to gently wipe surfaces. Avoid using alcohol, soap, or other chemicals. Clean the sensor gently with a damp cotton swab.

Is the product covered by warranty?

Yes, a 2-year warranty covers defects in workmanship and conformity. It does not cover accidental damage, wear, or unauthorized repairs.

How should I dispose of the product at end of life?

Do not dispose with household waste. Take it to a designated electrical and electronic waste collection point for recycling, in compliance with local regulations.

USER MANUAL IOPEXTBUNDLE315BTR IOPLEE

Line drawing of a computer keyboard layout with an inset close-up of the mouse (no text or symbols)

800

1200

1600

MOUSE DPI

TASTIERA

ERGONOMICA CON

POGGIAPOLSI

MOUSE VERTICALE

ERGONOMICO

PORTATA

WIRELESS

8-10m

MOUSE

6 TASTI

BATTERIA

AAA

INCLUSA

TASTO

ON/OFF

Thank you very much for purchasing one of our products. We kindly ask you to read this instruction manual carefully and to keep it, as it provides valuable information regarding safe use and maintenance.

INDEX

1 Safety Warnings
2 Description of the Appliance
3 Before first use
4 Operation
5 Cleaning and maintenance
6 Technical Specification
7 Disposal
8 Warranty and Compliance

1 Safety Warnings

• If the battery is not replaced properly, there is a possibility of leakage, explosion, and personal injury.

- Do not use the battery in case of leakage, discoloration, deformation, or any other abnormalities.

- Do not leave the battery in a discharged or unused state for a long time.

• Do not short-circuit the product.

- The lifespan of batteries varies depending on usage, and discarded batteries should be disposed of in accordance with local laws or disposed of in trash cans used for recycling electronic devices.

- If any liquid accidentally enters the product. Please immediately disconnect the power supply and remove it.

- Continued use of this product if damaged may cause a fire or electric shock. Please contact your agent or nearest customer service centre for inspection and repair in a timely manner.

• Storing the mouse:

Moisture-proof

Keep the mouse and keyboard storage environment dry and avoid moisture. When not in use for a long time, it is recommended to regularly check the storage environment to ensure dryness.

Ultraviolet Light

Avoid prolonged exposure of the mouse to sunlight to prevent accelerated aging.

Anti-theft

Be careful when storing the mouse to avoid theft or damage. It is recommended to place the mouse in a safe place and ensure the security of the storage environment.

• Other precautions:

Do not let the mouse encounter harmful substances.

Avoid exposing the mouse to harmful substances such as alcohol, soap, and other chemicals. These substances may damage the coating on the surface

of the mouse and affect its use.

Do not expose the mouse to damp environments.

Prolonged exposure of the mouse to a humid environment may cause damage to its internal circuits and affect its normal use. Therefore, special attention should be paid to protecting the mouse in damp environments.

Pay attention to cleanliness

Regularly clean the surface and bottom of the mouse to maintain a good user experience. But be careful not to use overly strong cleaning agents to avoid damage to the surface of the mouse.

2 Description of the Appliancear

Simple line drawing of a curved object with a small inset detail (no text or symbols)

1.Left Click
2. DPI Button
3.Right Click
4.Wheel
5. Forward
6. Back
7.Power On/Off
8.Sensor

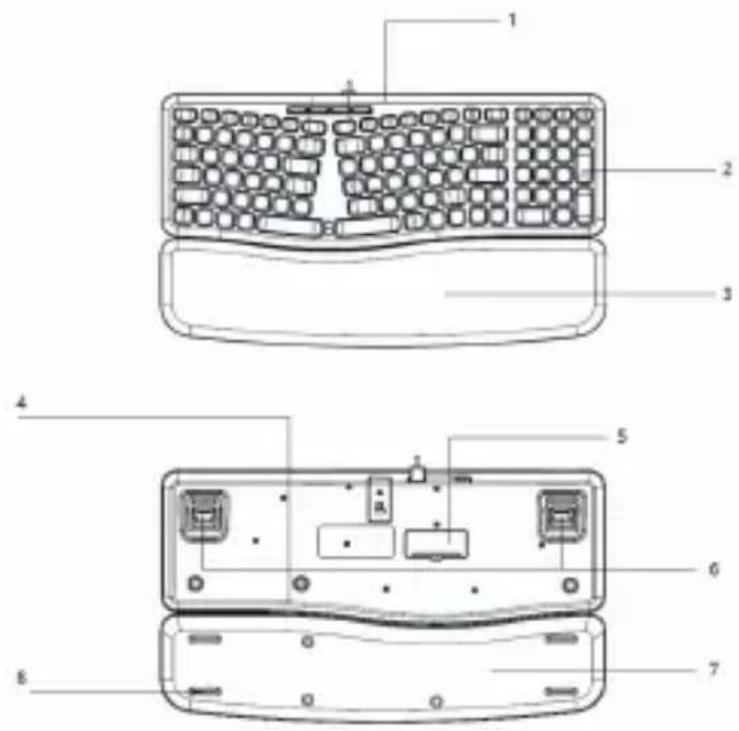

1. Top case
   2.Keycaps
   3.Palm rest
   4.Feet
   5.Bottom case
   6.Double layers stand
   7.Palm rest bottom case
   8.Palm rest feet

3 Before first use

Before using the mouse, be sure to carefully review the mouse manual and operate according to the requirements and specifications in the manual. When cleaning the mouse, do not rinse it directly with water, as it may result in the mouse being scrapped. The mouse should be kept as dry as possible.

4 Operation

1. Remove the Battery Cover, and take out the USB receiver stored inside the mouse.
2. Plug the USB receiver into your PC/Laptop.
3. Insert two AAA batteries into the mouse, two AAA batteries into the keyboard. Be sure to align with the positive(+) and negative (-) signs.
4. Turn the power switch to the "on" position and turn on the keyboard and mouse. Wait for 5-10 seconds, it will automatically pair with the USB receiver.

FUNCTIONS OF KEYBOARD FN COMBINATION KEYS

FN+F1 FN	+F2 FN+F3	FN+F4 FN+F5	FN+F6
Media player	Volume-	Volume+	Mute	Previous track	Next track

FN+F7 FN	+F8 FN+F9	FN+F10 FN	+F11 FN+F12
Play/Pause	Stop	Reduce brightness	Increase brightness	Search	Keyboard Locked

FUNCTIONS OF 4 Multi-media KEYS ON KEYBOARD

1. Internet home
2. Email
3. My computer
4. Calculator

5 Cleaning and Maintenance

• Turn off the mouse and keyboard.
- Dampen a microfiber cloth and cotton swab in water, and then use a cotton swab to wipe all cracks, curves, and gaps that accumulate dust and dirt on the mouse.
• Gently wipe the sensor with a cotton swab dipped in water.
- Turn the mouse over, roll the scroll wheel to release the accumulated dirt, and then wipe the area with a microfiber cloth.
- Use a toothpick to remove unnecessary dirt from the area that your cotton swab cannot reach for the first time. Flip the mouse and clean any dirty areas that you may have missed.

6 Technical Specification

Model number	IOPEXTBUNDLE315BTR
Keyboard
Type	2.4G wireless keyboard
Number of Keys	106
On/off switch	YES
Materials	ABS
Battery	2*AAA Dry battery
Working distance	8-10M
Supported Software	Windows, Mac, Chrome OS
Color	Black
Weight	598±20g
Vertical Mouse
Type	2.4G wireless mouse
DPI	800/1200/1600
Number of Keys	6
On/off switch	YES
Body Materials	ABS
Battery	2 X AAA dry battery
Working distance	8-10M
Supported Software	Windows, Mac, Chrome OS
Weight	85g
Color	Black
Compatible Device	Laptop, PC

7 Disposal

Processing of electric and electronic equipment at the end of their service life (applicable in member countries of the European Union and other European countries operating a selective waste collection system).

This symbol, affixed to the product or its packaging, indicates that the product must not be processed with household waste. It must be brought to an electric and electronic waste collection point for recycling and disposal. By ensuring the appropriate disposal of this product you also help in preventing potentially negative consequences for the environment and human health. The recycling of materials helps preserve our natural resources. For further information regarding the recycling of this product, please contact your municipality, local waste disposal centre or the store where the product was purchased.

In accordance with Legislative Decree of March 14, 2014, No. 49,

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment

(WEEE)"the crossed-out wheeled bin symbol on the appliance or its packaging indicates that the product must be collected separately from other waste at the end of its life. Therefore, the user should dispose of the end-of-life appliance at the appropriate collection points for electronic and electrical waste or return it to the retailer when purchasing a new equivalent appliance, on a one-to-one basis. Proper separate collection for the subsequent disposal, treatment, and environmentally friendly disposal of the discarded appliance helps to prevent potential negative effects on the environment and health and promotes the recycling of the materials the appliance is composed of. Unauthorized disposal of the product by the user may result in the application of administrative sanctions provided by current regulations.

8 Warranty and Compliance

This IOPLEE Warranty applies only to IOPLEE products purchased for personal use and not those intended for resale.

Your IOPLEE product is warranted in accordance with the terms and conditions of this warranty against defects in workmanship and conformity for a period of a 2 years, and that period begins upon delivery of the item, if purchased from an official dealer.

The warranty will not be valid if the product has been opened, in the presence of physical damage, damage resulting from incorrect use, modifications, repairs by unauthorized persons, negligence and in the event that the product has been used for purposes other than those for which it was intended; furthermore, the legal guarantee will not apply if the purchase methods or other circumstances demonstrate, with reasonable certainty, that the

purchase itself is not exclusively aimed at private consumption .

In the event that the product is defective, it can be returned to the retailer along with a description of the type of malfunction, proof of purchase, and any accessories.

If the product is still under warranty, you will receive a replacement product (if available) from the dealer.

These are not covered by the warranty:

- Accidental damage or damage resulting from incorrect or improper use, contact with liquids; damage caused by accidents or force majeure events such as fire, earthquake, flood, vandalism, theft or other external cause.

- Cosmetic damage such as scratches, dents, or other breakage of plastic parts, caused by handling errors.

- Defects resulting from normal product wear and tear (product aging).

- Incompatibility with other hardware/software products not listed in the minimum system

requirements.

- Consumable accessories such as batteries, protective covers, and fuses, which normally wear out over time. Problems due to noncompliance related to labour or materials are excluded.

In no event shall the manufacturer be liable for incidental or consequential damages, including any loss of business profits or other commercial damages resulting from the use of the product.

Due to the rapidly evolving nature of our products, the content of this manual may be subject to change without prior notice.

Made in China
