Product Type	Portable Bluetooth Speaker
Brand	Aconatic
Model	AN-SP172
Bluetooth Version	5.0
Wireless Range	10 meters (33 feet)
Speaker Power Output	5W
Frequency Response	100 Hz - 20 kHz
Battery Capacity	2000 mAh
Playback Time	Up to 6 hours
Charging Time	2 hours
Charging Port	Micro USB
Dimensions (W x D x H)	180 x 80 x 80 mm
Weight	500 g
Water Resistance	IPX5 (splash-proof)
Controls	Buttons for power, volume, play/pause, track skip
Built-in Microphone	Yes, for hands-free calls
Compatibility	Smartphones, tablets, laptops
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use abrasive cleaners.
Safety Precautions	Do not expose to extreme temperatures or liquids. Keep away from children.
Spare Parts Availability	Battery replaceable by authorized service center.
User Manual Pages	16 pages (English)

Frequently Asked Questions - AN-SP172 Aconatic

How do I pair my Aconatic AN-SP172 with my phone?

Turn on the speaker, it will enter pairing mode automatically. On your phone, enable Bluetooth and select AN-SP172 from the list. Confirm if prompted.

How long does the battery last?

The AN-SP172 provides up to 6 hours of playback at moderate volume. Actual battery life depends on volume level and audio content.

How do I charge the speaker?

Use the included Micro USB cable. Connect to a USB power adapter (5V/1A) or computer. Charging time is approximately 2 hours. The LED indicator will turn off when fully charged.

Is the speaker waterproof?

The AN-SP172 has an IPX5 rating, meaning it is splash-proof. It can withstand light rain or splashes but should not be submerged in water.

Can I use the speaker while it is charging?

Yes, you can play music while the speaker is connected to a power source. However, charging may take longer.

How do I adjust the volume?

Use the + and - buttons on the speaker. Alternatively, adjust volume from your connected device.

The speaker does not connect to my phone. What should I do?

Ensure the speaker is in pairing mode (flashing LED). Turn off Bluetooth on your phone, then turn it back on. Forget the device from Bluetooth settings and try pairing again. If still issues, reset the speaker (see manual).

Can I use the speaker with a non-Bluetooth device?

The AN-SP172 is designed for Bluetooth connectivity only. It does not have an auxiliary input or NFC.

How do I clean the speaker?

Wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the surface.

Where can I find the full user manual?

The user manual is available for download in PDF format from the notice-facile.com website. It contains detailed instructions, safety information, and troubleshooting tips.

USER MANUAL AN-SP172 Aconatic

Black and green portable electronic device with glowing screens and a blue-tinted body (no visible text or symbols)

คู่มือการใช้งาน

Black and green portable electronic device with glowing screens and a digital display (no visible text or symbols)

User Manual

Thanks for your preference. We hope you enjoy the experience!

Safety Instruction

• Don't put this product under high temperature wet environment and it will be worse when it is in the rain or crash strongly.
  • To reduce the risk of electronic shock or fire, do not remove the cabinet cover, to contact professionals for maintenance
• Contact a certified professionals for a proper diagnosis and repair when occurrence of malfunction, do not attempt to repair the unit by your own.
  • If plastic, metal, or wood fragments fall into the appliance or any type of liquid is dropped on the appliance, unplug it from the outlet and take it to an authorized service center, the appliance should be evaluated by a qualified technician.

FEATURES:

• Classic dynamic design
• Clear dynamic sound effect
• Versatile Input Options to support wide range devices
• Bluetooth V5.3 technology support wide range Bluetooth devices
  • Built-in rechargeable battery
• With recording function
• With colorful LED light
• With TWS function
• With karaoke function
  • Karaoke priority function
• With remote control

SPECIFICATION:

Output power: 60W

Speaker: 6.5 Inch·2-tweeter·1

Frequency Range: 50Hz-20KHz

S/N rate: >=75dB

Bluetooth version: 5.3

Bluetooth range: up to 10m

Function: USB, TF, Wired Microphone Input, Wireless microphone Input, AUX, Guitar IN, Recording, Bluetooth, TWS Function, Karaoke function, Karaoke priority, LED Light

Lead-acid battery: 11.1V 4400mAh

Power supply: DC 5V

Dimensions: 250*262*567MM

Packing content:

- Dual 6.5" Bluetooth party speaker

- Wireless microphone·1

- Type C charging cable

- Aux cable

- Remote control

- User manual

- Warranty card

INSTRUCTION FOR CONTROL PANEL

1. AUX-IN input
2. USB input
3. TF card input
4. Guitar input
5. MIC input
6. Power button
7. Main volume control/Bass control/Tweeter control
8. MIC volume control/Echo adjustment/REVB adjustment/Guitar adjustment
9. MODE button/Karaoke priority function
10. Recording button
11. BT
12. Previous track
13. Next track
14. EQ
15. Repeat button/ Karaoke function

16. RGB lights button

17. Play/pause/TWS

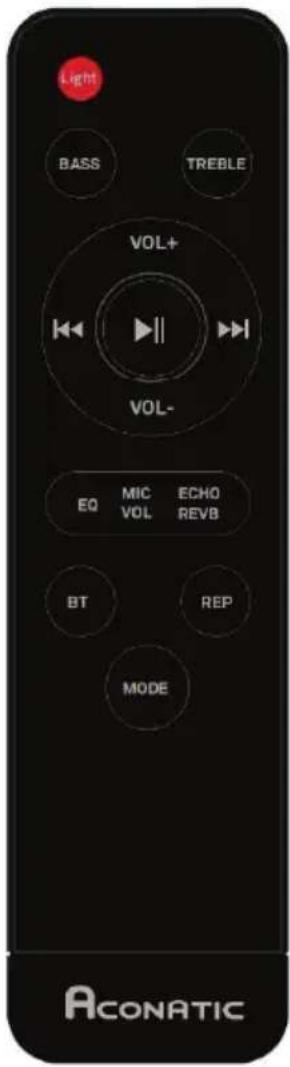

INSTRUCTION FOR REMOTE CONTROL

Button	Function
Light	RGB Light
BASS	Bass adjustment
Treble	Treble adjustment
Vol+	Volume turning up
Vol-	Volume turning down
	USB and BT Previous track
	Pause/Play/TWS
	USB and BT Next track
EQ	Sound effects
MIC VOL	Microphone volume adjustment
	ECHO/REVB adjustment
BT	Shifting into BT ModeHold to disconnect
REP	USB Playback Repeat/Microphone function
Mode	Mode/Microphone priority function

BLUETOOTH CONNECTION:

- Short Press the MODE button on the control panel or remote control until BT display on the LED display.

- The ⚠ on the LED display will flash to indicate that the speaker is in Bluetooth pairing mode. Ensure that the device you wish to connect is also in pairing mode and search for AN-SP172 in its device list.

- The ⚠ on the LED display will stop flashing and remain constant when the two devices paired. (The speaker will now automatically re-pair with this device whenever it is within range and has Bluetooth turned on). The speaker will automatically play the music by the music player which operated during Bluetooth paired in the first time.

TWS FUNCTION:

- Power on two identical speakers you want to pair and both turn to Bluetooth mode, long press button to pair each other. Then, search these paired speakers in your device's Bluetooth list and connect with them.

AUX IN:

- Connect a compatible device by a 3.5mm - 3.5mm stereo jack cable.

-Select AUX mode by pressing the MODE button on the speaker control panel or remote control. Ensure the connected device is producing audio signal, then adjust the volume of speaker by Volume Knob or connected device.

- All music playing related function can be controlled by external connected device under AUX mode.

BATTERY CHARGING:

• Power off the speaker before battery charging, the charging indicator in red color during charging period and turn to blue color when fully charged.
• The speaker working time vary from the different working condition, such as music volume, LED light mode, etc.
• The built-in rechargeable battery is not replaceable. Do not trash it to the fire or liquid to avoid safety risk and environmental pollution.

RECORDING FUNCTION:

- Power on the speaker and put flash memory or TF card into the slots, microphone voice and the music under Bluetooth mode are recordable when you press REC button on control panel, press REC button again to stop the recording.

USB media AND TF CARD MUSIC PLAYING:

• Power on the speaker and insert the flash memory or TF card, the speaker will automatically play the compatible music.
• To select previous or next music by pressing or buttons, to volume up and down by turning the VOLUME knob on control panel, to play or pause the music by pressing the TWS button.
• The speaker will disconnect the Bluetooth connection to automatically play the music from flash memory or TF card under Bluetooth mode, you can back to Bluetooth mode by pressing MODE button on control panel.

Connecting an electric guitar:

- The unit also has an additional guitar jack which can be used for attaching an electric guitar.

Microphone operation:

• Power on the speaker and power on the wireless microphone.

Karaoke function:

• Power on the speaker. Long press the REPEAT/KARAOKE button, Karaoke function will be on. It will

cut the voice out

Karaoke Priority function:

- Power on the speaker. Long press the Mode button, Karaoke priority function will be on. It will cut the music out.

LED light effects:

• The unit also has built-in multi-colored LED lights which light up the speaker drivers.
• Long press to turn the light On/Off, short press to switch the light mode (intervals for a second)

NOTE

These will only work if the speaker is powered on.
