Elise M - PC Case Azza - Free user manual and instructions

Product Type	PC Case
Brand	Azza
Model	Elise M
Form Factor	Mid Tower
Motherboard Compatibility	ATX, Micro-ATX, Mini-ITX
Dimensions (H x W x D)	440 x 210 x 480 mm
Weight	6 kg
Material	Steel, Tempered Glass
Color	Black
Drive Bays	2 x 3.5", 2 x 2.5"
Expansion Slots	7
Cooling Support	Front: 3x 120mm, Top: 2x 120mm, Rear: 1x 120mm
Max GPU Length	350 mm
Max CPU Cooler Height	160 mm
Power Supply	Standard ATX PSU, bottom mounted
Front Panel I/O	USB 3.0, USB 2.0, Audio Out, Mic In
Cable Management	Yes
Dust Filters	Yes (front, top, bottom)

Frequently Asked Questions - Elise M Azza

What is the maximum GPU length supported by the Azza Elise M?

The Azza Elise M supports graphics cards up to 350 mm in length, allowing for most high-end GPUs.

Can I install a liquid cooler in the Elise M?

Yes, it supports radiators up to 360 mm in the front and 240 mm on top.

How many hard drives can I fit?

The case has mounts for 2 x 3.5-inch HDDs and 2 x 2.5-inch SSDs.

Does the Elise M come with pre-installed fans?

Typically, it includes 1 rear 120mm fan; additional fans may need to be purchased separately.

What is the maximum CPU cooler height?

The maximum height for a CPU cooler is 160 mm.

How do I clean the dust filters?

The dust filters are removable and can be cleaned with a soft brush or compressed air.

Is the side panel tempered glass?

Yes, the left side panel is made of tempered glass for showcasing components.

What type of power supply does it take?

It accepts a standard ATX power supply mounted at the bottom.

Can I remove the drive cages for better airflow?

Yes, the drive cages are removable to improve airflow and accommodate longer GPUs.

Does the case have cable management options?

Yes, it features cable routing holes and Velcro straps to keep cables tidy.

USER MANUAL Elise M Azza

Technical line drawing of a computer tower case with visible fan, drive bays, and socket grid (no text or symbols)

ELISE

USER MANUAL

1. Specifications
2. Chassis Parts
3. Control Panel Functions
4. 3.5"/2.5" HDD/SSD Installation
5. Cooling System Installation
6. Fan Installation
7. Front Mesh Color Change

Model
Model Name:	Elise
Model Number:	CSAZ-140M
Specifications
Type: Micro ATX Mid Tower
Color: Black/Black(interior)
Side Panel Window: Left side panel: slidable tempered glass panel
Max CPU Cooler Height: UP to 175mm
Max Video Card Length: Up to 340mm long video card
Power Supply: Not included
Motherboard Compatibility:	Micro ATX、ITX
Expansion
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays: Up to 4
Internal 3.5" Drive Bays: Up to 2
Expansion Slots: 4
Top Ports:	Power button, LED button, HD Audio, USB 3.0 x 2
Physical Specifications	410x220x381 / 16.1x8.7x15 inches
Weight:	5.1kg/11.3 lbs
Features
Tempered Glass Sides Window: High-quality tempered glass side window allows for clear visuals to inner components
Addressable RGB Light Effects:	All ARGB light sync. devices connected to the 5pin ARGB control hub, allowing the LED button to directly control the ARGB lighting or switch to the motherboard sync.software to control.
Available Fan Ports:	3x120mm or 2x140mm Fan ports in the front (3xARGB Fan included)3x120mm or 2x140mm Fan ports on the top1x120mm Fan port in the rear (1xARGB Fan included)
Water Cooling:	Supports radiators up to 240/280mm on the topSupports radiators up to 240/280mm in the front
Dust Filters:	Removable (magnetic) dustproof net on the top and front, dust filter on bottom of chassis.
Power Supply Support: Bottom mounted	ATX Power Supply
Accessories	Earphone holder x1Display stand x1

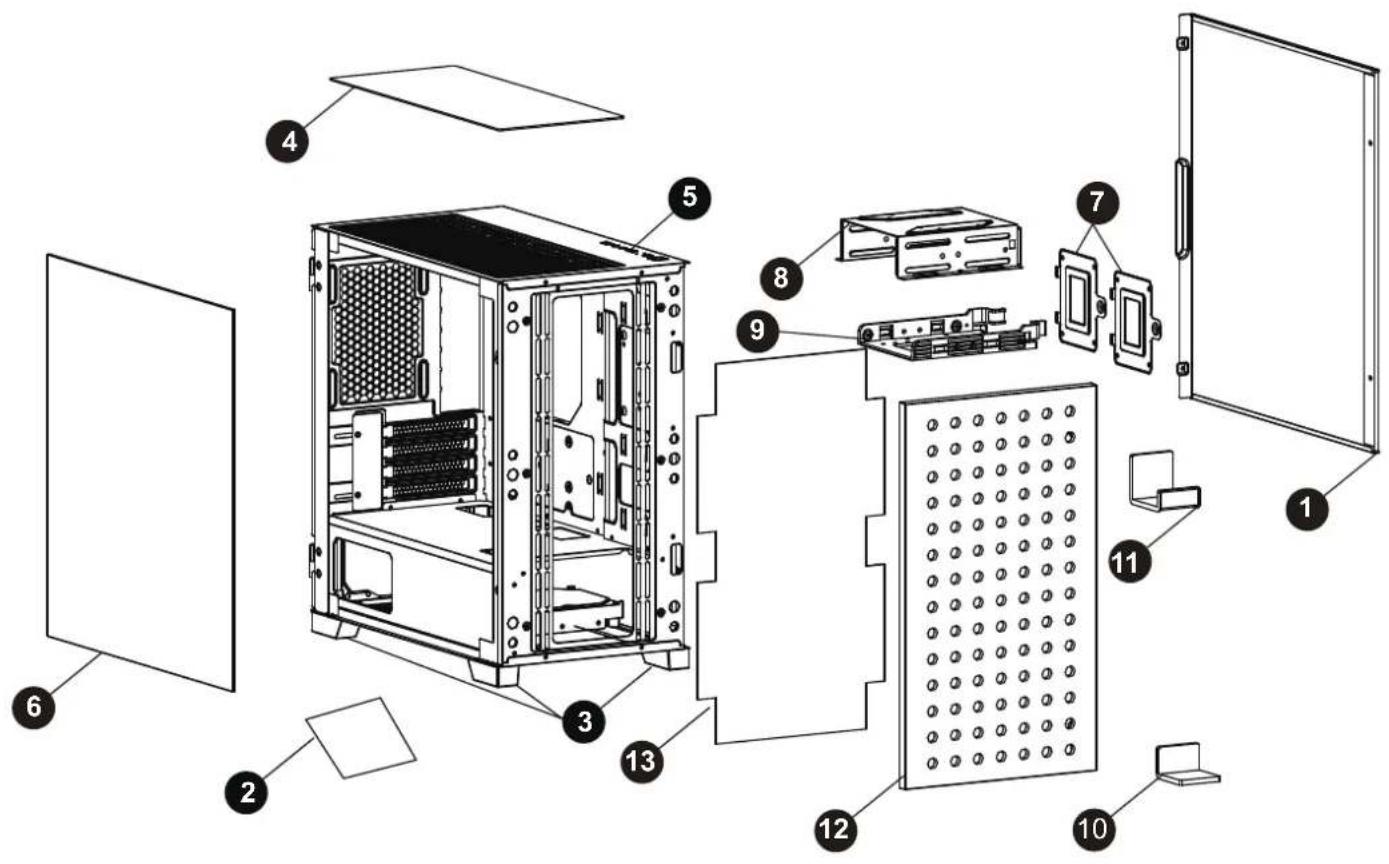

1	Metal side panel
2	Removable dust filter
3	Shock-proof stand
4	Removable magnetic mesh
5	TOP I/O & buttons
6	Sliding tempered glass panel
7	2.5" SSD tray x 2
8	Hard disk cage
9	3.5" HDD/ 2.5" SSD brackets
10	Display stand
11	Earphone holder
12	Front panel
13	Removable magnetic mesh

Technical line drawing of a server rack with hexagonal grid pattern and control buttons (no text or symbols)

	POWER
	LED
	Mic
	Audio

	USB 3.0 (Blue)
	USB 3.0 (Blue)

■Supports up to 340mm long video cards.

or

• Multifunctional hard disk bracket support 3.5" HDD or 2.5" SSD x 1 ( A )
• Multifunctional hard disk cage support 3.5" HDD or 2.5" SSD x 1( B )
  -2.5" SSD metal tray support 2.5" SSD x 2 (C D)

Front

Line drawing of a fan with six blades, no text or symbols present

120mm x3

or

Line drawing of a fan with six blades, enclosed in a square frame (no text or symbols)

140mm x2

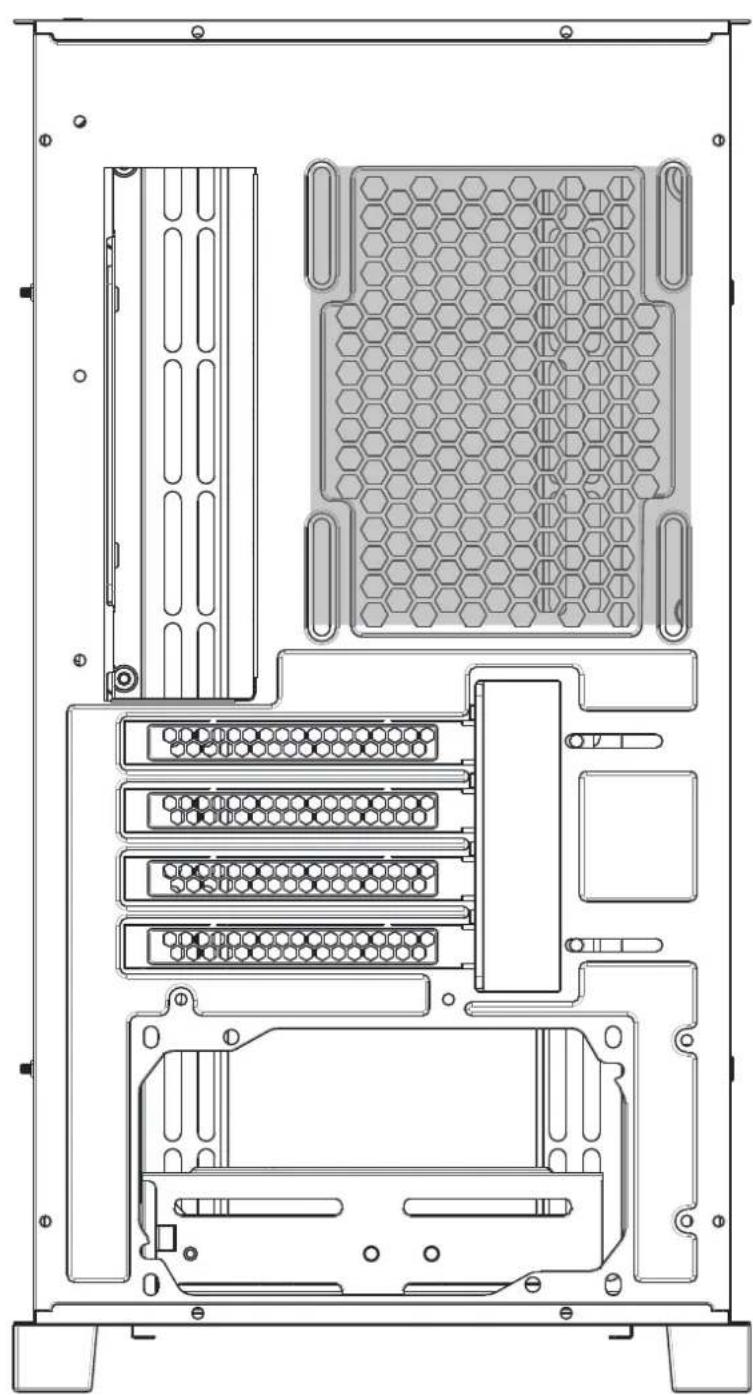

Rear

Technical line drawing of a server rack with hexagonal mesh panel and internal components (no text or symbols)

Line drawing of a fan with six blades, no text or symbols present

120mm x1

Top

Line drawing of a fan with six blades, no text or symbols present

120mm x3

or

Line drawing of a fan with six blades, enclosed in a square frame (no text or symbols)

140mm x2

Top-down schematic of a rectangular electronic device with hexagonal grid pattern and control buttons (no text or symbols)

Gray left-pointing arrow icon on white background (no text or symbols)

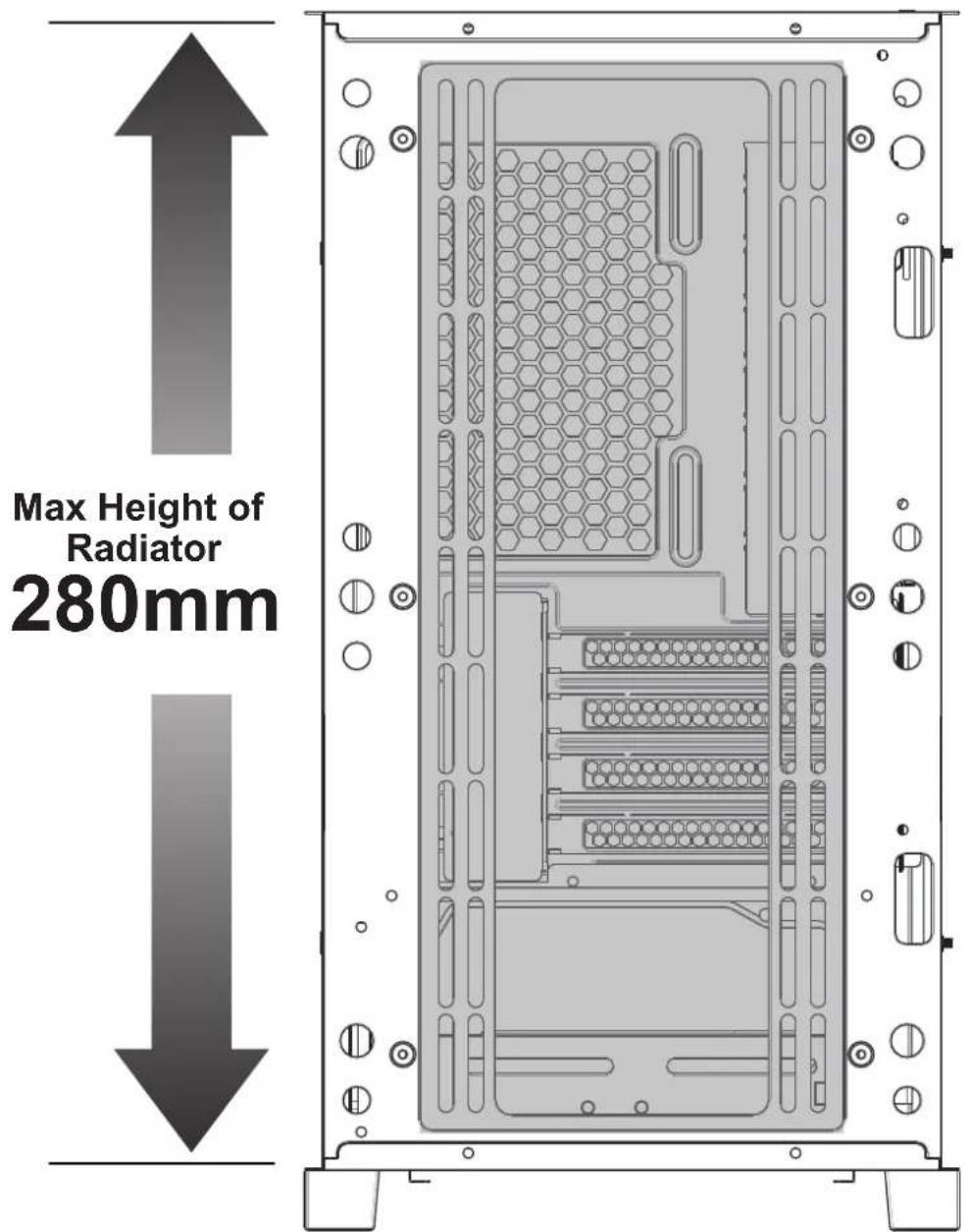

Max Length of Radiator
280mm

Gray right-pointing arrow on white background (no text or symbols)

※Press the LED button to cycle through different RGB 15 lighting modes, controlled by the LED button.


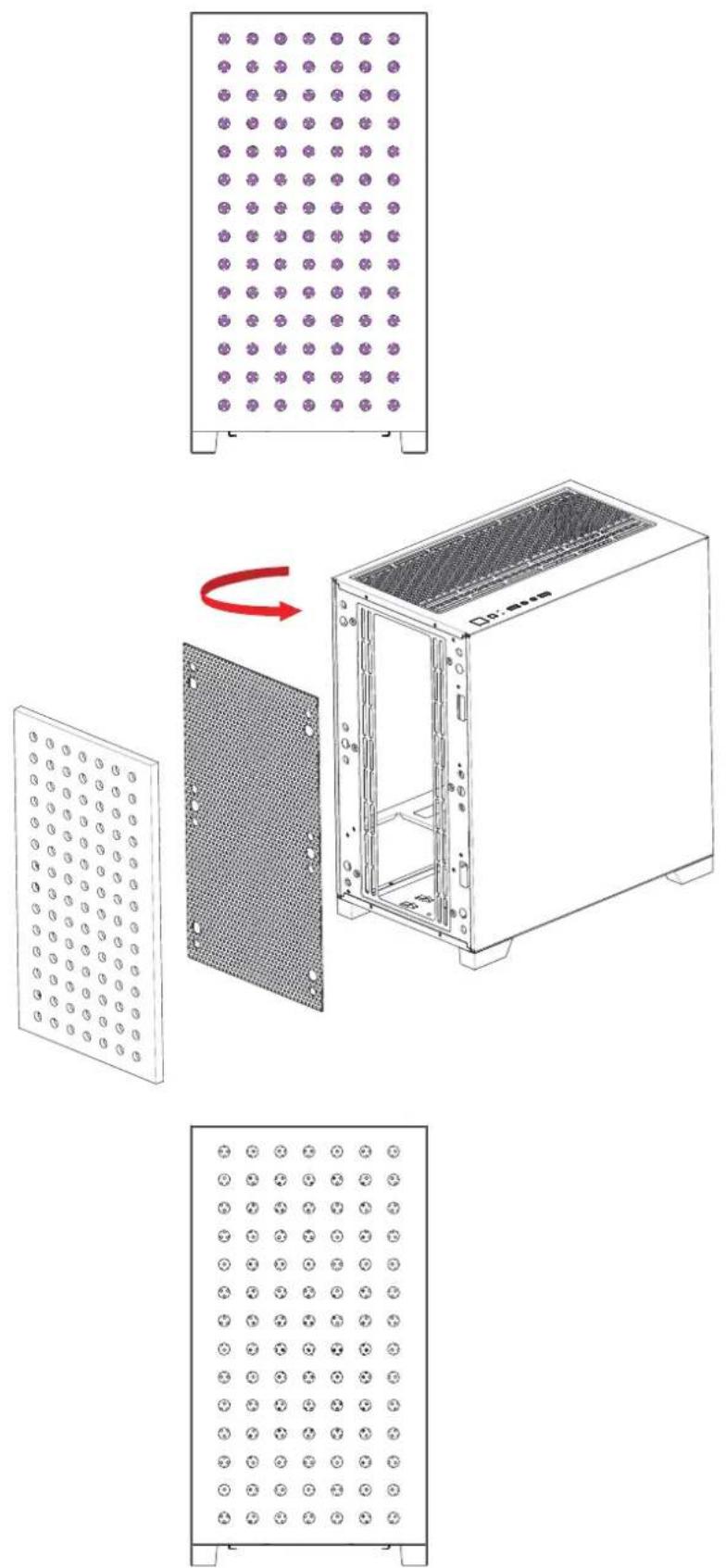

The front mesh is reversible with options of white & pink
