F-PXJ30M - Air purifier PANASONIC - Free user manual and instructions

Product Type	Air Purifier
Brand	Panasonic
Model	F-PXJ30M
Dimensions (H x W x D)	540 x 360 x 180 mm
Weight	5.5 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	30 W (max)
Recommended Room Size	Up to 20 m²
CADR (Dust)	150 m³/h
Noise Level	25 - 45 dB(A)
Filtration System	Pre-filter, HEPA, Activated Carbon
Special Technology	nanoe™ X (optional)
Fan Speeds	3 (Low, Medium, High)
Timer	1, 2, 4, 8 hours
Filter Replacement Indicator	Yes
Air Quality Indicator	No
Maintenance	Clean pre-filter every 2 weeks; replace HEPA and carbon filters every 2-3 years
Safety Features	Overheat protection, auto shut-off when cover opened
Spare Parts	Replacement filters: F-ZXJ30M (HEPA), F-ZXJ30M-C (Carbon)
Warranty	2 years (subject to terms)

Frequently Asked Questions - F-PXJ30M PANASONIC

How often should I replace the filters?

The HEPA and activated carbon filters should be replaced every 2-3 years, depending on usage and air quality. The pre-filter should be cleaned every 2 weeks.

How do I clean the pre-filter?

Remove the front panel and take out the pre-filter. Vacuum or wash it with water, then let it dry completely before reinstalling. Do not use detergents.

What is the nanoe technology?

nanoe X is a Panasonic technology that releases hydroxyl radicals to inhibit viruses, bacteria, mold, and allergens. It is optional and can be turned on/off.

Can the purifier run continuously?

Yes, it is designed for continuous operation. However, using the timer or sleep mode can save energy.

How do I reset the filter replacement indicator?

After replacing filters, press and hold the 'Reset' button for 3 seconds until the indicator turns off.

Is the F-PXJ30M suitable for large rooms?

It is best for rooms up to 20 m² (about 215 ft²). For larger areas, consider a higher CADR model.

Does it remove odors?

Yes, the activated carbon filter helps reduce household odors, smoke, and VOCs.

How noisy is it on high speed?

On high speed, the noise level is around 45 dB(A), comparable to a quiet conversation.

Where can I buy replacement filters?

Replacement filters are available online or at authorized Panasonic dealers. Use model F-ZXJ30M for HEPA and F-ZXJ30M-C for carbon.

What should I do if the unit does not start?

Check if the power cord is plugged in and the front cover is properly closed. If still not working, contact Panasonic service.

USER MANUAL F-PXJ30M PANASONIC

(※) It consumes around 0.8W electricity when the operation is set to "OFF". (With the power plug inserted). The filter cannot remove the harmful carbon monoxide generated by cigarette

الموصفات

Optional accessories

ملحقات اختيارية

© Panasonic Corporation 2013-2020

PXJ3M89508C

P0813-2050

Panasonic®

Operating Instructions

تعليمات التشفيل

Air Purifier

جهاز تنقية الهواء

F-PXJ30M

This product is for indoor use only.

Contents Page Safety precautions 2-6

Parts identification 10

Preparation 10-11

Operating Methods 12-13

Care and maintenance 14

• Reference Time for Filter Replacement……14

- When ide for a long time ....14

FAQs 16

Troubleshooting....16

Further information 18

Specifications/Optional accessories · Back cover

Thank you very much for purchasing this Panasonic product.

● Please read these operating instructions carefully in order to use the product correctly and in a safe manner.
● Also, be sure to read the "Safety precautions" section (P.2-6) before use.
- Keep the operating instructions in a safe place for future reference.

Always observe these precautions

■ Disconnect power supply before maintenance.

■ if the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

These safety precautions are provided for your protection. Please read and follow them carefully to avoid unnecessary injury and damage to the product itself or other properties.

The following symbols differentiate the levels of danger and injury that may result if the product is not used specifically as instructed.

WARNING

This symbol indicates that improper handling may cause a risk of death or serious injury

CAUTION

This symbol indicates that improper handling may cause a risk of injury or damage to the product or to your properties.

This manual uses a number of other symbols to indicate additional information for a particular item. (The symbols given below are examples)

This symbol indicates an action that must not be performed.

This symbol indicates an action that must be performed.

WARNING

To prevent accidents such as fires and electric shocks

Do not pull on the power cord when carrying or storing away the unit. (It may cause a short-circuit or damage the wares inside the cord, and fire or electric shocks may occur.)

■ Do not do anything that may damage the power cord or power plug.

- Power cord must not be damaged, modified, bended excessively or pulled. Also do not place heavy objects on it. (electric shock or fire may occur.) - Consult with distributors to carry out any repairs to the cord and plug.

Do not use overloaded wall socket or wiring equipment, and do not use a power supply other than specification. If the wall socket is overloaded, fire due to overheating may occur.

■ Do not touch the power plug with wet hands. (Electric shock may occur.)

Always observe these precautions

WARNING

Do not insert your fingers or metal objects into the air inlet or air outlet. (The contact with the inside of the product may cause an electric shock or injury.)

Do not disassemble or modify this unit. (Disassembling or modifying the unit may result in malfunctions or fire.) Consult with distributors to carry out any inspection.

Do not let the unit get wet. (Otherwise a fire and electric shock may be caused due to short circuit.)

Attention

If any of the following conditions occur, turn off the unit and contact with the dealer or service center immediately. - If any of the switches doesn't work. - If the circuit breaker is tripped or a fuse blows. - If the power cord or plug becomes abnormally hot. - If you notice a burning smell or an abnormal sound or vibration. - If there is any other abnormality or malfunction.

CAUTION

Do not put the unit in the following places:

• Where safety is not guaranteed. ( Causes of falling over and injury)
• Where the temperature or humidity is too high, or water is present, such as a bathroom. (The unit may leak current and electric shock or fire may occur.)
• Places where oil content is airborne, such as in kitchens ( Otherwise, injury may be caused due to cracks.)
• Where oil or inflammable gas is present and may be leaked. (Otherwise, a fire or smoke may be caused due to ignition in the unit.)
• Where the air outlet faces animals or plants. (Causes of dehydration due to wind) Do not let volatile substances or burning items such as cigarette or incense get inside the unit. (Fire may occur.)

Do not clean the unit with solvents such as alcohol or thinner, and avoid contact with insect sprays. (The unit may become cracked and injury may occur, or the unit may short-circuit and cause electric shock or fire.)

Do not operate this unit in places where indoor fumigation type insecticides are being used. (Chemical residue may build up inside the unit and become discharged from the air outlet, resulting in a health hazard.) Ventilate the room well after using insecticides before operating the unit Do not sit on or lean against this unit (Otherwise, injuries may be caused or the unit may be damaged.)

When unplugging the power plug, grasp the power plug instead of the power cord. (Otherwise, a fire or electric shock may be caused due to wire breakage or short circuit.)

Ventilate the room if using this unit together with a heater. (Carbon monoxide poisoning may occur.) • This unit cannot remove carbon monoxide.

Always observe these precautions

Operating requirements

Interior layout illustration of a modern living room with TV, refrigerator, and sofa (no text or symbols)

■ Do not put the unit in the following places:

- Where the unit will be exposed to direct sunlight; or direct blowing of air conditioner. (Otherwise, deformation, degeneration, discolor and malfunction may be caused.)

●Near a TV set or radio

(Otherwise, visual disturbances or noises may be caused)

→ Keep it 1 m or above away from such devices

If the power plug is inserted into the same outlet as that of these devices, visual disturbances or noises may be caused. In this case, insert the power plug into another outlet,

■ If the unit is used in the same place for a long period.

Using it continuously at the same location may result in the walls or the floor surrounding the unit to become dirty. We recommend that you move the unit away from where it is placed for maintenance.

It would be effective if placed here!

■ Place it low on the floor as a countermeasure against pollen.

Since pollen or dust is likely to float in the air near the floor, we recommend you put the unit on the flat floor in the room.

■ To circulate the air efficiently around the room.

To prevent the air inlet or the air outlet from being blocked, install the equipment with its left, right and the top about 30 cm or more away from walls or furniture, curtains etc. To ensure efficient use of this unit, keep its back at least 1 cm away from the wall.

Line drawing of a modern living room with TV, sofa, and wall-mounted devices (no text or symbols)

و Trinidadía Agricultural y Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural and Agricultural, etc.

「House Dust Catcher」give you clean and fresh air.

■ The 「House Dust Catcher」 completely cleaning dust from the air near the floor.
■ A handle is equipped to facilitate the carrying of the product.
■ Equipped with 'nanoe™' technology.

'nanoe™' is a microparticle ion wrapped in water that is derived from the latest technology.

With 'nanoe™' technology, the effect of sterilization ^★1 , inhibiting allergic substance ^2 , inhibiting mold bacteria ^3 and deodorization ^*4 can be achieved. Furthermore, it creates an atmosphere that is conducive for beautiful hydrated skin.

★ < airborne bacteria >The result is of a 240-minutes test in closed space of 10m^3 , instead of in actual application space.
★ < adhered bacteria >The result is of a 24-hours test in closed space of 1 m ^3 , instead of in actual application space.
The deodorizer effect differs according to the surrounding environment (temperature/humidity), operation time, type of odor/fiber.

● The actual effect differs according to the room condition and the method of use.

● This product is not a medical equipment.

nanoe™

< airborne bacteria >

• Testing organization Kitasato Research Center of Environmental Sciences
• Test method: Directly expose and measure the bacteria count collected in testing space of 10m ^2
  ●Sterilization method release "nanoe™
  ● Target airborne bacteria
  ● Test outcome: inhibited 99% and above in 240 minutes. Test number 31, 0142
  21_0042

• Testing organization: Kilasato Research Center of Environmental Sciences
• Test method: measure the bacteria count soaked in the fabric inside the 1 ml test container
  ●Sterilization method release 'naroo™'
  ● Target: bacteria cinging onto the standard fabric
  ● Test outcome: inhibited 99.3% and above in 24 hours. Test number
  20 0154 21

p.2 Testing organization: Panasonic Corporation Analysis Center ● Test method: directly expose in 45L test container and measure with ELISA method.

●Inhibiting method, release "nanose"

●Target: pollen (Japanese cedar)

●Test outcome: inhibit 95% and above in 120 minutes [F07-09D303IN-03]

※3●Test client: Japan Food Research Laboratories.
●Test method: measure change in bacteria count in test
room measuring 6 latami mats
■Sterilization method release nanoe™
●Target airborne mold bacteria
● Test outcome: Inhibit 95% and above in 60 minutes. [205]61541-003
120581541301
E4 ●Testing organization: Panasonic Corporation Analysis
Center
●Testing method: conduct verification by using 6-phase
odor intensity notation in test container of 250L
●Deodorizing method: release
- target: adhered cigarette odor - Test: external signs intensity
- Test outcome: door intensity drops to 1.9 after 30 minutes [E02.0903] RMH/11 When color intensity drops
by 1.4 means reduction of 90% (Level 1 of odar intensity
is such a level that one isn't perceive early very weak smell)

nanoe™

15.00 (m) and 17.00 (m)

[500 20081014]

TE02 090313MH 01]

Fill in the label with the first date of use.

قَمْبَعَةِ الْمُصْقِ بِيَّاكِكَتَارِيَخِ الْتَرَكِبِ

■ Composite air filter replacement ● About once per 2 years. Replacement filter Part No. F-ZXJP30Z Date installed:

■ Deodorizing filter replacement - Replace a new one when the deodorizing function becomes less effective (About once per 2 years)

Replacement filter Part No. F-ZXJD30Z Date installed:

Note

ملاحظة

● Be sure to read P. 2 to 6 before installation الإستعمال : 3 و 7 (الترجمة)

Install filters

رkeys المرشحات

1

Remove the deodorizing filter from the poly bag.

③ Remove the deodorizing filter from the poly bag.

※ Please don't remove the black net of deodorizing filter.

※٢٠ للم يُهِ الْمَبْكَةِ الْمُوْنَاء بِمْرَجَّلِ إِلَّةِ الْرُ وَانَعِ كَرَّمَّةِ

Preparation

الإعداد

2

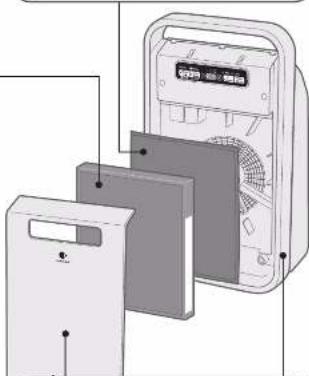

Install the filters (two types) and front panel.

① Instal the deodorizing filter.

② Install the composite air filter. (The inner and outer sides are

Fit the clutch into the indentation (three locations) of the equipment.

Make sure that the clutch of the front panel engages well with the indentations of the main unit. Otherwise the front panel may fall.

تَكَدَ أَنَ الْتَيْضِيَّةِ الخَصْ بَالْرُحَةِ الْأَمْلِيمَةِ قَدَ تُمْ تَعْضِيَهِ جَيدًا دَاحِلِ لِنْجُراِ المُوْجُودةِ فِيِ الْوَحَدَةِ الْرِئِيمِيةِ وَا لَقَدْ تَسْقَطْ الْرُحَةِ الْأَمْلِيمَةِ

Push in the protrusion into the holes (2 places) of the equipment and press properly.

- Do not press the composite air filter too hard. (Otherwise it may be damaged.)

Connect the power plug

ئوصيل قابس الطاقة

- When inserting the power plug, as the odor sensor uses the degree of cleanliness at this time as the standard, we recommend that you plug it in when the air is fresh (when there is no cigarette smoke) (The standard of the odor sensor automatically updates itself according to the degree of the indoor cleanliness.)

■ ('nanoe™ 'indicator》
● The indicator lights up in all operation modes.
•'nanoe™' can be closed.
• During operation, press and hold down the
■ Step button and ■ Turbo button for about
3 seconds
3 seconds. (The 'monnoTY' indicatorature off)
(The "Hande" indicator turns off)
• To restart the "handoe" function, press and hold the button point (for about 7 seconds
hold the buttons again for about 3 seconds. (The Lamps75 indicators lights up)

Clean Sign

إشرة تتقية

The 'Odor sensor' detects dirt in the air and

notifies with the clean sign.

Care and maintenance

■ Be sure to disconnect the power plug before cleaning the unit.

Composite air filter < Once a fortnight or so >

Suck the black side (front side) with a vacuum cleaner.

(Installation and removal methods→P.10 to 11)

Lay with newspapers etc.

● Delicate.Do not apply too much pressure.

● The back (white) side is free of maintenance.

● Never wash the filter with water

Reference Time for Filter Replacement

	Replacement period	Cordions
Composite air filter	When the filter exchange indicator lights up(Once every 2 years or so)	The indication for replacement of filter is when six cigarettes have been smoked daily. (Japan Electrical Manufacturer's Association JEM1467)
Deodorizing filter

Filter replacement period may be greatly shortened, depending on the using environment and method. (For example, in household where smoking is frequent.) Please replace it immediately when necessary.

● After replacement, fill in the date installed on the label and stick it on the back of the main unit.

- Please dispose the used filter as in flammable garbage.

● After filter replacement, press [2 n(n)] and hold for 3 seconds until the filter replacement indicator turns off. Now the reset is done.

Requirements

• Do not operate the unit when the composite air filter is removed. Dust will be inhaled into unit inner parts, and causes the unit breakdown. The composite air filter can not function while it is removed
• Do not operate the unit when the deodorizing filter is removed. The deodorizing filter can not function while it is removed
• When cleaning, do not leave the removed parts unattended.(parts left unattended may be cause of tripping or they may be damaged.)

- Do not use the detergents shown on the right.

- When using chemically treated cloth, be sure to follow the instructions carefully.

Deodorizing filter

Needless of caring

(Installation and dismantling→P. 10 to 11) When there is dust surrounding the deodorizing filter, please remove it with a vacuum cleaner.

Illustration of a multi-panel appliance with visible fan and door, no text or symbols present

The body, the front panel

Please wipe the machine with a well wringed soft cloth.

(Installation and dismantling→P. 10 to 11) Wiping with a hard cloth or too much force may damage the surface.

● Please use a dry cloth to wipe the power plug

When idle for a long time

① Disconnect the power plug. (The unit still consumes power even at rest.)
② Maintain it as usual.
③ Cover them with a poly bag, and keep them in a place with little moisture.(If you keep them fat and then overturn them, malfunction may be caused.)

3D technical illustration of a microwave oven with internal components and mounting base (no text or symbols)

Please confirm the following before you put questions forward or send the unit for repair.

Q1 The clean sign remains red even when the operation continues.

A ● The indicator may illuminate red when the unit is subject to steam or vapor emitting from sprayers.

Q3 Is there a "jee" sound from the emission outlet?

There is a slight sound when 'nanoe™' is taking place. Depending on the usage environment and operation mode, the sound may seem to be loud or inaudible but these are not abnormalities.

Q2 The clean sign remains blue even when the air is dirty.

A ● Is the unit placed where dirty air is difficult to clear or the room size is too large for the unit? (P.8 and Back cover)

Q4 Why does the operation begin with the Turbo mode?

Thanks to the memory function, the operation will begin with the air volume at which it stopped last time after /O_in is pressed. Even when the power plug is removed or the product is not used for a long time, the air volume at which the operation stopped last time will still be memorized. Therefore, if the operation stopped at the Turbo mode, it begins with the Turbo mode after /O_in is pressed.

Troubleshooting

If a problem is encountered, investigate it by referring first to the table below. Please disconnect power plug and connect to the dealer for repairs.

Symptom

The air volume is small

The odor from the unit is unpleasant

Polluted air is difficult to be removed

Cannot set up Sensor Sensitivity

Check point/Solution

● Is the composite air filter dirty? (P.14) → Clean it. If the symptoms persist, replace the filter with a new one.

- Are the main unit, the front panel or the filter dirty? (P.14) → Clean it. If the symptoms persist, replace the filter with a new one.

- Has it ever used in a room with strong smells? If the unit is used in a room where people smoke or barbecue, a shorter replacement cycle of filters may be required (P.14) → When the unit is used in such an environment, we recommend you use the ventilation system of the room simultaneous.

- Is the composite air filter dirty? (P.14) → Clean it. If the symptoms persist, replace the filter with a new one.

- Is the punfer turned on? → Sensor Sensitivity cannot be set up unless the air purifier has stopped.

الأستلة الشائعة

(Generating environment)

• 'nanoe™' is generated using the air in the room and hence, depending on the temperature and humidity, there can be incidences whereby 'nanoe™' is not stably generated.
  Conditions for generations Room temperature: About 5°C-35°C (dew-point temperature: more than 2°C) Relative humidity: About 30% to 85%

Small amount of ozone will be generated

When 'nanoe™' ion is generated, small amount of ozone will be released. However, the quantity will be like the usual lever in forest or natural environment, and not harmful to human beings.

Functions of the odor sensor

The sensor can detect the dirtiness of the air, and then indicate the dirtiness through Clean Sign. The unit can optimize the air volume automatically in automatic operation. ● The sensor is not designed to detect bacteria and virus. ● The sensor's operation may vary depending on the indoor airflow condition if a heater is placed near the unit in a room.

■ Functions of the sensor

Sensing scope	Odor from cigarettes, incense, cooking, pets.Cosmetics, alcohol, sprays, etc.
May detect	Humidity (water vapor), oil fumes.Sudden temperature changes such as when a door is opened.

Function of the composite air filter

With the bio-sterilization and super allergy buster functions of the dust collection filter, allergic substances (pollen, annoying dung of dead mites), fungus, mold bacteria can be inhibited.
● Bio-sterilization: Inhibit fungus ^1 , mold bacteria ^2

×1 Testing authority: (Foundation) Japan Food Research Laboratory Testing method Confirmation by using Harray method

Testing method: Confirmation by using Narrow method, inhibiting method: Contact with bio sterilization
Target: Bacteria trapped in the filter

Testing result: More than 99% inhibition. No 204051292-002

× 2 Testing authority:(Foundation).Japan Food Research Laboratory. Testing method: Verify the method to prevent mold bacteria(Ha o method). Inhibiting method: Contact with bio-sterilization. Target: Mold bacteria trapped in the filter. Testing result: Verify the effectiveness of preventing mold bacteria using the No 207060074-002
● Super Anti-bacterial: inhibits the activity of allergens (pollen, house-dust mites and their waste products).

Testing authority: Osaka Municipal Technical Research Institute
Testing method Check the decrease of refined house dust mite allergen, by using enzyme immune measuring method.
Inhibiting method: Contact with Super allergy buster.
Target: Allergy substances trapped by the filter (mites,pollen)
Testing result: More than 99% inhibition. Daiku research report No.2127 • The composite air filter can give off unique and harm ess smell of "Green Tea Catechin", "Anti-bacterial Enzymes" and "Super Alleru-buster".

المزيد من المعلومات

"nanoe™"essel

بينة التوليد
