Product Type	Frying Pan
Brand	Imarflex
Model	QGP-3207
Material	Aluminum with non-stick coating
Diameter	28 cm (approx.)
Weight	1.0 kg (approx.)
Handle Material	Heat-resistant plastic or silicone
Compatible Cooktops	Gas, electric, ceramic, induction
Oven Safe	Up to 180°C (with handle removed if detachable)
Dishwasher Safe	Hand wash recommended
Non-Stick Coating	Yes, PTFE-free
Heat Resistance	Up to 260°C (coating)
Cleaning Instructions	Wash with soft sponge and mild detergent; avoid abrasive cleaners
Maintenance	Season periodically with oil to maintain non-stick surface
Safety Features	Cool-touch handle; stable base to prevent tipping
Spare Parts Availability	Contact Imarflex or authorized resellers for replacement handles
Repairability	Moderate; handle can be replaced; coating may degrade over time
Warranty	1 year limited warranty (check local terms)

Frequently Asked Questions - QGP-3207 Imarflex

Is the Imarflex QGP-3207 pan suitable for induction cooktops?

Yes, the pan is made of aluminum with a magnetic base, making it compatible with induction cooktops.

Can I put the pan in the oven?

The pan is oven-safe up to 180°C only if the handle is removed (if detachable). Check your manual for specific limits.

What is the best way to clean the non-stick surface?

Use a soft sponge and mild dish soap. Avoid metal scouring pads or abrasive cleaners that can damage the coating.

Is the pan dishwasher safe?

While some non-stick pans are labeled dishwasher safe, we recommend hand washing to prolong the life of the coating.

What materials is the pan made from?

The pan body is made of aluminum with a non-stick coating (PTFE-free). The handle is heat-resistant plastic or silicone.

How do I prevent food from sticking?

Preheat the pan on medium heat, add a small amount of oil or butter, and avoid using metal utensils that can scratch the surface.

Can I use metal utensils with this pan?

No, metal utensils can scratch and damage the non-stick coating. Use wooden, silicone, or plastic utensils instead.

What should I do if the non-stick coating starts peeling?

Discontinue use immediately. Peeling coating can mix with food. Contact Imarflex for warranty or replacement options.

How long does the non-stick coating last?

With proper care, the coating can last 2-3 years. Avoid high heat and abrasive cleaning to extend its life.

Is the handle removable?

The handle is typically fixed, but some models may have a detachable handle for oven use. Check your specific model's manual.

USER MANUAL QGP-3207 Imarflex

b. Using spoon handle, push the gasket on the safety vent of the cover until pressure released.

1. To open: hold the Lower Handle with left hand and Upper Handle with right hand. Slightly turn Upper Handle to the right until 2 arrow marks from the pressure cooker body and Cover meets (See fig. 13). Lift the Cover to open.

CLEANING AND MAINTENANCE

1. All parts are washable with soap and water.
2. Nozzle and Filter

After every use, clean the nozzle and filter with cleaning needle to remove food residue (See fig. 14, 15 &16).

1. Safety Valve and Pressure Indicator

Unscrew, soak in hot water with soap for 5 minutes. Rinse thoroughly. If food stocks on the holes, use cleaning needle to remove.

1. Gasket

Soak in hot water with soap for 5 minutes. Rinse thoroughly. Do not hang the gasket. Place the rubber gasket in the plastic and put it inside the pressure cooker.

1. Let it dry. Be sure to assemble all detachable parts, except the gasket.
2. Store in dry place.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Topgadget Distributions, Inc. 2120 A. Linao St. Malate, Manila Made in China

Black-and-white photo of a stainless steel cooking pot with two side funnels, surrounded by fresh vegetables and meat (no text or symbols visible)

1. Read all instructions carefully.
2. Do not modify any part of the aluminum pressure cooker.
3. Do not touch hot exterior surface when in use. Use both handles when moving this pressure cooker.
4. Ensure that the pressure is fully released before opening the cover.
5. Always check the pressure release devices for clogging before use.
6. Never use the pressure cooker with a torn gasket.
7. Do not fill the pressure cooker more than 2/3 of its capacity.
8. Do not place anything on top of the cover. (e.g. kitchen towel).
9. Do not use the aluminum pressure cooker without water.
10. Close supervision is necessary when used by or near children.
11. Do not use this unit other than its intended use.
12. Save this instruction for future reference.

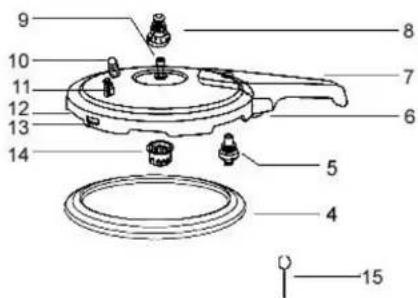

DESCRIPTION OF PARTS

1. Short Handle
2. Body
3. Lower Handle
4. Gasket
5. Pressure Indicator
6. Slide Shaft
7. Upper Handle
8. Weight Regulator
9. Nozzle (Center Pipe)
10. Safety Valve
11. Safety Valve
12. Cover
13. Safety Vent
14. Filter
15. Cleaning Needle

HOW TO USE:

1. Place the food and the required quantity of liquid in the pressure cooker.

Maximum filling levels:

a. solid food e.g. vegetables, meat, fish: not more than 2/3 capacity (See fig. 1)
b. cereals e.g. rice: not more than 2/3 capacity (See fig. 2)
c. liquids e.g. soups, water: not more than 12 capacity (See fig. 3)

1. Place the Gasket in the Cover, be sure it is fitted on side slot. To close: hold the Upper Handle with the right hand and Lower Handle with left hand. Align the arrow marks on the Cover and the Handle, then turn Upper Handle to the left, until Upper and Lower Handles locks. (See fig. 4& 5). Put the Weight Regulator on the Nozzle.

2. Grab the Handle with your both hands (See fig. 6). Put the pressure cooker on top of the gas stove. Turn fire into medium high, fire should not be coming out of the edge of the pressure cooker (See fig. 7).

3. While cooking, a small amount of steam will escape from the Weight Regulator and Pressure Indicator hole (See fig. 8). The Pressure Indicator will up and the Cover will lock automatically (See fig. 9). Once the Pressure Indicator goes up, after few minutes the Weight Regulator will whistle and turn around. A steady flow of steam will begin to escape (See fig. 10), which indicates that it is in state of accumulating pressure. Lower the heat and start the timer.

NOTE: The Weight Regulator will turn around and stop after a few seconds and will turn around again (this cycle will continue until cooking required meets).

1. Once the required time is reached, turn OFF the fire. To release the pressure inside, lift and hold the regulator. (See fig. 11), If the Pressure Indicator is back to its proper position (down) it means, the pressure has been released. In case the pressure clogs. Try the following:

a. Bring the pressure cooker to the faucet, allow the water to flow in the cover until pressure indicator drops (See fig. 12). Or
