QGP-3711 - Frying Pan Imarflex - Free user manual and instructions

Brand	Imarflex
Model	QGP-3711
Product Type	Pressure Cooker
Capacity	11 Liters
Material	Aluminum with induction-ready bottom
Handle Type	Safety lock handles with upper and lower handles
Safety Features	Alarm valve, safety valve, safety lid window, vent pipe filter, safety lock handles, air vent/cover lock
Pressure Release	Weight regulator and manual tilt release
Maximum Fill Levels	Solid food: 3/4; cereals: 2/3; liquids: 1/2
Cleaning	All parts washable with soap and water; nozzle and filter cleaned with needle; safety valve and pressure indicator soak in hot soapy water; gasket soak and not hung
Gasket	Silicone gasket, fits on side slot of cover
Accessories Included	Steaming tray
Stovetop Compatibility	Gas stove (fire should not extend beyond edge)
Distributor	Topgadget Distributions, Inc.
Country of Origin	China

Frequently Asked Questions - QGP-3711 Imarflex

How do I know when the pressure cooker has reached the correct pressure?

When the pressure indicator and safety valve go up, the weight regulator will rise and turn around. A steady flow of steam will escape, indicating pressure is built. Then lower the heat and start timing.

How do I safely release pressure after cooking?

Turn off the fire and tilt the weight regulator to release pressure. Wait until the pressure indicator and locking indicator drop back down before opening.

What should I do if the pressure seems clogged?

Bring the cooker to the faucet and let water flow over the cover until the pressure indicator drops. Alternatively, use a spoon to push the gasket aside on the side hole until pressure is released.

How do I clean the pressure cooker?

All parts are washable with soap and water. Clean the nozzle and filter with the provided cleaning needle. Soak the safety valve and pressure indicator in hot soapy water for 5 minutes, then rinse. Soak the gasket similarly but do not hang it to dry.

Can I use the pressure cooker on an induction cooktop?

Yes, the bottom is induction ready.

What is the maximum fill level for rice?

Do not fill more than 2/3 of the cooker's capacity with cereals like rice.

How do I properly close and lock the lid?

Place the gasket in the cover slot. Align the arrow marks on the cover and handle, then turn the upper handle to the left until it locks with the lower handle. Place the weight regulator on the nozzle.

What safety features does this pressure cooker have?

It has six safety features: alarm valve and safety valve (double protection), safety lid window, vent pipe filter (anti-blocking), safety lock handles, and air vent/cover lock (prevents opening under pressure).

How should I store the pressure cooker?

Store in a dry place. Ensure all parts are dry, especially the gasket, and assemble it back onto the cover slot.

Can I use the pressure cooker without water?

No, never use the aluminum pressure cooker without water.

USER MANUAL QGP-3711 Imarflex

1. While cooking, a small amount of steam will escape from the weight regulator and locking indicator hole. The locking indicator will up and the cover will lock automatically. Once the pressure indicator and the safety valve go up, the weight regulator will also go up and turn around. A steady flow of steam will begin to escape, which indicates that it is in state of accumulating pressure. Lower the heat and start the timer.

NOTE: The weight regulator will turn around and stop after a few seconds and will turn around again (this cycle will continue until cooking required meets).

1. Once the required time is reached, turn OFF the fire. Tilt the weight regulator, to release the pressure inside. If the pressure indicator and the locking indicator are back to its proper position (down) it means, the pressure has been released.

In case the pressure clogs. Try the following:

a. Bring the pressure cooker to the faucet, allow the water to flow in the cover until pressure indicator drops.

b. Using a spoon, push the gasket on the side hole of the cover until pressure released.

1. To open: hold the lower handle with left hand and upper handle with right hand. Slightly turn upper handle to the right until 2 arrow marks from the pressure cooker body and cover meets. Lift the cover to open.

CLEANING AND MAINTENANCE

1. All parts are washable with soap and water.

2. Nozzle and Filter

After every use, clean the nozzle and filter with cleaning needle to remove food residue.

1. Safety Valve and Pressure Indicator

Unscrew, soak in hot water with soap for 5 minutes. Rinse thoroughly. If food stocks on the holes, use cleaning needle to remove.

1. Gasket

Soak in hot water with soap for 5 minutes. Rinse thoroughly. Do not hang the gasket. Put it back on the side slot on the cover of the pressure cooker.

1. Let it dry. Be sure to assemble the parts, specially the gasket.

2. Store in dry place.

3. Always keep the pressure cooker clean after every use.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Topgadget Distributions, Inc.

2120 A. Linao St. Malate, Manila

Made in China

SPECIFICATION

MODEL NO. : QGP-3711

CAPACITY : 11 Liters

BOX DIMENSION :

UNIT DIMENSION

GROSS WEIGHT

UNIT WEIGHT

:

IMPORTANT SAFEGUARDS

1. Read all instructions carefully.
2. Do not modify any part of the aluminum pressure cooker.
3. Do not touch hot exterior surface when in use. Use both handles when moving this pressure cooker.
4. Ensure that the pressure is fully released before opening the cover.
5. Always check the pressure release devices for clogging before use.
6. Never use the pressure cooker with a torn gasket.
7. Do not fill the pressure cooker more than 2/3 of its capacity.
8. Do not place anything on top of the cover. (e.g. kitchen towel).
9. Do not use the aluminum pressure cooker without water.
10. Close supervision is necessary when used by or near children.
11. Do not use this unit other than its intended use.
12. Save this instruction for future reference.

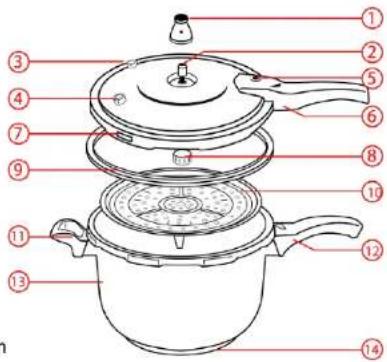

DESCRIPTION OF PARTS:

1. Pressure Regulator
2. Vent Pipe
3. Alarm Valve
4. Safety Valve
5. Air Vent
6. Upper Handle
7. Safety Lid Window
8. Vent Pipe Filter
9. Silicone Gasket
10. Steaming Tray
11. Short Handle
12. Lower Handle
13. Body
14. Induction Ready Bottom

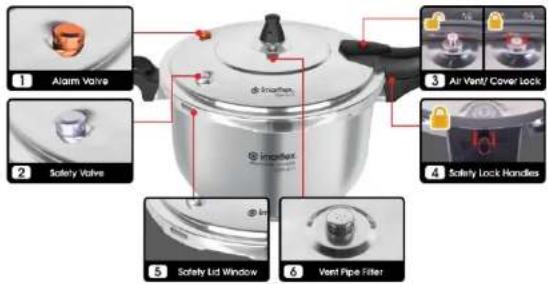

6 SAFETY FEATURES:

Alarm Valve & Safety Valve: It serves as a double protection that ensures the safety of use. It prevents excess pressure to build up.

Safety Lid Window: It serves as an effective prevention for safety accidents caused by excessive pressure in the pot. When the pressure in the pot exceed the pressure relief pressure, the air tight ring will be squeezed out of the safety window.

Vent Pipe Filter: It improves the anti-blocking performance of the pressure cooker

Safety Lock Handles: When the handle closing cap is not properly in place, the upper pressure valve cannot be raised and the pressure cooker is not pressed to ensure the safety of the closed cap.

Air Vent / Cover Lock: Safety features that make it impossible to open the appliance until the pressure has been released.

HOW TO USE

1. Place the food and the required quantity of liquid in the pressure cooker.

Maximum filling levels:

a. solid food e.g. vegetables, meat, fish: not more than 3/4 capacity
b. cereals e.g. rice: not more than 2/3 capacity
c. liquids e.g. soups, water: not more than 12 capacity

1. Place the gasket in the cover; be sure it is fitted on side slot. To close: hold the upper handle with the right hand and lower handle with left hand. Align the arrow marks on the cover and the handle, then turn upper handle to the left, until upper and lower handles locks. Put the weight regulator on the nozzle.

2. Grab the handle with your both hands. Put the pressure cooker on top of the gas stove. Turn fire into medium high, fire should not be coming out of the edge of the pressure cooker.
