Desktop Printers....5

MP49D 6

MP41DHII 7

MP27D 8

MP25DV....9

MP21DX 10

MP11DX 11

P170-DH 12

P160-DH 13

Portable/Palm Printers 14

P23-DH V 15

P1-DH V 16

Portable Displays....17

WS-1400H 18

TX-220TS 19

HS-1200TS 20

LS-100TS 21

TS-10TS 22

LS-85H 23

TS-83H 24

Handheld Displays....25

TS-82H 26

LS-555H 27

LS-82Z 28

LS-QT 29

LS-390H 30

LS-330H 31

LS-270H 32

LS-716H 33

KC-30 34

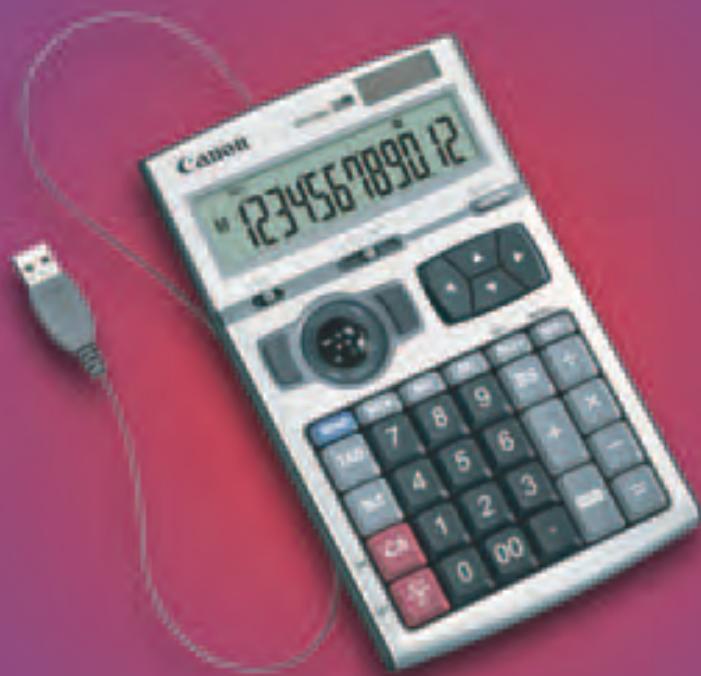

USB Compatible 35

DK-10i 36

DK-100i 37

DK-1000i 38

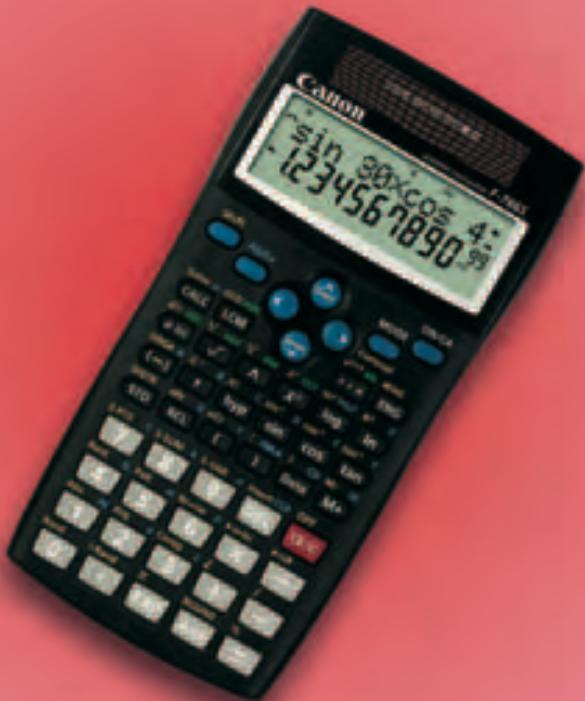

Scientific 39

F-766S 40

F-716S 41

F-710 42

F-604 43

F-502 44

Commercial Calculators 45

CP1460D 46

CP1260D 47

CP1213D II 48

CP1013D II 49

CP1250D 50

CP1200D 51

L1255 52

How To Buy A Printing Calculator .... 53

Product Configuration/Dimension Charts 54

Model Comparison Charts 58

Scientific Calculator Tables 62

CANON CALCULATORS... CANON'S GOT YOUR NUMBER.

Canon, the company that has pioneered much of the calculator technology that is considered standard today, has once again added enhanced features to many of our new calculators.

The time calculation feature simplifies any calculation where time-based fee structures are needed. The battery strength indicator alerts you to low battery power which may cause printing problems. The power save feature reduces power consumption while the calculator is idle. Check out the calculators that have these and other new features.

You can expect Canon's high standard for innovation and quality no matter which model suits your calculating application.

60 70 Source: 1994

THE BEST SELLING PRINTING CALCULATORS THE US$1 Data Source: NPD Group

Desktop Printers

Canon's DESKTOP PRINTING calculators incorporate high-speed, two-color printing and easy-to-use keys that automatically perform complicated applications, in an attractive design.

12345678901234

White digital calculator with a screen displaying the text '计算器' (tablet) on its front panel, against a blue background (no visible text beyond the display)

• 14 digits
- Heavy duty, high-speed ink ribbon printer (5.2 Lines-per-second)
• Profit margin calculation
- Currency Conversion
• Clock and calendar function
• Decimal positions: +, 0, 2, 3, 4, 6, F
- Power save mode

14digits

TAX

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	14 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	5.2 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Currency conversion. Tax calculation. Memory calculation. Mixed calculations. Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Item count. Grand total. Sign change. Round up/off/down.
Power Source	AC
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.9" (W) x 13.2" (L) x 3.0" (H) (225mm x 336mm x 76mm)
Weight	4 lbs. (1.8 kg)

SOLUTIONS YOU CAN COUNT ON! MP41DHII

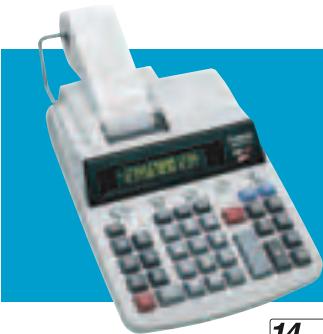

White digital calculator with red buttons and a paper roll, shown against a blue background (no visible text or symbols)

• 14 digits
• 2-color illuminated display
• High-speed ink ribbon printer
- Prints black and red
• Decimal positions: +, 0, 2, 3, 4, 6, F
• Profit margin calculation
- Double and triple zero

14digits

TAX

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	14 Digits for all calculations
Display	Extra-large 2-color Illuminated Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.1 Lines-per-second
Printing Paper	Standard plain paper roll width 2-1/4" (57mm)
Types of Calculations	Profit Margin calculation. Tax calculation. Memory calculation. Mixed calculations. Addition, subtraction, multiplication, and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Item count. Grand Total. Sign change. Round up/off/down.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.9" (W) x 14.0" (L) x 3.2" (H)(227mm x 355.5mm x 82mm)
Weight	3.5 lbs. (1.6 kg)

MP27D

HIGH SPEED, 2-COLOR PRINTING CALCULATOR

Close-up of a silver calculator with a paper roll, against a blue background (no visible text or symbols)

• Easy-to-read, extra-large fluorescent display
• Heavy-duty, high-speed ink ribbon printer (4.8 Lines-per-second)
  • Profit margin calculation
  • Clock and calendar function
• Quick reference guide
  • Decimal positions: +, 0, 2, 3, 4, 6, F
• Power save mode

12 digits

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	5/4 selection switch for rounding up/off /down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.8 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit Margin calculation. Tax calculation. Memory calculation. Mixed calculations. Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Item count. Grand total. Sign change. Round up/off/down.
Power Source	AC
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.9" (W) x 13.1" (L) x 3.0" (H)(227.5mm x 334mm x 76.8mm)
Weight	3.9 lbs. (1.8 kg)

White calculator with red buttons and a white top, set against a solid blue background (no visible text or symbols)

12 digits

• Easy-to-read, extra-large fluorescent display
• Heavy-duty, high-speed ink ribbon printer (4.3 Lines-per-second)
  • Profit margin calculation
  • Clock and calendar function
• Quick reference guide
  • Decimal positions: +, 0, 2, 3, 4, 6, F
• Prints black and red

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.3 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Tax calculation. Mixed calculations. Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Add mode. Memory calculation. Item count. Grand total. Sign change. Round up/off/down.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.8" (W) x 12.6" (L) x 3.6" (H) (224mm x 320mm x 98mm)
Weight	3.7 lbs. (1.7 kg)

MP21DX

TWO-COLOR PRINTING, EXTRA-LARGE DISPLAY

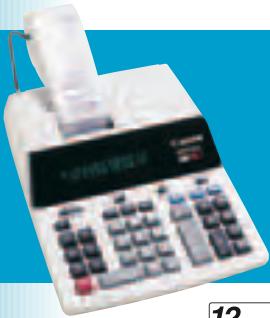

White digital calculator with black keypad and red buttons, displayed against a blue background (no visible text or symbols)

• Easy-to-read, extra-large fluorescent display
• Heavy-duty, high-speed ink ribbon printer (3.5 Lines-per-second)
  • Quick and easy tax calculations
  • Decimal positions: +, 0, 2, 3, 4, 6, F
  • Mark-up/down and delta percent
• Prints black and red

12 digits

TAX

MU

Features

Type	Desktop Printing Calculator
Printing system	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results Fixed at + (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	3.5 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Mark-up/down calculation. Tax calculation. Memory calculation. Increase/decrease ratio calculation ( % ). Mixed calculations. Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on and discount calculation. Add mode. Item count. Grand total. Sign change.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9" (W) x 12.2" (L) x 3.7" (H) (230mm x 308mm x 93mm)
Weight	4.0 lbs. (1.8 kg)

Digital calculator with paper roll on top, shown against a blue background (no visible text or symbols)

• Easy-to-read fluorescent display
  • High-speed printer (3.7 Lines-per-second)
  • Profit margin calculation
  • Clock and calendar function
  • Quick and easy tax calculations
  • Decimal positions: +, 0, 2, 3, 4, 6, F
• Prints black and red

12 digits

TAX

Features

Type	Desktop Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point.Results fixed at + (Add mode), 0, 2, 3, 4, 6, F(Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	3.7 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Tax calculation.Memory calculation. Mixed calculations.Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/ discount calculation.Add mode. Item count. Grand total. Sign change. Round up/off/down.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.9" (W) x 13.1" (L) x 2.9" (H)(225mm x 332mm x 73mm)
Weight	3.9 lbs. (1.8 kg)

P170-DH

12-DIGIT, 2 COLOR PRINTER

White calculator with red buttons and a paper roll, displayed against a blue background (no visible text or symbols)

• Easy-to-read fluorescent display
• Quiet, serial impact printer with ink roller (2.3 Lines-per-second)
  • Profit margin calculation
  • Clock and calendar function
  • Quick and easy tax calculations
  • Decimal positions: +, 0, 1, 2, 3, 4, F

12 digits

TAX

Features

Type	Desktop Printing Calculator
Printing System	Ink Roller
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results are fixed at + (Add mode), 0, 1, 2, 3, 4, F
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	2.3 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Ink Roller	CP-13
Types of Calculations	Profit margin calculation. Tax calculation. Memory calculation. Mixed calculations. Addition, subtraction, multiplication, division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Add mode calculation. Grand total. Sign change. Round up/off/down. Item count.
Power Source	AC
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	7.8" (W) x 10.7" (L) x 2.5" (H) (197mm x 272mm x 63mm)
Weight	2.0 lbs. (890 g)

QUALITY & AFFORDABILITY THAT ADDS UP P160-DH

White handheld calculator with red buttons and a scroll, against a solid blue background (no visible text or symbols)

• Easy-to-read fluorescent display
• Quiet, serial impact printer with ink roller (2.3 Lines-per-second)
  • Profit margin calculation
  • Clock and calendar function
  • Quick and easy tax calculations
  • Decimal positions: +, 0, 1, 2, 3, 4, F

12 digits

TAX

Features

Type	Desktop Printing Calculator
Printing System	Ink Roller
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	+ (Add mode), 0, 1, 2, 3, 4, F
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	2.3 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Ink Roller	CP-13
Types of Calculations	Profit margin calculation. Tax calculation. Memory calculation. Addition, subtraction, multiplication, division. Chain multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Add mode calculation. Grand total. Mixed calculations. Sign change. Round up/off/down. Item count.
Power Source	AC
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	7.4" (W) x 10.4" (L) x 2.4" (H)(188mm x 265mm x 60mm)
Weight	1.9 lbs. (868 g)

Portable/Palm Printers

Canon's PORTABLE/PALM PRINTING calculators provide advanced features with dual power in a convenient size for calculations on the go, anywhere!

123456789012

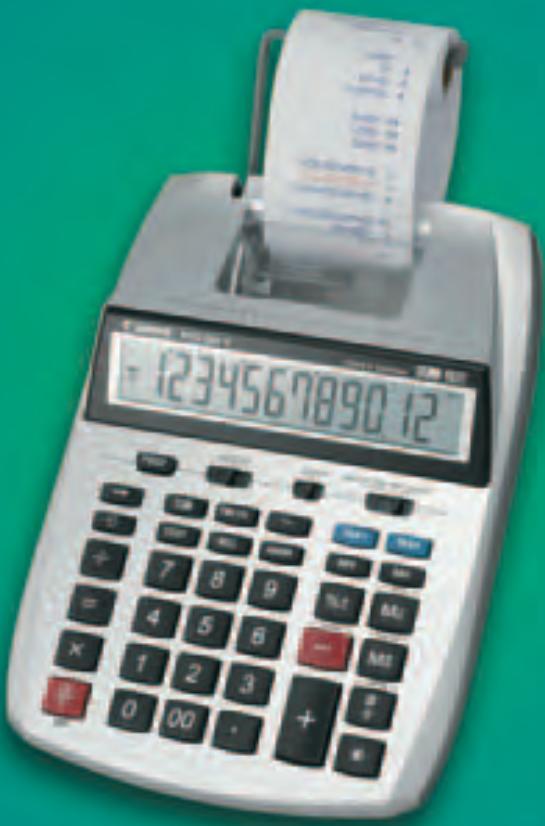

Digital calculator with a paper receipt, shown against a teal background (no visible text or symbols on the device)

• Extra-large liquid crystal display
- Two-color ink roller printer
• Profit margin calculation
• Clock and calendar function
• Time calculation function
• Quick and easy tax calculations
• Decimal positions: +, 0, 2, 3, F
- Prints purple and red
• Automatic power-off function
• AC/DC power (AC adapter included)
- Battery strength indicator

12 digits

TAX

Features

Type	Mini Desktop Printing Calculator
Printing System	Ink Roller
Calculation Capacity	12 Digits for all calculations
Display	Extra-large Liquid Crystal Display
Decimal Point System	Leftmost digit priority with floating decimal point. Results fixed at + (Add mode), 0, 2, 3, F (Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in purple and negative numbers in red
Printing Speed	2.3 Lines-per-second
Printing Paper	Roll width: 2-1/4" (57mm)
Ink Roller	CP-13
Types of Calculations	Profit margin calculation. Tax calculation. Clock and calendar function. Time calculation. Memory calculation. Mixed calculations. Power and reciprocal calculation. Repeat calculation. Addition, subtraction, multiplication and division. Constant multiplication, division and percentage calculation. Percentage add-on/discount calculation. Item count. Sign change. Round up/off/down.
Power Source	AC Adapter AC-380II (included)4 AA size batteries (optional)
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	6.4" (W) x 9.1" (L) x 2.2" (H)(163.5mm x 231.5mm x 55.5mm)
Weight	1.1 lbs. (510 g) with batteries

P1-DH V

ULTRA-PORTABLE, SUPER EFFICIENT

Digital payment terminal with digital display and transparent casing (no visible text or symbols)

• Large, liquid crystal display
- Ink roller printing
• Time calculation function
• Profit margin calculation
• Quick and easy tax calculations
• Decimal positions: 0, 2, 3, 4, A, F
- Prints purple
• Automatic power-off function
• AC/DC power (AC adapter included)
- Battery strength indicator

12digits COST SALAD TAX To Pay Money

Features

Type	Palm Printing Calculator
Printing System	Ink Roller
Calculation Capacity	12 Digits for all calculations
Display	Liquid Crystal Display
Decimal Point System	F (Floating Position) 0, 2, 3, 4, A (Add Mode)
Rounding	5/4 for round off
Printing Color	Purple
Printing Speed	2.0 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)Max. diameter: 3-3/8" (86mm)
Ink Roller	CP-16
Types of Calculations	Profit margin calculation. Time calculation. Tax function. Memory calculation. Percentage calcu-lation. Percentage add-on/discount calculation.Mixed calculations. Addition, subtraction, multi-plication and division. Constant calculations.Sign change. Round off.
Power Source	AC Adapter AC-380II (included)4 AA size batteries (optional)
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	4.0" (W) x 8.1" (L) x 1.9" (H)(102mm x 205mm x 47mm)
Weight	9.6 oz. (272 g)11.6 oz. (330 g) with batteries

Portable Displays

Perfect for home, school or on a desktop, Canon's PORTABLE DISPLAY calculators have a variety of features with angled displays for a clear view of your calculations.

CANON 15.02073 TAD & Programming 1.00 12345671890.12

WS-1400H

UNIQUE 14-DIGIT TILT DISPLAY

记录 验证

• 14 digits
• Large, adjustable tilt display
• Decimal positions: A, 4, 3, 2, 0, F
• Automatic power-off function
- Double and triple zero
- Sign change key

14 digits

MU

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	77.5mm (W) x 19.5mm (L)
Calculation Capacity	14 Digits for all calculations
Decimal Point System	A (Add mode), 4, 3, 2, 0, and F (Floating)
Rounding	5/4 selection switch for rounding up/off/down
Types of Calculations	Addition, subtraction, multiplication, and division. Constant calculations. Raising to powers. Percentage and Add-on/Discount calculations. Extraction of Square Roots. Mark-up calculation. Add-mode calculation. Memory calculation. Various mixed calculations. Grand Total calculation.
Indication Functions	Memory sign (MEMORY). Overflow indication (ERROR). Minus sign (- MINUS). Punctuation after every 3 digits. Grand Total sign (GT).
Power Source	Solar cell and alkaline battery (1 x LR-1130)
Usable Temperature	32°F-104°F (0°C-40°C)
Dimensions	5.9" (W) x 7.9" (L) x 1" (H)(150mm x 201mm x 25mm)
Weight	8.6 oz. (245 g)

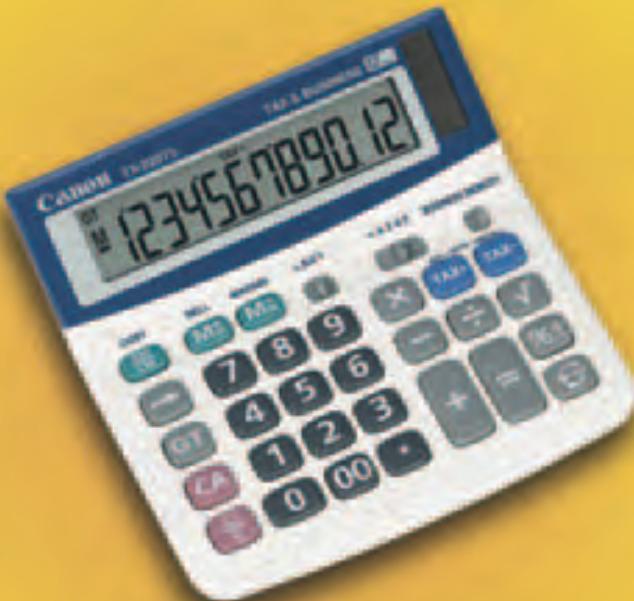

TAX & EVERYDAY BUSINESS CALCULATIONS TX-220TS

1234567890.12

• 12 digits
• Extra-large, adjustable tilt display
- Quick and easy tax calculations
• Profit margin calculation
- Grand total key
• Decimal positions: A, 4, 2, 0, F
- Adjustable tilt display

12 digits

TAX

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	104mm (W) x 23mm (L)
Calculation Capacity	12 Digits for all calculations
Decimal Point System	+ (Add mode), 4, 2, 0, F (Floating)
Rounding	5/4 selection switch for rounding up/off/down
Types of Calculations	Addition, subtraction, multiplication and division. Profit Margin calculations. Constant calculations. Percentage calculation. Percentage add-on/discount calculation. Extraction of square root. Memory calculation. Various mixed calculations. Tax Calculation. Sign change. Grand total calculation.
Indication Functions	Overflow and Error signs (ERROR), Memory sign (MEMORY), Minus sign (-M), Punctuation after every three digits.
Power Source	Solar cell and alkaline battery (1 x CR2032)
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	5.7" (W) x 5.7" (L) x 1.2" (H)(146mm x 145mm x 30mm)
Weight	5.9 oz. (166 g)

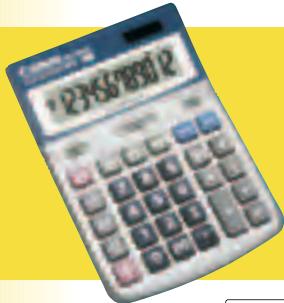

HS-1200TS

BUSINESS CALCULATIONS

12356789012

• 12 digits
• Profit margin calculation
• Quick and easy tax calculations
• Square root, sign change and memory keys
- Attractive metallic design

12 digits

TAX

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	88.7mm (W) x 21mm (L)
Calculation Capacity	12 Digits for all calculations
Decimal Point System	+ (Add mode), 4, 3, 2, 1, 0, F (Floating)
Rounding	5/4 selection switch for rounding up/off/down
Types of Calculations	Addition, subtraction, multiplication and division. Chain multiplication and division. Memory calculation. Percentage calculation. Percentage add-on and discount calculations. Profit margin calculations. Square root. Mixed calculations. Sign change, Tax calculation. Grand total calculation. Sign change.
Indication Functions	Overflow and Error sign (E). Memory sign (M). Minus sign (-M). Punctuation after every 3 digits.
Power Source	Solar cell and alkaline battery (1 x LR44)
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	6.7" (W) x 4.8" (L) x 1.4" (H)(174mm x 123mm x 38mm)
Weight	6 oz. (170 g)

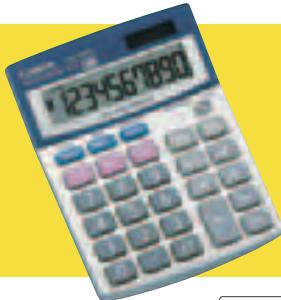

PORTABLE, AFFORDABLE LS-100TS

1234567890

• 10 digits
• Profit margin calculation
• Quick and easy tax calculations
• Square root, sign change and memory keys
- Attractive metallic design

10 digits

TAX

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	77.5mm (W) x 19.5mm (L)
Calculation Capacity	10 Digits for all calculations
Types of Calculations	Addition, subtraction, multiplication and division. Constant calculations. Profit margin calculation. Percentage calculation. Percentage add-on/discount calculation. Memory calculation. Various mixed calculations. Square root. Sign change. Tax function.
Indication Functions	Overflow and Error signs (ERROR), Memory sign (MEMORY), Minus sign (-M), Punctuation after every three digits.
Power Source	Solar cell and alkaline battery (1 x LR44)
Usable Temperatures	32°F – 104°F (0°C – 40°C)
Dimensions	4.1" (W) x 5.3" (L) x 1.3" (H)(103mm x 135mm x 32mm)
Weight	2.9 oz. (82 g)

TS-10TS

BUSINESS CALCULATIONS, PORTABLE

Close-up of a calculator with a display screen and open case against a yellow background (no visible text or symbols)

• 10 digits
• Profit margin calculation
- Adjustable tilt display
• Quick and easy tax calculations
- Square root, sign change and memory keys
- Attractive metallic design
- Vinyl protective case

10 digits

TAX

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	65mm (W) x 19.5mm (L)
Calculation Capacity	10 Digits for all calculations
Types of Calculations	Addition, subtraction, multiplication and division. Constant calculations.Profit margin calculation. Percentage calculation. Percentage add-on/discount calculation. Memory calculation. Various mixed calculations. Square root. Sign change. Tax function.
Indication Functions	Overflow and Error signs (ERROR), Memory sign (MEMORY), Minus sign (-M), Punctuation after every three digits.
Power Source	Solar cell and battery (1 x CR2016)
Usable Temperatures	32°F – 104°F (0°C – 40°C)
Dimensions	3" (W) x 5" (L) x 0.4" (H)(103mm x 135mm x 32mm)
Weight	2.9 oz. (82 g)

123456780

• 8 digits
• Eye-angled, upright display
• Floating decimal point system
  • Automatic power-off function
• Square root, sign change and memory keys

Features

Type	Dual-Powered Desktop Display Calculator
Display	Liquid Crystal Display
Display Screen Size	76mm (W) x 19mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating System
Types of Calculations	Addition, subtraction, multiplication, and division. Chain multiplication and division. Memory calculations. Constant calculations. Percentage calculations. Extraction of square roots. Reciprocal calculations. Various mixed calculations.
Indication Functions	Overflow and error sign (E). Memory sign (M). Minus sign (-). Punctuation after every three digits.
Power Source	Solar cell and alkaline battery (1 x LR1130)
Dimensions	3.9" (W) x 5.1" (L) x 1.0" (H)(100mm x 130mm x 26mm)
Weight	3.3 oz. (93.6 g)

123456780

• 8 digits
• Adjustable tilt display
• Floating decimal point system
• Square root, sign change and memory keys
• Mark-up calculation

Features

Type	Desktop Display Calculator
Display	Liquid Crystal Display
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating decimal system
Types of Calculations	Addition, subtraction, multiplication and division. Automatic constant addition, subtraction, multiplication and division. Chain multiplication and division. Percentage and add-on/discount calculation. Memory, mixed and mark-up calculation.
Power Source	Solar cell and alkaline battery (1 x LR1130)
Usable Temperature	32^ - 104^ ( 0^ - 40^ )
Dimensions	4.0'' (W) x 6.5'' (L) x 0.4'' (H)( 103mm x 166mm x 11mm )
Weight	3.9 oz. (112 g)

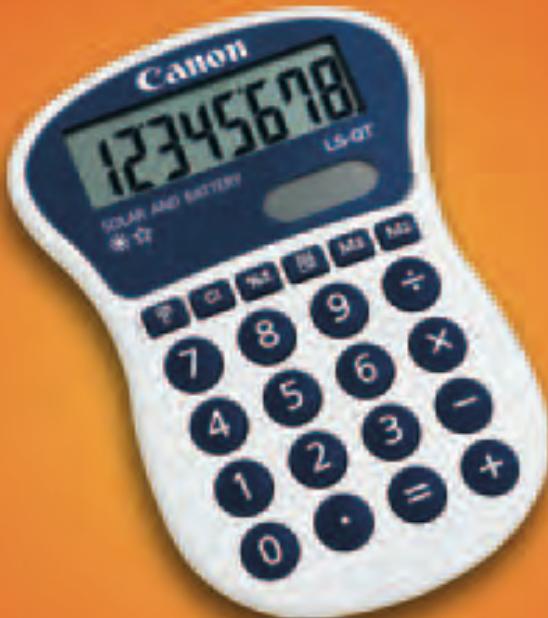

Handheld Displays

Small enough to go anywhere, Canon's HANDHELD DISPLAY calculators incorporate powerful features, a dual power supply and an array of calculating possibilities to meet everyone's needs.

Canon 12345678 SOLAR AND BATTERY ☆☆ LS-OT 7 8 9 ÷ 7 8 9 × 4 5 6 - 1 2 3 = 0 = +

TS-82H

Digital calculator with a red button on the front panel, shown against an orange background (no visible text or symbols on the device)

• 8 digits
• Flip-top display panel
• Adjustable, extra-large tilt display
• Dual power source: solar and battery

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication and division. Automatic constant addition, subtraction, multiplication and division, Chain multiplication and division. Percentage, add-on/discount calculation. Memory, mixed and mark-up calculation.
Power Source	Solar cell and alkaline battery (1 x LR1130)
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	3.3" (W) x 5.1" (L) x 0.5" (H)(83mm x 130mm x 13mm)
Weight	2.8 oz. (80 g)

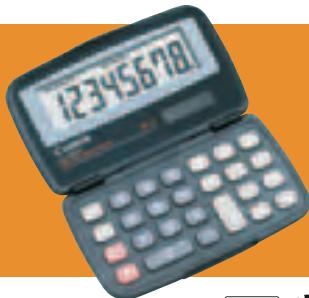

STURDY, COMPACT DESIGN FOR CONVENIENCE LS-555H

12345618

• 8 digits
• Foldover design
• Sturdy hard cover casing keeps keys dust-free
• Fingertip-size keys with hard rounded keytops
• Dual power source: solar and battery

8digits

Features

Type	Foldable Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	77.5mm (W) x 23mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication and divisionChain multiplication and division. Memorycalculation. Constant calculation. Percentagecalculation. Extraction of square root.Reciprocal calculation. Sign change.Various mixed calculations.
Indication Functions	Overflow and error (ERROR), memory sign(MEMORY), minus sign (-MINUS)
Power Source	Solar cell and alkaline battery (1 x LR1130)
Usable Temperatures	32°F-104°F (O°C-40°C)
Dimensions	Closed: 4.3" (W) x 2.7" (L) x 0.6" (H)(110mm x 67.5mm x 15mm)Opened: 4.3" (W) x 5.1" (L) x 0.3" (H)(110mm x 129mm x 8mm)
Weight	2.82 oz. (80 g)

123456788

• 8 digits
  • Large, eye-angled, upright display
• Floating decimal point system
• Extra-compact portable size
  • Extraction of square root
  • Dual power source: solar and battery

Features

Type	Portable Display Calculator
Display	Liquid Crystal Display
Display Screen Size	2-7/32" x 3/4"56mm x 18.5mm
Character Size	7/32" x 5/8"5.5mm x 15mm
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating decimal point system
Types of Calculations	Addition, subtraction, multiplication and division. Chain multiplication and division. Memory calculations. Percentage calculations. Add-on and discount calculations. Extraction of square root. Reciprocal calculations. Various mixed calculations.
Indication Functions	Overflow and error sign (E), memory sign (M), minus sign (-).
Power Source	Solar cell and alkaline battery (1 x LR1130)
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	3.5" (W) x 4.4" (L) x 1.3" (H)(88mm x 111mm x 32mm)
Weight	2.5 oz. (64 g)

123456781

• Ergonomic palm design
• Oversized, easy-to-read display
  • Dual power source: solar and battery

8digits

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	52mm (W) x 15mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication, division. Automatic constant addition, subtraction, multiplication and division. Chain multiplication and division. Memory calculations. Percentage add-on/discount calculations. Mixed calculations.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Power Source	Solar cell and battery (1 x CR2016)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	3.1" (W) x 4.5" (L) x 0.5" (H)(71mm x 103mm x 13mm)
Weight	1.3 oz. (37 g)

LS-390H

COMPACT, CONVENIENT, DUAL POWERED

Digital calculator with display and keypad against orange background (no visible text or symbols)

• Ergonomically designed, large plastic keys with rounded edges for comfort
• Dual power source: solar and battery
  • Extraction of square root and sign change

8digits

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	2-5/32" (W) x 1/2" (H)(55mm x 13mm)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating decimal point system
Types of Calculations	Addition, subtraction, multiplication and division. Automatic multiplication by a constant. Memory calculation. Extraction of square root. Percentage calculations. Various mixed calculations. Sign change.
Indication Functions	Overflow and error sign (E), memory sign(M), minus sign(-)
Power Source	Solar cell and alkaline battery (1 x LR1130)
Dimensions	2.9" (W) x 4.7" (L) x 0.5" (H)(73.5mm x 119.5mm x 11.5mm)
Weight	2.2 oz. (62 g)

SLIM, LIGHTWEIGHT, PACKED WITH FEATURES LS-330H

123456780

• Oversized, easy-to-read display
• Dual power source: solar and battery
• Mark-up key
  • Extraction of square root and sign change

8digits

Features

Type	Handheld Display Calculator
Display	Liquid Crystal Display
Display Screen Size	53mm (W) x 16mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication, division. Automatic constant addition, subtraction, multiplication and division. Chain multiplication and division. Memory calculations. Percentage add-on and discount calculations. Square root. Markup. Sign change. Mixed calculations.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Power Source	Solar cell and alkaline battery (1 x CR2032)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	2.8" (W) x 4.5" (L) x 0.4" (H) (71mm x 114mm x 10mm)
Weight	1.2 oz. (29 g)

LS-270H

CONVENIENT FEATURES IN A HANDHELD SIZE

12395808

• Oversized, easy-to-read display
• Dual power source: solar and battery
• Mark-up key
  • Extraction of square root
• Attractive metallic design

8digits

Features

Type	Handheld Display Calculator
Display	Extra-large Liquid Crystal Display
Display Screen Size	36.5mm (W) x 17.3mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating system
Types of Calculations	Addition, subtraction, multiplication, division.Automatic constant addition, subtraction, multiplication and division. Chain multiplication and division. Memory calculation. Percentage add-on and discount calculations. Square root. Mark-up/down. Sign change. Mixed calculations.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Power Source	Solar cell and alkaline battery (1 x LR1130)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	2.4" (W) x 4.0" (L) x 0.4" (H)(61mm x 102mm x 10mm)
Weight	1.3 oz. (37 g)

12345678 C:\Program Files\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\Invent\n12345678

• Easy-to-read, extra-large display
• Slim, credit card design
  • Solar-powered from available light source
• Includes pouch case

8 digits

Features

Type	Card-size Display Calculator
Display	Liquid Crystal Display
Display Screen Size	42.5mm (W) x 14mm (L)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating decimal point system
Types of Calculations	Addition, subtraction, multiplication and division. Chain multiplication and division. Constant multiplication and division. Percentage calculations. Extraction of square root. Mixed calculations. Sign change.
Indication Functions	Minus sign (-) memory sign (M), and error sign (E).
Power Source	Integrated silicon solar cells
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	3.4" (W) x 2.1" (L) x 0.1" (H)(85.5mm x 54mm x 3.8mm)
Weight	0.74 oz. (21 g)

White calculator with a keychain attached, against an orange background (no visible text or symbols)

• Designed with a freely rotating key chain
  • 8-digit liquid crystal display
• Floating decimal point system

Features

Type	Mini Key Chain Calculator
Display	Liquid Crystal Display
Display Screen Size	1.6" (W) x 3.1" (L) x 0.5" (H)
Calculation Capacity	8 Digits for all calculations
Decimal Point System	Floating point system
Types of Calculations	Addition, subtraction, multiplication, division, and chain multiplication and division. Automatic multiplication and division by a constant.Reciprocal calculations. Percentage calculations.
Indication Functions	Overflow and error sign (E). Minus sign (-).
Power Source	A alkaline battery (1 x LR1130). Battery life about 3,500 hours of operation.
Usable Temperature	32°F - 104°F (0° - 40°C)
Dimensions	1.7" (W) x 3.0" (L) x 0.5" (H)(43mm x 76mm x 14mm)
Weight	1 oz. (27 g)

USB Compatible

Utilizing Plug and Play technology, Canon USB calculators offer immediate access to the benefit of an external keypad in a format that is optimal for the mobile professional. The DK-10i, DK-100i and the DK-1000i USB calculators are ideal for anyone who is concerned with efficiency and convenience.

Canon 123456789012

DK-10i

CONVENIENT FOR YOUR DESK OR LAPTOP

Digital calculator with attached USB cable and power cord, shown against a purple background (no visible text or symbols)

• Key pad
  • 12-digits
  • Large liquid crystal display
• PC link function
• USB cable included
  • USB Plug & Play technology
• Tax keys
• Trendy metallic black body

• Dual power capability (solar and battery)

12 digits

TAX

Features

Type	Handheld USB Calculator
Display	Large, Liquid Crystal Display
Calculation Capacity	12 Digits for all calculations
Decimal Point System	Floating system
Types Of Calculations	Addition, subtraction, multiplication, division. Memory calculation. Percentage add-on and discount calculations. PC link function. Tax calculation.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Computer	IBM PC/AT or compatible with built-in USB port
Operating System	Pre-installed Windows 98/98SE/Me/2000 Professional/XP/Windows VistaTM
Power Source	Solar cell and alkaline battery (CR2016)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	2.8" (W) x 4.8" (L) x 0.5" (H) (72mm x 122mm x 13mm)
Weight	2.33 oz. (66 g)

Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the U.S. and/or other countries.

Illustration of a digital calculator with a cord and earplifier, set against a solid purple background (no text or symbols visible)

• Key pad
  • 12-digits
  • Large liquid crystal display
• PC link function
• USB cable included
  • USB Plug & Play technology
• Tax keys
• Trendy metallic black body

• Dual power capability (solar and battery)

12 digits

TAX

Features

Type	Desktop USB Calculator
Display	Large, Liquid Crystal Display
Calculation Capacity	12 Digits for all calculations
Decimal Point System	Floating system
Types Of Calculations	Addition, subtraction, multiplication, division. Memory calculation. Percentage add-on and discount calculations. PC link function. Tax calculation.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Computer	IBM PC/AT or compatible with built-in USB port
Operating System	Pre-installed Windows 98/98SE/Me/2000 Professional/XP/Windows VistaTM
Power Source	Solar cell and alkaline battery (CR2016)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	4.1" (W) x 5.3" (L) x 1.3" (H) (103mm x 135.5mm x 34mm)
Weight	4.3 oz. (122 g)

Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the U.S. and/or other countries.

DK-1000i

CONVENIENT FOR YOUR DESK OR LAPTOP

Illustration of a vintage calculator with a cord and ear (no visible text or symbols)

• Trackball
• PC touch key pad
  • 12-digits
  • PC function key: TAB, Enter & send keys
• PC link function
• Retractable USB cable
  • USB Plug & Play technology
• Tax keys
  • Stylish metal plate design

12 digits

TAX

Features

Type	Desktop USB Calculator
Display	Large, Liquid Crystal Display
Calculation Capacity	12 Digits for all calculations
Decimal Point System	+ (Add), 4, 3, 2, 1, 0 & F (Floating)
Types Of Calculations	Addition, subtraction, multiplication, division. Memory calculation. Percentage add-on and discount calculations. PC link function. Tax calculation.
Indication Functions	Overflow and Error sign (ERROR), Memory sign (MEMORY), Minus sign (-MINUS).
Computer	IBM PC/AT or compatible with built-in USB port
Operating System	Pre-installed Windows 98/98SE/Me/2000 Professional/XP/Windows VistaTM
Power Source	Solar cell and alkaline battery (CR2032)
Automatic Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	4.5" (W) x 7.2" (L) x 1.4" (H) (115mm x 184mm x 37mm)
Weight	9.7 oz. (275 g)

Windows and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the U.S. and/or other countries.

Scientific

Canon's SCIENTIFIC calculators are packed with great features, including 38 built-in formulas and an LCD contrast adjustment.

Canon sin 30xcos 4* -1234567890.9%

正月活动通知

• Total 349 functions
- 10+2 digits
• Dual power (solar and battery)
• 17 store and recall memories
• 38 built-in formulas
- Undo / input recovery
- Adjustable LCD contrast
- Battery strength indicator
- Quick reference guide
- Protective hard case included

10 digits

Features

Display	Lines-2, 1st Line Display (Dot Matrix)-12, 2nd Line Display-10+2, Contrast Adjustable, Notation (Sci/Eng)
Memory	No of Store Memory-17, Independent Memory-1, Alphanumeric Character-9 (A-F, M, X, Y) E, F only use in Base-n Calculation, Equation Pending Operations-9
Formula/Constant Value/Metric	Direct Input Calculation Expression-M.e.-Vi.m., Built-in Formula-38, Engineering Symbol Calculations
Mathematics	Parentheses-24, General Calculation, Log,b Calculation, Fraction Calculation, Degree-minutes-seconds ◇ Decimal degrees/sexagesimal cal., Equation Solving (Quadratic, Cubic, Simultaneous), CALC Function, SOLVE Function, Complex Number Operations, Least Common Multiple/Greatest Common Divisor, Absolute Value Calculation, Multi-Statements Calculation
Trigonometry	Angles Conversion, DRG Mode Calculation, Trigonometric Calculation, Coordination Conversion (Rectangular <-> Polar)
Computer Math	Base-n Calculation (Binary, Octal, Decimal, Hexadecimal) & Transformation between DHBO, Logic Operator
Statistics	1-/2- Variable-2, Mean/Standard Deviation/Sum of Value, Median, Maximum/Minimum Value, Factorials/Permutations & Combinations, Probability Distribution, Linear Regression, Quadratic Regression, Exponential/Logarithmic/Power/Inverse Regression, Correlation Coefficient, Regression Coefficient, Random Number Generation, Integer Random Number Generation
Replay	Last Digit Correction, Last Answer Recall, Multiple Replay, Block Level Reply (Base-n mode), UNDO/Input Recover
Other	Low Battery Indicator
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	3.2" (W) x 6.3" (L) x 0.7" (H) (81.5mm x 160mm x 18mm)
Weight	5.3 oz. (150 g) including cover

计算机软件

• Total 288 functions
- 10+2 digits
• Dual power (solar and battery)
• 17 store and recall memories
• 38 built-in formulas
- Undo / input recovery
- Adjustable LCD contrast
- Battery strength indicator
- Quick reference guide
- Protective hard case included

10 digits

Features

Display	Lines-2, 1st Line Display (Dot Matrix)-12, 2nd Line Display-10+2, Contrast Adjustable, Notation (Sci/Eng)
Memory	No of Store Memory-17, Independent Memory-1, Alphanumeric Character-A-D, M, X, Y, Equation Pending Operations-9
Formula/Constant Value/Metric	Direct Input Calculation Expression-M.e.-V.i.m., Built-in Formula-38, Engineering Symbol Calculations
Mathematics	Parentheses-24, General Calculation, Log,b Calculation, Fraction Calculation, Degree-minutes-seconds ◇ Decimal degrees/sexagesimal cal., Quotient & Remainder Calculation/Exchange, Least Common Multiple/Greatest Common Divisor, Absolute Value Calculation, Multi-Statements Calculation
Trigonometry	Angles Conversion, DRG Mode Calculation, Trigonometric Calculation, Coordination Conversion (Rectangular <-> Polar)
Statistics	1-/2- Variable-2, Mean/Standard Deviation/Sum of Value, Median, Maximum/Minimum Value, Factorials/ Permutations & Combinations, Linear Regression, Quadratic Regression, Exponential/Logarithmic/Power/ Inverse Regression, Correlation Coefficient, Regression Coefficient, Random Number Generation, Integer Random Number Generation
Replay	Last Digit Correction, Last Answer Recall, Multiple Replay, UNDO/Input Recover
Other	Low Battery Indicator
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	3.2" (W) x 6.3" (L) x 0.7" (H) (81.5mm x 160mm x 18mm)
Weight	5.3 oz. (150 g) including cover

F-710

139 TOTAL FUNCTIONS, 38 BUILT-IN FORMULAS

Close-up of a classic calculator with a digital display and keypad (no visible text or symbols)

• Display type: floating, scientific exponential liquid crystal display
  • 139 total functions + 38 built-in formulas;
  • Power Source: alkaline battery CR-2032
• Easy-to-read description of key functions
  • Large, durable plastic keytops
• Protective hard cover case included

10 digits

Features

Display	Lines-2, 1st Line Display (Dot Matrix)-11, 2nd Line Display-10+2, Contrast Adjustable, Notation (Sci/Eng)
Memory	No of Store Memory-3, Independent Memory-1, Parentheses-23, Pending Operations-7
Formula/Constant Value/Metric	Direct Input Calculation Expression, Built-in Formula-38, Scientific Constants/Constant Value-1, Engineering Symbol Calculations
Mathematics	General Calculation, Fraction Calculation, Degree-minutes-seconds <> Decimal degrees/sexagesimal cal.
Trigonometry	Angles Conversion, DRG Mode Calculation, Trigonometric Calculation, Coordination Conversion (Rectangular <-> Polar)
Statistics	1-/2- Variable-1, Mean/Standard Deviation/ Sum of Value, Factorials/Permutations & Combinations, Correlation Coefficient, Random Number Generation
Replay	Last Digit Correction, Last Answer Recall
Usable Temperature	32°F – 104°F (0°C – 40°C)
Dimensions	3.2" (W) x 5.9" (L) x 0.5" (H) (152mm x 77mm x 13mm)
Weight	3.1 oz. (88 g)

北京华富

• Display type: floating, scientific exponential liquid crystal display
  • 142 total functions
  • Power Source: alkaline battery LR-44
• Easy-to-read description of key functions
  • Large, durable plastic keytops
• Protective hard cover case included

10 digits

Features

Display	Lines-1, Calculating Digits/Scientific Notation-10+2, Alphanumeric-Partial
Memory	No of Store Memory-10, Independent Memory-1, Parentheses-15, Pending Operations-5
Mathematics	Fixed Decimal Option, Log, 10^x , In, e^x , x^2 , ^xV , y^2 , 1/x, ^xVy , %, Exponential calculation in a x 10^x , Degree-minutes-seconds , Decimal deg./sexagesimal cal., Rectangular Polar
Trigonometry	DEG, RAD, GRAD, DRG Conversions, Sin, Cos, Tan, Inverses, Hyperbolic
Computer Math	Binary, Octal, Decimal, Hexadecimal, Logic Operator/Base-N calculation
Statistics	1-/2- Variable-1, Mean, Standard Deviation, Sum of Value, Factorials, Permutations & Combinations, Linear Regression, Random
Replay	Last Digit correction
Usable Temperature	32^ - 104^ ( 0^ - 40^ )
Dimensions	3.1" (W) x 5.9" (L) x 0.7" (H)(79mm x 149mm x 18mm)
Weight	3.2 oz. (90 g)

利用数据

• Display type: floating, scientific exponential liquid crystal display
  • 136 total functions
  • Power Source: alkaline battery LR-44
• Easy-to-read description of key functions
  • Large, durable plastic keytops
• Protective hard cover case included

8digits

Features

Display	Lines-1, Calculating Digits/Scientific Notation-8+2, Alphanumeric-Partial
Memory	Independent Memory-1, Parentheses-15, Pending Operations-3
Mathematics	Fixed Decimal Option, Log, 10^x , In, e^x , x^2 , ^yV , y^2 , 1/x, ^vVy , %, Exponential calculation in a x 10^x , Degree-minutes-seconds , Decimal degrees/sexagesimal cal., Rectangular Polar
Trigonometry	DEG, RAD, GRAD, DRG Conversions, Sin, Cos, Tan, Inverses, Hyperbolic
Statistics	1-/2- Variable-1, Mean, Standard Deviation, Sum of Value, Factorials, Random
Usable Temperature	32^ - 104^ ( 0^ - 40^ )
Dimensions	3.0'' (W) x 5.6'' (L) x 0.4'' (H)(76mm x 141mm x 11mm)
Weight	2.6 oz. (75 g)

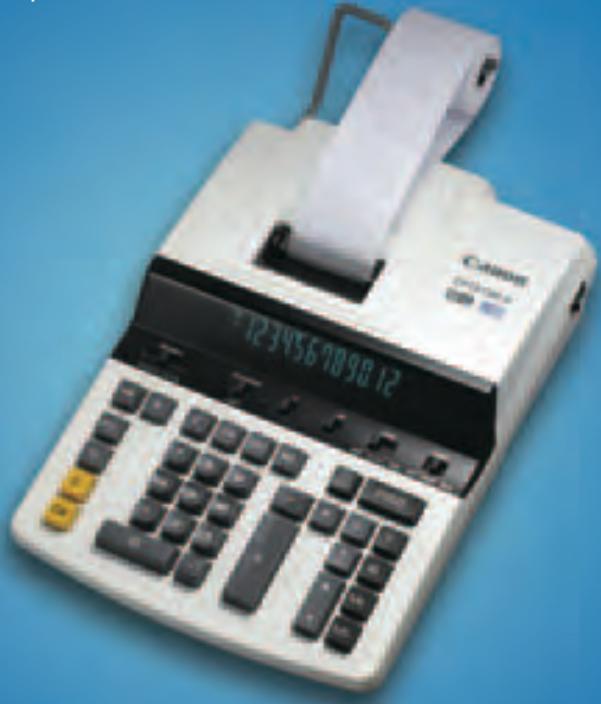

Commercial Calculators

Equipped with a Canon COMMERCIAL calculator, today's business professional is always prepared when faced with even the most demanding financial tasks. From tallying earnings to calculating payrolls, Canon Commercial Calculators help you get the answers you need with the accuracy and efficiency you expect from Canon.

White handheld calculator with digital display showing 123456709012, against a blue background (no readable text or symbols on the device itself)

CP1460D

ADVANCED FEATURES

2125000000

• High-speed, two-color printing (5.2 Lines-per-second)
• 14-digit Extra-large fluorescent display
• Profit margin calculation
• Clock and calendar function
• Quick and easy tax calculations
• Decimal positions: +, 0, 2, 3, 4, 6, F
- Power save mode

14 digits

TAX

Power Save SAVE ON ENERGY COST

MU

Features

Type	Commercial Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	14 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	+ (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	5.2 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Tax calculation. Currency conversion. Memory calculation. Grand total. Mixed calculations. Increase/decrease ratio calculation ( % ). Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Percentage add-on/discount calculation. Add mode. Sign Change. Round-up/off/down, Mark-up/down. Item count.
Power Source	AC
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.8" (W) x 13.5" (L) x 3.9" (H)(250mm x 343mm x 99mm)
Weight	4.9 lbs. (2.2 kg)

White handheld calculator with digital display and control buttons (no visible text or symbols)

• High-speed, two-color printing (5.2 Lines-per-second)
• 12-digit large fluorescent display
• Profit margin calculation
• Clock and calendar function
• Quick and easy tax calculations
• Decimal positions: +, 0, 2, 3, 4, 6, F
- Power save mode

12 digits

MU

Features

Type	Commercial Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	+ (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	5.2 Lines-per-second
Printing Paper	Standard plain paper roll width: 2-1/4" (57mm)
Types of Calculations	Profit margin calculation. Tax calculation. Currency conversion. Memory calculation. Grand total. Mixed calculations. Increase/decrease ratio calculation ( % ). Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Percentage add-on/discount calculation. Add mode. Sign Change. Round-up/off/down. Mark-up/down. Item count.
Power Source	AC
Auto Power Off	Approx. 7 minutes
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.8" (W) x 13.5" (L) x 3.9" (H)(250mm x 343mm x 99mm)
Weight	4.9 lbs. (2.2 kg)

CP1213D II

PROFESSIONAL TOOLS FOR THE PROFESSIONAL

Vintage digital calculator with black keypad and silver handle (no visible text or symbols)

• High-speed, two-color printing (4.8 Lines-per-second)
• 12-digit large fluorescent display
• Decimal positions: F, 6, 4, 3, 2, 1, 0, +1, +2
- Memory storage
- Independent memory with accumulation capability
- Constant multiplication and division
• Averaging and pairing calculations

12 digits

MU

Features

Type	Commercial Printing Calculator
Printing System	Ink ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Diplay
Decimal Point System	6,4,3,2,1,0, +1, +2 (Add-mode) and F (Floating) positions
Rounding	5/4 selector for round-off, round-down and round-up
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.8 Lines-per-second
Printing Paper	Roll width 57 - 58mm (2-1/4") Max. diameter 86mm (3-5/32")
Types of Calculations	Mark-up/mark-down calculation. Memory calculation. Percentage calculation. Add-on calculation. Discount calculation. Percentage increase and decrease calculation. Average calculation. Par mode calculation. Mixed calculations. Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Raising to powers. Reciprocal calculation. Sum and difference of products and quotients. Item counting.
Power Source	AC
Usable Temperature	32°F - 104°F (O°C - 40°C)
Dimensions	9.5" (W) x 13.4" (L) x 3.4" (H)(241mm x 340mm x 86mm)
Weight	4.1 lbs. (1.9 kg)

PROFESSIONAL TOOLS FOR THE PROFESSIONAL CP1013D II

Vintage silver calculator with black buttons and a white handle, displayed against a blue background (no visible text or symbols)

• High-speed, two-color printing (4.8 Lines-per-second)
• 10-digit large fluorescent display
• Decimal positions: F, 6, 4, 3, 2, 1, 0, +1, +2
- Memory storage
- Independent memory with accumulation capability
- Constant multiplication and division
• Averaging and pairing calculations

10 digits

MU

Features

Type	Commercial Printing Calculator
Printing System	Ink ribbon
Calculation Capacity	10 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	6,4,3,2,1,0, +1, +2 (Add-mode) and F (Floating) positions
Rounding	5/4 selector for round-off, round-down and round-up
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.8 Lines-per-second
Printing Paper	Roll width 57 - 58mm (2-1/4") Max. diameter 86mm (3-5/32")
Types of Calculations	Mark-up/mark-down calculation. Memory calculation. Percentage calculation. Add-on calculation. Discount calculation. Percentage increase and decrease calculation. Average calculation. Par mode calculation. Mixed calculations. Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Raising to powers. Reciprocal calculation. Sum and difference of products and quotients. Item counting.
Power Source	AC
Usable Temperature	32°F - 104°F (O°C - 40°C)
Dimensions	9.5" (W) x 13.4" (L) x 3.4" (H)(241mm x 340mm x 86mm)
Weight	4.1 lbs. (1.9 kg)

CP1250D

COMFORT, RELIABILITY, & SPEED

Vintage digital calculator with a paper holder and control panel (no visible text or symbols)

• High-speed, two-color printing (4.8 Lines-per-second)
• 12-digit large fluorescent display
• Profit margin calculation
• Clock and calendar function
• Quick and easy tax calculations
• Decimal positions: +, 0, 2, 3, 4, 6, F
- Memory storage

12 digits

TAX

MU

Features

Type	Commercial Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Extra-large Fluorescent Tube Display
Decimal Point System	+ (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.8 Lines per second
Printing Paper	Roll width: 2-1/4" (57mm)Max. diameter: 3-3/8" (86mm)
Types of Calculations	Profit margin calculation. Tax calculation. Percentage add-on/ discount calculation. Increase/decrease ratio calculation ( % ). Add mode calculation. Grand total. Mixed calculations. Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Sign Change. Round-up/off/down, Mark-up/down. Item count.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.6" (W) x 13.2" (L) x 3.7" (H)(245mm x 335mm x 94mm)
Weight	4 lbs. 7 oz. (2.0 kg)

COMFORT, RELIABILITY, & SPEED CP1200D

White aluminum calculator with dual buttons and a paper holder, against a solid blue background (no visible text or symbols)

• High-speed, two-color printing (4.3 Lines-per-second)
• 12-digit large fluorescent display
- Quick and easy tax calculations
• Decimal positions: +, 0, 2, 3, 4, 6, F
- Memory storage

12 digits

MU

Features

Type	Commercial Printing Calculator
Printing System	Ink Ribbon
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point Systems	+ (Add mode), 0, 2, 3, 4, 6, F (Floating position)
Rounding	5/4 selection switch for rounding up/off/down
Printing Color	Positive numbers are printed in black and negative numbers in red
Printing Speed	4.3 Lines-per-second
Printing Paper	Roll width: 2-1/4" (57mm)Max. diameter: 3-3/8" (86mm)
Types of Calculations	Tax calculation. Increase/decrease ratio calculation ( % ). Percentage add-on/ discount calculation.Add mode calculation. Grand total. Mixed calculations. Addition, subtraction, multiplication and division. Repetitive addition and subtraction. Chain multiplication and division. Constant multiplication and division. Sign Change. Round-up/off/down, Mark-up/down. Item count.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	9.6" (W) x 13.2" (L) x 3.6" (H)(245mm x 335mm x 94mm)
Weight	4 lbs. 7 oz. (2.0 kg)

计算器盘

• 12 digits
• Extra large fluorescent display
• Profit margin calculation
- Currency conversion
- Clock and Calendar
- Quick and easy tax calculation
- Convenient "00" and "000" keys

12 digits

TAX

Features

Type	Desktop Display Calculator
Calculation Capacity	12 Digits for all calculations
Display	Fluorescent Tube Display
Decimal Point System	+ (Add mode), 6, 3, 2, 1, 0, F (Floating)
Rounding	5/4 selection switch for rounding up/off/down
Types of Calculations	Addition, subtraction, multiplication, and division. Profit margin calculations. Constant calculations. Currency conversion calculations. Percentage calculations. Percentage add-on / discount calculation. Extraction of square root. Memory calculations. Various mixed calculations. Tax calculation. Sign change. Grand total calculation.
Indication Functions	Overflow and error signs (E), Memory sign (M), Grand total LED, Punctuation after every three digits.
Power Source	AC
Usable Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	8.6" (W) x 8.3" (L) x 2.8" (H)(218mm x 211mm x 71mm)
Weight	1.6 lbs. (726 g)

Do you want 1 color or 2 color printing calculator?

How to Buy a Printing Calculator

2 color

How fast do you want to print?

Medium speed (3.7-4.3 lines per sec.)

What type of display do you prefer?

FTD

(Fluorescent Tube Display)

_CD

(Liquid Crystal Disp

What type of display do you prefer?

FTD

(Fluorescent Tube Display)

LCD

(Liquid Crystal Disp

1 color

Low speed (2.0 lines per sec.)

LCD

(Liquid Crystal Disp

Do you prefer advanced features?

Ultimate

5.2 lines per sec

20mm FTD Energy save mode Currency exchange

Superior

4.8 lines per sec

17mm FTD Energy save mode Quick reference

Advanced

4.3 lines per sec 12mm FTD Quick reference

Standard

3.7 lines per sec. 12mm FTD

4.1 lines per sec 2 Color LCD (15mm)

2.3 lines per sec. 12mm FTD

3 lines per sec. 18mm LCD

2.0 line per sec. 14.5mm LCD

P1-DHV Page 16

DESKTOP PRINTERS/TWO COLOR

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

MP49D

9491A001AA

0 13803 04010 4

13.2 × 8.9 × 3.0

4.0

1 ea.

4.3 × 10.4 × 15.6

4.9

1 ea.

n/a

n/a

n/a

21.4 × 13.3 × 16.6

31.7

6

MP41DHII

9726A001AA

0 13803 04315 0

14.0 × 8.9 × 3.2

3.5

1 ea.

5.2 × 10.3 × 17.2

4.6

1 ea.

n/a

n/a

n/a

22.2 × 17.9 × 11.6

22.0

4

MP27D

6995A001AB

0 13803 00383 3

13.1 × 8.9 × 3.0

3.9

1 ea.

5.4 × 10.4 × 17.0

5.0

1 ea.

n/a

n/a

n/a

22.3 × 18.0 × 11.6

22.3

4

MP25DV

8077A001AB

0 38569 10871 4

12.6 × 8.8 × 3.6

3.7

1 ea.

5.0 × 10.3 × 16.7

5.2

1 ea.

n/a

n/a

n/a

21.3 × 15.9 × 18.0

34.7

6

MP21DX

8676A001AA

0 13803 02732 7

12.2 × 9.0 × 3.7

4.0

1 ea.

4.3 × 10.4 × 15.6

4.9

1 ea.

n/a

n/a

n/a

21.4 × 13.3 × 16.6

31.7

6

MP11DX

9637A001AA

0 13803 04221 4

13.1 × 8.9 × 2.9

3.9

1 ea.

4.5 × 10.4 × 16.0

4.7

1 ea.

n/a

n/a

n/a

21.4 × 14.1 × 17.2

32.2

6

P170-DH

0181B001AA

0 13803 02566 8

10.7 × 7.8 × 2.5

2.0

1 ea.

3.0 × 9.5 × 15.2

2.7

1 ea.

15.5 × 10.1 × 14.3

14.4

5

20.9 × 16.3 × 15.6

32.4

10

P160-DH

0719B002AA

0 13803 05563 4

10.4 × 7.4 × 2.4

1.9

1 ea.

2.7 × 8.6 × 14.5

2.4

1 ea.

14.3 × 9.0 × 14.3

13.4

5

19.0 × 15.2 × 15.5

30.0

10

PORTABLE/PALM PRINTING

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

P23-DHV

1904B001AA

0 13803 04293 1

9.1 × 6.4 × 2.2

1.1

1 ea.

2.8 × 7.0 × 13.9

1.7

1 ea.

14.6 × 7.2 × 14.2

9.2

5

15.4 × 15.4 × 16.3

21.6

10

P1-DHV

1905B001AA

0 13803 04292 4

8.1 × 4.0 × 1.9

0.6

1 ea.

2.6 × 4.4 × 12.2

1.1

1 ea.

13.5 × 12.0 × 5.0

5.9

5

24.6 × 14.2 × 11.0

26.9

20

PORTABLE DISPLAYS

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

WS-1400H

4087A002AA

0 38569 10722 9

7.9 × 5.9 × 1.0

0.5

1 ea.

8.3 × 11.7 × 1.1

0.7

1 ea.

10.9 × 8.6 × 12.3

7.5

10

22.4 × 18.0 × 13.3

33.5

40

TX-220TS

0612B001AA

0 38569 10728 1

5.7 × 5.7 × 1.2

0.4

1 ea.

9.4 × 8.1 × 1.4

0.5

1 ea.

11.7 × 9.8 × 8.8

5.4

10

24.5 × 10.1 × 10.0

26.4

40

HS-1200TS

7438A003AA

0 13803 01416 7

6.7 × 4.8 × 1.4

0.4

1 ea.

10.4 × 7.2 × 1.6

0.5

1 ea.

10.6 × 4.2 × 7.9

1.8

3

11.1 × 9.0 × 16.5

9.4

12

LS-100TS

5936A002AA

0 13803 00382 6

5.3 × 4.1 × 1.3

0.2

1 ea.

5.9 × 8.7 × 1.3

0.3

1 ea.

10.4 × 9.0 × 6.6

3.5

10

18.7 × 11.1 × 14.3

16.7

40

TS-10TS

9359A001AA

0 13803 03759 3

5.0 × 3.0 × 0.4

0.2

1 ea.

8.1 × 5.7 × 0.8

0.3

1 ea.

17.2 × 8.3 × 6.2

6.6

20

18.0 × 17.4 × 13.3

29.8

80

LS-85H

4072A001AA

0 38569 10724 3

5.1 × 3.9 × 1.0

0.2

1 ea.

7.9 × 4.9 × 1.2

0.3

1 ea.

10.8 × 8.2 × 5.5

3.1

10

17.2 × 12.3 × 11.5

15.0

40

TS-83H

4051A005AA

0 38569 10716 8

6.5 × 4.0 × 0.4

0.2

1 ea.

6.6 × 4.1 × 0.7

0.3

1 ea.

8.7 × 8.1 × 7.0

7.0

10

16.9 × 15.0 × 9.2

30.2

40

PRODUCT CONFIGURATION/DIMENSION CHARTS
HANDHELD DISPLAYS

MODEL	ITEM CODE	UPC CODE	PRODUCT DIMENSIONS			DISPLAY BOX			INNER CARTON			MASTER CARTON
			L x W x H (INCHES)	WT. LB.	QTY.	L x W x H (INCHES)	WT. LB.	QTY.	L x W x H (INCHES)	WT. LB.	QTY.	L x W x H (INCHES)	WT. LB.	QTY.
TS-82H	4050A003AB	0 38569 10545 4	5.1 × 3.3 × 0.5	0.2	1 ea.	9.8 × 8.3 × 0.3	0.6	1 ea.	10.1 × 8.5 × 6.5	3.4	10	20.9 × 18.2 × 13.7	31.1	80
LS-555H	4009A003AB	0 38569 10576 8	2.7 × 4.3 × 0.6	0.2	1 ea.	8.3 × 9.8 × 0.5	0.3	1 ea.	8.6 × 5.7 × 10.3	2.9	10	21.3 × 18.0 × 9.9	20.9	60
LS-82Z	4075A002AA	0 38569 10725 0	4.4 × 3.5 × 1.3	0.1	1 ea.	8.7 × 5.9 × 1.3	0.2	1 ea.	10.9 × 9.1 × 6.4	2.4	10	22.8 × 19.0 × 14.1	23.6	80
LS-QT	8941A001AB	0 13803 03088 4	4.5 × 3.1 × 0.5	0.1	1 ea.	6.9 × 4.7 × 0.6	0.2	1 ea.	11.1 × 4.9 × 6.9	3.5	20	15.8 × 11.7 × 15.7	24.5	120
LS-390H	4782A001AA	0 38569 10592 8	4.7 × 2.9 × 0.5	0.1	1 ea.	8.7 × 5.9 × 0.7	0.2	1 ea.	14.3 × 9.0 × 6.5	4.5	20	18.7 × 15.0 × 14.2	21.2	80
LS-330H	8942A001AB	0 13803 03089 1	4.5 × 2.8 × 0.4	0.1	1 ea.	7.5 × 4.8 × 0.6	0.2	1 ea.	12.6 × 5.2 × 8.2	3.6	20	16.2 × 13.4 × 17.2	24.3	120
LS-270H	5932A001AA	0 13803 00953 8	4.0 × 2.4 × 0.4	0.1	1 ea.	7.0 × 4.4 × 0.6	0.1	1 ea.	7.4 × 5.6 × 5.0	1.4	10	17.7 × 15.4 × 11.3	19.3	120
LS-716H	4013A003AA	0 38569 10587 4	3.4 × 2.1 × 0.1	0.1	1 ea.	8.7 × 5.9 × 0.3	0.1	1 ea.	8.8 × 6.0 × 1.5	1.0	10	19.0 × 16.8 × 13.3	43.0	400
KC-30	2291B001AA	0 13803 08370 5	3.1 × 1.6 × 0.5	0.1	1 ea.	6.7 × 3.9 × 0.7	0.1	1 ea.	7.6 × 7.0 × 4.8	1.1	10	16.3 × 15.2 × 10.2	9.8	80

USB COMPATIBLE DISPLAYS

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

DK10i

9723A001AA

0 13803 04310 5

4.8 × 2.8 × 0.5

0.2

1 ea.

8.9 × 6.9 × 1.0

0.4

1 ea.

8.0 × 7.3 × 9.6

4.7

10

17.4 × 15.4 × 11.3

23.1

40

DK100i

9722A001AA

0 13803 04307 5

5.3 × 4.1 × 1.3

0.3

1 ea.

10.0 × 7.7 × 2.0

0.7

1 ea.

10.7 × 7.6 × 8.8

3.7

5

15.9 × 11.5 × 18.1

17.7

20

DK1000i

0009B001AA

0 13803 04666 3

7.2 × 4.5 × 1.4

0.6

1 ea.

13.1 × 9.7 × 2.5

1.0

1 ea.

n/a

n/a

n/a

18.5 × 13.9 × 18.3

12.7

8

SCIENTIFICS STATISTICAL

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

F-766S

1698B001AA

0 13803 07373 7

6.3 × 3.2 × 0.7

0.2

1 ea.

9.6 × 6.0 × 1.3

0.5

1 ea.

13.0 × 10.0 × 6.5

5.7

10

20.6 × 13.7 × 13.9

26.0

40

F-716S

1699B001AA

0 13803 07374 4

6.3 × 3.2 × 0.7

0.2

1 ea.

9.6 × 6.0 × 1.3

0.5

1 ea.

13.0 × 10.0 × 6.5

5.7

10

20.6 × 13.7 × 13.9

26.0

40

F-710

9208A001AA

0 13803 03569 8

5.9 × 3.2 × 0.8

0.3

1 ea.

9.7 × 6.0 × 1.1

0.4

1 ea.

10.0 × 5.9 × 6.5

2.4

5

20.7 × 12.4 × 14.1

22.0

40

F-604

7102A004AA

0 13803 01417 4

5.9 × 3.1 × 0.7

0.2

1 ea.

9.6 × 6.0 × 1.2

0.3

1 ea.

10.0 × 6.3 × 6.5

2.0

5

20.4 × 13.2 × 14.1

19.2

40

F-502

4106A003AB

0 38569 10616 1

5.6 × 3.0 × 0.4

0.2

1 ea.

9.8 × 5.9 × 0.9

0.3

1 ea.

10.4 × 9.3 × 6.2

3.8

10

19.3 × 13.2 × 11.6

17.9

40

COMMERCIAL CALCULATORS

MODEL

ITEM CODE

UPC CODE

PRODUCT DIMENSIONS

DISPLAY BOX

INNER CARTON

MASTER CARTON

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

L x W x H (INCHES)

WT. LB.

QTY.

CP1460D

9490A001AA

0 13803 04009 8

13.5 × 9.8 × 3.9

4.9

1 ea.

6.1 × 11.3 × 17.4

6.4

1 ea.

n/a

n/a

n/a

24.9 × 18.1 × 12.2

28.5

4

CP1260D

9489A001AA

0 13803 04008 1

13.5 × 9.8 × 3.9

4.9

1 ea.

6.1 × 11.3 × 17.4

6.4

1 ea.

n/a

n/a

n/a

24.9 × 18.1 × 12.2 *

28.5

4

CP1213D II

1841B001AA

0 38569 10868 4

13.4 × 9.5 × 3.4

4.1

1 ea.

6.4 × 11.0 × 17.3

5.5

1 ea.

n/a

n/a

n/a

25.6 × 11.6 × 18.5

25.2

4

CP1013D II

1842B001AA

0 38569 10881 3

13.4 × 9.5 × 3.4

4.1

1 ea.

6.4 × 11.0 × 17.3

5.5

1 ea.

n/a

n/a

n/a

25.6 × 11.6 × 18.5 *

25.2

4

CP1250D

7868A001AA

0 13803 01414 3

13.2 × 9.6 × 3.7

4.4

1 ea.

5.7 × 11.0 × 17.0

5.8

1 ea.

n/a

n/a

n/a

23.2 × 17.4 × 11.6

26.7

4

CP1200D

8838A001AA

0 13803 02856 0

13.2 × 9.6 × 3.6

4.4

1 ea.

5.8 × 11.1 × 17.2

5.5

1 ea.

n/a

n/a

n/a

23.5 × 17.7 × 12.2

25.7

4

L1255

9668A003AA

0 13803 08326 6

8.3 × 8.6 × 2.8

1.6

1 ea.

11.3 × 10.0 × 4.0

2.2

1 ea.

20.1 × 10.4 × 12.0

12.1

5

21.5 × 20.9 × 13.3

28.4

10

MODEL COMPARISON CHARTS

DESKTOP PRINTERS

MODEL

DIGITS

4-KEY MEMORY

%±(%)

Δ%

ITEM

↑5/4↓

MU/MD

←

GT

→

00/000

PRINTING COLOR

INK RIBBON INK ROLLER

PROFIT MARGIN

CLOCK/ CALENDAR

MP49D

14

●

●

●

●

●

●

●

● / ●

2

Ink Ribbon

●

●

MP41DHII

14

●

●

●

●

●

●

●

● / ●

2

Ink Ribbon

●

MP27D

12

●

●

●

●

●

●

●

● / ●

2

Ink Ribbon

●

●

MP25DV

12

●

●

●

●

●

●

●

● / -

2

Ink Ribbon

●

●

MP21DX

12

●

●

●

●

●

●

●

●

●

● / -

2

Ink Ribbon

MP11DX

12

●

●

●

●

●

●

●

● / -

2

Ink Ribbon

●

●

P170-DH

12

●

●

●

●

●

●

●

● / ●

2

CP13 Ink Roller

●

●

P160-DH

12

●

●

●

●

●

●

●

● / ●

2

CP13 Ink Roller

●

●

PORTABLE/PALM PRINTING

MODEL

DIGITS

4-KEY MEMORY

%±

ITEM

5/4

←→

00/000

PRINTING COLOR

INK ROLLER

TIME CALC.

PROFIT MARGIN

CLOCK/ CALENDAR

BATTERY INDICATOR

P23-DHV

12

(only 3 keys)

●

●

●

●

●

●

● / -

2

CP-13

●

●

●

P1-DHV

12

●

5/4

●

1

CP-16

●

●

●

PORTABLE DISPLAYS

MODEL	DIGITS	TAX KEYS	%±(%)		5/4	MU		GT	→	00/000	PROFIT MARGIN
WS-1400H	14		●	●	●	●	●	●	●	● / ●
TX-220TS	12	●	●	●	●		●	●	●	● / -	●
HS-1200TS	12	●	●	●	●		●	●	●	● / -	●
LS-100TS	10	●	●	●			●		●		●
TS-10TS	10	●	●	●			●				●
LS-85H	8		●	●			●
TS-83H	8		●	●		●	●

MODEL COMPARISON CHARTS

HANDHELD DISPLAYS

MODEL	DIGITS	DUAL POWER		%±	MU
TS-82H	8	●	●	●		●
LS-555H	8	●	●	●		●
LS-82Z	8	●	●	●
LS-QT	8	●		●
LS-390H	8	●	●	●		●
LC-330H	8	●	●	●	●	●
LS-270H	8	●	●	●	●	●
LS-716H	8		●	●		●
KC-30	8			●

USB COMPATIBLE DISPLAYS

MODEL	DIGITS	4-KEY MEMORY	TAX KEYS	DUAL POWER	%±	SPECIAL FEATURES
DK-10i	12	●	●	●	●	Key Pad
DK-100i	12	●	●	●	●	Key Pad
DK-1000i	12	(only 3 keys)	●	●	●	Trackball/Key Pad

COMMERCIAL CALCULATORS

MODEL

DIGITS

K

RV

%

ITEM COUNT

% ±

MU/MD

GT(AM)

5/4

#

BACKSPACE

CLOCK/CALENDAR

PROFITMARGIN

POWER SAVEMODE

CP1460D

14

●

●

●

●

●

●

●

●

●

●

●

CP1260D

12

●

●

●

●

●

●

●

●

●

●

●

CP1213D II

12

●

●

●

●

●

●

( ● )

●

●

●

●

CP1013D II

10

●

●

●

●

●

●

●

●

●

●

●

CP1250D

12

●

●

●

MU

●

●

●

●

●

●

CP1200D

12

●

●

●

MU

●

●

●

●

L1255

12

●

●

●

●

●

●

●

●

CONSUMABLES AND ACCESSORIES

AC ADAPTER	MODELS
AD-11	P23-DHV, P1-DHV
AD-38	P23-DHV, P1-DHV
INK ROLLERS/INK CASSETTES	MODELS
CP-13	P160-DH, P170-DH, P23-DHV
CP-16/CP-16 II	P1-DHV
PAPER ROLL—ALL PRINTING CALCULATORS USE STANDARD 2-1/4"-WIDE PAPER

All of Canon's calculator consumables and accessory products are designed and manufactured to work with specific models.
We recommend using only Canon accessories with Canon calculators to ensure the highest quality performance from each machine.
For decimal positions: “+” and “A” represent Add Mode, “F” represents Floating Decimal.

Scientific Calculator Comparison Table

MODEL	F-766S	F-716S	F-710	F-604	F-502
Scientific Functions	349	288	139	142	136
MEMORY
Number of Stored Memory	17	17		10
Independent Memory	1	1	3	1	1
Alphanumeric Character	(A-D,M,X,Y)E,F only usein Base-NCalculation	A-D,M,X,Y		A - F onlyuse inBase-NCalculation
Equation Pending Operations	9	9	7	5	3
FORMULA / INPUT
Direct Input Calculation Expression	●	●	●
Built-in Formulas	38	38	38
Engineering Symbol Calculations	●
MATHEMATICS
Parentheses	24	24	23	15	15
General Calculation	●	●	●	●	●
Logab Calculation	●	●
Fraction Calculation	●	●	●	●	●
Degree - Minutes - Seconds ←→ Decimal Degrees / Sexagesimal Calculation
Coordination Conversion(Rectangular ←→ Polar)	●	●	●	●	●
Equation Solving(Quadratic, Cubic, Simultaneous)	●
CALC Function	●
SOLVE Function	●
Complex Number Operations	●			●	●
Quotient & Remainder Calculation, Exchange		●
Least Common Multiple,Greatest Common Divisor	●	●
Absolute Value Calculation	●	●
Multi-Statements Calculation	●	●
TRIGONOMETRY
Angles Conversion	●	●	●	●	●
DRG Mode Calculation	●	●	●	●	●
Trigonometric Calculation	●	●	●	●	●
COMPUTER MATHEMATICS
Base-N Calculation (Decimal,Hexadecimal, Binary, Octal) & Transformation between DHBO	●			●	●
Logic Operation	●

Scientific Calculator Comparison Table (cont'd.)

MODEL	F-766S	F-716S	F-710	F-604	F-502
STATISTICS
Variable	2	2	1	1	1
Mean, Standard Deviation, Sum of Value	●	●	●	●	●
Median	●	●
Maximum, Minimum Value	●	●
Factorials, Permutations & Combinations	●	●	●	●	Factorials only
Probability Distribution	●
Linear Regression	●	●
Quadratic Regression	●	●
Exponential / Logarithmic / Power/ Inverse Regression	●	●
Correlation Coefficient	●	●
Regression Coefficient	●	●
Random Number Generation	●	●		●	●
Integer Random Number Generation	●	●
REPLAY/OTHERS
Last Digit Correction	●	●	●	●	●
Last Answer Recall	●	●	●
Multiple Replay	●	●
Block Level Reply (Base-N Mode)	●
UNDO / Input Recover	●	●
Others	Low Battery Indicator	Low Battery Indicator	Exchange Display w/ Storage Memory	Exchange Display w/ Storage Memory	Exchange Display w/ Storage Memory
Product Specifications
DISPLAY
Lines	2	2	2	1	1
1st Line Display (Dot Matrix)	12	12	11	10 + 2	10
2nd Line Display	10 + 2	10 + 2	10 + 2
Contrast Adjustable	●	●	●
Notation (Sci / Eng )	●	●	●	●	●
Cursor Arrow (Left, Right)	●	●	●	Backspace
Cursor Arrow Up, Down	●	●
BODY
Body Size L x W x H (inches)	6.3 x 3.2 x .7	6.3 x 3.2 x .7	5.9 x 3.2 x .5	5.9 x 3.1 x .7	5.6 x 3.2 x .4
Weight (lbs.)	.24(w/o cover).33(w/ cover)	.24(w/o cover).33(w/ cover)	.19	.21	.17
Body Color	Black	Grey	Silver	Dark Grey	Black
Quick Reference Guide	●	●	●
Slide Case / Hard Case	●	●	●	●	●
POWER
Power Source(Battery / Battery+Solar)	CR2032 x 1 Solar	CR2032 x 1 Solar	CR2032 x 1	LR44 x 2	LR44 x 2
Auto-Power Off	●	●	●	●	●

38 Built-in Formula Table

Name of Formula	Formula (Equation)
Triangular area	S = 12bc A
Circular area	S = r^2
Fan-shaped area	S = 12r^2
Parallelogrammic area	S = ab
Elliptical area	S = ab
Trapeziform area	S = 12(a+b)h
Spherical surface area	S = 4 r^2
Cylindrical surface area	S = 2 r(h+r)
Spherical volume	S = 43 r
Cylindrical volume	V = r^2h
Coniform volume	V = 13 r^2h
Sum of arithmetic progression	S = 12n[2a_0+(n-1)d]
Sum of geometric progression	S = _0(r^n-1)r-1
Sum of square number	S = 16n(n+1)(2n+1)
Sum of cubic number	S = 12n(n+1)^2
Distance between arbitrary two points	d = (x_y-x_i)^2 + (y_y-y_i)^2
Included angle of the intersecting lines	= tan^-2 2-k11+k1k2
Law of cosines	a = ^2+c^2-2bc A
Law of sines	a = 2r A
Displacement of uniformly accelerated linear motion	d = v_0t + 12at^2
Velocity of uniformly accelerated linear motion	v = v_0 + at
Period of circular motion (1)	T = 2 r/v
Period of circular motion (2)	T = 2 /w
Period of simple pendulum	T = 2 1g
Electric oscillation frequency	f = 12 i/LC
Resistive formula	R = p · 1S
Joule's theorem (1)	P = ^2R
Joule's theorem (2)	P = I^2R
Resistance of shunt resistance	R = 1 + R2R1 + R2
Kinetic energy	E = 2mv^2
Gravitational potential energy	E = mgh
Centrifugal force (1)	F = mv^2/r
Centrifugal force (2)	F = ma^2r
The law of gravity	F = G ^2
Electric field intensity	E = Q/(4 e^2)
Heron's Formula	S = +c2(+c2-a)(+c2-b)(+c2-c)
Refractive index	E = sin i/sin r
Critical angle of total reflection	= sin^-1(n2/n1)
* The above 38 formulas are built-in the F-710, F-716S and F-766S

Scientific Calculator Function Reference (F-716S/F-766S)

Function	Sign / Key	Symbol / Calculation
Engineering Symbol	k (kilo), M (Mega), G (Giga), T (Tera), m (milli), u (micro), n (nano), p (pico), f (femto)
Alphanumeric Character	A,B,C,D,E,F,M,X,Y,Z
MEMORY
Number of Stored Memory	STO (store) + "A" or "B" or "C"... RCL (recall) + "A" or "B" or "C".....	Calculate by store Variables Memory A.) 12+4=7 B.) 12+5=8
Independent Memory	M, M+, M-
Parentheses	(,)	[(2yx3(3y+6))-(9y2+5)]
Last Answer Recall	Ans
MATHEMATICS
Fixed Decimal Option	FIX	400.000
Composition Ratio Calculation	STO, RCL, %	125+185+190 = 500To calculate their ratio in %500 is 100%, 125 is 25%,185 is 37%, 190 is 38%
Significant Digits	Sci
Exponential Display Format	Norm	3.3 ^01
Rounding	Round	28.576-->28.58
Pi		3.14159265359
Logarithms	Log, In
Exponential / Antilogarithms	10^x , e^x
Square, Power Square	x^2 , y^2 , y^x
Square Roots, Multiple Roots	- ,
Geometric Mean		= [4]2x5 = 1.78
Cube Roots, Cubes	[3]- , y^3 , x^3
Reciprocal	x^-1	x^-1 = 1x
Fractions	a b/c
Fractions - Decimal Conversion	b/c	1/2 --> 0.5
Mixed Fraction Conversion		1 1/2 --> 3/2
Exponential Calculation	EXP	321x10^-14 = 3.21 (-)^16
Quadratic Equation	EQN	ax^2+bx+c=0
Cubic Equation	EQN	ax^3+bx^*+cx+d=0
Simultaneous Equations	EQN	3x+4y=c & 6x+2y=c if x=1, y=2, c=?
Complex Number Operations		(2+3i) + (4+5i) = 6+8i 6 is real number; 8 is imaginary number
Degree-Minutes-Seconds Decimal Points		2.3456 --> 2°20'44.16
Calculation of Time (hour, min, sec.)		4° 18' 23" - 2° 9' 56" --> 2° 08" 27
Complex Number	CPLX	Re Im, i, < ▶ a+bi, ▶ r<0 Abs, Ang, Conjg

Scientific Calculator Function Reference (cont'd.)

Function	Sign / Key	Symbol / Calculation
TRIGONOMETRY
Angles (Degree, Radian, Gradient)
Trigonometry, Inverse Trigonometry	Sin, Cos, Tan, sin^-1, cos^-1, tan^-1
Hyperbolic, Inverse Hyperbolic	sinh, cosh, tanh, sinh^-1, cosh^-1, tanh^-1
Rectangular Polar Conversion	Rec(, Pol(	..
DRG Conversions (Degree, Radian, Gradient)	DRG▶	Converting the amount between Degree, Radian & Gradient
COMPUTER MATH
Logic Operator		And, Or, Xnor, Xor, Not, Neg
Base-N Calculations (Decimal, Hexadecimal, Binary, Octal)	DEC, HEX, OCT, DHBO, BIN	Binary No.2-9, Octal No. 0-7 e.g. Binary 11010110
STATISTICS
Number of sample	Data	n
Mean		= _1 + x_2 + x_nn
Population Standard Deviation of x	xôn
Sample Standard Deviation of x	xôn-1
Sum of Value	x, y
Square Sum	x^2, y^2
Factorials	n! (x!)	n! or x! are n or x Factorials
Permutations & Combinations	nPr, nCr	nPr = n! / (n-r)!; nCr = n! / n!(n-r)!
Probability Distribution	DISTR	P(t): Probability below given point x Q(t): Probability below given point x and above the mean
Statistics Point	S-PTS	minX: minimum X maxX: maximumX med: median
Statistics Variance	S-VAR	x, xôn, xôn-1, r, , ......
Correlation Coefficient	r
Variables x, y	,	to calculate the value in the regression formula
Linear Regression	A,B,x,y	(1,5),(3,9); y=2x+3
Quadratic Regression	A,B,C,x,y	f(x)=2x2+3x-2(=0)
Exponential Regression	A,B,x,y	y=Ae ^th (ln y = ln A+ Bx)
Logarithmic Regression	A,B,x,y	y=A+B.In x
Power Regression	A,B,x,y	y=Ax ^a (ln y = ln A+ B In x)
Inverse Regression	A,B,x,y	y=A+B1/x
Random	Rand	between 0.000 and 0.999
Integer Random	i-Rand	between 1 and 100

Canon

1-800-OK-CANON

www.usa.canon.com

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042
