Product Type	Washing Machine
Brand	Ardo
Model	TL107SW
Dimensions (H x W x D)	85 cm x 60 cm x 54 cm
Weight	62 kg
Energy Class	A+
Capacity	6 kg
Maximum Spin Speed	1000 rpm
Voltage / Frequency	220-240 V / 50 Hz
Power Consumption (Wash)	2000 W
Water Consumption per Cycle	48 L
Noise Level (Wash/Spin)	59 dB / 76 dB
Programs	Cotton, Synthetics, Delicates, Quick Wash, Wool, Rinse & Spin
Display	LED
Child Lock	Yes
Delay Start	Up to 24 hours
Water Protection System	AquaStop
Drum Material	Stainless Steel
Door Opening	Front-load, 180° hinge
Installation Type	Freestanding
Spare Parts Availability	7 years
Repairability Index	8.3 / 10

Frequently Asked Questions - TL107SW Ardo

How do I correctly load laundry into the Ardo TL107SW?

Open the door, place laundry loosely inside, ensuring not to overload. The maximum capacity is 6 kg. Distribute items evenly to avoid imbalance during spin.

What is the proper way to add detergent and fabric softener?

Pull out the detergent drawer. For main wash, pour powder or liquid into compartment II. For pre-wash, use compartment I. Add fabric softener to the compartment marked with a flower symbol. Do not overfill.

How can I select a washing program?

Turn the program selector knob to the desired program (e.g., Cotton, Synthetics). The display will show the estimated duration. You can adjust temperature and spin speed if needed. Press Start/Pause to begin.

What does the child lock feature do and how to activate it?

The child lock prevents unintended operation by locking the buttons. To activate, press and hold the Child Lock button (usually marked with a padlock) for 3 seconds. A symbol will appear on the display. Repeat to deactivate.

Why is my washing machine not draining water?

Check the drain hose for kinks or blockages. Clean the drain pump filter located at the bottom front. Turn off the machine and unplug before cleaning. Remove any debris and ensure the filter is securely tightened.

How do I clean the detergent drawer?

Remove the drawer by pressing the release clip. Wash it under warm water with a brush to remove residue. Use a toothpick to clean the siphon tube. Dry thoroughly before reinserting.

What should I do if the machine vibrates excessively?

Ensure the machine is level. Adjust the front feet by turning them clockwise or counterclockwise until the machine is stable. Also, remove any transport bolts if not already done. Uneven loads can also cause vibration.

How do I perform a self-cleaning cycle?

Run a Cotton 90°C cycle without laundry. Add a cup of white vinegar or a special washing machine cleaner to the detergent drawer. This removes lime scale and odors.

What is the maximum spin speed and how to adjust it?

The maximum spin speed is 1000 rpm. You can reduce it by pressing the Spin Speed button repeatedly. Some programs have a default speed that can be changed before starting.

How can I obtain a user manual or spare parts?

Visit notice-facile.com and search for Ardo TL107SW. You can download the manual in PDF. For spare parts, contact Ardo customer service or authorized dealers. The machine supports repairability with parts available for 7 years.

USER MANUAL TL107SW Ardo

Cartoon illustration of a smiling book character with arms and legs, holding tools and a smiley face (no text or symbols)

Cartoon illustration of a smiling rice cooker character holding a 'END' sign (no text beyond the label)

Cartoon illustration of a distressed book character with smoke and flames, connected to a plug with electrical lines (no text or symbols)

Cartoon illustration of a smiling book character holding a water droplet (no text or symbols)

Cartoon illustration of a distressed computer with falling snow and raindrops (no text or symbols)

Cartoon illustration of a steaming book character with steam rising, surrounded by lightning bolts and a small icon (no text or symbols)

Cartoon illustration of a smiling computer with hands and buttons, no text or symbols present

Cartoon illustration of a distressed character reacting with a newspaper, surrounded by steam and a TV stand (no text or symbols)

Technical line drawing of a mechanical component with layered structure and mounting base (no text or symbols)

Diagram of a device being placed on a base with an arrow indicating rotation (no text or symbols present)

Illustration of a hand inserting a plastic into an open recycling bin with a lightning bolt symbol (no text or labels)

DISIMBALLO E SBLOCCAGGIO DELLA MACCHINA

Illustration of a hand removing or removing a trash bin into an open refrigerator (no text or symbols)

Illustration of a hand pouring liquid into a device with a label '8' (no text or symbols on the diagram itself)

Illustration of hands using a tool to adjust or install a device, with motion arrows indicating movement (no text or symbols)

Hand holding a hose with a valve, pointing to a device component (no text or symbols visible)

Illustration of a hand using a wrench to clean or wash the sink of a bathroom (no text or symbols)

AVVERTENZE PRIMA DELL'USO

Illustration of hands placing a component into a storage tray (no text or symbols visible)

Top-down view of a metallic heating element with a thermometer inside, showing internal structure and mounting flanges (no text or symbols)

Diagram of a cylindrical device with three vertical panels and a flower-shaped element, labeled '19' (no text or symbols on the device itself)

Illustration of a hand inserting a small into a trash bin with a handle, no text or symbols present

COME ELIMINARE ALCUNE MACCHIE

Illustration of a person cleaning a sink with a hand using a tool (no text or symbols present)

Illustration of a hand opening a trash bin with a lid, labeled '22' (no text or symbols on the diagram itself)

Microscopic view of a rectangular device with internal components and a white arrow pointing to it, set against a perforated background (no text or symbols)

PULIZIA DEL FILTRO

Illustration of hands using a tool to clean or wash a machine component (no text or symbols visible)

Dear Customer,

Thank you for choosing our product.

Please read these instructions carefully before connecting and using the appliance.

Knowledge of the operating principles will help guarantee correct and safe use of the appliance. This instruction booklet contains the technical characteristics of the washing machine and is full of useful information regarding its operation, all designed to help you get the best out of your appliance. If the appliance is sold or handed over for use by others, remember to give the new user the instruction booklet.

We suggest that you always keep the following data at hand:

MODEL: ....DATE OF PURCHASE: ..../..../

SERIAL NUMBER:

CONTENTS

NOTES AND ADVICE FOR THE USER 14-15

DESCRIPTION OF THE MACHINE 15

INSTALLATION OF THE MACHINE 16-18

• Unpacking and releasing machine 16-17
• Levelling washing machine 17
• Electrical connection 17-18
• Water connection 18

WASHING MACHINE USE 19-20

• Information before use 19

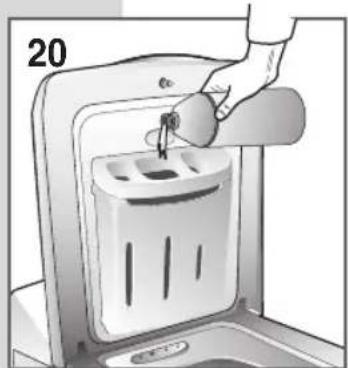

• Use of detergent 19
• How to eliminate stains 20
• International symbols for clothing treatment

MAINTENANCE 21-22

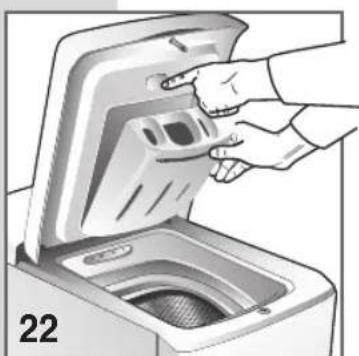

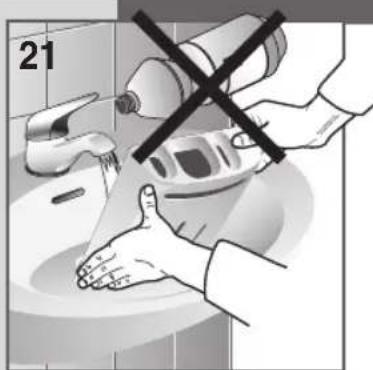

• Cleaning the washing machine 21
  • Recovering fallen items between drum and basin 21
• Cleaning the filter 21
• Problem solving 22

This appliance is marked as complying with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). Make sure that the product is disposed of in a correct manner. The user is obliged to contribute towards preventing negative consequences for health and the environment.

The symbol affixed to the product or accompanying documents signifies that the product must not be treated as normal domestic refuse, but must be delivered to an authorised collection centre to enable the electric and electronic equipment to be recycled. When disposing of the appliance, comply with local waste disposal regulations. For further information on the treatment, recovery and recycling of this product, refer to the appropriate offices, local domestic waste collection service or the retailer from where the appliance was purchased.

Before connecting the appliance read these instructions carefully. Repairing the failure arising from inappropriate connections or use of the appliance is not covered by the guarantee.

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY INCIDENTS RESULTING FROM NON-COMPLIANCE WITH SAFETY STANDARDS OR THE REQUIREMENTS OF THIS INSTRUCTION BOOK.

▼ This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
▼ Children of less than 3 years should be kept away unless continuously supervised.
▼ The appliance must be properly connected to the system with new hoses provided. Used hoses must never be reused.
▼ The operating pressure of water (minimum and maximum) must be between 0.5bar (0.05MPa) and 10 bar (1 MPa).
▼ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid a hazard.
▼ Ventilation opening in the base must not be obstructed by a carpet.
▼ Observe the maximum volume of dry load as indicated in the section "Program Table".
▼ To stop the functions refer to the program guide.
▼ Regarding the instructions for installation and electric connection of the appliance, refer to the below paragraph of the manual.
▼ Due to the weight of the machine, special safety standards must be observed during handling.
Before operating the machine, remove all pack - ing materials and the locking device used for protection during transport (protection screws). Failure to do this may result in serious damage to the machine and to your home.

When the machine is in operation, avoid any contact with the water coming out of the drain hose and this may be hot.
▼ Only wash clothes that are machine washable. In case of doubt, check the manufacturer's instructions found on the label attached to the clothes (see "Clothing care symbols").
Before loading clothes into the washing machine, check that all the pockets are empty. Hard or pointed objects such as coins, pins, nails, screws or even stones can cause serious damage.
The use and quantities of detergent, softener and bleach must comply with the instructions reported on the packaging.
Clothes that have been dirtied with substances containing petroleum cannot be washed in the machine. If stains have been removed using vaporising products, before loading the clothes in the washing machine, wait until the substances have completely evaporated from the material.
▼ Do not use detergents formulated for hand washing, in that the excessive lather produced could damage the internal components.
▼ After washing rugs, blankets or any other long fibre fabrics, remember to check the filter and, if necessary, clean it.
▼ It is advisable to leave the door open at the end of the wash cycle.
Under no circumstances should any repairs to the machine be attempted by unqualified persons as this could result in serious damage and will invalidate the guarantee.
▼ Repairs to the washing machine must only be carried out by persons authorised to do so by the service centres. Only original spare parts may be used for repairs.

Cartoon illustration of a smiling book character with arms and legs, holding tools and a smiley face (no text or symbols)

Unplug the washing machine from the power supply before servicing and cleaning.

Cartoon illustration of a smiling rice cooker character holding a 'END' sign (no text beyond the label)

The washing machine can be opened only after the led or display indicate the end of the cycle. On some models, this is indicated by the start button flashing.

Cartoon illustration of a distressed book character with smoke and flames, connected to a plug with electrical lines (no text or symbols)

To disconnect the machine from the power supply, pull the plug and not the cable.

Cartoon illustration of a smiling book character holding a water droplet (no text or symbols)

After the end of each washing cycle it is advisable to unplug the machine and shut-off the water supply.

Cartoon illustration of a distressed computer with falling snow and raindrops (no text or symbols)

Do not expose the appliance to atmospheric agents.

Cartoon illustration of a steaming book character with steam rising, surrounded by lightning bolts and a small icon (no text or symbols)

Do not plug-in or un- plug the machine with wet hands.

Cartoon illustration of a smiling computer with hands and buttons, no text or symbols present

The power supply socket must be earthed and must comply with the safety requirements.

Cartoon illustration of a distressed character reacting with a newspaper, surrounded by steam and medical equipment (no text or symbols)

Extension leads or multiple adapters must not be used to connect the washing ma chine to the mains supply..

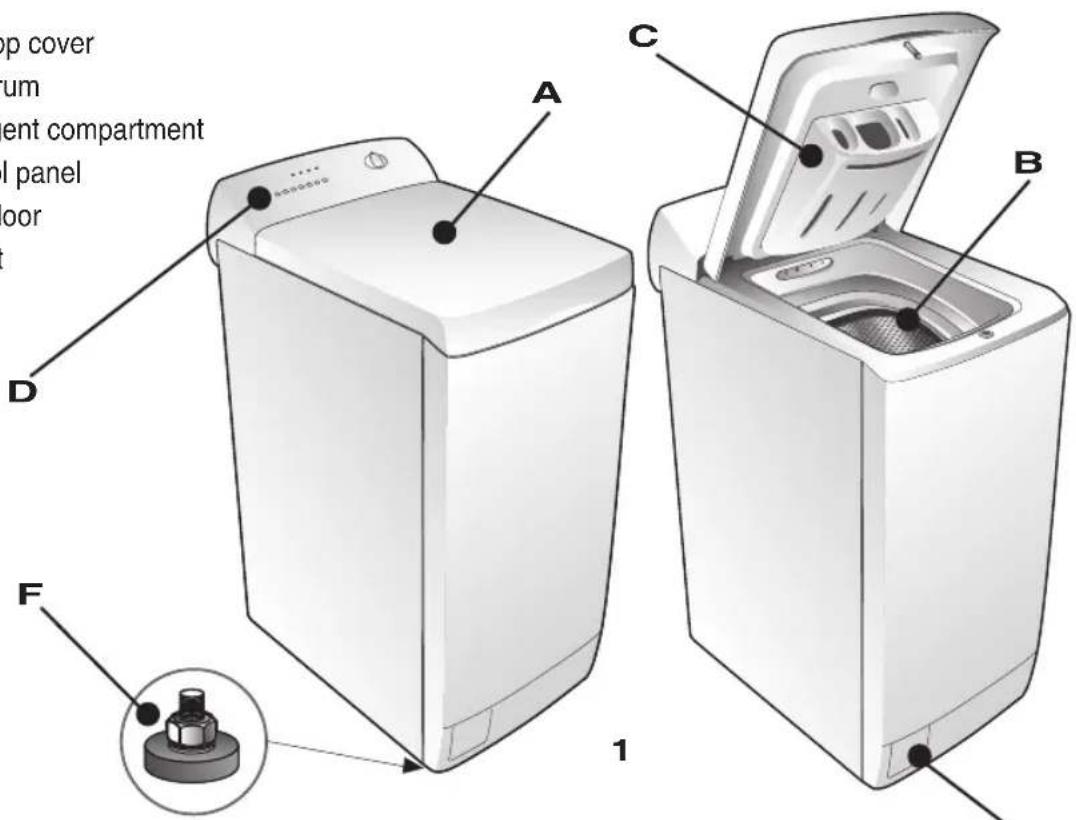

DESCRIPTION OF THE APPLIANCE

A - Top cover
B - Drum
C - Detergent compartment
D - Control panel
E - Filter door
F - Feet

E

UNPACKING AND UNBLOCKING THE MACHINE

The machine must be installed by qualified personnel following the manufacturer's instructions. Incorrect installation can lead to injuries for persons and damage to objects.

When deciding where to install the washing machine, consider the following advice:

The room must have a water and electrical system. (Remember that cables and hoses at the back of the washing machine must not be crushed).
▼ The washing machine must be placed on a flat and solid surface.
Do not install the machine in a room where the temperature could go below 3°C.
Place the machine in the chosen location and remove external packaging (fig. 2).
Lift the washing machine and remove the polystyrene base and the plastic spacer (fig. 3).

This appliance is intended to be used in household and similar applications such as:

▼ Staff kitchen areas in shops, offices and other working environments;
▼ Farm houses;
▼ By clients in hotels, motels and other residential type environments;
▼ Bed and breakfast type environments.

Technical line drawing of a mechanical component with layered structure and mounting base (no text or symbols)

Diagram of a device being placed on a base with an arrow indicating rotation (no text or symbols present)

For transportation, the machine's oscillating parts are blocked by two spacers with screws.

Remove these spacers and screws before starting the machine.

Preserve them for any future moves.

Close the holes with the caps provided inside of the document bag.

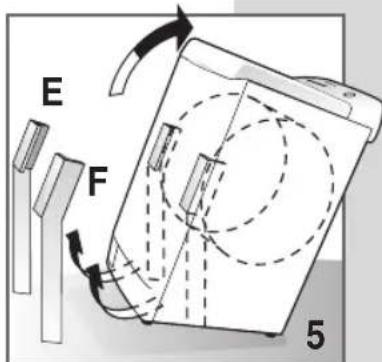

▼ Incline the washing machine and extract the two internal polystyrene corner pieces (if present) by pulling the two cardboard strips, first E and then F (fig.5).

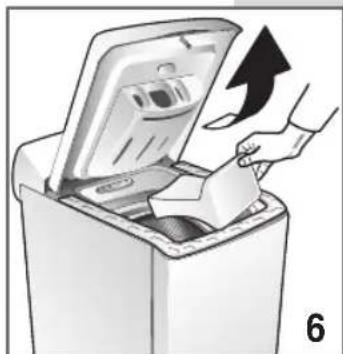

▼ Remove the polystyrene spacer (fig. 6).

Illustration of a hand inserting a plastic into an open trash bin with a downward arrow indicating waste (no text or symbols)

UNPACKING AND UNBLOCKING THE MACHINE

Illustration of a hand using a tool to open an open trash bin, with an upward arrow indicating waste (no text or symbols present)

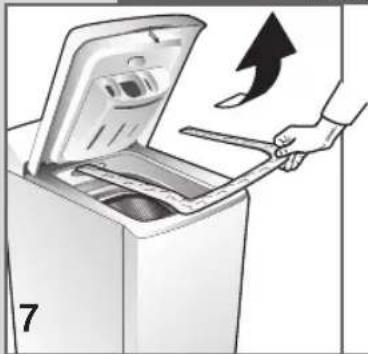

▼ Remove the polystyrene spacer (fig. 7).

LEVELLING THE WASHING MACHINE

Illustration of a hand pouring liquid into a device with a label '8' (no text or symbols on the diagram itself)

WHERE PROVIDED, use the handling wheel to help moving. To use it, push the lever on the bottom right moving it to the other side. Move the lever back to the original position after moving (fig.8).

Having chosen the adapt place, set the adjustable feet well so that the machine is level (Fig. 9).

Pay particular attention to the choice of the position, to levelling the washing machine and to securing the counternuts.

Illustration of hands using a tool to interact with a device, showing motion arrows (no text or symbols)

If the washing machine is not levelled correctly, it will be instable and make noise when operating causing damage.

If the machine is placed on a rug, make sure that air circulates freely between the washing machine and the floor.

CONNECTING TO THE POWER SUPPLY

Make sure that the voltage indicated on the identification plate attached to the inside of the filter door corresponds to that of the mains supply (fig. 10)

All cut-outs, electric wiring and mains sockets must have a rating such that enables them to support the maximum load indicated on the identification plate.

Once the appliance has been installed, it must be connected to the mains supply through a single-pole switch.

The mains supply to which the appliance is connected must be fitted with an earthing system. If this is not the case, the manufacturer will not be held liable for any incidents that may occur (fig. 11).

If the mains socket to which the appliance is connected is faulty or unsuitable, it must be replaced by a qualified electrician.

The washing machine must not be connected to the mains supply using indirect methods such as extension leads or multiple adapters.

During maintenance work, the washing machine must be disconnected from the mains electricity supply.

INSTALLING THE MACHINE

Do not insert or remove the plug from the mains socket with wet hands.

If the power supply cable is damaged in any way, contact the appropriate specialised service centre.

The plug used to connect the machine to the power supply must never be fixed behind the machine, but must be in a position easily accessible in an emergency.

WATER CONNECTION

The mains water pressure must be between 0.05 and 1.00 MPa (0,5 - 10 bar.)

Before connection, open the tap and let the water run in order to clean the pipes from impurities like sand and rust. (This operation is very important when the washing machine has been inactive for a long time or when connected to new piping).
The water supply hose must be connected to the cold water outlet with a 3/4" threaded opening.

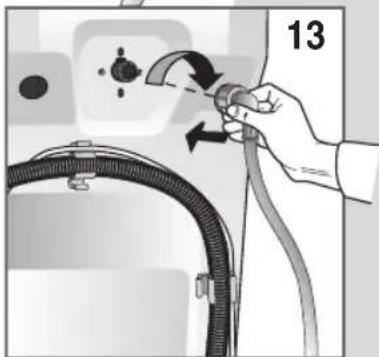

▼ Connect the supply hose (fig. 12/13).

Use the new hose provided with the machine. Do not reuse the old one.

Do not connect to the hot water supply.

▼ The water supply tap must be completely open during washing.

Connect the drain hose to a drain piping or wall drain between 60 and 90 cm from the ground without squeezing it (fig.14).
If the water drains directly into the drain piping, the free end of the machine hose must be inserted in the piping with an inside diameter no smaller than 40 mm.

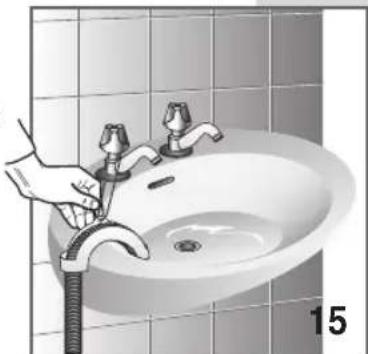

If water is drained into the washbasin or another drain, the free end of the hose must be previously reinforced at the bending with an appropriate hook, provided with the washing machine. Then place the hose at the edge of the washbasin and fix the hook to prevent the hose from falling (fig. 15). The washbasin must have its drain clean to allow water to drain freely.

Hand holding a hose with a valve, pointing to a device component (no text or symbols visible)

Illustration of a hand using a wrench to clean or wash the sink of a white bathtub (no text or symbols)

INFORMATION BEFORE USE

Illustration of hands installing or adjusting a component inside a vehicle storage bay (no text or symbols visible)

There could be a small amount of water inside the machine due to inspection tests. Before washing laundry for the first time, it is advised to run a brief wash cycle without laundry or detergent or to clean the drum.

Attention: it is important to open and close the drum carefully to avoid damage to the laundry and washing machine

Top-down view of a metallic heating element with a thermometer inside, showing internal structure and no visible text or symbols.

At each wash cycle make sure that:

Hydraulic connections are correct, the drain hose well positioned, (see hydraulic connection) and the tap is open (fig. 14/15).
▼ Insert the plug in the socket with dry hands.
▼ Sort the laundry according to the type of fabric (see item labelling).
▼ Make sure there are no objects in the pockets of the clothing to be washed which could cause damage to laundry, the machine or the filter
▼ Open the top of the washing machine lightly pressing downwards before lifting it.
Open the drum doors holding both parts with one hand and pressing the opening button with the other (fig. 16).
Put the laundry in the drum being careful not to exceed the maximum program load indicated in the separate program table.
▼ Close the drum doors making sure they are well hooked.
▼ Press down first the front half and then the back so that the closing hooks are inserted and locked. The hooking sound confirms proper closing (fig.18).
▼ Make sure laundry is not stuck between the doors or between the doors and the drum.

USE OF DETERGENT

Diagram of a cylindrical device with three vertical panels and a flower-shaped element, labeled '19' (no text or symbols on the device itself)

The washing machine has a compartment for detergent and additives with three chambers (fig. 19).

Iprewash detergent chamber.

Imain wash detergent chamber.

rinsing liquid, softener, fragrance and starch chamber.

Use reduced foam detergents and softeners (if needed) for automatic washing machines. Follow instructions on the package for dosages. When water is particularly hard, use water softener together with the detergent, preventing scaling from forming on the heat element.

Illustration of a hand placing a trash bin into a water dispenser (no text or symbols)

Use of liquid detergent is possible only for programs without prewash.

▼ High quantities of detergent can produce too much foam and affect washing results negatively. Too little detergent causes insufficient washing.
When filling the chamber with detergent, it is important that is does not go into the softener part since there would be rinsing with foam and fabrics could have white stains. Vice versa, if softener goes into the detergent section it would be less effective.

HOW TO REMOVE SOME STAINS

Stains exist that cannot be removed by machine washing alone. Before trying to remove any type of stain by hand, first try the removal procedure on a small area of hidden fabric. Start from the edge of the stain and working inwards, this will prevent a dark ring from forming around the site of the stain. A few methods to adopt for removing stains are reported below.

▼ WAX: Scrape the wax using a rounded point in order not to damage the fabric. Then, with the fabric placed between two pieces of absorbent paper, run a hot iron over the stain.
▼ BALL POINT PENS AND FELT-TIP PENS: clean using a soft cloth soaked in ethyl alcohol. Take care not to spread the stain.
▼ DAMP AND MOULD: if the fabric supports the use of bleach, carry out a wash cycle adding bleach. Otherwise, soak the soiled part in hydrogen peroxide (10 volumes) and leave for 10 to 15 minutes.
LIGHT SCORCH MARKS LEFT BY IRONING: follow the instructions for mould and damp.
▼ Rust: use products specially designed for rust stains, following the manufacturer's instructions written on the packet.
CHEWING GUM: rub ice over the fabric, scrape away as much chewing gum as possible and then rub with a piece of cotton soaked in acetone.

▼ PAINT: do not allow the paint to dry. Rub the area with the solvent recommended by the paint manufacturer (e.g. water, turps, trichloroethylene), soap and then rinse.
LIPSTICK: stains on cotton or wool can be eliminated using a cloth soaked in ether. Stains on silk require the use of trichloroethylene.
▼ NAIL VARNISH: place a sheet of absorbent paper on the stained material, then dampen the back of the fabric with acetone, frequently changing the absorbent paper placed over the stain. Continue in this manner until the stain has disappeared.
▼ TAR OR DIRT: spread a little fresh butter over the stain, allow to stand and then wash with oil of turpentine.
▼ GRASS: delicately soap the stain, use diluted bleach. Good results can be obtained on woollen fabrics using 90% alcohol.
▼ BLOOD: put into soak in cold water with added salt, then wash with washing soap.

INTERNATIONAL CLOTHING CARE SYMBOLS

Before placing the clothes in the washing machine and selecting the wash programme, examine the symbols on the manufacturer's label. The table reported below will provide a useful guide to reading the symbols.

Wash at max 95°C

Wash at max 60°C

Wash at max 40°C

Wash at max 30°C

Hand wash

Dry-clean only

Bleach in cold water

Do not bleach

Iron at up to max 200°

Iron at up to max 150°

Iron at up to max 100°

Do not iron

Dry-clean using solvent

Dry-clean using benzine, pure alcohol and R113 only

Dry-clean using ethyl perchlorate, benzine, pure alcohol, R111 and R113.

Do not dry-clean

Dry flat

Dry hanging

Dry on hanger

Dry in tumble dryer at normal temperature

Dry in tumble dryer at low temperature

Do not tumble-dry

CLEANING THE WASHING MACHINE

Illustration of a person cleaning a sink with a hand using a tool (no text or symbols present)

The washing machine has been designed to reduce maintenance to a minimum. It is however important to remember to clean it regularly.

Before cleaning, make sure the appliance is disconnected from the electrical mains and the water supply is closed.

The outer structure and the plastic parts must be cleaned only with a moist cloth.

Never use chemical agents, abrasive products, alcohol, soap, petrol or other solvents to clean the machine since they could damage it.

Illustration of a hand opening a small open trash bin with a mesh drain, labeled '22' (no text or symbols on the diagram itself)

After a wash, leave the top open for awhile in order to dry the rubber parts. Wash the detergent chambers periodically. To do this, take out the detergent compartment and rinse it under running water (fig. 21). Then put it back in.

To take the detergent compartment out, press "PUSH" with your right hand and with the other hand pull the drawer out pulling it towards you (fig. 22).

The detergent compartment must always be inserted in its housing for proper machine operation.

RECOVERING FALLEN ITEMS BETWEEN DRUM AND BASIN

If an object falls by accident in between the drum and the basin, it can be recovered by means of an extractable plug on the drum:

1. Disconnect the appliance from the electrical mains.
2. Take the laundry out of the drum.
3. Close the drum doors and rotate it on half turn.
4. Using a tool, press the metal edge or, if present, unscrew the screw by sliding the blade from left to right.
5. The plastic plug will fall into the drum.
6. Open the drum: recover the objects through the holes.
7. Place the blade from inside the drum; place making sure that the metal tab or the fixing hole are on the right side, slide the blade from right to left until it engages.
   In the presence of the screw, to match the mounting holes and proceed to the tightening of the screw itself (fig. 24).
8. Close the drum doors, rotate it a half turn and check the positioning of the plug at all its fixing points.

CLEANING THE FILTER

Illustration of a hand using a tool to clean or wash a machine component (no text or symbols visible)

Make sure the washing machine is empty before starting the operations described below. Do not remove the filter while the machine is running or when it is full of water.

Place a recipient underneath the filter to gather water remaining inside. Open the filter door. Unscrew it anti-clockwise and remove it.

A tool might be needed to open the door. (fig. 25).

Rinse the filter under running water and remove any residue.

Put the filter back inversely repeating all the operations.

TROUBLESHOOTING

If the appliance is not working properly, check through the following troubleshooting list before calling for technical assistance. In some models malfunctions are shown with a code at the end of the cycle.

Code: E:00 Carry out all checks listed in paragraphed marked with *

E:01 Carry out all checks listed in paragraphed marked with **

E:02 Technical malfunction "Call Customer Service"

E:03 Technical malfunction "Call Customer Service"

The washing machine does not work (warning lights are off) (Display off)

- check that:

1) The mains power supply is working
2) The plug is inserted correctly in the socket
3) The On/Off button has been pressed, or if there isn't any, that the programming knob is positioned on a program.

The washing machine does not work (warning lights are off) (Display on)\*

- check that:

1) The program has been selected
2) The Top is closed properly
3) The "Start" button has been pressed (electronic models only)
4) check the indications provided under "The washing machine does not fill with water"

The washing machine does not fill with water\*:

- check that:

1) There is water in the water supply system
2) The water supply hose is connected to the washing machine
3) The water supply tap is open
4) The filter is not blocked. If it is, clean the filter after unplugging the appliance from the power supply

The washing machine continuously fills and drains the water\*\*:

- check that:

1) The drain hose has been installed at the proper height (60-90 cm)
2) The end of the drain hose is not under water

The washing machine does not drain or spin\*\*:

- check that:

1) The drain hose is properly connected

2) The drain hose is not bent
3) The drainage filter is not blocked
4) The no-spin function has not been selected
5) The "stop with water" function has not been selected.

The washing machine vibrates and is noisy

- check that:

1) All the blocking elements used for transportation have been removed.
2) the washing machine is level
3) Bulky items such as sheets, tablecloths etc. are not all in one part of the drum

The top does not open

- check that:

1) the wash cycle is finished.
2) the "stop with water" function has not been selected (automatic on some models).

The washing has not been properly spun

- check that:

1) The washing is evenly distributed in the drum

2) The correct spin speed has been selected

The washing machine stops during the wash

- check that:

1) The mains power supply is working

There is still a lot of detergent in the compartment

- check that:

1) The water supply tap is open
2) The filter between the tap and the supply hose is clean

If, after trying the above remedies, the machine still does not work, refer the fault to the nearest authorised service centre.

When calling the service centre, inform them of the machine model, the serial number and the type of fault.

This information will allow the technical service staff to select the appropriate spare parts, thus making the repair service quicker and more efficient (fig. 26).

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

6 ARDO

J.P. Industries S.p.A.

Via Dante, 284 60044 Fabriano (AN)

Tel.[phone] Fax [phone]

www.ardo.it

6 ARDO

IT GUIDA PROGRAMMI LAVAGGIO

EN WASHING GUIDE

3D rendered image of a gray plastic enclosure with three vertical slots and a curved top panel (no text or symbols visible)

Illustration of a person in a wide-body position with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand inserting a plastic into a trash bin (no text or symbols visible)

Illustration of a hand placing a plastic bag into a trash bin (no text or symbols visible)

Simple circular diagram with two curved arrows indicating rotational or feedback motion (no text or symbols)

Simple line drawing of an iron on a circular track with motion lines (no text or symbols)

Simple line icon of a bowl with a plus sign, no text or symbols present

Generic media play button icon with double right and double left symbols (no text or numbers)

3D rendered image of a gray industrial or laboratory device casing with three vertical slots and a curved top (no text or symbols visible)

Detergent drawer:

|Prewash

Softener

Washing

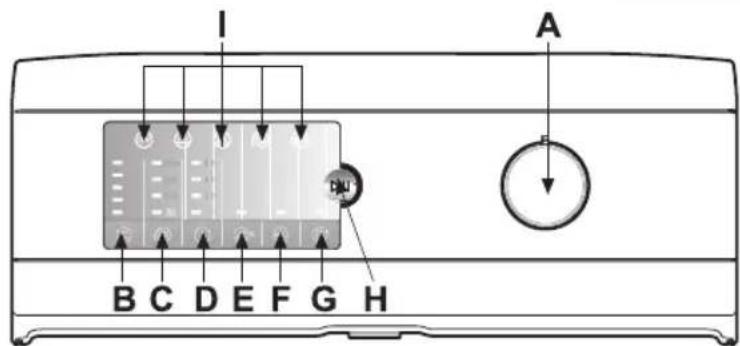

Control Panel:

A Program setting knob
B Temperature selection Function
C Spin Function
D Delayed Start Function

E Anti-crease Function
F Prewash function
G Extra rinse Function
H Start/pause Function
I Wash phase icon

WASH IN THE CORRECT WAY

Illustration of a person in a wide stance with arms extended, no text or symbols present

Illustration of a hand opening a trash bin with an open lid (no text or symbols visible)

Illustration of a hand inserting a pencil into a device (no text or symbols visible)

Simple circular diagram with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Before attempting to operate the washing machine, ensure that the installation has been performed correctly, as described in the instruction booklet.

Daily use

1. Before putting clothes in the washing machine, empty the pockets of any hard or sharp object (nails, screws, coins, pins and stones) that may damage the machine and garments.
2. To improve washing performance, introduce laundry into the washing machine without compressing it or overloading the machine. A whole load of highly absorbent fabrics, such as bathrobes and towels, can unbalance the machine during the spin cycle. The automatic load balancing system arranges laundry in the most even manner possible, and sets the optimum spin speed to minimize any vibrations.
3. Open the top lid of the washing machine, exerting a slight downward pressure before raising it. Press the drum doors slightly with one hand to open them, while the other presses the open button. Close the drum doors making sure they are well secured.
4. Put the correct amount of detergent in the drawer II. If you want to enable the prewash option, add the detergent in the drawer I. Use the drawer marked with the special symbol ✕ for the softener.
5. Select the wash program most suitable to the type of fabrics by using knob A following the instructions in the programs table. One of the LEDs on the function bar will light-up to indicate which wash phase the program will start with. The End LED will light up to indicate the end of the cycle.
6. Pressing the C button, a different spin speed to that provided by the selected program can be set. The D button allows you to delay the start of the wash cycle up to a maximum of 8 hours. Both values are indicated by the respective LEDs.
7. Buttons E, F, G allow the selection of supplementary functions. The options selected are indicated by the relative LEDs. The duration of the wash cycle varies depending on the options enabled.
8. Touch the start button H to start the wash cycle. After a few seconds, the Start LED will stay lit to indicate that the wash program has started.
9. The "END" icon will light up to indicate the end of the wash cycle. Turn the A knob to the OFF position and open the top to take all the laundry.
10. The program can be canceled at any time by turning knob A to the OFF position.
11. To shut down the machine in case of emergency, turn the knob pointer to the "OFF" position. The selection will be confirmed through two sound signals and the shutdown of all LEDs/LCDs.

PROGRAM PHASE INDICATOR LEDs: The progressive lighting up of the icons will indicate the program phase the washing machine is currently effecting.

DELAYED START: Touch the "DELAYED START" symbol to delay the start of the wash cycle by up to 8 hours. Press the symbol repeatedly until the required delay time is indicated by the appropriate LED.

Confirm by starting the washing cycle using the START function.

TEMPERATURE: Touch the "TEMPERATURE" symbol to set the desired wash temperature (see program table). The appropriate LED will light up, indicating the temperature chosen. To perform a "cold" program, touch the "TEMPERATURE" symbol until all LEDs are off.

The machine will automatically prevent from setting a temperature higher than the temperature expected for each program.

PREWASH: To perform a prewash, touch the "PREWASH" symbol - the appropriate LED will light up and then add the detergent in the drawer 1.

The washing machine performs a prewash cycle at 40^ C, max. Prewash is recommended for garments soiled with dust, dirt and sand or with particularly stubborn stains. See the program table for further information.

ADJUSTABLE SPIN: Touch the "SPIN" symbol to select the desired spin speed. The machine will automatically prevent from setting a spin speed which is higher than the maximum value expected for each program. The lit LED will indicate the selected speed value. Select the spin exclusion symbol ☑ exclude the spin cycle at the end of the cycle.

N.B.: The maximum spin speed varies depending on the model. The speed matched to each program is recommended.

Simple clock icon with hour and minute hands, no text or symbols present

Simple circular diagram with internal dotted lines, no text or symbols present

Simple black spiral line drawing on white background (no text or symbols)

Unbalanced load control during spin cycle:

This washing machine is equipped with a special electronic control system for proper load balancing. Prior to every spin, the system makes sure that the cloths are spread as evenly as possible in the drum. In the case of uneven laundry distribution, for safety reasons, the final spin speed will be reduced and in cases of high load imbalance, it will not be performed.

Simple line drawing of an iron steeler with motion lines indicating speed (no text or symbols)

ANTI-CREASE: Touch the "ANTI-CREASE" symbol. The appropriate LED will light up so that the washing machine adjusts the washing parameters to prevent creases, making ironing easier. At the end of the wash cycle, the drum will move in alternate way for about 30 minutes. However it can be stopped, at any time, by turning back the knob to "OFF" position. The door will unlock and it will be possible to take the laundry. The spin speed is automatically set at 500 rev/min.

Simple line icon of a bowl with a plus sign, no text or symbols present

EXTRA RINSE: Touch the "EXTRA RINSE" symbol. The appropriate LED will light up to enable an additional rinse. This option is recommended if your skin is particularly sensitive to enzymes in detergents. This function can be selected based on the program selected (see program table).

Generic media control icon with double right and double left buttons inside a circular frame (no text or symbols)

START/PAUSE: To confirm your selection and start the wash cycle, press the "START/PAUSE" symbol. After a couple of seconds, the appropriate LED will light up green, confirming the start of the cycle. Once the program started, you can pause the cycle touching the "START/PAUSE" symbol - the LED will blink with a different color. After about 2 minutes since the pause function is enabled, you can open the door to load/empty any laundry and/or change the washing options selected. For safety reasons, you can only open the door during the pause function in certain conditions/phases of wash cycle.

To re-enable the wash cycle, touch for a couple of seconds the "START/PAUSE", symbol. The LED will light up green.

EASY LOGIC: The EASY LOGIC system automatically adjusts washing time, water and energy consumption based on the actual amount of laundry loaded in the machine.

SMART STOP

If included, at the end of the wash cycle, the smart stop function positions king it any easier to remove laundry.

However in particular load conditions, positioning might not be precise and it could be necessary to turn the drum a bit.

TECHNICAL SPECIFICATIONS

MODEL →		TL148SW/A/B/X	TL128SW/A/B/X	TL108SW/A/B/X	TL107SW/A/B/X
Dimensions	Width (cm)	40.0	40.0	40.0	40.0	40.0
	Height (cm)	90.0	90.0	90.0	90.0	90.0
	Depth (cm)	60.0	60.0	60.0	60.0	60.0
Maximum speed spin (rev/min)		1400	1200	1000	1200	1000
Maximum load (kg)		8.0	8.0	8.0	7.0	7.0
Water pressure		0.05 MPa – 1 MPa
Electrical connection		See plate affixed with characteristics

Programs			Maxi mum spinspeed (rev/min)	Maximum load depending on the model and program selected (kg)				Options
Symbol	Max temperature	Type of laundry
Cotone	90°C Max 800.70.60.50.40°C	White-lipens and heavily soiled cotton, including organic stams.
	60°C Max 800.70.60.50.40°C	The standard 60°C and 40°C cotton programs are suitable to clean normally soiled cotton laundry and they are the most efficient programs in terms of combined energy and water consumption for washing that type of cotton laundry. The above mentioned programs are compliant with European deguition 15/2010 and 1061/2010 on the specific ecodesign requirements. The actual water temperature may differ from the declared cycle temperature. The standard 60°C and 40°C cotton programs were verified in compliance with standard EN60456.
Sintetici	60°C 800.40.35.30.25.	White-lipens and heavily soiled cotton dresses colors.
Jeans	40°C 800.40.35.30.25.	The special jeans program gently washes at 40°C, taking care of the denim fibers and simultaneously preventing colors from running. Faded behind garments will always come out looking like new.
Camicie	40°C 500.20.15.15.10.	The shirt program reduces ironing time. The temperature, water level, intensity of washing and spin speed are adjusted electronically to prevent creases and making ironing of blouses and shirts easier.
Sport	40°C 800.40.35.30.25.	The sportswear program is designed for sports and casual cards. The 40°C wash cycle helps retain the shape of the fabric and the elasticity of modern synthetic fibers.
Colorati	30°C Max 800.70.60.50.	The color program allows you to wash different colored garments together. You can safely wash light and dark colored laundry without any risk of color running.
Antibatterico	40°C Max 800.70.60.50.	The antibacterial program ensures that any germs or bacteria in max lary and cut off removed. The program ensures maximum hygiene for white, colored and synthetic fiber fabrics.
A Mano	20°C 500.20.15.15.10.	Delicate garments require special care and are usually hand washed. The special wash option ensures garments are washed gently.
Rapido	30°C 800.40.35.30.25.	Quick wash cycle is suitable for refreshing, in just 20 minutes, lightly fresh cotton. Quick wash cycle allows you to save precious time, performing a wash cycle at 30°C.
Lana	40°C 800.20.15.15.10.	The wool program is ideal for washing delicate items with label, anti-rinsing hand washable." It ensures color care and that garments stay in good shape.
Misti	20°C 800.20.35.30.25.	The mix special program allows you to wash different fabrics together (cotton, synthetics, mixed) with a perfect result.
Seta	30°C 500.20.15.15.10.	The rinse program is useful for re-rinsing hand washed density of iron-enforcing items that have been stored for a long time.
Risciacqui	- Max	The rinse program is useful for re-rinsing hand washed density of iron-enforcing items that have been stored for a long time.
Centrifuga	- Max	30°C 70.60.50.	Adjustable to suit every type of fabric.

(*) Actual water temperature may differ from the value indicated in the program.

6 ARDO

J.P. Industries S.p.A.

Via Dante, 284 60044 Fabriano (AN)

Tel.[phone] Fax [phone]

www.ardo.it
