Product Type	Action Camera / Camcorder
Video Resolution	4K Ultra HD (3840x2160) at 30fps
Photo Resolution	16 Megapixels (4608x3456)
Display	2.0 inch LCD Touchscreen
Waterproof Rating	Up to 98 feet (30 meters) with included housing
Connectivity	Wi-Fi (2.4GHz), Micro HDMI, Micro USB
Storage	MicroSD card up to 64GB (Class 10/UHS-I required)
Battery	Rechargeable Li-ion 1050mAh (3.7V)
Battery Life	Approximately 1.5 hours in 4K mode
Dimensions	2.5 x 1.5 x 1.0 inches (without housing)
Weight	4.2 ounces (without housing)
Lens	170° wide angle, f/2.8 aperture
Image Stabilization	Electronic image stabilization (EIS)
Shooting Modes	Time-lapse, Burst, Self-timer, Loop recording
Remote Control	Wireless remote (included) via 2.4GHz
Field of View	170° wide angle
Audio	Built-in microphone, external mic support via USB-C adapter
Mounting	Multiple mounts included (helmet, chest, handlebar, adhesive)
Power Input	5V/1A via Micro USB
Operating Temperature	14°F to 104°F (-10°C to 40°C)
Waterproof without Housing	Not waterproof; requires housing for underwater use
Supported File Systems	FAT32 (for cards up to 32GB), exFAT (for 64GB)
Accessories Included	Waterproof housing, remote, mounts, USB cable, battery, manual

Frequently Asked Questions - SLDV4KBL Pyle

What maximum microSD card capacity does the Pyle SLDV4KBL support?

The camcorder supports microSD cards up to 64GB. Use a Class 10 or UHS-I card for best performance.

Is the Pyle SLDV4KBL waterproof without the housing?

No, the camera alone is not waterproof. To use it underwater, you must place it in the included waterproof housing, which is rated to 98 feet (30 meters).

How do I connect the camera to my smartphone?

Download the Pyle Action Cam app (available for iOS and Android). Turn on the camera's Wi-Fi, connect your phone to the camera's network, then open the app to control the camera and view footage.

What is the battery life for 4K recording?

Battery life is approximately 1.5 hours when recording 4K video at 30fps. Lower resolutions may extend battery life slightly.

Can I charge the battery via USB while recording?

Yes, the camera supports pass-through charging via the Micro USB port, allowing you to record while connected to an external power source.

What video resolutions and frame rates are supported?

The camera supports 4K at 30fps, 2.7K at 30fps, 1080p at 60/30fps, and 720p at 120/60fps for slow-motion.

Does the camera have image stabilization?

Yes, it includes electronic image stabilization (EIS) which helps reduce shakiness in videos, especially at lower resolutions.

How do I reset the camera to factory settings?

Press and hold the Power and Wi-Fi buttons simultaneously for about 5 seconds until the camera restarts. Alternatively, use the settings menu to select Reset.

Can I use an external microphone with this camera?

Yes, via a USB-C to 3.5mm adapter (not included). The camera supports external audio input when the adapter is connected.

What mounts are included in the box?

The package includes a helmet mount, handlebar mount, chest mount, and adhesive mounts along with various adapters for versatile placement.

USER MANUAL SLDV4KBL Pyle

Blue Ultra HD 4K device with black camera lens and control buttons (no visible text beyond branding)

SereneLife™

MODELS: SLDV4KBK BLACK

SLDV4KBL BLUE

FOREWORD

The product is a high-end high definition and athletic camping product. This product has many functions, such as digital video photography, slow photography, voice, video display and a removable battery. Besides, the functions of outdoor sports, home security and deep waterproof can meet any need of photographing.

Multipurpose

Outdoor sports

Marine sports

Diving

Home burglar

ATTENTION

1. This is a high-precision product, please do not let it fall or strike it.
2. Please do not allow the camera to be near objects with strong-magnetic fields, such as strong magnets and power-driven machines. In addition, please also avoid objects that can send out strong radio waves. Strong magnetic fields may cause product breakdown, loss of data, and/or destroy the image and sound.
3. Please do not place the camera in direct sunlight.
4. Please choose a reliable Micro SD card with a trusteed brand, because generic card compatibility can not be guaranteed.
5. During the process of charging the battery, if the product gives off heat and smoke, or gives off a peculiar smell, immediately unplug the power to avoid a fire.
6. When charging the battery, please place the product in places children can not reach as the power cable is a potential risk for suffocation and electric shock.
7. Please try to keep the product in shaded, dry and insulated places.

Black-and-white photo of a motorcyclist mid-air during a jump, displayed on a flat-screen monitor with 'Ultra HD' and 4K signal icon (no text on the image itself)

DISPLAY

waterproof case

bicycle bracket

pedestal 1

pedestal 2

Back clip

fixed base

switch support 1

switch support 2

switch support 3

commutator

helmet pedestal

bandage

shell

ribbon

3M mat

wire cable

data cable

adapter

user manual

cleaning cloth

Exterior view of a modern office building (no signage)

waterproof case

helmet pedestal
pedestal 1
long pole

camera
+

Close-up of a mechanical camera module with no visible text or symbols

=

Black and white photo of a cycling helmet with an camera mounted on top (no visible text or symbols)

helmet pedestal pedestal 1/long pole short pole/support 3 short pole/support 2 waterproof case

•
  +

Exterior view of a silver and black compact camera with visible lens and mounted sensor (no text or symbols)

=

Person riding a bicycle with visible frame and wheel (no text or symbols)

waterproof case

bicycle bracket /long pole
long pole/support 3

camera

•
  back clip

•

Person wearing a button-up shirt and pants, hands resting on hips (no visible text or symbols)

clip

INSERT A MICRO SD CARD

NOTE: Please choose a Micro SD card with a trusted brand and use it after properly formatting on a computer. Generic off-brand cards can not be guaranteed to work properly.

INSTALL AND TAKE OUT THE BATTERY

a. stir downward the battery cover and turn on it.
b. according to the plus-minus pole and the arrow on the battery, take the battery into the product and install it correctly.
c. the quantity of electricity of the battery: please reference the diagram.
d. stir downward the battery cover then take out the battery

CHARGE THE BATTERY

a. use the USB cable to connect to a computer or adapter to charge the battery.
b. you're able to charge the battery and record video at the same time.
c. battery charging will is work when the product is off.

POWER ON AND POWER OFF THE CAMERA

Press the POWER/MODE button for about 3-5 seconds to power on/off

TURN ON/OFF THE WIFI

a. WIFI ON: shortly press the down button then open successfully. The LED light will turn to flashing red light.
b. WIFI OFF: after opening the WIFI, shortly press the down button. The light will turn off.

CHANGE THE MODE

Power on then shortly press the POWER/MODE. You can change the modes between record video/photography/slow photography/playback file and settings.

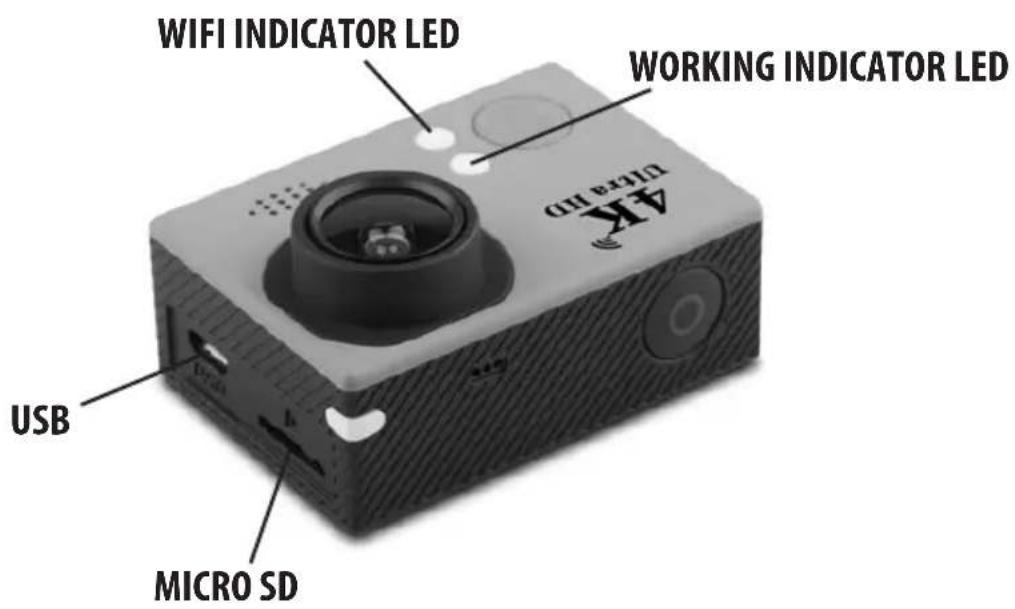

LED BEHAVIOR

WORKING LED: the red light is on.

WIFI LED: the red light flashes when WIFI is opening; the red light is bright when WIFI is connected; the red light turns off when WIFI is OFF.

CHARGING LED: the red light is bright when the battery is charging; the red light turns off when the battery is fully charged.

PHOTOGRAPHY & VIDEO SETTINGS

VIDEO: Select video mode. Press the OK button to start recording. When recording, the recording icon will flash. Press the OK button again to stop recording.

Video Options: Normal, loop recording (2 minutes, 3 minutes, 5 minutes), time-lapse video (0.5 seconds, 1 second, 2 seconds, 5 seconds, 10 seconds, 30 seconds, 60 seconds).

PICTURES: Select picture mode, the upper left corner of the screen will have a picture sign. Press the OK button to take the picture.

Picture Options: Normal, delayed timing (3 seconds, 5 seconds, 10 seconds, 20 seconds), automatic (3 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds), trajectory (3P/S, 5P/S, 10P/S, 20P/S)

SLOW PHOTOGRAPHY: Select slow photography mode. Press the OK button to start recording. When recording, the recording icon will flash continuously. Press the OK button to stop recording.

Slow Photography Options: 1080P/60FPS, 720P/120FPS.

REMOVE STORAGE AND PLAYBACK: After completing the recording, you can either use a USB data cable to transfer recorded media, or take out the Micro SD card and use a card reader to read the Micro SD card.

Delete File: In the file playback screen, press the OK button for 3-5 seconds, and it will delete the selected file.

INSTALLATION AND USE OF WIFI

Before using the WIFI function, please install the "XDV" APP on a smart phone.

NOTE: Android smart phone need to download it from Google Play, Apple users will need to download it from the Apple Store.

Connection procedure:

a. After powering on, press the up button, "WIFI message" appears on the screen, then the WIFI light will flash;

b. Look for the WIFI SSID "DV560-0ccd" and connect to it (default password is 1234567890);

c. Open the "XDV" APP. You're able to preview the shooting screen on the APP, remote video, camera, file playback/download /delete /share.

d. For APP installation: the smartphone requires Android 4.1 and above or IOS7 or above. You're also able to scan the QR code below to install the app. Follow the prompts to complete the installation.

SOFTWARE UPGRADE

By APP : firstly make sure the phone networking, open APP ,after connecting the camera, if the new version is available.

it will be automatically prompted to upgrade.

Tip: When the poor operation of the product caused by the phenomenon of death, removable battery should be re-installed.

Then the machine returns to be normal.

LCD screen 2.0LTPS
Lens 160°
Language Options English, Simplified Chinese, Traditional Chinese,Korean, Russian, French, German, Italian, Spanish,Portuguese, Japanese
Supported Resolutions 3200*1800	25fps/2688*1520 30fps / 1920*108060fps /1920*1080 30fps /1280*720 120fps/1280*720 60fps /1280*720 30fps
Video Format MP4
Video Compression Format H.264
Resolution of Photos 16MP /12MP	/8MP /5MP/ 2MP
SD Card Type Micro SD
Photo Modes Default, Timed, Automatic, Sports Trail
Video Modes Default, Loop, Time-Lapse
Slow Photography 1080P/60fps,720P/120fps
Light frequency Automatically, 50Hz, 60Hz
USB Version USB 2.0
Adapter	5V/1A
Battery capacity	1050mAh
Max Recording Time	~90 Minutes
Battery Charge Time	~3 Hours
OS	Windows XP/7/8 SP3/Vista and Mac10.5 or above
Dimensions 2.32 X 1.61 X 0.83 inches
Weight	56.5g

Note: Specifications could be subjects to change due to upgrading.
