Product Type	Electric Coffee Grinder
Brand	Imetec
Model	F6101
Dimensions (approx.)	12 x 12 x 20 cm
Weight	0.5 kg
Power Supply	AC 220-240 V, 50/60 Hz
Power Consumption	150 W
Bean Capacity	60 g
Blade Material	Stainless Steel
Operation	One-touch push button
Grind Settings	Single speed, grind time adjustable
Safety Features	Overheat protection, non-slip base
Cleaning	Removable bowl, wipe with damp cloth
Accessories Included	Cleaning brush
Warranty	2 years
Spare Parts Availability	Contact Imetec service

Frequently Asked Questions - F6101 IMETEC

How do I use the Imetec F6101 coffee grinder?

Place the lid on the bowl, add coffee beans up to the MAX line, press the button to grind. Release to stop. Do not exceed 30 seconds of continuous use.

Can I grind other ingredients besides coffee beans?

Yes, you can grind spices, nuts, and herbs. Ensure the ingredients are dry and clean. Do not grind hard items like bones or ice.

How do I clean the grinder?

Unplug the grinder. Wipe the bowl and lid with a damp cloth. Do not immerse in water. Use the cleaning brush for residue. Allow to dry completely before next use.

Why does the grinder stop during use?

The grinder has overheat protection. If it stops, let it cool for 5 minutes before restarting. Check if the bowl is securely attached.

What is the maximum grinding time?

Do not operate the grinder for more than 30 seconds continuously. Allow a 5-minute cooldown between cycles. This prevents motor damage.

Can I grind wet coffee beans?

No, only dry beans or ingredients. Wet items can cause clumping and motor strain. Ensure beans are at room temperature and dry.

How do I achieve a finer grind?

Grind for longer periods (up to 30 seconds). For coarse grind, pulse briefly. Experiment with timing to get your preferred consistency.

Is the grinder suitable for espresso?

This blade grinder produces uneven particles, not ideal for espresso. It is best for drip, French press, or percolator. For espresso, consider a burr grinder.

What should I do if the grinder won't start?

Check that the bowl and lid are properly aligned. Ensure the power cord is plugged in. If still not working, contact Imetec customer service. Do not attempt to repair yourself.

Where can I find spare parts?

Spare parts like blades and bowls are available through Imetec authorized service centers. Check the manual for contact details.

USER MANUAL F6101 IMETEC

Operating instructions

Tel. +39.035.688.111 Fax +39.035.320.149

IMETEC

TYPE F6101

1111

Simple line drawing of a cylindrical object with two intersecting diagonal lines (no text or symbols)

Line drawing of a hand pressing down on a cylindrical device with a downward arrow (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Simple line drawing of a mechanical device with a downward arrow indicating force or motion (no text or symbols)

Line drawing of a hand pressing down on a cylindrical object with a downward arrow (no text or symbols)

DATI TECNICI

TECHNICAL DATA

Dear customer, IMETEC thanks you for having purchased this product. We are certain you will appreciate the quality and reliability of this appliance, designed and manufactured with customer satisfaction in mind. These instructions for use have been drawn up in accordance with European Standard EN 62079.

ATTENTION! Instructions and warnings for a safe use

Before using this appliance, carefully read the instructions and in particular the safety warnings, which must be complied with. Keep this manual and illustrative guide with the appliance for future consultation. Should you pass the appliance on to another user, make sure to also include this documentation.

Should certain parts of this booklet be difficult to understand or should doubts arise, contact the company before using the product, at the address indicated on the last page.

INDEX

SAFETY INSTRUCTIONS Page 7

SYMBOLS Page 9

DESCRIPTION OF THE APPLIANCE AND ITS ATTACHMENTS Page 9

CLEANING AND HYGIENE BEFORE FIRST USE Page 10

ASSEMBLY Page 10

USE Page 10

PROCESSING TABLE Page 11

CLEANING AND MAINTENANCE Page 11

TROUBLESHOOTING Page 11

DISPOSAL Page 12

ASSISTANCE AND WARRANTY Page 12

Illustrative guide I-II

Technical data III

SAFETY INSTRUCTIONS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have

EN

been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved or if supervised by a person responsible for their safety. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and power cord away from children under 8 when the appliance is on or cooling down.

• Always disconnect the appliance from the mains before cleaning or performing maintenance and when the appliance is not in use.
• If the power cable is damaged it must be replaced with an original cable by an authorised technical service centre, so as to prevent all risks.
• After having removed the appliance from its packaging, verify its integrity based on the drawing and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an authorised service centre.
• Do not let children play with the packaging! Keep the plastic bag out of the reach of children - risk of suffocation!
• Before connecting the appliance, please make sure that the voltage indicated on the identification plate corresponds to that of the mains voltage. The identification plate is found on the appliance.
• This appliance must only be used for the purpose for which it was designed, that is as a CHOPPER for home use. Any other use is considered not compliant and therefore dangerous.
• DO NOT use the appliance with damp or wet hands or feet.
• DO NOT pull the power cable or the appliance to remove the plug from the socket.
• DO NOT expose the appliance to humidity or weather conditions (rain, sun, etc.).
• If the appliance is faulty or malfunctions, switch it off and do not tamper with it. Any repairs must only be carried out by an authorised technical service centre.
• NEVER immerse the appliance in water and never place it under running water.

EN

• The appliance is NOT intended to be used with an external timer or through a separate remote control or similar systems.
• NOT use the appliance near a washbasin full of water. During use, the appliance must be placed in such a way that it cannot fall in the washbasin.
• DO NOT use near a hob. Pay attention that the cable does not come into contact with hot, incandescent surfaces, open flames, pots and other utensils.
  • NEVER touch the moving parts.
• Failure to comply with these instructions or misuse of the product can lead to injuries.
• Pay particular attention when handling the sharp blades (3) when the container (4) is being emptied and/or being cleaned.
• DO NOT place the container (4) or the splash-proof cover (2) in the microwave.
• Let hot food reach room temperature (max 40°C) before placing it in the container (4).

SYMBOLS

	Warning Protection class II
	Prohibited

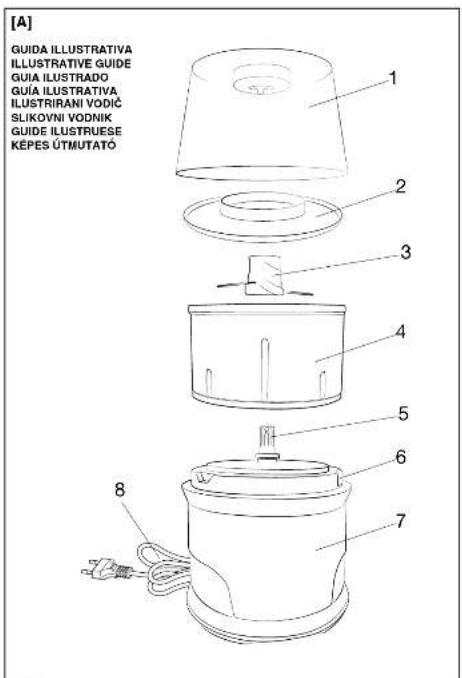

DESCRIPTION OF THE APPLIANCE AND ITS ATTACHMENTS

Look at Figure [A] in the illustration section to check the content of the packaging.

1. Lid
2. Splash-proof cover
3. Blades

4. Container

5. Pivot

6. Safety system
7. Motor casing
8. Power cable

EN

CLEANING AND HYGIENE BEFORE FIRST USE

• Unpack the appliance and remove any inserts or adhesive labels from the product.
• Thoroughly wash the removable parts that come in contact with the food: the lid (1), splash-proof cover (2), the blades (3) and the container (4) by hand with hot water and washing-up liquid or in the dishwasher at a maximum temperature of 55^ C.
• Dry well.

ASSEMBLY

ATTENTION!

DO NOT push the splash-proof cover (2) into the container (4) as the blades (3) could damage it [Fig. B].

• Place the motor casing (7) on a flat surface.
• Insert the container (4) on the motor casing (7) [Fig. C].
• Insert the blades (3) on the pin (5) [Fig. D].
• Place the ingredients inside the container (4).
• Place the splash-proof cover (2) inside the container (4) without pushing it down [Fig. E].
• Close the container (4) with the lid (1).
  • Fully unwind the power cable (8).

USE

ATTENTION!

• The appliance must NOT be used for more than 10 seconds. Let the appliance cool down before re-using it.
• DO NOT leave the food inside the container (4) beyond the required preparation time.
  • DO NOT place more than 300 g of raw meat.
• DO NOT insert cheese rinds as they can damage the motor.
• NEVER use liquid ingredients in the appliance.
• NEVER use ice in the appliance.
• NEVER use dry bread alone in the appliance.
• The safety system (6) stops the appliance if the lid (1) is opened.

Proceed as follows after having assembled the appliance:

• Insert the plug (8) in the socket.
• Press the lid (1) to activate the appliance [Fig. F].
• Once the food has been processed wait for the blades to stop completely (3).
• Disconnect the plug (8) from the socket.
• Lift the lid (1).
• Remove the splash-proof cover (2).
  • Extract the blades (3) by turning them so as to release them from the pivot (5).
  • Empty the container.

PROCESSING TABLE

Food raw	meat	parmesan cheese	parsley onions	carrots celery	dried fruit chocolate
Quantity 300 g	180 g 12 g 200 g 180 g 100 g
Size	1*1 cm 1*1 cm - 2*2 cm - 2*2 cm
Processing (in seconds)	12” 20” 5”			10” in pulse mode	5” in pulse mode	10” in pulse mode

CLEANING AND MAINTENANCE

Clean the appliance after having used it.

• Thoroughly wash the removable parts: the lid (1), splash-proof cover (2), the blades (3) and the container (4) by hand with hot water and washing-up liquid or in the dishwasher at a maximum temperature of 55°C.
• Dry well.
• Clean the motor casing (7) with a well-wrung damp cloth.
• Dry well.

TROUBLESHOOTING

Should one of the problems indicated occur, adopt the proposed solution:

Problem	Solution
The food is not chopped evenly	Use the pulse mode and not continuous mode.
	Wait for the blades to stop completely (3). Remove the motor casing (1) and the splash-proof cover (2) and mix the ingredients with a spatula. Close once again and continue processing in pulse mode.
	The container (4) has been filled with too many ingredients; remove the excess ingredients and continue processing.
The parsley is not chopped properly	Repeat the operation using dry parsley.
The meat is not chopped properly	Chop the meat in 1 cm pieces and remove any cartilage. Do not exceed the maximum quantity of 300 g.
The container rises while processing the food	Pieces of food may have set between the container (4) and the blades (5). In this case, unplug the power cord (8) from the socket, remove the lid and reposition the container (4) in its place. Close the container (4) with the lid (1) and continue processing.

DISPOSAL

The product is packaged in recyclable materials. Dispose of it in compliance with the environmental protection standards.

The appliance must be disposed of in compliance with EU standard 2002/96/EC. The recyclable materials contained in the appliance must be collected to prevent environmental pollution. For further information contact the local waste authority or the appliance retailer.

ASSISTANCE AND WARRANTY

To request repairs or purchase spare parts please contact IMETEC's authorised customer service centre on the Toll-Free Number below or via the website. The appliance is covered by the manufacturer's warranty.

For details, read the attached warranty sheet. Failure to comply with the instructions for use and maintenance provided in this manual will render the manufacturer's warranty null and void.

MANUAL DE INSTRUÇÕES PARA O USO DA PICADORA

ASSISTÊNCIA E GARANTIA

Guia ilustrado

Dados técnicos

Pág. 18

| - ||

III

AVISOS SOBRE A SEGURANÇA

PROBLEMAS E SOLUÇÕES

ASSISTÊNCIA E GARANTIA
