HPKT127A-PT - Washing machine Helkama - Free user manual and instructions
Find the device manual for free HPKT127A-PT Helkama in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Freestanding Washing Machine |
| Dimensions (H x W x D) | 85 cm x 60 cm x 59 cm |
| Weight | 70 kg |
| Power Supply | 220-240 V, 50 Hz, 10 A |
| Wash Capacity | 7 kg |
| Maximum Spin Speed | 1200 rpm |

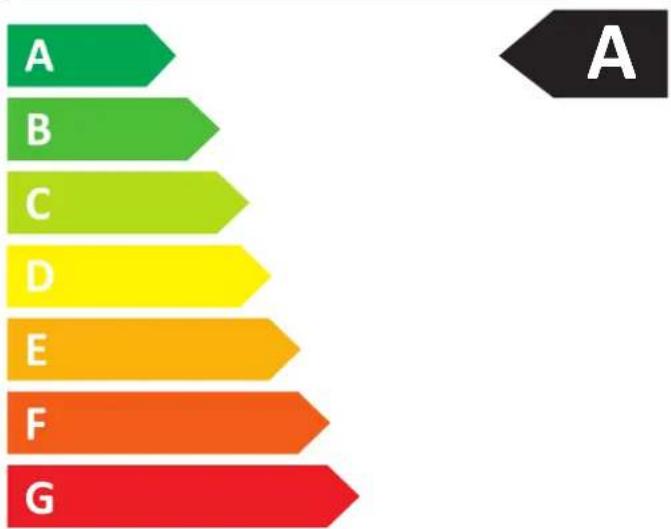

| Energy Efficiency Class | A+++ |
| Noise Level (Wash/Spin) | 55 dB / 75 dB |
| Water Consumption per Cycle | 50 L |
| Programs | Cotton, Synthetics, Delicates, Quick 30', Eco, Hand Wash, Rinse & Spin, Drum Clean |
| Features | Delay Start (1-24h), Child Lock, LED Display, Overflow Protection, Unbalanced Load Detection |
| Drum Material | Stainless Steel |
| Motor Type | Inverter Motor |
| Door Opening | Left-hinged (reversible) |
| Height Adjustment | Yes, adjustable feet |
| Water Connection | Cold water only (single inlet) |
| Hose Length (Inlet/Drain) | 1.5 m / 1.8 m |
| Spare Parts Availability | Genuine Helkama parts available through authorized service centers |
| Repairability Index | 7.5 / 10 |
Frequently Asked Questions - HPKT127A-PT Helkama
How do I install the washing machine?
Remove all packaging and transit bolts. Place the machine on a level, solid floor. Connect the water inlet hose to a cold water tap with 3/4 inch thread. Attach the drain hose to a standpipe or sink outlet with a minimum height of 60 cm and maximum of 90 cm. Plug into a grounded socket. Run a cotton 90°C cycle without laundry to clean the drum.
How do I clean the detergent drawer?
Press the blue lever inside the drawer and pull it out completely. Rinse with warm water and a soft brush. Clean the siphon cap inside the softener compartment. Wipe dry and slide back in until it clicks.
What should I do if the machine does not drain?
Check the drain hose for kinks or blockages. Clean the drain pump filter located at the bottom front panel. Open the filter cover, place a bowl under it, and turn the filter counterclockwise to remove debris. Ensure the hose connection is not too high.
How can I fix error code E01?
Error E01 indicates a water supply issue. Ensure the water tap is fully open. Check if the inlet hose is kinked or the filter mesh in the hose connection is clogged. Clean the filter and restart the cycle.
What is the maximum load for a cotton cycle?
The maximum load for a cotton cycle is 7 kg. Overloading may cause poor wash results, increased vibration, and damage to the machine. For delicate fabrics, reduce the load to 3.5 kg.
How do I use the delay start feature?
Select the desired program and press the Delay Start button repeatedly to set the delay time from 1 to 24 hours. The door locks and the machine will start automatically after the delay. To cancel, press the button until 0h appears.
Why is the machine vibrating excessively?
Check that all transit bolts have been removed. Ensure the machine is level by adjusting the front feet. Verify the load is evenly distributed. Wash small and large items together to balance the drum.
How often should I run a drum clean cycle?
Run the Drum Clean program once a month to prevent mold and odor. Use a washing machine cleaner or add two tablespoons of citric acid to the detergent drawer. Leave the door open between uses to dry the drum.
Can I use liquid detergent?
Yes, you can use liquid detergent. Pour it into the main wash compartment (II) or use the detergent ball. Do not exceed the MAX line. For prewash, add powder to compartment I. Use a low-sudsing detergent for front-loaders.
How do I replace the door seal?
Disconnect the machine from power and water. Remove the front panel screws and the door. Unclip the old seal from the drum rim and the front panel. Fit the new seal, ensuring the drainage holes are at the bottom. Reassemble in reverse order.
User questions about HPKT127A-PT Helkama
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Washing machine in PDF format for free! Find your manual HPKT127A-PT - Helkama and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HPKT127A-PT by Helkama.
