Product Type	Washing Machine
Brand	Master Kitchen
Model	MKWM FS60914 INV TOUCH B
Installation Type	Freestanding
Loading Type	Front Load
Capacity	8 kg
Spin Speed	1400 rpm
Energy Efficiency Class	A+++
Dimensions (H x W x D)	85 x 60 x 55 cm
Weight	70 kg
Power Supply	220-240 V, 50 Hz
Motor Type	Inverter
Control Type	Touch + Rotary
Display	Digital LED
Programs	15+ (Cotton, Synthetic, Delicate, Quick, etc.)
Special Functions	Delay Start, Child Lock, Steam
Noise Level (Wash/Spin)	54/76 dB(A)
Water Consumption	49 L per cycle
Annual Energy Consumption	175 kWh
Door Opening	180°
Drum Material	Stainless Steel
Warranty	2 years

Frequently Asked Questions - MKWM FS60914 INV TOUCH B Master Kitchen

How do I install the washing machine?

Ensure the machine is on a level surface. Remove transit bolts, connect water inlet hose to cold water tap, connect drain hose to a standpipe or sink, and plug into a grounded outlet. Level the feet and lock them.

What is the maximum load capacity?

The maximum load capacity is 8 kg for cotton and other fabrics. Do not overload to ensure effective cleaning and avoid damage.

How do I clean the detergent drawer?

Remove the drawer by pressing the release button. Rinse under running water and clean compartments with a soft brush. Wipe dry and reinsert. Perform this every 3 months.

How do I activate the child lock?

Press and hold the Child Lock button (usually key symbol) for 3 seconds. The indicator will light up. Repeat to deactivate. This prevents accidental changes during cycles.

What should I do if the machine displays an error code?

Note the error code and consult the manual. Common codes: E10 (water supply issue), E20 (drainage problem), E30 (door not closed). Restart the machine after fixing the cause.

How do I use the delay start function?

Select your wash program, then press the Delay Start button repeatedly to set the delay time (1-24 hours). Press Start/Pause to confirm. The machine will begin after the delay.

Can I wash wool and silk items?

Yes, use the Wool or Silk program with cold water and gentle spin. Use appropriate detergent for delicate fabrics. Do not overload.

How often should I clean the filter?

Clean the lint filter at the bottom front every 3 months or if the machine fails to drain. Turn off water, unscrew the filter, remove debris, and reattach tightly.

What does the steam function do?

The steam function uses steam jets to reduce wrinkles and remove odors without a full wash. Ideal for refreshing clothes quickly.

How do I reset the machine to factory settings?

Press and hold the Start/Pause and Delay Start buttons simultaneously for 5 seconds until all lights flash. The machine will reset to default settings.

USER MANUAL MKWM FS60914 INV TOUCH B Master Kitchen

Three-panel image showing four face models, a magnifying glass, and an open book (no text or symbols)

Simple line drawing of a washing machine with a cross mark on its side (no text or symbols)

Close-up of a mechanical component with a wrench and circular screw head, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

Close-up of a white object with blue arrows indicating rotation or movement, no visible text or symbols

Illustration of a faucet and a pipe fitting with blue arrows indicating flow direction (no text or symbols)

Nota!

Simple line drawing of a sweater with a hanging tag and patterned jacket (no text or symbols)

Simple line drawing of a box with a bag and a bag inside, showing a folding or lifting process (no text or symbols)

Vuotare le tasche

Two handbags with circular cutouts, one wrapped in a rope and the other in a bag (no text or symbols)

Line drawing of a bag with mesh pattern and internal lines, no text or symbols present

Line drawing of a patterned garment with two arms and textured top (no text or symbols)

Aenzione!

On/O

Programma	Carico (kg)			Tempo visualizzato
	7,0	8,0	9,0	7,0	8,0	9,0
Cotone	7,0	8,0	9,0	03:49	03:49	03:49
Sinteci	3,5	4,0	4,5	03:28	03:28	03:28
Mis	7,0	8,0	9,0	01:30	01:30	01:30
20°C	3,5	4,0	4,5	01:11	01:11	01:11
Sport	3,5	4,0	4,5	01:16	01:16	01:16
Baby Care	7,0	8,0	9,0	01:52	01:52	01:52
Jeans	7,0	8,0	9,0	01:56	01:56	01:56
Risciacquo ecentrifuga	7,0	8,0	9,0	00:30	00:30	00:30
Solocentrifuga	7,0	8,0	9,0	00:12	00:12	00:12
Capiingombran	7,0	8,0	9,0	01:48	01:48	01:48
Lana	2,0	2,0	2,0	01:07	01:07	01:07
ECO 40-60	2,0	2,0	2,0	03:13	03:32	03:41
Intensivo	7,0	8,0	9,0	03:48	03:48	03:48
Rapido 15'	2,0	2,0	2,0	00:15	00:15	00:15
Rapido 45'	2,0	2,0	2,0	00:45	00:45	00:45

Nota!

Line drawing of a hand washing a washing machine with a bird on top (no text or symbols)

Aenzione!

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a mechanical valve or valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool with a brush (no text or symbols)

Hand holding a small electronic device with a circular inset showing a rotary switch (no text or symbols visible)

Simple line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and a base plate (no text or symbols)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a hand using a tool to remove or remove a dark object into a container (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Hand holding a light bulb with rotating button, placed on a rectangular device (no text or symbols visible)

Technical line drawing of a mechanical component with rotational arrows indicating movement (no text or symbols)

Aenzione!

Technical line drawing of a rectangular box with ventilation slots and labeled dimensions (no text or symbols beyond basic geometry)

Modello	Capacità di lavaggio	Dimensioni (LxPxA mm)	Peso neo	Potenza nominale
MKWM FS60714 INV Touch B	7,0kg	595 x 495 x 850	60kg	2000W
MKWM FS60814 INV Touch B	8,0kg	595 x 565 x 850	68kg	2000W

MANUTENZIONE

MKWM FS60914 INV Touch B

9,0kg

595 x 565 x 850

71kg

2000W

■ Schede prodoo

Read all instructions and explanations for the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on, ensure that the new owner always receives this operation instructions.

SAFETY INSTRUCTIONS

■ Safety Instructions .... 2

INSTALLATION

■ Product Description 9

■ Installation 10

OPERATION

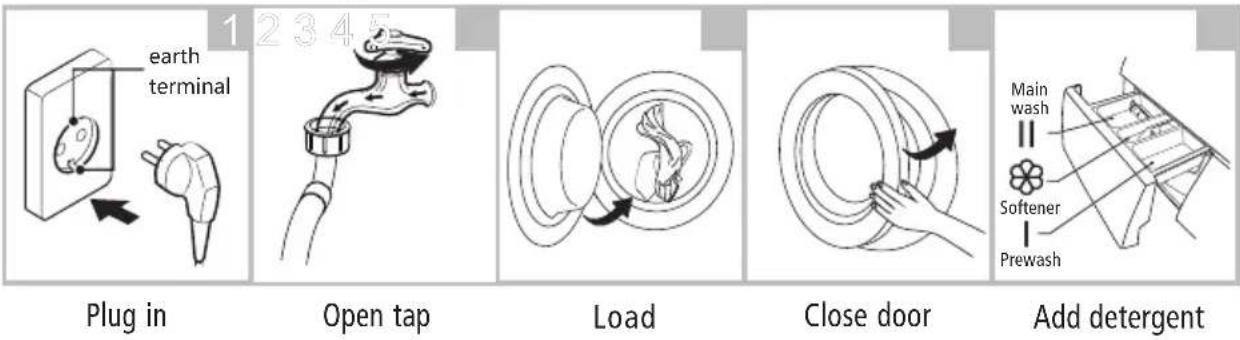

■ Quick Start 13

■ Before Each Washing 15

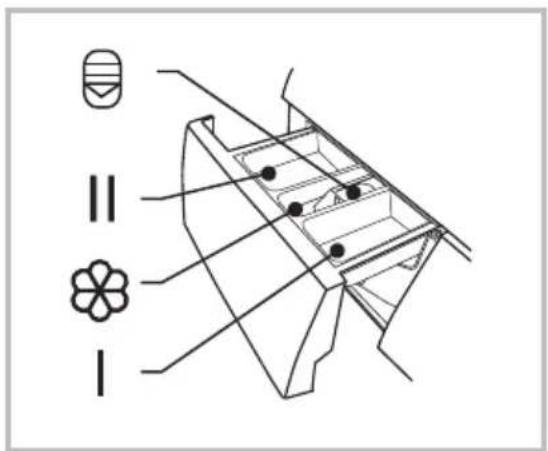

■ Detergent Dispenser 16

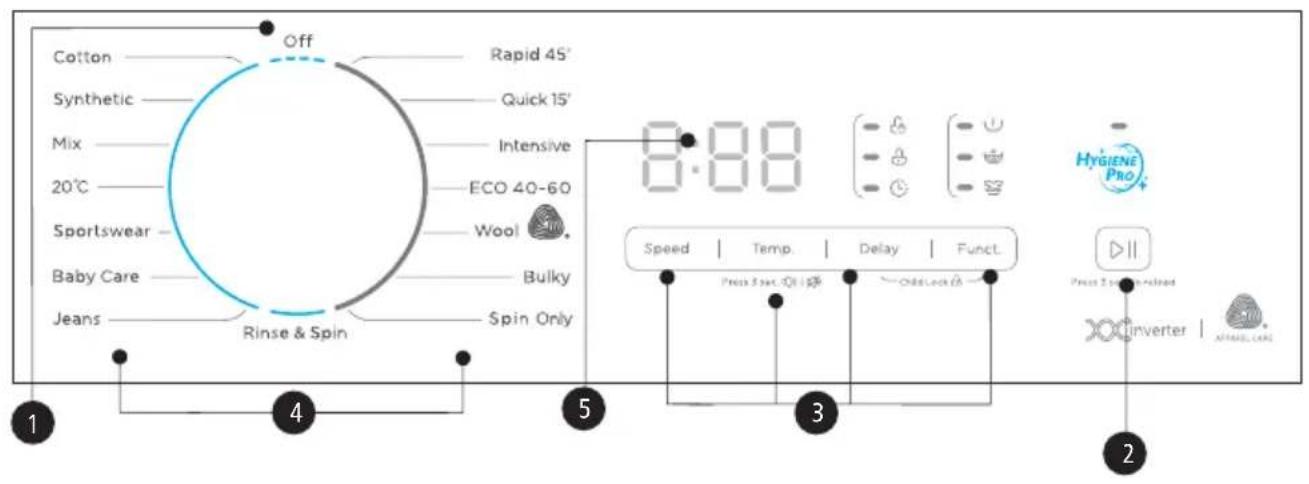

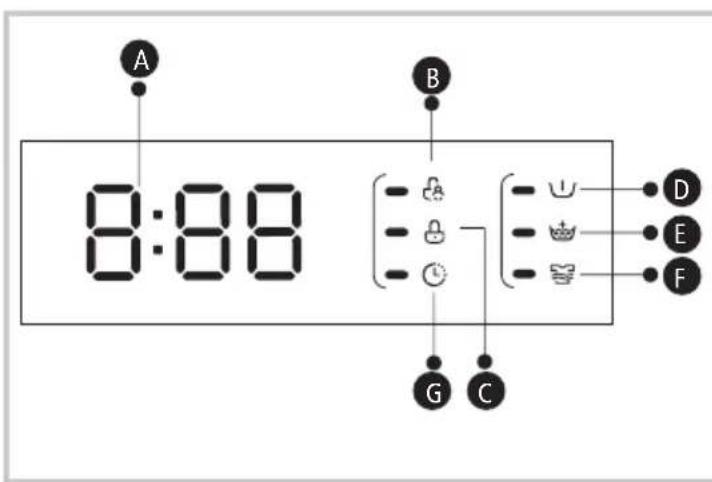

■ Control Panel 18

■ Programmes.... 19

■ Option.... 25

MAINTENANCE

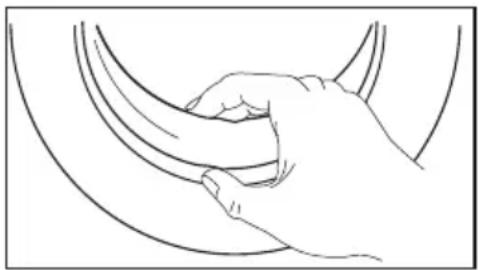

■ Cleaning and Care 29

■ Trouble Shooting 32

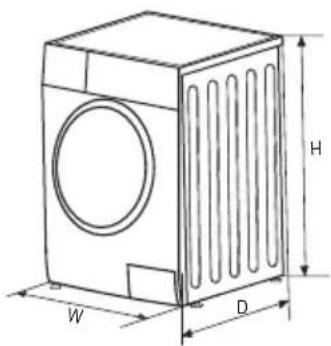

■ Technical Specifications .... 33

■ Product Fiche 34

■ Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

⚠ Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

! Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

⚠ Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  Risk of electric shock!

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.

• Do not operate the machine in rooms with a temperature of below 5^ . This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.

• Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the washing machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

⚠ Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
• Always pull at the plug, not at the cable.
• Always unplug the appliance if it is not being used.

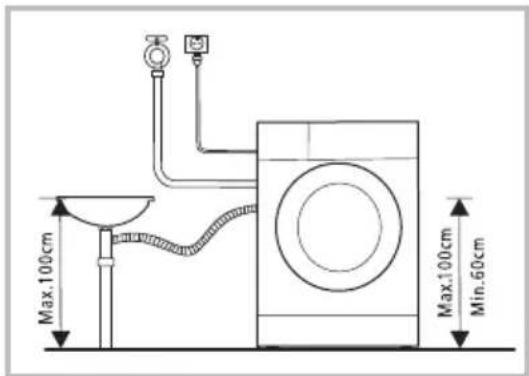

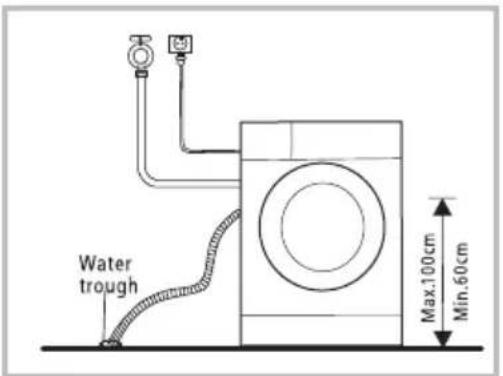

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.

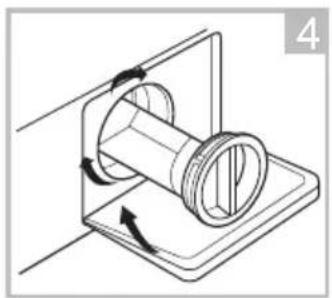

• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the appliance.
  • Thoroughly rinse items that have been washed by hand.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.
- Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

• Before Transport:
  -Bolts shall be reinstalled to the machine by a specialized person
  -Accumulated water shall be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use.

Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

- This appliance is intended to be used in household and similar applications such as:

-Staff kitchen areas in shops, offices and other working environments;

-Farm houses;

-By clients in hotels, motels and other residential type environments;

-Bed and breakfast type environments;

-Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

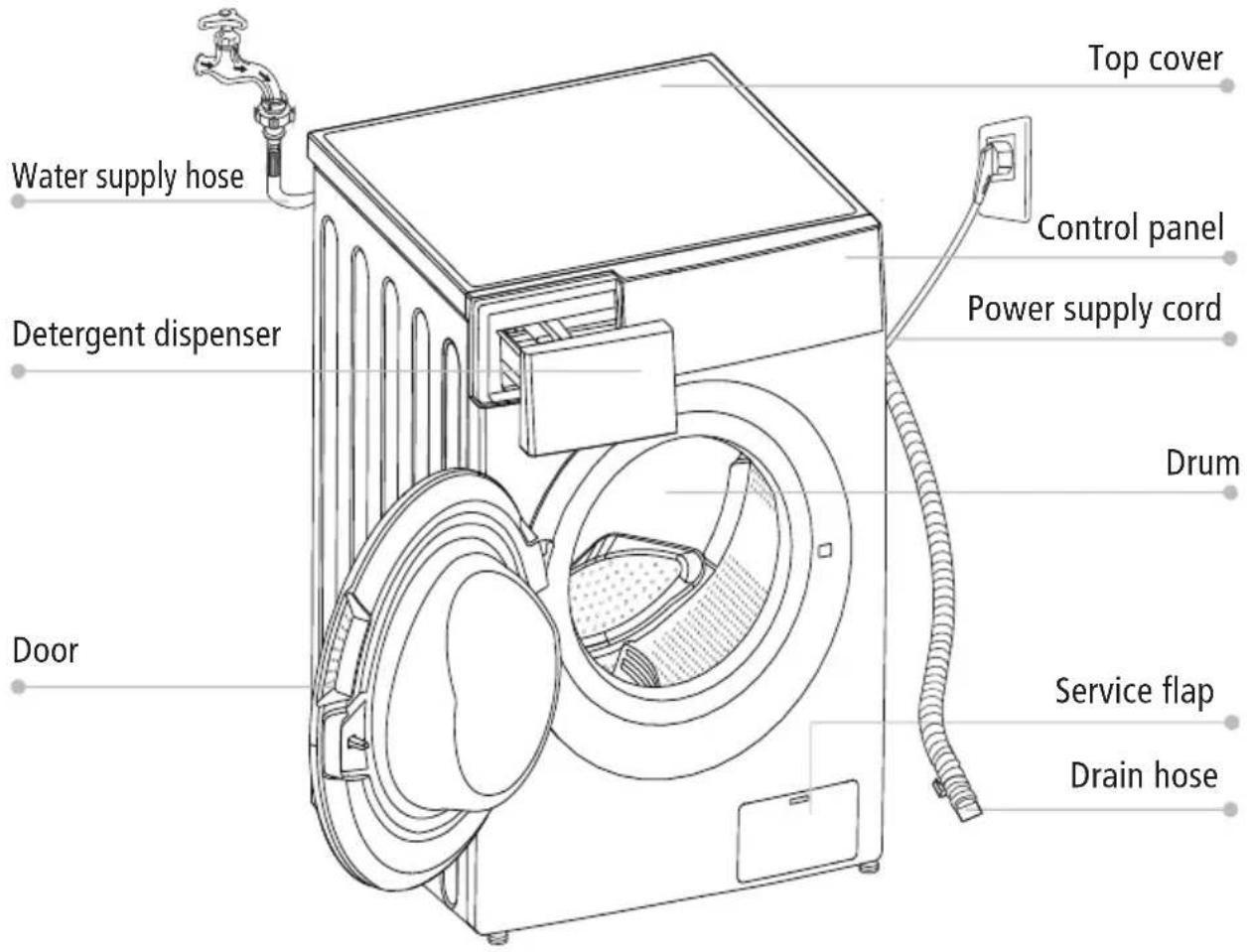

■ Product Description

Note!

- The product picture is for illustration only, please refer to real product as reference.

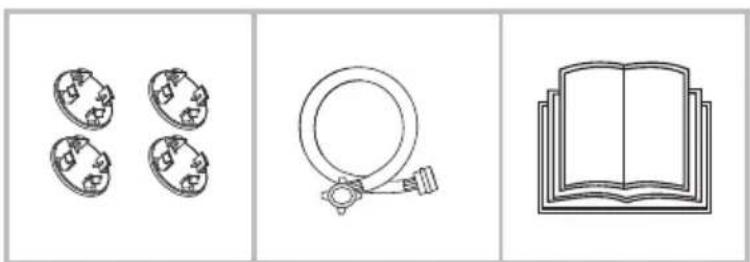

Accessories

Three-panel image showing four circular objects and a magnifying glass, alongside an open book (no text or symbols)

4 x Cover caps
1 x Supply hose cold water
1 x Owner's manual

■ Installation

Installation area

Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation

4. Room temperature is above 0^ C

5. Keep far away from the heat sources such as coal or gas burning appliances.

Simple line drawing of a rectangular box with a central circle and two X-shaped cross marks (no text or symbols)

Unpacking the washing machine

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

Diagram of a 3D box with an arrow pointing upward, and a magnified inset showing a small geometric shape labeled 'a' (no text or symbols present)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

⚠ Warning!

- You must remove the transport bolts from the backside before using the product.

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, partially overlaid by a striped pattern (no text or symbols)

Close the holes using the cover caps.

Levelling the washing machine

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter

- Do not kink, crush or modify water inlet hose.

Close-up of a white object with blue arrows indicating motion or direction, no visible text or symbols

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Close-up of a faucet with blue arrows indicating clockwise motion (no text or symbols)

Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

1. Put it into the water trough. 2. Connect it to the branch drain pipe of the trough.

Quick Start

! Caution!

• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

Calibration

It's recommended to calibrate the washing machine, so that provide the best performance.

The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washing machine and press "Speed" and "Delay" simultaneously for 10 seconds until "t19" is displayed;
4- Press [ ▷II] to start the appliance and wait till “*****” is displayed.

1. Before Washing

Note!

- Detergent need to be added in compartment I if the pre-wash function is selected.

2. Washing

Simple diagram showing a circular ring with two curved arrows indicating rotation or direction (no text or symbols)

Select programme

Select function or remain default settings

Hand pointing at a play button icon (no text or symbols)

Press
Start/Pause to start the program

3. After Washing

Buzzer beep and "End" on display.

■ Before Each Washing

• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and patterned jacket (no text or symbols)

Check the care label

Simple line drawing of a bag being folded into a basket (no text or symbols)

Sort laundry according to color and textile type

Take all items out of the pockets

Two handbags with circular designs, one wrapped in a strap and the other in a closed pocket (no text or symbols)

Tie together long textile strips and belts, close zips and button

Simple line drawing of a money bag with a grid pattern and printed labels (no readable text or symbols)

Put small items into a laundry bag

Line drawing of a traditional-style jacket with three arms and textured body (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Warning!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

! Caution!

- Detergent only need to be added in "compartment I" after selecting pre-wash function.

Programme	I	II
Cotton	○	●	○
Synthetic	○	●	○
Mix	○	●	○
Sportswear	○	●	○
Baby Care	○	●	○
Jeans	○	●	○
Rinse & Spin			○
ECO 40-60		●	○

● Means must ○ Means optional

Programme	I	II
Spin Only
Bulky	○	●	○
Wool		●	○
Quick 15'		●	○
Rapid 45'	○	●	○
20°C		●	○
Intensive		●	○

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton,ECO 40-60,Mix,Bulky	20/30 / 40/60	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton,ECO40-60,Mix,Bulky	Cold/20/30/40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	Synthetic	Cold/20/30/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	20 30/	Delicate textiles, silk, viscose
Special wool detergent	Wool	20 30/	Wool

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

■ Control Panel

1 On/Off

Turn the appliance on and off.

3 Option

This allows you to select additional functions and will light when selected.

5 Display

The display shows settings, estimated remaining time, options and status messages.

2 Start/Pause

Start or pause your programme.

4 Programmes

Available according to the laundry type.

A Display

Wash Time	Delay Time
125	2h
Speed	Error
100	E30
End	Temp.
End	30

B Child Lock C Door Lock

D Pre Wash E Extra Rinse

F Extra Wash G Delay

Programmes

Programme	Load(kg) Display Time
	7.0	8.0	9.0	7.0	8.0	9.0
Cotton	7.0	8.0	9.0	3:49	3:49	3:49
Synthetic	3.5	4.0	4.5	3:28	3:28	3:28
Mix	7.0	8.0	9.0	1:30	1:30	1:30
20°C	3.5	4.0	4.5	1:11	1:11	1:11
Sportswear	3.5	4.0	4.5	1:16	1:16	1:16
Baby Care	7.0	8.0	9.0	1:52	1:52	1:52
Jeans	7.0	8.0	9.0	1:56	1:56	1:56
Rinse & Spin	7.0	8.0	9.0	0:30	0:30	0:30
Spin Only	7.0	8.0	9.0	0:12	0:12	0:12
Bulky	7.0	8.0	9.0	1:48	1:48	1:48
Wool	2.0	2.0	2.0	1:07	1:07	1:07
ECO 40-60	2.0	2.0	2.0	3:13	3:32	3:41
Intensive	7.0	8.0	9.0	3:48	3:48	3:48
Quick 15'	2.0	2.0	2.0	0:15	0:15	0:15
Rapid 45'	2.0	2.0	2.0	0:45	0:45	0:45

Note!

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

Programmes

MKWM FS60714 INV Touch B
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature ^^1)	residual moisture in % /spin speed ^2)
Cotton(60°C)	7.0	60	3:54	1.392	65	60	53/1400
Mix	7.0	40	1:30	0.713	65	40	70/800
20°C	3.5	20	1:11	0.194	41	20	65/1000
Quick 15'	2.0	Cold	0:15	0.03	40	Cold	75/800
Intensive	7.0	40	3:48	1.066	65	40	70/800
ECO 40-60	3.5	--	2:42	0.47	44	34	53/1400
	7.0	--	3:28	0.775	54	36	53/1400
	2.0	--	2:42	0.2	35	21	53/1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: B

Energy test program: ECO 40-60. Other as the default.

Half load for 7.0Kg machine:3.5Kg.

Quarter load for 7.0Kg machine:2.0Kg.

Programmes

MKWM FS60814 INV Touch B
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature ature ^°C^1)	residual moitsure in % /spin speed ^2)
Cotton(60°C)	8.0	60	3:54	1.498	71	60	53/1400
Mix	8.0	40	1:30	0.772	71	40	70/800
20°C	4.0	20	1:11	0.200	44	20	65/1000
Quick 15'	2.0	Cold	0:15	0.03	40	Cold	75/800
Intensive	8.0	40	3:48	1.136	71	40	70/800
ECO 40-60	4.0	--	2:48	0.504	46	29	53/1400
	8.0	--	3:38	0.857	59	34	53/1400
	2.0	--	2:48	0.24	37	21	53/1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: B

Energy test program: ECO 40-60. Other as the default.

Half load for 8.0Kg machine:4.0Kg.

Quarter load for 8.0Kg machine:2.0Kg.

Programmes

MKWM FS60914 INV Touch B
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature ature ^^1)	residual moitsure in % /spin speed ^2)
Cotton(60°C)	9.0	60	3:54	1.603	78	60	53/1400
Mix	9.0	40	1:30	0.830	78	40	70/800
20°C	4.5	20	1:11	0.206	48	20	65/1000
Quick 15'	2.0	Cold	0:15	0.03	40	Cold	75/800
Intensive	9.0	40	3:48	1.206	78	40	70/800
ECO 40-60	4.5	--	2:54	0.63	48	34	53/1400
	9.0	--	3:48	0.935	62	34	53/1400
	2.5	--	2:54	0.22	39	21	53/1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: B

Energy test program: ECO 40-60. Other as the default.

Half load for 9.0Kg machine:4.5Kg.

Quarter load for 9.0Kg machine:2.5Kg.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

① Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending.While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
20°C	20°C default, can choose cold water.
Sportswear	Washing the activewear.
Baby Care	Washing the baby's clothes, it can make the baby's wear cleaner.and make the rinse performance better to protect the baby skin.
Jeans	Specially for jeans.
Rinse&Spin	Extra rinse with spin.
Spin Only	Extra spin with selectable spin speed.
Bulky	This program is specially designed for washing duvet coats.
Wool	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
ECO 40-60	Default 40°C,not selectable,suitabale for laundry washing at about 40°C-60°C.
Intensive	To increase the washing effects, washing time is increased.
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Rapid 45'	Washing few and not very dirty clothes quickly.

Note!

• Reference to your product to select the programmes.

Option

Cycle	Default Temp.(°C)	Default spin speed in rpm		Additional functions
Wash cycles	1400 1500
Cotton	40	1400	1500	➊, Ⓛ, ☎, ☎,
Synthetic	40	1200	1200	➊, Ⓛ, ☎, ☎,
Mix	40	800	800	➊, Ⓛ, ☎, ☎,
20°C	20	1000	1000	➊, ☎,
Sportswear	40	800	800	➊, Ⓛ, ☎,
Baby Care	60	800	800	➊, Ⓛ, ☎, ☎,
Jeans	60	1000	1000	➊, Ⓛ, ☎,
Rinse & Spin	--	1000	1000	➊, ☎,
Spin Only	--	1000	1000	➊,
Bulky	40	1000	1000	➊, Ⓛ, ☎, ☎,
Wool	40	600	600	➊, ☎,
ECO 40-60	40	1400	1500	➊,
Intensive	40	800	800	➊,
Quick 15'	Cold	800	800	➊,
Rapid 45'	40	800	800	➊, Ⓛ, ☎,

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Temp.

Temp.

When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.

Spin Speed

When needed, the spinning speed can be adjusted pressing the Speed button in the following steps: 1400 : 0-400-600-800-1000-1200-1400 1500: 0-400-600-800-1000-1200-1400-1500

Delay

1. Select a programme
2. Press the Delay button to choose the delaying time 0-24h
3. Press [Start/Pause] to start the delay operation

Choose programme

StartSetting time

To cancel the Delay function, press the "Delay" button before starting the program until the display shows 0 h. If the program has already started, switch the appliance off and afterwards on and select a new programme.

Pre Wash

Extra washing function before the main washing cycle starts to increase the washing performance. Note: Detergent needs to be added to the compartment I.

Extra Rinse

The laundry will undergo an extra rinse after selecting this function.

Extra Wash

To increase the washing time and intensity for a better cleaning effect of heavy soiled laundry.

HYGIENE PRO

When the Hygiene Pro light is on, this function is automatically activated in the program. The Self-Clean function will be automatically activated during every washing cycle. Hygiene Pro sytem will keep your laundry always clean.

Child Lock

This function is meant to keep children from misusing the controls.

Press [Delay] and [Funct.] simultaneously for 3 sec until the buzzer beep. The child lock indicator switches on.

Caution!

When the Child Lock is activated, the display will alternately show "CL" and the remaining time.

Pressing any other button will cause the Child Lock indicator to flash for 3 sec. When the program ends, "CL" and "END" will alternate on the display for 10 sec, then the indicator will flash for 3 sec.

The Child Lock deactivates the function of all buttons except the On/Off button and the Child lock button!

Only the simultaneous pressing of the two buttons [Delay] and [Funct.] can deactivate the Child Lock!

Please deactivate the Child Lock before selecting a new program!

Mute the buzzer

Choose the Programme

Press the [Temp.]button for 3sec., the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

- MuAfter ting the buzzer function, the sounds will not be activated any more.

Reload

This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press

[Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the [ ] ▷ II button.

P 3sress[11]

Reload the clothes

Start

! Caution!

- Don't use the Reload function when the water level over the edge of the inner tub or the temperature is higher.

■ Cleaning and Care

⚠ Warning!

- Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine (no text or symbols)

Caution!

- Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter need to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Diagram showing a valve mechanism with rotating arrows and a base component (no text or symbols)

Line drawing of a hand holding a connector with a tool, no text or symbols present

Illustration of a hand holding a small object with a magnified inset showing a mechanical component (no text or symbols)

Illustration of a tennis racket being inserted into a table tennis receiver (no text or symbols)

Clean The Detergent Dispenser

1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.

Technical line drawing of a mechanical component with no visible text or symbols

Press the release and remove the dispenser drawer

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Clean the dispenser drawer and the softener cover under water

Line drawing of a hand inserting a small object into a container (no text or symbols)

Clean the recess with an soft brush

Technical line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Open the lower cover cap

Hand holding a rotary knob on a tray, with no visible text or symbols

Open the filter by turning to the counter clockwise

Remove extraneous matter

Technical diagram of a mechanical component with rotational arrows indicating movement (no text or symbols)

Close the lower cover cap

Caution!

- When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible cause	Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

■ Customer service

Spare part for your appliance are available for a minimum of 10 years.

In case of questions please contact our customer service at:

Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective.
  You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognised!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter")
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

■ Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
MKWM FS60714 INV Touch B	7.0kg	595*495*850	60kg	2000W
MKWM FS60814 INV Touch B	8.0kg	595*565*850	68kg	2000W
MKWM FS60914 INV Touch B	9.0kg	595*565*850	71kg	2000W

■ Product Fiche

Product Information Sheet acc. regulation (EU) 2019/2023

Supplier's name or trade mark:

Supplier's address (b):

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	7.0		Dimensions in cm	Height	85
				Width	60
				Depth	50
EEI_W (°)	59.9		Energy efficiency class (°)	B
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.	0.516 45		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	36	Remaining moisture content (°) (%)	Rated capacity	53
	Half	34		Half	53
	Quarter	21		Quarter	53
Spin speed (°) (rpm)	Rated capacity	1400	Spin-drying efficiency class (°)	B
	Half	1400
	Quarter	1400
Programme duration (°) (h:min)	Rated capacity	3 28 :	Type	free-standing
	Half	2 42 :
	Quarter	2 : 42
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	76		Airborne acoustical noise emis-sion class (°) (spinning phase)	B
Off-mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(2) for the eco 40-60 programme.
(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(°) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Product Information Sheet acc. regulation (EU) 2019/2023

Supplier's name or trade mark:
Supplier's address (b):
Model identifier: MKWM FS60814 INV Touch B
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	8.0		Dimensions in cm	Height	85
				Width	60
				Depth	57
EEI_W (°)	60.0		Energy efficiency class (°)	B
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.545 48		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	34	Remaining moisture content (°) (%)	Rated capacity	53
	Half	29		Half	53
	Quarter	21		Quarter	53
Spin speed (°) (rpm)	Rated capacity	1400	Spin-drying efficiency class (°)	B
	Half	1400
	Quarter	1400
Programme duration (°) (h:min)	Rated capacity	338 :	Type	free-standing
	Half	248 :
	Quarter	2:48
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	76		Airborne acoustical noise emission class (°) (spinning phase)	B
Off-mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(°) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Product Information Sheet acc. regulation (EU) 2019/2023

Supplier's name or trade mark:
Supplier's address (b):
Model identifier: MKWM FS60914 INV Touch B
General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	9.0		Dimensions in cm	Height	85
				Width	60
				Depth	57
EEI_W (°)	59.9		Energy efficiency class (°)	B
Washing efficiency index (°)	1.04		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.570 49		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	34	Remaining moisture content (°) (%)	Rated capacity	53
	Half	34		Half	53
	Quarter	21		Quarter	53
Spin speed (°) (rpm)	Rated capacity	1400	Spin-drying efficiency class (°)	B
	Half	1400
	Quarter	1400
Programme duration (°) (h:min)	Rated capacity	3 48 :	Type	free-standing
	Half	2 54 :
	Quarter	2 : 54
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	76		Airborne acoustical noise emission class (°) (spinning phase)	B
Off-mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(*) for the eco 40-60 programme.

(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(°) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.
