| Product Type | Intercom Station |
| Brand | DataVideo |
| Model | ITC-300SL |
| Dimensions (WxHxD) | 483 x 44 x 200 mm (19" rackmount, 1U) |
| Weight | 2.5 kg |
| Power Supply | 12V DC, 1A (via included adapter) |
| Power Consumption | 12W max |
| Number of Channels | 2-wire or 4-wire, up to 4 channels |
| Audio Bandwidth | 300 Hz – 3.4 kHz |
| Connectors | XLR 3-pin for headset, RJ45 for intercom line |
| Headset Compatibility | Dynamic or electret, with 600 ohms impedance |

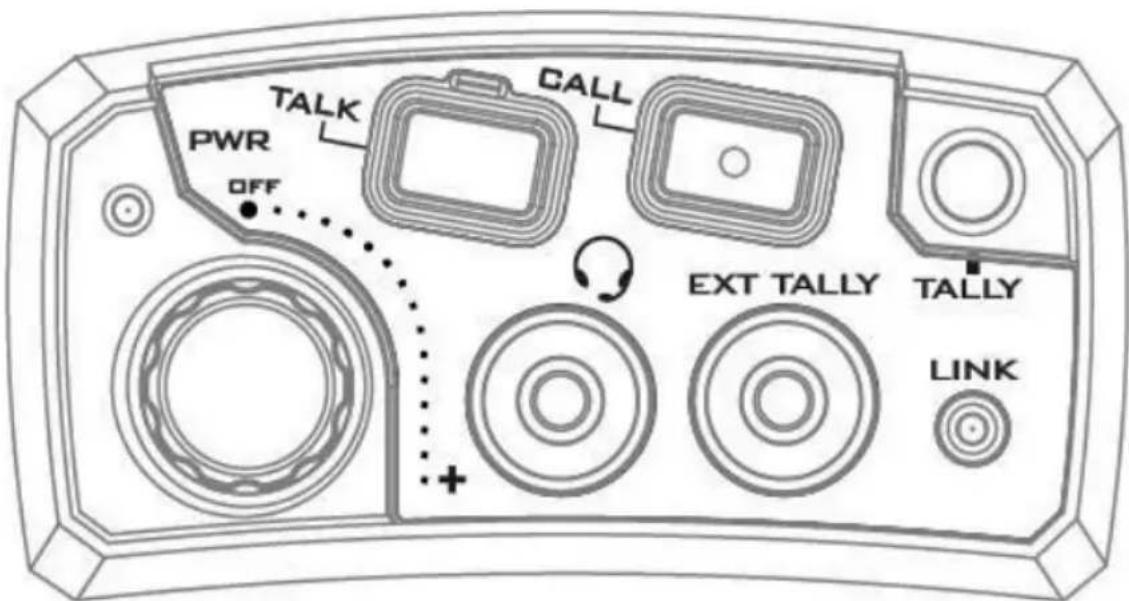

| Key Features | Talk and listen buttons, call signal, adjustable sidetone |
| Indicator Lights | LED for power, call, talk |
| Mounting | 19-inch rack mount kit included |
| Operating Temperature | 0°C to 40°C |
| Cleaning | Use a dry, soft cloth; avoid liquids |
| Safety | Complies with CE, RoHS |
| Spare Parts Availability | Contact DataVideo support or authorized distributors |
| Warranty | 2 years limited manufacturer warranty |
Frequently Asked Questions - ITC-300SL DataVideo
How do I connect the ITC-300SL to an existing intercom system?
Connect the RJ45 line port to the intercom network using a standard Cat5e cable. Ensure the system is powered off before connecting.
What type of headset is compatible?
The unit accepts dynamic or electret headsets with a 3-pin XLR connector and 600 ohms impedance. A compatible headset like the DataVideo HS-300 is recommended.
How do I adjust the sidetone level?
Locate the sidetone trim pot on the rear panel. Use a small screwdriver to adjust the level to your preference while speaking.
Why is the power LED not lighting up?
Check the 12V DC adapter connection. Ensure the power outlet is working. If the adapter is faulty, replace it with a 12V, 1A supply.
Can I use the ITC-300SL with a 4-wire system?
Yes, the ITC-300SL supports both 2-wire and 4-wire operation. Set the internal DIP switch according to your system type (see manual).
How do I reset the unit to factory settings?
There is no factory reset. Restore default settings by adjusting DIP switches and trimmers as listed in the manual or contact support.
What is the maximum cable length for the intercom line?
For reliable operation, use Cat5e cable up to 300 meters (984 ft). For longer distances, consider a repeater.
Is the ITC-300SL compatible with DataVideo ITC-100 series?
Yes, it is backward compatible with ITC-100 series using the same 2-wire communication protocol.
How do I clean the front panel?
Use a dry, soft lint-free cloth to wipe the panel. Do not use any liquids or abrasive cleaners.
Can I mount the unit in a rack without tools?
The included rack ears attach with 4 screws (provided). A screwdriver is required for mounting.
