Product Type	Tally Light Indicator
Brand	Datavideo
Model	TD-3
Power Supply	12V DC via AC adapter
Connectivity	GPI cable to ITC-100SL intercom system
Tally Light - On Air	Red
Tally Light - Standby/Cued	Green
Tally Light - Free/Safe	No light
Warranty	1 year standard, 3 years with registration
Compliance	FCC Part 15, CE
Cleaning	Damp cloth only, no liquid or aerosol cleaners
Operating Environment	Indoor, dry location
Safety Precautions	Do not block ventilation, avoid water, use specified power source
Disposal	WEEE compliant, do not dispose as household waste
Included Accessories	Not specified
Dimensions (Estimated)	Approx. 5 x 5 x 5 cm
Weight (Estimated)	Approx. 0.2 kg

Frequently Asked Questions - TD-3 DataVideo

How do I connect the TD-3 to the intercom system?

Connect the TD-3 to the ITC-100SL intercom system using a GPI cable. The tally light information is sent from the ITC-100SL via this cable.

What do the different tally light colors indicate?

Red indicates the camera is On Air/Live, Green indicates Standby/Cued, and no light means Free/Safe.

How do I clean the TD-3?

Unplug the unit and clean with a damp cloth. Do not use liquid or aerosol cleaners.

What is the warranty coverage?

Standard warranty is 1 year from purchase date. Register within 30 days for a 3-year warranty. Certain parts like LCD panels have a 1-year warranty.

Can I use the TD-3 with other intercom systems?

The TD-3 is designed specifically for use with Datavideo ITC-100SL or compatible systems with GPI interface.

Does the TD-3 require an external power supply?

Yes, it requires a 12V DC input via the included AC adapter.

What should I do if the tally light does not work?

Check the GPI cable connection and ensure the ITC-100SL is sending tally signals. Use the test tool described in the manual to verify.

Is the TD-3 compliant with safety standards?

Yes, it is FCC Part 15 compliant and CE marked.

How do I dispose of the product at end of life?

Do not dispose as household waste. Hand over to a WEEE take-back scheme for recycling.

Can I mount the TD-3 on a camera or tripod?

The manual does not specify mounting options, but it is a small desktop unit. Contact Datavideo for accessory options.

USER MANUAL TD-3 DataVideo

Illustration of a gray electronic device with a dome-shaped top and side slots, featuring a circular button and a cross symbol (no text or labels)

TALLY LIGHT INDICATOR

TD-3

Instruction manual

Table of Contents

FCC COMPLIANCE STATEMENT....3

WARNINGS AND PRECAUTIONS .... 3

WARRANTY 4

STANDARD WARRANTY 4

THREE YEAR WARRANTY 5

DISPOSAL 5

SYSTEM DIAGRAM 6

TALLY LIGHT DEFINITIONS 6

CONNECTION WITH ITC-100SL....6

SERVICE & SUPPORT......8

Disclaimer of Product and Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord's rating.
10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.
11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
• The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
• The product warranty period beings on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.
• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.
• Viruses and malware infections on the computer systems are not covered under warranty.
• Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
  • All mail or transportation costs including insurance are at the expense of the owner.
  • All other claims of any nature are not covered.
  • Cables and batteries are not covered under warranty.
  • Warranty only valid in the country or region of purchase.
• Your statutory rights are not affected.

Three Year Warranty

• All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.
• Certain parts with limited lifetime expectancy such as LCD

panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.

- The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

Symbol of a trash bin crossed with diagonal lines, no text or labels present

For EU Customers only - WEEE Marking

This symbol on the product indicates that it should not be treated as household waste. It must be handed over to the applicable take-back scheme for the recycling of Waste Electrical and Electronic Equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office.

CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européenne" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in all EU official documents.

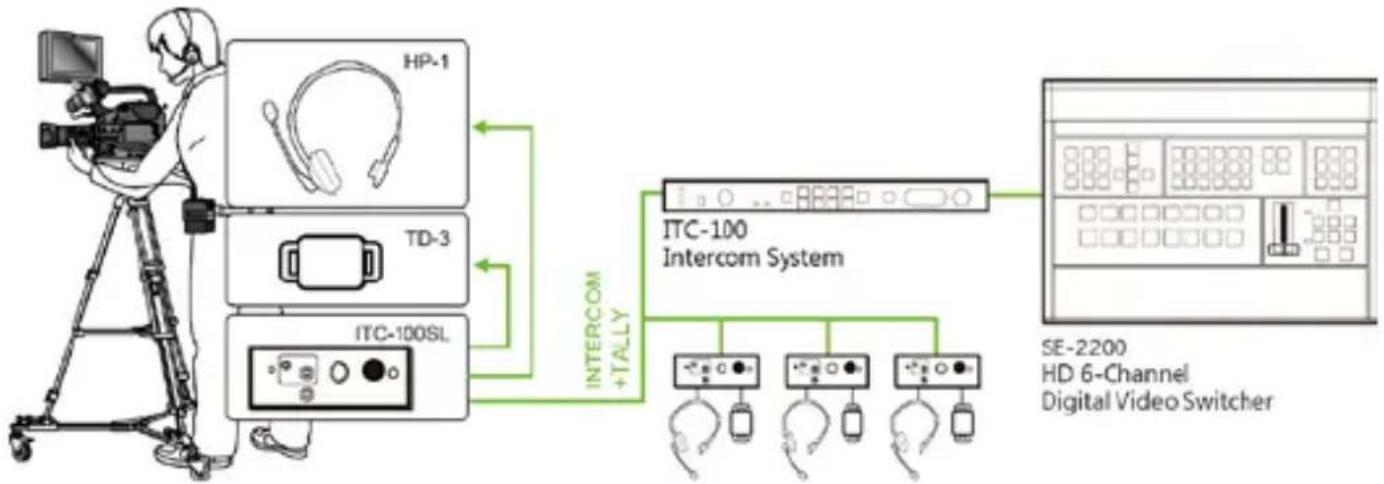

System Diagram

Tally Light Definitions

Message	Online/On Air/Live	Standby/Cued	Free/Safe
Light	Red	Green	No Light

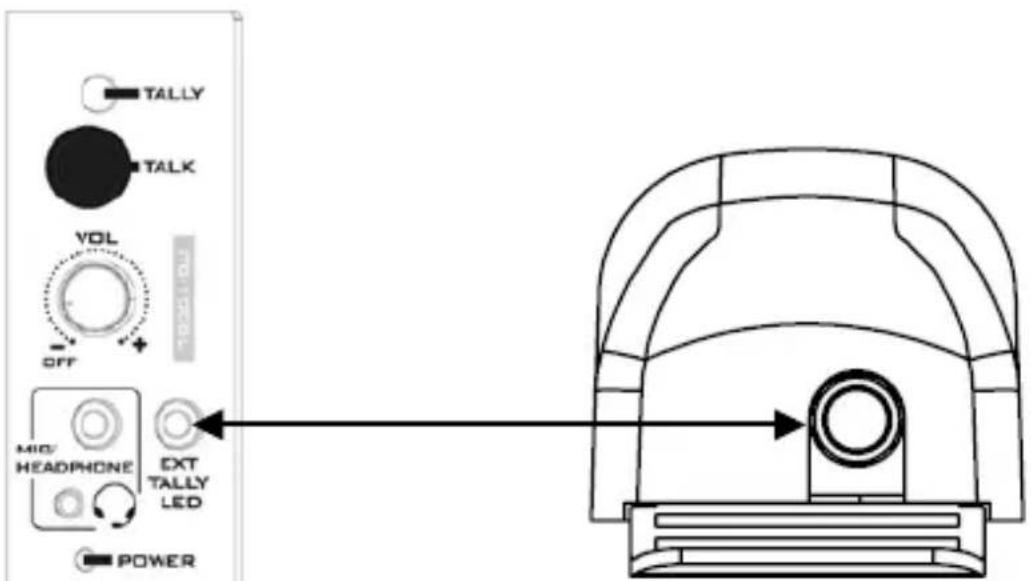

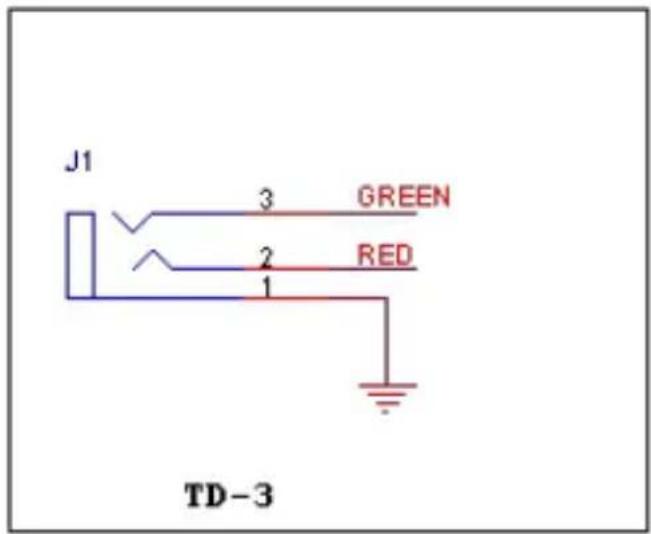

Connection with ITC-100SL

ITC-100SL – Intercom Talkback System

TD-3 – Tally Light Indicator

Tally light information sent from the ITC-100SL via a GPI cable.

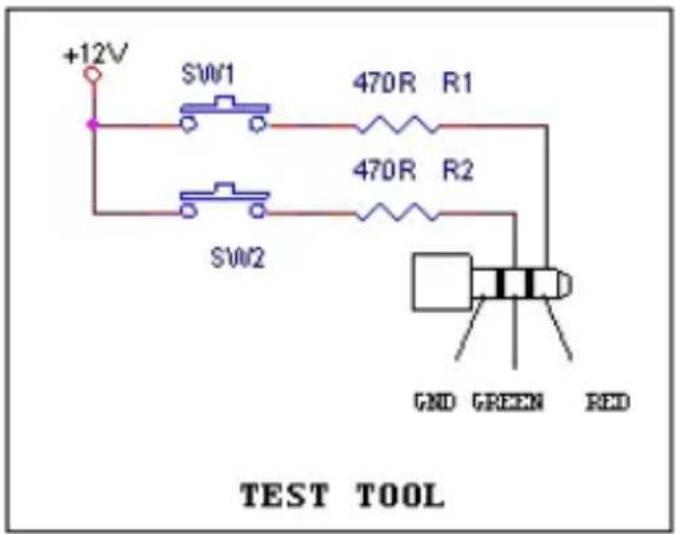

A simple test tool is illustrated in the diagram below.
