Product Type	Freestanding Electric Cooker
Model	EHT6020WG
Brand	VOX Electronics
Overall Dimensions (W x D x H)	60 x 60 x 90 cm
Weight	43 kg
Oven Volume	65 liters
Power Supply	220-240 V ~ 50/60 Hz
Hob Type	Electric solid hotplates (4 zones)
Hob Zone Sizes	2 x 14.5 cm, 2 x 18.0 cm
Oven Functions	Static, Fan, Lower Heat + Fan, Grill, Fast Grill, Double Grill + Fan, Defrost, Oven Lamp
Energy Class	A
Energy Consumption (Conventional)	0.87 kWh/cycle
Energy Consumption (Fan Forced)	0.78 kWh/cycle
Oven Lamp	230 V, 15-25 W, Type E14, 300°C resistant

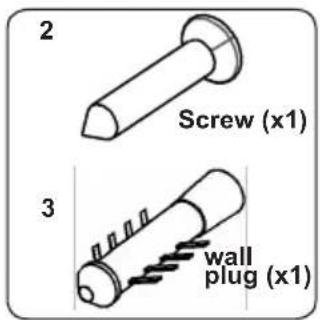

Anti-tilt Device	Included (bracket and screws)
Adjustable Feet	Yes, up to 30 mm height adjustment
Drawer	Flap drawer for storage
Accessories Included	Deep tray, shallow tray, wire grid, grill pan with handle (EHT5020WG model)
Cleaning	Use non-abrasive cream or liquid cleaners; avoid steam cleaners
Safety Features	Child lock? Not specified; hot surface warning; anti-tip bracket
Warranty	Refer to manufacturer

Frequently Asked Questions - EHT6020WG VOX

What should I do when using the oven for the first time?

Before first use, run the empty oven at maximum temperature for 45 minutes to burn off any manufacturing residues. Ensure the room is well ventilated.

How do I clean the hotplates?

Wipe the hotplate with a soft cloth soaked in only water. Then run the hotplate on low for a short time to dry it completely. Do not use abrasive cleaners.

Can I use aluminium foil in the oven?

No, do not line the oven with aluminium foil as it may cause overheating. Only use oven-safe dishes.

How do I remove the oven door for cleaning?

Open the door, unlock the hinge catches with a screwdriver, close the door almost fully, then pull it towards you to remove. Reverse to reattach.

What type of pans should I use on the hob?

Use flat-bottomed pans with thick bases, centered on the hotplate. Ensure pan diameter matches the hotplate size for efficient cooking.

How do I replace the oven lamp?

Switch off and cool the oven. Remove the glass lens, then the bulb. Replace with a 230 V, 15-25 W, E14 bulb rated for 300°C. Refit the lens.

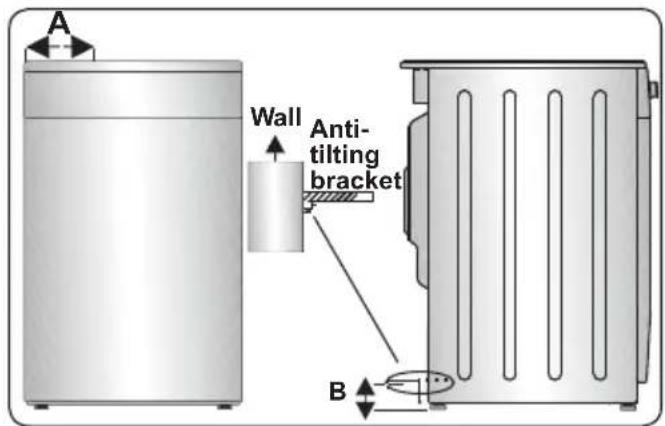

What does the anti-tilt kit do and how to install it?

The anti-tilt kit prevents the cooker from tipping. Attach the bracket to the wall using the provided screw and plug, aligning with the slot on the rear of the cooker. Push the cooker into place.

Why does the oven fan make noise?

Noise may be from vibrating shelves or bakeware. Ensure the oven is level and that shelves are not touching the back panel. Tighten any loose parts.

Can I use the grill with the oven door open?

No, when grilling the oven door must be closed. Set the temperature to 190°C for grilling functions.

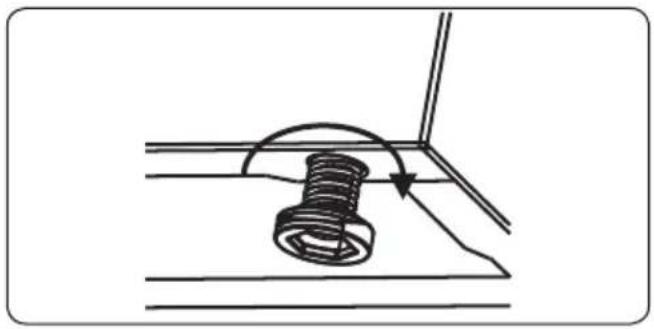

How do I adjust the oven feet?

Turn the feet anti-clockwise to raise the cooker, clockwise to lower. Adjust up to 30 mm. Ensure the cooker is level before use. Use at least two people to lift.

USER MANUAL EHT6020WG VOX

Line drawing of a simple kitchen oven with four top ovens (no text or symbols)

EHT5020WG

EHT6020WG

Line drawing of a simple kitchen oven with four top ovens (no text or symbols)

EHT5020WG

EHT6020WG

Warning sign depicting a person pushing a large block inside a triangle (no text or symbols)

Simple black-and-white icon of a building with arrows indicating direction, enclosed in a circle (no text or symbols)

• Uređaj se zagreva tokom korišćenja. Budite pažljivi da biste izbegli dodirivanje grejnih elemenata unutar rerne.
• Ručke mogu postati vruće nakon kratkotrajne upotrebe.
• Ne koristite abrazivna sredstva ili čelične četke za čišćenje površina u rerni. Tako se mogu ogrebati površine i može doći do pucanja stakla na vratima ili do oštećenja površina.

Technical line drawing of a mechanical assembly with a spring and nut (no text or symbols)

3. KARAKTERISTIKE PROIZVODA

Važno: Specifikacije proizvoda variraju i izgled vašeg uređaja može se razlikovati od uređaja na slikama.

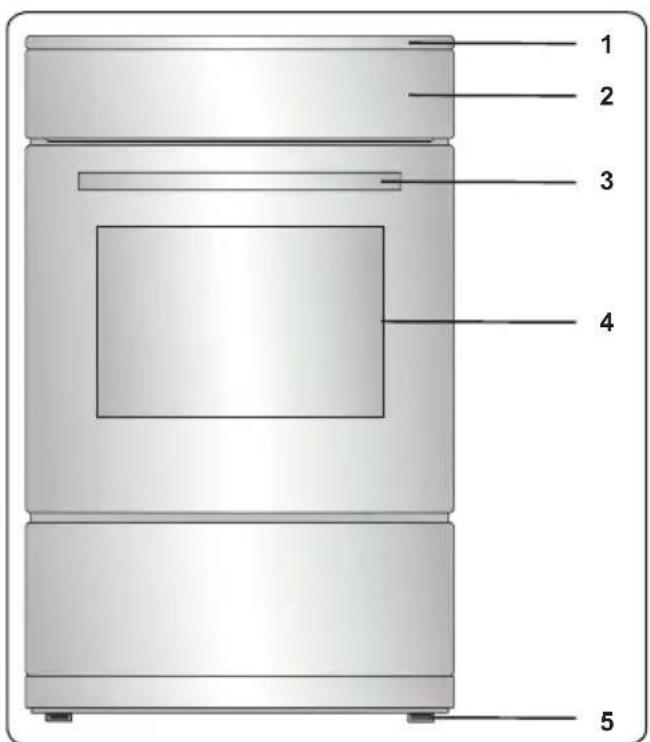

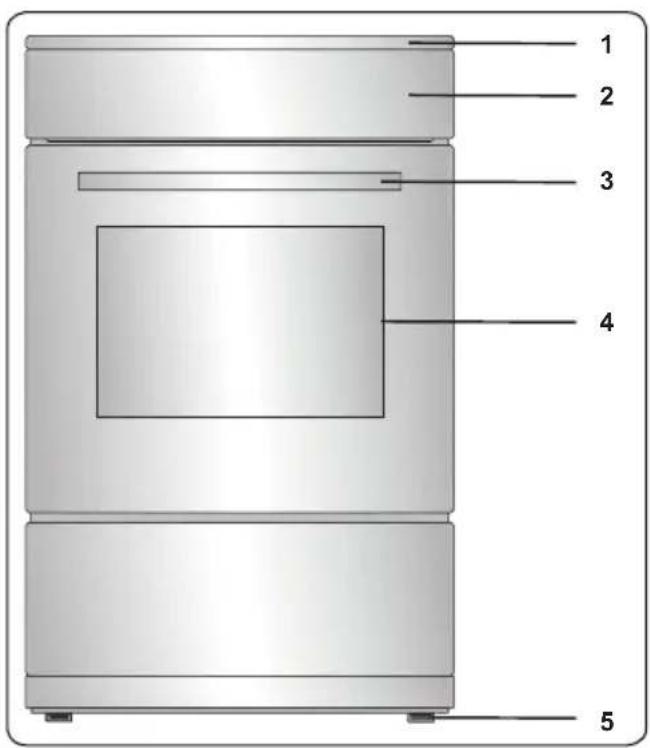

Spisak komponenti

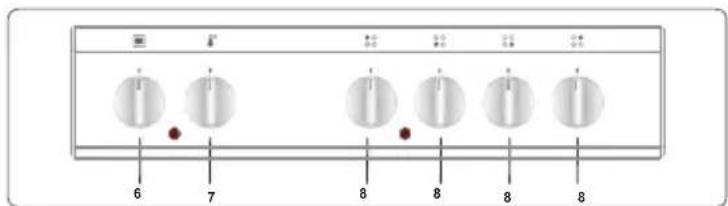

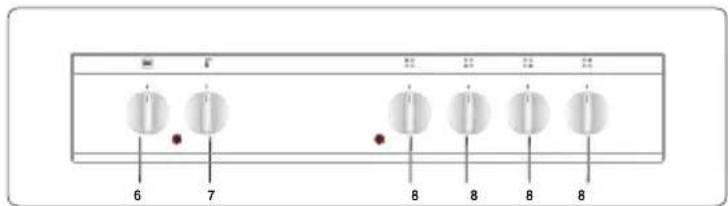

Kontrolna tabla

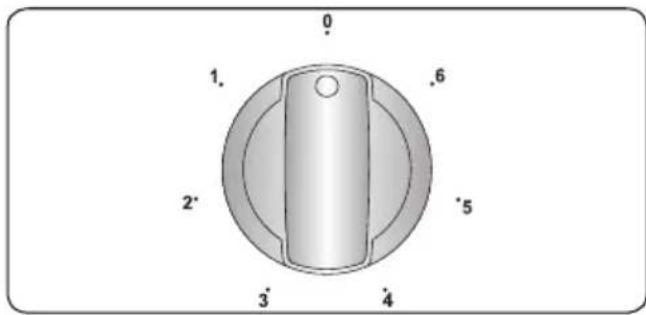

Položaj kontrolnog prekidača	Funkcija
0 Položaj za isključivanje
1	Za topljenje putera itd. i za zagrevanje male količine tečnosti
2	Za zagrevanje veće količine tečnosti. Za pripremu kremova i sosova.
3 Za odmrzavanje hrane za kuvanje
4 Za kuvanje delikatnog mesa i ribe
5 Za pečenje mesa i odreska
6	Za ključanje velikih količina tečnosti ili za prženje

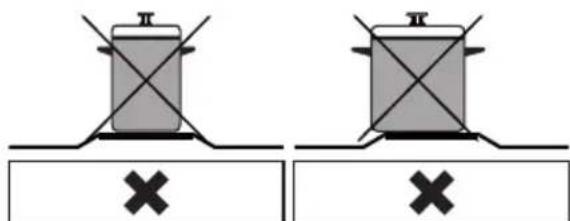

UPOZORENJE:

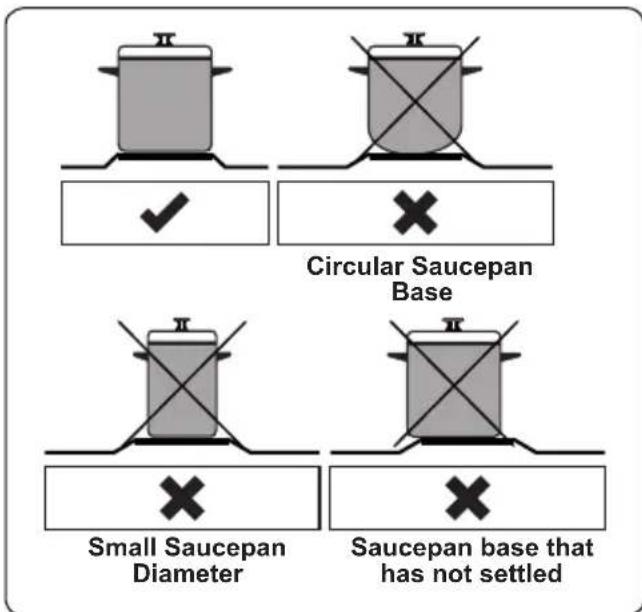

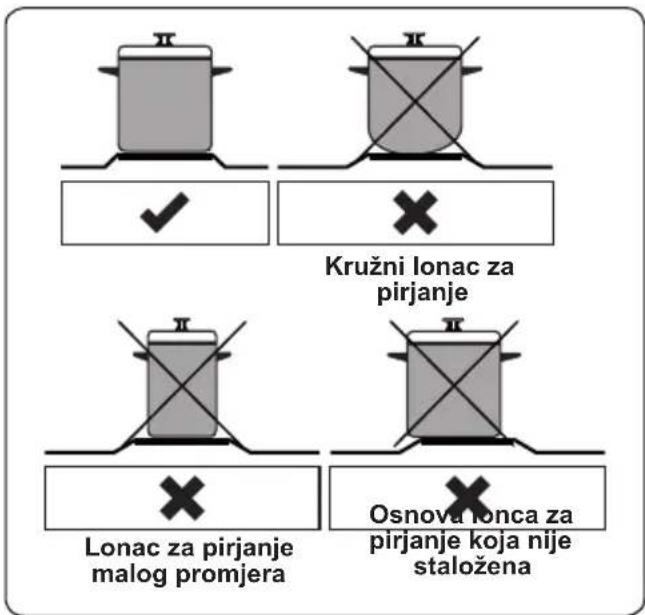

Okruglo dno šerpe

Two identical diagrams showing a cooking pot with crossed handles and a 'X' symbol below, no text or labels present.

Simple icon of a sun inside a dark cube (no text or symbols)

Svetiljka rerne:

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Funkcija statičko

pečenje: Termostat i svetiljka za upozorenje na rerni će se uključiti, i donji i gornji grejači će početi da rade. Funkcija statičko pečenje emituje

Abstract geometric symbol with a three-blade propeller inside a dark square frame (no text or symbols)

Funkcija ventilatora:

Termostat i svetiljka za upozorenje na rerni će se uključiti, donji i gornji grejači i ventilator će početi da rade. Ova funkcija je

dobra za pečenje peciva. Pečenje se obavlja putem donjeg i gornjeg grejača u rerni i putem ventilatora koji omogućava cirkulaciju vazduha, što će omogućiti blagi efekat roštilja na hrani. Preporučuje se da prethodno zagrejete rernu oko 10 minuta.

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Funkcija donjeg grejanja i ventilator:

Termostat i svetiljka za upozorenje na rerni će se uključiti, i donji grejač i ventilator će početi da rade.

Ventilator i funkcija donji grejač su idealni za pripremu hrane, kao što je pica, ravnomerno za kratak period. Dok ventilator jednako raspoređuje toplotu u rerni, donji grejač peče hranu. Preporučuje se da prethodno zagrejete rernu oko 10 minuta.

Simple line drawing of a zigzag line on a dark background (no text or symbols)

Funkcija roštilja:

Termostat i svetiljka za upozorenje na rerni će se uključiti, i gornji grejač će početi da radi. Ova funkcija se koristi za roštiljanje

Abstract geometric design with a dark square and two horizontal white lines above it, no text or symbols present.

Funkcija brzog

roštiljanja: Termostat i svetiljka za upozorenje na rerni će se uključiti, i gril i gornji grejači će početi da rade. Funkcija se koristi za

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Funkcija dvostruki roštilj i ventilator:

Termostat i svetiljka za upozorenje na rerni će se uključiti, i roštilj, gornji grejači i ventilator će početi da

rade. Funkcija se koristi za brže roštiljanje i za hranu sa većom površinom. Oba grejača i grejač za roštilj se aktiviraju zajedno sa ventilatorom u cilju omogućavanja jednakog pečenja. Koristite gornje police rerne. Blago nanesite ulje na rešetku da biste sprečili da se hrana zalepi i postavite hranu na centar

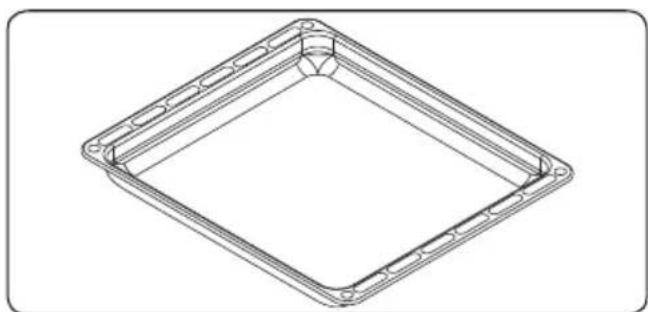

Technical line drawing of a square frame with bolt holes and internal ribs (no text or symbols)

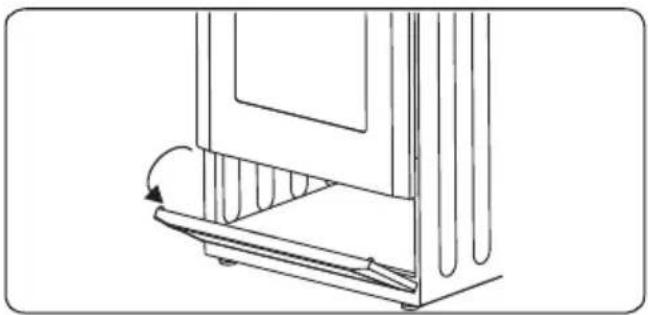

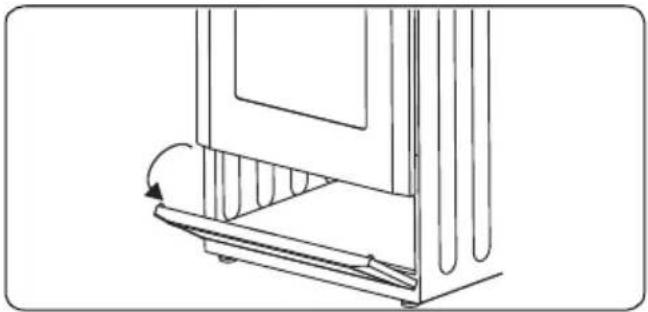

Fioka rerne

Vaš uređaj ima fioku za čuvanje dodatne opreme kako što su poslužavnici, police, rešetke ili manje šerpe i tiganje.

UPOZORENJE: Unutrašnja površina fioke može postati vruća tokom upotrebe. Ne ostavljajte nikakvu u, plastiku ili zapaljive materijale u

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

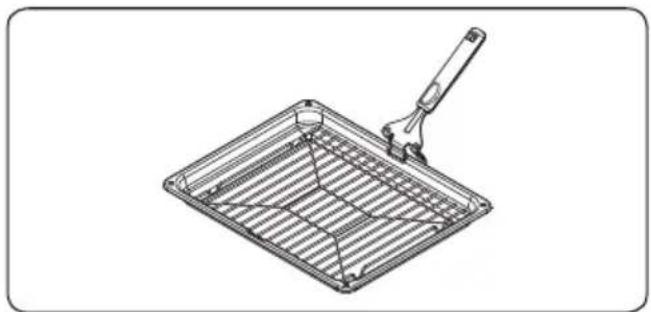

Set posuda i drška za roštilj - EHT5020WG

Set posuda za roštilj najbolje se koristi za pečenje odreska i slične hrane.

Line drawing of a grater with a handle and mesh grille (no text or symbols)

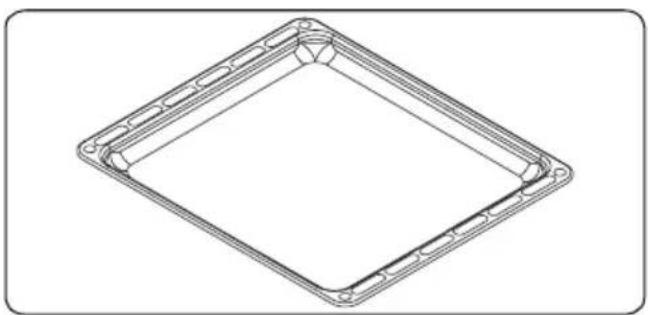

Plitki poslužavnik

Plitki poslužavnik je najbolje koristiti za pečenje peciva.

Postavite poslužavnik na bilo koju policu i gurnite do kraja da budete sigurni da je pravilno postavljen.

Technical line drawing of a square frame with bolt holes and central hub (no text or symbols)

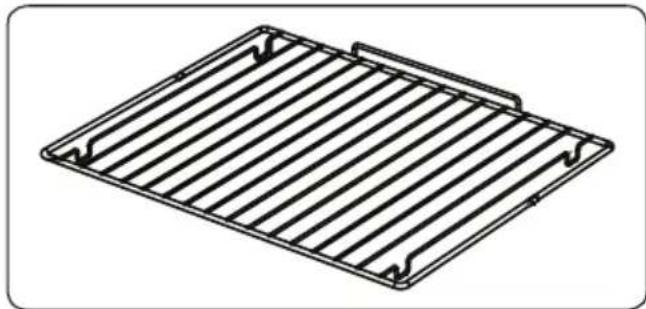

Žičana rešetka

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

UPOZORENJE

Diagram of a metal rack with an arrow indicating force or direction, no text or symbols present

5. ČIŠĆENJE I ODRŽAVANJE

5.1 Čišćenje

UPOZORENJE: Isključite uređaj i ostavite da se ohladi pre čišćenja.

Opšta uputstva

• Pre nego što počnete da koristite sredstvo za čišćenje vašeg šporeta, proverite da li je prikladno i da li ga je preporučio proizvođač.
• Koristite kremasta ili tečna sredstva za čišćenje koja ne sadrže čestice. Ne koristite kaustične (korozivne) paste, abrazivna sredstva u prahu, čeličnu žicu ili tvrde alate za čišćenje jer mogu da oštete površine šporeta.

Ne koristite sredstva za čišćenje koja sadrže čestice zato što mogu oštetiti površine od stakla, emajla i/ili boju na m uređaju.

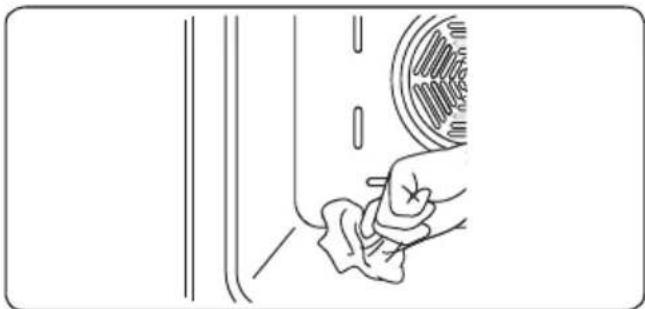

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Čišćenje ringle

• Redovno čistite ringle.
- Obrišite ringlu mekom krpom koja je natopljena samo vodom. Zatim, nakratko uključite ringlu da je potpuno osušite.

Čišćenje emajliranih delova

Technical line drawing of a mechanical assembly with no visible text or symbols

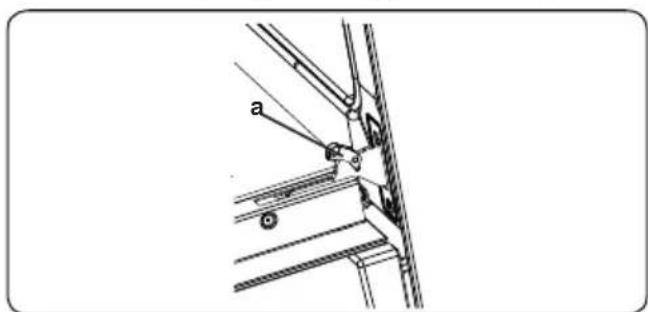

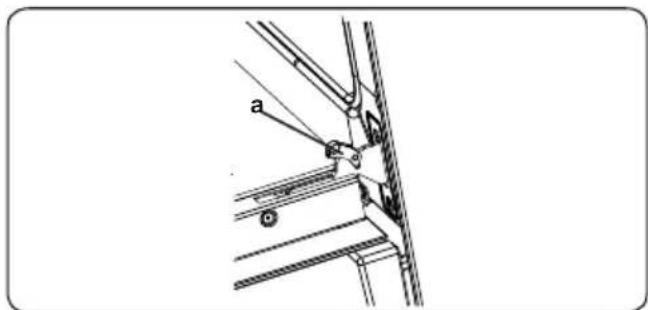

1. Otvorite šarku za zaključavanje (a) (uz pomoć šrafcigera) do krajnjeg položaja.

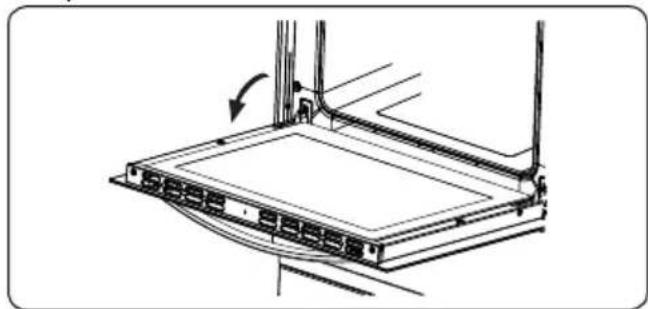

1. Zatvarajte vrata dok ne dođu u položaj da su skoro zatvorena i povucite vrata prema sebi da ih izvadite.

Diagram of a door with an open lid and internal compartments, showing an upward arrow (no text or symbols)

5.2 Održavanje

UPOZORENJE: Održavanje ovog uređaja treba vršiti samo ovlašćeni serviser ili kvalifikovani električar.

Promena svetiljke rerne

UPOZORENJE: Isključite uređaj i ostavite da se ohladi pre čišćenja.

- Izvadite stakleni poklopac, zatim izvadite i sijalicu.

• Stavite novu sijalicu (otpornu na 300 °C) da zamenite sijalicu koju ste izvadili (230 V, 15-25 Watt, tip E14).

Line drawing of a simple kitchen oven with four top ovens (no text or symbols)

EHT5020WG

EHT6020WG

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS....3
1.1 General Safety Warnings ....3
1.2 Installation Warnings ....6
1.3 During Use 6
1.4 During Cleaning and Maintenance ....8
2.INSTALLATION AND PREPARATION FOR USE....10
2.1 Instructions for the Installer ....10

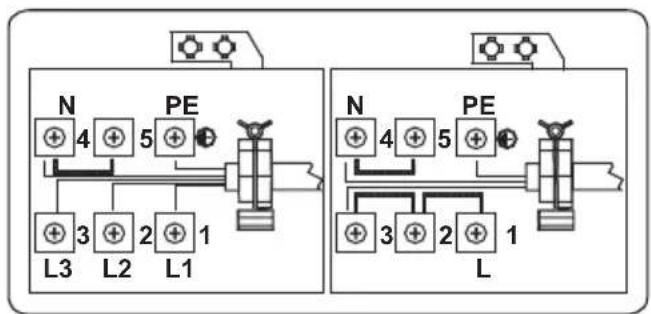

2.2 Electrical Connection and Safety.... 11
2.3 Anti-tilting kit 12
2.4 Adjusting the feet....12
3.PRODUCT FEATURES....13
4.USE OF PRODUCT 14
4.1 Hob Controls....14
4.2 Oven Controls....14
4.3 Cooking Table....16
4.4 Accessories 16
5.CLEANING AND MAINTENANCE....17
5.1 Cleaning 17
5.2 Maintenance....18
6.TROUBLESHOOTING&TRANSPORT 19
6.1 Troubleshooting....19
6.2 Transport 19
7.TECHNICAL SPECIFICATIONS....22
7.1 Energy class....22

1. SAFETY INSTRUCTIONS

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.
• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 General Safety Warnings

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish such a fire with water, but switch off the appliance and cover the flame with a lid or a fire blanket.

⚠️ CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously

WARNING: Danger of fire: Do not store items on the cooking surfaces.
⚠️ WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid.
• Do not operate the appliance with an external timer or separate remote-control system.

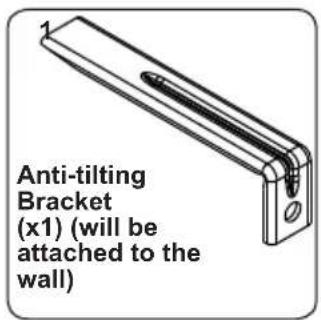

WARNING: To prevent the appliance tipping, the stabilising brackets must be installed. (For detailed information refer to the anti-tilting kit set guide.)

Warning symbol depicting a person pulling a large block inside a triangle (no text or numbers)

Simple black-and-white icon of a machine with directional arrows, enclosed in a circle (no text or symbols)

• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside the oven.
• Handles may become hot after a short period of time during use.
• Do not use harsh abrasive cleaners or scourers to clean oven surfaces. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
• Do not use steam cleaners to clean the appliance.

⚠️ WARNING: To avoid the possibility of electric shocks, make sure that the appliance is switched off before replacing the lamp.

⚠️ CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

- Your appliance is produced in accordance with all

applicable local and international standards and regulations.

• Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for heating a room.

- Do not use the oven door handles to lift or move the appliance.

- All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.

- Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.

- Do not let children climb on the oven door or sit on it while it is open.

- Please keep children and animals away from this

appliance.

1.2 Installation Warnings

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by incorrect placement and installation by unauthorised people.

- When the appliance is unpacked, make sure that it has not been damaged during transportation. In the case of a defect, do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

- Protect your appliance from the atmosphere. Do not expose it to sun, rain, snow, dust or excessive humidity.

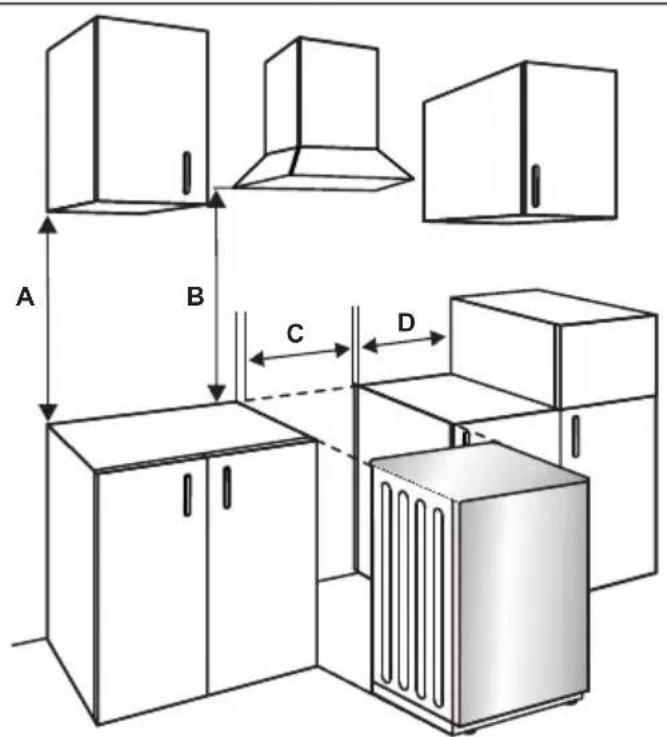

- Materials around the appliance (i.e. cabinets) must be able to withstand a minimum temperature of 100^ .

- The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 During Use

- When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

• Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.
- Do not put flammable or combustible materials in or near the appliance when it is operating.
• Always use oven gloves to remove and replace food in the oven.
- Under no circumstances should the oven be lined with aluminium foil as overheating may occur.
- Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product.

Do not leave the cooker unattended when cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the cooker off and cover the pan with its lid or a fire blanket.

• Always position pans over the centre of the cooking zone, and turn the handles to a safe position so they cannot be knocked.
- If the product will not be used for a long period of time, turn the main control switch off. Turn the gas valve off when gas appliances are not in use.
- Make sure the appliance control knobs are always in the “0” (stop) position when the appliance is not in use.
- The trays incline when pulled out. Take care not to spill or drop hot food when removing it from the oven.
- Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.

- Do not place heavy or flammable items (e.g. nylon, plastic bags, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. handles).

⚠️ CAUTION: The inside surface of the storage compartment may get hot when the appliance is in use. Avoid touching the inside surface.

- Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 During Cleaning and Maintenance

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents when needed. CE Declaration of conformity

CE We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

Disposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

2. INSTALLATION AND PREPARATION FOR USE

WARNING : This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency and/or nature of the gas and gas pressure) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).

2.1 Instructions for the Installer

General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.
- Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
- The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
- The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.
- The appliance can be placed close to other furniture on condition that, in the area where the appliance is set up, the furniture's height does not exceed the height of the cooktop.

Installation of the Cooker

- If the kitchen furniture is higher than the cooktop, the kitchen furniture must be at least 10 cm away from the sides of appliance for air circulation.

- If a cooker hood or cupboard is to be installed above the appliance, the safety distance between cooktop and any cupboard/cooker hood should be as shown below.

A (mm) Cupboard 420
B (mm) Cooker Hood 650/700
C (mm) Product Width
D (mm) 50

2.2 Electrical Connection and Safety

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

• Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).

- During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.

- Do not use adaptors, multiple sockets and/or extension leads.

- The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.

• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.
• The appliance is designed for a power supply of 220-240 V\~. If your supply is different, contact the authorized service personnel or qualified electrician.
• The power cable (H05VV-F) must be long enough to be connected to the appliance.
• The fused switch must be easily accessible once the appliance has been installed.
• Ensure all connections are adequately tightened.
  • Fix the supply cable in the cable clamp and then close the cover.
• The terminal box connection is placed on the terminal box.

2.3 Anti-tilting kit

The document bag contains an anti-tilting kit. Loosely attach the anti-tilting bracket (1) to the wall using the screw (2) and wall plug (3), following the measurements shown in the figure and table below. Adjust the height of the anti-tilting bracket so that it lines up with the slot on the cooker and tighten the screw. Push the appliance towards the wall making sure that the anti-tilting bracket is inserted into the slot on the rear of the appliance.

Product Dimensions (Width X Depth X Height) (Cm)	A (mm) B (mm)
60x60x90 (Double Oven) 297	5 52
50x60x90 (Double Oven) 247	5 52
90x60x85 430 107
60x60x90 309.5 112
60x60x85 309.5 64
50x60x90 247.5 112
50x60x85 247.5 64
50x50x90 247.5 112
50x50x85 247.5 64

2.4 Adjusting the feet

Your product stands on four adjustable feet. For safe operation, it is important that your appliance is correctly balanced. Make sure the appliance is level prior to cooking. To increase the height of the appliance,

turn the feet anti-clockwise. To decrease the height of the appliance, turn the feet clockwise.

It is possible to raise the height of the appliance up to 30 mm by adjusting the feet. The appliance is heavy and we recommend that a minimum of 2 people lift it. Never drag the appliance.

Technical line drawing of a bolt securing a nut, showing mechanical assembly (no text or symbols)

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

List of Components

1. Cooktop
2. Control Panel
3. Oven Door Handle
4. Oven Door
5. Adjustable Feet

Control Panel

EHT5020WG

1. Oven Function Control Knob
2. Oven Thermostat Knob
3. Hob Control Knob

EHT6020WG

1. Oven Function Control Knob
2. Oven Thermostat Knob
3. Hob Control Knob

4. USE OF PRODUCT

4.1 Hob Controls

Hotplate

The hotplate is controlled by a knob with 6 positions.

The hotplate can be operated by switching the control knob to one of these positions. Near each hob control knob, there is a small symbol that shows which hotplate is controlled by that knob. The on/off light on the control panel shows which hotplates are in use.

Knob Position	Function
0 Off position
1	To melt butter etc. and to warm small quantities of liquid
2	To warm bigger quantities of liquid. To prepare creams and sauces
3 To defrost food for cooking
4 To cook delicate meat and fish
5 To roast meat and steak
6 To boil big quantities of liquid or to fry

WARNING:

• When operating the hotplate for the first time, or after it has not been used for a prolonged period of time, it is necessary to eliminate any humidity which may have accumulated around the electrical elements of the plate. To do this, operate the hotplate on its lowest setting for about 20 minutes.
• Never operate a hotplate without pans on. Otherwise, form defects may occur on the cooktop.
• Only use flat-bottomed pans with thick bases.
  • Make sure the bottom of the pan is dry

before placing it on a hotplate.

• When a hotplate is in operation, make sure that the pan is centred correctly on it.
• Never use a pan with a smaller or larger diameter than that of the hotplate as this will waste energy.

• If possible, always place lids on the pans to avoid heat loss.
• The temperature of accessible parts may become high while the appliance is operating. It is imperative to keep children and animals well away from the hob during use and until it has fully cooled after use.
• If you notice a crack on the cooktop, it must be immediately switched off and replaced by an authorized service personnel or technician.

4.2 Oven Controls

Oven function control knob

Turn the knob to the corresponding symbol of the desired cooking function. For the details of different functions see 'Oven Functions'.

Oven thermostat knob

After selecting a cooking function, turn this knob to set the desired temperature. The oven thermostat light will illuminate whenever the thermostat is in operation to heat up the oven or maintain the temperature.

Oven Functions

Dark rectangular object with a small white sun icon in the top-right corner (no text or symbols)

Oven Lamp: Only the oven light will switch on. It will remain on for the duration of the cooking function.

Abstract geometric symbol resembling a three-blade propeller or fan inside a dark square frame (no text or symbols)

Defrost Function: The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven

on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Solid dark rectangle with two horizontal white lines on top and bottom (no text or symbols)

Static Cooking

Function: The oven's thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The

static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Fan Function: The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating.

This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes.

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Lower Heating and Fan Function: The

oven's thermostat and warning lights will switch on, and the lower heating element and fan will start

operating. The fan and lower heating

function is ideal for baking food, such as pizza, evenly in a short period of time. The fan evenly disperses the heat of the oven, while the lower heating element bakes the food. It is recommended that you preheat the oven for about 10 minutes.

Simple geometric shape with a wavy line inside a square frame (no text or symbols)

Grilling Function: The oven's thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for

grilling and toasting foods on the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Simple 3D-rendered dark square with a white wavy line above it, no text or symbols present.

Faster Grilling

Function: The oven's thermostat and warning lights will switch on, and the grill and upper heating elements will start

operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Double Grill and Fan Function: The oven's thermostat and warning lights will switch on, and the grill upper heating elements and fan will

start operating. This function is used for faster grilling of thicker food and for grilling of food with a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven.

Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^

4.3 Cooking Table

Function	Dishes			min.
Static	Puff Pastry 1 -	2 170-190	35-45
	Cake 1 - 2	170-190	30-40
	Cookie 1 - 2	170-190	30-40
	Stew 2 175	200	40-50
	Chicken 1 - 2	200	45-60
Fan	Puff Pastry 1 -	2 170-190	25-35
	Cake 1 - 2	3 150-170	25-35
	Cookie 1 - 2	3 150-170	25-35
	Stew 2 175	200	40-50
	Chicken 1 - 2	200	45-60
Grilling	Grilled meatballs	4 200	10-15
	Chicken * 190	50-60
	Chop 3 - 4	200	15-25
	Beefsteak 4	200	15-25

*If available cook with roast chicken skewer.

4.4 Accessories

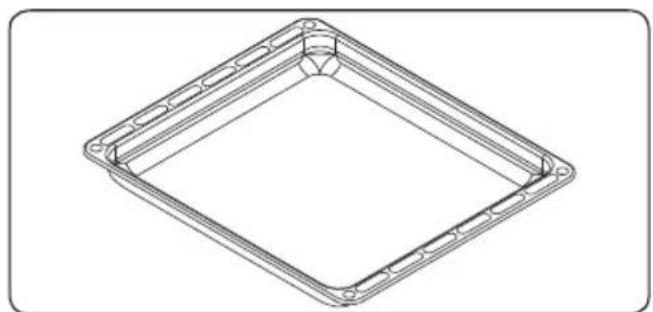

The Deep Tray

The deep tray is best used for cooking stews.

Put the tray into any rack and push it to the end to make sure it is placed correctly.

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

The Flap Drawer

Your appliance includes a drawer for storing accessories such as trays, shelves, grids, or small pots and pans.

WARNING: The inner surface of the drawer may become hot during use.

Do not store any food, plastic flammable materials in the drawer.

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

The Grill Pan and Handle Set - EHT5020WG The grill pan set is best used for grilling steaks and similar foods.

WARNING: The grill pan has a detachable handle. Make sure when using the grill pan handle that it is centralised and secure, as shown in the figure. Do not leave the handle in position while grilling is in operation.

Line drawing of a grater with a handle, no text or symbols present

The Shallow Tray

The shallow tray is best used for baking pastries.

Put the tray into any rack and push it to the end to make sure it is correctly placed.

Technical line drawing of a square frame with bolt holes and central hub (no text or symbols)

The Wire Grid

The wire grid is best used for grilling or for

processing food in oven-friendly containers.

Technical line drawing of a rectangular metal grate or rack structure with evenly spaced slats (no text or symbols)

WARNING

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Diagram of a metal rack with a curved panel and directional arrow indicating rotation (no text or symbols)

5. CLEANING AND MAINTENANCE

5.1 Cleaning

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles, as they may scratch the glass, enamelled and/or painted parts ur appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.
• You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car wheel rim (no text or symbols)

Cleaning the Hotplate Heater

• Clean the hotplate heater on a regular basis.
• Wipe the hotplate with a soft cloth soaked in only water. Then, run the hotplate for a short time to dry it completely.

Cleaning the Enamelled Parts

- Clean the enamelled parts of your appliance on a regular basis.

- Wipe the enamelled parts with a soft cloth soaked in soapy water. Then, wipe them over again with a wet cloth and dry them.

Do not clean the enamelled parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the enamel for a long time.

Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.
• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the

stainless steel for a long time.

Cleaning Painted Surfaces (if available)

- Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

1. Open the oven door.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

1. Close the door until it almost reaches the fully closed position and remove the door by pulling it towards you.

Diagram of a door with an arrow indicating direction, showing interior components without any text or symbols.

5.2 Maintenance

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.
• Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).
• Replace the glass lens, and your oven is ready for use.

The lamp is designed specifically for use in household cooking appliances. It is not suitable for household room illumination.

6. TROUBLESHOOTING & TRANSPORT

6.1 Troubleshooting

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible Cause Solution
The hob or cooking zones cannot be switched on.	There is no power supply.	Check the household fuse for the appliance.Check whether there is a power cut by trying other electronic appliances.
The hob produces an odour during the first cooking sessions.	New appliance.	Heat a saucepan full of water on each cooking zone for 30 minutes.
Oven does not switch on. Power is switched off.		Check whether there is power supplied.Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set.Oven door has been left open.	Check the oven temperature control knob is set correctly.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned.If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is switched on at the wall socket outlet.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.

6.2 Transport

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

7.. TECHNICAL SPECIFICATIONS

7.1 Energy class

Brand		VOXELECTRONICS
Model		EHT5020WG
Type of oven		ELECTRIC
Mass kg		42,0
Number of cavities		1
Heat source		ELECTRIC
Volume I		50
Energy consumption (electricity) - conventional kWh/cycle		0,79
Energy consumption (electricity) – fan forced kWh/cycle		0,71
Energy Efficiency Index - conventional		103,9
Energy Efficiency Index – fan forced		93,4
Energy Class		A
This oven complies with EN 60350-1

Energy Saving Tips

Oven

• Cook the meals together, if possible
• Keep the pre-heating time short.
• Do not elongate cooking time.
• Do not forget to turn-off the oven at the end of cooking.
• Do not open oven door during cooking period.

Brand		VOXELECTRONICS
Model		EHT6020WG
Type of oven		ELECTRIC
Mass kg		43,0
Number of cavities		1
Heat source		ELECTRIC
Volume I		65
Energy consumption (electricity) - conventional kWh/cycle		0,87
Energy consumption (electricity) – fan forced kWh/cycle		0,78
Energy Efficiency Index - conventional		105,7
Energy Efficiency Index – fan forced		94,8
Energy Class		A
This oven complies with EN 60350-1

Energy Saving Tips

Oven

• Cook the meals together, if possible
• Keep the pre-heating time short.
• Do not elongate cooking time.
• Do not forget to turn-off the oven at the end of cooking.
• Do not open oven door during cooking period.

Brand		VOXELECTRONICS
Model		EHT5020WGEHT6020WG
Type of hob		ELECTRIC
Number of cooking zones		4
Heating Technology – 1		Solid Hotplate
Size – 1 cm		∅14,5
Energy consumption – 1 Wh/kg		193,0
Heating Technology – 2		Solid Hotplate
Size – 2 cm		∅14,5
Energy consumption – 2 Wh/kg		194,0
Heating Technology – 3		Solid Hotplate
Size – 3 cm		∅18,0
Energy consumption – 3 Wh/kg		193,0
Heating Technology – 4		Solid Hotplate
Size – 4 cm		∅18,0
Energy consumption – 4 Wh/kg		194,0
Energy consumption of hob Wh/kg		193,5
This hob complies with EN 60350-2

Energy Saving Tips

Hob

• Use cookwares having flat base.
• Use cookwares with proper size.
• Use cookwares with lid.
• Minimize the amount of liquid or fat.
• When liquid starts boiling, reduce the setting.

Line drawing of a simple kitchen oven with four top ovens (no text or symbols)

EHT5020WG

EHT6020WG

Warning symbol depicting a person pulling a large block inside a triangle (no text or numbers)

Simple black-and-white icon of a building with arrows indicating airflow or movement (no text or symbols)

Diagram of a mechanical assembly with a spring and rotating arrow (no text or symbols)

Simple line drawing of a cooking pot on a platform with a checkmark below (no text or symbols)

Simple line drawing of a cooking pot on a heating element with a cross symbol below (no text or labels)

Simple diagram showing a container with cross-shaped lines above a rectangular box containing an 'X' symbol (no text or labels)

Simple diagram of a container with cross-shaped lines above and a 'X' symbol below (no text or labels)

Simple dark gray square with a white sun icon in the center (no text or symbols)

Abstract geometric symbol with three curved white lines on a dark gray square background (no text or symbols)

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-petal flower inside a dark square frame (no text or symbols)

Simple geometric shape with a wavy line above a black square (no text or symbols)

Simple icon of a storefront with a wavy line above it, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Шарнирно чекмедже

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ

Technical line drawing of a metal rack with a curved cover and an arrow indicating direction (no text or symbols)

Line drawing of a grater with a handle and mesh grille (no text or symbols)

Плитка тава

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Решетъчна скара

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a door with an open lid and internal compartments, showing an upward arrow (no text or symbols)

5.2 Поддръжка

Line drawing of a simple kitchen oven with four top ovens (no text or symbols)

EHT5020WG

EHT6020WG

Hvala, ker ste izbrali ta izdelek.

Warning symbol depicting a person pulling a large flag inside a triangle (no text or numbers)

Simple black-and-white diagram of a building inside a circle with arrows indicating direction (no text or symbols)

Diagram of a mechanical component with a spring and rotational arrow indicating motion (no text or symbols)

3. LASTNOSTI IZDELKA

Simple dark gray square with a small white sun icon in the top-right corner (no text or symbols)

Luč pečice: Zasvetila bo samo luč pečice. Med trajanjem funkcije pečenja bo še naprej svetila.

Abstract geometric symbol resembling a four-blade propeller or fan on a dark background (no text or symbols)

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with three petal-like shapes inside a dark square frame (no text or symbols)

Abstract geometric symbol with a four-petal flower inside a dark square frame (no text or symbols)

Simple line drawing of a wavy line on a dark background (no text or symbols)

Simple geometric diagram with a central square and two horizontal lines above it, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Funkcija dvojni žar in ventilator Termostat pečice in opozorilne lučke pečice se vklopijo, grelni element žara, zgornji grelni element in ventilator

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Predal z loputo

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Line drawing of a rectangular grater with a handle extending upward (no text or symbols)

Plitki pladenj

Technical line drawing of a square frame with bolt holes, no text or symbols present

Žična mreža

Technical line drawing of a metal grate or rack structure with no text or symbols

OPOZORILO

Mrežo namestite na katero koli polico v notranjosti pečice in jo pravilno potisnite do konca.

Technical line drawing of a metal grate with a curved top and an arrow indicating direction (no text or symbols)

5. ČIŠČENJE IN VZDRŽEVANJE

5.1 Čiščenje

Line drawing of a hand cleaning a car window with a brush (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a door opening with an arrow indicating direction, showing interior compartments and a window (no text or symbols)

5.2 Vzdrževanje

Line drawing of a simple kitchen oven with four top ovens (no text or symbols)

EHT5020WG

EHT6020WG

Warning symbol depicting a person pulling a large block inside a triangle (no text or numbers)

Simple black-and-white diagram of a mechanical device inside a circle, with no text or symbols present.

Diagram of a mechanical assembly with a spring and rotating component (no text or symbols)

3. CARACTERÍSTICAS DO PRODUTO

Simple line drawing of a cooking pot with crossed lines indicating diagonality (no text or symbols)

Base de Tacho Circular

Simple line drawing of a pot with two crossed lines indicating resistance or clearance (no text or symbols)

Simple line drawing of a pot with cross-shaped legs and a lid, mounted on two supports (no text or symbols)

Solid dark rectangle with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-petal flower-like shape inside a dark square frame (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Simple line drawing of a wavy line above a dark rectangle (no text or symbols)

Simple icon of a dark square with two horizontal lines above and a wavy line below, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Technical line drawing of a square frame with circular cutouts and centerlines (no text or symbols)

Gaveta de Aba

Line drawing of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Conjunto de Pega e Grelhador - EHT5020WG

Line drawing of a square grater with a handle and mesh grille (no text or symbols)

Tabuleiro Raso

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

Rede de Arame

Technical line drawing of a metal grate plate with slats and rivets (no text or symbols)

AVISO

Diagram of a metal rack with a curved arrow indicating force or movement, no text or symbols present

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Limpar as Partes Esmaltadas

Technical line drawing of a mechanical assembly with a rotating component (no text or symbols)

Line drawing of a simple kitchen oven with four handles and front panel (no text or symbols)

EHT5020WG

EHT6020WG

Warning symbol depicting a person pulling a large object inside a triangle (no text or numbers)

Simple black-and-white icon of a machine with directional arrows, enclosed in a circle (no text or symbols)

Diagram of a mechanical assembly with a spring and nut, showing motion direction (no text or symbols)

Simple line drawing of a cooking pot on a platform with a checkmark below (no text or symbols)

Simple line drawing of a cooking pot on a stand with a cross symbol below (no text or labels)

Кружно дно на тенцере

Simple diagram of a cooking pot with crossed lines and a cross symbol below (no text or labels)

Simple icon of a sun with rays on a dark background, no text or symbols present.

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Simple line drawing of a zigzag line above a dark rectangle (no text or symbols)

Функција на грил:

Simple icon of a dark square with a white wavy line above it, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Technical line drawing of a square frame with circular cutouts and mounting holes (no text or symbols)

Фиока

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Грил тава и комплет рачки - EHT5020WG

Line drawing of a grater with a handle and mesh grille (no text or symbols)

Плитка тава

Technical line drawing of a square frame with bolt holes and internal ribs (no text or symbols)

Решетка

Technical line drawing of a metal grate or rack structure with no text or symbols

ПРЕДУПРЕДУВАЊЕ

Technical diagram of a metal rack with an attached frame and directional arrow indicating rotation (no text or symbols)

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Technical line drawing of a mechanical assembly with a rotating component (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts (a and b), no readable text or symbols present.

Diagram of a door with an arrow indicating direction, showing interior components (no text or symbols)

5.2 Одржување

Line drawing of a simple kitchen oven with four top ovens (no text or symbols)

EHT5020WG

EHT6020WG

Hvala vam na odabiru ovog proizvoda.

Ovaj Priručnik za uporabu sadržava važne sigurnosne informacije i upute o radu i održavanju vašeg uređaja.

Molimo odvojite vremena za čitanje ovog Priručnika za uporabu prije uporabe vašeg uređaja i čuvajte ovu knjigu za buduće čitanje.

Ikona Tip Značenje
	UPOZORENJE Rizik od ozbiljne ozljede ili smrti
	RIZIK OD STRUJNOG UDARA Rizik od opasnog napona
	POŽAR Upozorenje; Rizik od požara / zapaljivih materijala
	OPREZ Rizik od ozljede ili oštećenja imovine
	VAŽNO / OPASKA Koristite sustav pravilno

SADRŽAJ

1.SIGURNOSNE UPUTE 3
1.1 Opća sigurnosna upozorenja....3
1.2 Upozorenja za instalaciju....6
1.3 Tijekom uporabe....6
1.4 Tijekom čišćenja i održavanja 8
2.INSTALACIJA I PRIPREMA ZA UPORABU....9
2.1 Upute za instalatera....9
2.2 Električni priključak i Sigurnost 10
2.3 Protunagibna oprema 10
2.4 Podešavanje nogara....11
3.ZNAČAJKE PROIZVODA....12
4.UPORABA PROIZVODA....13
4.1 Kontrole ploče za kuhanje ....13
4.2 Kontrole pećnice....13
4.3 Tablica kuhanja....15
4.4 Pribor 15
5.ČIŠĆENJE I ODRŽAVANJE 16
5.1 Čišćenje 16
5.2 Održavanje 17
6.RJEŠAVANJE PROBLEMA I TRANSPORT....18
6.1 Rješavanje problema....18
6.2 Transport 18
7. TEHNIČKE KARAKTERISTIKE....22
7.1 Energetska klasa....22

1. SIGURNOSNE UPUTE

• Pozorno pročitajte sve upute prije uporabe vašeg uređaja i držite ih na podesnom mjestu radi upućivanja na njih kada je potrebno.
• Priručnik je pripremljen za više od jednog modela zbog čega vaš uređaj možda neće imate neke značajke opisane u njemu, Iz tog razloga, važno je posvetiti osobitu pažnju svim prikazima dok čitate Priručnik za uporabu.

Diagram of a mechanical assembly with a spring and rotating arrow (no text or symbols)

3. ZNAČAJKE PROIZVODA

Položaj gumba	Funkcija
0 Položaj ISKLJUČENO
1	Za topljenje maslaca itd i za podgrijavanje malih količina tekućina.
2	Za podgrijavanje većih količina tekućina.Za pripremu krema i umaka
3 Za odmrzavanje hrane za kuhanje
4 Za kuhanje delikatnog mesa i ribe
5 Za pečenje mesa i odreska
6	Za kuhanje velikih količina tekućina ili za prženje

UPOZORENJE:

• Kad koristite plamenik prvi put, ili nakon što ga dulje vremena niste koristili, neophodno je eliminirati svu vlažnost koja se može akumulirati oko električnih elemenata ploče. Da to uradite, uključite plamenik na najmanju jačinu oko 20 minuta.
• Nikada nemojte koristiti plamenik bez posude. U suprotnom se mogu pojaviti kvarovi na ploči za kuhanje.

• Koristite jedino posude s ravnim dnom i debelim osnovama.

• Uvjerite se da je dno posude suho prije stavljanja na plamenik.

• Kada je plamenik u uporabi, uvjerite se da je posuda pravilno u središtu plamenika.
• Nikada nemojte koristiti posudu manjeg ili većeg promjera od plamenika jer se tako gubi energija.

Dark rectangular object with a small white sun icon in the top right corner (no text or symbols)

Solid dark rectangle with two horizontal white lines on top and bottom (no text or symbols)

Funkcija statičnog kuhanja: Termostat pećnice i upozoravajuća svjetla se pale i gornji i donji grijući elementi počinju raditi. Funkcija statičkog kuhanja

emitira toplinu osiguravajući jednako kuhanje hrane. Ovo je idealno za pravljenje kolača, pečenih tjestenina, lazanje i pizze. Preporučamo da prethodno ugrijete pećnicu 10 minuta te je najbolje koristiti jednu policu pri korištenju ove funkcije.

Abstract geometric symbol resembling a stylized flower or impeller inside a dark rectangular frame (no text or symbols)

Funkcija ventiliranja: Termostat pećnice i upozoravajuća svjetla se pale, i gornji i donji grijući elementi i ventilator počinju raditi. Ova funkcija je dobra

Abstract geometric design with a stylized four-blade propeller inside a dark square frame (no text or symbols)

Simple geometric shape with a wavy line inside a square frame (no text or symbols)

Funkcija grilanja: Termostat pećnice i upozoravajuća svjetla se pale i grijući element grila počinje raditi. Funkcija se koristi za grilanje i

tostiranje hrane na gornjim policama pećnice. Blago četkom premažite uljem žičanu rešetku da bi se spriječilo ljepljenje hrane i postavite hranu u središte rešetke. Uvijek stavljajte pladanj ispod hrane za skupljanje kapljica ulja ili masti. Preporučamo da prije kuhanja ugrijete pećnicu 10 minuta.

Upozorenje: Kada grilate vrata pećnice moraju biti zatvorena i temperatura pećnice treba biti ešena na 190°C.

Simple icon of a delivery box with a wavy roof and rectangular body (no text or symbols)

Funkcija bržeg grilanja: Termostat pećnice i upozoravajuća svjetla se pale i gril i gornji grijući elementi počinju raditi. Ova funkcija se

koristi za brže grilanje i za grilanje hrane veće površine kao što je meso. Koristite gornje police pećnice. Blago četkom premažite uljem žičanu rešetku da bi se spriječilo ljepljenje hrane i postavite hranu u središte rešetke. Uvijek stavljajte pladanj ispod hrane za skupljanje kapljica ulja ili masti. Preporučamo da prije kuhanja ugrijete pećnicu 10 minuta.

Upozorenje: Kada grilate vrata pećnice moraju biti zatvorena i temperatura pećnice treba biti ešena na 190°C.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Funkcija dvostrukog grilanja i ventiliranja: Termostat pećnice i upozoravajuća svjetla se pale, i gril, gornji grijući elementi i ventilator počinju raditi.

Ova funkcija se koristi za brže grilanje krupnije hrane te grilanje hrane s većom površinom. Gornji grijući elementi i gril imat će dopunsku energiju skupa s ventilatorom da bi osigurali jednako kuhanje. Koristite gornje police pećnice. Blago četkom premažite uljem žičanu rešetku da bi se spriječilo ljepljenje hrane i postavite hranu u središte rešetke. Uvijek stavljajte pladanj

ispod hrane za skupljanje kapljica ulja ili masti. Preporučamo da prije kuhanja ugrijete pećnicu 10 minuta.

Upozorenje: Kada grilate vrata pećnice moraju biti zatvorena i temperatura pećnice treba biti

podešena na 190°C.

4.3 Tablica kuhanja

Funkcija	Jela			min.
Statička	Lisnato tijesto 1	-2 170-190	35-45
	Torta 1 - 2	170-190 30	40
	Kolačić 1 - 2	170-190 30	40
	Paprikaš 2 17	5-200 40-50
	Piletina 1 - 2	200 45-60
Ventilator	Lisnato tijesto 1	-2 170-190	25-35
	Torta 1 - 2	-3 150-170	25-35
	Kolačić 1 - 2	-3 150-170	25-35
	Paprikaš 2 17	5-200 40-50
	Piletina 1 - 2	200 45-60
Grilanje	Grilane mesne okruglice	4 200	10-15
	Piletina * 190	50-60
	Kotlet 3 - 4	200 15-25
	Beefsteak 4 200	15-25

*Ako je dostupan kuhajte na ražnju za pečenje piletine.

4.4 Pribor

Duboki pladanj

Duboki pladanj najbolje je koristiti za kuhanje variva.

Stavite pladanj na bilo koju gredu i pritisnite do kraja kako biste se osigurali da je postavljen pravilno.

Technical line drawing of a square frame with bolt holes and concentric rings (no text or symbols)

Preklopna ladica

Technical line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Komplet tave i ručice za grilanje - EHT5020WG Komplet tave za grilanje najbolje je koristiti za grilanje odrezaka i slične hrane.

Line drawing of a grater with a handle and mesh grille (no text or symbols)

Plitki pladanj

Plitki pladanj najbolje je koristiti za pečenje kolača.

Stavite pladanj na bilo koju gredu i pritisnite do kraja kako biste se osigurali da je postavljen pravilno.

Technical line drawing of a square frame with bolt holes and central hub (no text or symbols)

Žičana rešetka

Žičanu rešetku najbolje je koristiti za grilanje ili obradu hrane u posudama pogodnim za pećnice.

Technical line drawing of a rectangular metal grate or rack with evenly spaced slats (no text or symbols)

UPOZORENJE

Technical line drawing of a metal rack with a curved panel and directional arrow indicating rotation (no text or symbols)

5. ČIŠĆENJE I ODRŽAVANJE

5.1 Čišćenje

UPOZORENJE: Isključite uređaj i ostavite da se ohladi prije obavljanja čišćenja.

Opće upute

• Provjerite da li materijali za čišćenje odgovaraju i da li su preporučani od proizvođača prije njihove uporabe na vašem uređaju.
• Koristite kremasta ili tekuća sredstva za čišćenje koja ne sadržavaju čvrste čestice. Nemojte koristiti kaustične (korozivne) kreme, abrazivne praškove za čišćenje, hrapavu žičanu vunu ili čvrste alate jer mogu oštetiti površine kuhala.

Nemojte koristiti sredstva za čišćenje koja sadržavaju čvrste čestice, jer mogu izgrebati staklo, emajlirane i/iliene dijelove vašeg uređaja.

- Ako se bilo koja tekućina prelije, očistite je odmah da biste izbjegli oštećenje dijelova.

Nemojte koristiti parne čistače za

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a door with an arrow indicating direction, showing interior compartments and a handle (no text or symbols)

5.2 Održavanje

UPOZORENJE: Održavanje ovog uređaja jedino treba provesti autoriziran serviser ili kvalificiran tehničar.
