FA7200 - Ventilateur domestique SUNBEAM - Free user manual and instructions

Product Type	Domestic Pedestal Fan
Model	FA7200
Brand	Sunbeam
Dimensions (Height)	130 cm (51 in)
Dimensions (Base Diameter)	40 cm (15.7 in)
Net Weight	4.5 kg (9.9 lb)
Power Supply	120 V, 60 Hz (US) / 220-240 V, 50 Hz (EU)
Power Consumption	55 W
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, 90° left/right
Tilt Adjustment	Manual, up/down tilt
Blade Diameter	40 cm (16 in)
Material	ABS plastic with metal stand
Control Type	Rotary knobs on motor housing
Safety Features	Overheat protection, stable base, finger guard
Cleaning	Wipe with damp cloth; do not immerse in water
Replaceable Parts	Blade, motor assembly, power cord
Warranty	1 year manufacturer warranty
Certifications	UL, CE, RoHS
Package Contents	Fan head, stand, base, screws, user manual

Frequently Asked Questions - FA7200 SUNBEAM

How do I assemble the Sunbeam FA7200 fan?

First, attach the base to the stand by screwing the base plate. Then, insert the stand into the fan head and secure with the provided screws. Finally, attach the blade and front guard. Refer to the quick start guide for detailed steps.

How do I set the fan speed?

Use the rotary knob on the motor housing. Turn to the desired speed: 1 (Low), 2 (Medium), or 3 (High). The fan will operate at that speed until changed.

How do I activate the oscillation feature?

Press the oscillation button (usually marked with a semicircular arrow) on the motor housing. The fan will oscillate left to right at a 90° angle. Press again to stop.

Can I adjust the tilt of the fan?

Yes, loosen the tilt adjustment knob behind the motor housing, tilt the fan head to the desired angle, then tighten the knob to lock it in place.

The fan makes a loud noise or wobbles. What should I do?

Ensure the fan is on a flat, stable surface. Check that all screws are tight, especially the blade and base. If wobbling persists, the blade may be bent; replace if necessary. Noise may be due to dust accumulation; clean the motor and blades.

How do I clean the fan?

Unplug the fan before cleaning. Use a soft, damp cloth to wipe the base, stand, and blade. Do not use abrasive cleaners or immerse any part in water. For the guard, you can use a vacuum with a brush attachment.

Is it safe to leave the fan running unattended?

The fan has overheat protection and a stable base, making it generally safe. However, always follow safety guidelines: do not cover the fan, keep it away from water, and place it on a level surface. It is advisable to turn it off when leaving home.

What should I do if the fan stops working?

First, check the power cord and plug. Ensure the outlet works. If it still doesn't turn on, the thermal fuse may have tripped due to overheating. Allow the fan to cool down for 30 minutes and try again. If problem persists, contact Sunbeam customer service.

How do I store the fan when not in use?

Disassemble the fan if possible. Clean and dry all parts. Store in a cool, dry place away from direct sunlight. Keep in the original box or a similar container to prevent dust accumulation.

What is the warranty for the Sunbeam FA7200?

The fan comes with a 1-year manufacturer warranty against defects in materials and workmanship. Keep your receipt as proof of purchase. For warranty claims, contact Sunbeam support or return to the place of purchase.

USER MANUAL FA7200 SUNBEAM

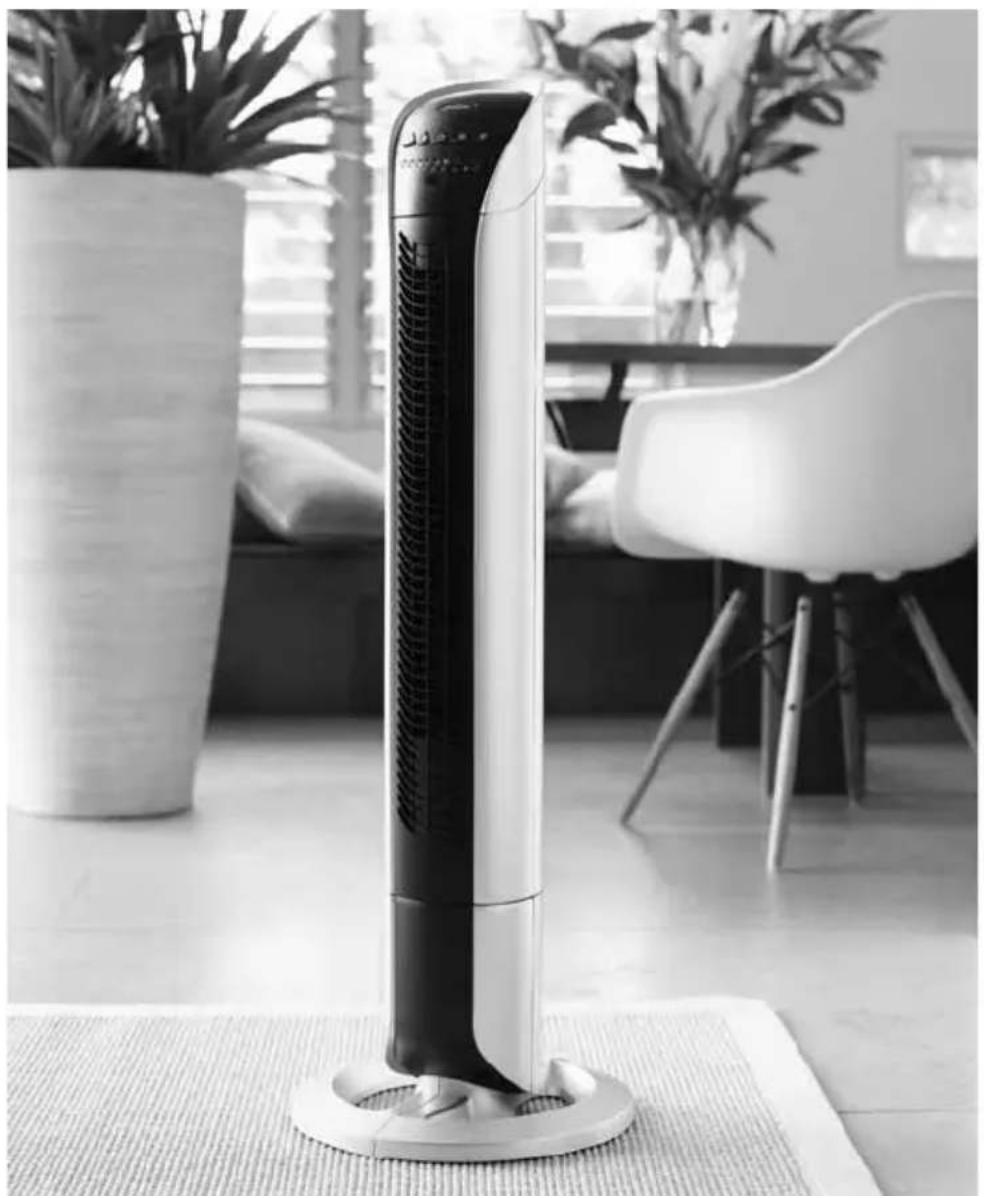

Sunbeam Remote Controlled Tower Fan

Instruction Booklet

FA7200 90cm Remote Controlled Tower Fan

Please read these instructions carefully and retain for future reference.

Modern electric heating tower with black and silver casing placed on a mat, surrounded by white furniture and potted plants in a modern living room (no visible text or symbols)

Contents

Sunbeam's Safety Precautions 1

Safety Precautions For Your Tower Fan 2

Locating Your Tower Fan 3

Features Of Your Sunbeam Tower Fan 4

Assembling Your Tower Fan 6

Using Your Tower Fan 8

Troubleshooting Guide 12

Care And Cleaning 12

Sunbeam's Safety Precautions

Sunbeam is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• Read carefully and save all the instructions provided with an appliance.
• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug when the appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The temperature of accessible surfaces may be high when the appliance is operating.

• Never leave an appliance unattended while in use.

• Do not use an appliance for any purpose other than its intended use.

• Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
• Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.
• For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.
• Do not immerse the appliance in water or any other liquid unless recommended.
• Appliances are not intended to be operated by means of an external timer or separate remote control system.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

If you have any concerns regarding the performance and use of your appliance, please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line. Ensure the above safety precautions are understood.

Safety Precautions For Your Tower Fan

• Do not use outdoors.
• Do not run the cord of the fan under carpeting. Do not cover the cord with throw rugs, runners or other floor coverings. Arrange the cord away from traffic areas so that it will not be tripped over.
• Do not use this fan in the immediate surrounds of a bath, shower, laundry area or swimming pool.
• Be sure the fan is placed on a dry, even surface. Do not use on soft surfaces, such as beds, where opening may become blocked.
• Keep your fan away from heat sources, corrosive gases and avoid direct sunlight.
• This fan is only to be used with the base fitted and in good condition.
• Disconnect the power plug before dismantling, assembling or before cleaning.

• Always unplug the fan when not in use for any long length of time.

• The fan must not be used if the guards are damaged in any way.

• Do not insert or allow foreign objects to enter any ventilation or exhaust openings as this may cause electric shock or fire, or damage to the fan.
• Never insert fingers, pencils or any other objects through the guards whenever the power plug is connected, especially while running.
• Avoid touching mobile parts of the fan.
• Do not attempt to move your fan whilst it is operating. If your fan needs to be moved, please ensure that it is turned off and you use the carry handle on top of the tower.
• When scrapping the fan at the end of its useful life, follow local regulations.

Important Instructions - Retain For Future Use

If you have any concerns regarding the performance and use of your appliance, please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line. Ensure the above safety precautions are understood.

Locating Your Tower Fan

1. Always locate your fan on a fl at level surface.

2. Your tower fan should be located in a dry, cool, well ventilated location. Keep your fan away from heat sources, corrosive gases and avoid direct sunlight.

3. Do not attempt to move your tower fan whilst it is operating. If your fan needs to be moved, please ensure that it is turned off and you use the carry handle at the rear of the fan.

Features Of Your Sunbeam Tower Fan

Remote control storage

When not in use, store your remote control in the handy storage compartment on the rear of the fan body.

Carry handle

Convenient carry handle allows you to easily carry your fan from room to room.

Power button

Simply press the power button to turn the unit on.

Control panel

The easy to read control panel allows you to quickly see what functions have been selected on your tower fan.

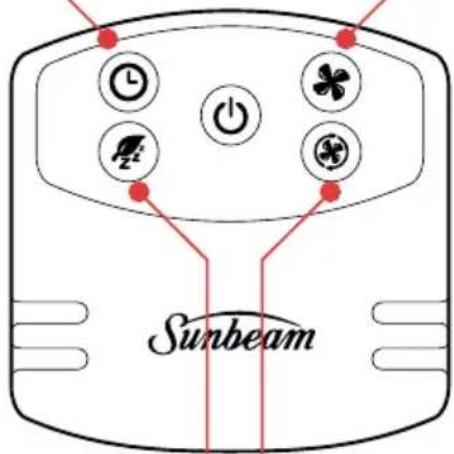

Remote control

Adjust the fan setting, auto off or oscillation from anywhere in the room using the full function remote control.

Auto Off button

The auto off timer allows you to set your tower fan to turn off after either 1, 2, 4 or 8 hours.

Fan speed button

Choose from 3 speed settings, low medium or high.

Nature and Sleep mode

When used in nature mode, the fan speed is randomly adjusted, giving the feeling of a natural breeze.

Sleep mode is designed to be used when retiring to bed; the fan speed is gradually decreased until the unit is operating on low speed, and when used in conjunction with the auto off timer, will ultimately switch the unit off.

Oscillation

Your tower fan oscillates 70°, distributing cool air throughout the room.

Assembling Your Tower Fan

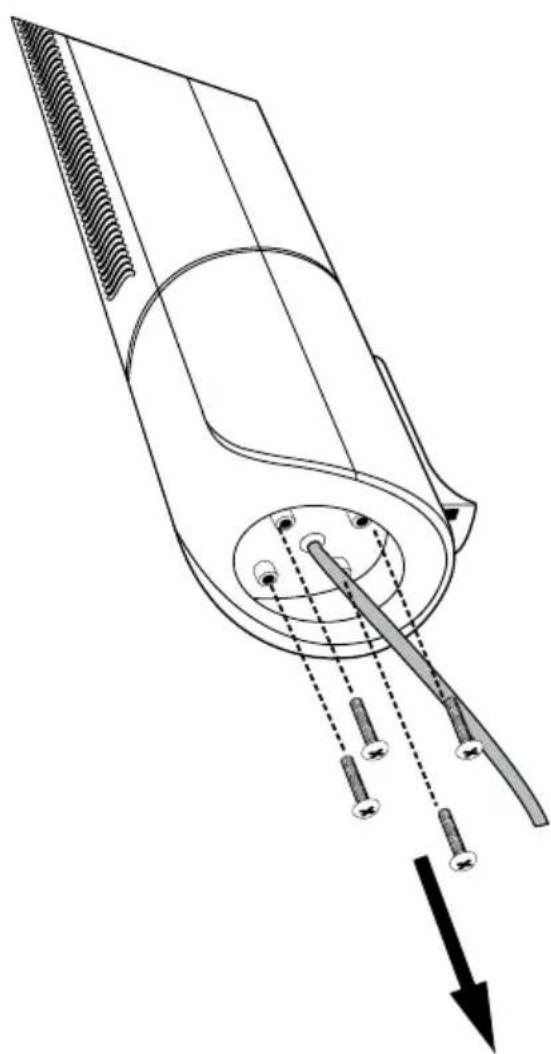

Remove the screws from beneath the tower

1. Using a phillips head screwdriver, remove the 4 screws from underneath the tower.

2. Put the screws aside. You will need them to secure the base.

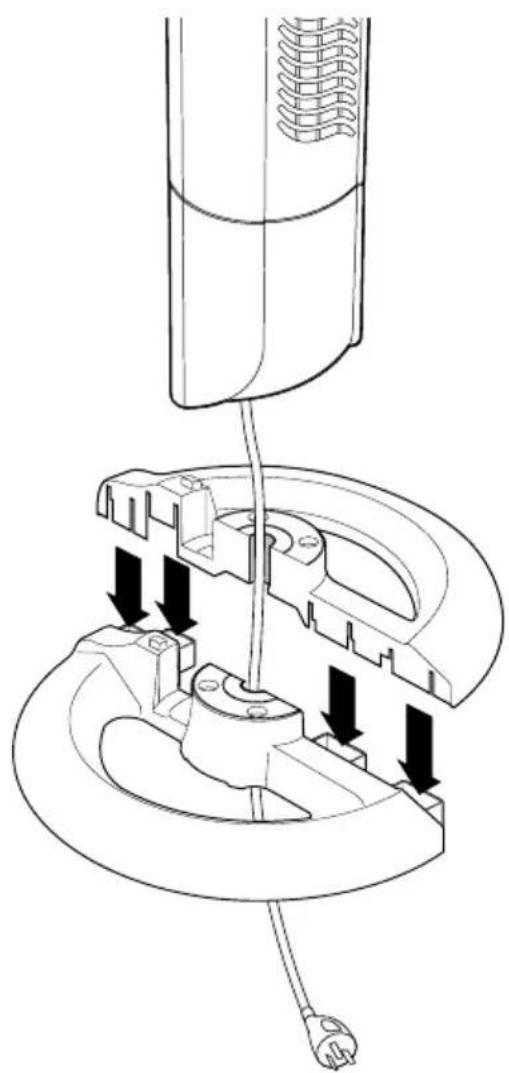

Join the two halves of the base together

1. Feed the cord between the two halves of the base.
2. Clip the two halves of the base together, ensuring the cord remains within the channel formed when the two halves come together.

Technical line drawing of a mechanical device with threaded blades and a central hub, showing internal components and a downward arrow (no text or symbols)

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols present)

Assembling Your Tower Fan (continued)

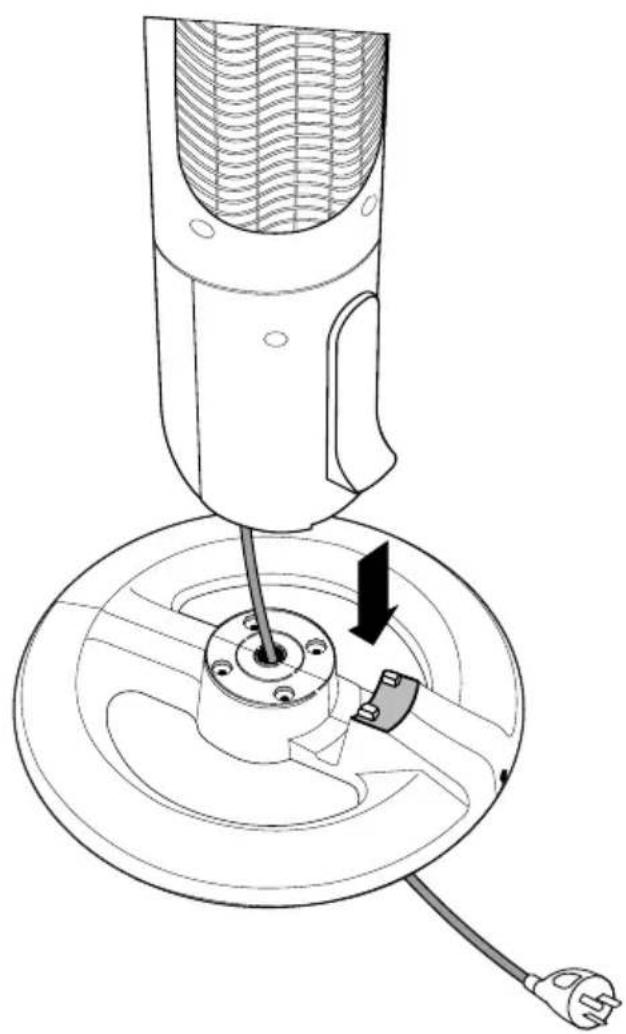

Lower the tower onto the base

1. Align the tower and the base as shown.
2. Push the tower down onto the base until it is rmly held into position.

Technical line drawing of a hairdryer with a rotating base and cable, showing mechanical components without any text or symbols.

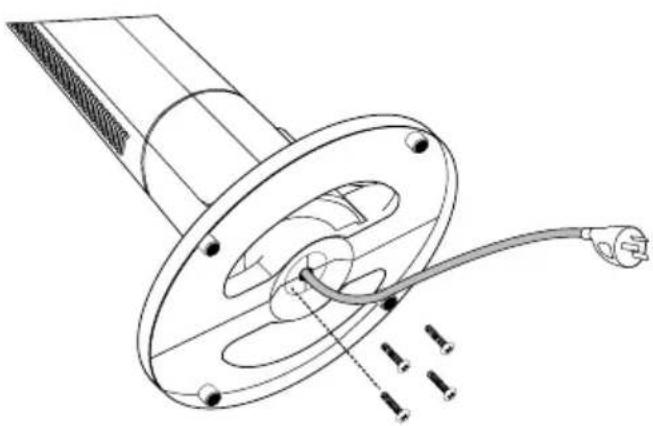

Screw the tower to the base

1. Use the 4 screws you put aside earlier to secure the tower to the base.

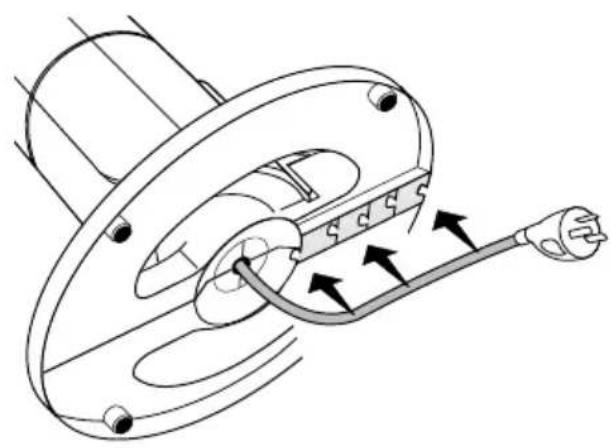

2. Clip the power cord into the semi circular slot at the edge of the base. Ensure that the cord is neatly into the channel.
3. Stand the fan upright. It is now ready for use.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal wiring and mounting holes (no text or symbols)

Using Your Tower Fan

1. Place the fan on a at level surface.
2. Insert the plug into a 230/240V power outlet and turn the power on.
3. Press the power button ⏻.
4. Press the fan speed button ✿ to select low, medium or high depending on your preference.

• To switch the fan off, simply press the power button ⏻.
• While the fan remains plugged in to the power socket, the fan will remember your last fan speed, oscillation and mode setting for the next time you switch the fan on again.
• If you will not be using the fan for a length of time, it is advisable to turn the power off at the wall socket and unplug the power cord.

Selecting a fan speed setting

Your Sunbeam tower fan has 3 speed settings as follows:

• low speed "1" light illuminates
  • medium speed “2” light illuminates
• high speed "3" light illuminates

To select a fan speed, simply press the fan speed button ✿ on the tower or the remote. Each press of the button will increase the fan speed and then return back to the lowest speed again.

Using Your Tower Fan (continued)

Using the remote control

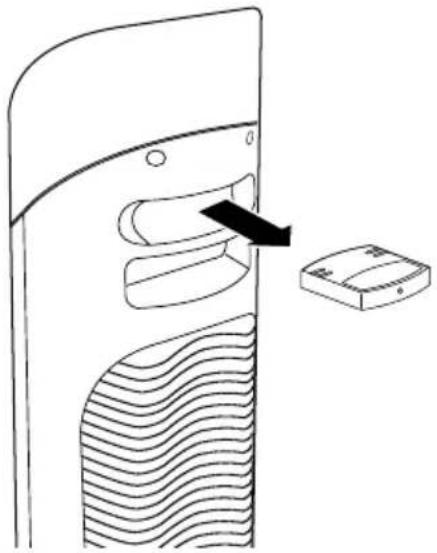

1. Remove the remote control from its compartment at the rear of the tower as shown.
2. Point the remote towards the control panel on the front of the tower to operate.

Diagram of a door handle with a black arrow pointing to a component, showing wavy patterns and a small rectangular block (no text or symbols)

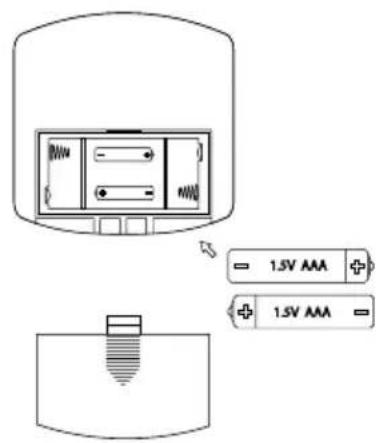

Changing the batteries

1. Slide the rear cover off the remote control unit.
2. Replace the spent batteries with 2 fresh AAA batteries as shown.
3. Replace the rear cover.

Using the oscillation function

The 70 degree oscillation function can be used on any setting.

1. Turn the unit on and select any fan speed.
2. Press the 🎨 button on the tower or the remote. The fan will begin to oscillate from side to side.

To stop the fan from oscillating, simply press the ✿ button once again.

Using the auto off timer

The auto off timer automatically switches the fan off after a preset number of hours.

To activate this feature, simply press the auto off button ⏻ on the tower or on the remote control unit.

1. Press the auto off button once to switch the fan off after 1 hour. The light on the tower corresponding to the 1^hr position will illuminate.
2. Press the auto off button again to have the fan switch after 2 hours. The light on the tower corresponding to the 2^hr position will illuminate.
3. Similarly, pressing the auto off button a 3rd or 4th time will set the fan to switch after 4 or 8 hours respectively. The corresponding light on the tower 4^hr or 8^hr will illuminate accordingly.

To cancel the setting, keep pressing the auto off button until it cycles past 8 hours and returns to its normal setting. The auto off timer will be deactivated, the timing light will be off, and the fan will remain on until it is switched off manually.

Nature mode

Nature mode provides an extra level of comfort by simulating the natural rise and fall of the wind over time. You can use this mode on any fan speed setting.

To use Nature mode:

1. Choose a fan speed.
2. Press the 📂 button on either the tower or the remote until the 📂 light illuminates.
   The fan will now vary its speed every few seconds between the chosen fan speed, each lower fan speed, and off. For example, if you set the fan speed to 2 (medium), the actual fan speed will alternate between 2, 1 and off.
   To cancel Nature mode, Press the 📄 button on either the tower or the remote until the light is no longer illuminated.

Sleep mode

Sleep mode is identical to Nature mode with the added advantage that the highest fan speed gradually decreases over time. This allows you to turn the fan on a high speed setting last thing at night, knowing that by the time you are asleep, the fan has switched itself down to a slower speed.

To use Sleep mode:

1. Choose a fan speed.
2. Press the z^z button on either the tower or the remote until the z^z light illuminates.
   The fan will now operate in the same manner as with Nature mode, except that after 30 minutes, the maximum speed will decrease. Eventually in this mode, the fan switches down to 1 (low) speed, which alternates between 1 and off.

To cancel Sleep mode, Press the z^z button on either the tower or the remote until the z^z light is no longer illuminated.

Troubleshooting Guide

If your tower fan fails to operate check the following:

• Make sure the electrical outlet or circuit breaker is working.
• Check for obstructions around the air intake grill.

If your remote control fails to operate check the following:

• Ensure that you point the remote towards the front of the fan.
• Check that the batteries are not worn. Replace if necessary.

Care And Cleaning

Ensure that your fan is switched off and disconnected from the power outlet before cleaning.

- Carefully wipe your fan using a clean cloth. Do not use abrasive cleaners or brushes to clean the appliance as these may scratch the surface.

• Take care that excessive dust does not build up in the air-intake and air-outlet grill, and clean it occasionally using a dry brush or vacuum cleaner.
• Store the fan in a cool dry place when not in use, in its original carton if possible.

2 Year Replacement Guarantee

In the unlikely event that this appliance develops any malfunction within 2 years of purchase (3 months commercial use) due to faulty materials or manufacture, we will replace it for you free of charge.

Should you experience any difficulties with your appliance, please phone our customer service line for advice on 1300 881 861 in Australia, or 0800 786 232 in New Zealand. Alternatively, you can send a written claim to Sunbeam at the address listed below. On receipt of your claim, Sunbeam will seek to resolve your difficulties or, if the appliance is defective, advise you on how to obtain a replacement or refund.

Your Sunbeam 2 Year Replacement Guarantee naturally does not cover misuse or negligent handling and normal wear and tear.

Similarly your 2 Year Replacement Guarantee does not cover freight or any other costs incurred in making a claim. Please retain your receipt as proof of purchase.

In Australia, the benefits given to you by this guarantee are in addition to your other rights and remedies under any laws which relate to the appliance.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Should your appliance require repair or service after the guarantee period, contact your nearest Sunbeam service centre.

For a complete list of Sunbeam's authorised service centres visit our website or call:

Australia

www.sunbeam.com.au

1300 881 861

Units 5 & 6, 13 Lord Street

Botany NSW 2019 Australia

New Zealand

www.sunbeam.co.nz

0800 786 232

26 Vestey Drive, Mt Wellington

Auckland, New Zealand

Need help with your appliance?

Contact our customer service team or visit our website for information and tips on getting the most from your appliance.

In Australia

Visit www.sunbeam.com.au

Or call 1300 881 861

In New Zealand

Visit www.sunbeam.co.nz

Or call 0800 786 232

is a registered trademark.

Made in China.

Due to minor changes in design or otherwise,

the product may differ from the one shown in this leaflet.

© Copyright. Sunbeam Corporation Limited 2008.

ABN 45 000 006 771

Units 5 & 6, 13 Lord Street

Botany NSW 2019 Australia

Unit 3, Building D

26 Vestey Drive

Mt Wellington Auckland

New Zealand

Sunbeam Corporation is a division of GUD Holdings Ltd.
