FA8900 - Ventilateur domestique SUNBEAM - Free user manual and instructions

Product Type	Domestic Tower Fan
Brand	Sunbeam
Model	FA8900
Dimensions (H x W x D)	Approx. 35 x 12 x 12 inches
Weight	Approx. 10 lbs (4.5 kg)
Power Supply	120V, 60Hz, 60W
Number of Speed Settings	3 (Low, Medium, High)
Oscillation	Yes, wide-angle oscillation
Remote Control	Yes, with battery included
Timer Function	Yes, up to 8 hours
Airflow	Up to 1500 CFM
Noise Level	Approx. 45-55 dB depending on speed
Safety Features	Tip-over auto shut-off, overheat protection
Material	ABS plastic body, metal base
Cleaning Instructions	Wipe with a soft, damp cloth; do not immerse in water
Maintenance	Periodically vacuum air intake and outlet grilles
Replaceable Parts	Remote control, fuse (if applicable)
Warranty	Limited 1-year warranty
Additional Features	LED display, sleep mode, cool touch exterior

Frequently Asked Questions - FA8900 SUNBEAM

How do I assemble the Sunbeam FA8900 tower fan?

To assemble, first attach the base to the fan body by aligning the slots and twisting clockwise until secure. Then, insert the power cord through the base opening. No tools are required. Refer to the manual for detailed diagrams.

How do I clean the fan?

Unplug the fan before cleaning. Use a soft, damp cloth to wipe the exterior. For the grilles, a vacuum cleaner with a brush attachment can remove dust. Do not immerse the fan in water or use harsh chemicals.

The remote control is not working. What should I check?

First, ensure the remote has fresh batteries (CR2025 or equivalent). Point the remote directly at the fan's receiver, within 16 feet. Remove any obstructions. If still not working, try resetting the fan by unplugging it for 30 seconds.

How do I set the timer?

Press the Timer button repeatedly to cycle through 1, 2, 4, or 8 hours. The display will show the selected time. The fan will automatically turn off after the set duration.

Can I use the fan outdoors?

No, the Sunbeam FA8900 is designed for indoor use only. Exposure to moisture or extreme temperatures can damage the fan and pose a safety risk.

Why does the fan shut off unexpectedly?

The fan has a tip-over safety switch. If it is bumped or tilted, it will shut off. Also, overheat protection may activate if the motor is blocked. Ensure the fan is on a stable, level surface and the air intake is not obstructed.

How do I adjust the speed?

Press the Speed button on the fan or remote to cycle through Low, Medium, and High. The corresponding speed indicator light will illuminate.

Is the fan noisy?

Noise levels vary by speed. On low, it operates quietly (around 45 dB). On high, it may produce a typical fan hum (up to 55 dB). If you hear rattling, check that the base and housing are properly tightened.

Can I replace the remote control?

Yes, replacement remotes can be purchased from Sunbeam customer service or authorized retailers. The part number is typically listed in the manual. Use the same model to ensure compatibility.

What should I do if the fan wobbles?

Ensure the fan is on a flat, solid floor. Check that the base is securely attached. If wobbling persists, the fan may be placed on an uneven surface; try moving it to a different location.

USER MANUAL FA8900 SUNBEAM

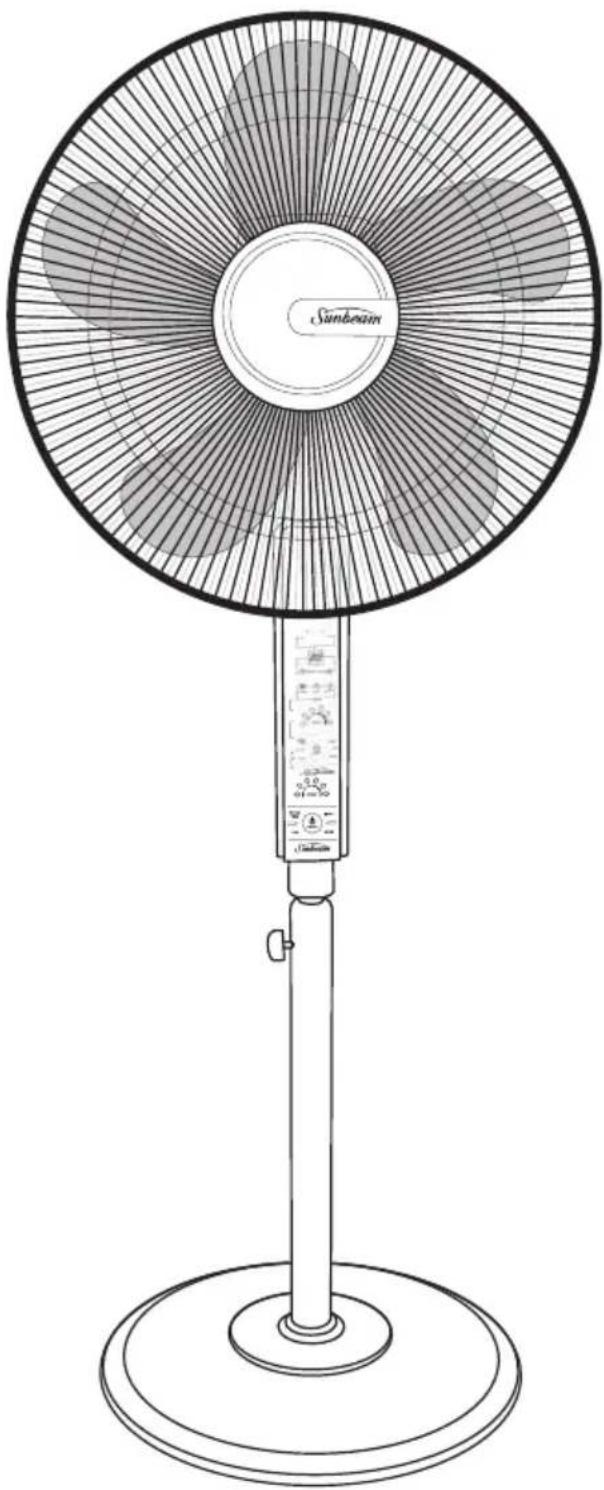

Sunbeam Pedestal Fan with Remote Control

Instruction Booklet

FA8900 40cm Pedestal Fan

Please read these instructions carefully and retain for future reference.

Line drawing of a Sunbeam air conditioner fan with radial blades and base (no text or symbols)

Contents

Sunbeams Safety Precautions 1

Safety Precautions For Your Pedestal Fan 2

Locating Your Pedestal Fan 3

Features of Your Pedestal Fan 4

Parts Identification 5

Assembling Your Pedestal Fan 6

Remote Control 8

Using Your Pedestal Fan 9

Care And Cleaning 12

Important instructions – retain for future use.

Sunbeam's Safety Precautions

Sunbeam is very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are important precautions for the safe use of an electrical appliance.

• Read carefully and save all the instructions provided with an appliance.
• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug when the appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The temperature of accessible surfaces may be high when the appliance is operating.

• Never leave an appliance unattended while in use.

• Do not use an appliance for any purpose other than its intended use.

• Do not place an appliance on or near a hot gas flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
• Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair or adjustment.
• For additional protection, Sunbeam recommend the use of a residual current device (RCD) with a tripping current not exceeding 30mA in the electrical circuit supplying power to your appliances.
• Do not immerse the appliance in water or any other liquid unless recommended.
• Appliances are not intended to be operated by means of an external timer or separate remote control system.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

If you have any concerns regarding the performance and use of your appliance, please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line. Ensure the above safety precautions are understood.

Safety Precautions For Your Pedestal Fan

• Do not use outdoors.
• Do not run the cord of the fan under carpeting. Do not cover the cord with throw rugs, runners or other floor coverings. Arrange the cord away from traffic areas so that it will not be tripped over.
• Do not use this fan in the immediate surrounds of a bath, shower, laundry area or swimming pool.
• Be sure the fan is placed on a dry, even surface. Do not use on soft surfaces, such as beds, where opening may become blocked.
• When operating with the oscillation function, do not place the fan in a position that may restrict or impede its movement.
• Keep your fan away from heat sources, corrosive gases and avoid direct sunlight.
• This fan is only to be used with the base fitted and in good condition.
• Disconnect the power plug before dismantling, assembling or before cleaning.

• Always unplug the fan when not in use.
- The fan must not be used if the guards are damaged in any way.
- Do not insert or allow foreign objects to enter any ventilation or exhaust openings as this may cause electric shock or fire, or damage to the fan.
- Never insert fingers or any other objects through the guards whenever the power plug is connected, especially while running.
- Avoid touching mobile parts of the fan.
- Do not attempt to move your fan whilst it is operating. If your fan needs to be moved, please ensure that it is turned off and you use the carry handle on top of the pedestal.
- When disposing of the fan at the end of its useful life, follow local regulations.
- Do not coil the power cord too tightly around the air cooler, as this may damage the cord.

Locating Your Pedestal Fan

1. Always locate your fan on a level surface.

2. Your pedestal fan should be located in a dry, cool, well ventilated location. Keep your fan away from heat sources, corrosive gases and avoid direct sunlight.

3. Do not attempt to move your pedestal fan whilst it is operating. If your fan needs to be moved, please ensure that it is turned off and you use the carry handle on top of the fan.

Features Of Your Sunbeam Pedestal Fan

Metal Grille

Easily assembled, 50cm secure grille.

Plastic Fan Blades

5 blades to effectively move the air about your room.

Control Panel

Simply press the on/off button to turn the unit on. Use the other buttons to select wind mode, timer, speed and oscillation functions.

Solid Base

Makes your pedestal fan secure.

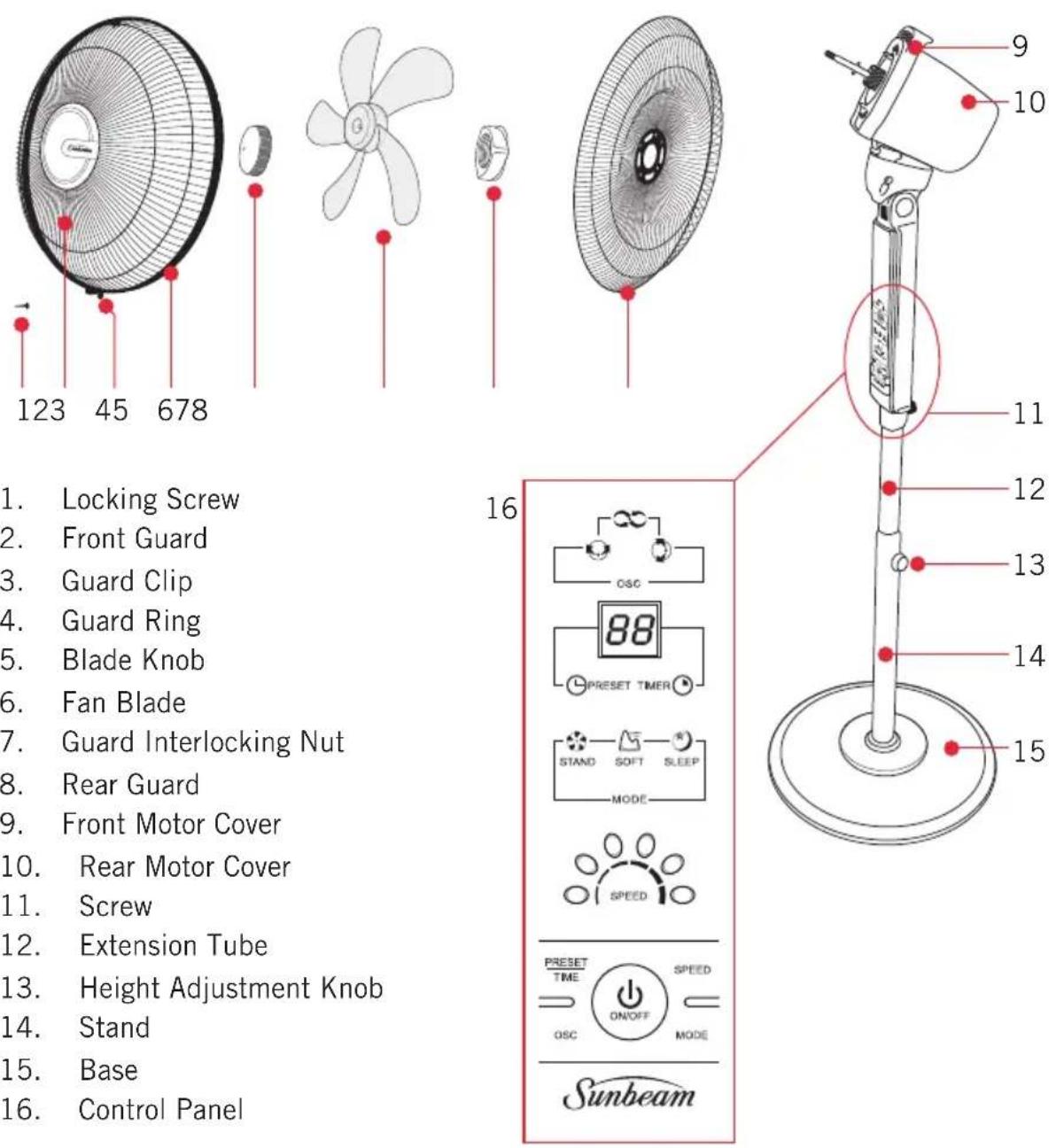

Parts Identification

1. Locking Screw
2. Front Guard
3. Guard Clip
4. Guard Ring
5. Blade Knob
6. Fan Blade
7. Guard Interlocking Nut
8. Rear Guard
9. Front Motor Cover
10. Rear Motor Cover
11. Screw
12. Extension Tube
13. Height Adjustment Knob
14. Stand
15. Base
16. Control Panel

Assembling Your Pedestal Fan

1. Unpack all the components from the box.
2. Unfasten the interlocking nut and blade knob from the front of the motor (See Figure 2) and place to one side.

Technical illustration of a mechanical device with a rotating fan and directional arrow (no text or symbols)

Figure 1

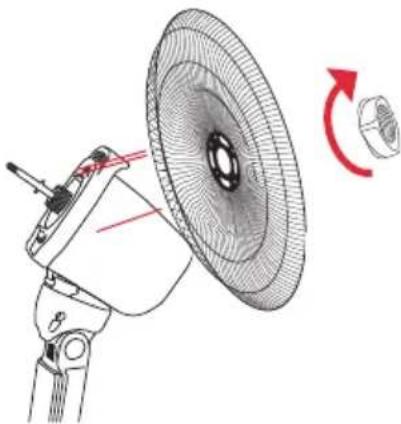

1. Attach the rear fan blade grill and ensure it is in the correct orientation with the "UP" and the two holes aligned at the top (See Figure 1). Firmly screw on the interlocking nut.

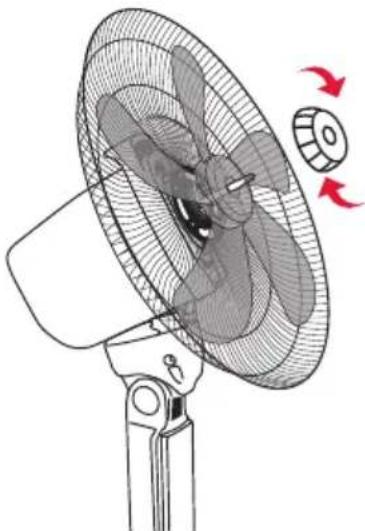

2. Mount the fan blade onto the motor shaft; and fasten the blade knob firmly by turning in an anti-clockwise direction. See Figure 2.

Line drawing of a fan with blades and a rotating knob, showing motion arrows (no text or symbols)

Figure 2

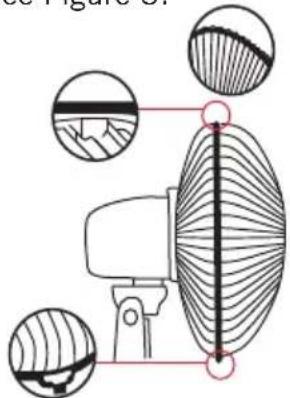

1. Open the front guard clip and attach the fan blade grill with the "UP" word (which appears on the inside of the grill), the Sunbeam logo should be straight. Push the round edges of the grill firmly together with the back grill and lock the clip. Using a Phillips head screwdriver, tighten the screw provided. See Figure 3.

Figure 3

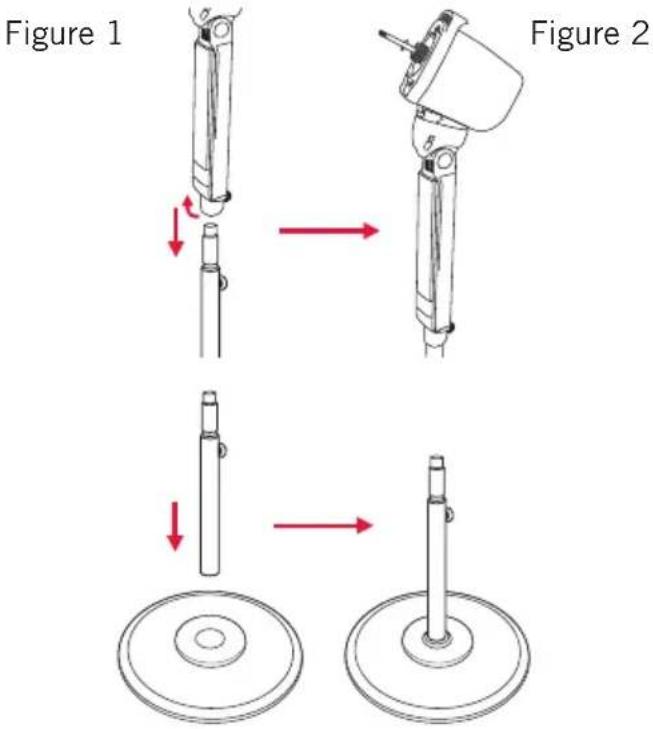

Connecting The Base

1. Locate the moulded securing knob.
2. Insert the lower extension shaft firmly into the base and attach the moulded securing knob to the underside of the base and tighten. (Refer Figure 1).

Attaching the body and base

1. Remove the screw from the upper fan shaft. Place to one side.
2. Insert the upper fan shaft onto the lower extension shaft and insert the screw and firmly tighten. Ensure the stand body is completely interlocked with the base. (Refer Figure 2).

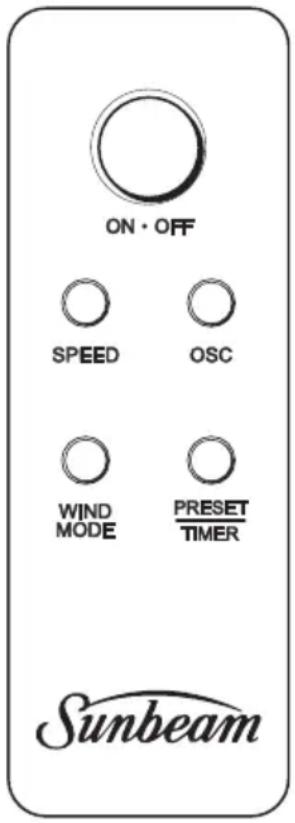

Remote Control

Remote control

Operates within 8 metres of the Pedestal Fan.

Fan speed button

Choose from 3 speed settings, low medium or high.

Wind Mode

You have a choice of 2 Nature or Sleep airflow types.

When used in nature mode, the fan speed is randomly adjusted, giving the feeling of a natural breeze.

When set to Sleep Mode the fan speed decreases after 30 minutes from high to medium, then medium to low. When used with the timer, will ultimately switch the unit off.

Oscillation

Your pedestal fan oscillates 70^ , distributing cool air throughout the room.

Preset/Timer

The preset timer allows you to set your pedestal fan to turn on/off after 1,2,4 or 8 hours.

Using the remote control

1. Point the remote towards the control panel on the front of the pedestal to operate.

Inserting or changing the batteries

1. Slide the rear cover off the remote control unit.
2. Insert the 2 AAA batteries provided with your pedestal fan.
3. Replace the rear cover.

Using Your Pedestal Fan

1. Place the pedestal fan on a flat level surface
2. Adjust the height by turning the height adjustment knob, located on the lower extension shaft.

Note: Ensure the knob is tightened firmly at all times. Insert the plug into a 230/240 V power outlet and turn the power on.

1. Press the on/off button on the fan or the remote control. The fan will start at 'medium' speed for 3 seconds then automatically change to 'low' speed.

Selecting a fan speed

1. To select a fan speed simply press the 'speed' button, on either the fan or remote control, repeatedly to select the desired speed from the 6 settings available.

The LED lights indicate the graduated speed on the dial below.

- If you will not be using the fan for a length of time, it is advisable to turn the power off at the wall socket and unplug the power cord.

Oscillation

Press the oscillation button to choose from three options of wind direction:

horizontal direction

vertical direction

wave or figure 8 direction

To turn oscillation off, press the oscillation button again.

Timer

Pre-set to turn on

To pre-set the timer to turn the fan on, place the fan in “standby” mode (on at the power outlet but off on the fan) press the preset/timer button and select the required time (in half hour increments up to 2 hours, then hourly up to 10 hours). When the preset time is reached, the fan will switch ON automatically.

Note: The time must be set when the preset indicator blinks 3 times. The selected time is set once the blinking has ceased.

Pre-set to turn off

To pre-set the time to turn the fan off, press the preset/timer button to switch to timer mode. Press the timer button once to set the desired time for the fan to cease operating. When this set time is reached, the fan will switch OFF automatically. The timing intervals are the same as to turn the fan on. Press timer button again to switch back to preset mode.

Note: You may also pre-set your fan to turn off whilst in stand by mode.

WIND MODES

Press the mode button to select the desired airflow type in sequence:

Stand mode STAND

The Fan will operate at the selected speed.

Soft mode SOFT

The fan will gradually change the speed for a more natural airflow. This speed provides an extra level of comfort by simulating the natural rise and fall of the wind over time and can be used on any speed setting.

Sleep mode

Is identical to Soft mode with the advantage that the set fan speed gradually decreases every 30 minutes.

Care and Cleaning

• Ensure that your pedestal fan is switched off and disconnected from the power outlet before cleaning.

• Carefully wipe your fan using a clean soft cloth. Do not use abrasive cleaners or brushes to clean the fan as these will scratch and damage the surface

• Take care that excessive dust does not build up in or around the motor body. Use a dry soft brush or vacuum cleaner to remove it.

• Do not allow the motor or other electrical components to be exposed to water.
• Always store your fan in a cool dry place when not in use, preferably in the original box.

2 Year Replacement Guarantee

In the unlikely event that this appliance develops any malfunction within 2 years of purchase (3 months commercial use) due to faulty materials or manufacture, we will replace it for you free of charge.

Should you experience any difficulties with your appliance, please phone our customer service line for advice on 1300 881 861 in Australia, or 0800 786 232 in New Zealand. Alternatively, you can send a written claim to Sunbeam at the address listed below. On receipt of your claim, Sunbeam will seek to resolve your difficulties or, if the appliance is defective, advise you on how to obtain a replacement or refund.

Your Sunbeam 2 Year Replacement Guarantee naturally does not cover misuse or negligent handling and normal wear and tear.

Similarly your 2 Year Replacement Guarantee does not cover freight or any other costs incurred in making a claim. Please retain your receipt as proof of purchase.

The benefits given to you by this guarantee are in addition to your other rights and remedies under any laws which relate to the appliance.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law and under the New Zealand Consumer Guarantees Act.

In Australia you are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Should your appliance require repair or service after the guarantee period, contact your nearest Sunbeam service centre.

For a complete list of Sunbeam's authorised service centres visit our website or call:

Australia

www.sunbeam.com.au

1300 881 861

Units 5 & 6, 13 Lord Street

Botany NSW 2019 Australia

New Zealand

www.sunbeam.co.nz

0800 786 232

26 Vestey Drive, Mt Wellington

Auckland, New Zealand
